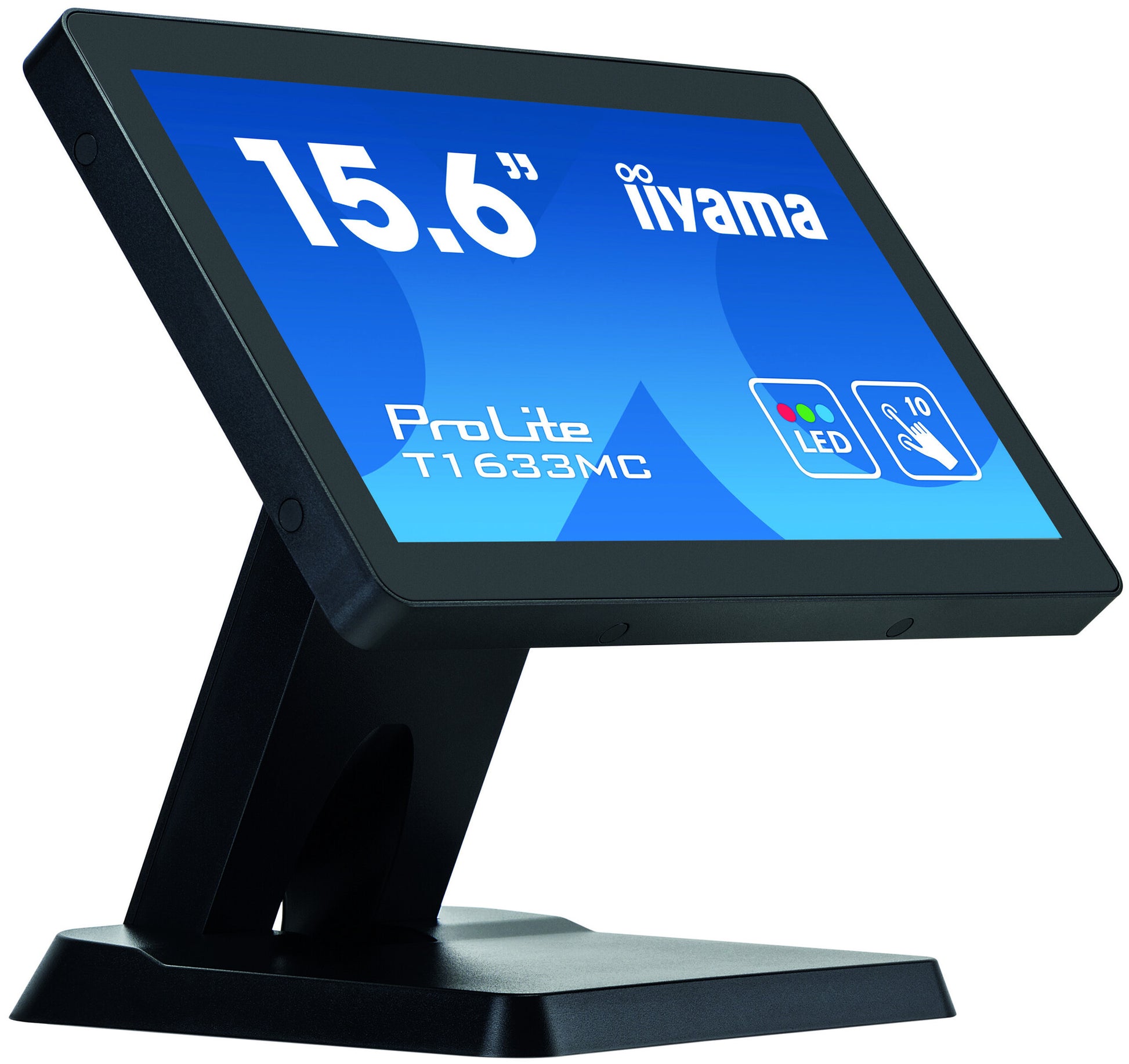

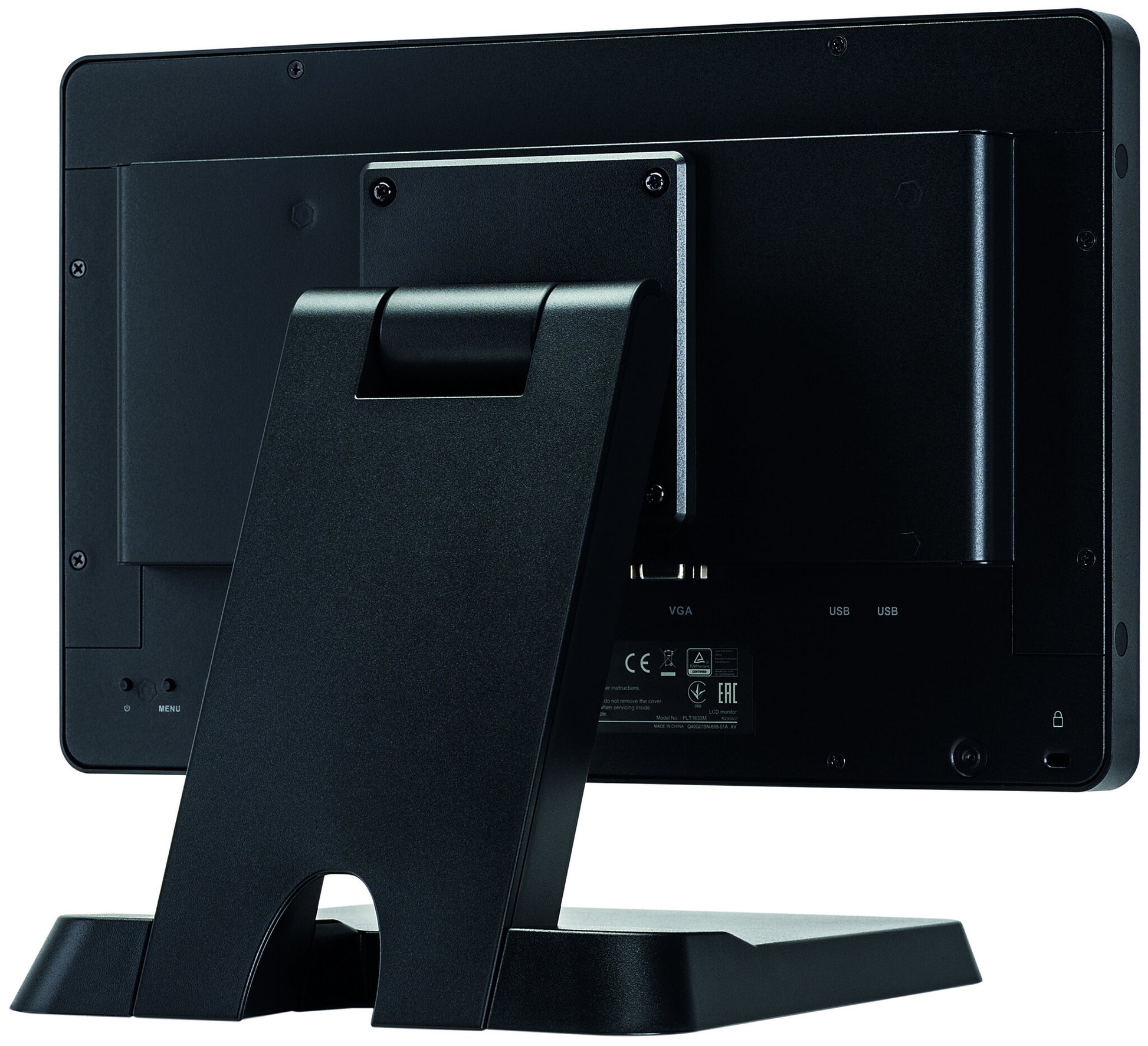

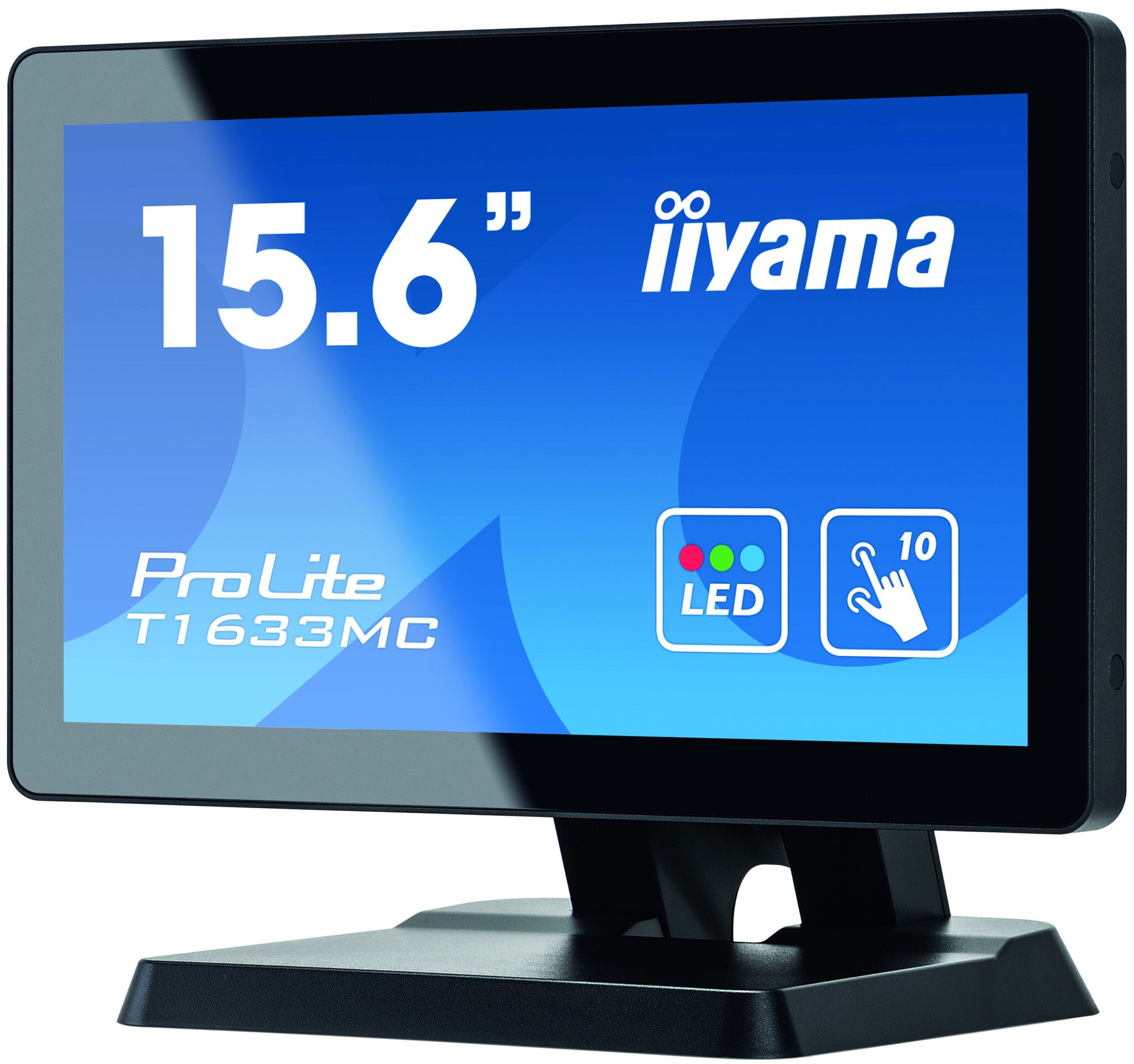

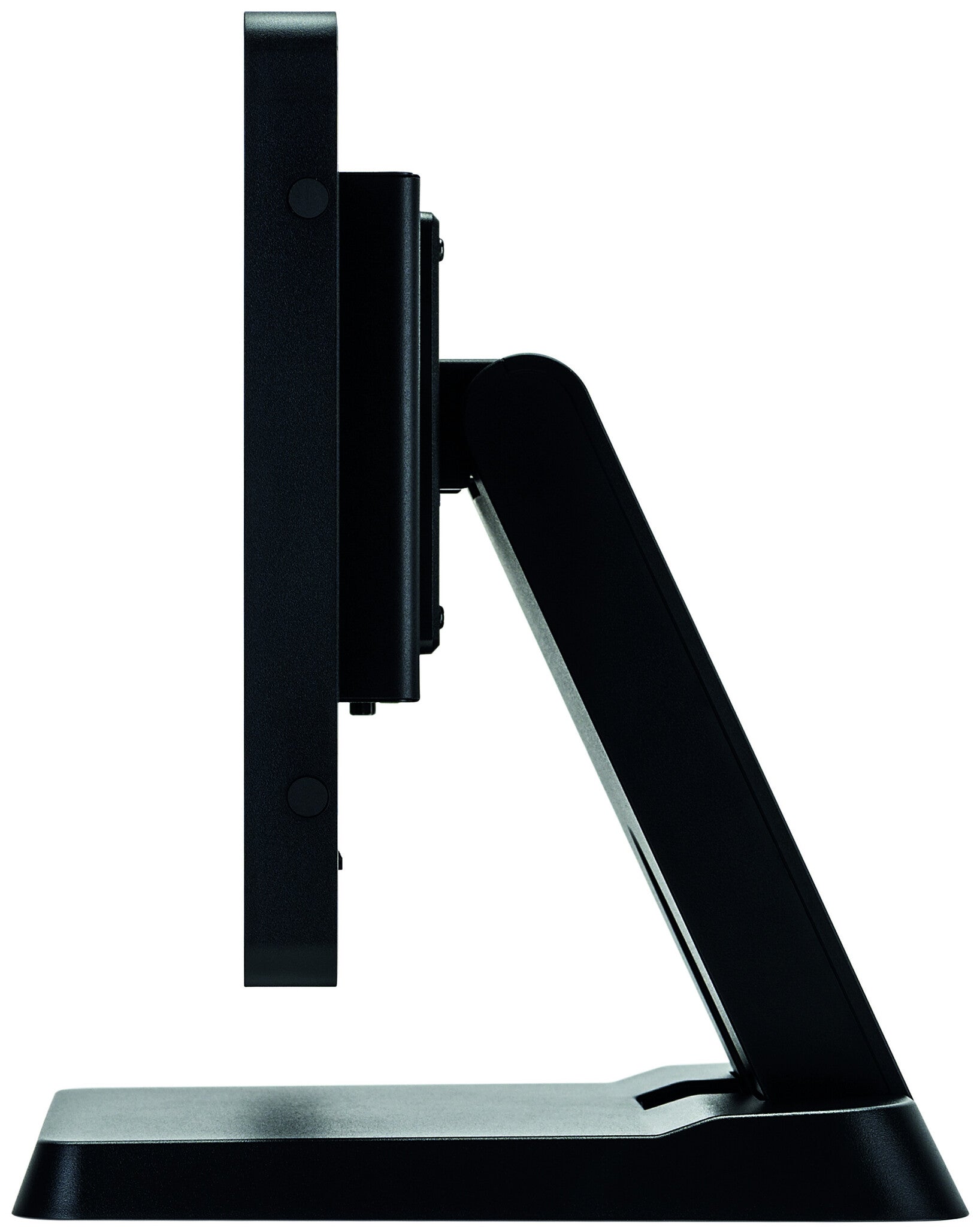

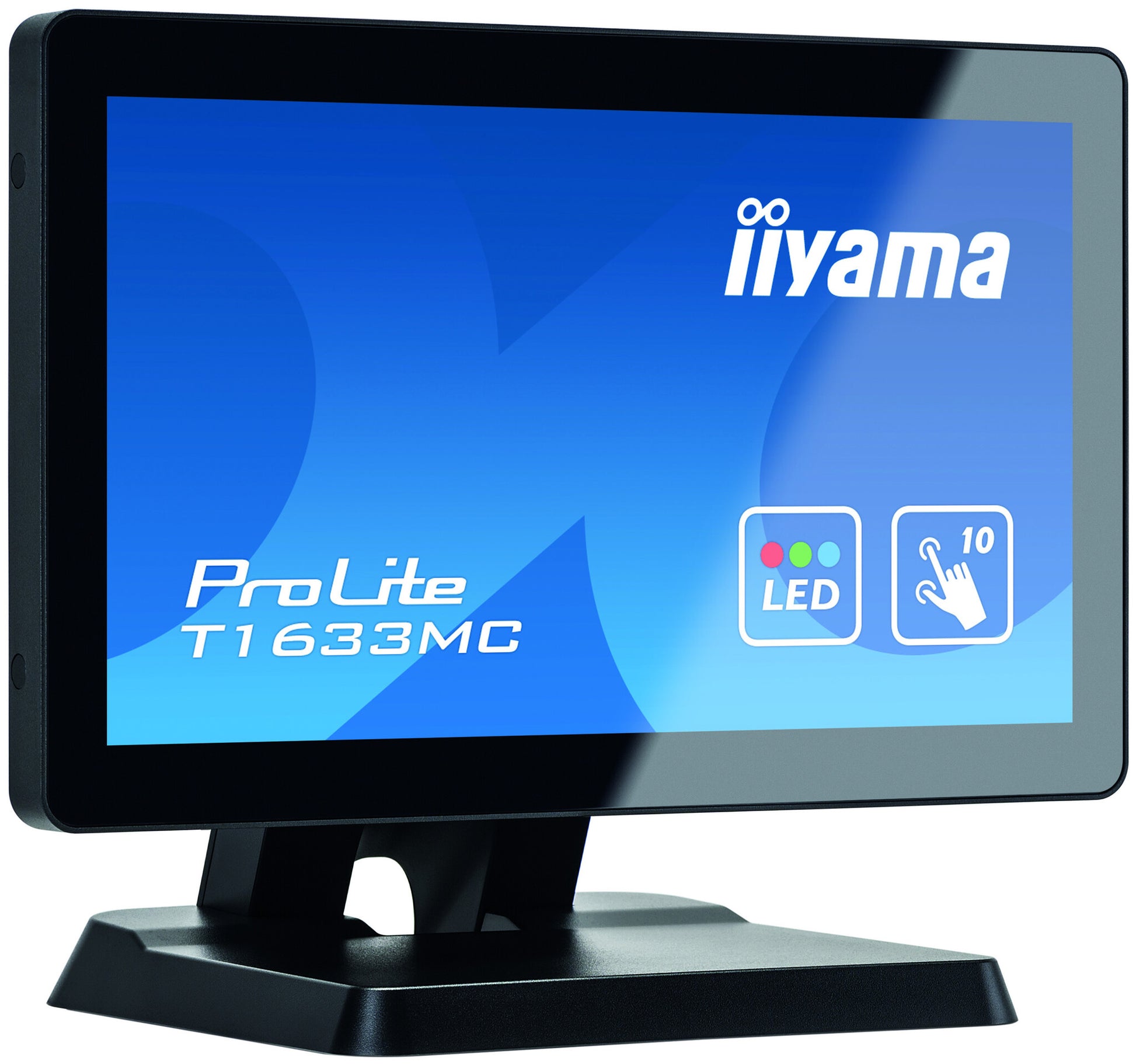

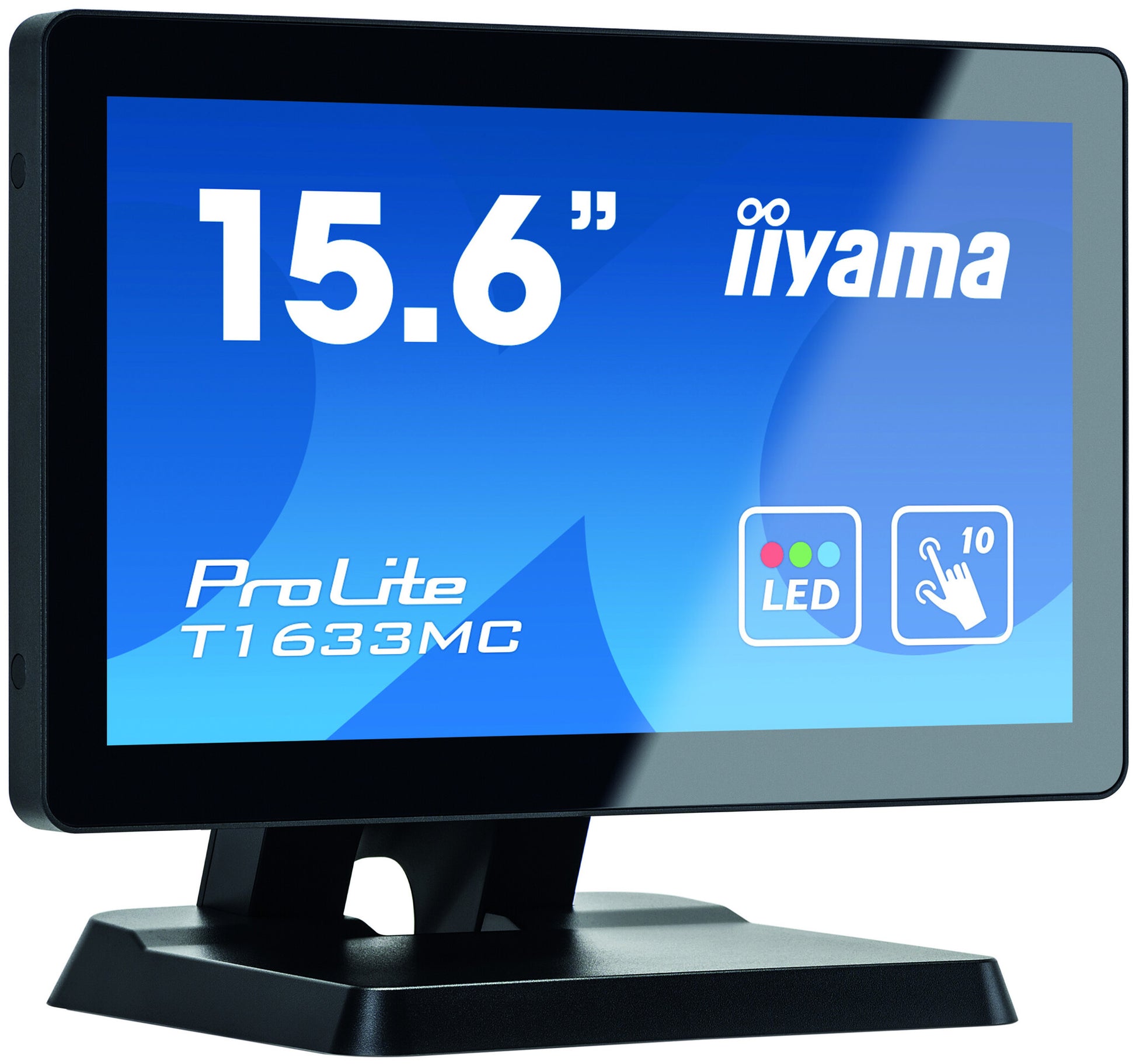

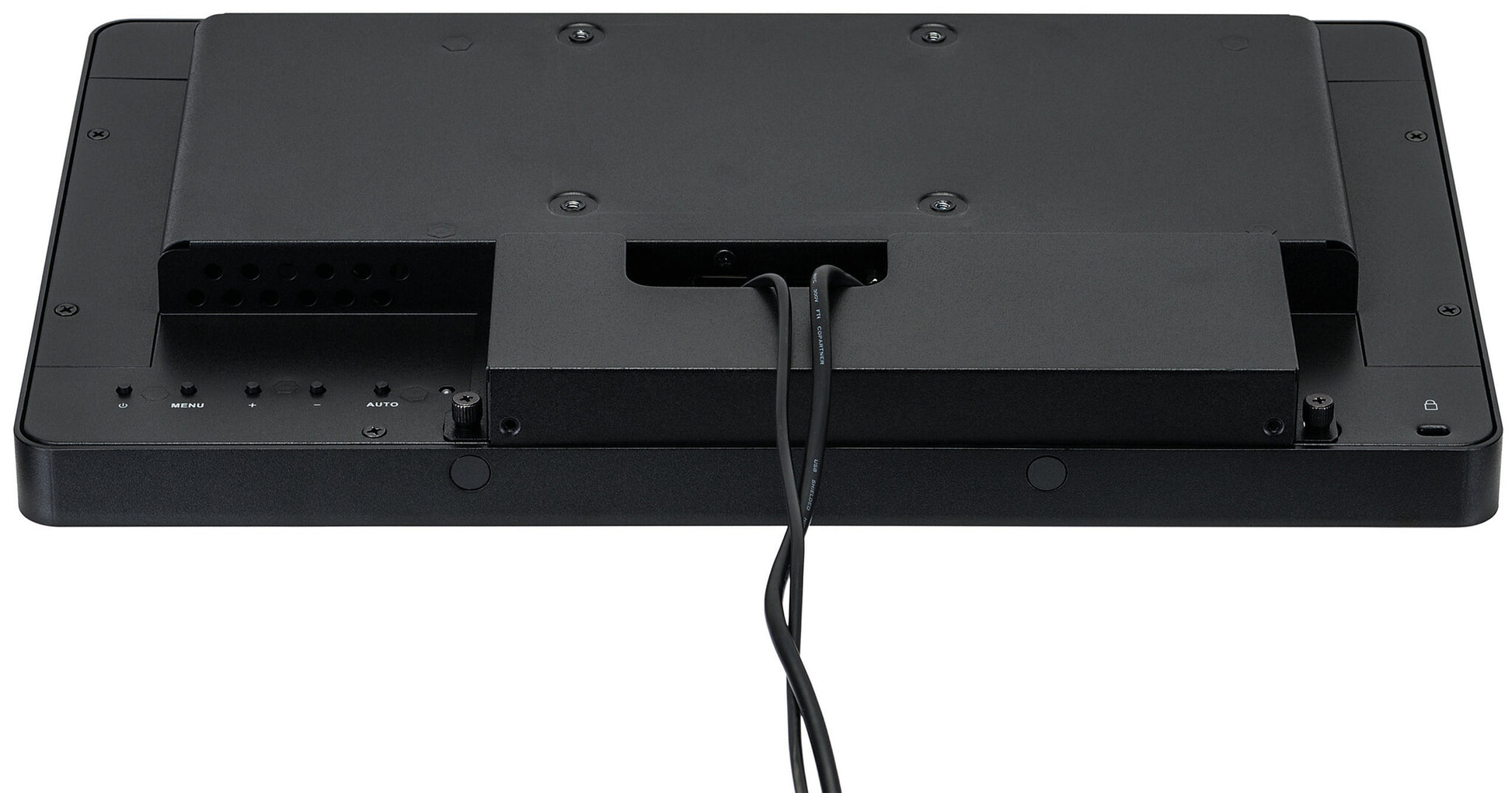

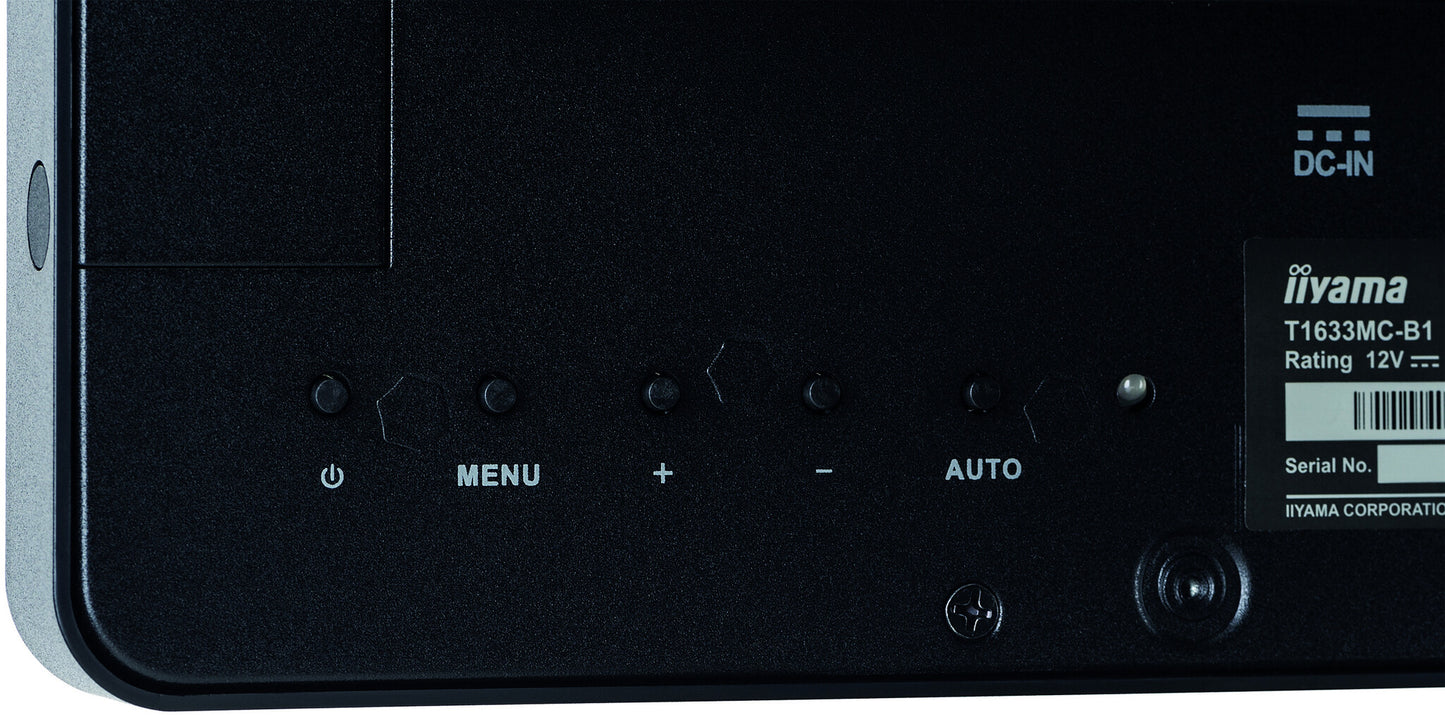

iiyama T1633MC-B1

iiyama T1633MC-B1

T1633MC-B1, 15.6", 1366x768, 16:9, TN LED, 8 ms, USB 2.0, VGA, HDMI, DP, HDCP, 389x312.5x254 mm

  • Touchscreen 39.6 cm (15.6") LED
  • 1366 x 768 pixels 16:9
  • 60 Hz 8 ms 500:1
  • F 13 kWh 13.5 W
  • SKU:4948570116393
  • GTIN/EAN:4948570116393
  • MPN:T1633MC-B1

You need to login to view the price.

Add To Favorite
View full details

iiyama ProLite T1633MC-B1. Display diagonal: 39.6 cm (15.6"), Display resolution: 1366 x 768 pixels, Display technology: LED, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 160°, Viewing angle, vertical: 160°. Product colour: Black

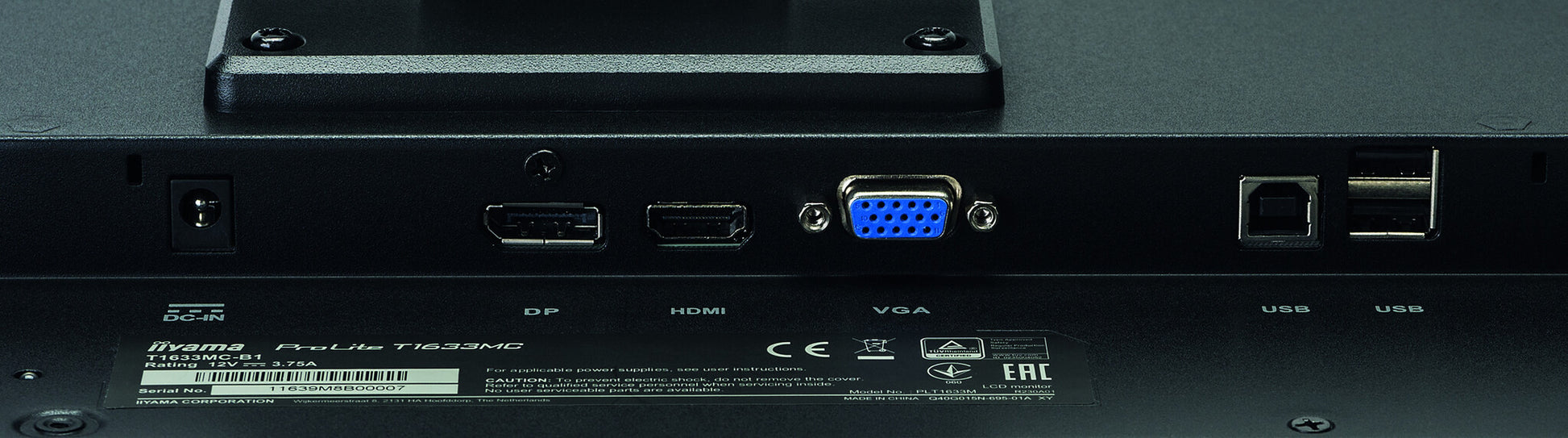

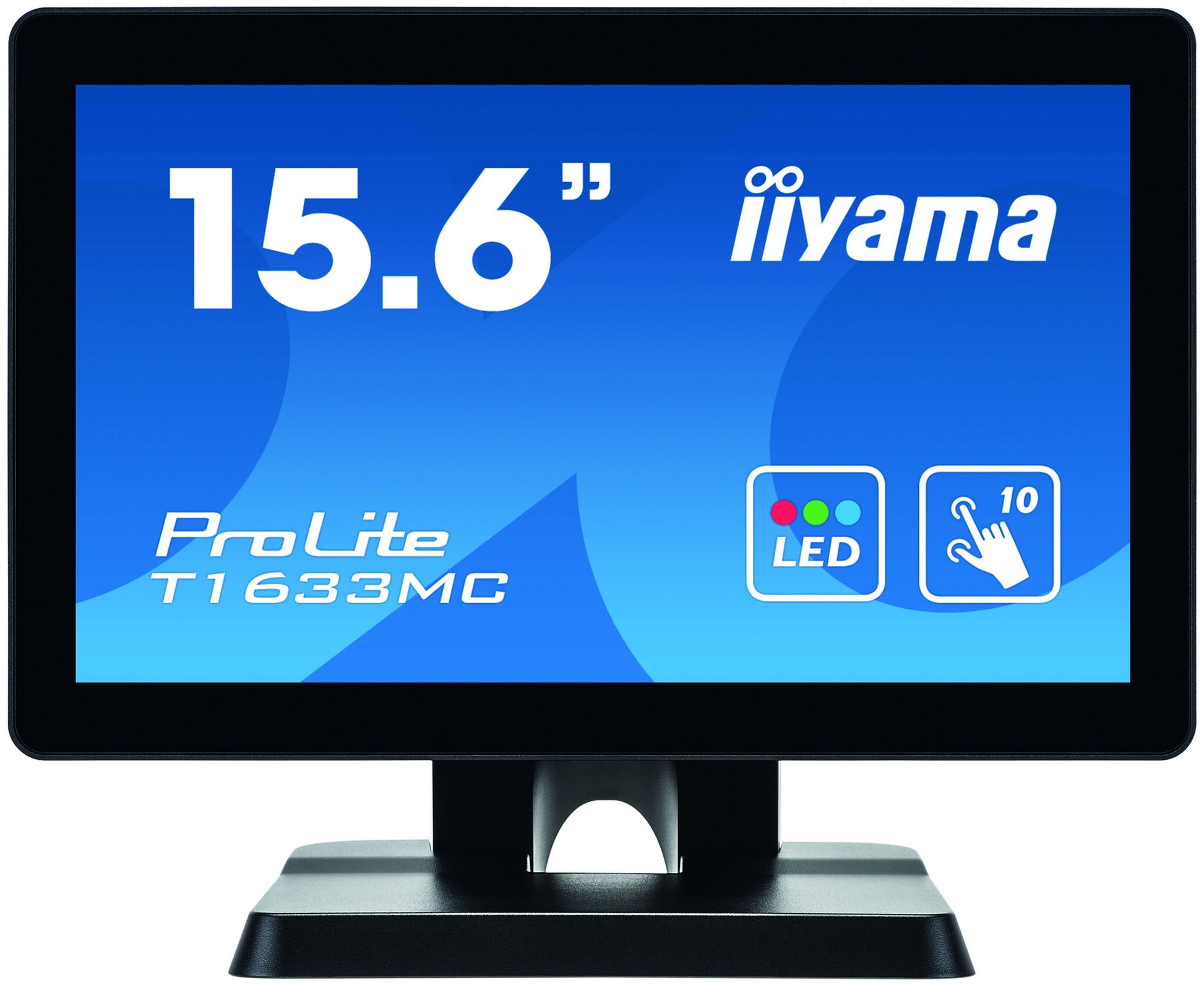

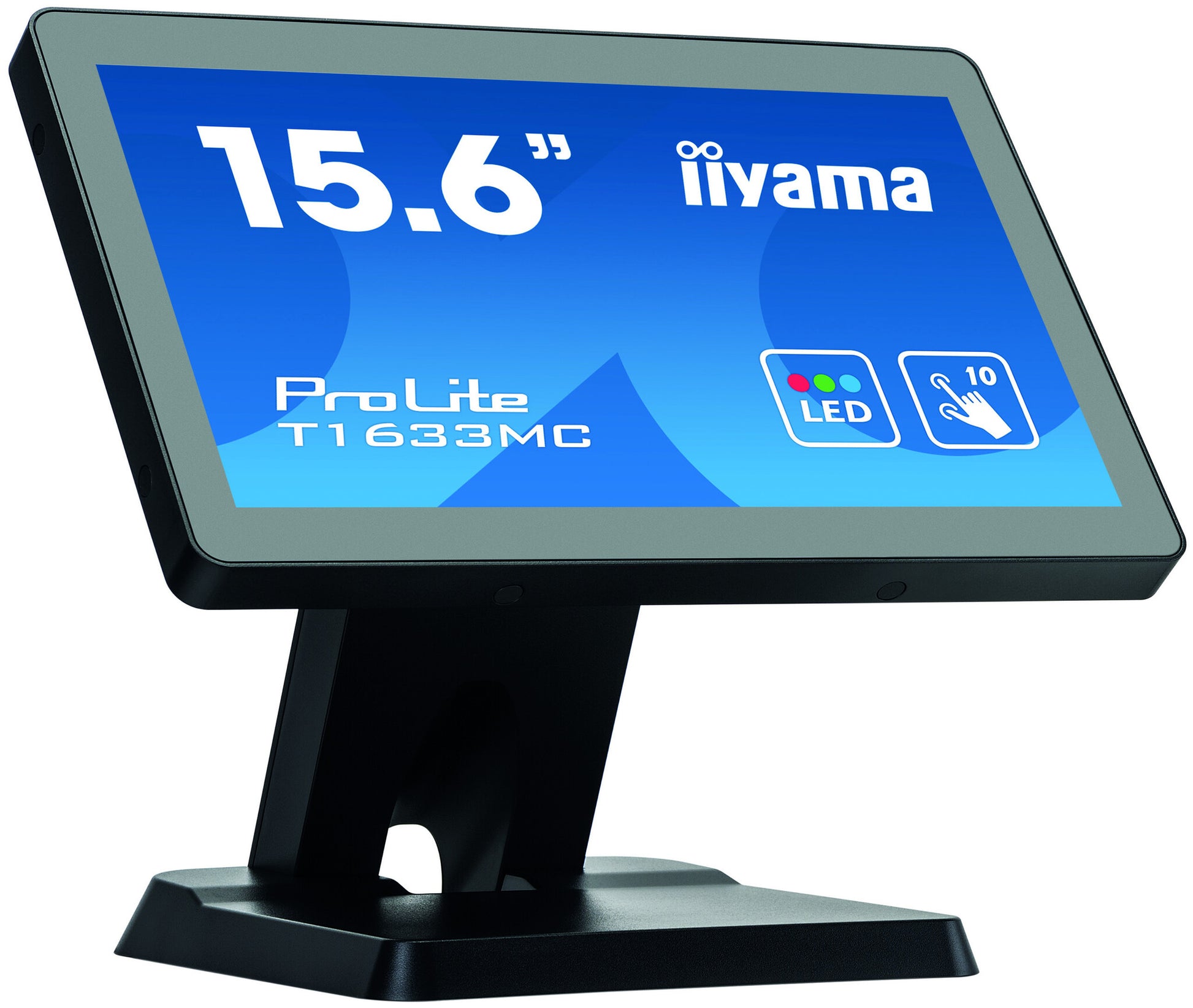

The 15.6” LED-backlit ProLite T1633MC-B1 uses Projective Capacitive Multi-Touch Technology and is built into an eye catching bezel with edge-to-edge glass. The screen features a 1366 x 768 resolution, triple inputs (HDMI, DisplayPort, VGA) and USB Hub, comes with a rugged bezel and IP54 rated front making it suitable for demanding environments.The ProLite T1633MC-B1 is the ideal solution for in-store retail and kiosk integration.

TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.

LED-BACKLIT
A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.

Display
Separate H/V sync
Y
Vertical scan range
56 - 75 Hz
Horizontal scan range
31.4 - 60.3 kHz
Display number of colours
16.78 million colours
Maximum refresh rate
60 Hz
Contrast ratio (typical)
500:1
Aspect ratio
16:9
Screen shape
Flat
Display brightness
255 cd/m²
Supported graphics resolutions
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 768 (WXGA), 1366 х 768
Response time
8 ms
Touchscreen technology
Projected capacitive system
Display resolution
1366 x 768 pixels
Display diagonal
39.6 cm (15.6")
Performance
Blue light filter
Y
OmniTapps Multitouch compatibility
N
AMD FreeSync
N
NVIDIA G-SYNC
N
Design
Certification
CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH
International Protection (IP) code
IP54
Product colour
Black
Ports & interfaces
USB Type-A downstream ports quantity
1
Number of upstream ports
1
Ergonomics
Tilt adjustment
Y
On Screen Display (OSD) languages
Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian
Number of OSD languages
11
Tilt angle range
5 - 90°
Cable lock slot type
Kensington
Cable lock slot
Y
Wall mountable
Y
Panel mounting interface
100 x 100 mm
Power
Energy efficiency scale
A to G
Power consumption (off)
2 W
Power consumption (standby)
2 W
Power consumption (typical)
13.5 W
Energy consumption (SDR) per 1000 hours
13 kWh
Energy efficiency class (SDR)
F
Operational conditions
Storage relative humidity (H-H)
10 - 90%
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Sustainability
Sustainability certificates
RoHS
Algemeen
Productfamilie
ProLite
Weight & dimensions
Weight (with stand)
4.5 kg
Height (with stand)
254 mm
Depth (with stand)
312.5 mm
Width (with stand)
389 mm
Packaging data
Quick start guide
Y
Cables included
AC, DisplayPort, HDMI, USB
Logistics data
Harmonized System (HS) code
85285210
Other features
Display viewable area (HxV)
344.2 x 193.6 mm
Glass protection
Y
AC adapter included
Y
Surface hardness
HDCP
Y
Display diagonal (metric)
39.5 cm
Built-in microphone
N
Pixel pitch
0.252 x 0.252 mm
Viewing angle, vertical
160°
Viewing angle, horizontal
160°
DisplayPorts quantity
1
HDMI ports quantity
1
HDMI
Y
VGA (D-Sub) ports quantity
1
USB Touch port
Y
Touchscreen type
Multi-user
Touch technology
Multi-touch
Built-in camera
N
Display technology
LED
Native aspect ratio
16:9
Touchscreen
Y
