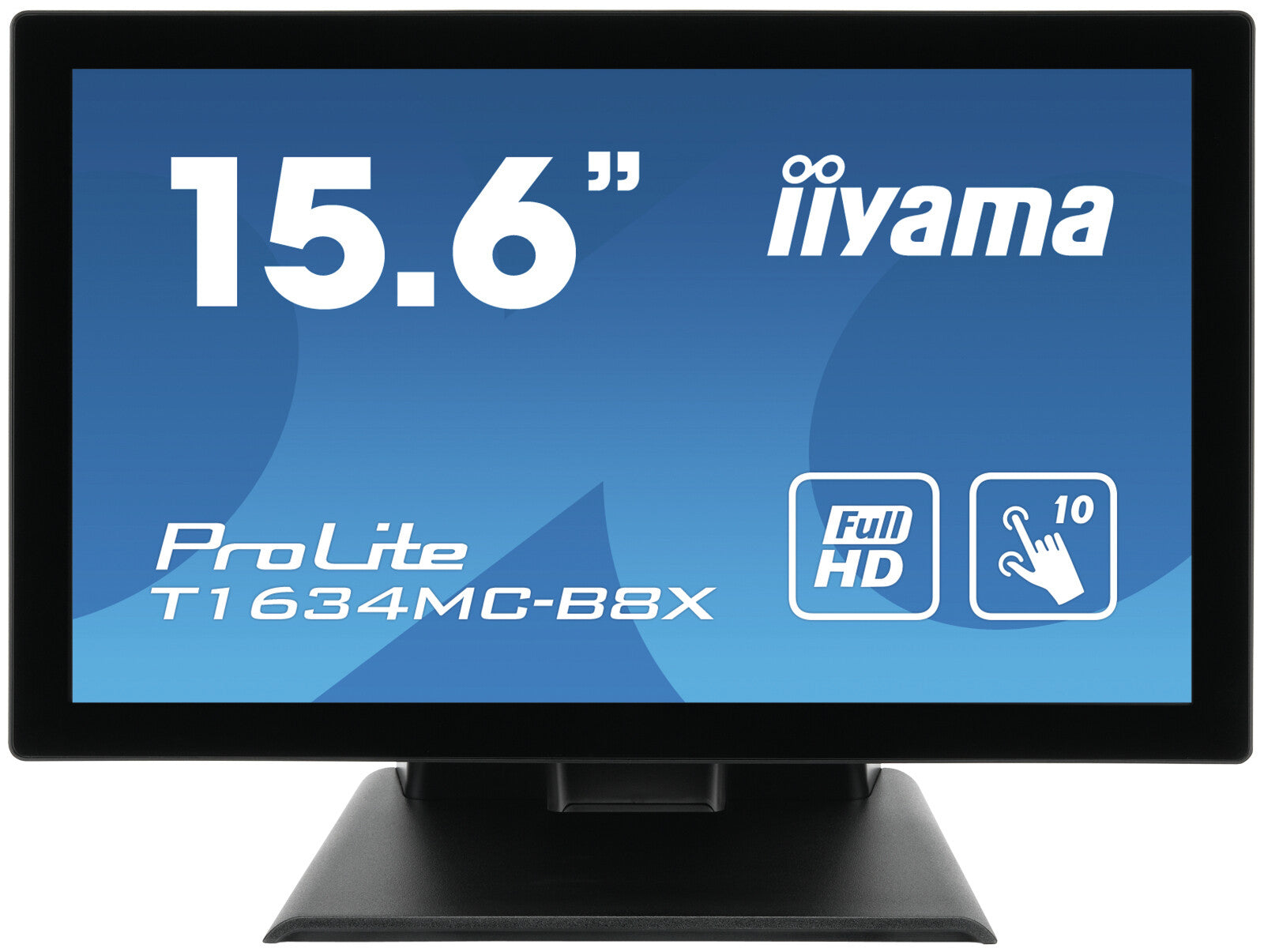

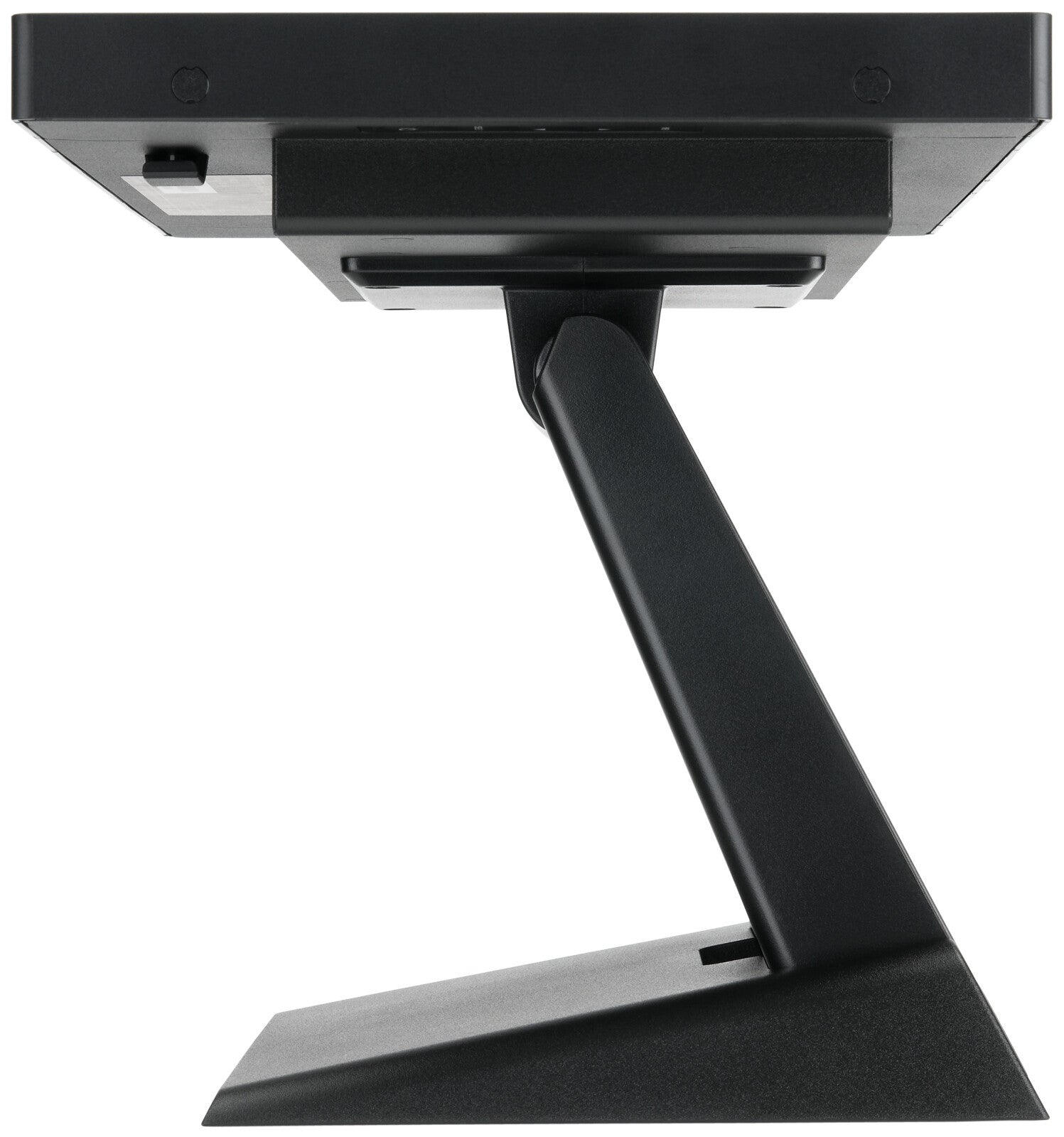

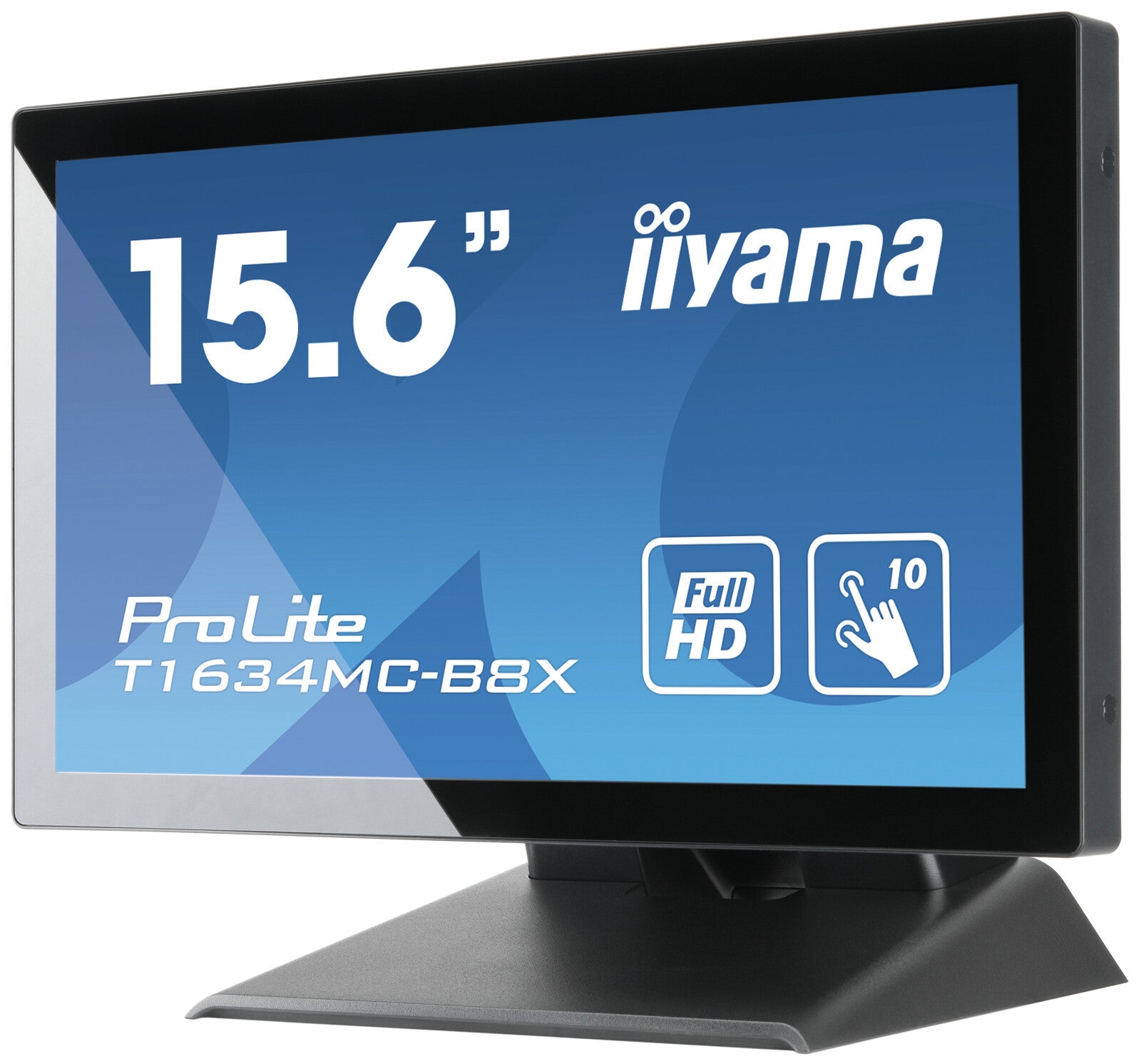

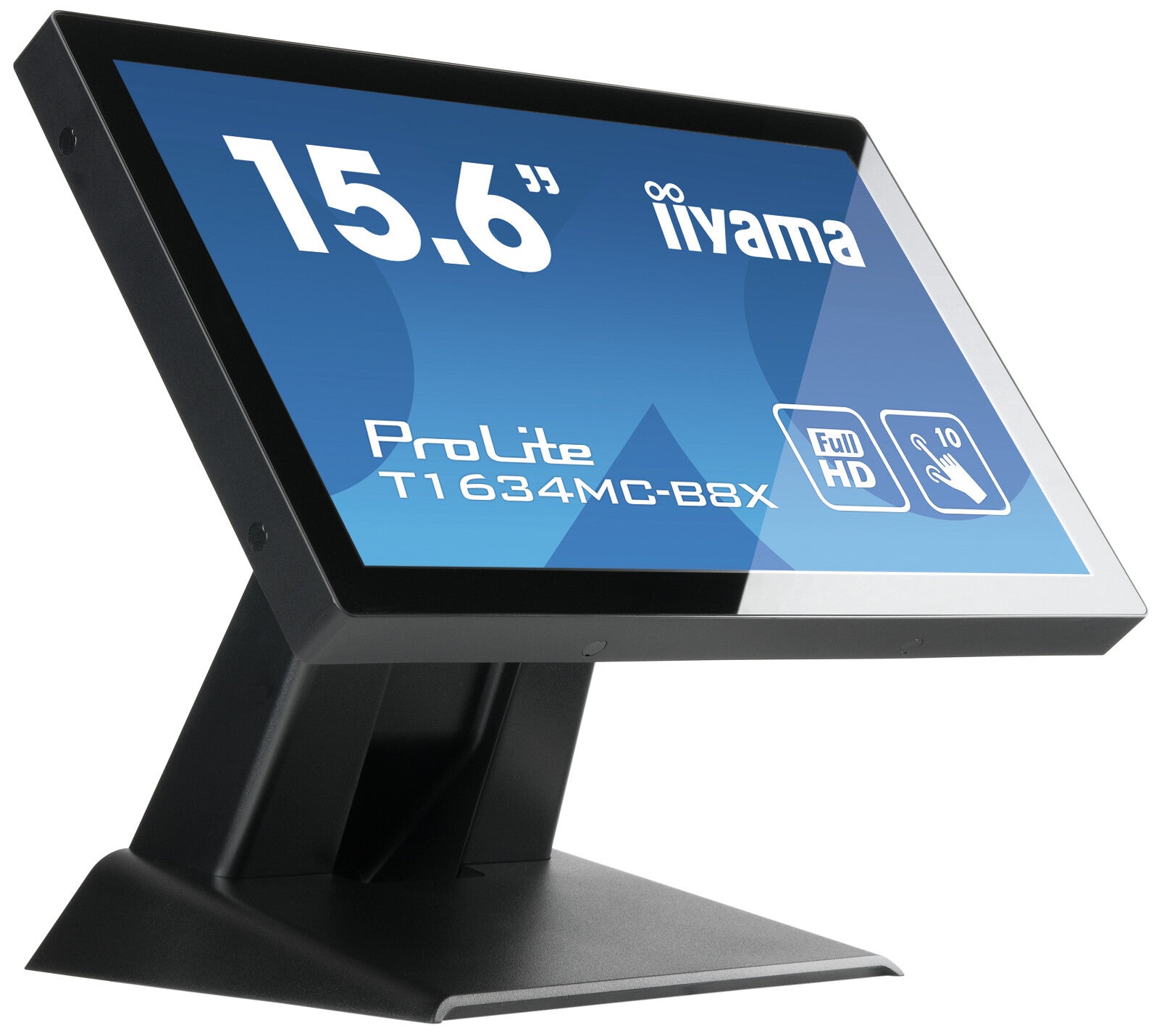

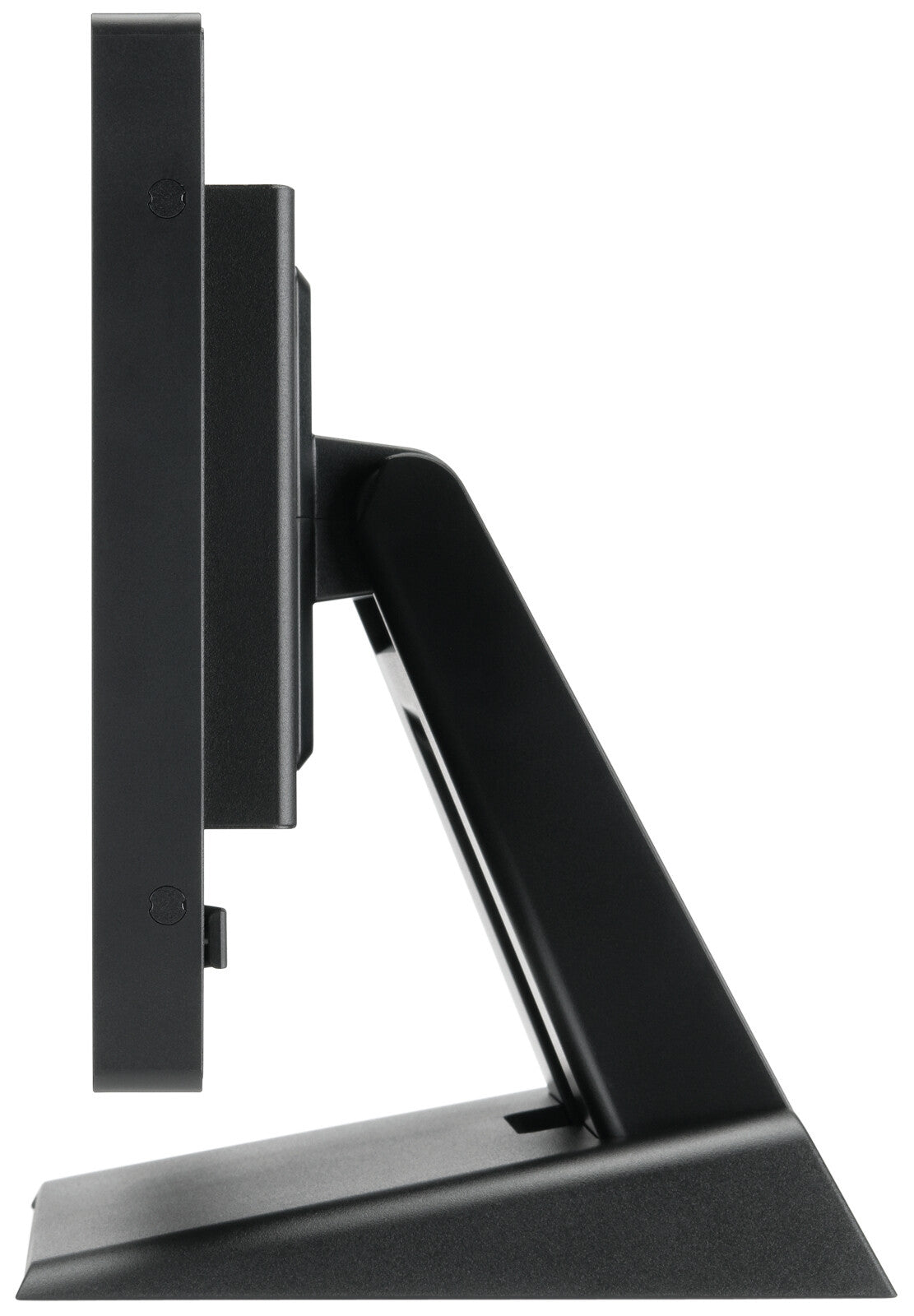

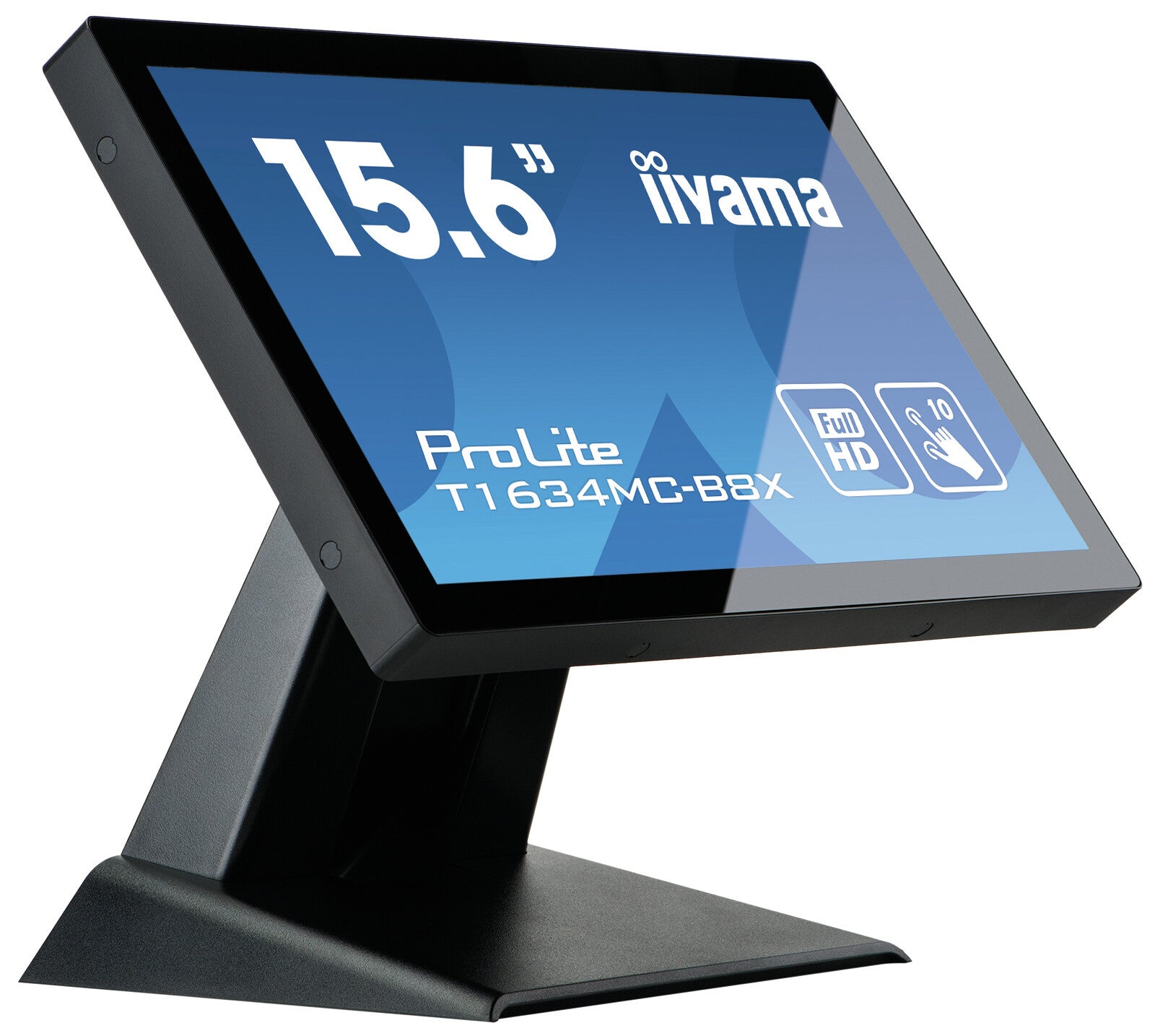

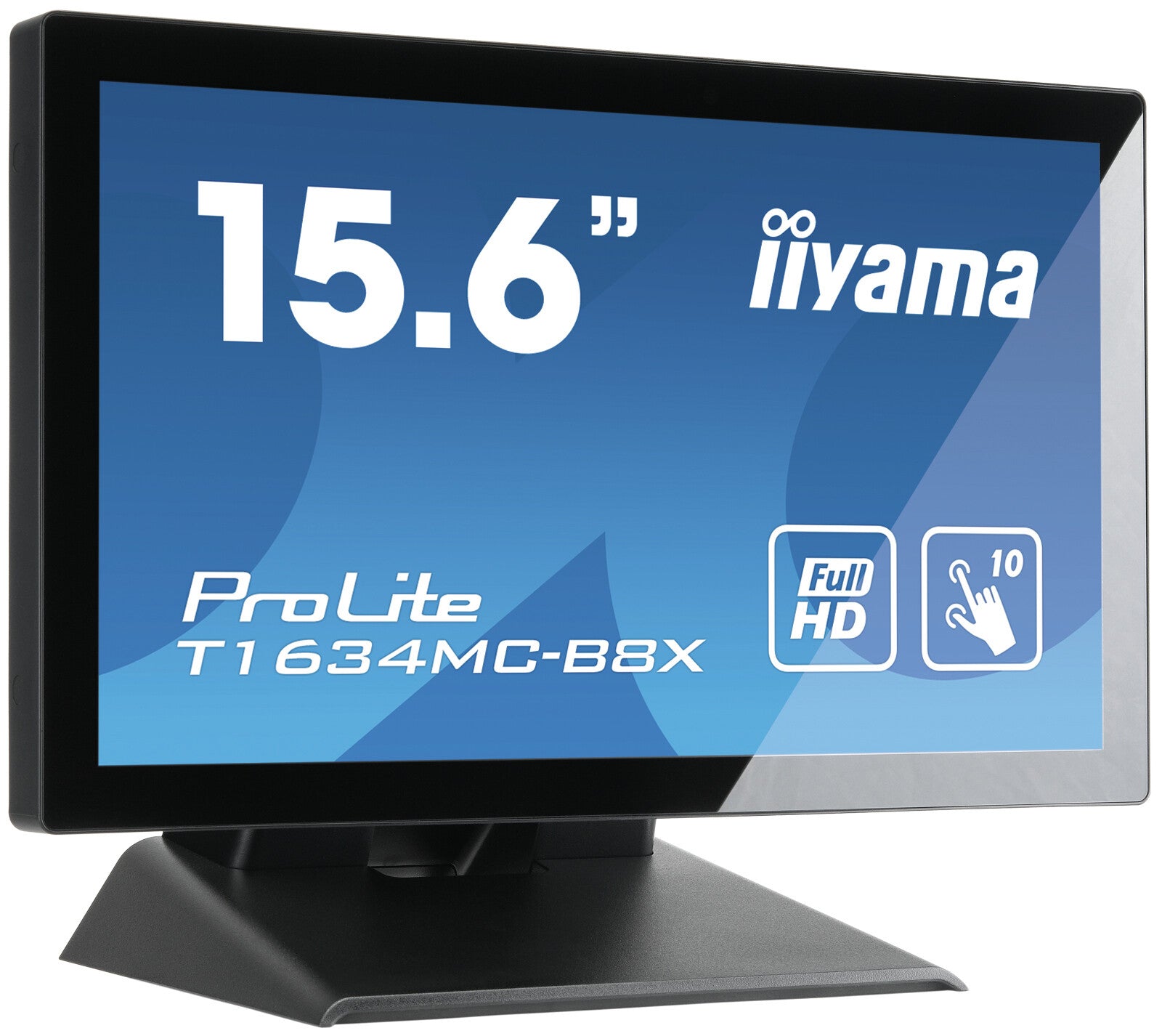

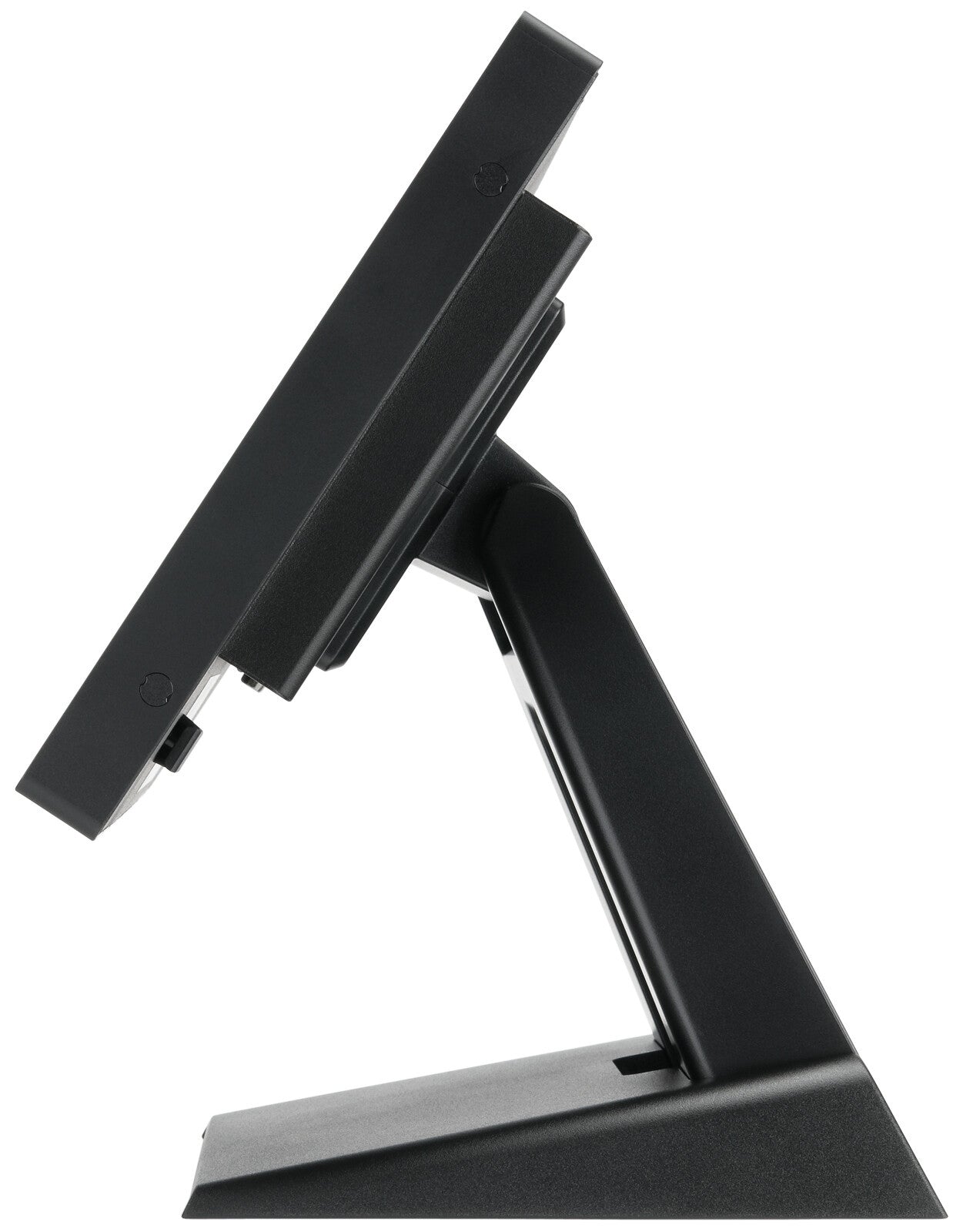

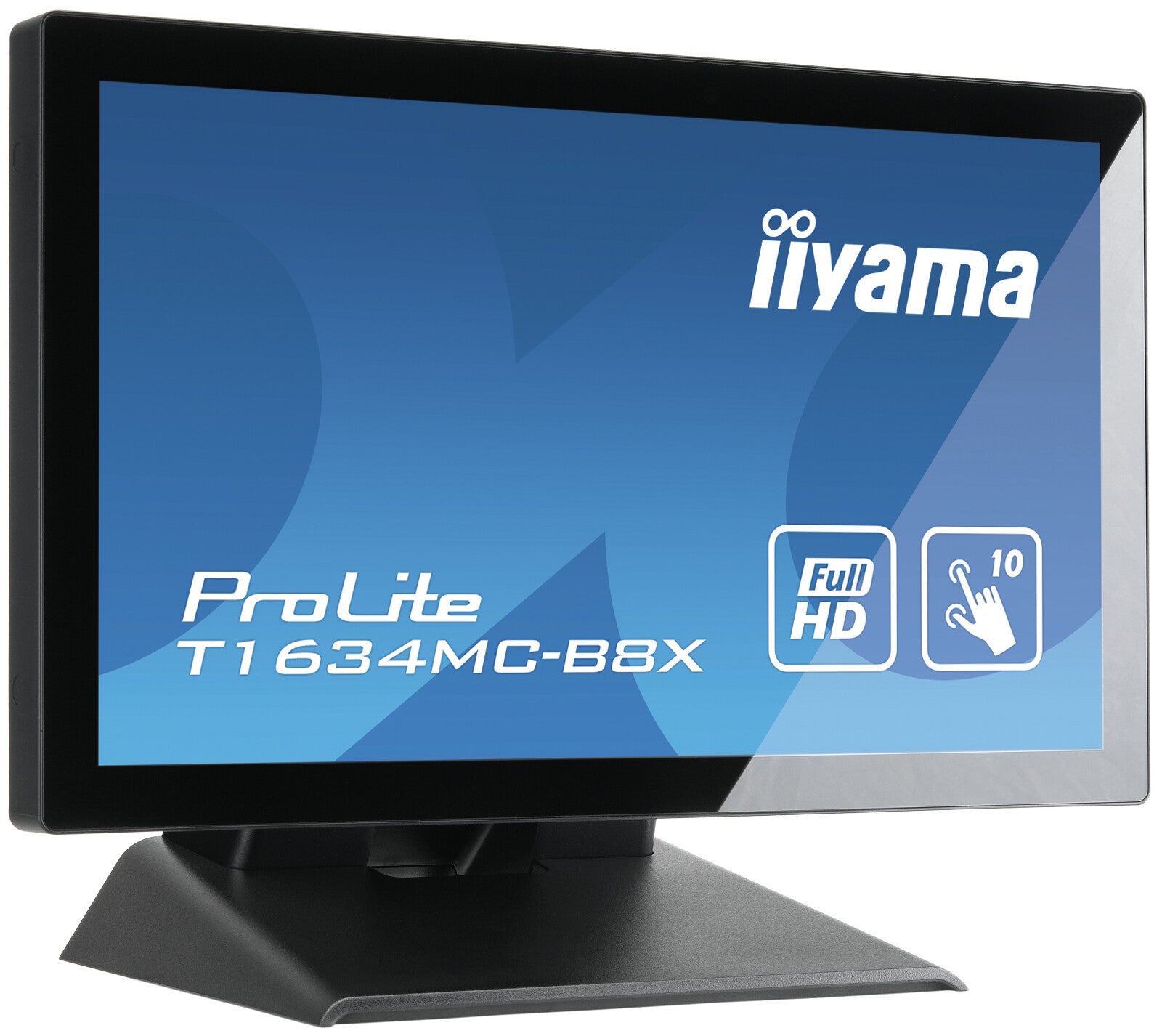

iiyama T1634MC-B8X

iiyama T1634MC-B8X

15.6", 1920x1080, IPS, 16:9, VGA, Projectiv kapazitiv, HDMI, DP, HDCP, 381x285.5x202 mm

  • Touchscreen 39.6 cm (15.6") LED IPS
  • Full HD 1920 x 1080 pixels 16:9
  • 60 Hz 25 ms 700:1
  • 18 W
  • SKU:4948570118335
  • GTIN/EAN:4948570118335
  • MPN:T1634MC-B8X

You need to login to view the price.

Add To Favorite
View full details

iiyama ProLite T1634MC-B8X. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 25 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Product colour: Black

15.6" Full HD PCAP 10 point touch monitor with edge-to-edge glass, IPS Panel Technology and touch through glass function

The ProLite T1634MC-B8X uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding environments. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications.

TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

Display
Digital horizontal frequency
30 - 84 kHz
Display number of colours
16.2 million colours
Maximum refresh rate
60 Hz
Contrast ratio (typical)
700:1
Screen shape
Flat
Display brightness
450 cd/m²
Response time
25 ms
Touchscreen technology
Projected capacitive system
Panel type
IPS
Display resolution
1920 x 1080 pixels
Display diagonal
39.6 cm (15.6")
Performance
AMD FreeSync
N
NVIDIA G-SYNC
N
Design
International Protection (IP) code
IP65
Glass thickness
2.4 mm
Product colour
Black
Ergonomics
Tilt adjustment
Y
On Screen Display (OSD) languages
German, English, Spanish, French, Italian, Japanese
Number of OSD languages
7
On Screen Display (OSD)
Y
Wall mountable
Y
Panel mounting interface
100 x 100 mm
Power
Power consumption (off)
0.3 W
Power consumption (standby)
1.5 W
Power consumption (typical)
18 W
Algemeen
Productfamilie
ProLite
Weight & dimensions
Weight (with stand)
3.6 kg
Height (with stand)
285.5 mm
Depth (with stand)
202 mm
Width (with stand)
381 mm
Packaging data
Package weight
5.8 kg
Package height
365 mm
Package depth
290 mm
Package width
455 mm
Cables included
AC, DisplayPort, HDMI, USB
Logistics data
Harmonized System (HS) code
85285210
Other features
Display viewable area (HxV)
344.2 x 193.6 mm
Placement supported
Horizontal
Surface hardness
Surface hardness
7H
HDCP
Y
Display diagonal (metric)
39.5 cm
Built-in microphone
N
Pixel pitch
0.179 x 0.179 mm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
DisplayPorts quantity
1
HDMI ports quantity
1
HDMI
Y
VGA (D-Sub) ports quantity
1
USB Touch port
Y
Number of simultaneous touchpoints
10
Touchscreen type
Multi-user
Touch technology
Multi-touch
Built-in camera
N
Display technology
LED
Native aspect ratio
16:9
HD type
Full HD
Touchscreen
Y
