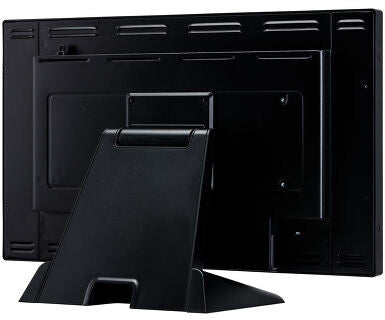

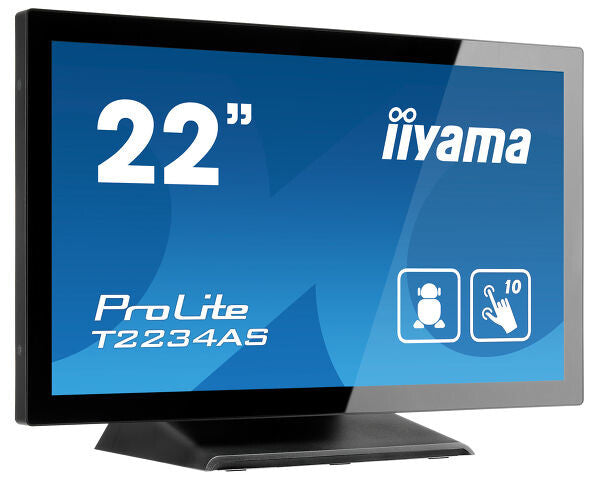

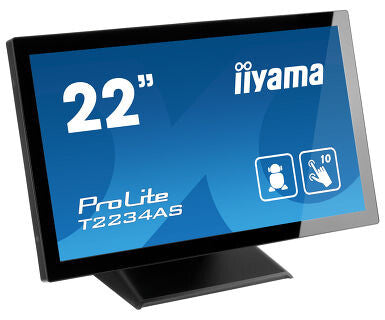

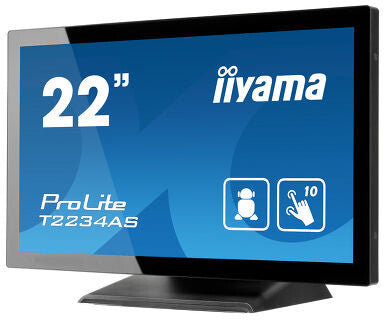

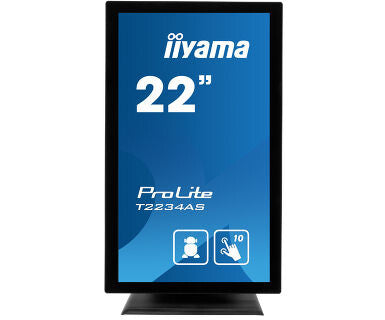

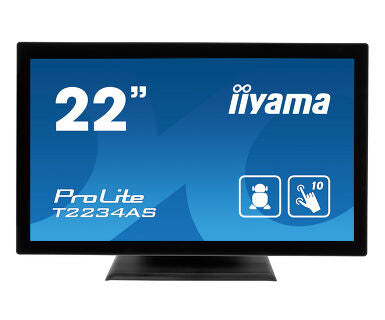

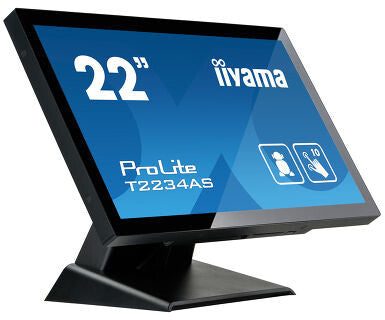

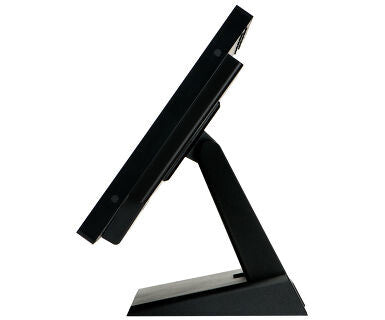

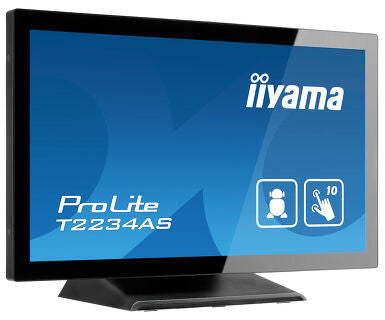

iiyama T2234AS-B1

iiyama T2234AS-B1

21.5" IPS LED, 1920 x 1080, 16:9, 350 cd/m², 1000:1, 8ms

  • Touchscreen 54.6 cm (21.5") IPS
  • Full HD 1920 x 1080 pixels 16:9
  • 8 ms 1000:1
  • 25 W
  • SKU:4948570117178
  • GTIN/EAN:4948570117178
  • MPN:T2234AS-B1

You need to login to view the price.

Add To Favorite
View full details

iiyama ProLite T2234AS-B1. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Product colour: Black

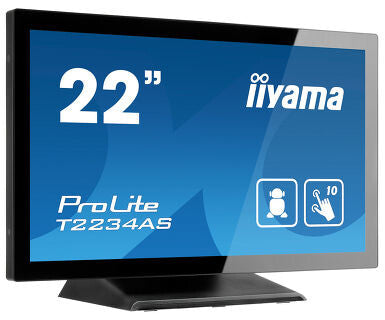

22” PCAP 10pt touch screen with Android

Connect and go with the ProLite T2234AS-B1, the all-in-one monitor solution for shops, retail or information desks. This 21.5” PCAP 10-point touchscreen with Android allows users to directly connect and operate the monitor from any device. The HDMI output makes it easy to connect a second customer-facing display for dynamic content and advertising.

The robust screen comes with a rugged bezel and an IP65 rating, meaning the monitor is dust and water resistant from the front. Cables can be neatly tied with the special cable cover, so they cannot come loose or move around. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect interactive display for instore retail.

Touch technology - Capacitive

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

Display
Display number of colours
16.78 million colours
Contrast ratio (typical)
1000:1
Aspect ratio
16:9
Screen shape
Flat
LED backlight
Y
Display brightness
305 cd/m²
Response time
8 ms
Touchscreen technology
Projected capacitive system
Panel type
IPS
Display resolution
1920 x 1080 pixels
Display diagonal
54.6 cm (21.5")
Performance
Operating system version
8.1
Operating system installed
Android
Linux operating systems supported
Y
Windows operating systems supported
Y
AMD FreeSync
N
NVIDIA G-SYNC
N
Multimedia
Megapixel (approx.)
2.1 MP
RMS rated power
4 W
Number of speakers
2
Built-in speaker(s)
Y
Design
Certification
CE, CU, cULus, CCC
International Protection (IP) code
IP65
Glass thickness
2.5 mm
Product colour
Black
Ports & interfaces
Compatible memory cards
SD
Card reader integrated
Y
RS-232C
Y
USB Type-A downstream ports quantity
4
Ergonomics
Plug and Play
Y
Tilt angle range
-5 - 90°
Wall mountable
Y
Panel mounting interface
100 x 100 mm
Thin Client
Graphics card
Mail T760 MP4
eMMC capacity
16 GB
Internal memory type
DDR3
Internal memory
2048 MB
Processor frequency
1.8 GHz
Power
Power supply type
AC
AC adapter output voltage
12 V
Power consumption (standby)
0.5 W
Power consumption (typical)
25 W
Network
Ethernet LAN
Y
Bluetooth version
4.0
Bluetooth
Y
Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi
Y
Algemeen
Productfamilie
ProLite
Weight & dimensions
Weight (with stand)
6.6 kg
Height (with stand)
351.5 mm
Depth (with stand)
219 mm
Width (with stand)
517.5 mm
Packaging data
Quick start guide
Y
Cables included
AC
Logistics data
Harmonized System (HS) code
85285210
Other features
Power management
Y
Ethernet LAN (RJ-45) ports
1
Placement supported

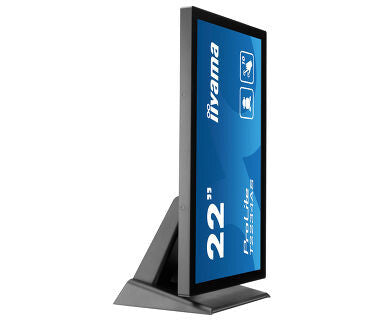

Horizontal/Vertical
Full HD
Y
Built-in processor
Y
AC adapter included
Y
Surface hardness
Surface hardness
7H
HDCP
Y
Display diagonal (metric)
55 cm
Built-in microphone
N
Pixel pitch
0.247 x 0.247 mm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
HDMI ports quantity
1
HDMI
Y
Number of simultaneous touchpoints
10
Touchscreen type
Multi-user
Touch technology
Multi-touch
Built-in camera
N
Native aspect ratio
16:9
HD type
Full HD
Touchscreen
Y
