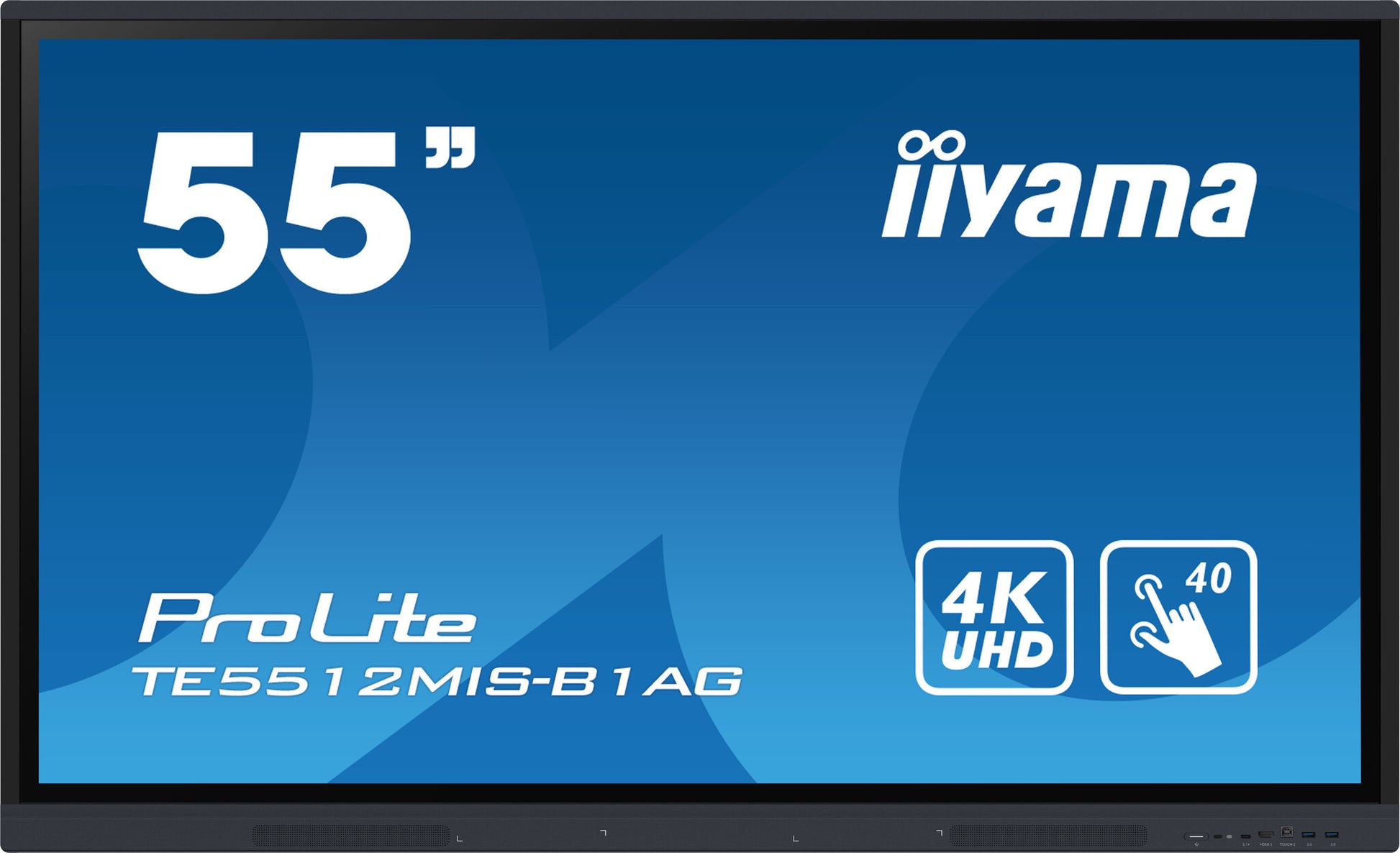

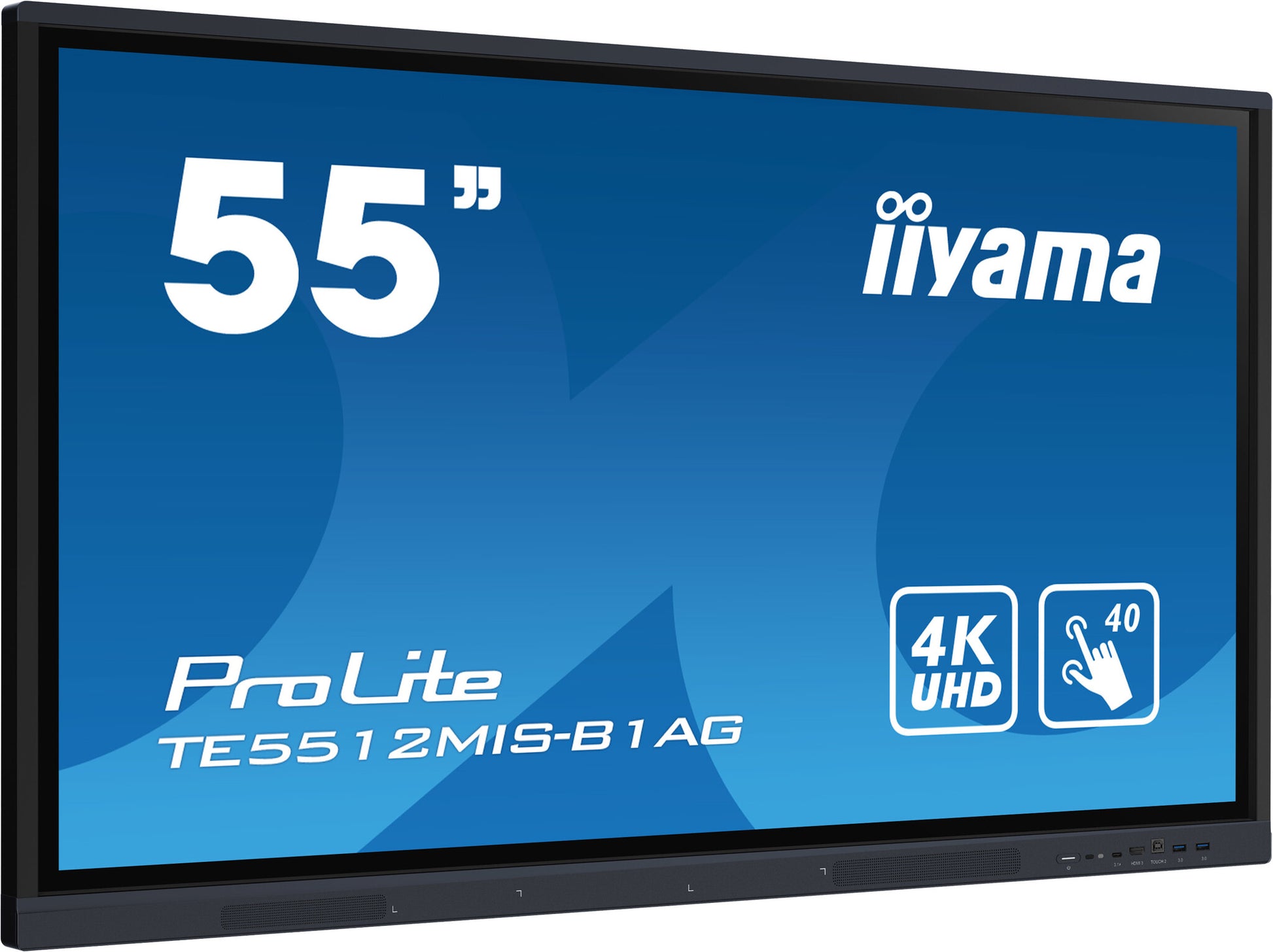

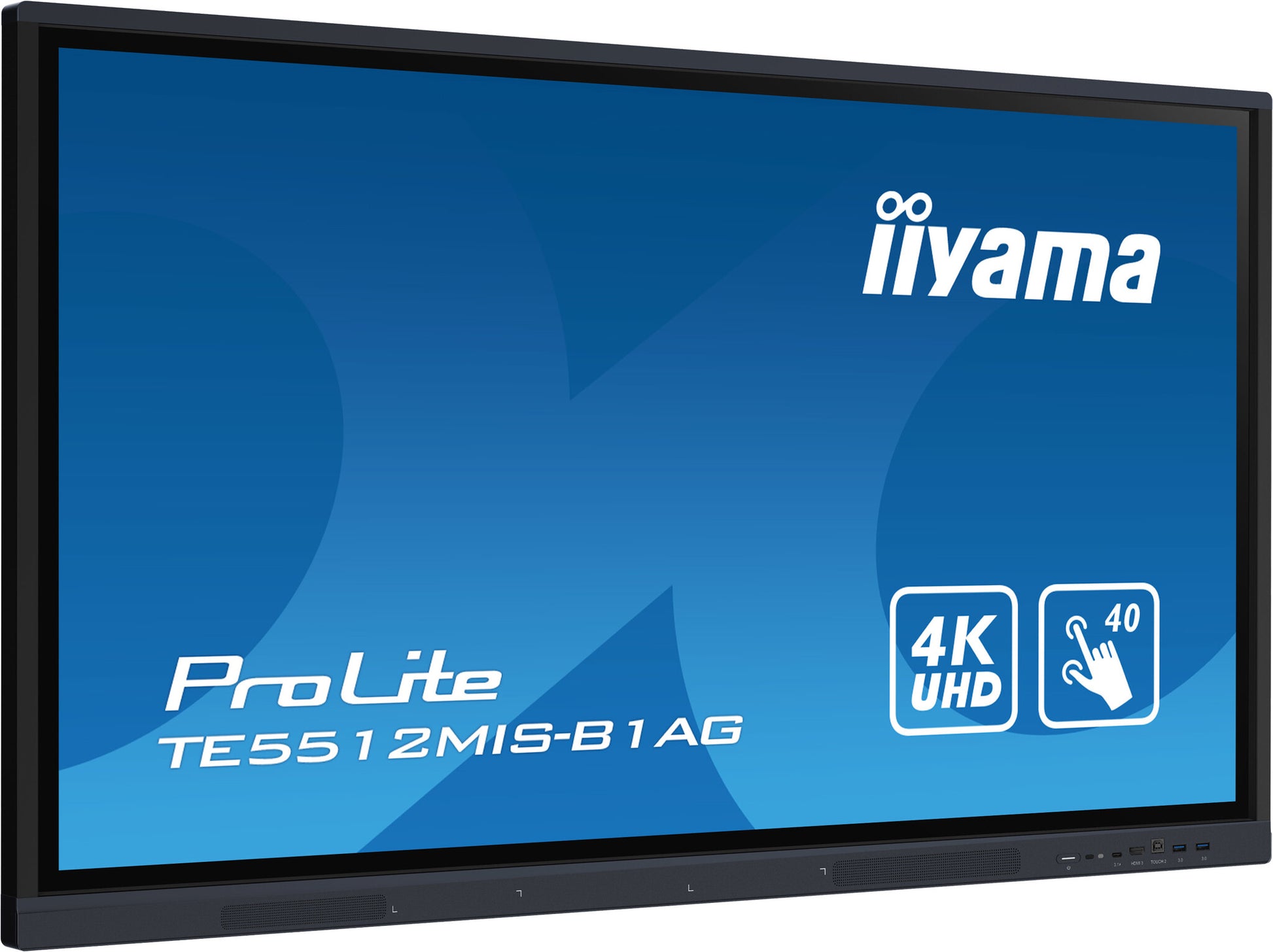

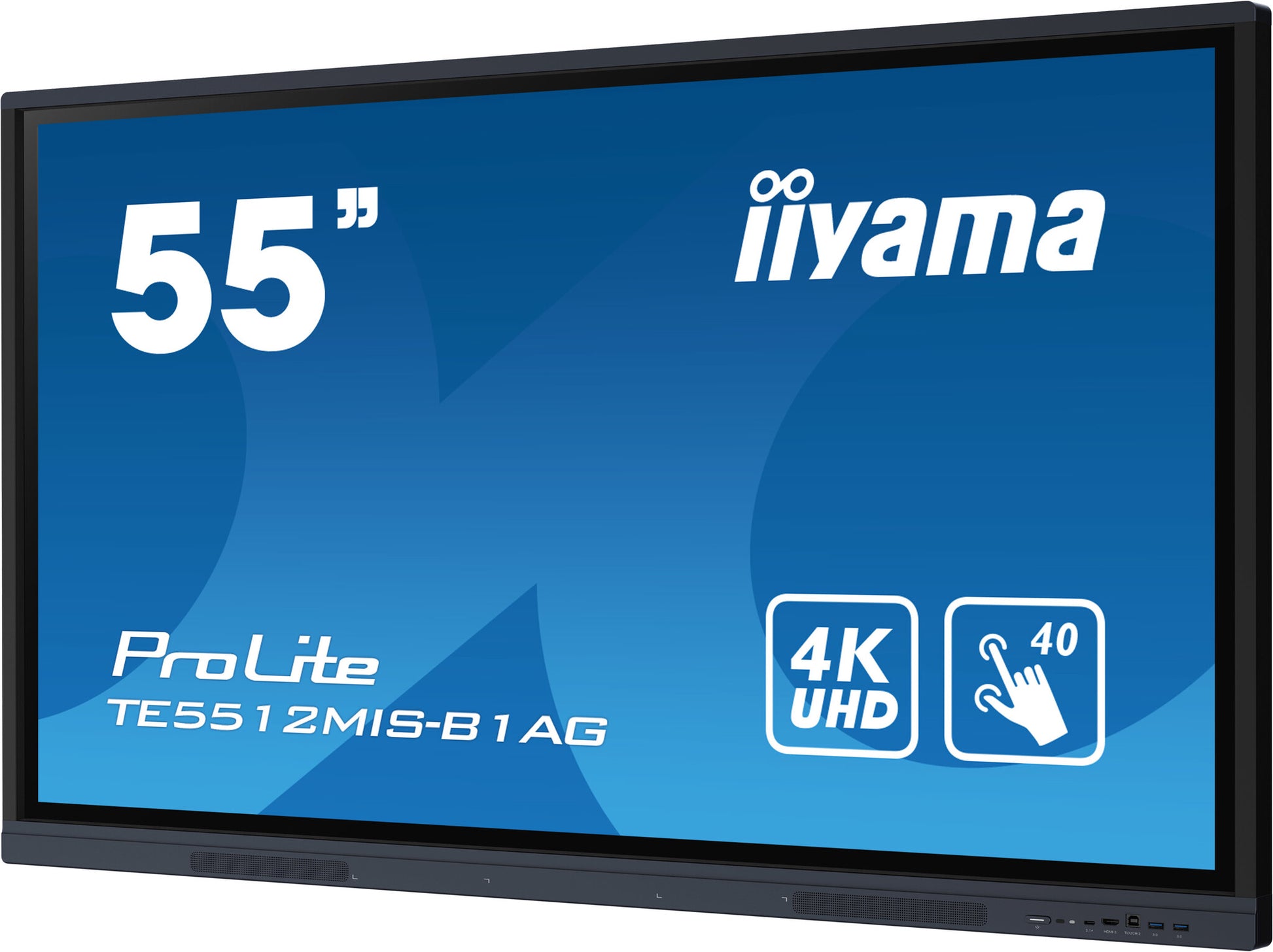

iiyama TE5512MIS-B1AG

iiyama TE5512MIS-B1AG

55'' 3840 x 2160 IPS, Direct LED, 400 cd/m², 1200:1, PureTouch-IR, VGA, HDMI, USB, RS-232c, RJ45, IR

  • Indoor Digital signage flat panel Black
  • 139.7 cm (55") 3840 x 2160 pixels LED 400 cd/m²
  • Touchscreen Direct-LED 8 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 32 W
  • SKU:4948570121908
  • GTIN/EAN:4948570121908
  • MPN:TE5512MIS-B1AG

You need to login to view the price.

Add To Favorite
View full details

iiyama TE5512MIS-B1AG. Product design: Digital signage flat panel. Display diagonal: 139.7 cm (55"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 400 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Android 11. Product colour: Black

Collaboration for education and enterprise made simple. The TE5512MIS-B1AG from iiyama inspires all possibilities in all stages for education, start-up and large-scale businesses. With our hybrid interactive solution, you can smoothly annotate in 4K and control any content on the display from any source.

This PureTouch-IR 40-point Touchscreen with iiWare 10 (Android 11 OS) features Note, Browser, Cloud Drive and the option for you to sideload relevant apps you require for your organisation. It comes with dual function Touch pens, and you can easily save your notes and on-screen content directly to a USB device, 32GB internal memory or a selected cloud drive. Including an additional USB-C connection, the display supports the latest in video, audio and Touch signal via a single port and even charge your device with 65W power delivery.

With a 4K UHD resolution (3840x2160) and 400cd/m2 brightness this 55” IPS LCD screen provides vibrant, detailed, and high-quality images from anywhere in the class or meeting room. The anti-glare coating drastically reduces ambient reflection in high-brightness environments without compromising the sharpness and clarity of the image.

You can be sure that no matter what your Interactive aspiration, iiyama has the simplified solution just for you. Boasting a new 4K Interface with User Profiles for simple login and access to your very own bespoke menu and Cloud Drives, the TE5512MIS-B1AG becomes a highly personalised device within a busy hybrid environment for multiple users.

Share, stream and edit content from any device directly on screen and transform your team meetings or lessons into an easy, fast and seamless interactive session with the included WiFi module (OWM002), iiyama Share and EShare app.

Display
Horizontal scan range
30 - 135 kHz
Panel type
IPS
Surface hardness
7H
Panel life
5000 h
Number of displays
1
Display diagonal (metric)
138.8 cm
Active display area (W x H)
1210 x 680 mm
Pixel pitch
0.315 x 0.315 mm
Display number of colours
1.073 billion colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
1200:1
Response time
8 ms
Native aspect ratio
16:9
Number of simultaneous touchpoints
40
Touchscreen technology
Infrared
Touchscreen
Y
HD type
4K Ultra HD
Display brightness
400 cd/m²
Display resolution
3840 x 2160 pixels
LED backlighting type
Direct-LED
Display technology
LED
Display diagonal
139.7 cm (55")

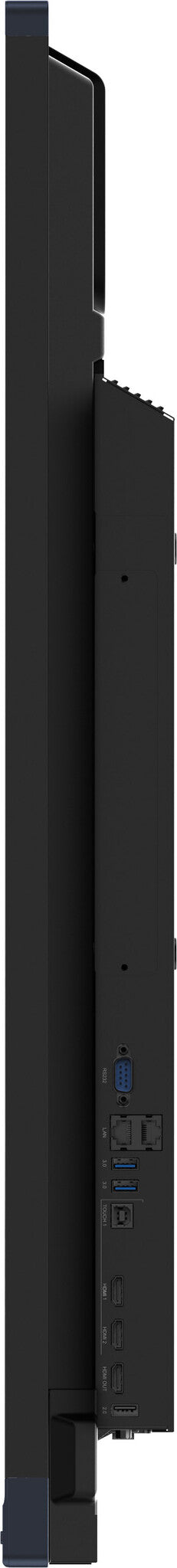

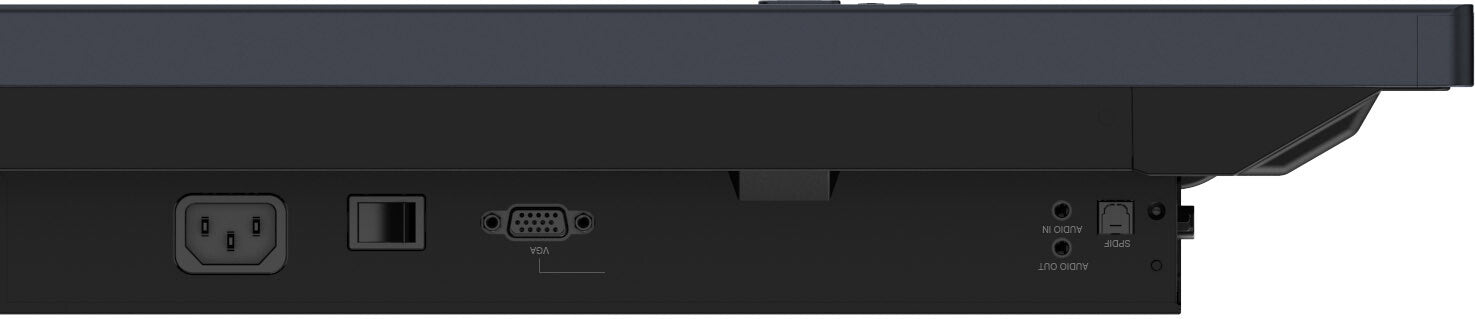

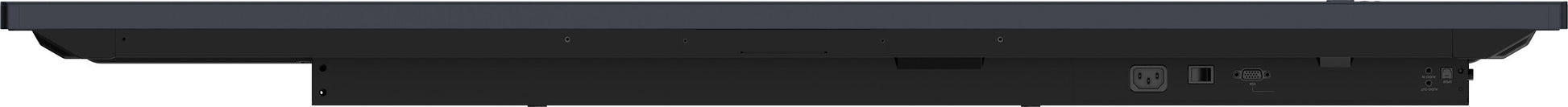

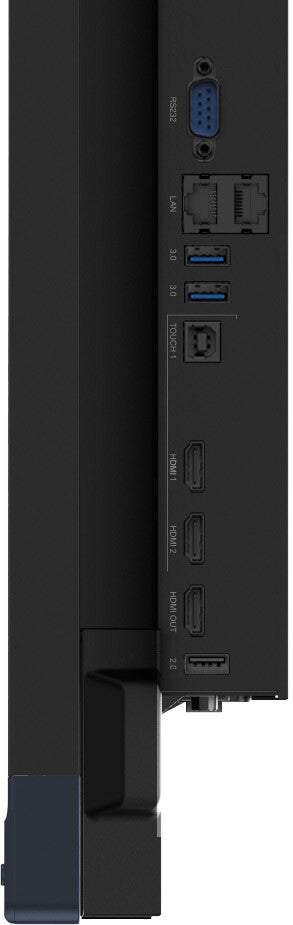

Ports & interfaces
Remote (IR) input
1
RS-232C
Y
Wi-Fi
Y
Ethernet LAN data rates
1000 Mbit/s
Ethernet LAN (RJ-45) ports
2
Ethernet LAN
Y
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity
6
USB port
Y
VGA (D-Sub) input ports
1
HDMI output ports quantity
1
HDMI input ports quantity
3
HDMI version
2.0
HDMI ports quantity
4
Audio
RMS rated power
32 W
Number of built-in speakers
2
Built-in speaker(s)
Y
Design
Bezel width (bottom)
4.6 cm
Bezel width (side)
1.9 cm
Bezel width (top)
1.9 cm
Positioning accuracy
1.5 mm

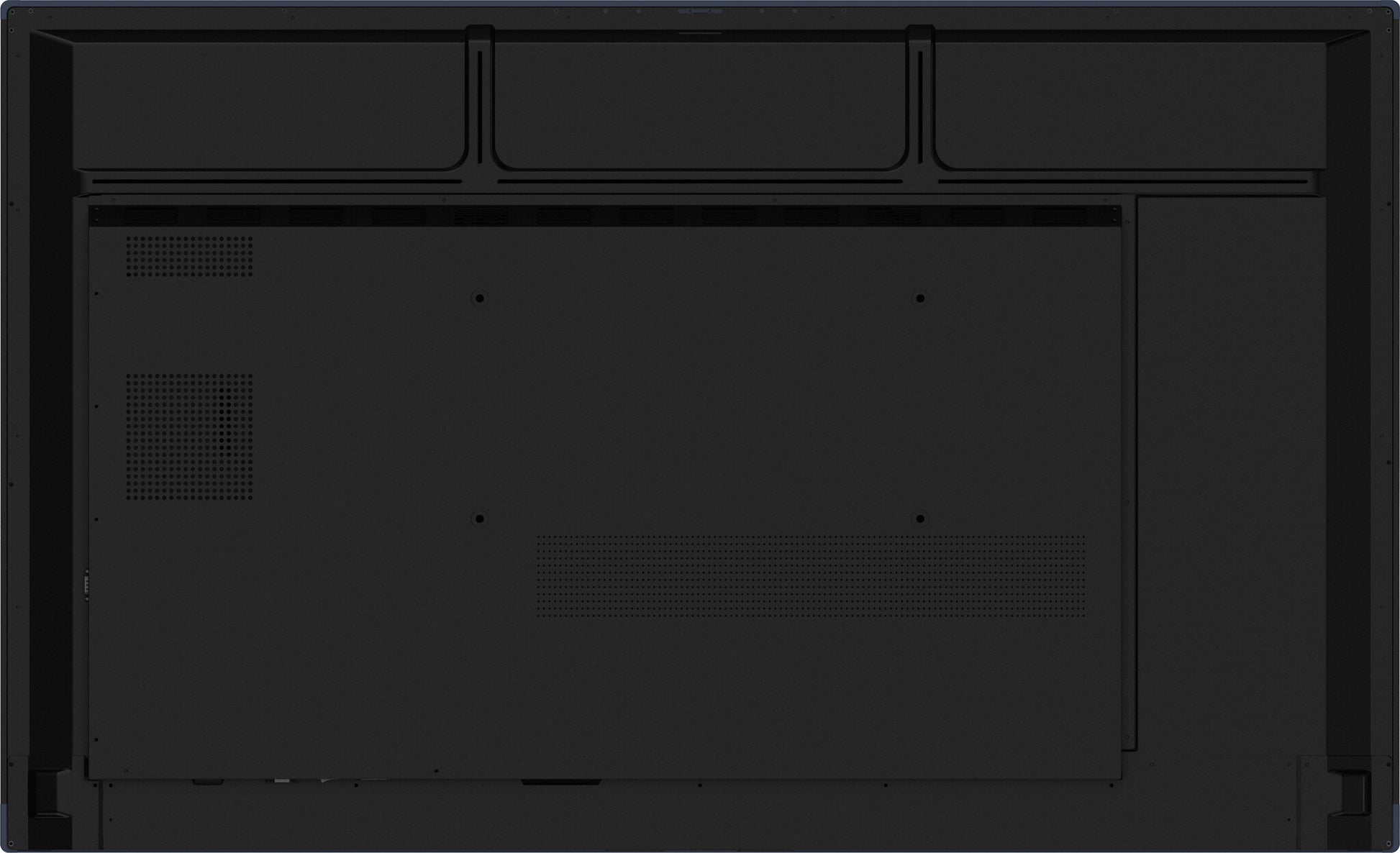

Panel mounting interface
400 x 200 mm
VESA mounting
Y
Screen shape
Flat
Orientation
Horizontal
Placement supported
Indoor
Product colour
Black
Product design
Digital signage flat panel
Performance
Mean time between failures (MTBF)
50000 h
HDCP
Y
HDCP version
2.2
Operating hours (hours/days)
16/7
On Screen Display (OSD)
Y
Number of OSD languages
9
On Screen Display (OSD) languages
Czech, German, English, Spanish, French, Italian, Polish, Russian
Purpose
Commercial
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.5 W
Power consumption (standby)
0.5 W
Power consumption (typical)
105 W
Computer system
Linux operating systems supported
Y
Windows operating systems supported
Y
Operating system installed
Android 11
Internal storage capacity
4 GB
On-board graphics card model
ARM Mali-G52
Internal memory
32 GB
Processor cores
4
Built-in processor
Y
Computer system
Y
Weight & dimensions
Display weight
26.1 kg
Display height
774 mm
Display depth
87 mm
Display width
1271 mm
Packaging data
Package weight
34.5 kg
Package height
859 mm
Package depth
220 mm
Package width
1401 mm
Packaging content
Cables included
AC, HDMI, USB
Power adapter included
Y
Number of stylus pens
4
Stylus pen
Y
Remote control included
Y
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Features
Base material
Metal
Base colour
Black
Technical details
OPS slot
1
Sustainability certificates
RoHS, WEEE
Other features
Plug and Play
Y
USB connector type
USB Type-C
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Power supply type
Internal
Bluetooth Low Energy (BLE)
Y
Bluetooth
Y
Audio input
1
Bluetooth version
2.0
