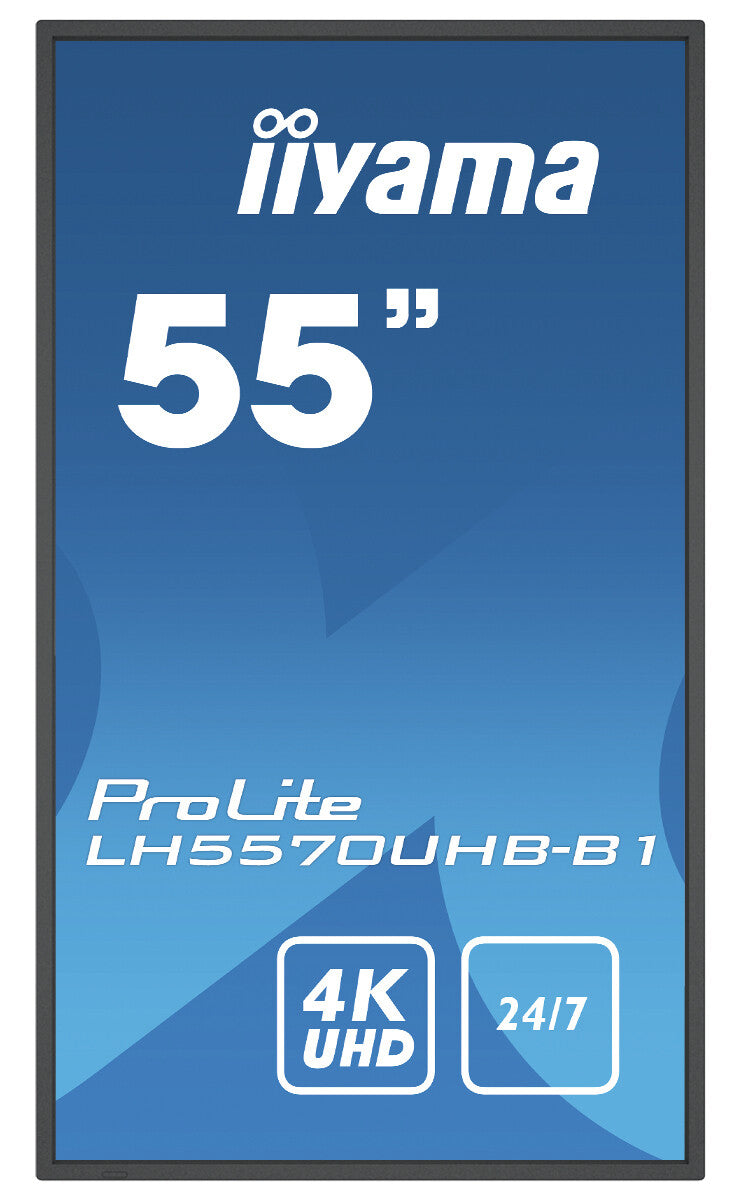

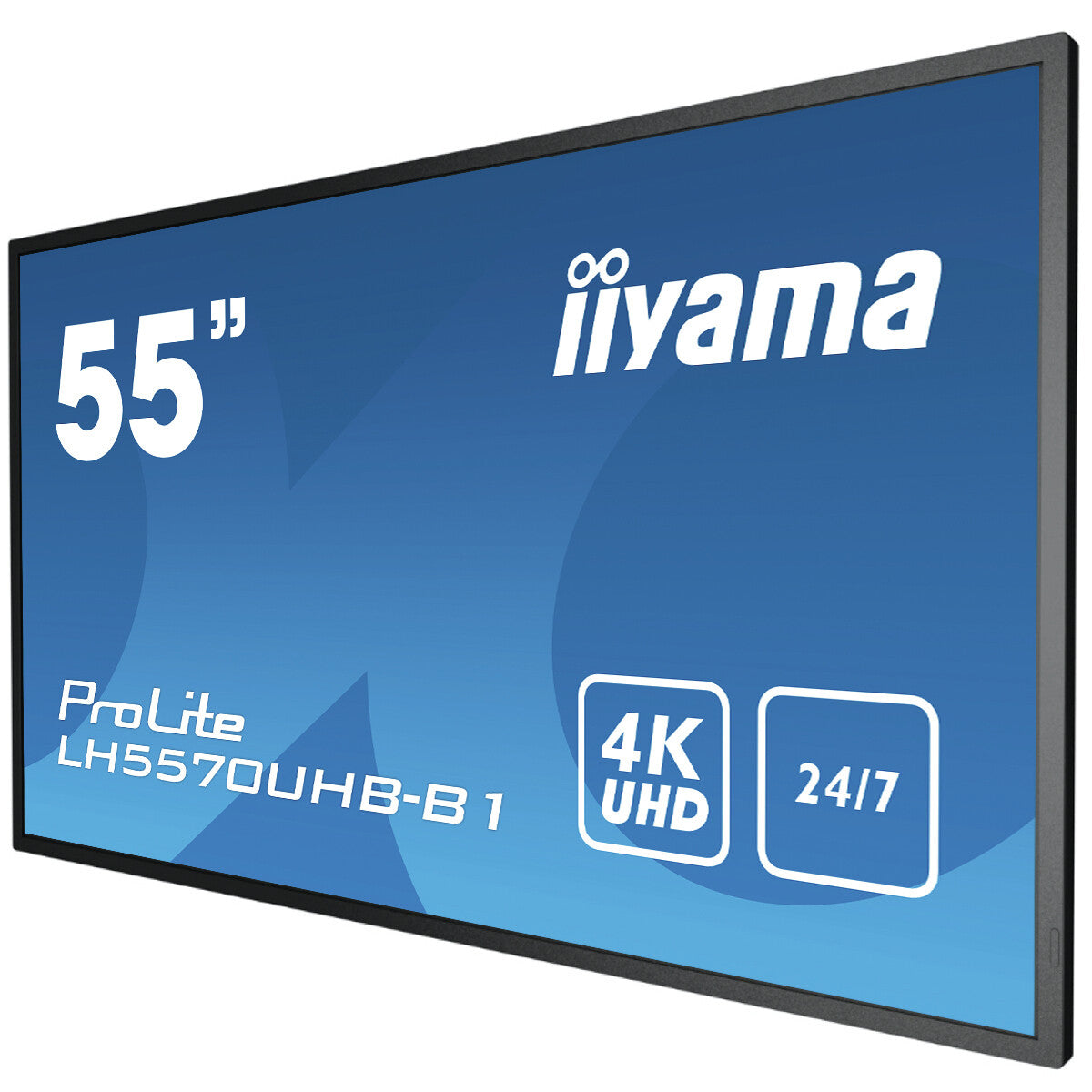

iiyama LH5570UHB-B1

iiyama LH5570UHB-B1

  • Indoor Digital signage flat panel Black
  • 138.7 cm (54.6") 3840 x 2160 pixels VA 700 cd/m²
  • 60 Hz 8 ms
  • SKU:4948570118540
  • GTIN/EAN:4948570118540
  • MPN:LH5570UHB-B1

You need to login to view the price.

Add To Favorite
View full details

iiyama LH5570UHB-B1. Product design: Digital signage flat panel. Display diagonal: 138.7 cm (54.6"), Display technology: VA, Display resolution: 3840 x 2160 pixels, Display brightness: 700 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Operating system installed: Android 9.0. Product colour: Black

Display
Horizontal scan range
28 - 135 kHz
Native refresh rate
60 Hz
Display diagonal (metric)
138.8 cm
Active display area (W x H)
1209.6 x 680.4 mm
Pixel pitch
0.315 x 0.315 mm
Display number of colours
1.07 billion colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
4000:1
Response time
8 ms
Native aspect ratio
16:9
Touchscreen
N
HD type
4K Ultra HD
Display brightness
700 cd/m²
Display resolution
3840 x 2160 pixels
Display technology
VA
Display diagonal
138.7 cm (54.6")
Ports & interfaces
Remote (IR) input
1
RS-232C
Y
Wi-Fi
N
Ethernet LAN (RJ-45) ports
1
USB version
2.0
USB ports quantity
2
USB port
Y
DVI port
N
HDMI input ports quantity
2
HDMI ports quantity
2
Audio
Built-in speaker(s)
N
Design
Bezel width (bottom)
1.02 cm
Bezel width (side)
1.02 cm
Bezel width (top)
1.02 cm
Panel mounting interface
400 x 400 mm
VESA mounting
Y
Orientation
Horizontal/Vertical
Placement supported
Indoor
Product colour
Black
Product design
Digital signage flat panel
Performance
Mean time between failures (MTBF)
50000 h
HDCP
Y
Operating hours (hours/days)
24/7
On Screen Display (OSD)
Y
Number of OSD languages
11
On Screen Display (OSD) languages
Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian
Purpose
Universal
Power
Energy consumption (SDR) per 1000 hours
126 kWh
Energy efficiency class (SDR)
G
Power consumption (off)
0.5 W
Power consumption (standby)
0.5 W
Power consumption (typical)
110 W
Computer system
Operating system installed
Android 9.0
Internal storage capacity
32 GB
Internal memory
3 GB
Processor cores
4
Processor frequency
1.5 GHz
Processor model
A53
Built-in processor
Y
Computer system
Y
Weight & dimensions
Display weight
21.5 kg
Display height
704 mm
Display depth
34.5 mm
Display width
1234 mm
Packaging content
Cables included
AC, HDMI, RS-232, USB
Remote control included
N
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Features
Harmonized System (HS) code
85285210
