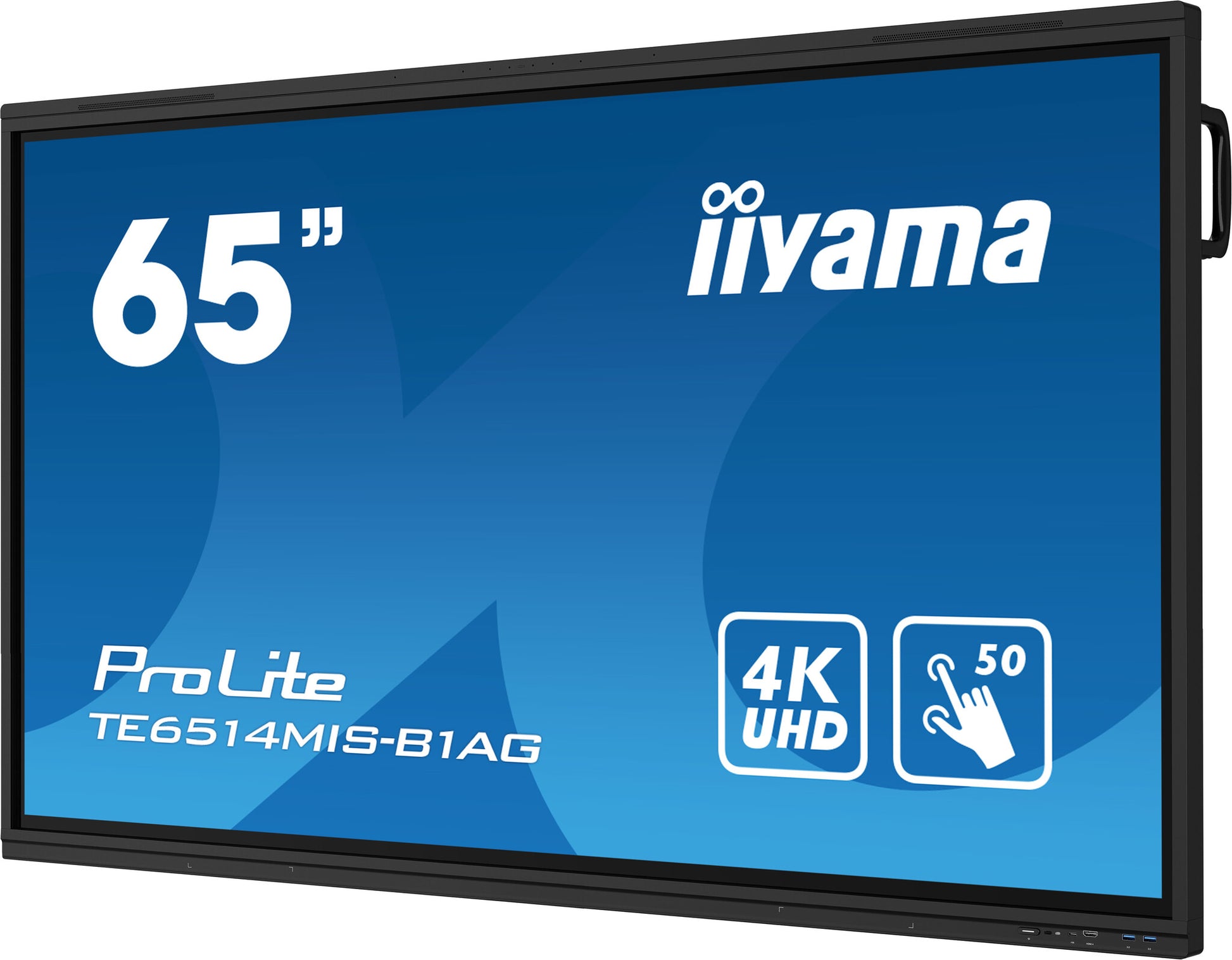

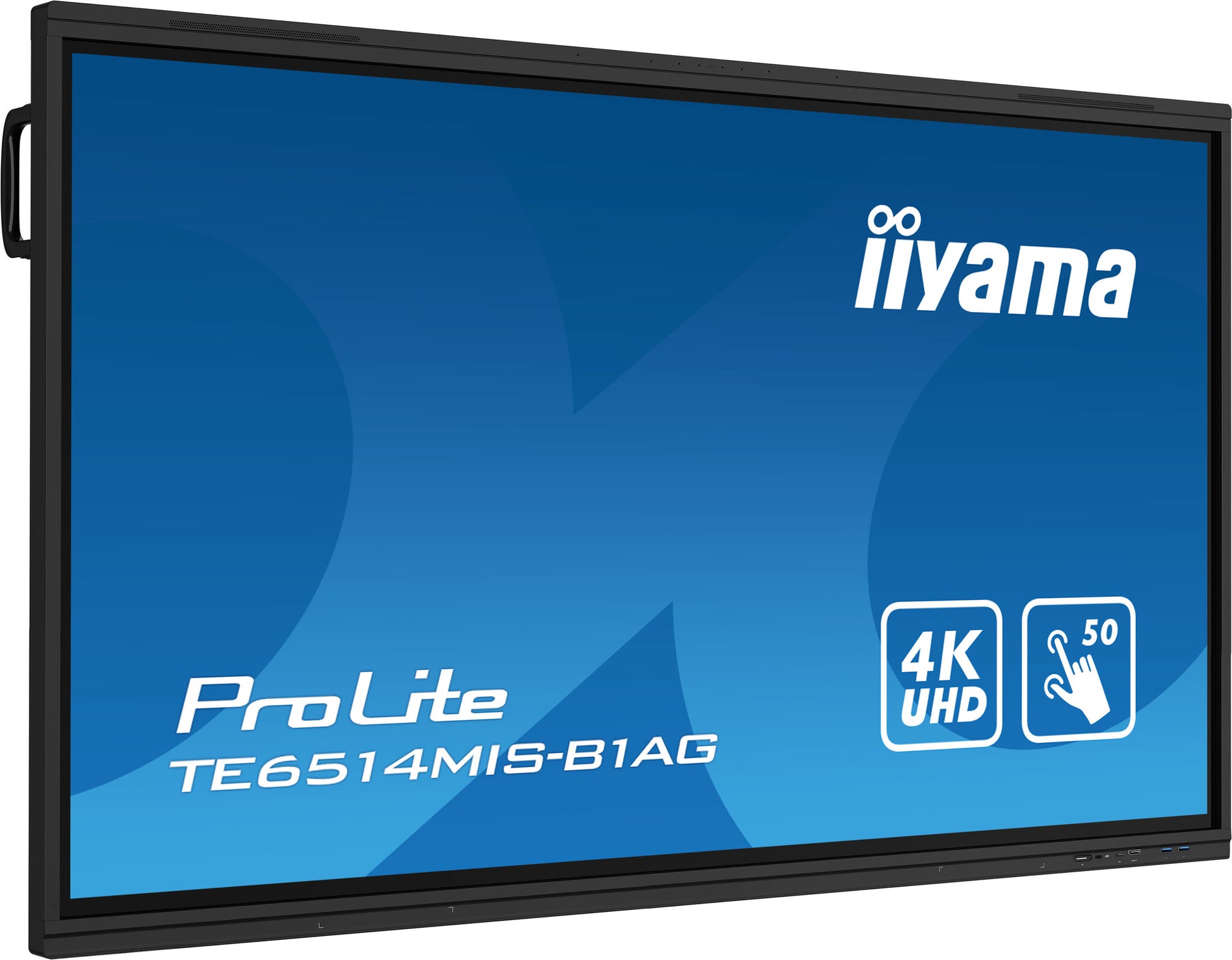

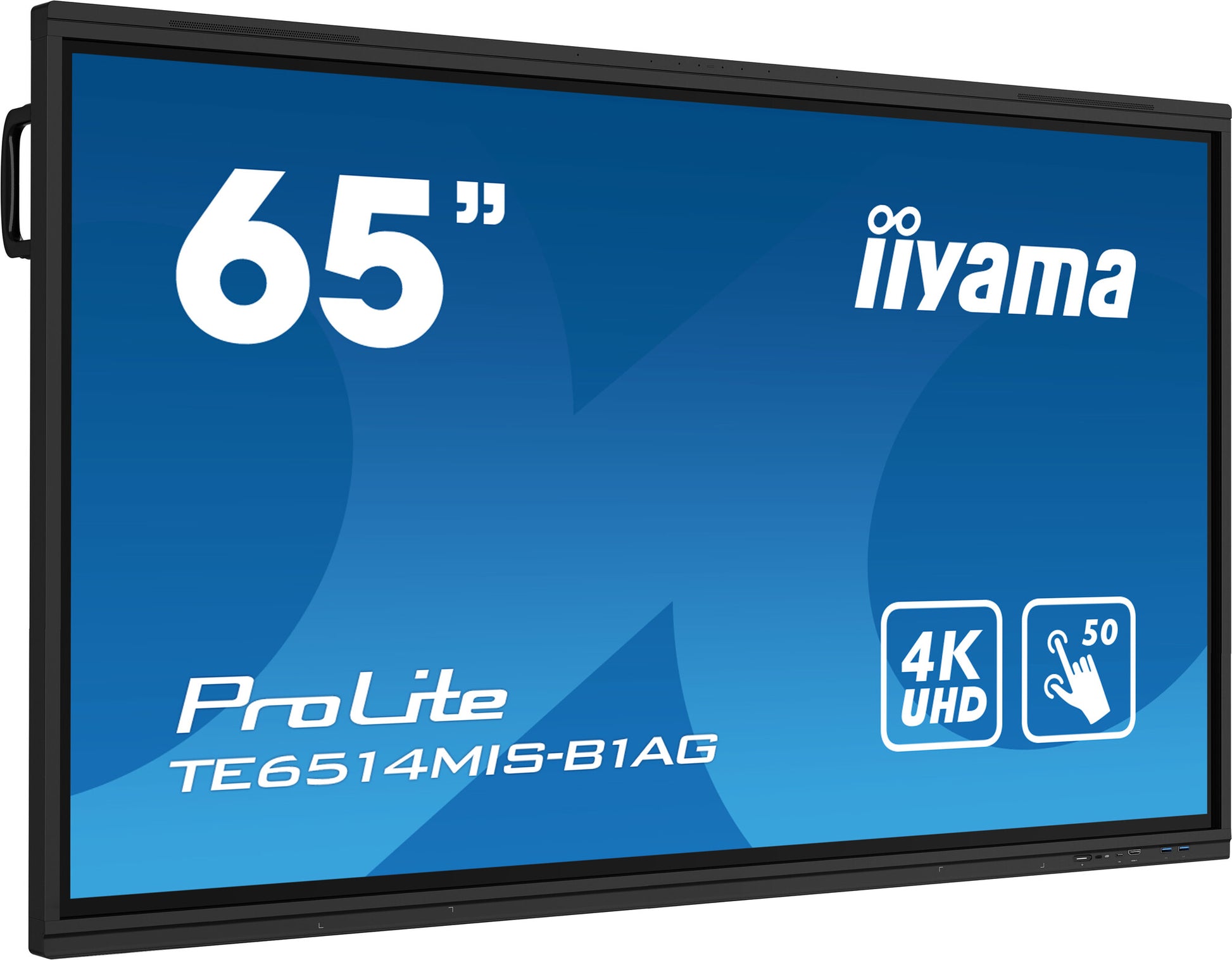

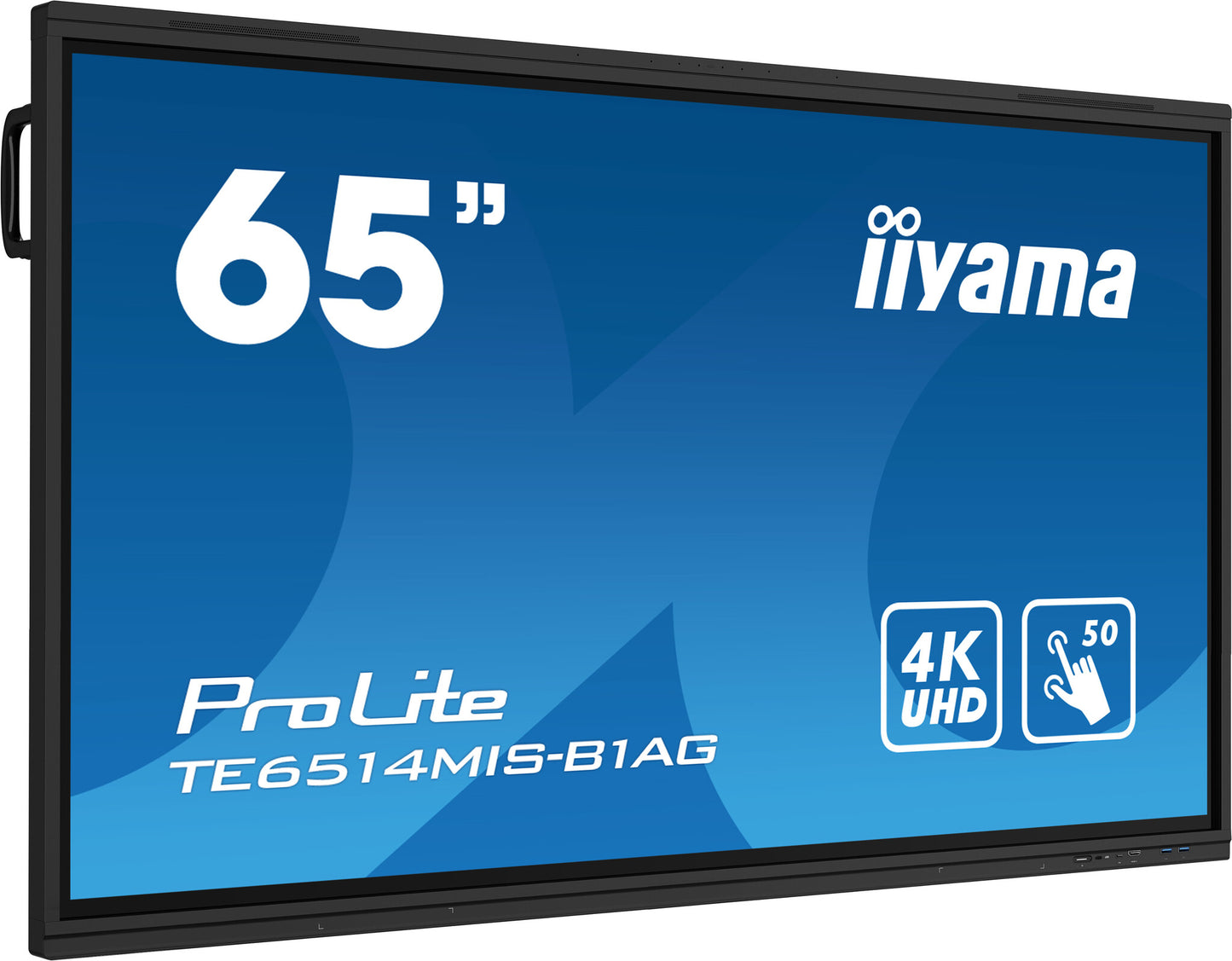

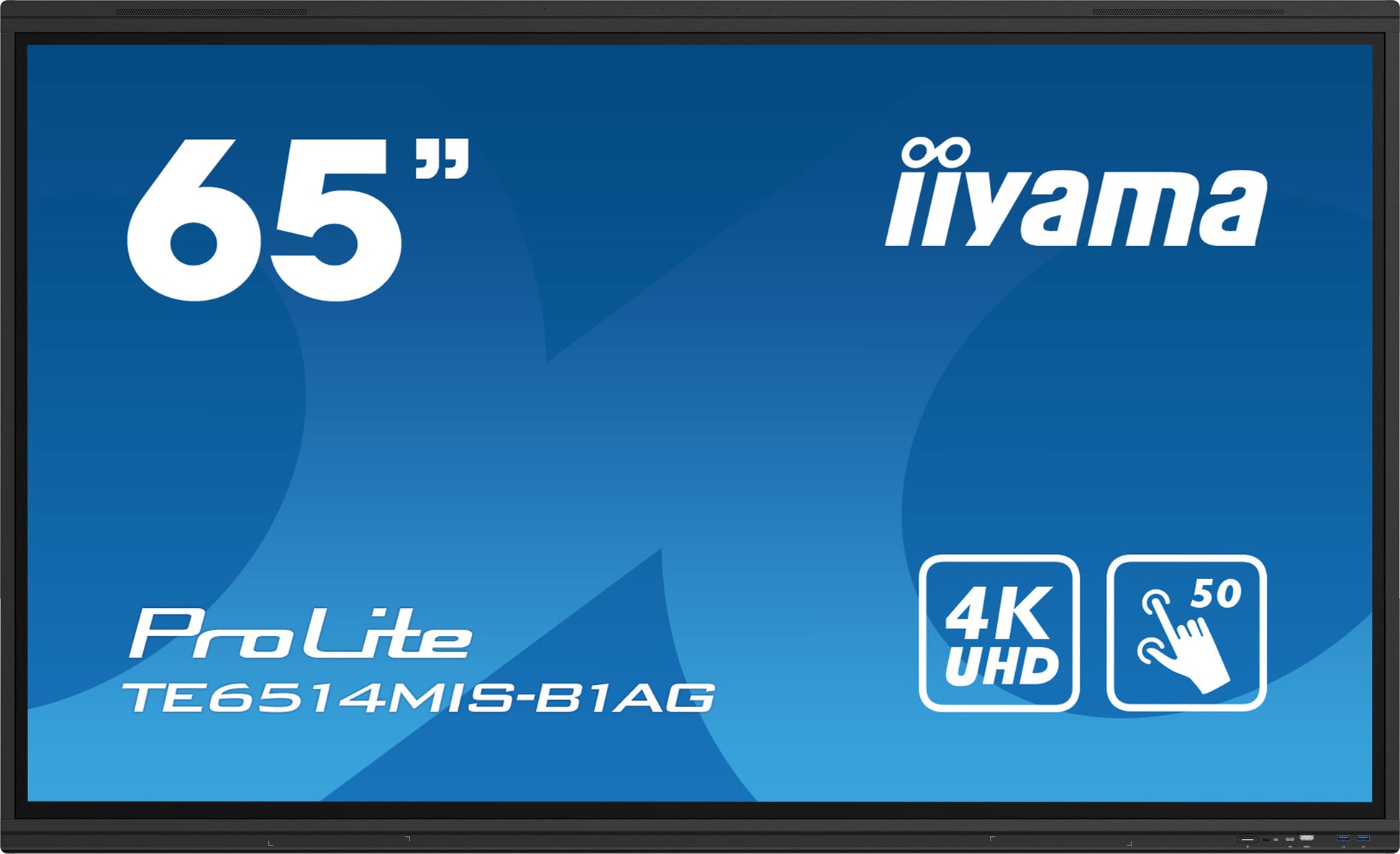

iiyama TE6514MIS-B1AG

iiyama TE6514MIS-B1AG

65", iiWare11 , Android 13, PureTouch IR+, 3840x2160, UHD, VA, 2x 8W + 2x 18W, VGA, HDMI 4x, USB-C 2x, 400cd/m², LAN 2x, RS232C, WiFi, VESA 600x400 mm, 1488 x 908 x 86 mm, 39 kg, black

  • PureTouch-IR⁺
  • iiWare 11
  • iiyama Share
  • iiyama DMS
  • Built-in speakers & microphone
  • SKU:4948570122028
  • GTIN/EAN:4948570122028
  • MPN:TE6514MIS-B1AG

You need to login to view the price.

Add To Favorite
View full details

Inspiring immersive collaboration for education and enterprise, the TE6514MIS-B1AG from iiyama is a hybrid interactive solution, allowing you to smoothly annotate in 4K and control any content on the display from any source.

This PureTouch-IR+ 50-point Touchscreen with iiWare 11 (Android 13 OS) features Note, Browser, Cloud Drive and the option for you to sideload relevant apps. Incorporating additional USB-C connections, the display supports the latest in video, audio and Touch signal via a single port and it allows you to charge your device with 100W power delivery. You can be sure that no matter what your Interactive aspiration, iiyama has the simplified solution just for you.

Boasting a new Android 4K Interface (iiWare 11) with User Profiles for simple login and access to your very own bespoke menu and Cloud Drives, this 65” Touchscreen becomes a highly personalised device. Benefit from the flexibility and clarity that the 65” VA panel offers, providing vibrant, detailed and high-quality images from anywhere in the class or meeting room. The anti-glare coating drastically reduces ambient reflection in high-brightness environments without compromising the sharpness and clarity of the image.

The high quality built-in 8-Array Microphone and powerful Dual Directional Speakers support conferencing configurations and our 500Hz Frame Rate Touch sensor delivers the smoothest and fastest Touch response ever seen with added Touch features like Dual Palm Rejection and Anti-Bacterial Pens for safety in multiple user environments. Easily save your notes and on-screen content directly to a USB device, 64GB internal memory or a selected cloud drive.

The new Multi-Screen Display feature allows you to link multiple screens and run as many different applications as you need for dual and triple display integration in large spaces like lecture amphitheatres and large meeting/boardrooms.

Share, stream and edit content from any device directly on screen and Vice Versa to transform your team meetings or lessons into an easy, fast and seamless interactive session with the included WiFi module (OWM002) utilising the iiyama Share or EShare app.

Display
Horizontal scan range
30 - 135 kHz
Panel type
VA
Surface hardness
7H
Display diagonal (metric)
163.9 cm
Active display area (W x H)
1429 x 804 mm
Pixel pitch
0.372 x 0.372 mm
Display number of colours
1.07 billion colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (dynamic)
5000:1
Contrast ratio (typical)
4000:1
Response time
6.5 ms
Number of simultaneous touchpoints
50
Multi-touch
Yes
Touchscreen technology
Infrared
Touchscreen
Yes
HD type
4K Ultra HD
Display brightness
435 cd/m²
Display resolution
3840 x 2160 pixels
Display technology
LCD
Display diagonal
165.1 cm (65")

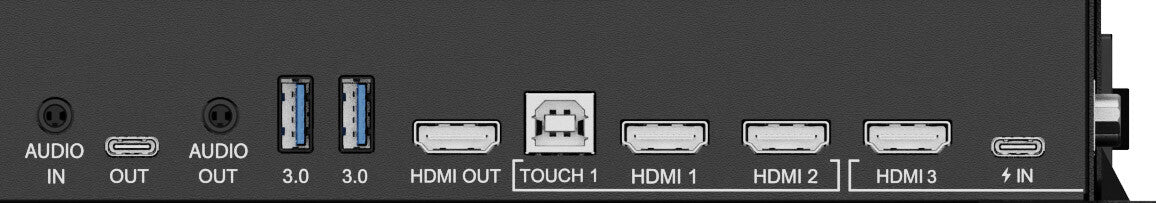

Ports & interfaces
RS-232C
Yes
Audio (L/R) out
1
Audio (L/R) in
1
Wi-Fi
Yes
Ethernet LAN (RJ-45) ports
2
Ethernet LAN
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB version
3.2 Gen 1 (3.1 Gen 1)
USB ports quantity
6
USB port
Yes
DisplayPorts quantity
1
HDMI version
2.0
HDMI ports quantity
4
Audio
RMS rated power
18 W
Number of built-in speakers
2
Built-in speaker(s)
Yes
Design
Bezel width (bottom)
4.1 cm
Bezel width (side)
1.65 cm
Bezel width (top)
1.65 cm
Positioning accuracy
1 mm
Panel mounting interface
600 x 400 mm
VESA mounting
Yes
Screen shape
Flat
Orientation
Horizontal
Product colour
Black
Product design
Interactive flat panel
Performance
Mean time between failures (MTBF)
50000 h
HDCP
Yes
HDCP version
2.3
Operating hours (hours/days)
24/7
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
CAT, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Polish, Russian, Slovenian
Power
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.3 W
Power consumption (standby)
0.5 W
Power consumption (typical)
150 W
Computer system
Operating system installed
Android
Internal storage capacity
64 GB
On-board graphics card model
Mali G610 MC4
Internal memory
6 GB
Processor architecture
ARM Cortex-A76+Cortex-A55
Built-in processor
Yes
Weight & dimensions
Display weight
39 kg
Display height
908 mm
Display depth
86 mm
Display width
1488 mm
Packaging data
Package weight
48.3 kg
Package height
1005 mm
Package depth
208 mm
Package width
1628 mm
Packaging content
Cables included
HDMI, Power, USB
Wi-Fi module included
Yes
Stylus pen
Yes
Remote control included
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
