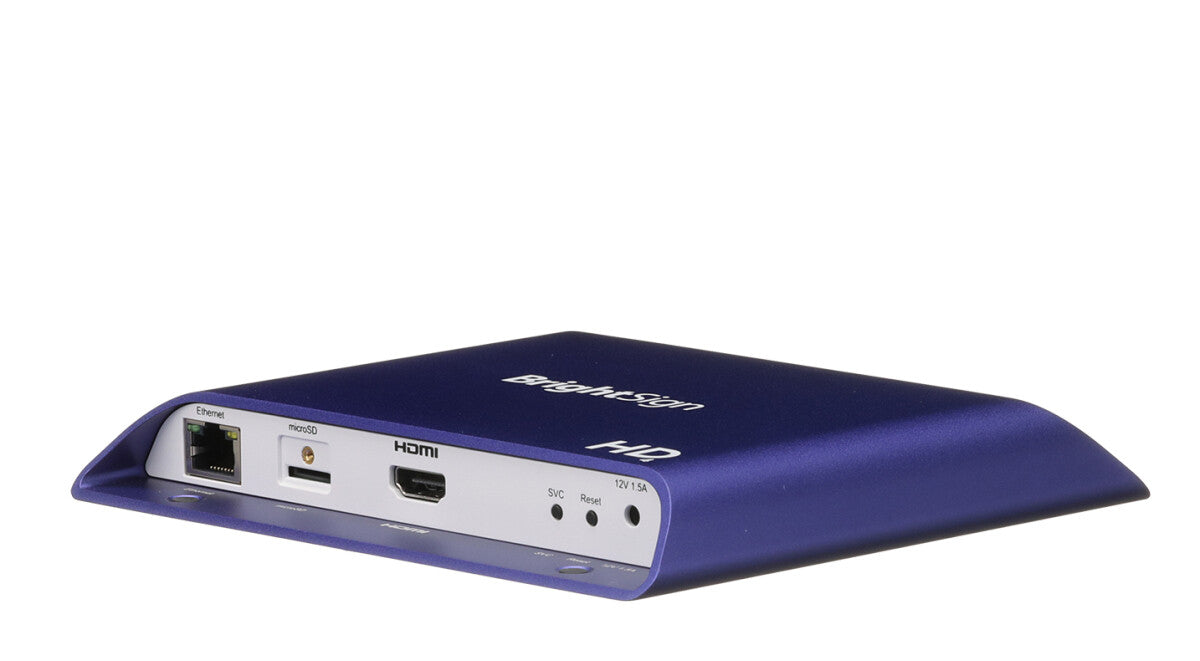

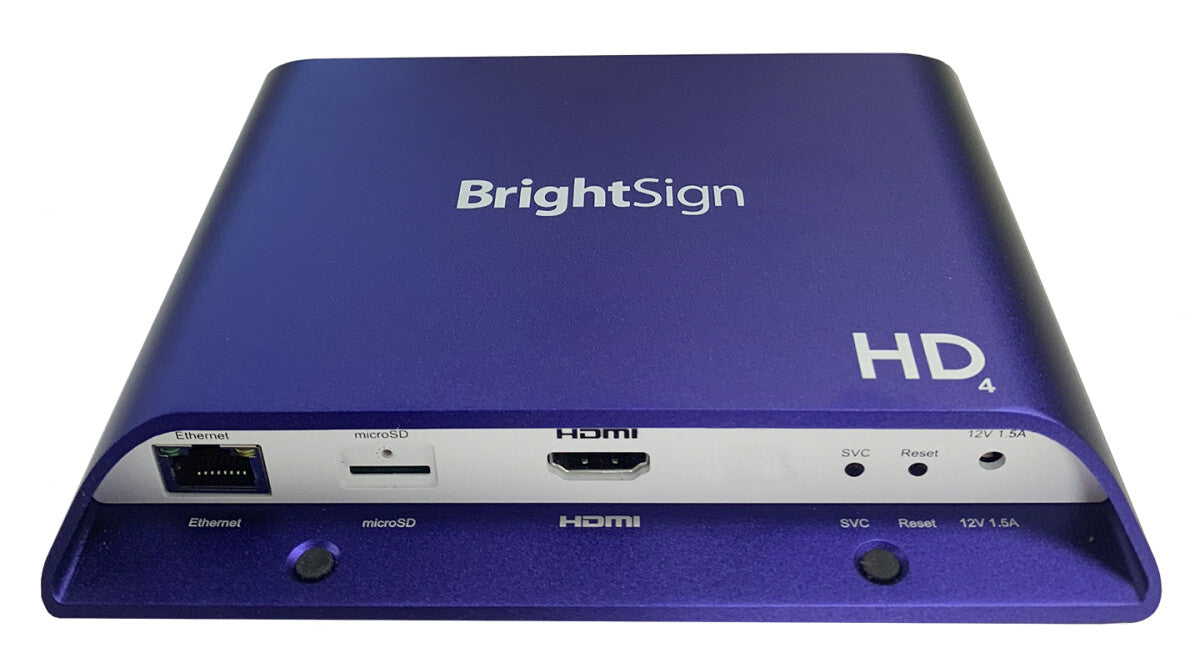

BrightSign HD224

BrightSign HD224

4K, 1080p, FullHD, H.265, HTML5, HDMI, Gigabit Ethernet

  • 4K 60p single decode
  • Mainstream HTML5
  • H.265
  • Video Walls
  • HDR10 & HLG
  • SKU:0854529008043
  • GTIN/EAN:0854529008043
  • MPN:HD224

You need to login to view the price.

Add To Favorite
View full details

BrightSign HD224. Product colour: Violet, Video formats supported: H.264, H.265, M2TS, MOV, MP4, MPEG1, MPEG2, MPG, TS, VOB, Image formats supported: BMP, JPEG, PNG. Storage media type: Memory card, Compatible memory cards: SDHC, SDXC, Maximum memory card size: 2000 GB. HD type: Full HD, Maximum video resolution: 3840 x 2160 pixels, Frame rate: 60 fps. Audio output channels: 1.0 channels. HDMI version: 2.0a

Enjoy flawless 4K and Full HD single video decoding, mainstream HTML5 performance and simultaneous playback from local, networked and streaming sources. Includes the standard I/O package of gigabit Ethernet, GPIO (GPIO connectors sold separately), analog and digital audio.

4K CORPORATE LOBBY INFORMATION KIOSKS
Deliver relevant and timely messages to your corporate audience using mainstream 4K video, touch interactivity and simultaneous content playback from local, networked and streaming sources.

EYE-CATCHING VIDEOWALLS
Capture attention with frame-accurate synchronization across a multitude of screens to set the stage for some serious retail therapy - now in true 4K resolution.

Storage
Compatible memory cards
SDHC, SDXC
Maximum memory card size
2000 GB
Card reader integrated
Y
Storage media type
Memory card
Built-in storage media
N
File formats
Image formats supported
BMP, JPEG, PNG
Audio formats supported
AAC, AC3, MP2, MP3, WAV
Video compression formats
H.264, H.265, MOV, MP4
Video formats supported
H.264, H.265, M2TS, MOV, MP4, MPEG1, MPEG2, MPG, TS, VOB
Video
Video upscaling
Y
Frame rate
60 fps
Maximum video resolution
3840 x 2160 pixels
HD-Ready
Y
Full HD
Y
HD type
Full HD
Audio
Audio output channels
1.0 channels
Ports & interfaces
S/PDIF out port
Y
DC-in jack
Y
RS-232C
Y
Audio (L/R) out
1
Ethernet LAN (RJ-45) ports
1
HDCP
N
HDMI version
2.0a
HDMI ports quantity
1
Network
Wi-Fi
N
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet LAN
Y
Radio
Supported radio bands
Not supported
Display
Built-in display
N
Ergonomics
LED indicators
Error, Power
Firmware upgradeable
Y
Product colour
Violet
Power
Power consumption (typical)
18 W
Weight & dimensions
Weight
340 g
Height
22 mm
Depth
144.2 mm
Width
159.9 mm
Packaging content
AC adapter included
Y
Quick start guide
Y
