iiyama T2234MSC-B6X

iiyama T2234MSC-B6X

21.5" IPS LED, 1920 x 1080, 16:9, 350 cd/m², 8ms

  • Touchscreen 54.6 cm (21.5") LED IPS
  • Full HD 1920 x 1080 pixels 16:9
  • 8 ms 350 cd/m² 1000:1
  • F 19 kWh 21 W
  • SKU:4948570116874/D1
  • GTIN/EAN:4948570116874
  • MPN:T2234MSC-B6X

You need to login to view the price.

Add To Favorite
View full details

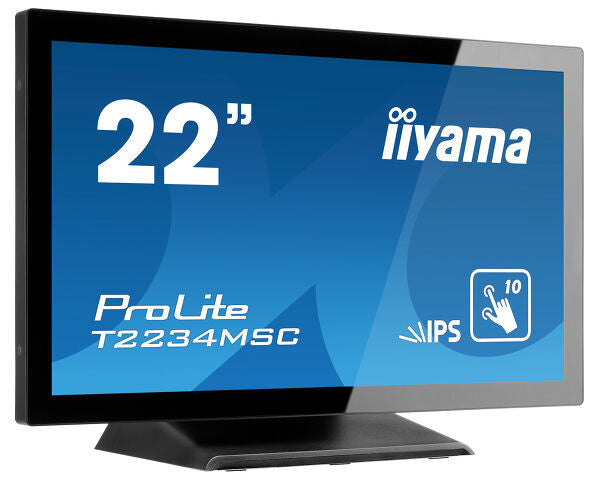

iiyama ProLite T2234MSC-B6X. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Display surface: Matt, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: Black

22" PCAP 10pt touch screen featuring IPS technology

ProLite T2234MSC uses Projective Capacitive Touch Technology, built into an eye catching bezel with Edge to Edge glass. Featuring IPS LCD Screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect interactive display for Interactive Digital Signage. In addition to the superb Full HD image quality, the screen is suitable for demanding environments. It comes with a rugged bezel and an IP65 rating, meaning the monitor is dust and water resistant from the front. The ProLite T2234MSC is the ideal solution for Interactive Digital Signage, Instore Retail, Kiosks, Gaming and Interactive Presentations.

Display
Viewable size, vertical
26.8 cm
Viewable size, horizontal
47.7 cm
Vertical scan range
56 - 76 Hz
Horizontal scan range
30 - 84 kHz
Display number of colours
16.78 million colours
Contrast ratio (typical)
1000:1
Aspect ratio
16:9
Screen shape
Flat
Display surface
Matt
Display brightness
305 cd/m²
Response time
8 ms
Display brightness (typical)
350 cd/m²
Touchscreen technology
Projected capacitive system
Panel type
IPS
Display resolution
1920 x 1080 pixels
Display diagonal
54.6 cm (21.5")
Performance
Linux operating systems supported
Y
Windows operating systems supported
Y
AMD FreeSync
N
NVIDIA G-SYNC
N
Multimedia
RMS rated power
6 W
Built-in speaker(s)
Y
Design
Certification
CE, TÜV, CU, cULus, VCCI REACH
International Protection (IP) code
IP65
Glass thickness
2.5 mm
Product colour
Black
Ports & interfaces
Headphone outputs
1
Ergonomics
LED indicators
Y
Plug and Play
Y
On Screen Display (OSD) languages
Simplified Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages
7
Tilt angle range
-5 - 90°
Wall mountable
Y
Panel mounting interface
100 x 100 mm
VESA mounting
Y
Power
Energy efficiency scale
A to G
Power supply type
AC
AC adapter output voltage
12 V
Power consumption (off)
1 W
Power consumption (standby)
1 W
Power consumption (typical)
21 W
Energy consumption (SDR) per 1000 hours
19 kWh
Energy efficiency class (SDR)
F
Algemeen
Productfamilie
ProLite
Weight & dimensions
Weight (with stand)
6.6 kg
Height (with stand)
351.5 mm
Depth (with stand)
219 mm
Width (with stand)
517.5 mm
Packaging data
Quick start guide
Y
Cables included
AC, Audio (3.5mm), DisplayPort, HDMI, USB
Logistics data
Harmonized System (HS) code
85285210
Other features
Full HD
Y
AC adapter included
Y
Surface hardness
Surface hardness
7H
HDCP
Y
Display diagonal (metric)
55 cm
Built-in microphone
N
Pixel pitch
0.247 x 0.247 mm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
DisplayPorts quantity
1
HDMI ports quantity
1
HDMI
Y
VGA (D-Sub) ports quantity
1
USB Touch port
Y
Number of simultaneous touchpoints
10
Touch technology
Multi-touch
Built-in camera
N
Display technology
LED
Native aspect ratio
16:9
HD type
Full HD
Touchscreen
Y
