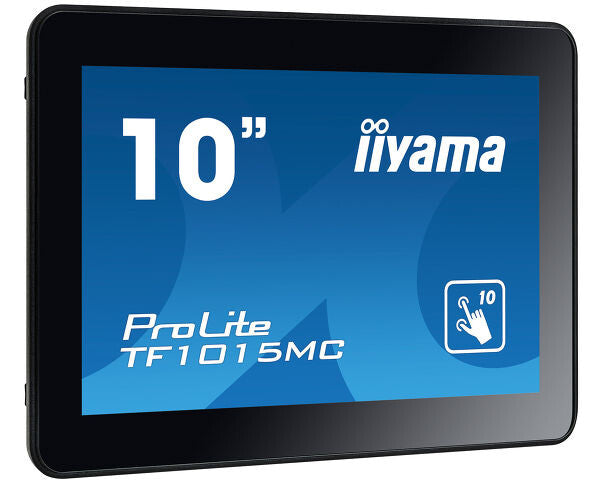

iiyama TF1015MC-B2

iiyama TF1015MC-B2

10.1", 1280 x 800, 16:10, 500 cd/m², 25ms

  • Horizontal/Vertical Black
  • 25.6 cm (10.1") 1280 x 800 pixels LED 450 cd/m²
  • Touchscreen 25 ms
  • SKU:4948570116744
  • GTIN/EAN:4948570116744
  • MPN:TF1015MC-B2
Add To Favorite

You need to login to view the price.

View full details

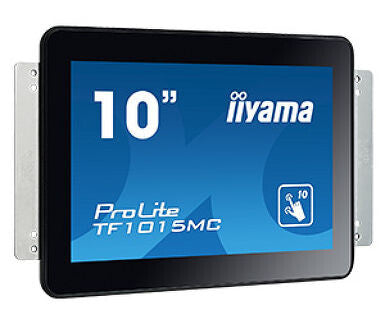

Open Frame PCAP 10 point touch screen equipped with a foam seal finish for seamless integration

The ProLite TF1015MC (10.1 inch) uses PCAP touch technology and is built into an eye catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1015MC comes equipped with external mounting brackets making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Touch technology - Capacitive

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

Display
Horizontal scan range
31.4 - 49.7 kHz
Vertical scan range
60 - 60 Hz
Display diagonal (metric)
25.7 cm
Pixel pitch
0.1695 x 0.1695 mm
Viewing angle, vertical
170°
Viewing angle, horizontal
170°
Contrast ratio (typical)
1300:1
Response time
25 ms
Native aspect ratio
16:10
Number of simultaneous touchpoints
10
Touchscreen technology
Projected capacitive system
Touchscreen
Yes
HD type
WXGA
Display brightness
450 cd/m²
Display resolution
1280 x 800 pixels
Display technology
LED
Display diagonal
25.6 cm (10.1")
Ports & interfaces
DisplayPorts quantity
1
HDMI ports quantity
1
Design
Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Screen shape
Flat
Placement supported
Horizontal/Vertical
Product colour
Black
Performance
HDCP
Yes
International Protection (IP) code
IP65
Number of OSD languages
7
On Screen Display (OSD) languages
Simplified Chinese, German, English, Spanish, French, Italian, Japanese
Power
Energy efficiency scale
A to G
Energy consumption (SDR) per 1000 hours
8 kWh
Energy efficiency class (SDR)
E
Power consumption (off)
1.2 W
Power consumption (standby)
1.2 W
Power consumption (typical)
10 W
Computer system
Linux operating systems supported
Yes
Windows operating systems supported
Yes
Packaging content
Cables included
AC, DisplayPort, HDMI, USB
Certificates
Certification
CB, CE, TÜV, CU, cULus REACH
Features
Harmonized System (HS) code
85285210
Wall mountable
Yes
Other features
Plug and Play
Yes
Quick start guide
Yes
AC adapter included
Yes
Aspect ratio
16:10
Built-in microphone
No
LED indicators
Yes
Height (without stand)
183.5 mm
Weight (without stand)
1.4 kg
Depth (without stand)
39.5 mm
Headphone outputs
1
Viewable size, horizontal
21.7 cm
Viewable size, vertical
13.6 cm
Power supply type
AC
Built-in camera
No
