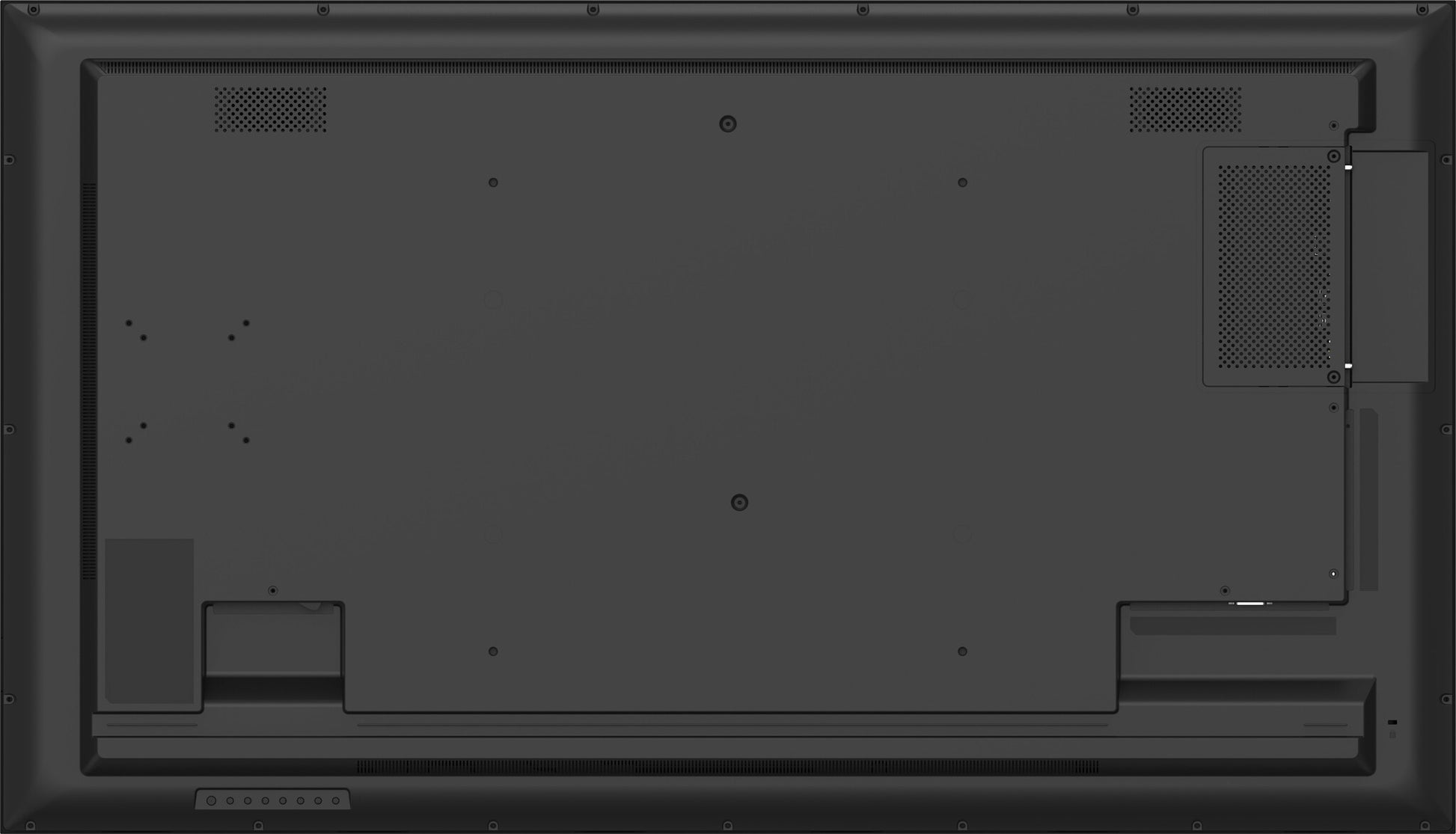

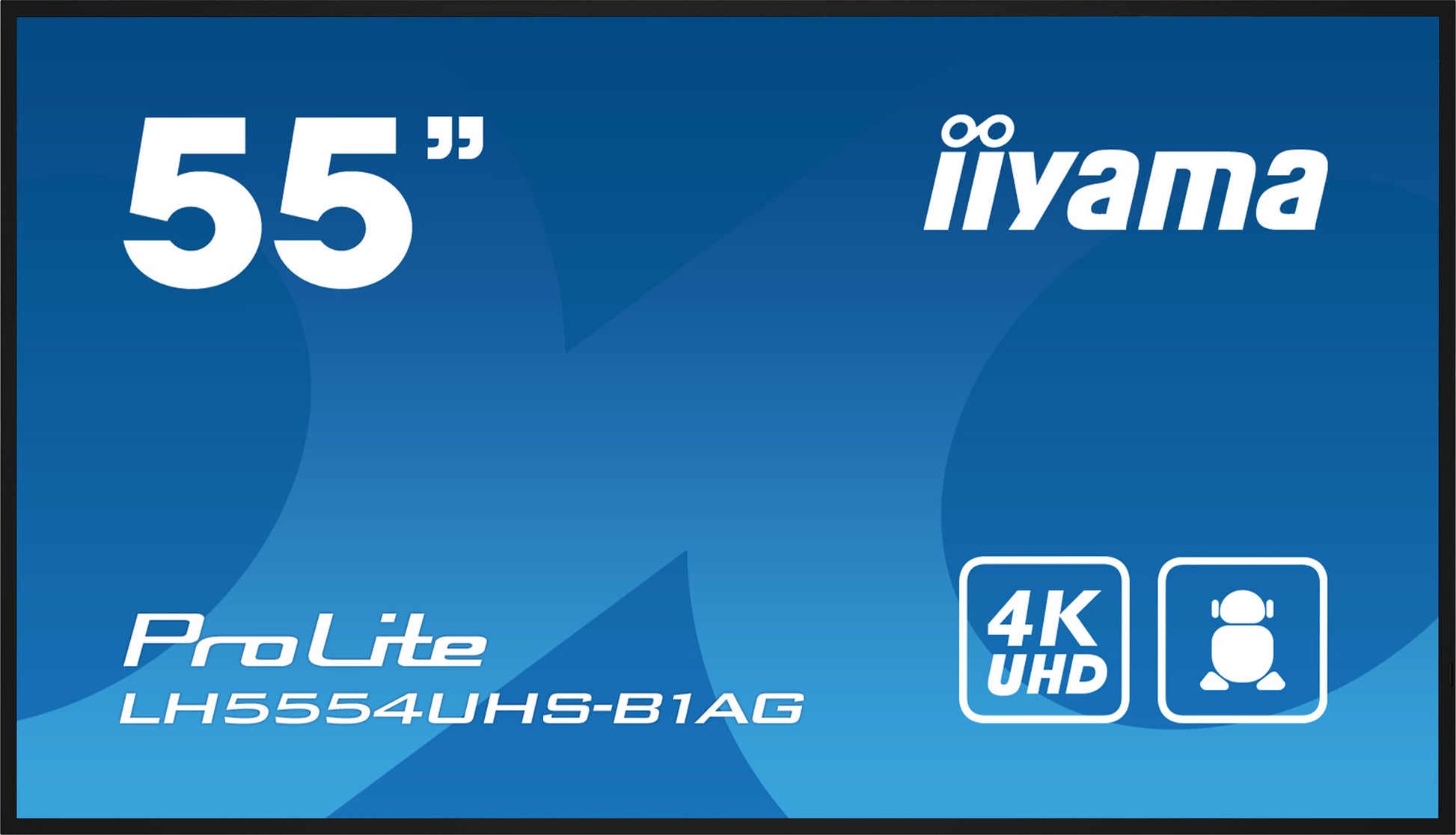

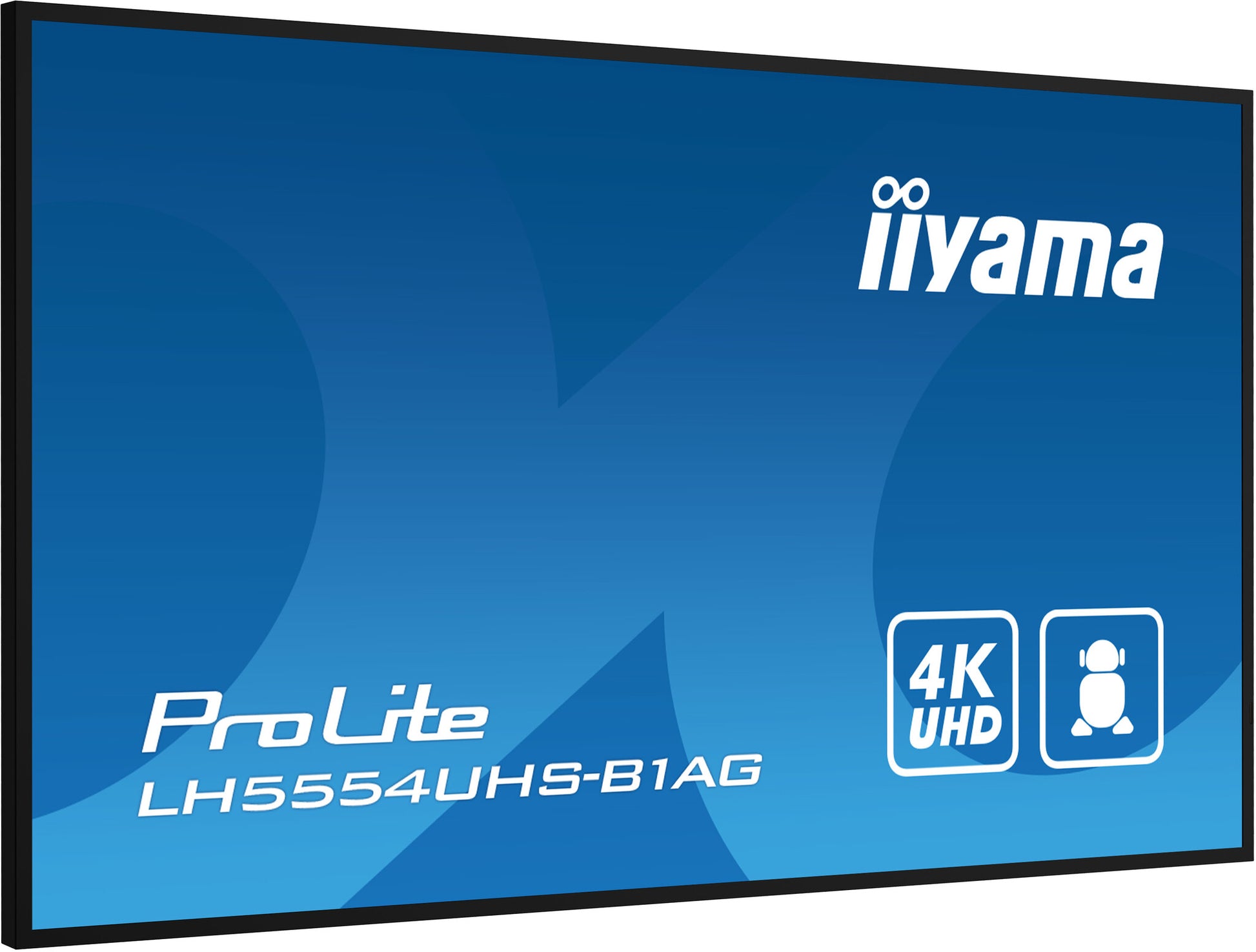

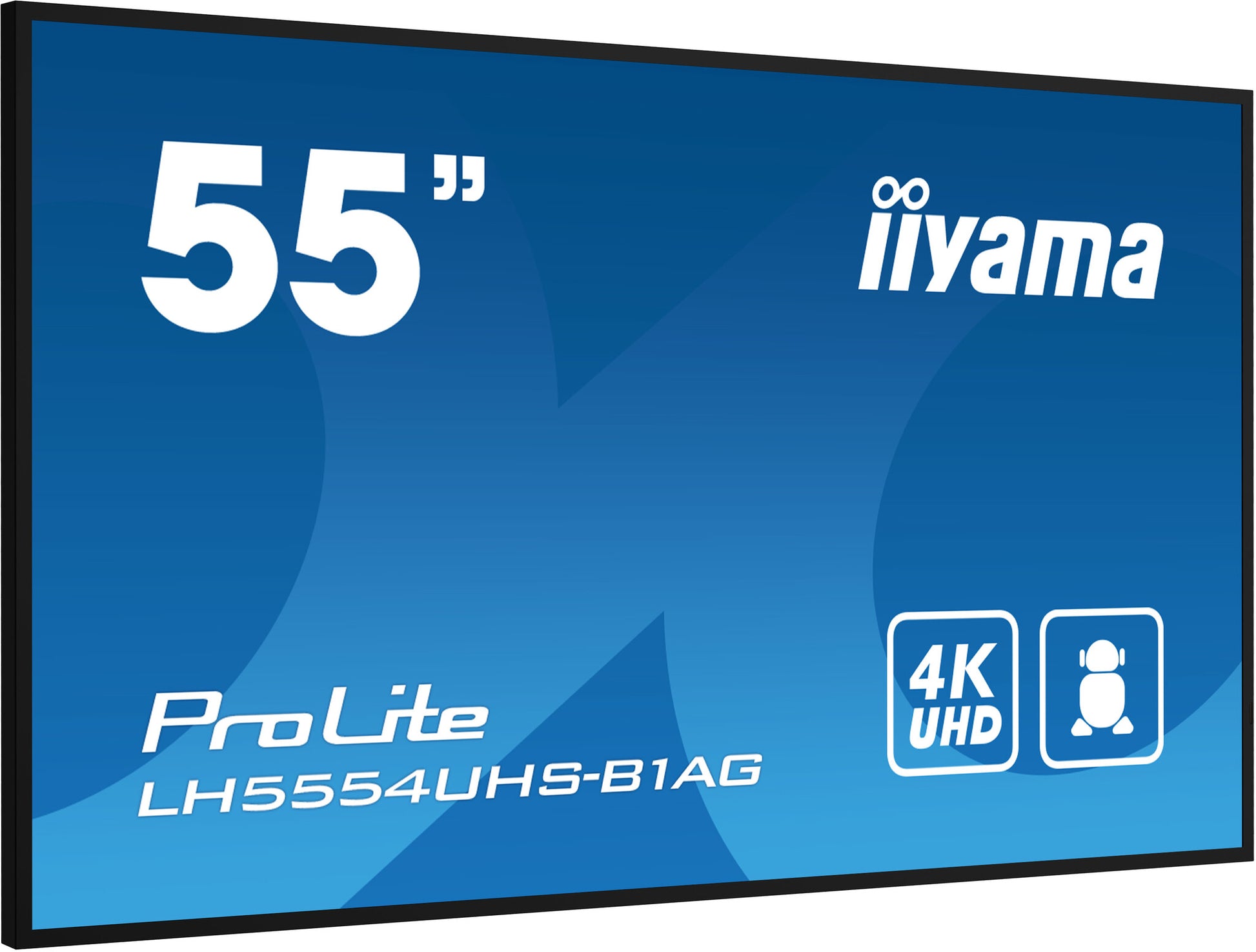

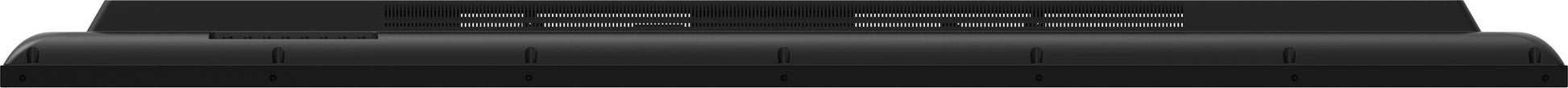

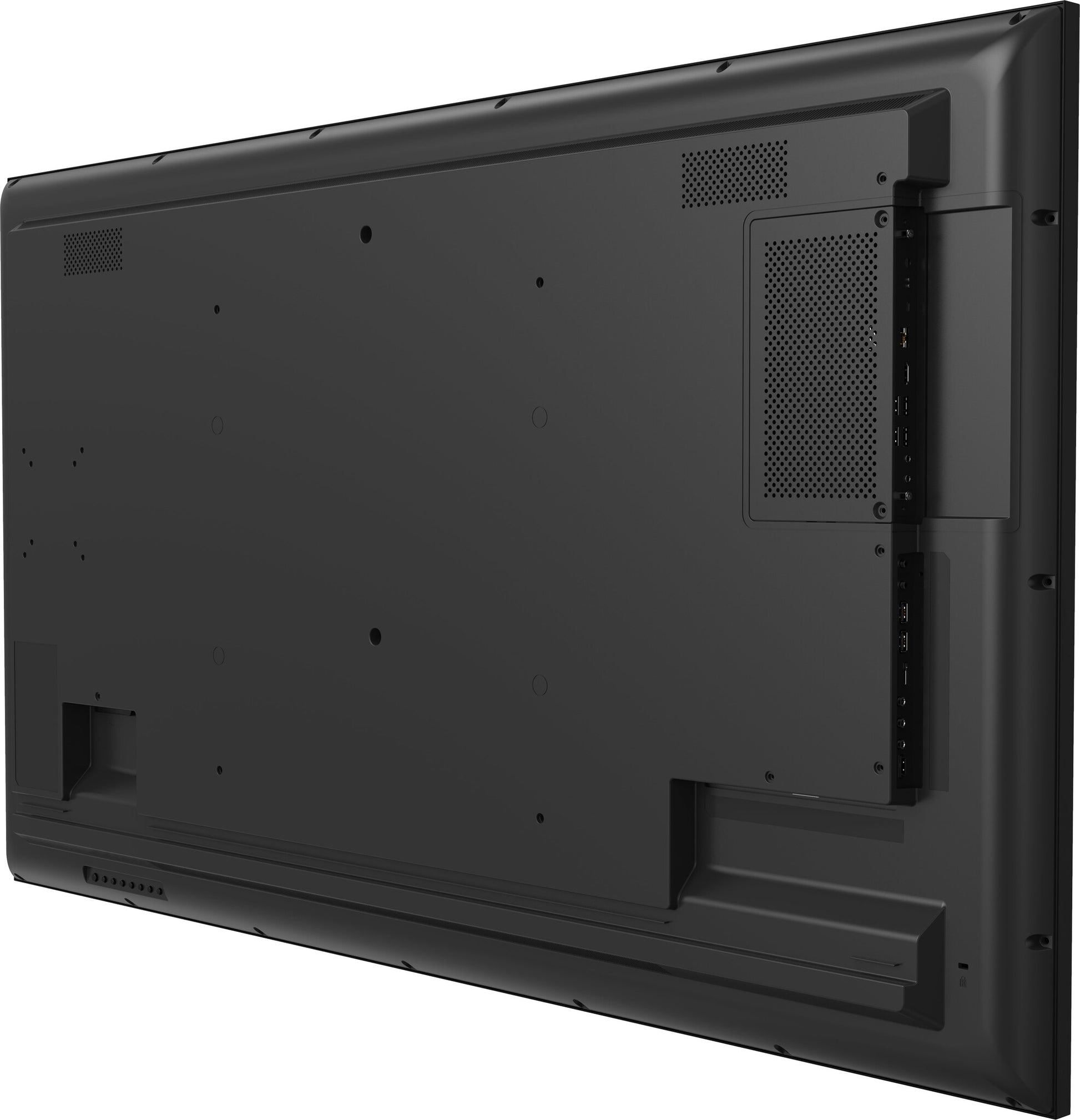

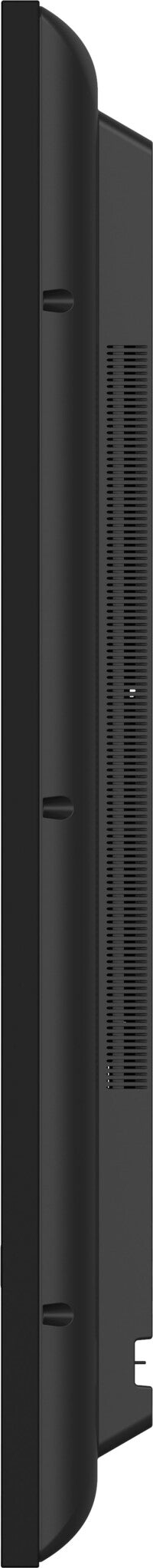

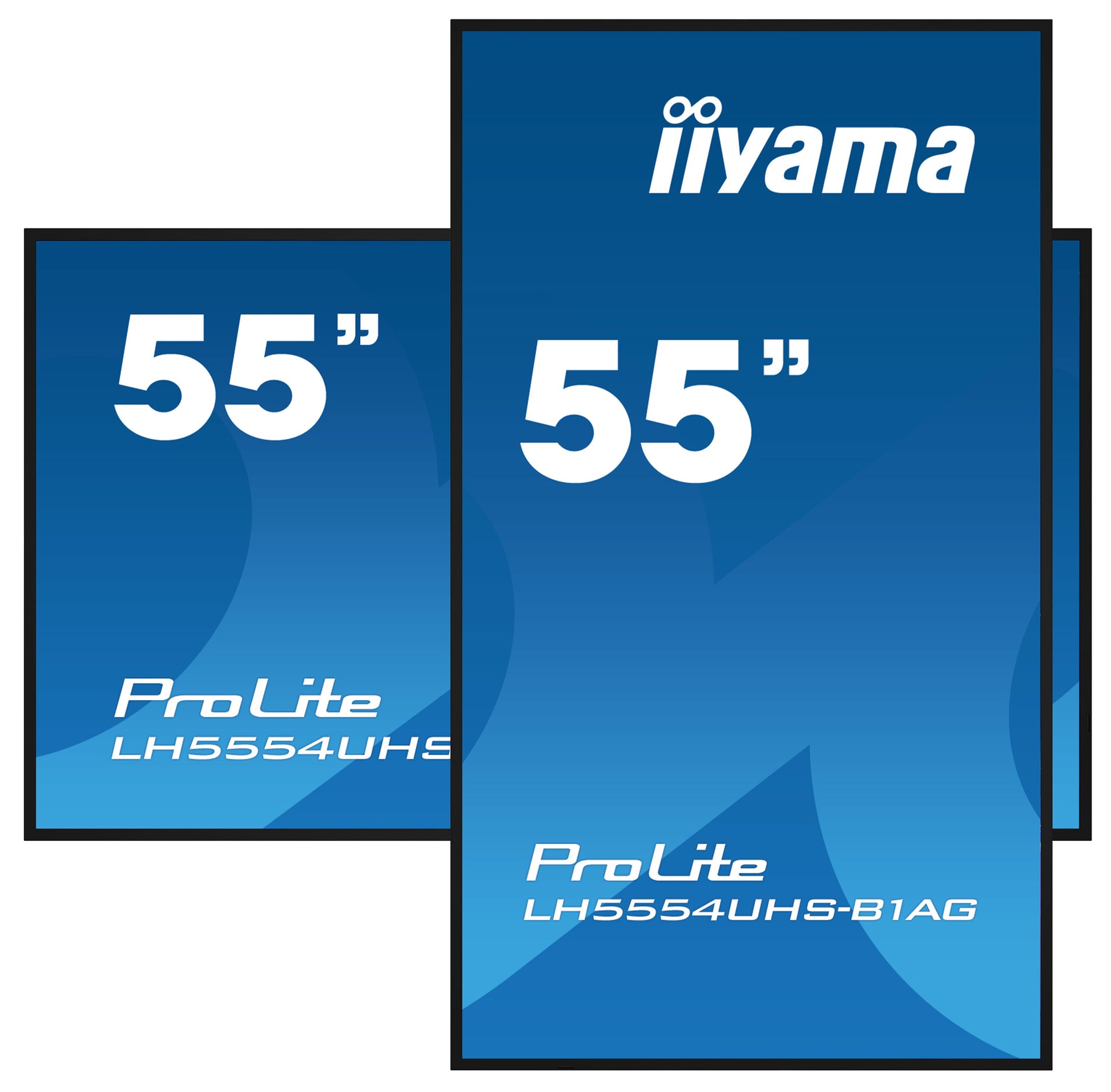

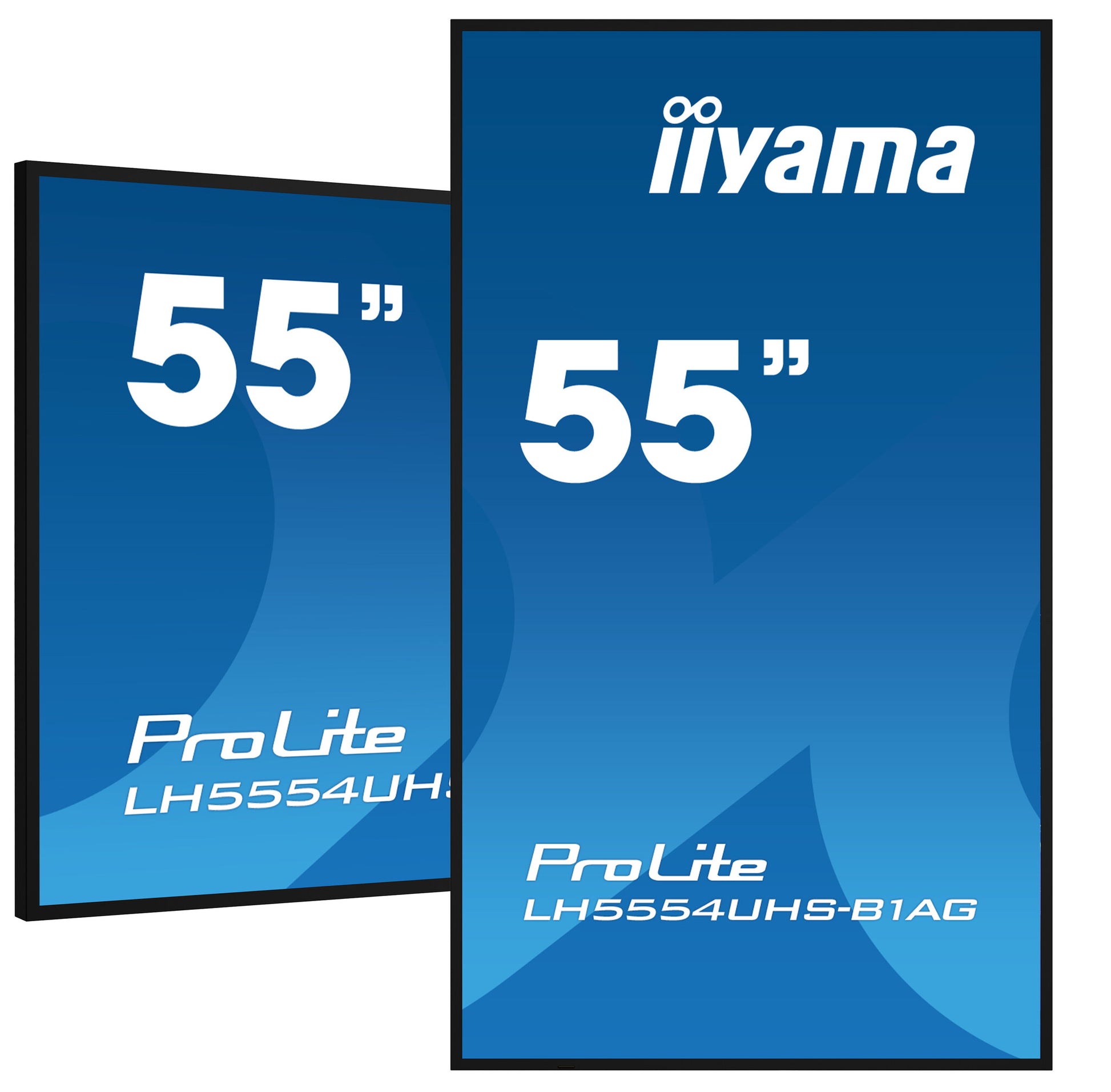

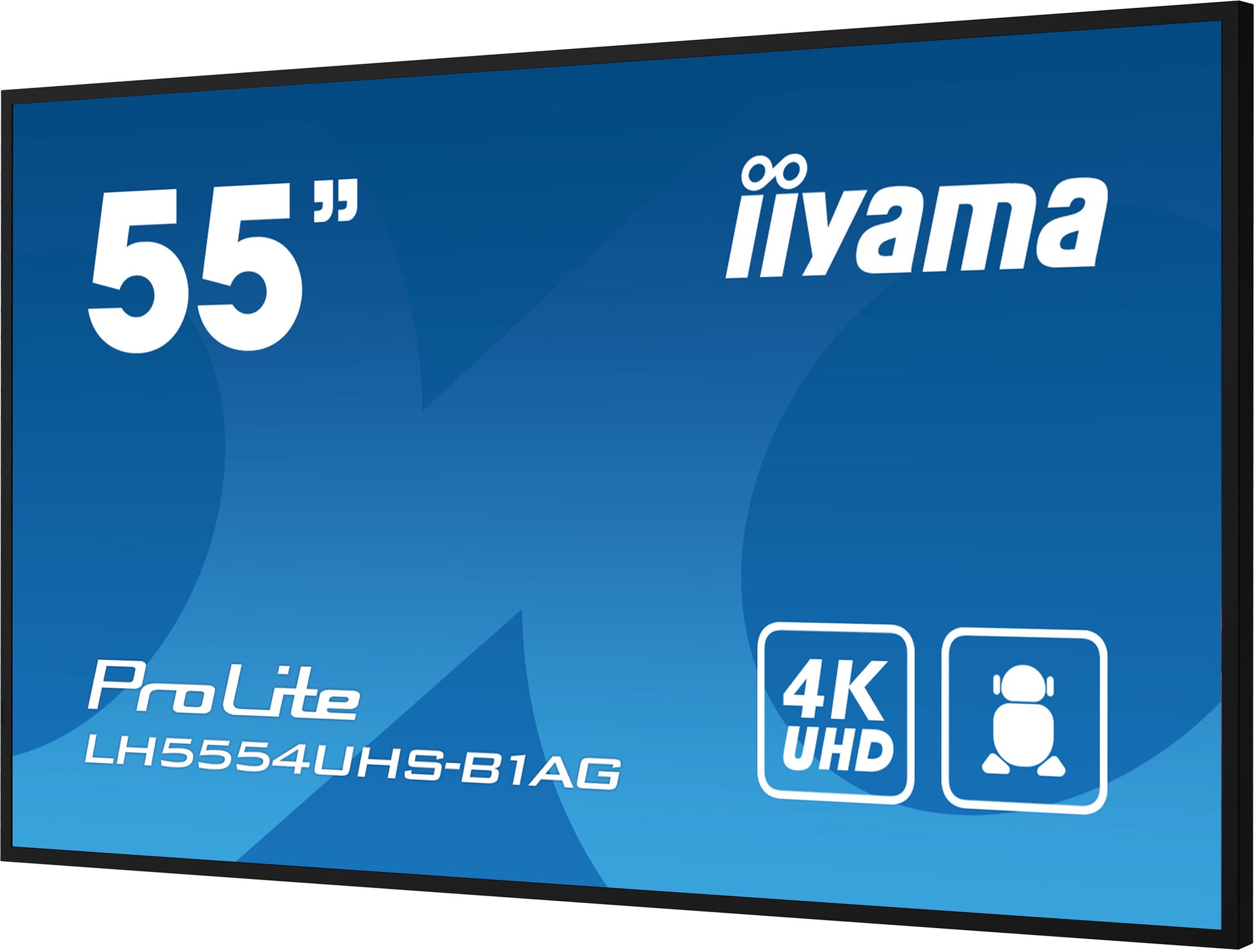

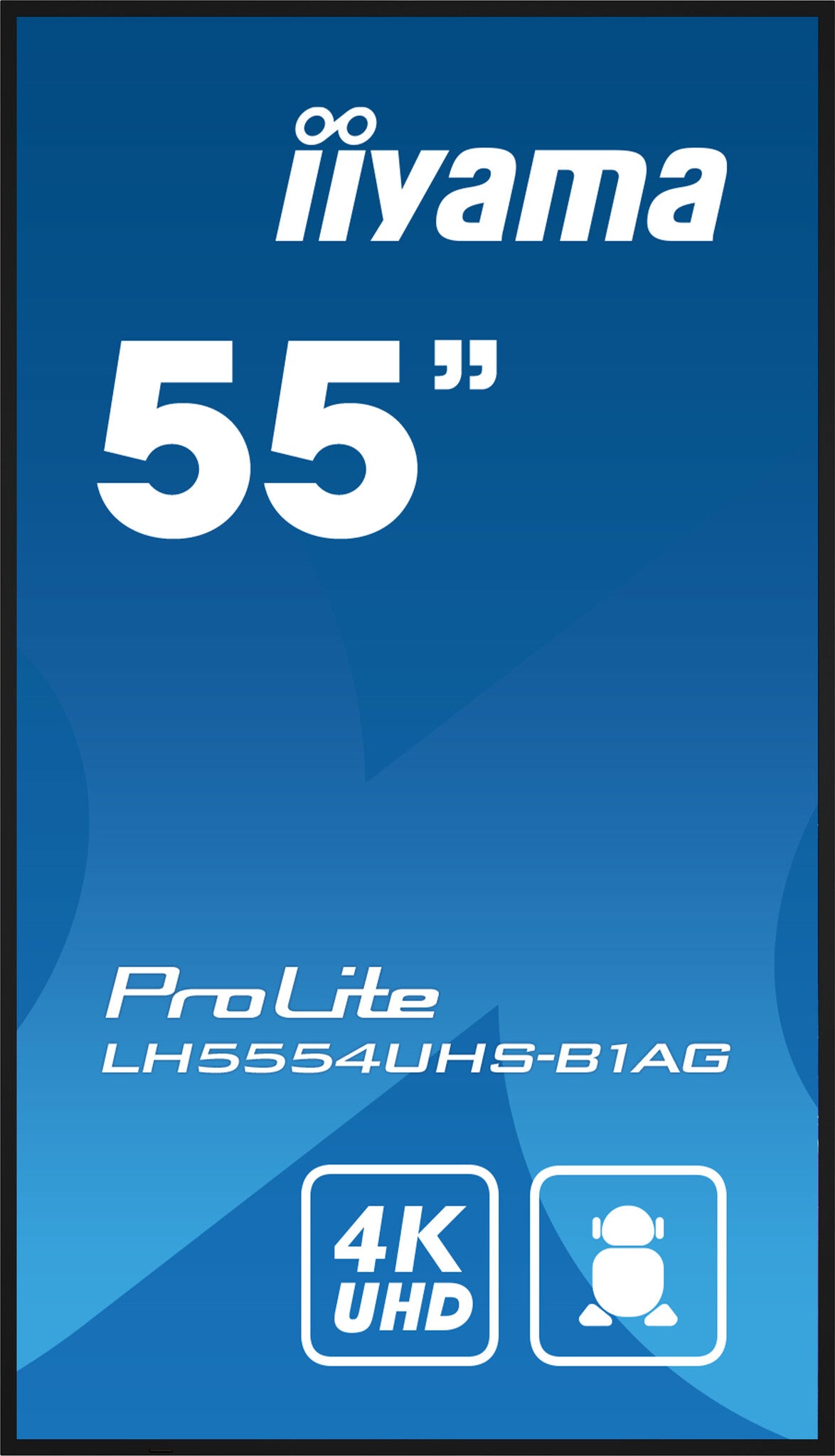

iiyama LH5554UHS-B1AG

iiyama LH5554UHS-B1AG

54.6", 3840 x 2160, IPS, Haze 25%, 500 cd/m², 2x 10W, DVI-I, VGA, HDMI 3x, DP-out (MST/Mirror/Tiling), USB 2.0 x2, WiFi, LAN / RS232C, iiSignage2 (CMS/DMS), Android 11, VESA 400x400 mm, black

  • Signal FailOver
  • Android OS
  • Smart Display Module
  • 4K
  • SKU:4948570120994
  • GTIN/EAN:4948570120994
  • MPN:LH5554UHS-B1AG

You need to login to view the price.

Add To Favorite
View full details

Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH5554UHS from iiyama is a 500cd/m² high brightness professional large format display and can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android OS means you can customize the display to your needs and install applications directly to it.

The on-board CMS (Content Management Software) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the Signal FailOver feature ensures your content is always actively displayed through your choice of inputs. WiFi enabled, this series is ready for remote content delivery using your network or you can choose to utilise LAN control.

Display
Horizontal scan range
28 - 160 kHz
Haze rate
25%
Panel type
IPS
Maximum frame rate
60 fps
Display diagonal (metric)
139 cm
Active display area (W x H)
1209.6 x 680.4 mm
Pixel pitch
0.315 x 0.315 mm
Display number of colours
1.07 billion colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
1200:1
Response time
8 ms
Touchscreen
No
HD type
4K Ultra HD
Display brightness
500 cd/m²
Display resolution
3840 x 2160 pixels
Display technology
LCD
Display diagonal
138.7 cm (54.6")

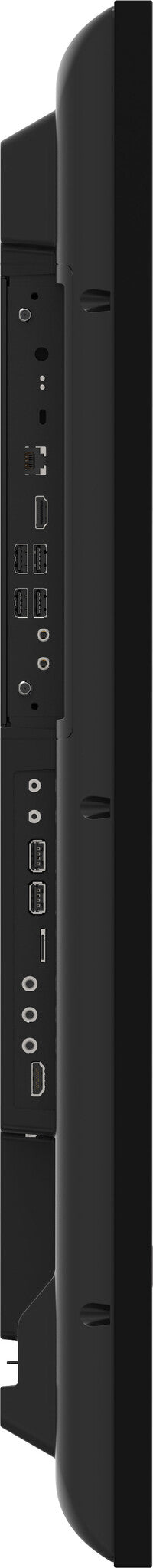

Ports & interfaces
Compatible memory cards
MicroSD (TransFlash)
Card reader integrated
Yes
Remote (IR) output
1
Remote (IR) input
1
RS-232C
Yes
Audio (L/R) out
1
Audio (L/R) in
1
Wi-Fi
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Yes
USB version
2.0
USB ports quantity
2
USB port
Yes
DisplayPorts quantity
1
VGA (D-Sub) input ports
1
DVI-I ports quantity
1
DVI port
Yes
HDMI version
2.0
HDMI ports quantity
3
Audio
RMS rated power
10 W
Number of built-in speakers
2
Built-in speaker(s)
Yes
Design
Panel mounting interface
400 x 400 mm
VESA mounting
Yes
Screen shape
Flat
Orientation
Horizontal/Vertical
Product colour
Black
Product design
Digital signage flat panel
Performance
Mean time between failures (MTBF)
50000 h
HDCP
Yes
HDCP version
2.0
Operating hours (hours/days)
24/7
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Simplified Chinese, Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish
Power
Energy efficiency scale
A to G
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Energy consumption (SDR) per 1000 hours
151 kWh
Energy efficiency class (SDR)
G
Power consumption (off)
0.3 W
Power consumption (standby)
0.5 W
Power consumption (typical)
151 W
Computer system
Operating system installed
Android 11
Internal storage capacity
32 GB
On-board graphics card model
ARM Mali-G52
Internal memory
4 GB
Processor cores
4
Processor architecture
ARM Cortex-A53+Cortex-A73
Built-in processor
Yes
Weight & dimensions
Display weight
15 kg
Display height
711.7 mm
Display depth
69 mm
Display width
1240.6 mm
Packaging data
Package weight
20.5 kg
Package height
850 mm
Package depth
156 mm
Package width
1370 mm
Packaging content
Cables included
HDMI, Power, RS-232
Remote control included
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
