iiyama TF5539UHSC-B1AG

iiyama TF5539UHSC-B1AG

55", 3840x2160, 16:9, IPS LED, 8ms, USB, VGA, HDMI, DP, RS-232C, RJ-45, HDCP, 1271.5x749.4x68 mm

  • Touchscreen 139.7 cm (55") LED IPS
  • 4K Ultra HD 3840 x 2160 pixels 16:9
  • 60 Hz 8 ms 1100:1
  • G 151 kWh 155 W
  • SKU:4948570118069
  • GTIN/EAN:4948570118069
  • MPN:TF5539UHSC-B1AG

You need to login to view the price.

Add To Favorite
View full details

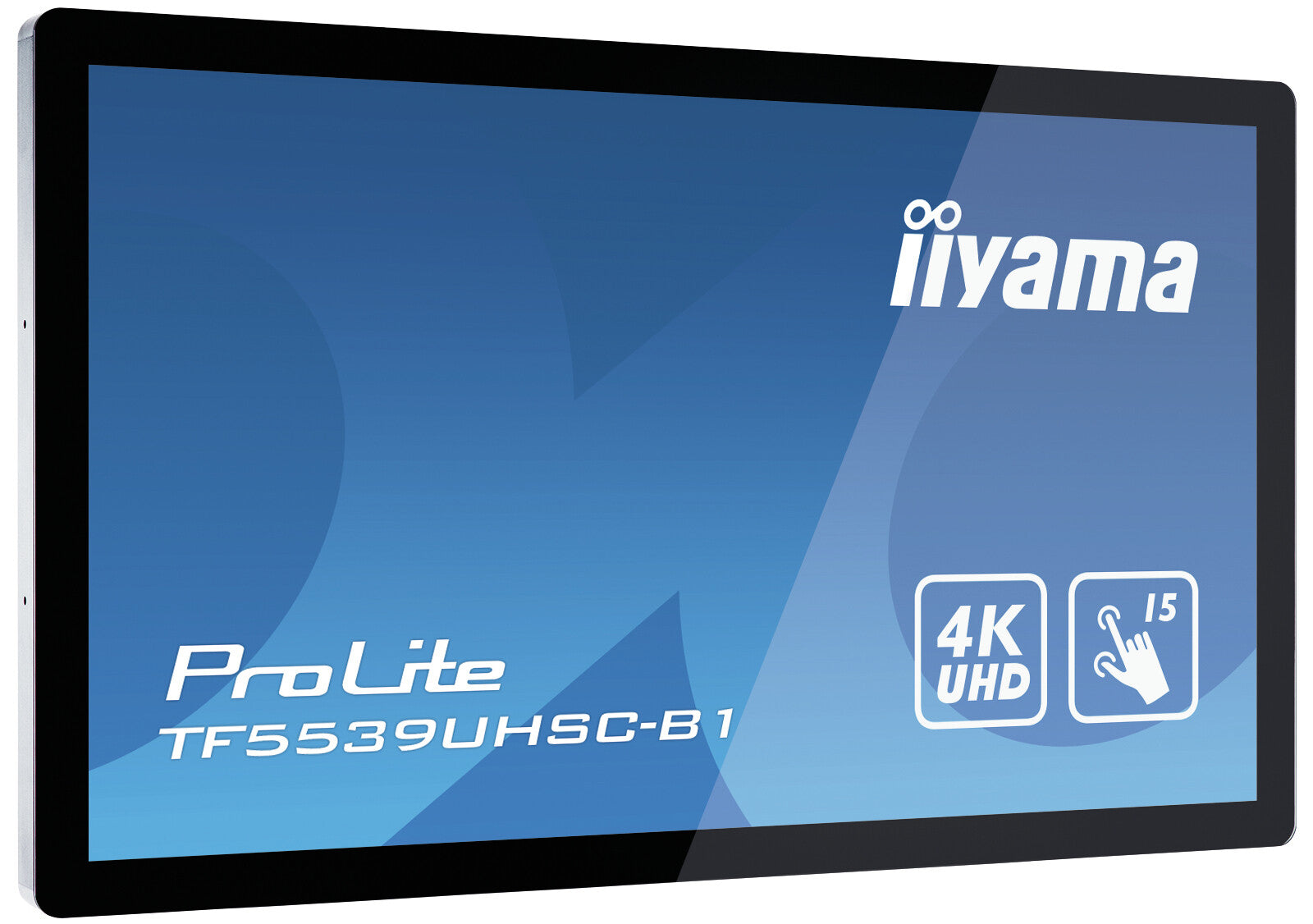

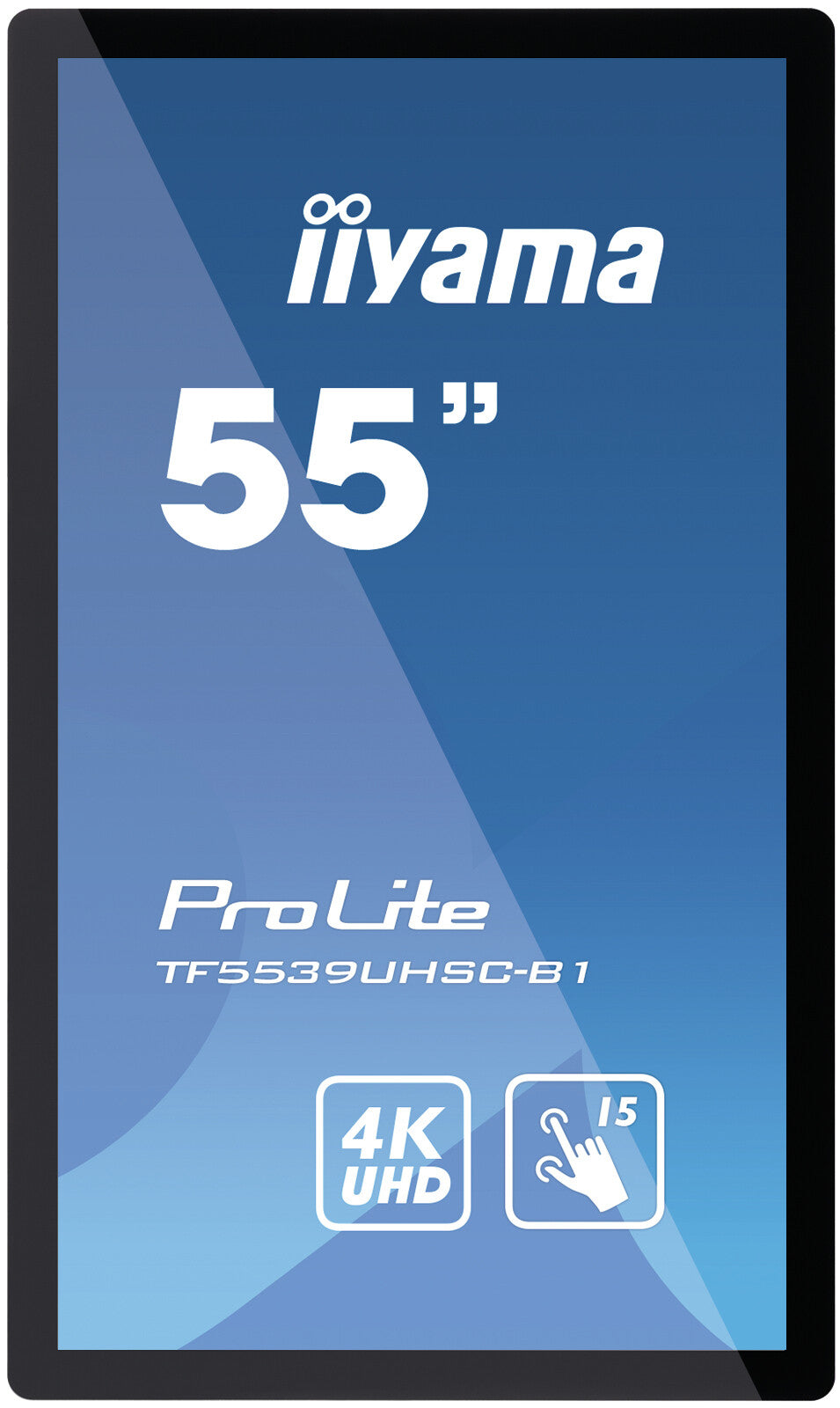

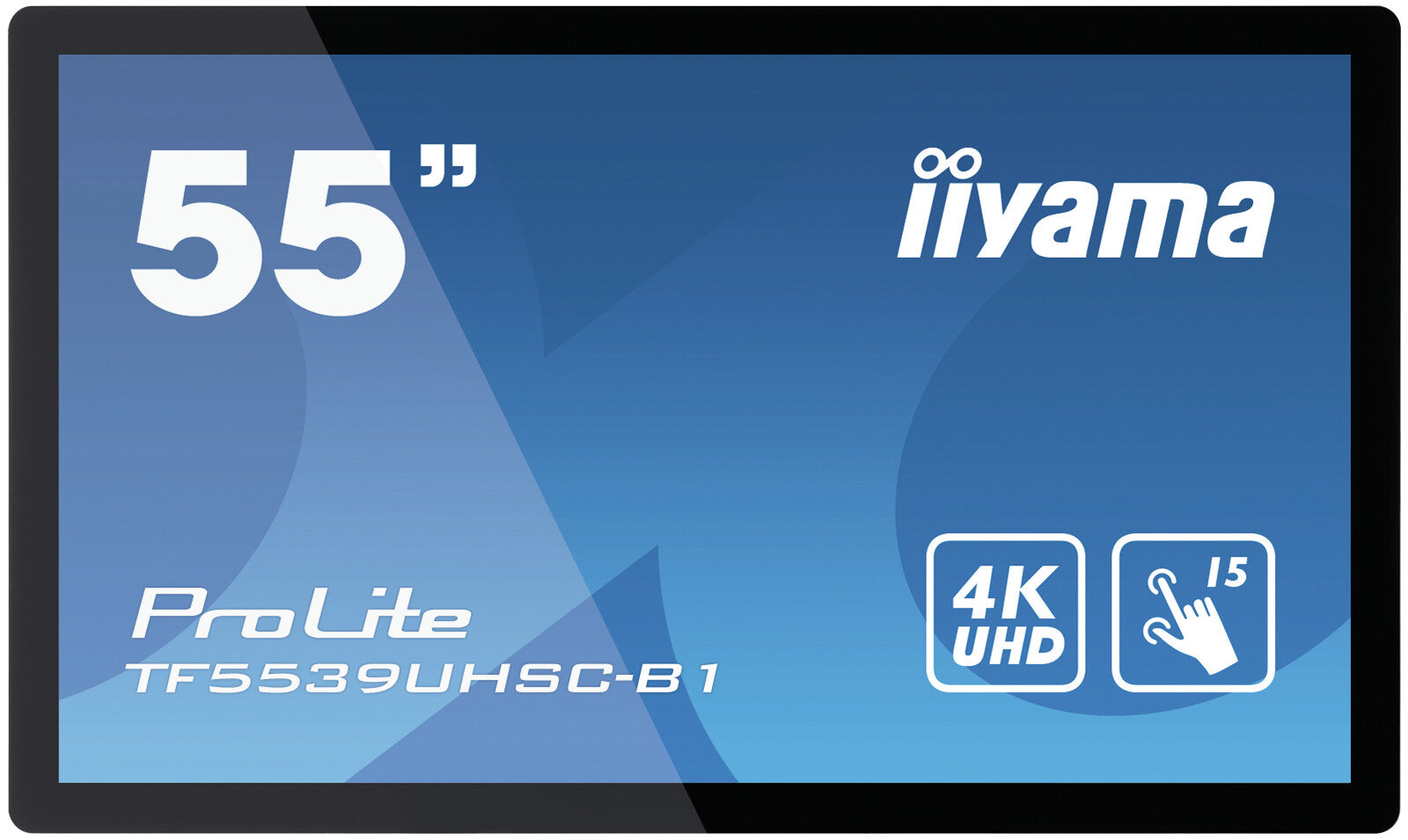

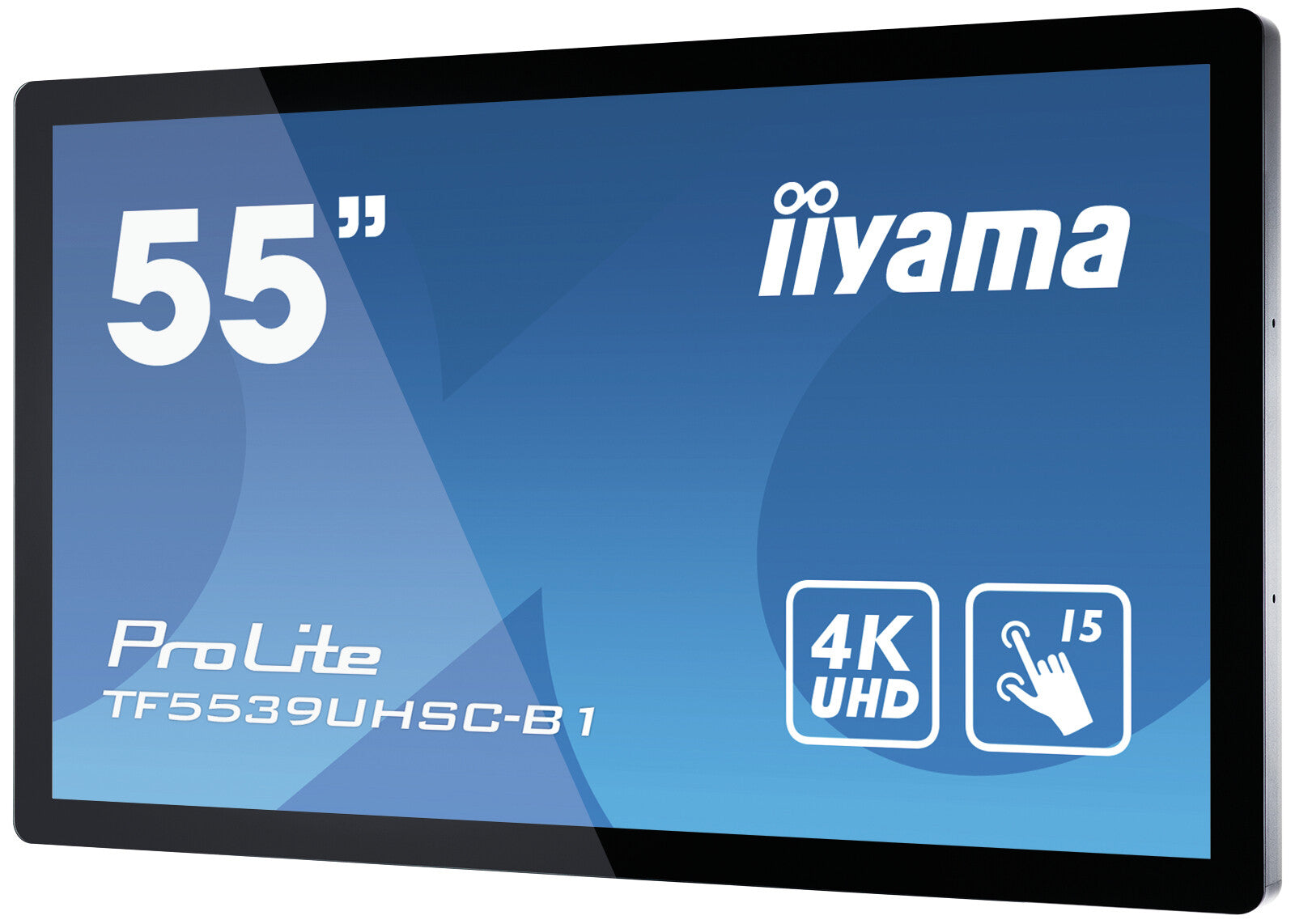

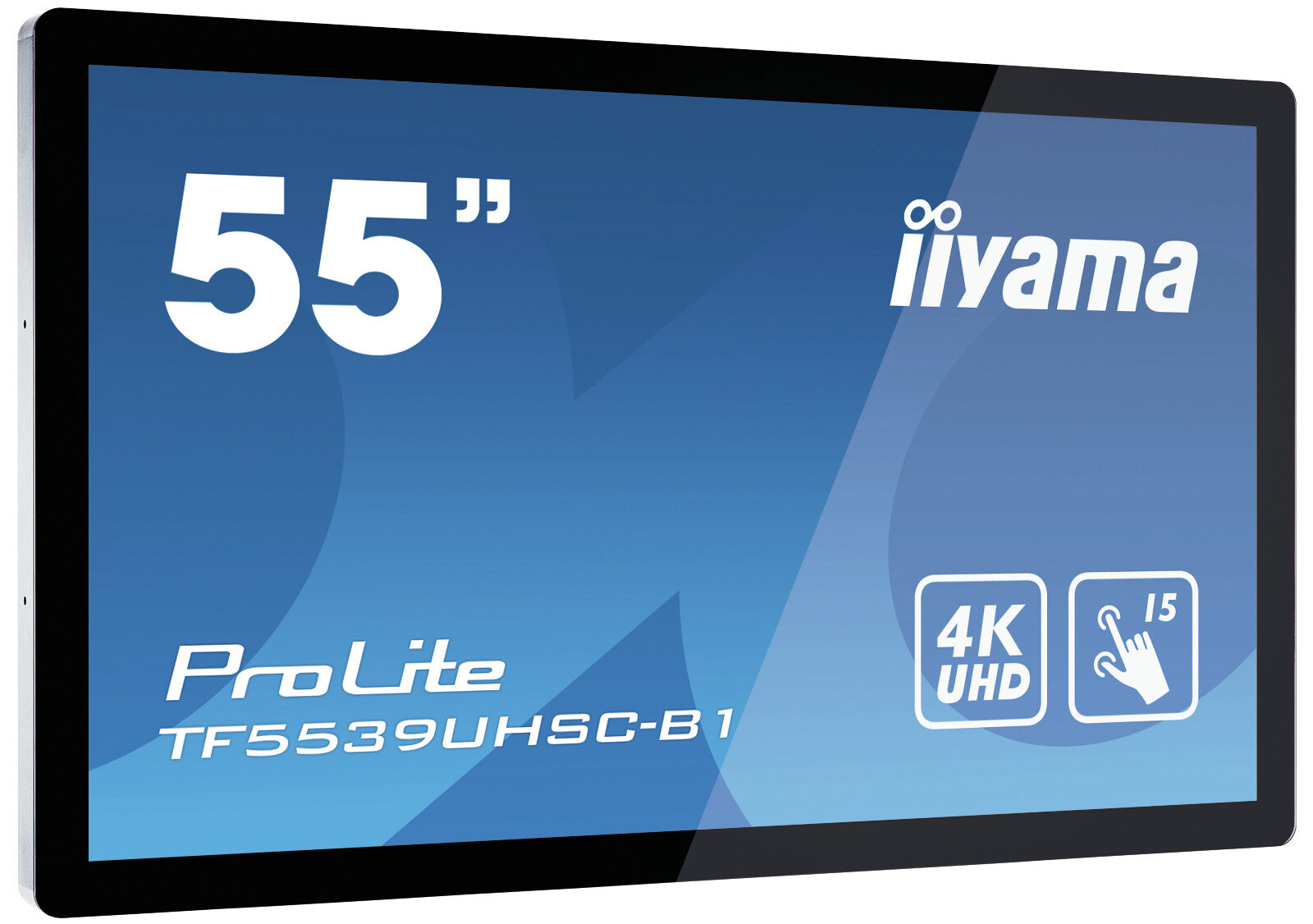

iiyama ProLite TF5539UHSC-B1AG. Display diagonal: 139.7 cm (55"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LED, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: Black

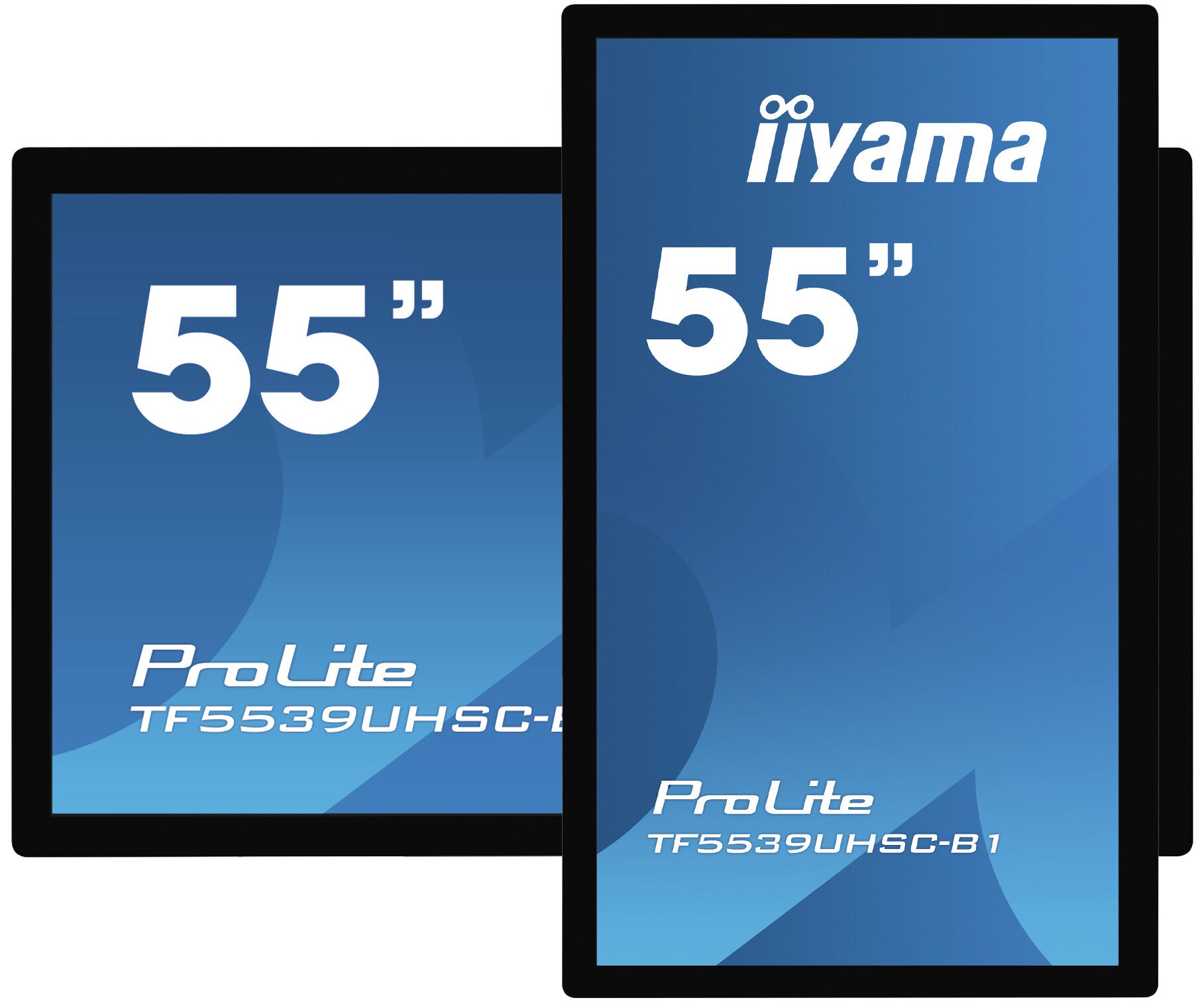

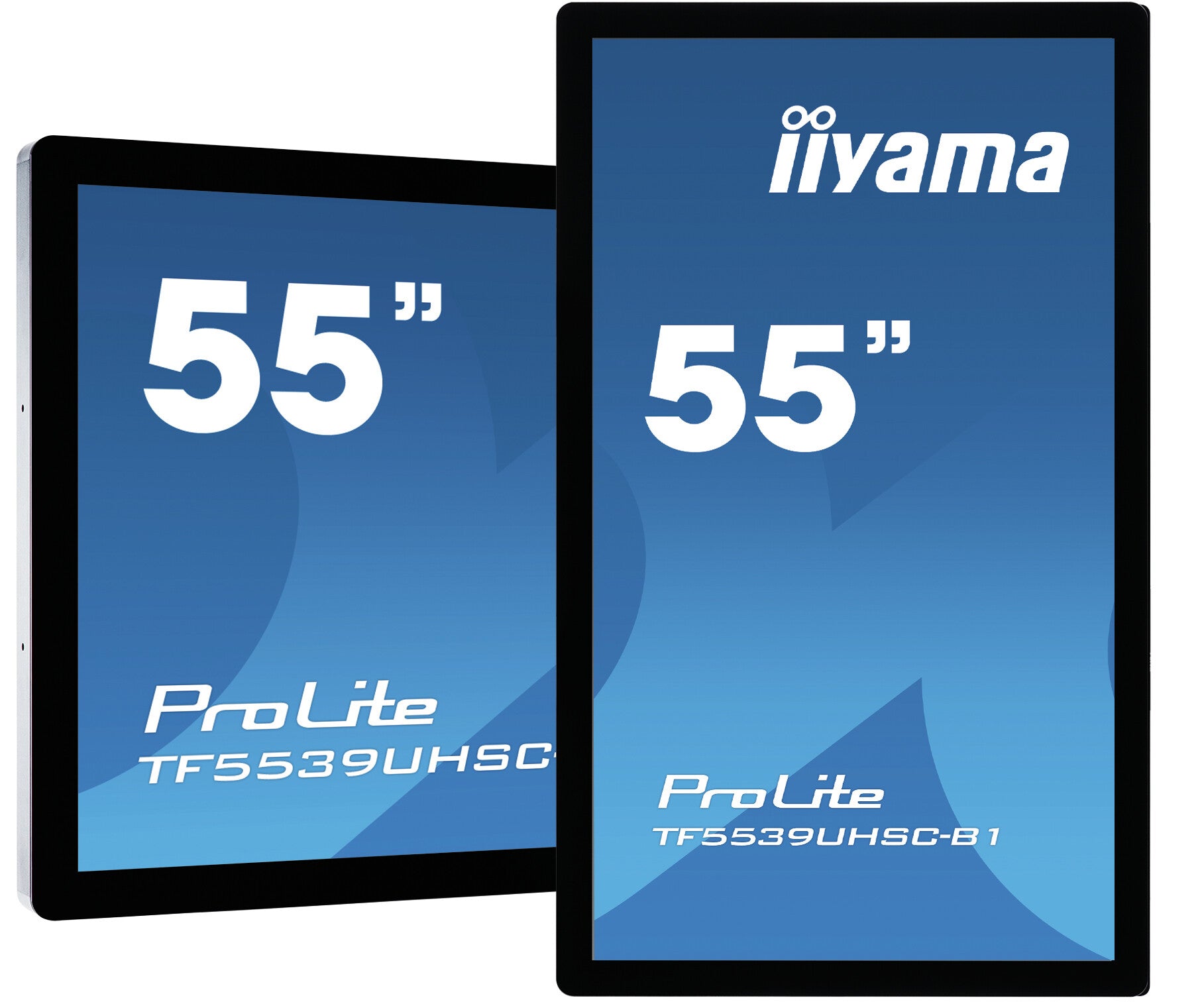

55" Open Frame PCAP interactive large format display with 15pt touch capability, IPS panel technology and touch through glass function for landscape, portrait or face up use

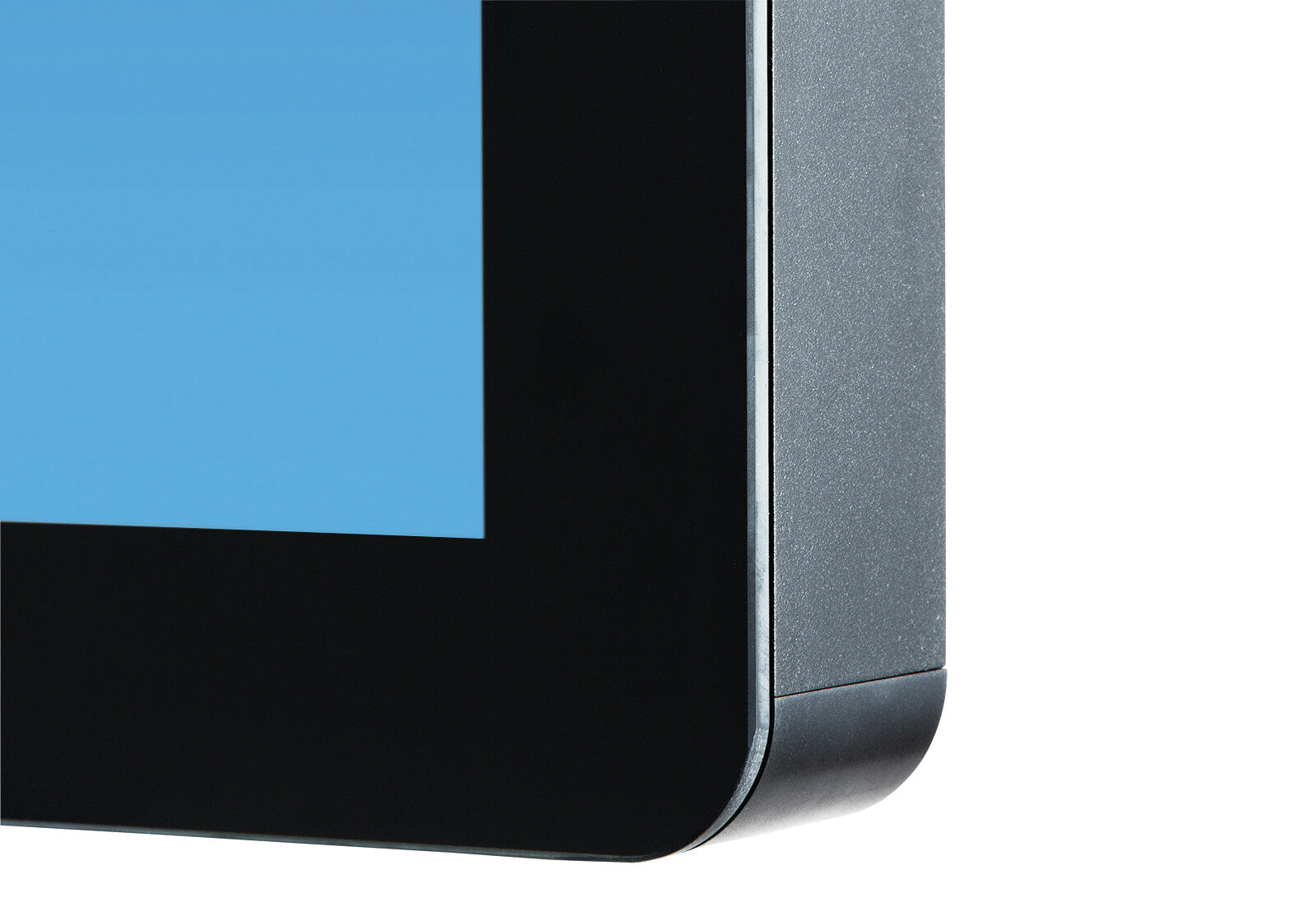

The 4K UHD (3840x2160) Open Frame TF5539UHSC-B1AG with Touch-Through-Glass function guarantees a seamless and accurate touch response for true kiosk integration or interactive behind-glass-retail applications. The IPS panel technology offers exceptional colour performance and wide viewing angles, making it a perfect solution for interactive shop windows, education, kiosks and in-store communications. Featuring a metal housing with 60950-1 ball-drop proof, scratch-resistant and edge-to-edge glass, this display can be installed in the most demanding environments for an 24/7 usage and in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF5539UHSC-B1AG can be equipped with optional external mounting brackets (OMK4-2) making it an ideal solution for kiosk integrators and interactive multimedia.

IPS TECHNOLOGY
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

Display
Horizontal scan range
30 - 83 kHz
Display number of colours
1.073 billion colours
Maximum refresh rate
60 Hz
Contrast ratio (typical)
1100:1
Screen shape
Flat
Display brightness
500 cd/m²
Response time
8 ms
Touchscreen technology
Projected capacitive system
Panel type
IPS
Display resolution
3840 x 2160 pixels
Display diagonal
139.7 cm (55")
Performance
AMD FreeSync
N
NVIDIA G-SYNC
N
Multimedia
RMS rated power
16 W
Number of speakers
2
Built-in speaker(s)
Y
Design
Certification
CB, CE, EAC, RoHS, ErP, WEEE, cULus, REACH
International Protection (IP) code
IP54
Glass thickness
4 mm
Housing material
Metal
Product colour
Black
Ports & interfaces
RS-232C
Y
Microphone in
Y
Audio output
1
Audio input
1
DisplayPort version
1.2
HDMI version
1.4/2.0
Ergonomics
On Screen Display (OSD) languages
German, Dutch, English, Spanish, French, Italian, Polish, Russian
Number of OSD languages
8
On Screen Display (OSD)
Y
Wall mountable
Y
Panel mounting interface
600 x 400 mm
VESA mounting
Y
Power
Energy efficiency scale
A to G
AC input frequency
50 - 60 Hz
AC input voltage
100-240 V
Power consumption (off)
0.3 W
Power consumption (standby)
1.5 W
Power consumption (typical)
155 W
Energy consumption (SDR) per 1000 hours
151 kWh
Energy efficiency class (SDR)
G
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Sustainability
Sustainability certificates
CE, REACH, RoHS, WEEE
Algemeen
Productfamilie
ProLite
Weight & dimensions
Weight (without stand)
41 kg
Height (without stand)
749.4 mm
Depth (without stand)
68 mm
Width (without stand)
1271.5 mm
Packaging data
Package weight
46.5 kg
Package height
930 mm
Package depth
245 mm
Package width
1400 mm
Cables included
AC, DisplayPort, HDMI, USB
Logistics data
Harmonized System (HS) code
85285210
Other features
Ethernet LAN (RJ-45) ports
1
Mean time between failures (MTBF)
50000 h
Display viewable area (HxV)
1209.6 x 680.4 mm
Placement supported
Horizontal/Vertical
Surface hardness
Surface hardness
7H
HDCP
Y
Display diagonal (metric)
139 cm
Built-in microphone
N
Pixel pitch
0.315 x 0.315 mm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
DisplayPorts quantity
1
HDMI ports quantity
2
HDMI
Y
VGA (D-Sub) ports quantity
1
USB Touch port
Y
Number of simultaneous touchpoints
15
Touchscreen type
Multi-user
Touch technology
Multi-touch
Built-in camera
N
Display technology
LED
Native aspect ratio
16:9
HD type
4K Ultra HD
Touchscreen
Y
