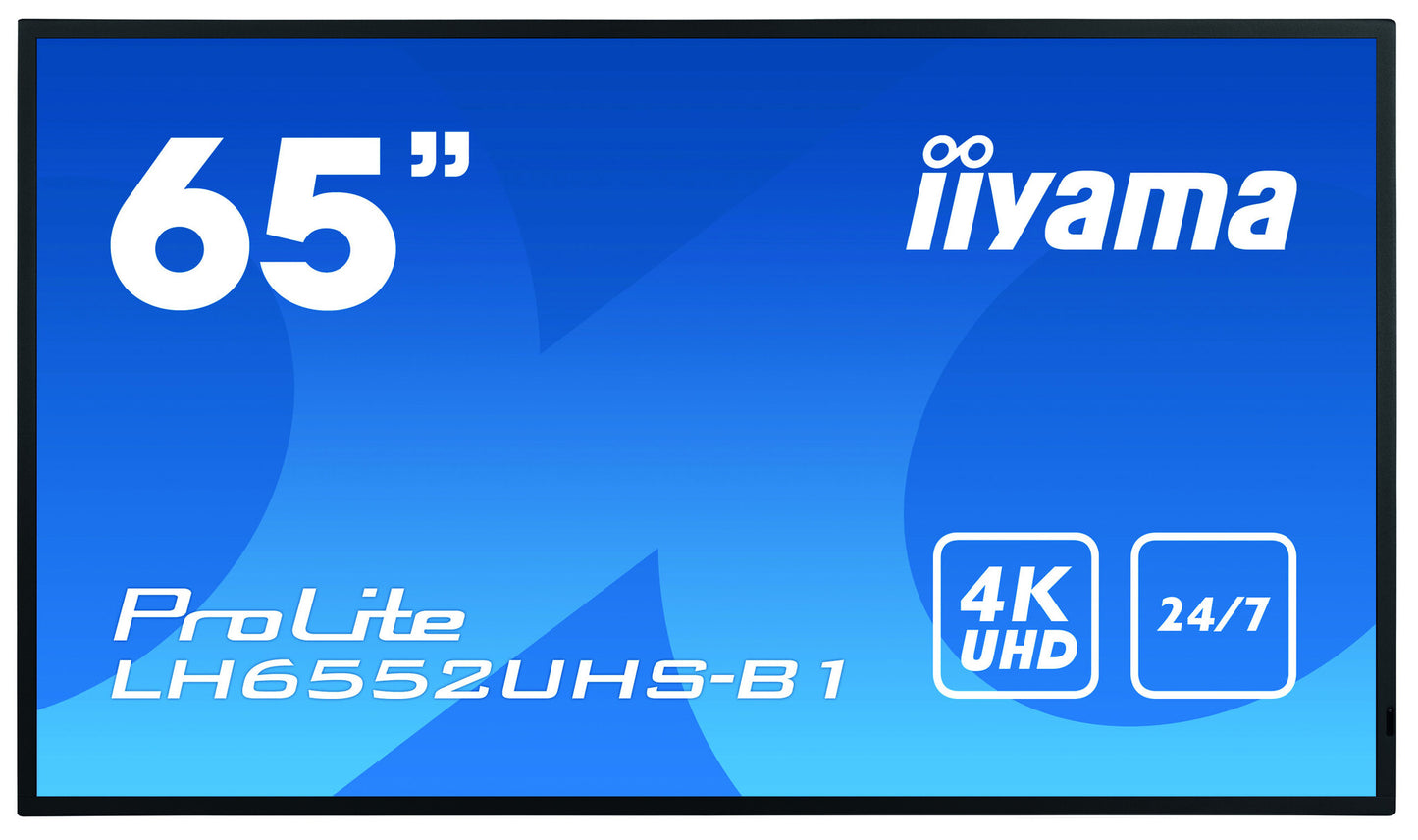

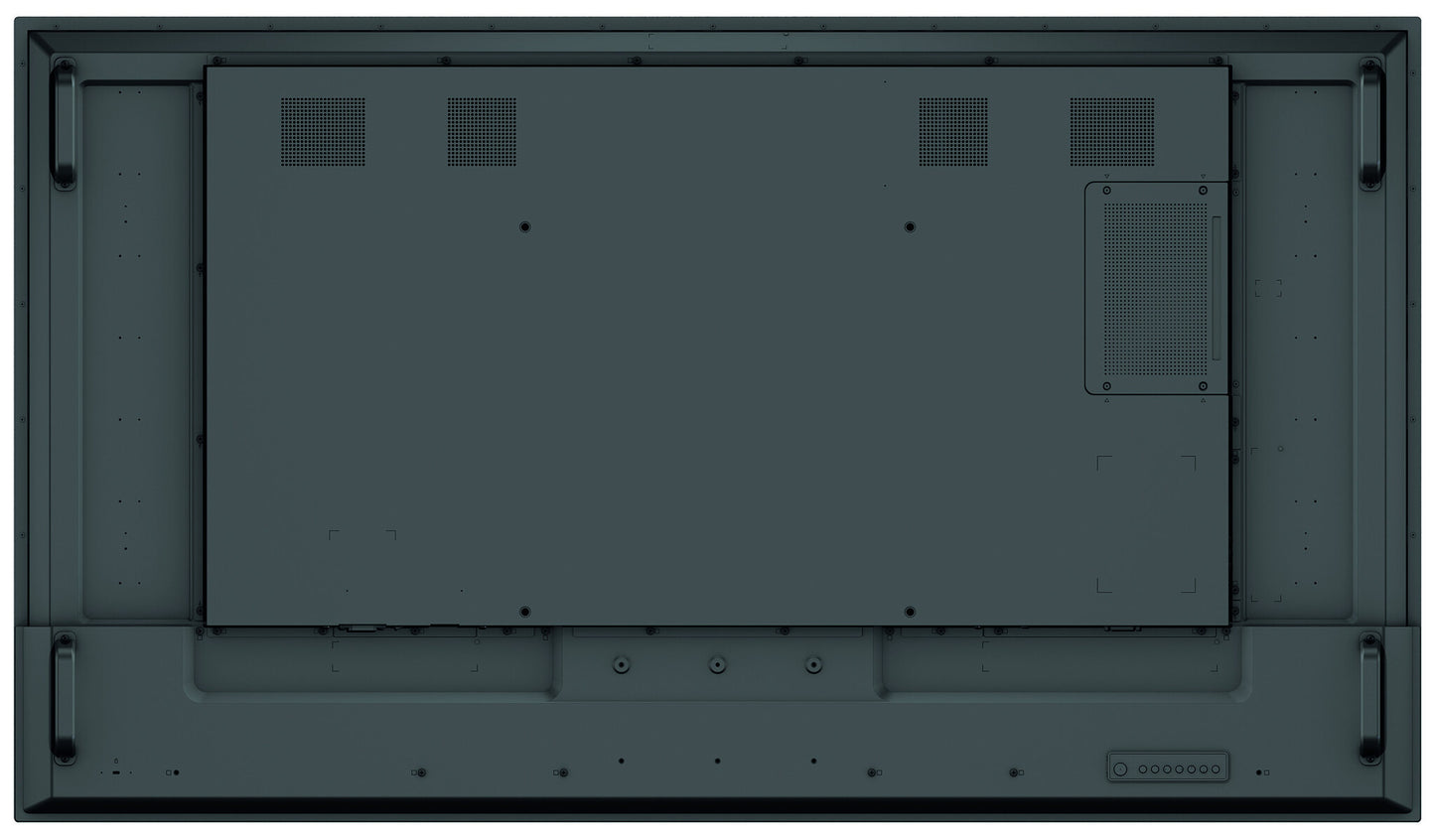

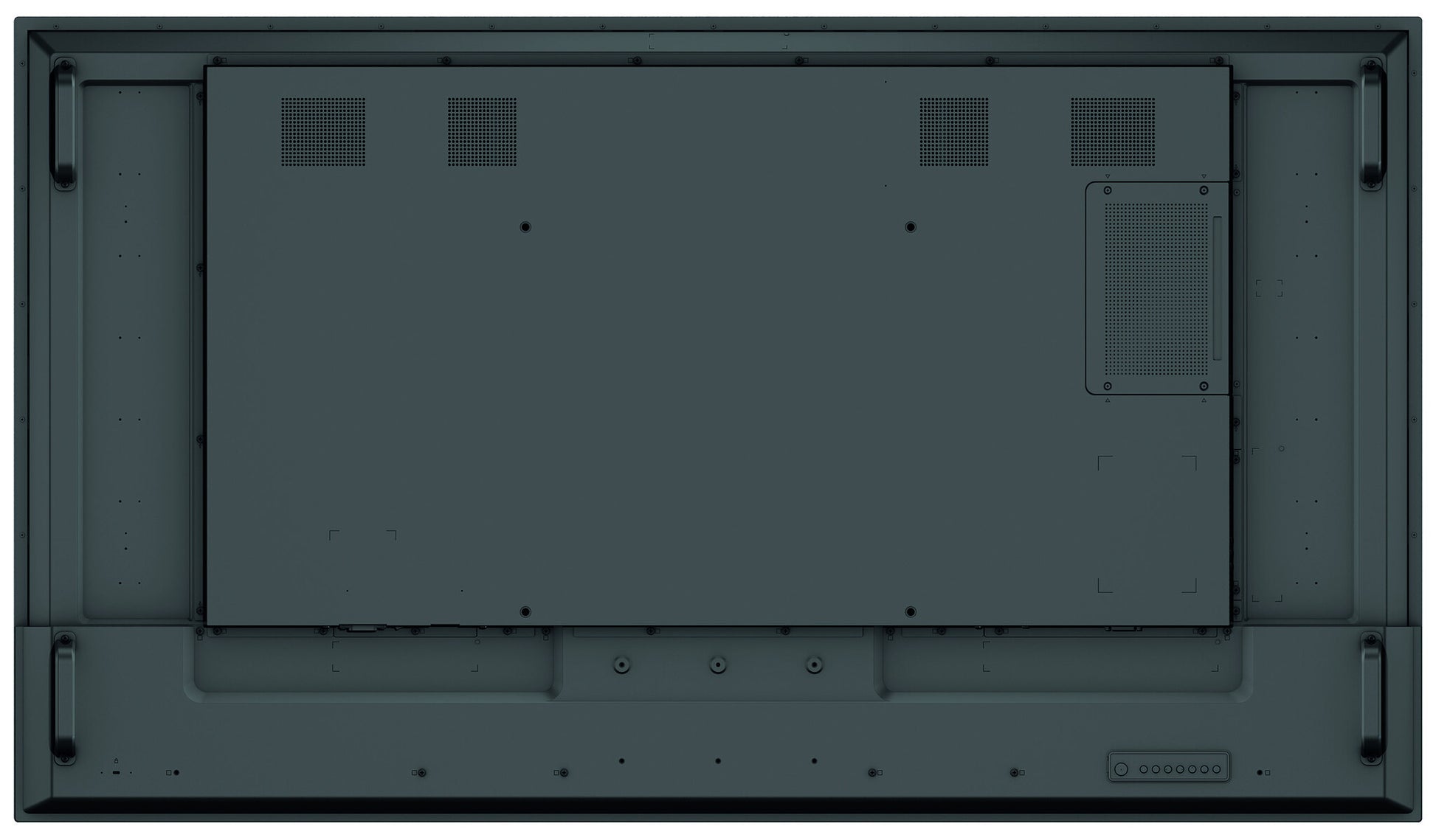

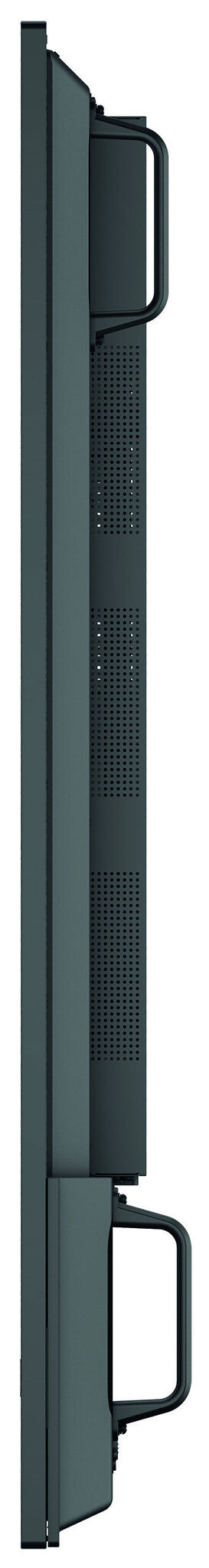

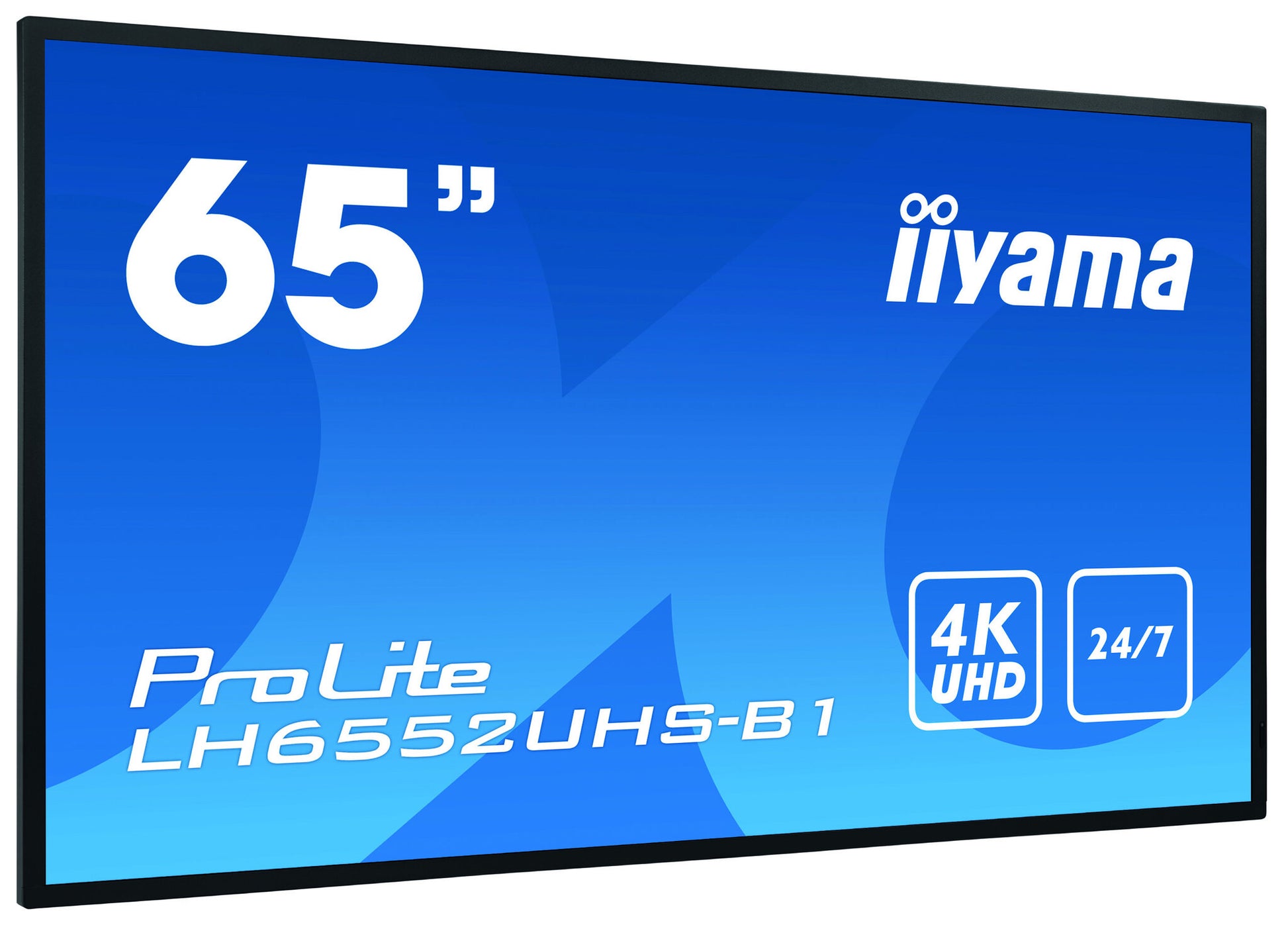

iiyama LH6552UHS-B1

iiyama LH6552UHS-B1

  • Indoor Digital signage flat panel Black
  • 163.8 cm (64.5") 3840 x 2160 pixels IPS 500 cd/m²
  • 60 Hz 8 ms
  • Ethernet LAN
  • Built-in speaker(s) 20 W
  • SKU:4948570118502
  • GTIN/EAN:4948570118502
  • MPN:LH6552UHS-B1

You need to login to view the price.

Add To Favorite
View full details

iiyama LH6552UHS-B1. Product design: Digital signage flat panel. Display diagonal: 163.8 cm (64.5"), Display technology: IPS, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Operating system installed: Android 8.0. Product colour: Black

Display
Vertical scan range
30 - 80 Hz
Native refresh rate
60 Hz
Display diagonal (metric)
163.9 cm
Active display area (W x H)
1428.5 x 803.5 mm
Pixel pitch
0.372 x 0.372 mm
Display number of colours
1.07 billion colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
1200:1
Response time
8 ms
Native aspect ratio
16:9
Touchscreen
N
HD type
4K Ultra HD
Display brightness
500 cd/m²
Display resolution
3840 x 2160 pixels
Display technology
IPS
Display diagonal
163.8 cm (64.5")

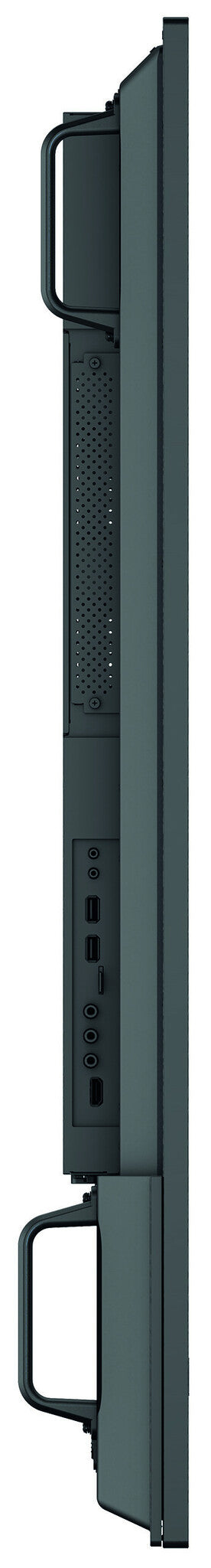

Ports & interfaces
Compatible memory cards
MicroSD (TransFlash)
Card reader integrated
Y
RS-232C
Y
PC Audio in
Y
Wi-Fi
N
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Y
USB version
2.0
USB ports quantity
2
USB port
Y
DisplayPorts out
1
DisplayPorts in
1
DisplayPorts quantity
2
VGA (D-Sub) input ports
1
DVI port
Y
HDMI input ports quantity
3
HDMI ports quantity
3
Audio
RMS rated power
20 W
Number of built-in speakers
2
Built-in speaker(s)
Y
Design
Bezel width (bottom)
1.49 cm
Bezel width (side)
1.49 cm
Bezel width (top)
1.49 cm

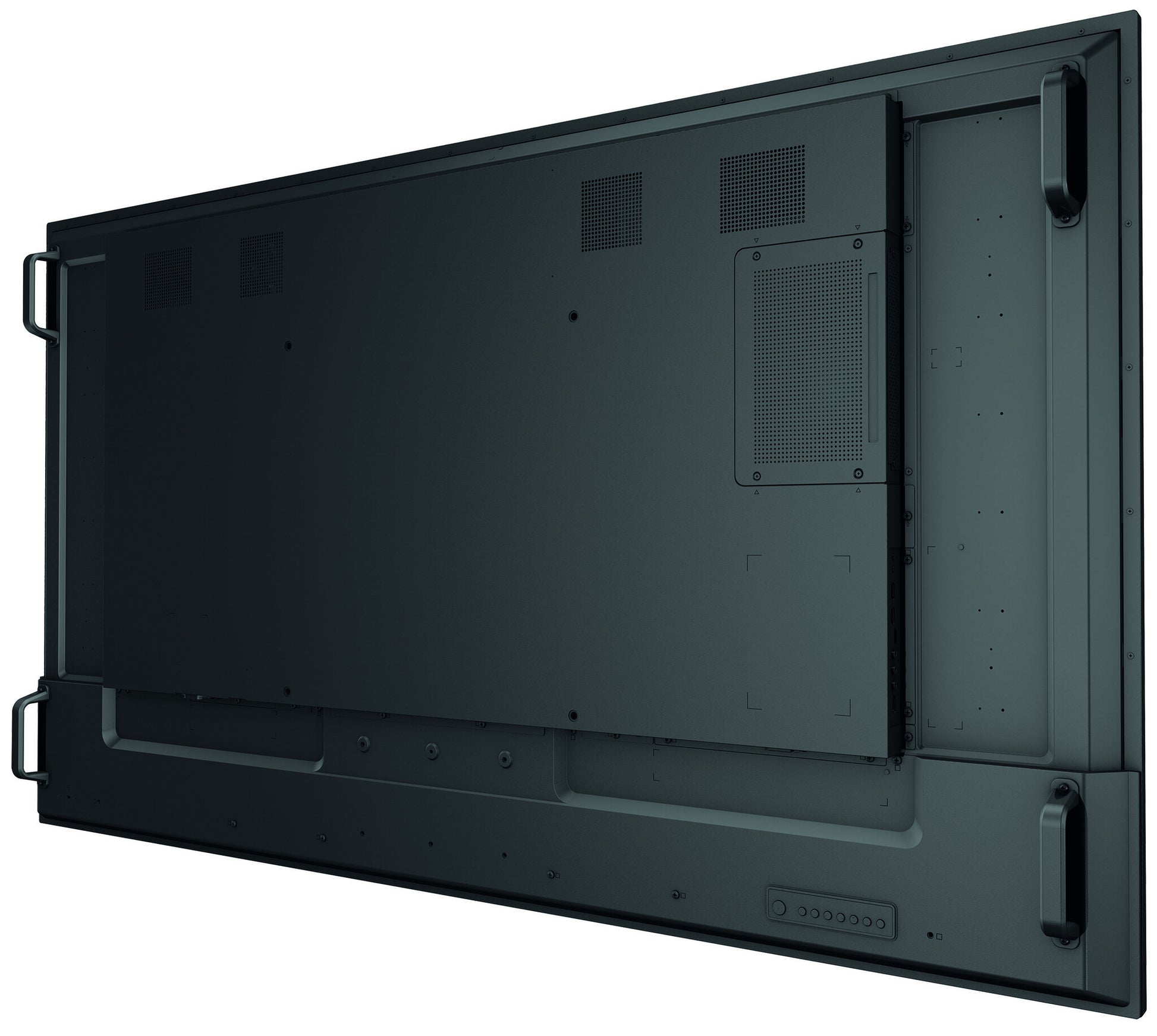

Panel mounting interface
400 x 400 mm
VESA mounting
Y

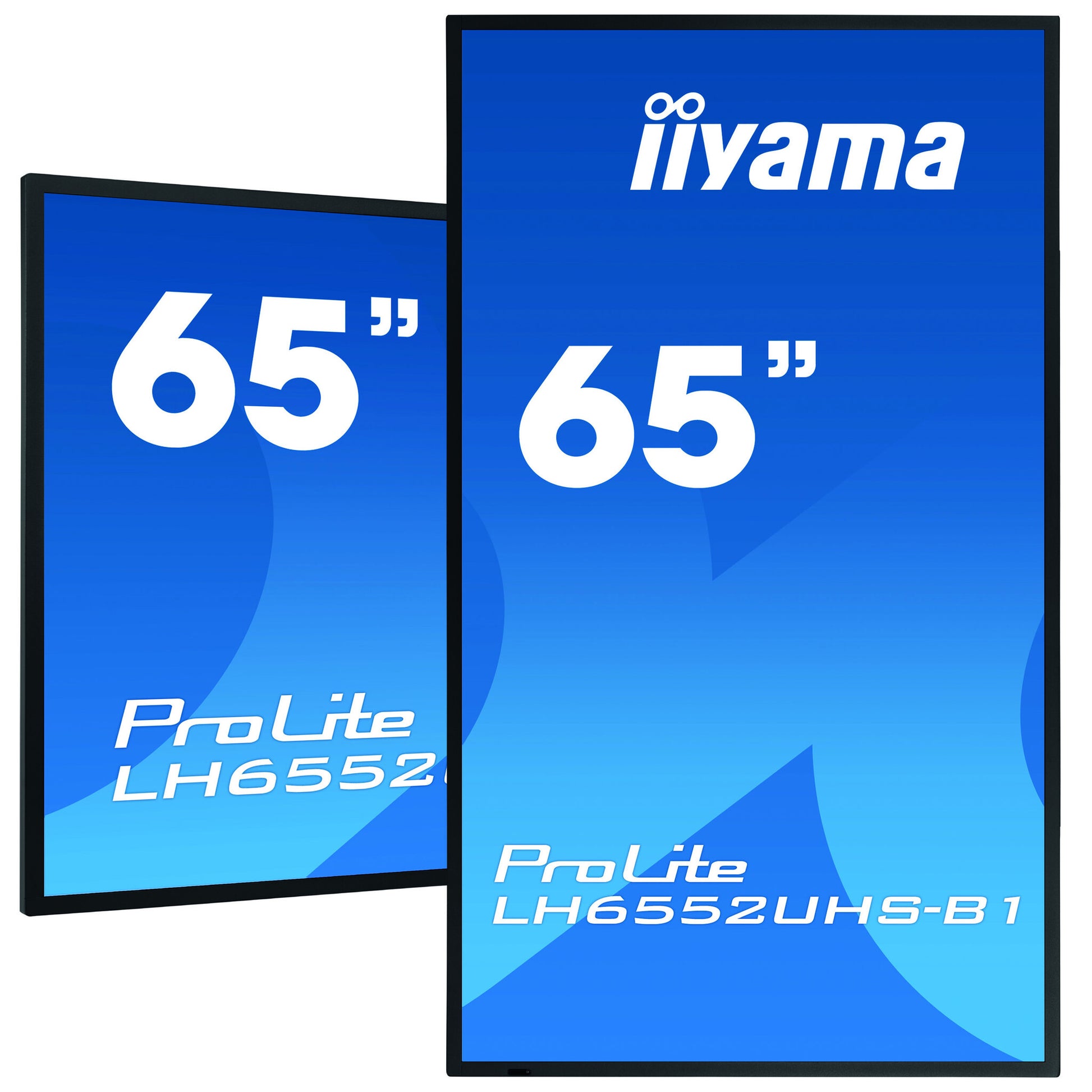

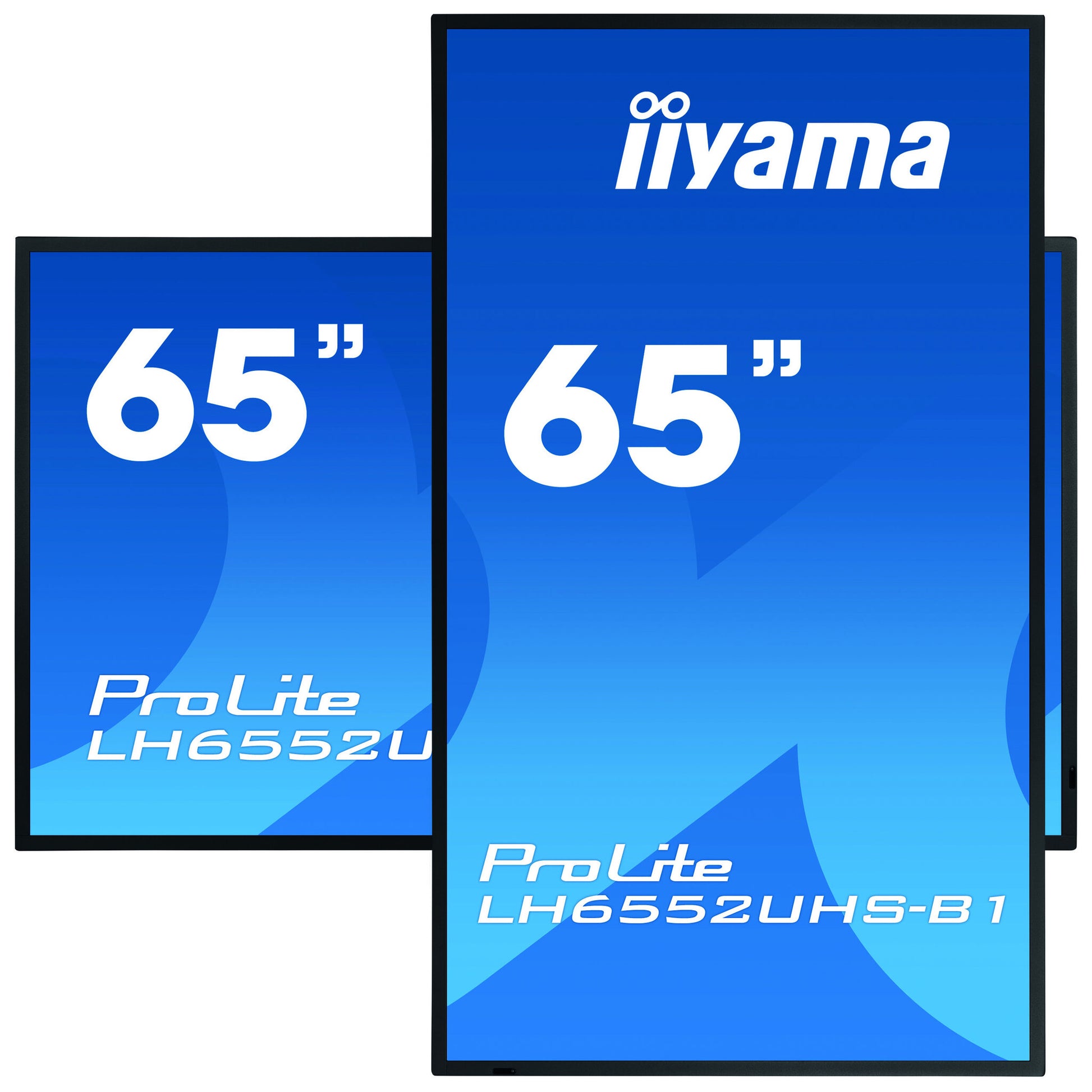

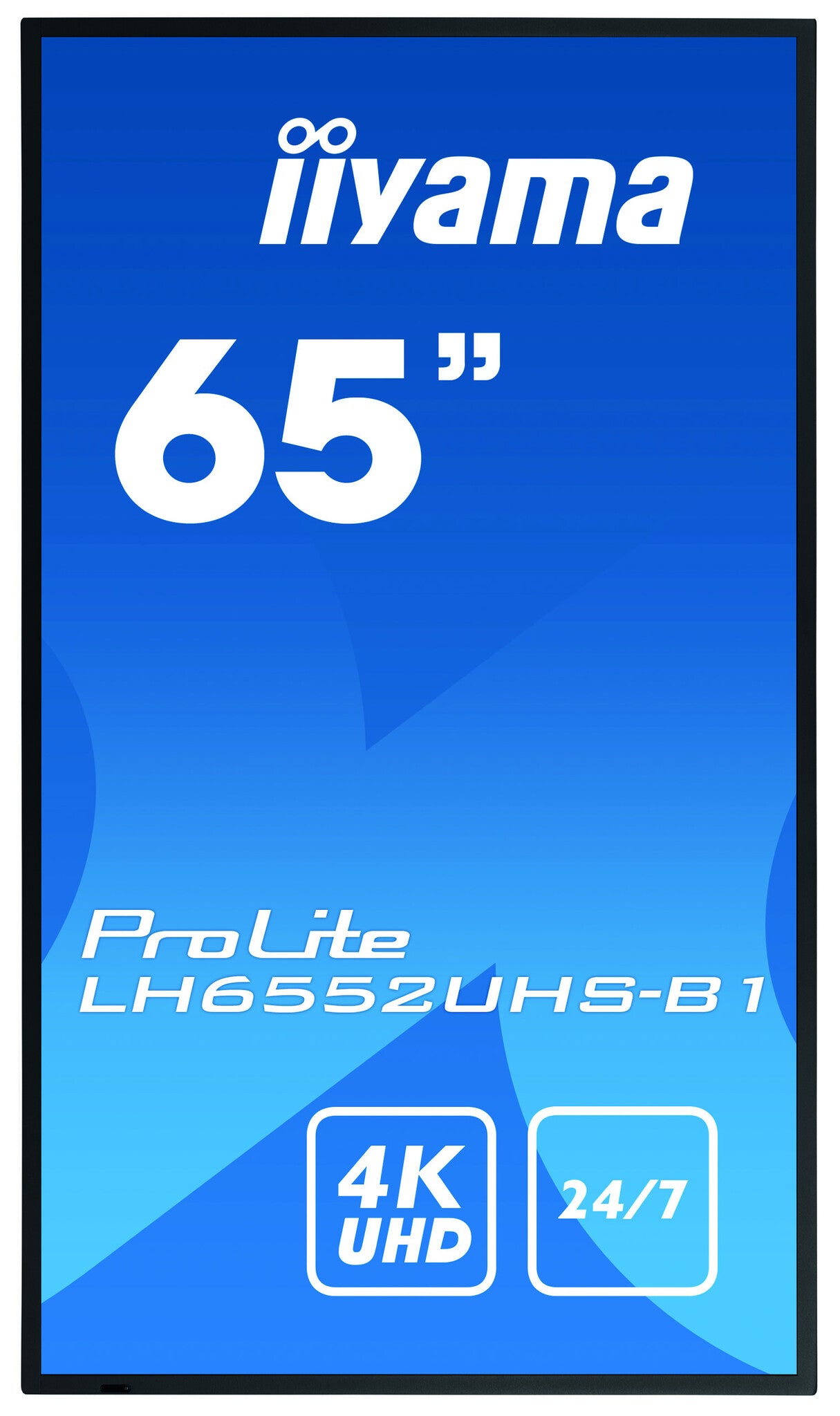

Orientation
Horizontal/Vertical
Placement supported
Indoor
Product colour
Black
Product design
Digital signage flat panel
Performance
Mean time between failures (MTBF)
50000 h
HDCP
Y
Operating hours (hours/days)
24/7
On Screen Display (OSD)
Y
Number of OSD languages
10
On Screen Display (OSD) languages
Czech, German, English, Spanish, French, Italian, Japanese, Russian
Purpose
Universal
Power
AC input frequency
50 - 60 Hz
AC input voltage
100-240 V
Energy consumption (SDR) per 1000 hours
190 kWh
Energy efficiency class (SDR)
G
Power consumption (off)
0.5 W
Power consumption (standby)
0.5 W
Power consumption (typical)
183 W
Computer system
Operating system installed
Android 8.0
Internal storage capacity
32 GB
Internal memory
3 GB
Built-in processor
Y
Computer system
Y
Weight & dimensions
Display weight
27.8 kg
Display height
837.3 mm
Display depth
93.4 mm
Display width
1462.3 mm
Packaging data
Package weight
35 kg
Package height
187 mm
Package depth
998 mm
Package width
1616 mm
Packaging content
Cables included
AC, HDMI, RS-232

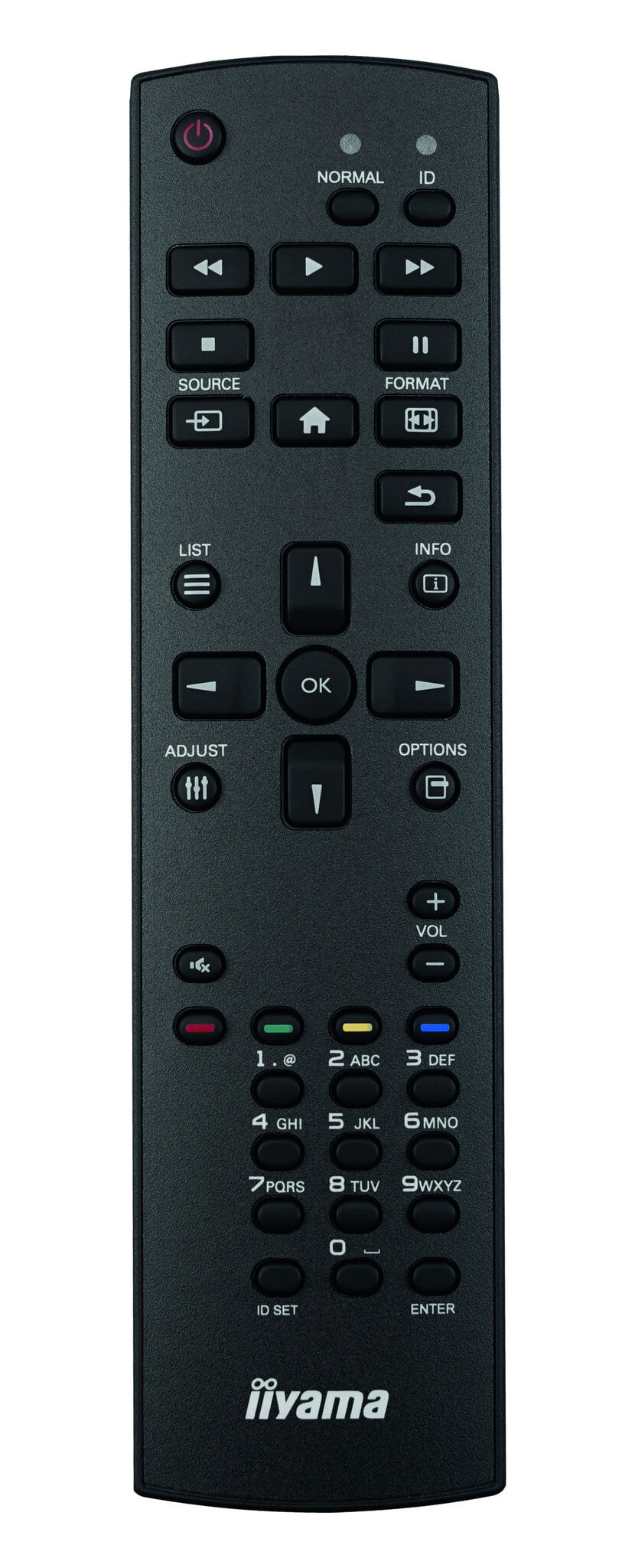

Remote control included
Y
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Features
Harmonized System (HS) code
85285210
Technical details
Sustainability certificates
CE, ErP, REACH, RoHS, WEEE
