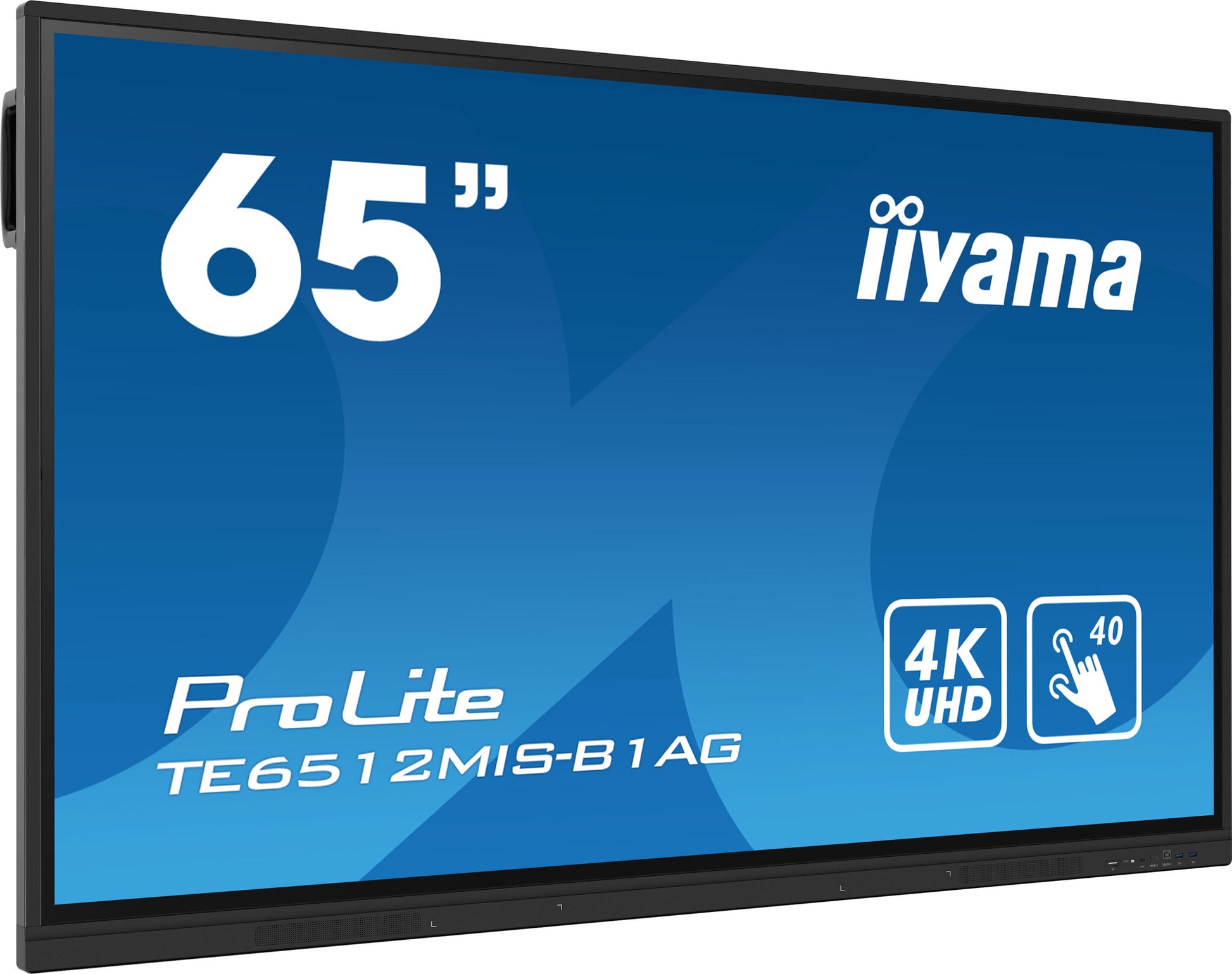

iiyama TE6512MIS-B1AG

iiyama TE6512MIS-B1AG

65", iiWare10 , Android 11, PureTouch IR, 3840x2160, UHD, IPS, 2x 16W, VGA, HDMI 3x HDMI-out, USB-C 65W PD, 400 cd/m², LAN, RS232C, WiFi, VESA 800x400, 1488 x 897 x 8 7mm, black

  • PureTouch-IR
  • iiWare
  • iiyama Share
  • iiyama DMS
  • Security
  • SKU:4948570121830
  • GTIN/EAN:4948570121830
  • MPN:TE6512MIS-B1AG

You need to login to view the price.

Add To Favorite
View full details

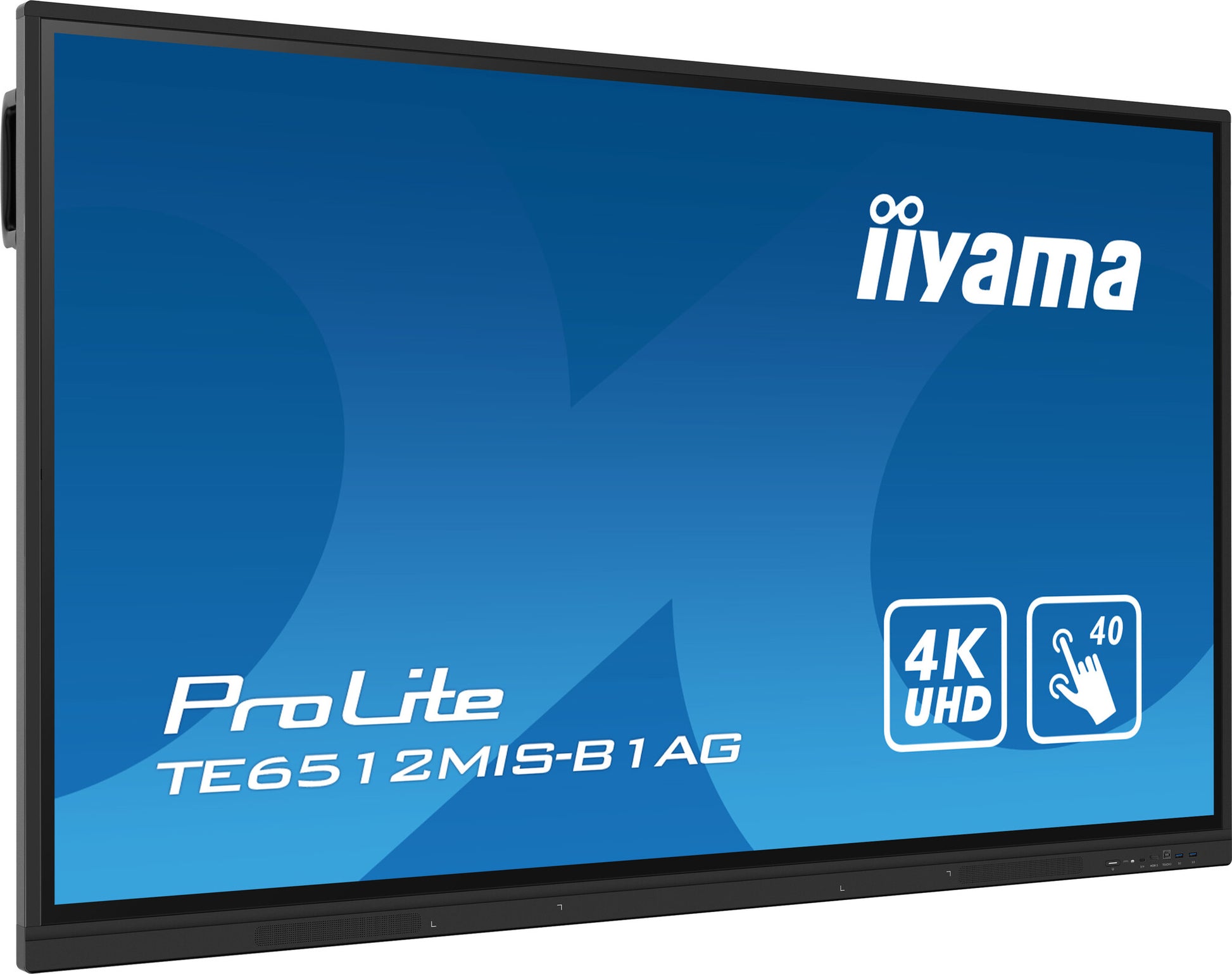

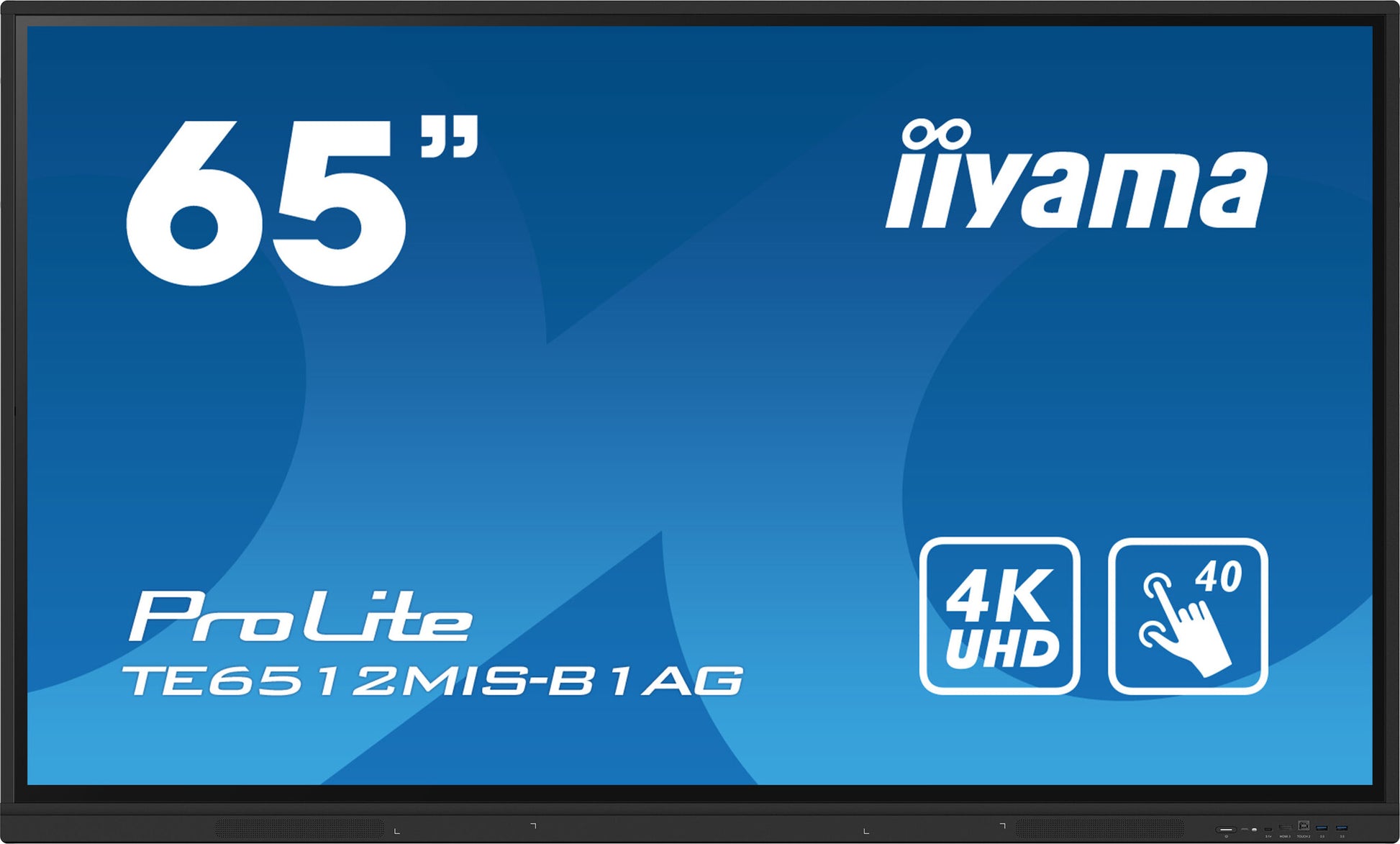

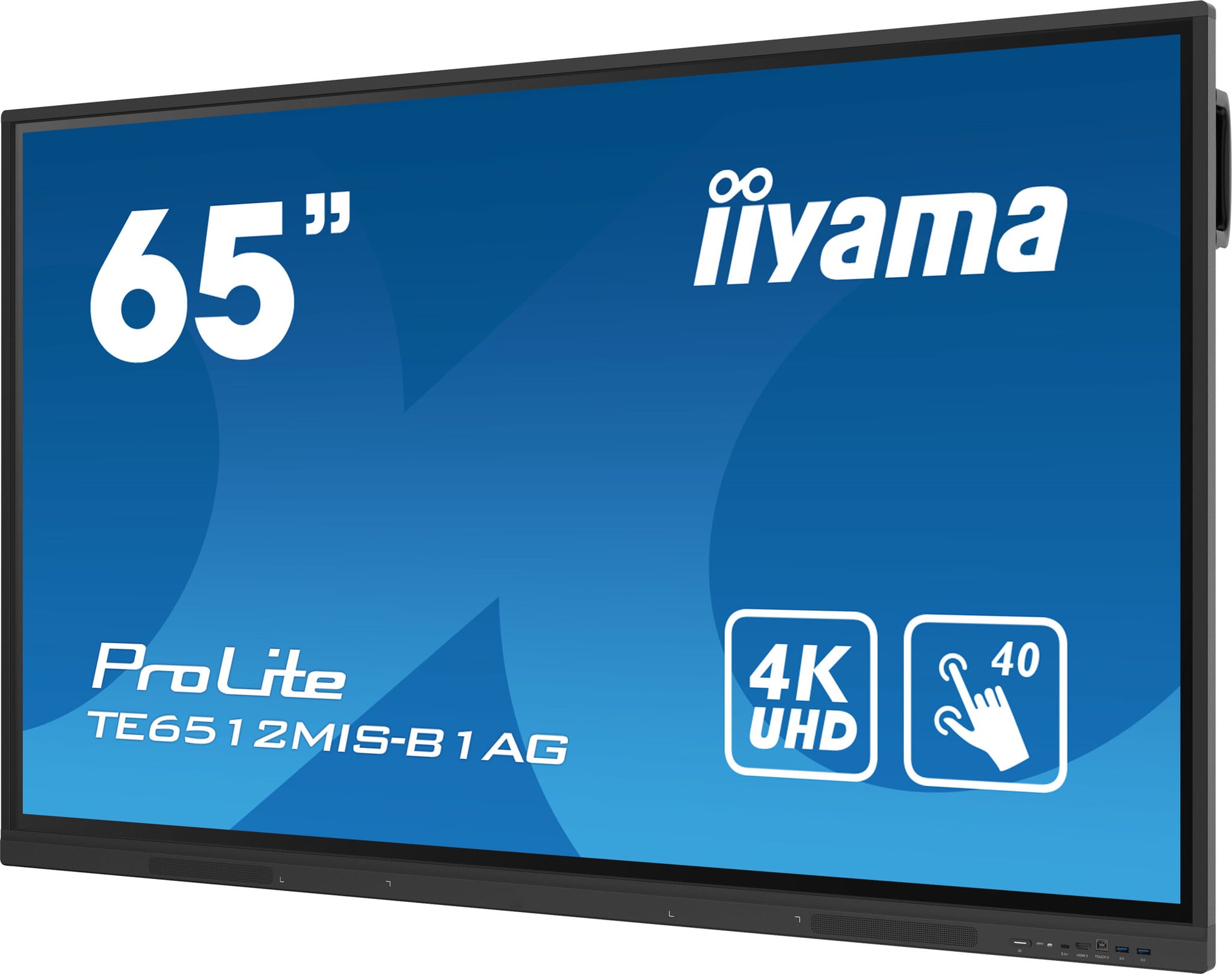

iiyama TE6512MIS-B1AG. Product design: Interactive flat panel. Display diagonal: 165.1 cm (65"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 400 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black

Collaboration for education and enterprise made simple. The TE6512MIS-B1AG from iiyama inspires all possibilities in all stages for education, start-up and large-scale businesses. With our hybrid interactive solution, you can smoothly annotate in 4K and control any content on the display from any source.

This PureTouch-IR 40-point Touchscreen with iiWare 10 (Android 11 OS) features Note, Browser, Cloud Drive and the option for you to sideload relevant apps you require for your organisation. It comes with dual function Touch pens, and you can easily save your notes and on-screen content directly to a USB device, 32GB internal memory or a selected cloud drive. Including an additional USB-C connection, the display supports the latest in video, audio and Touch signal via a single port and even charge your device with 65W power delivery.

With a 4K UHD resolution (3840x2160) and 400cd/m2 brightness this 65” IPS LCD screen provides vibrant, detailed, and high-quality images from anywhere in the class or meeting room. The anti-glare coating drastically reduces ambient reflection in high-brightness environments without compromising the sharpness and clarity of the image.

You can be sure that no matter what your Interactive aspiration, iiyama has the simplified solution just for you. Boasting a new 4K Interface with User Profiles for simple login and access to your very own bespoke menu and Cloud Drives, the TE6512MIS-B1AG becomes a highly personalised device within a busy hybrid environment for multiple users.

Share, stream and edit content from any device directly on screen and transform your team meetings or lessons into an easy, fast and seamless interactive session with the included WiFi module (OWM002), ScreenSharePro and EShare app.

Display
Horizontal scan range
30 - 135 kHz
Panel type
IPS
Surface hardness
7H
Display diagonal (metric)
163.9 cm
Active display area (W x H)
1429 x 804 mm
Pixel pitch
0.372 x 0.372 mm
Display number of colours
1.07 billion colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (dynamic)
4000:1
Contrast ratio (typical)
1200:1
Response time
8 ms
Number of simultaneous touchpoints
40
Multi-touch
Y
Touchscreen technology
Infrared
Touchscreen
Y
HD type
4K Ultra HD
Display brightness
400 cd/m²
Display resolution
3840 x 2160 pixels
Display technology
LCD
Display diagonal
165.1 cm (65")

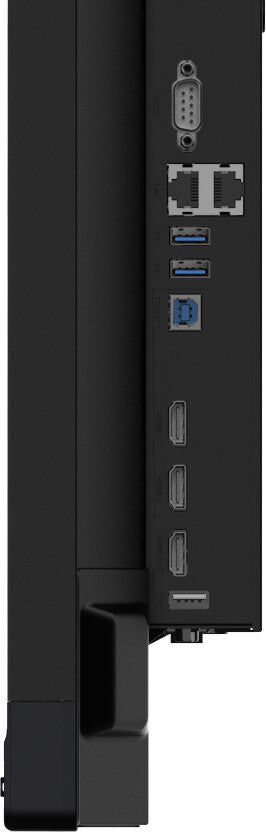

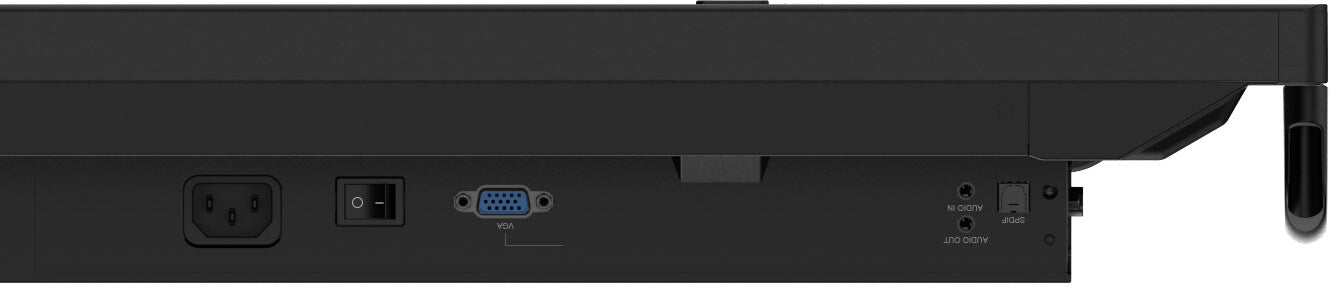

Ports & interfaces
RS-232C
Y
Audio (L/R) out
1
Audio (L/R) in
1
Wi-Fi
Y
Ethernet LAN (RJ-45) ports
2
Ethernet LAN
Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB version
3.2 Gen 1 (3.1 Gen 1)
USB ports quantity
5
USB port
Y
VGA (D-Sub) input ports
1
HDMI version
2.0
HDMI ports quantity
3
Audio
RMS rated power
16 W
Number of built-in speakers
2
Built-in speaker(s)
Y
Design
Bezel width (bottom)
4.5 cm
Bezel width (side)
1.65 cm
Bezel width (top)
1.65 cm
Positioning accuracy
1.5 mm
Panel mounting interface
600 x 400 mm
VESA mounting
Y
Screen shape
Flat
Orientation
Horizontal
Product colour
Black
Product design
Interactive flat panel
Performance
Mean time between failures (MTBF)
50000 h
HDCP
Y
HDCP version
2.2
Operating hours (hours/days)
24/7
On Screen Display (OSD)
Y
On Screen Display (OSD) languages
Czech, German, Dutch, English, Spanish, French, Italian, Polish, Russian
Purpose
Universal
Power
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.3 W
Power consumption (standby)
0.5 W
Power consumption (typical)
125 W
Computer system
Operating system installed
Android 11
Internal storage capacity
32 GB
On-board graphics card model
ARM Mali-G52
Internal memory
4 GB
Processor cores
4
Processor architecture
ARM Cortex-A55
Built-in processor
Y
Weight & dimensions
Display weight
35 kg
Display height
897 mm
Display depth
87 mm
Display width
1488 mm
Packaging data
Package weight
44.7 kg
Package height
1005 mm
Package depth
208 mm
Package width
1628 mm
Packaging content
Mounting kit
Y
Cables included
HDMI, Power, USB
Wi-Fi module included
Y
Number of stylus pens
4
Stylus pen
Y
Remote control included
Y
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
