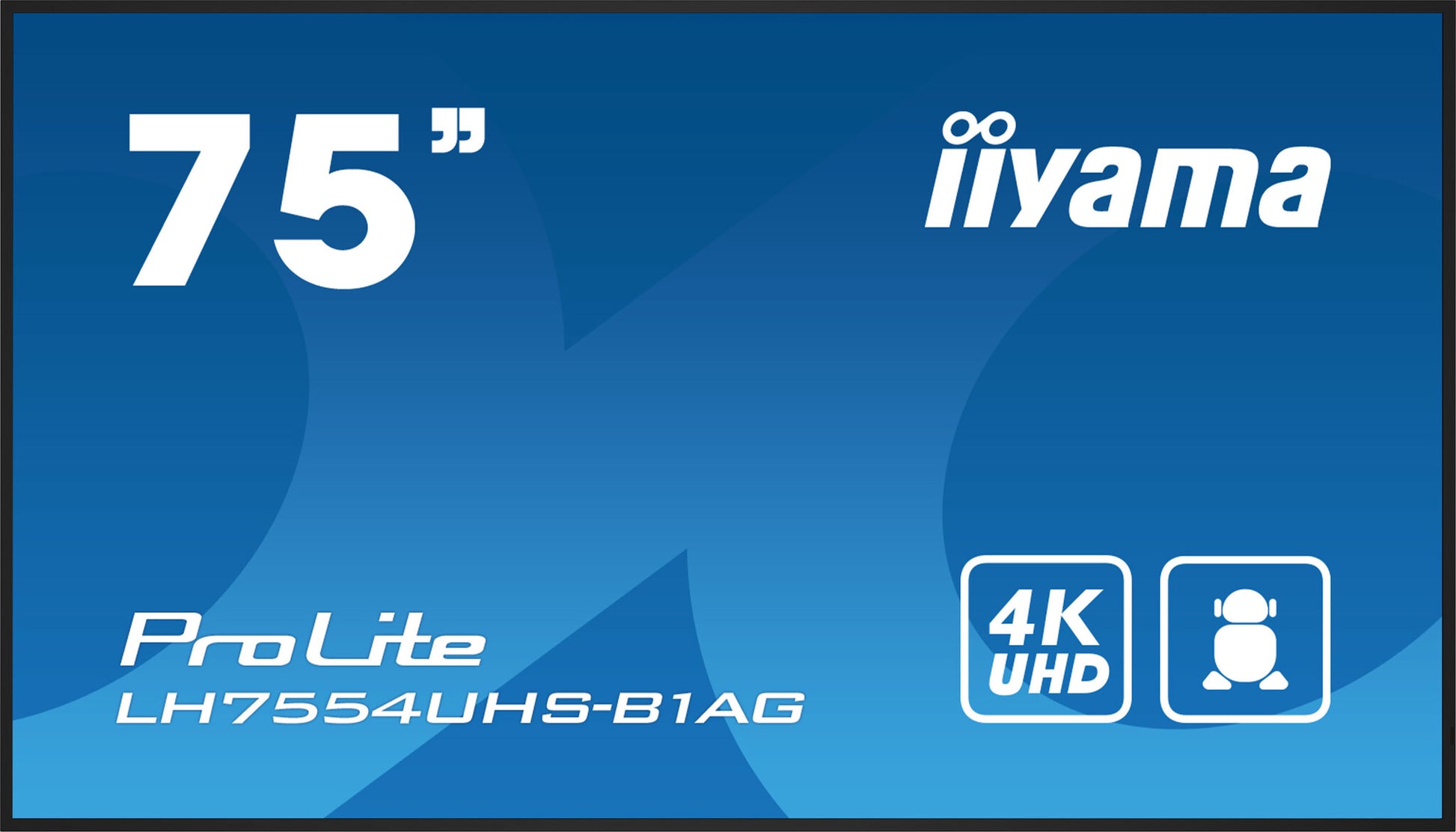

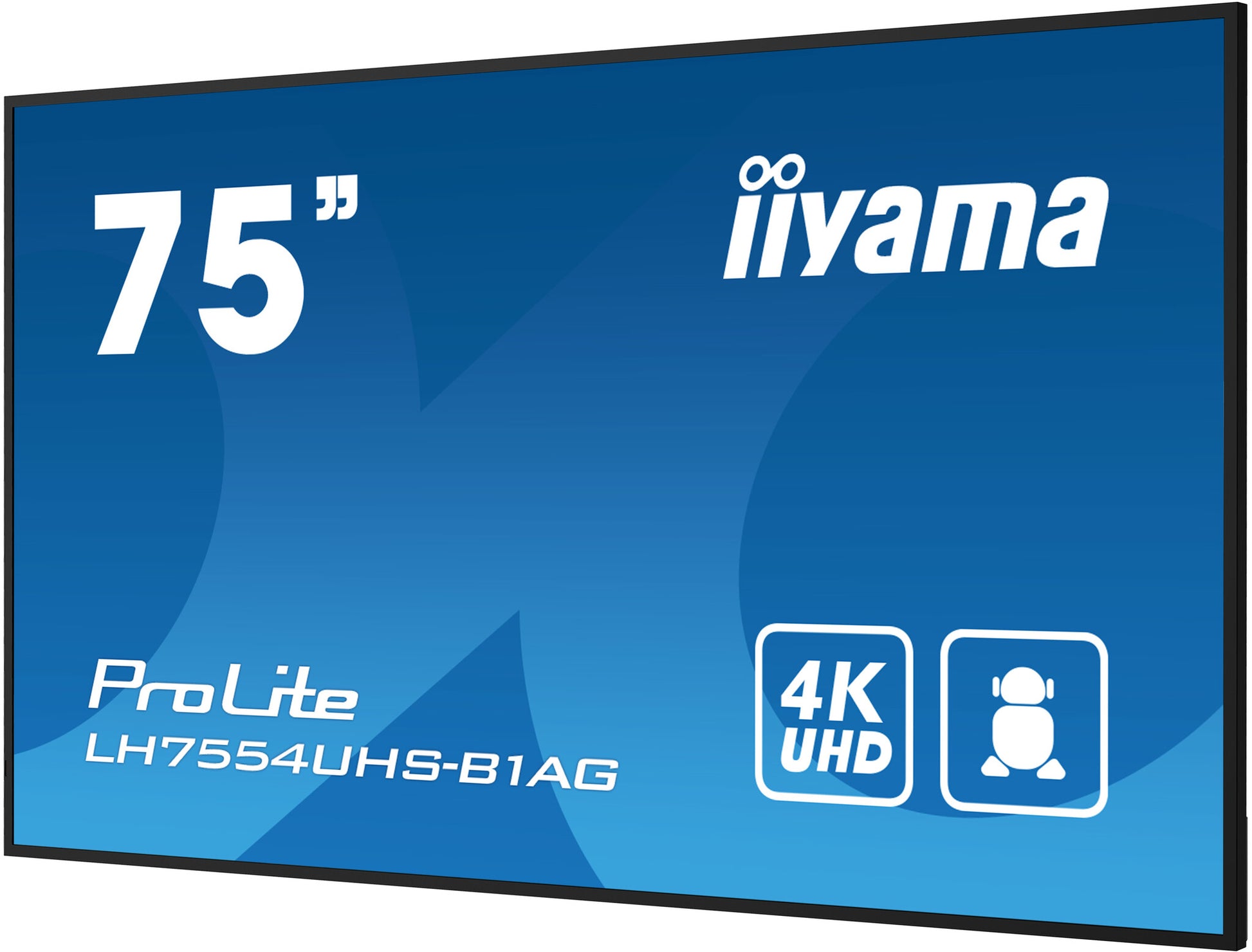

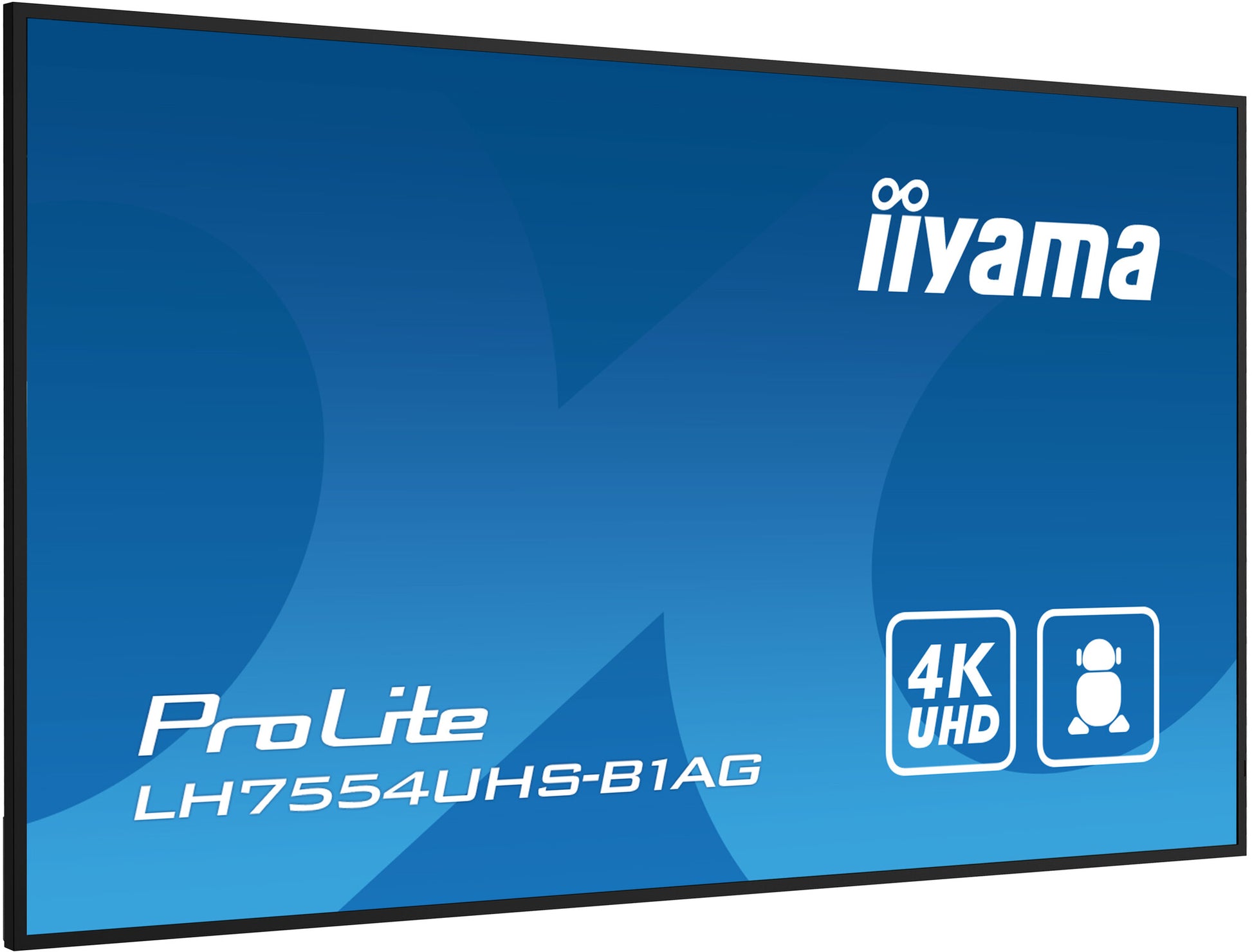

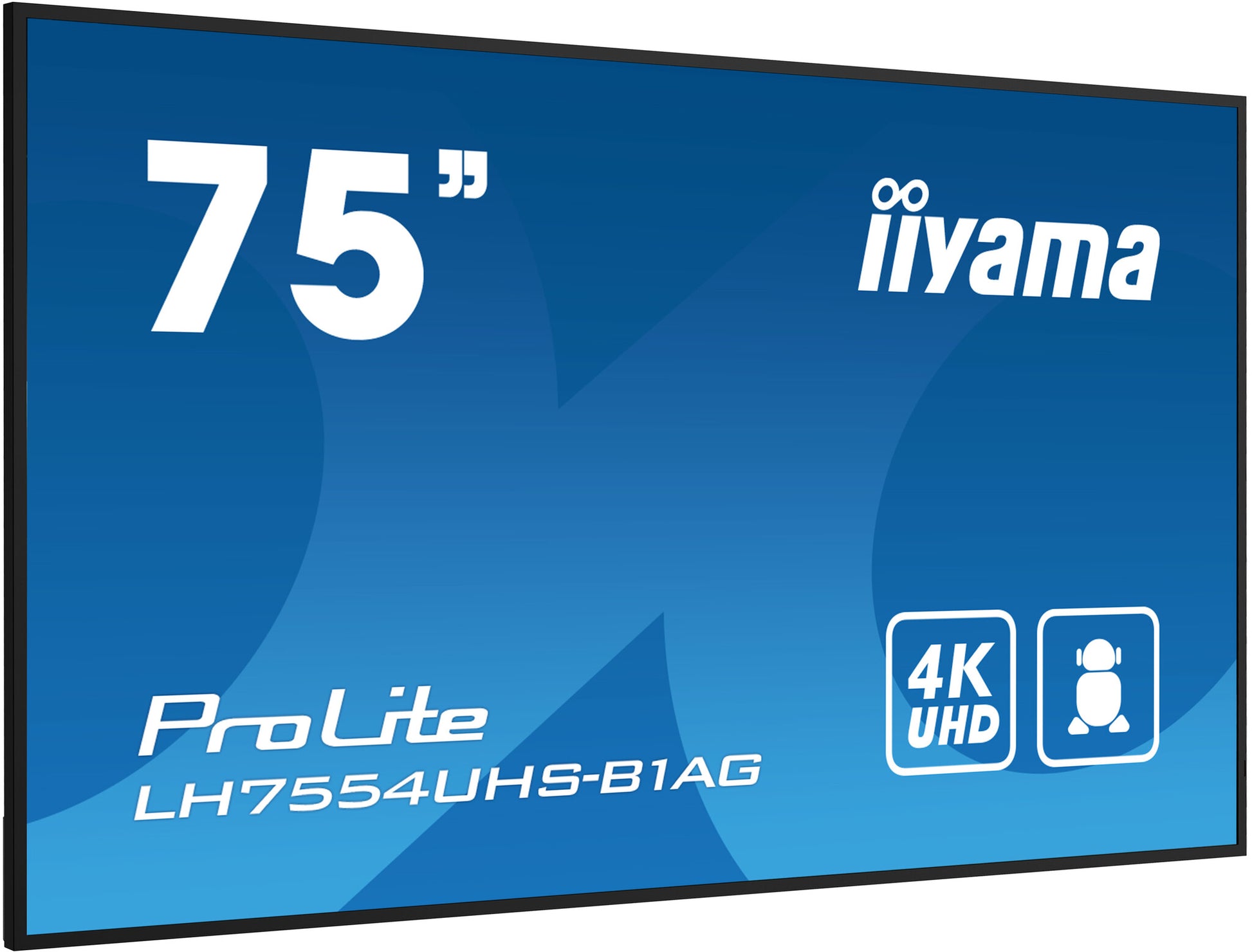

iiyama LH7554UHS-B1AG

iiyama LH7554UHS-B1AG

75", 3840 x 2160, IPS, Haze 25%, 500 cd/m², 2x 10W, DVI-I, VGA, HDMI 3x, DP-out (MST/Mirror/Tiling), USB 2.0 x2, WiFi, LAN / RS232C, iiSignage2 (CMS/DMS), Android 11, VESA 600x400 mm, black

  • Signal FailOver
  • Android OS
  • Smart Display Module
  • 4K
  • SKU:4948570121014
  • GTIN/EAN:4948570121014
  • MPN:LH7554UHS-B1AG

You need to login to view the price.

Add To Favorite
View full details

iiyama LH7554UHS-B1AG. Product design: Digital signage flat panel. Display diagonal: 190.5 cm (75"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black

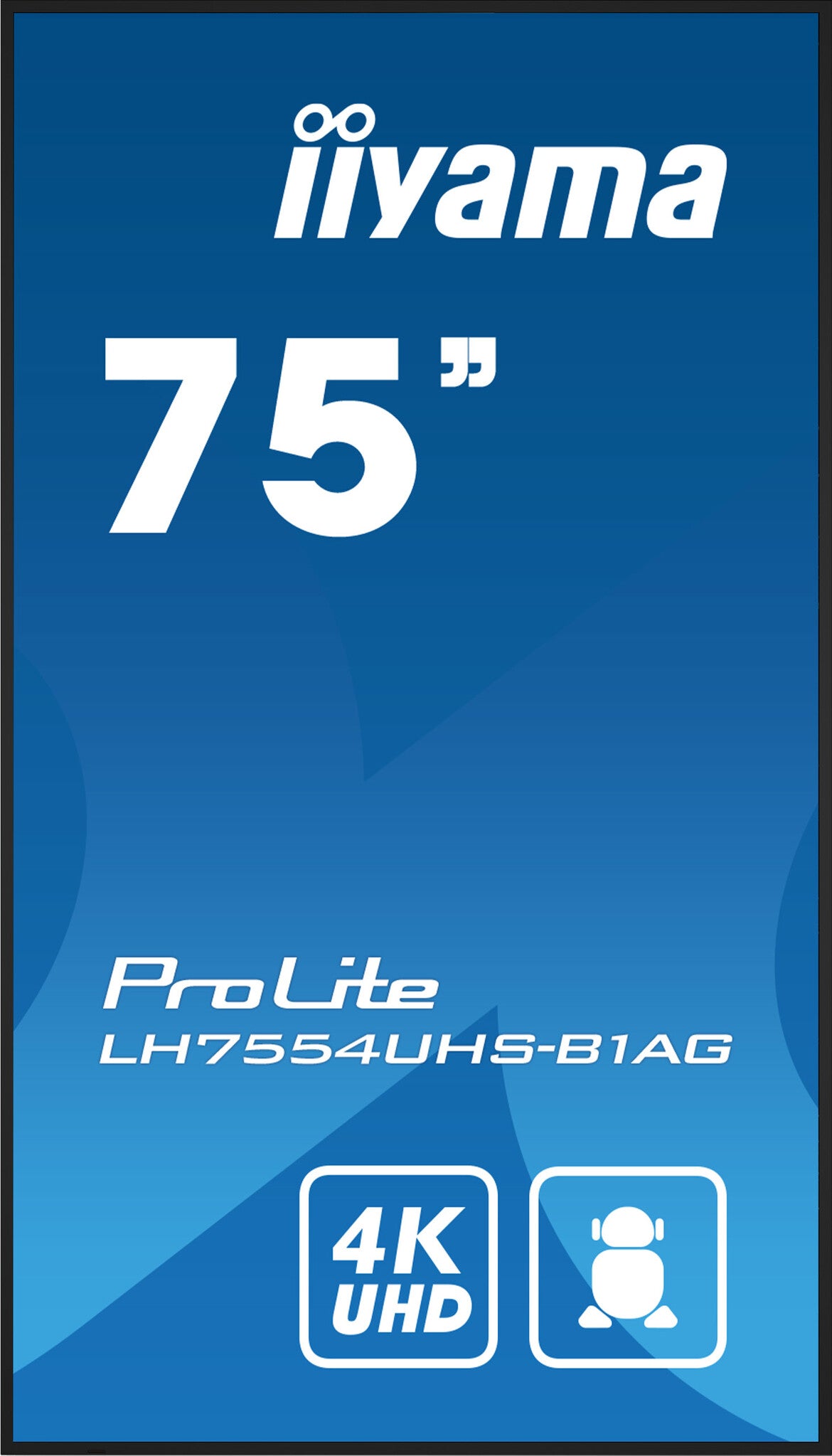

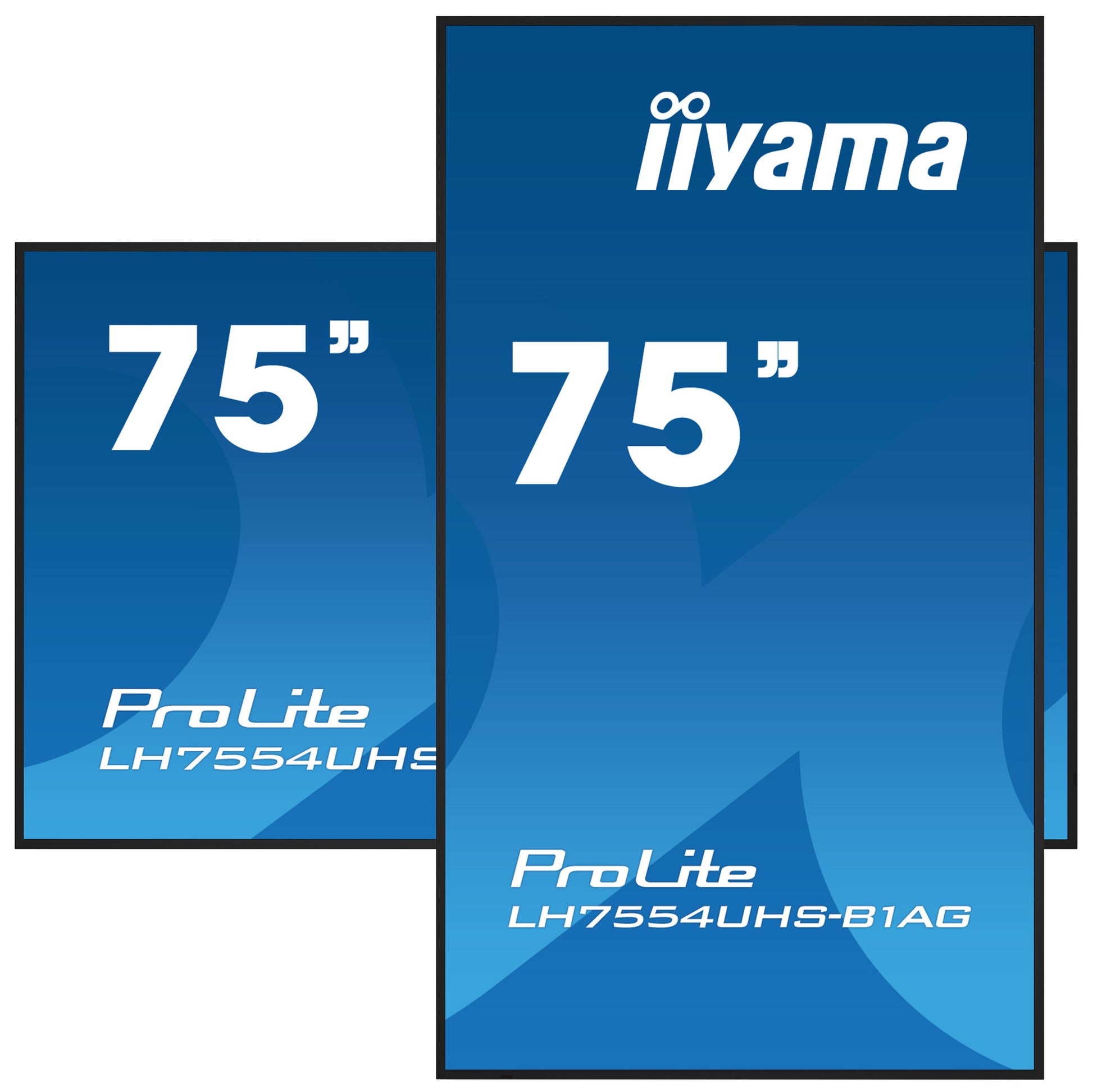

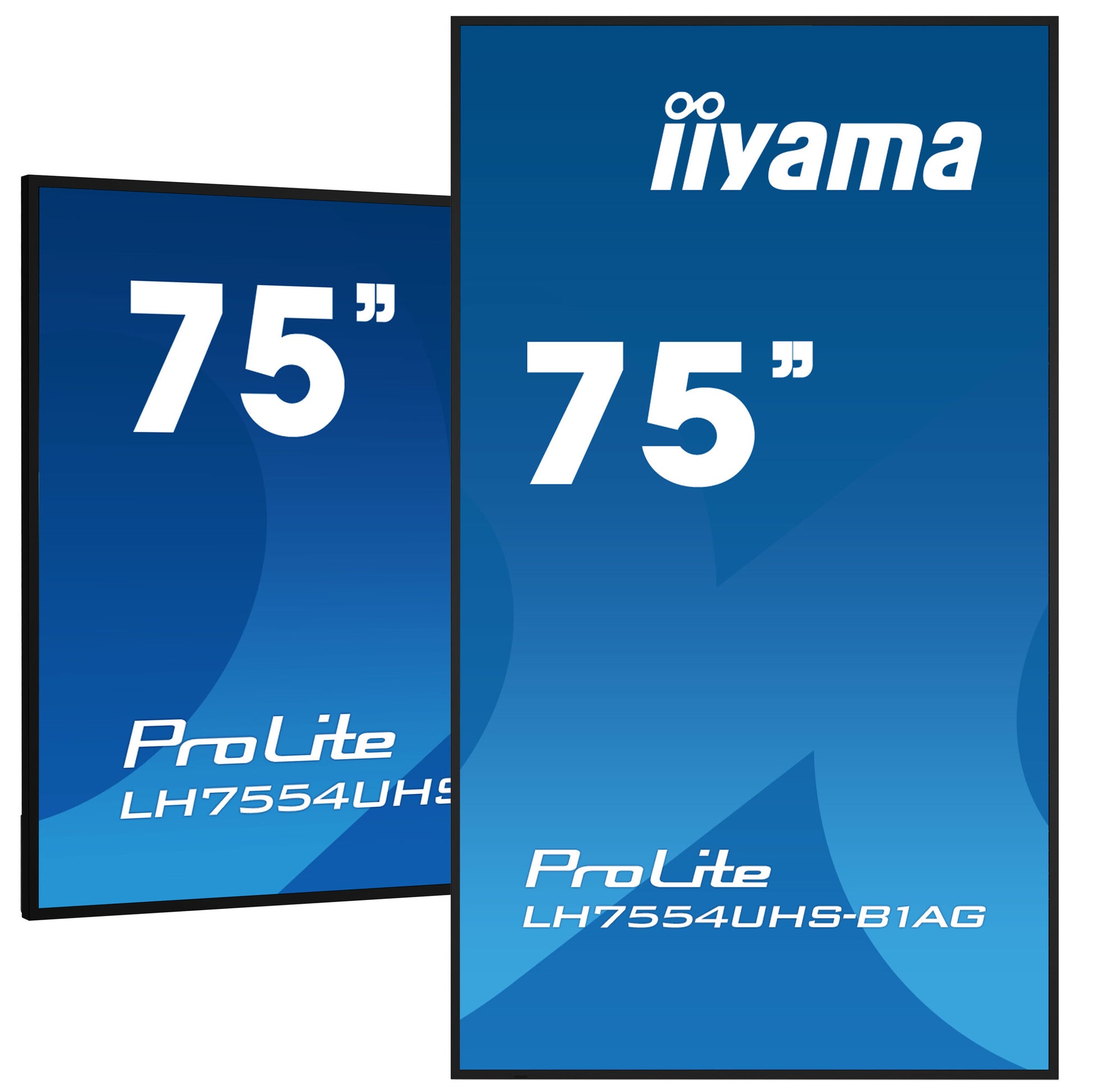

Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH7554UHS from iiyama is a 500cd/m² high brightness professional large format display and can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android OS means you can customize the display to your needs and install applications directly to it.

The on-board CMS (Content Management Software) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the Signal FailOver feature ensures your content is always actively displayed through your choice of inputs. WiFi enabled, this series is ready for remote content delivery using your network or you can choose to utilise LAN control.

Warranty: -

Display
Horizontal scan range
28 - 160 kHz
Haze rate
25%
Panel type
IPS
Maximum frame rate
60 fps
Display diagonal (metric)
189.3 cm
Active display area (W x H)
1650 x 928 mm
Display number of colours
1.07 billion colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
1200:1
Response time
8 ms
Touchscreen
N
HD type
4K Ultra HD
Display brightness
500 cd/m²
Display resolution
3840 x 2160 pixels
Display technology
LCD
Display diagonal
190.5 cm (75")
Ports & interfaces
Compatible memory cards
MicroSD (TransFlash)
Card reader integrated
Y
Remote (IR) output
1
Remote (IR) input
1
RS-232C
Y
Audio (L/R) out
1
Audio (L/R) in
1
Wi-Fi
Y
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Y
USB version
2.0
USB ports quantity
2
USB port
Y
DisplayPorts quantity
1
VGA (D-Sub) input ports
1
DVI-I ports quantity
1
DVI port
Y
HDMI version
2.0
HDMI ports quantity
3
Audio
RMS rated power
10 W
Number of built-in speakers
2
Built-in speaker(s)
Y
Design

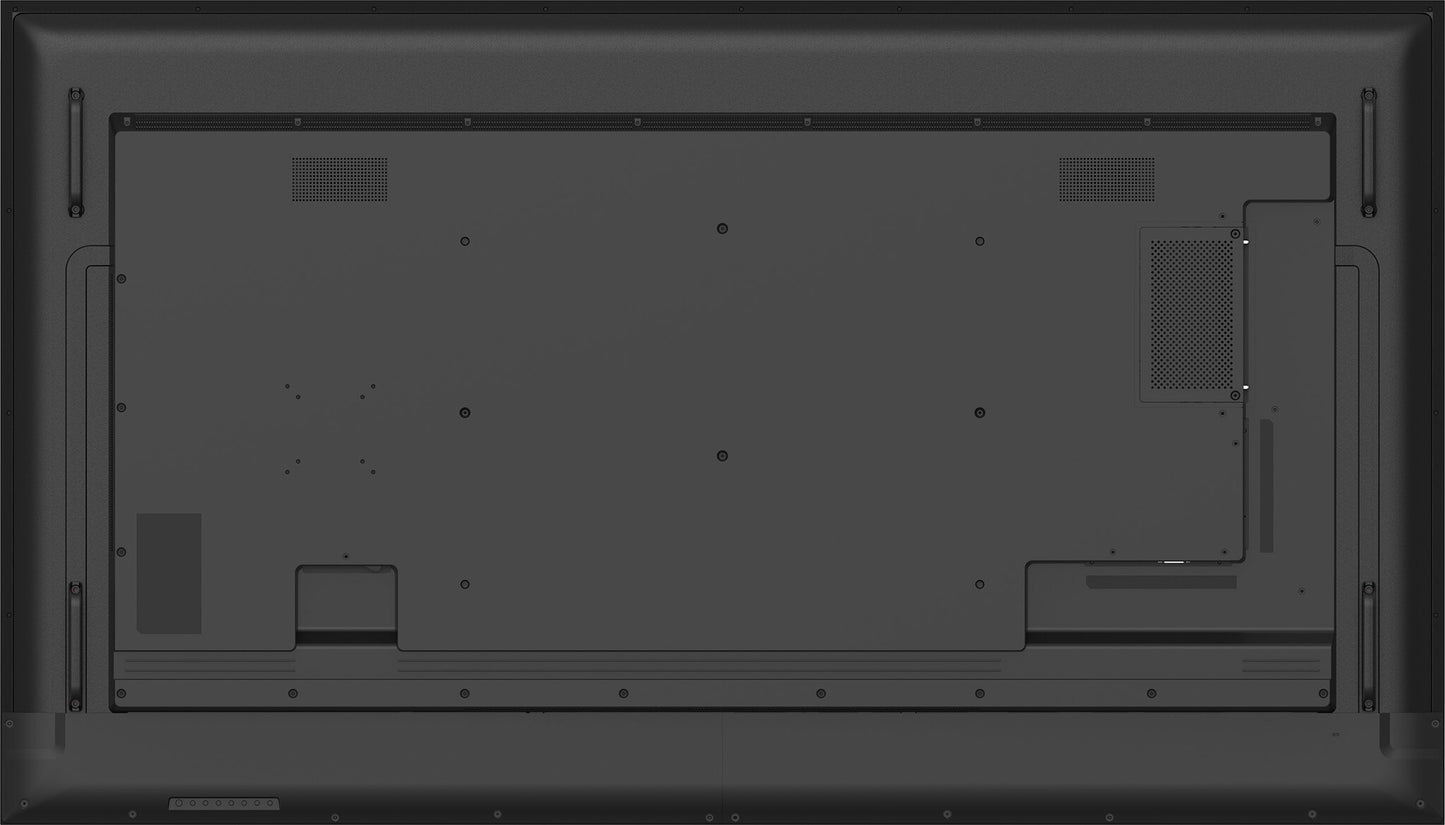

Panel mounting interface
600 x 400 mm
VESA mounting
Y
Screen shape
Flat
Product colour
Black
Product design
Digital signage flat panel
Performance
Mean time between failures (MTBF)
50000 h
HDCP
Y
HDCP version
2.0
Operating hours (hours/days)
24/7
On Screen Display (OSD)
Y
On Screen Display (OSD) languages
Simplified Chinese, Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian
Power
Energy efficiency scale
A to G
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Energy consumption (SDR) per 1000 hours
236 kWh
Energy efficiency class (SDR)
G
Power consumption (off)
0.5 W
Power consumption (standby)
0.5 W
Power consumption (typical)
236 W
Computer system
Operating system installed
Android 11
Internal storage capacity
32 GB
Internal memory
4 GB
Processor cores
4
Processor architecture
ARM Cortex-A53+Cortex-A73
Built-in processor
Y
Weight & dimensions
Display weight
29.6 kg
Display height
961.5 mm
Display depth
85 mm
Display width
1683.5 mm
Packaging data
Package weight
42 kg
Packaging content
Cables included
HDMI, Power, RS-232
Remote control included
Y
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
