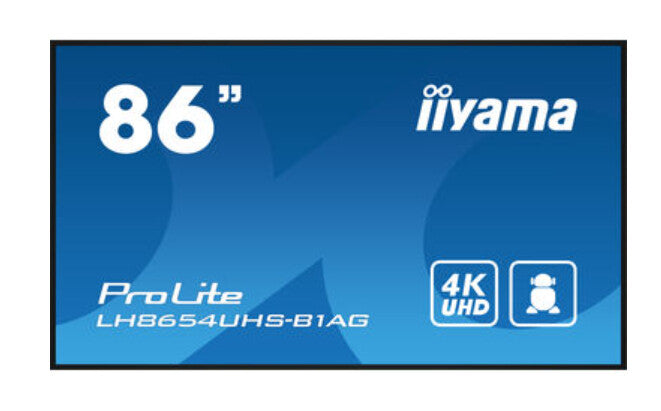

PROLITE LH8654UHS-B1AG

PROLITE LH8654UHS-B1AG

85.6" 4K UHD (3840x2160), IPS, 500 cd/m², 100-240V, 50/60Hz, 349W, 55.2kg

  • Home 2.17 m (85.6") LED IPS
  • 4K Ultra HD 3840 x 2160 pixels 16:9
  • 60 Hz 8 ms 500 cd/m² 1400:1
  • 349 W
  • SKU:4948570121021
  • GTIN/EAN:4948570121021
  • MPN:LH8654UHS-B1AG

You need to login to view the price.

Add To Favorite
View full details

iiyama ProLite To Be Updated. Display diagonal: 2.17 m (85.6"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LED, Display surface: Matt, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: Black

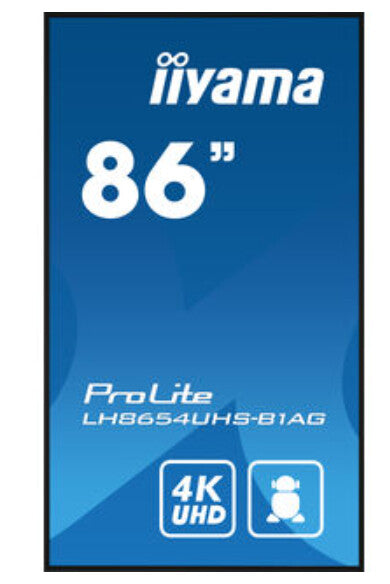

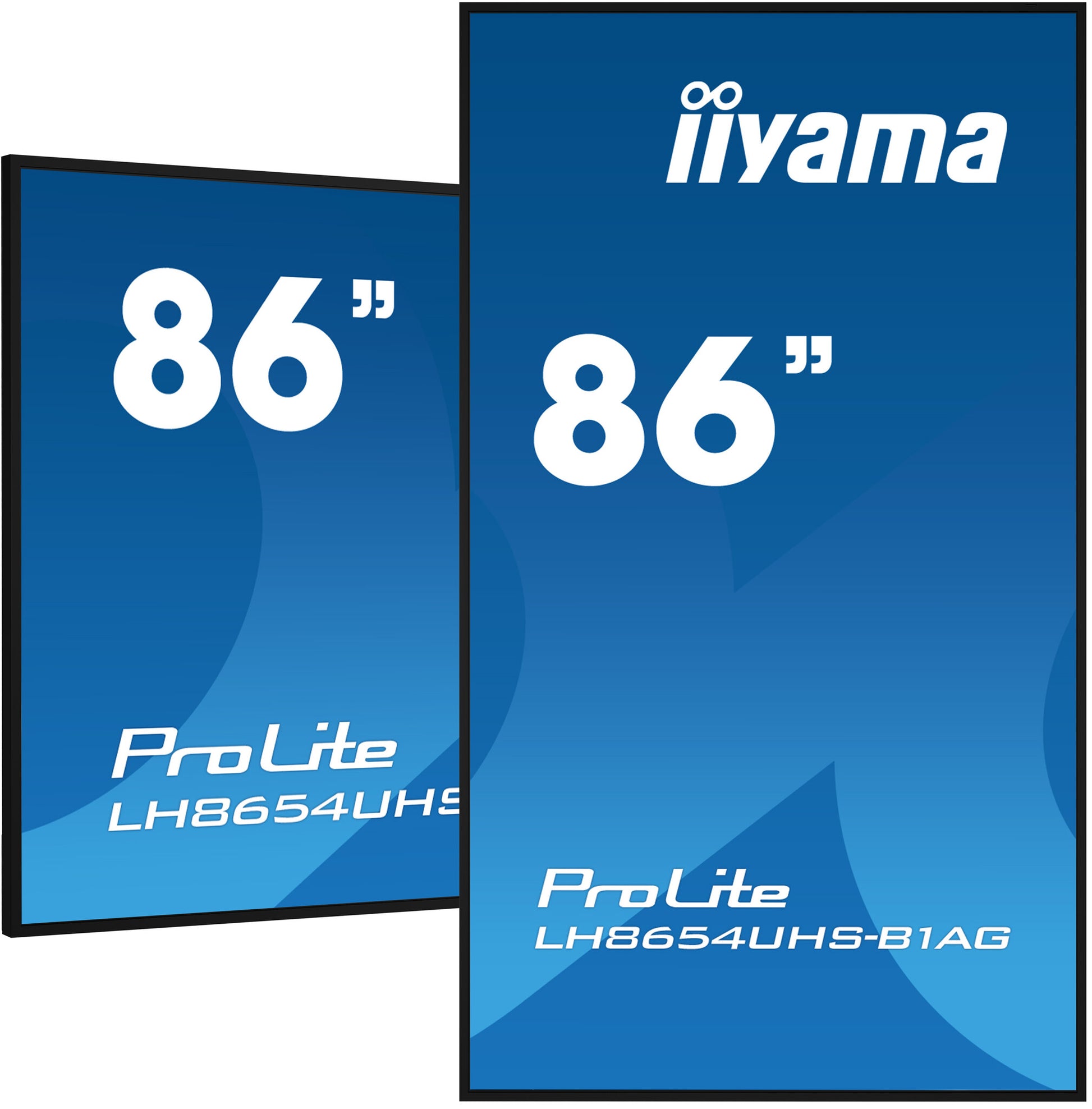

The LH8654UHS from iiyama is a 500cd/m² high brightness professional large format display and can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android OS means you can customize the display to your needs and install applications directly to it.

The on-board CMS (Content Management Software) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the Signal FailOver feature ensures your content is always actively displayed through your choice of inputs. WiFi enabled, this series is ready for remote content delivery using your network or you can choose to utilise LAN control.

Display
Colour gamut
72%
Display number of colours
1.07 billion colours
Maximum refresh rate
60 Hz
Contrast ratio (typical)
1400:1
Screen shape
Flat
Display surface
Matt
RGB colour space
NTSC
Colour depth
8 bit
Response time
8 ms
Display brightness (typical)
500 cd/m²
Panel type
IPS
Display resolution
3840 x 2160 pixels
Display diagonal
2.17 m (85.6")
Multimedia
RMS rated power
10 W
Number of speakers
2
Built-in speaker(s)
Y
Design
Certification
CB, CE, TÜV type, EAC, RoHS support, ErP, WEEE, REACH
Housing material
Metal
Front bezel colour
Black
Product colour
Black
Market positioning
Home

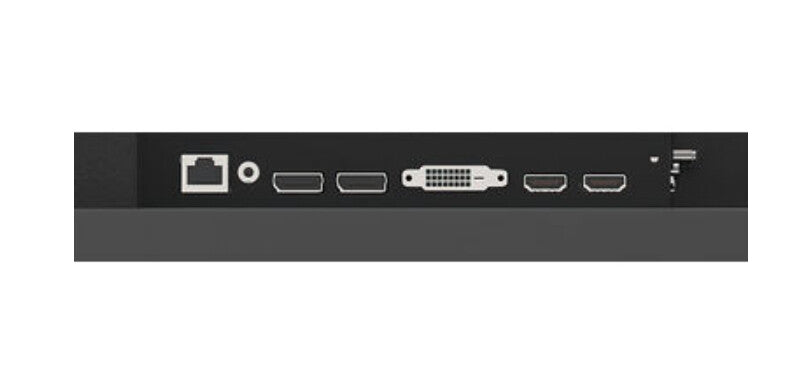

Ports & interfaces
HDCP version
2.2
USB Type-A downstream ports quantity
2
DisplayPort version
1.4
HDMI version
2.0
DVI port
Y
Ergonomics
On Screen Display (OSD) languages
Czech, German, English, Spanish, French, Italian, Polish, Russian
Number of OSD languages
11
On Screen Display (OSD)
Y
Panel mounting interface
100 x 100,600 x 400 mm
VESA mounting
Y
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.5 W
Power consumption (standby)
0.5 W
Power consumption (typical)
349 W
Energy efficiency class (HDR)
G
Network
Wi-Fi
Y
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Sustainability
Sustainability certificates
CB, CE, ErP, REACH, RoHS, WEEE
Algemeen
Productfamilie
ProLite
Weight & dimensions
Weight (without stand)
55.2 kg
Height (without stand)
110.3 cm
Depth (without stand)
8.61 cm
Width (without stand)
193.3 cm
Packaging data
Package weight
73.7 kg
Package height
1250 mm
Package depth
275 mm
Package width
2130 mm
Cables included
AC, HDMI, RS-232
Surface hardness
HDCP
Y
Display diagonal (metric)
217 cm
Pixel pitch
0.494 x 0.494 mm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
DisplayPorts quantity
1
HDMI ports quantity
3
HDMI
Y
VGA (D-Sub) ports quantity
1
Built-in camera
N
Display technology
LED
Native aspect ratio
16:9
HD type
4K Ultra HD
Touchscreen
N
