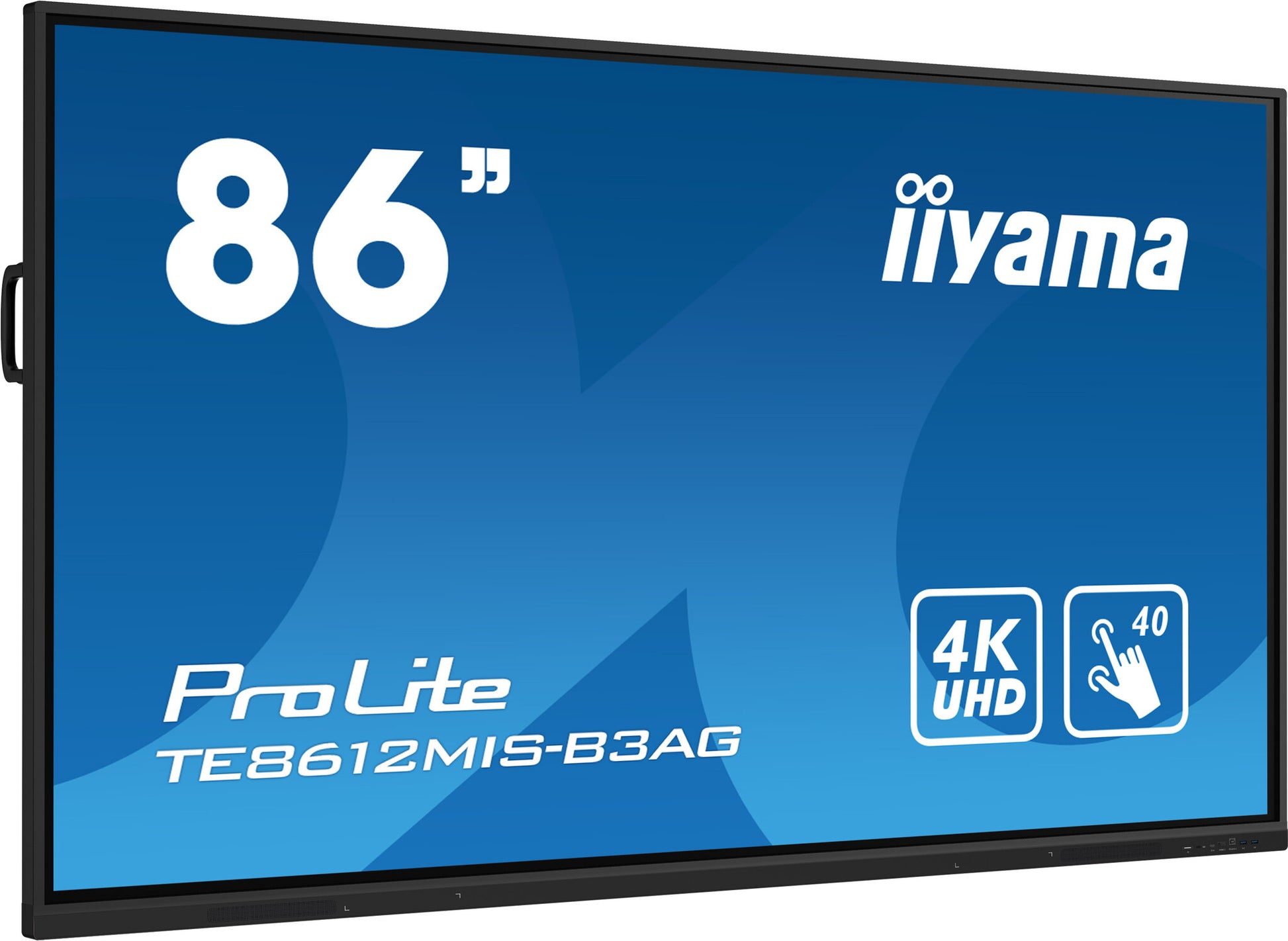

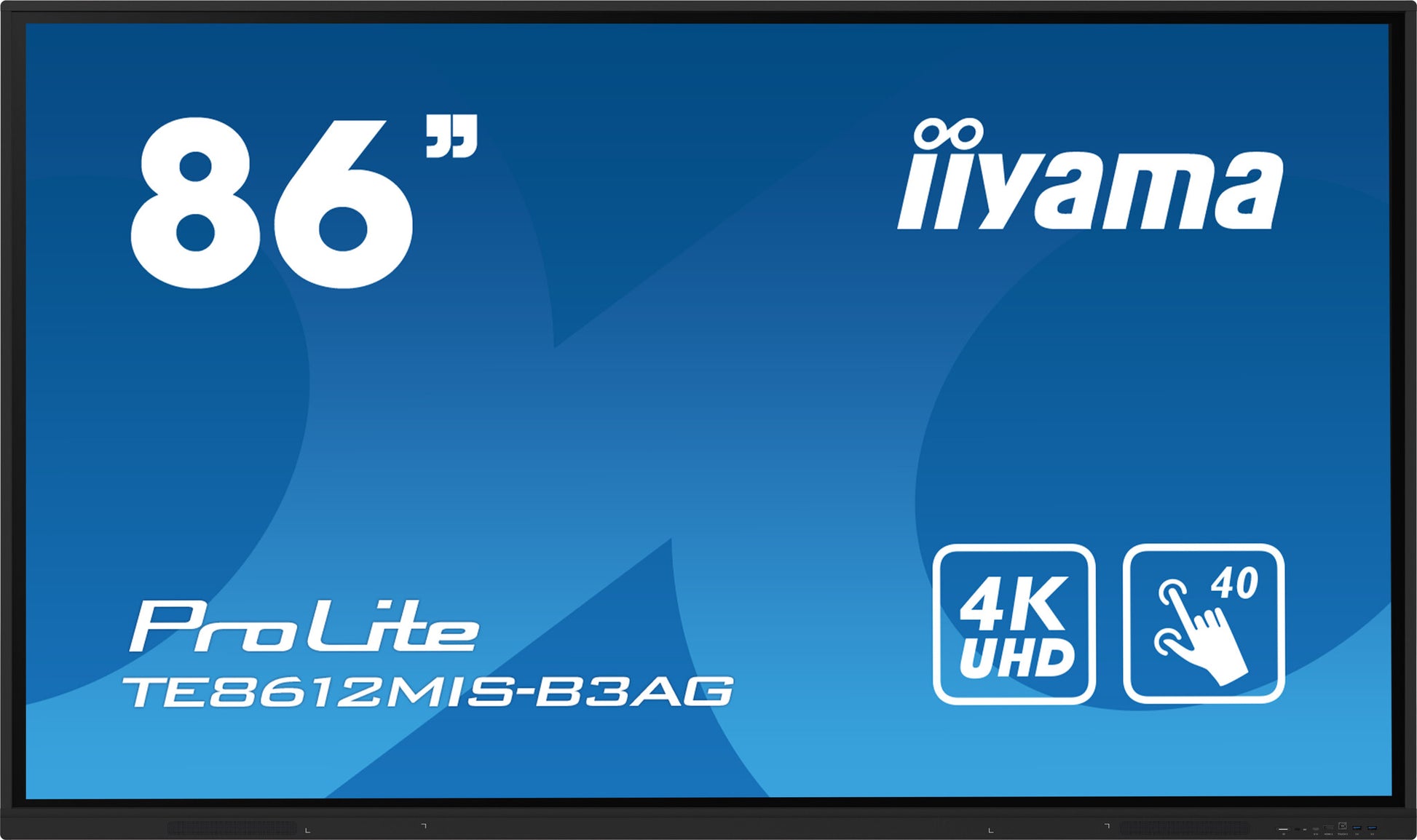

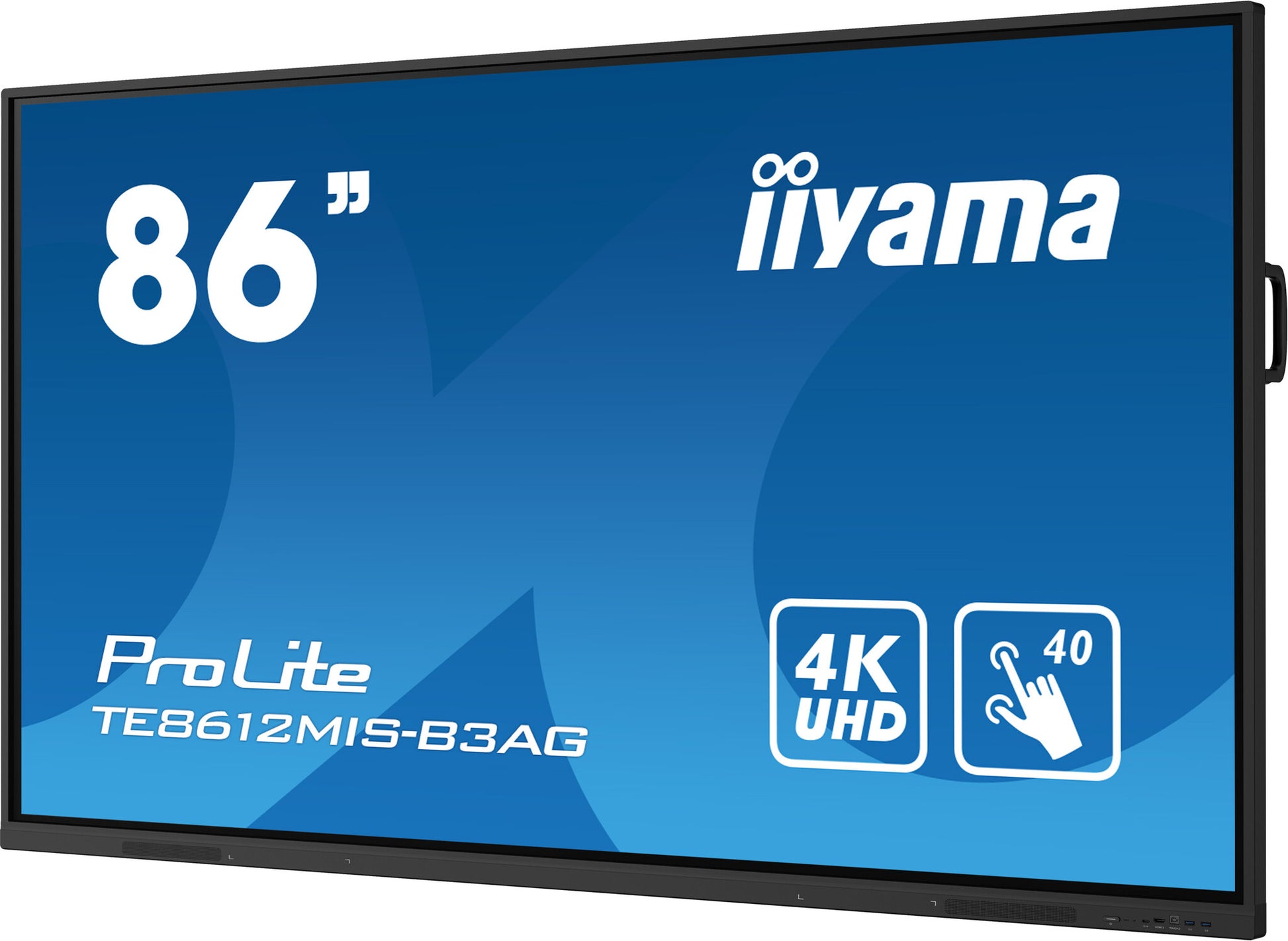

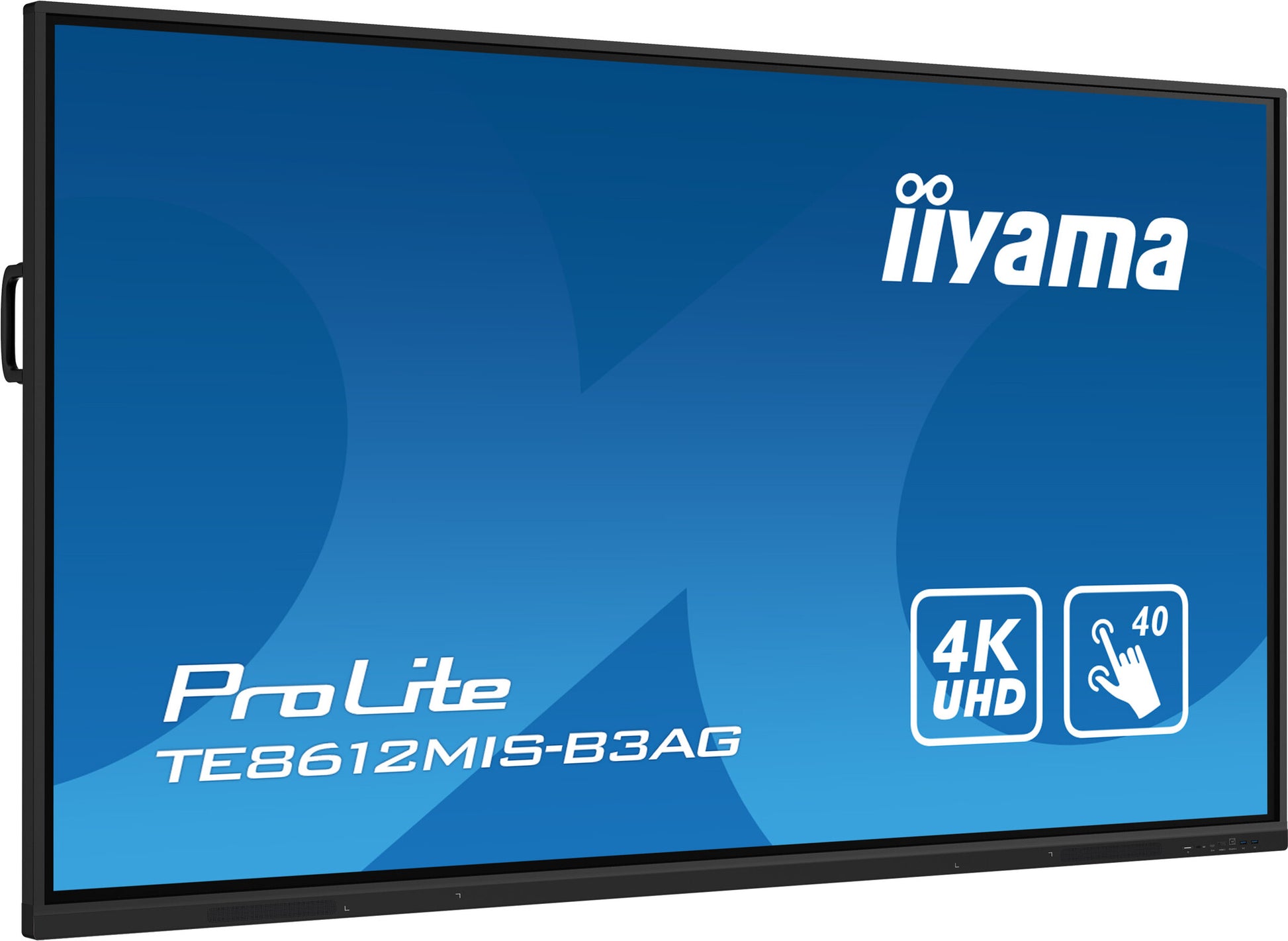

iiyama TE8612MIS-B3AG

iiyama TE8612MIS-B3AG

86", VA, 3840 x 2160, 16:9, 400 cd/m², 4000:1, PureTouch-IR, VGA, HDMI x4, USB-C, Mini jack x1, RS-232c x1, RJ45 x3, IR x1, S/PDIFl USB x5, WiFi, 7H, 1957 x 1160 x 100mm, 58.6kg

  • Indoor Kiosk design Black
  • 2.18 m (86") 3840 x 2160 pixels LCD 400 cd/m²
  • Touchscreen 8 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 32 W
  • SKU:4948570123711
  • GTIN/EAN:4948570123711
  • MPN:TE8612MIS-B3AG
Add To Favorite

You need to login to view the price.

View full details

86" Interactive 4K UHD Touchscreen elevating interactive collaboration

The TE8612MIS-B3AG is an exceptional 4K UHD interactive display designed by iiyama to enhance collaboration, communication, and engagement. With key features like Zero Airgap LCD screen eliminating parallax, accurate PureTouch-IR, iiWare 10 with Android 11, Wifi, and the iiyama DMS (Device management System), this display transforms the way you engage with content, making it an indispensable tool for modern workspaces and educational settings.

Boasting a new 4K Interface with User Profiles for simple login and access to your very own bespoke application and Cloud Drives or harmonize with your existing estate and unleash the true power of Windows and Office applications. iiyama TE8612MIS-B3AG becomes a highly personalised & flexible device within a busy hybrid environment for multiple users.

Share wirelessly more easily than ever before with iiyama Share and EShare app, bringing effortless ideation and efficient collaboration in your enterprise or school. This affordable display transforms the modern workplaces, educational institutions, dynamic meeting spaces and beyond. Elevate your interactive experience with the iiyama TE12 SERIES displays and embrace the future of visual communication.

IIYAMA SHARE
Connect up to 9 devices and easily share, stream and edit content from your device to your interactive display and vice versa, back to your laptop, tablet or phone. iiyama Share supports AirPlay, Chromecast and Miracast.

Display
Horizontal scan range
30 - 135 kHz
Panel type
VA
Glass thickness
3 mm
Glass film
AG/AR Film
Surface hardness
7H
Display diagonal (metric)
217.4 cm
Active display area (W x H)
1895 x 1066 mm
Pixel pitch
0.493 x 0.493 mm
Display number of colours
1.07 billion colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (dynamic)
8000:1
Contrast ratio (typical)
4000:1
Response time
8 ms
Native aspect ratio
16:9
Number of simultaneous touchpoints
40
Touchscreen technology
PureTouch-IR
Touchscreen
Yes
HD type
4K Ultra HD
Display brightness
400 cd/m²
Display resolution
3840 x 2160 pixels
Display technology
LCD
Display diagonal
2.18 m (86")
Ports & interfaces
Audio Return Channel (ARC)
Yes
Remote (IR) input
1
RS-232C
Yes
RS-232 interface
Yes
Wi-Fi
Yes
Ethernet LAN (RJ-45) ports
2
Ethernet LAN
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB version
3.2 Gen 1 (3.1 Gen 1)
USB ports quantity
5
USB port
Yes
VGA (D-Sub) input ports
1
DVI port
No
HDMI output ports quantity
1
HDMI input ports quantity
3
HDMI version
2.0
HDMI ports quantity
4
Audio
RMS rated power
32 W
Number of built-in speakers
2
Built-in speaker(s)
Yes
Design
Bezel width (bottom)
3 cm
Bezel width (side)
1.65 cm
Bezel width (top)
1.65 cm

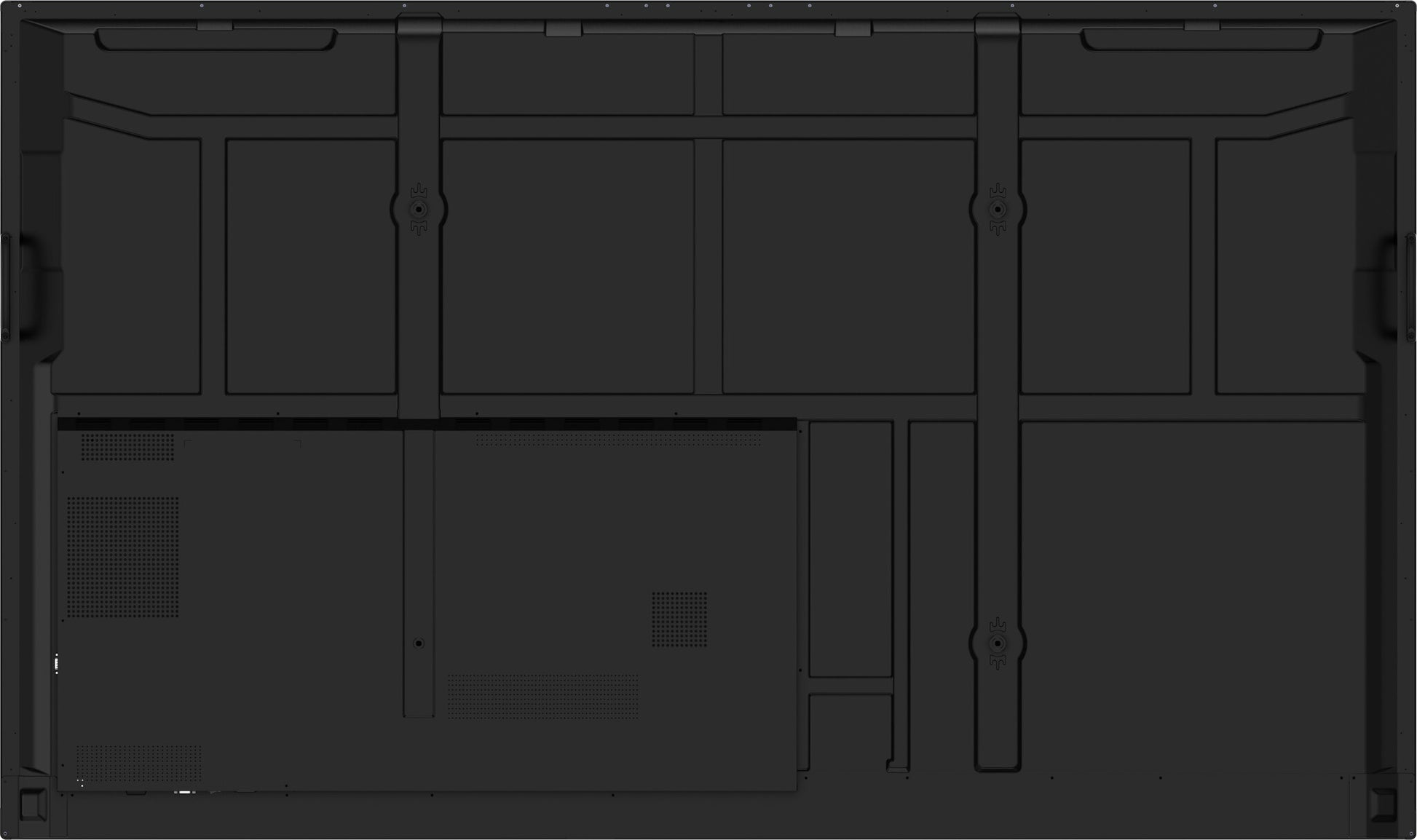

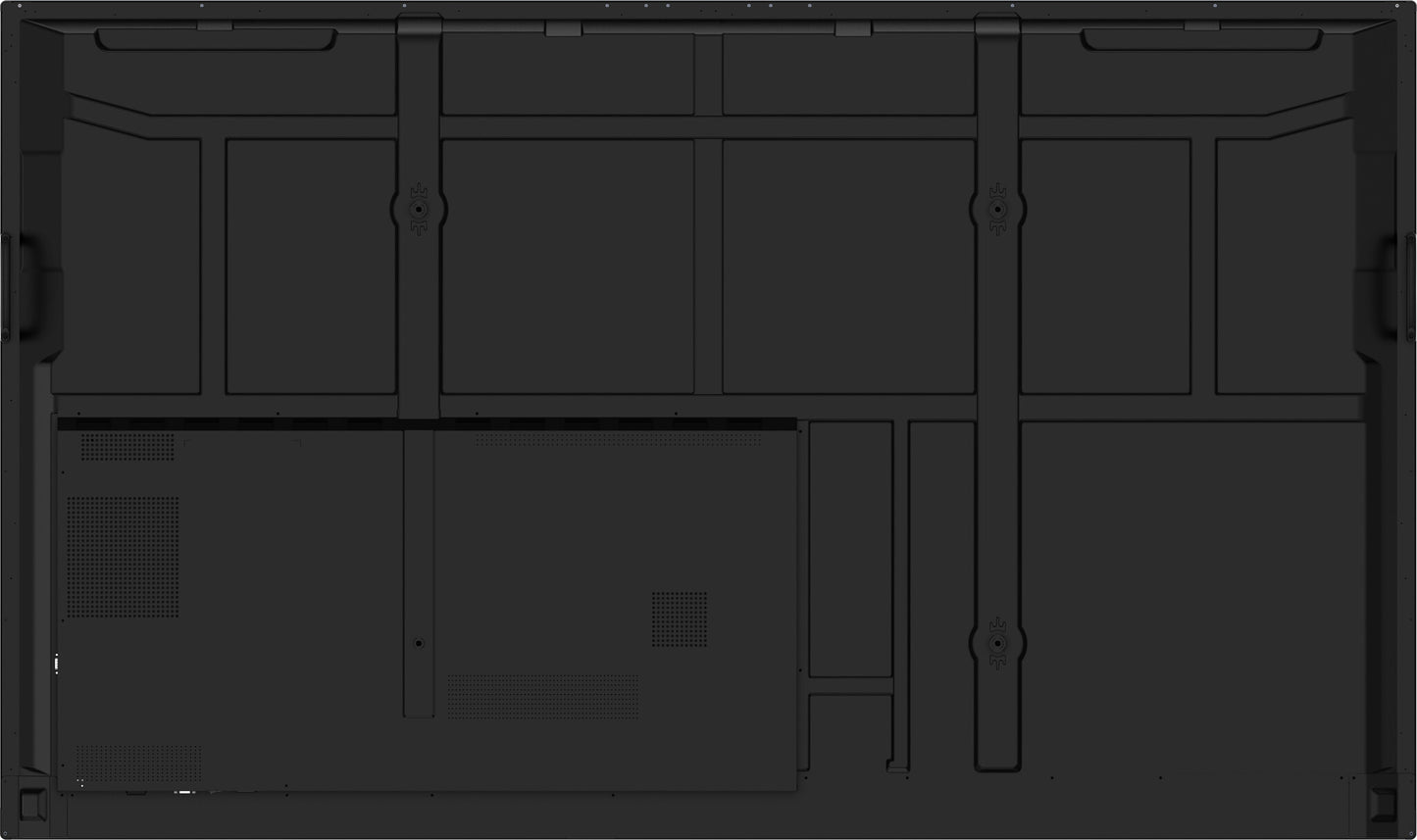

Panel mounting interface
800 x 600 mm
VESA mounting
Yes
Orientation
Horizontal
Placement supported
Indoor
Product colour
Black
Product design
Kiosk design
Performance
Mean time between failures (MTBF)
50000 h
HDCP
Yes
HDCP version
2.2
Operating hours (hours/days)
24/7
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Czech, Danish, German, English, Spanish, Finnish, French, Italian, Polish, Russian, Slovenian
Purpose
Commercial
Power
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.3 W
Power consumption (standby)
0.5 W
Power consumption (typical)
208 W
Computer system
Operating system installed
Android 11
Internal storage capacity
32 GB
On-board graphics card model
ARM Mali-G52
Internal memory
8 GB
Processor cores
4
Processor model
A55
Processor architecture
ARM Cortex-A55
Processor family
ARM Cortex
Processor manufacturer
ARM
Built-in processor
Yes
Weight & dimensions
Weight (with stand)
58.6 kg
Height (with stand)
1160 mm
Depth (with stand)
100 mm
Width (with stand)
1957 mm
Packaging data
Package volume
75900 cm³
Package height
1283 mm
Package depth
225 mm
Package width
2110 mm
Packaging content
Cables included
HDMI, Power, USB
Wi-Fi module included
Yes
Remote control included
Yes
Operational conditions
Operating relative humidity (H-H)
-20 - 60%
Operating temperature (T-T)
0 - 40 °C
Certificates
Certification
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, EPA 8.0
Other features
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
