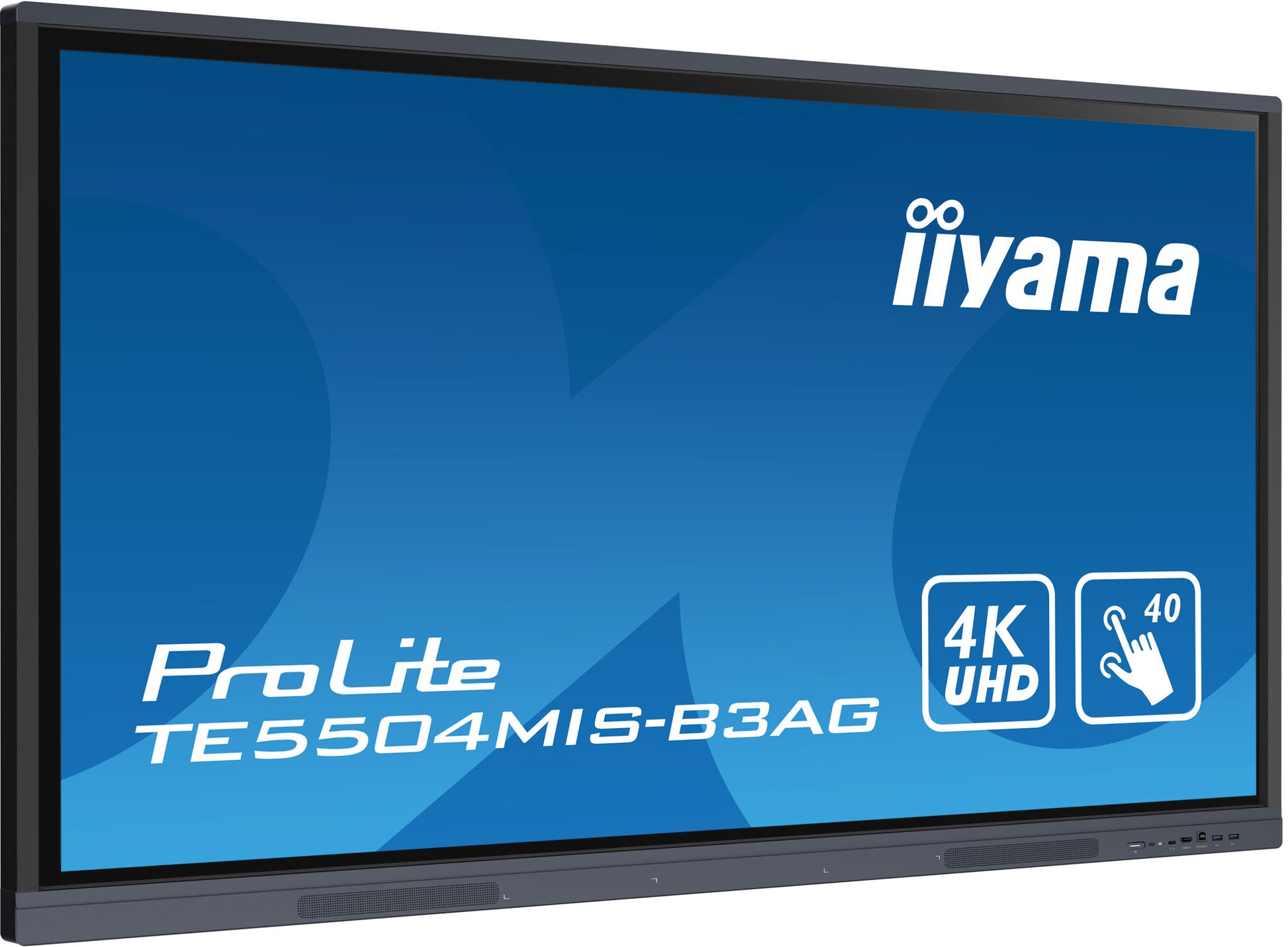

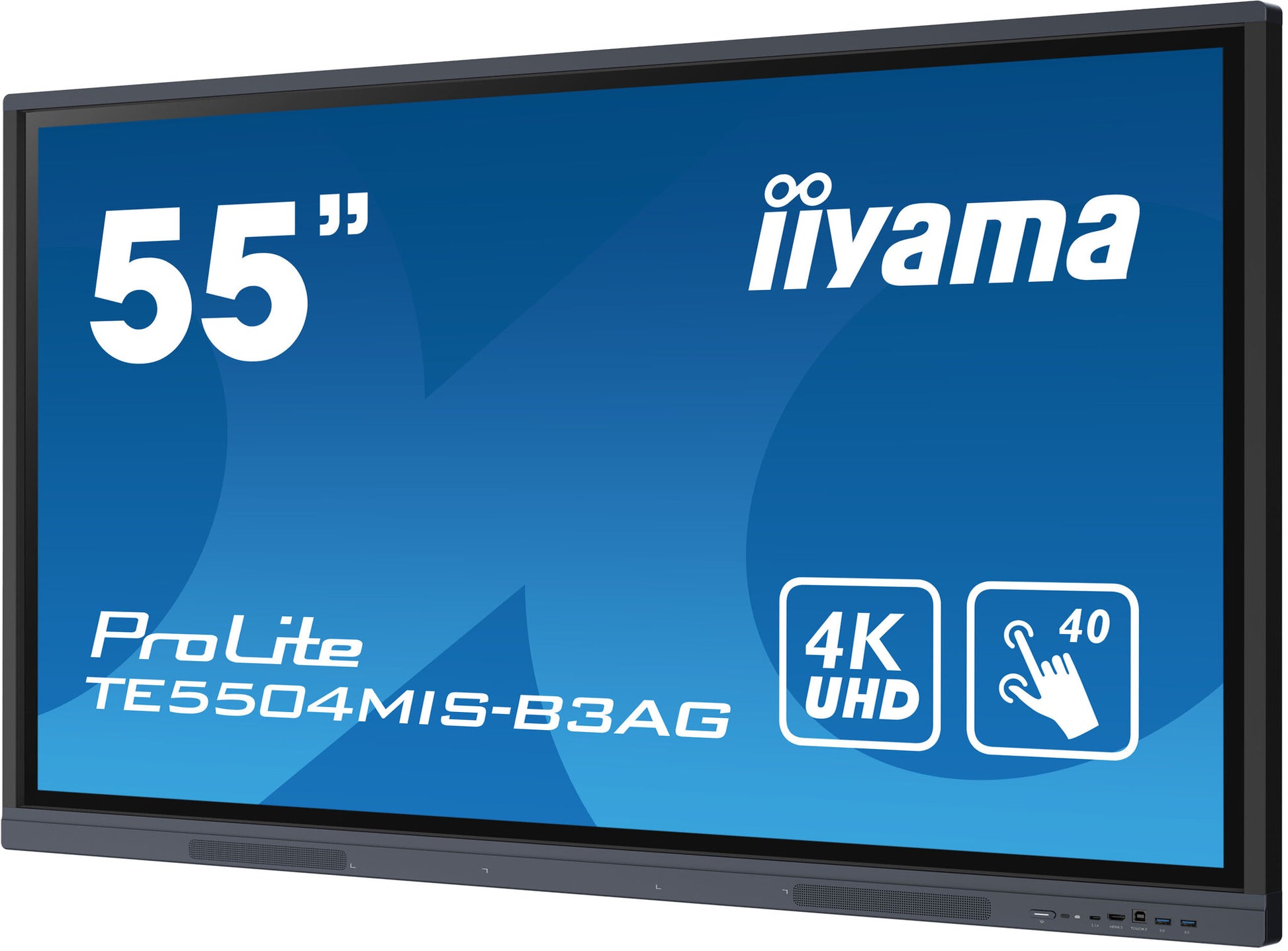

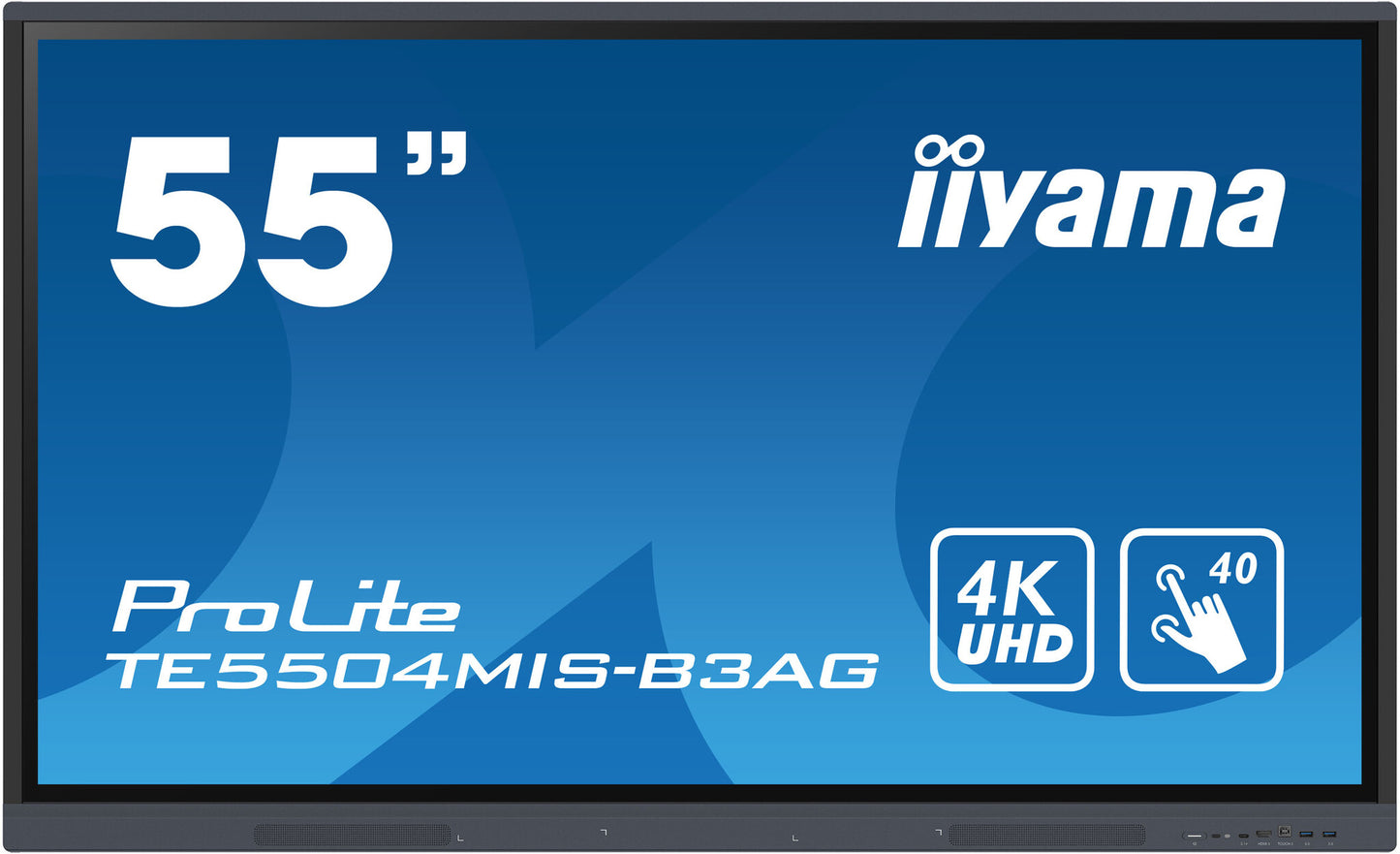

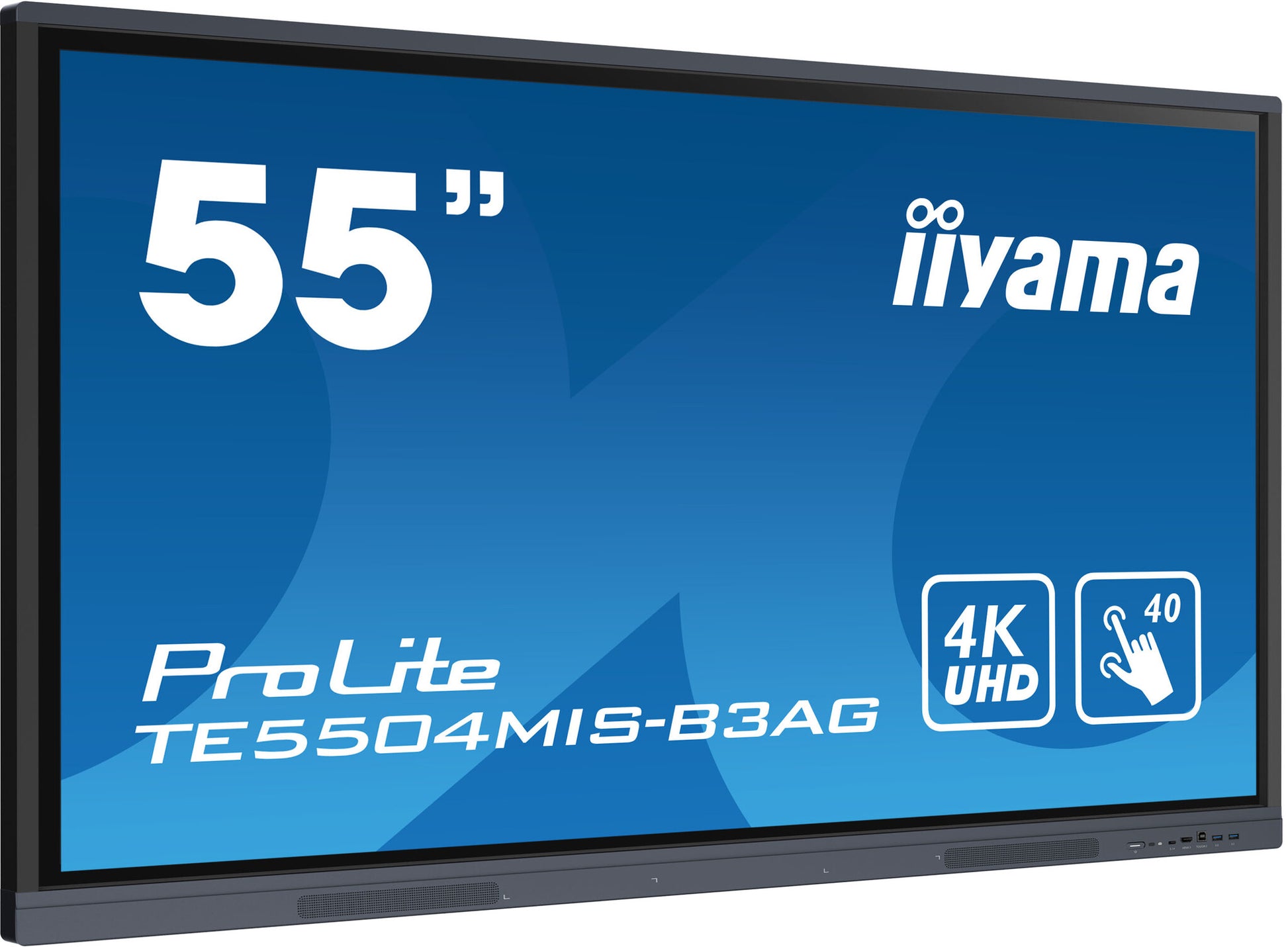

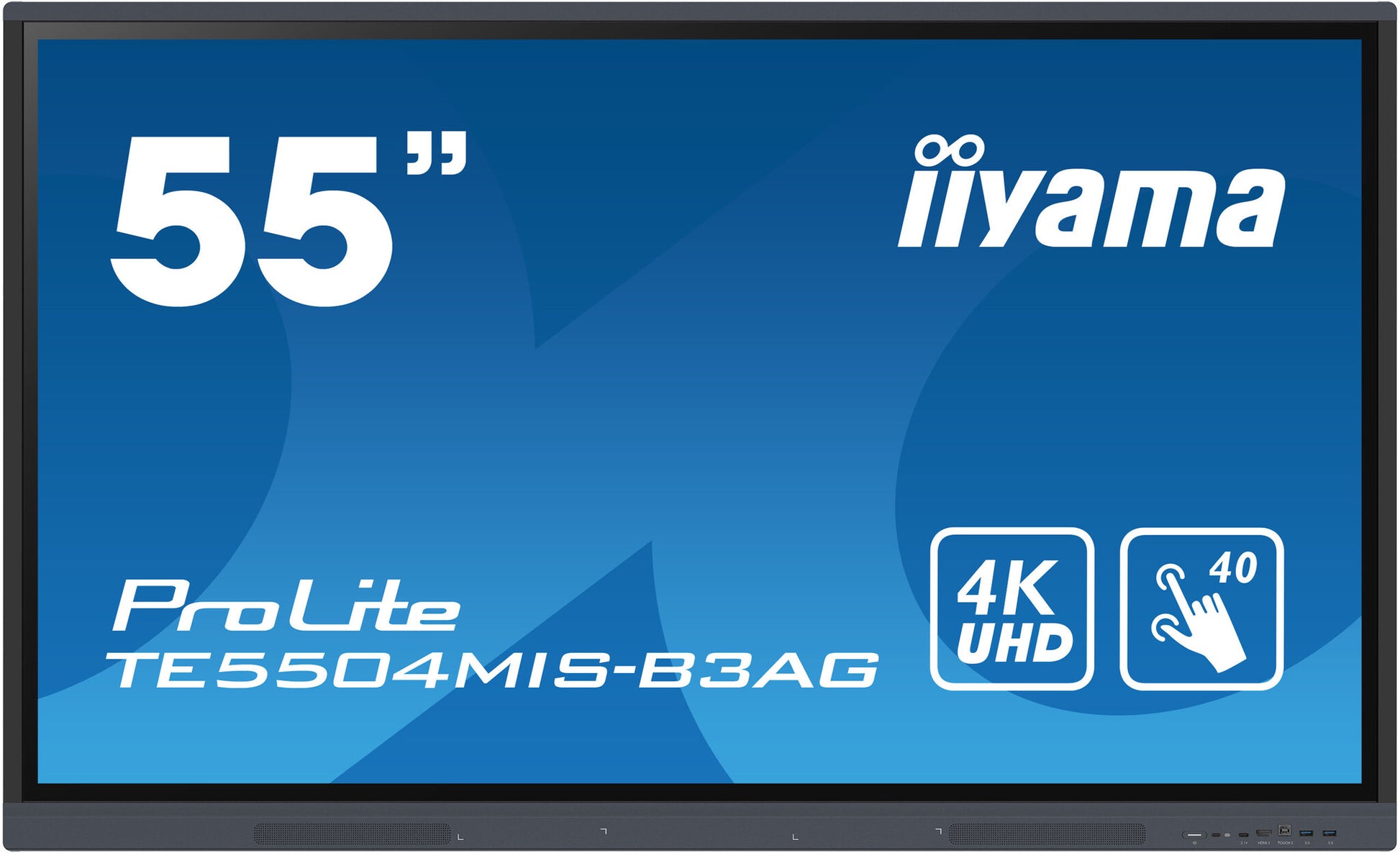

iiyama TE5504MIS-B3AG
iiyama TE5504MIS-B3AG
- Indoor Interactive flat panel Black
- 139.7 cm (55") 3840 x 2160 pixels IPS 390 cd/m²
- Touchscreen Direct-LED 8 ms
- Ethernet LAN Wi-Fi
- Built-in speaker(s) 32 W
- SKU:4948570120628
- GTIN/EAN:4948570120628
- MPN:TE5504MIS-B3AG
iiyama TE5504MIS-B3AG. Product design: Interactive flat panel. Display diagonal: 139.7 cm (55"), Display technology: IPS, Display resolution: 3840 x 2160 pixels, Display brightness: 390 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
Horizontal scan range
30 - 135 kHz
Haze rate
25%
Surface hardness
7H
Display diagonal (metric)
138.8 cm
Active display area (W x H)
1209.6 x 6804 mm
Pixel pitch
0.315 x 0.315 mm
Display number of colours
1.07 billion colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (dynamic)
4000:1
Contrast ratio (typical)
1200:1
Response time
8 ms
Native aspect ratio
16:9
Number of simultaneous touchpoints
40
Touchscreen
Y
HD type
4K Ultra HD
Display brightness
390 cd/m²
Display resolution
3840 x 2160 pixels
LED backlighting type
Direct-LED
Display technology
IPS
Display diagonal
139.7 cm (55")
RS-232C
Y
Number of speaker outputs
2
PC Audio in
Y
Wi-Fi
Y
Ethernet LAN (RJ-45) ports
2
Ethernet LAN
Y
USB version
3.2 Gen 1 (3.1 Gen 1)
USB ports quantity
6
USB port
Y
VGA (D-Sub) input ports
1
DVI port
N
HDMI input ports quantity
3
HDMI version
2.0
HDMI ports quantity
3
RMS rated power
32 W
Number of built-in speakers
2
Built-in speaker(s)
Y
Bezel width (bottom)
4.3 cm
Bezel width (side)
1.7 cm
Bezel width (top)
1.7 cm
Panel mounting interface
400 x 200 mm
VESA mounting
Y
Placement supported
Indoor
Product colour
Black
Product design
Interactive flat panel
Mean time between failures (MTBF)
50000 h
HDCP
Y
HDCP version
2.2
Operating hours (hours/days)
24/7
On Screen Display (OSD)
Y
Number of OSD languages
9
On Screen Display (OSD) languages
Czech, German, Dutch, English, Spanish, French, Italian, Polish, Russian
Purpose
Universal
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.3 W
Power consumption (standby)
0.5 W
Power consumption (typical)
154 W
Operating system installed
Android 11
Internal storage capacity
32 GB
On-board graphics card model
ARM Mali-G52
Internal memory
4 GB
Processor cores
4
Built-in processor
Y
Computer system
Y
Display weight
26 kg
Display height
87 mm
Display depth
744 mm
Display width
1271 mm
Package weight
34.5 kg
Package height
220 mm
Package depth
859 mm
Package width
1401 mm
Cables included
AC, HDMI, USB
Remote control included
Y
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Harmonized System (HS) code
85285210
Sustainability certificates
CE, ErP, REACH, RoHS, WEEE
