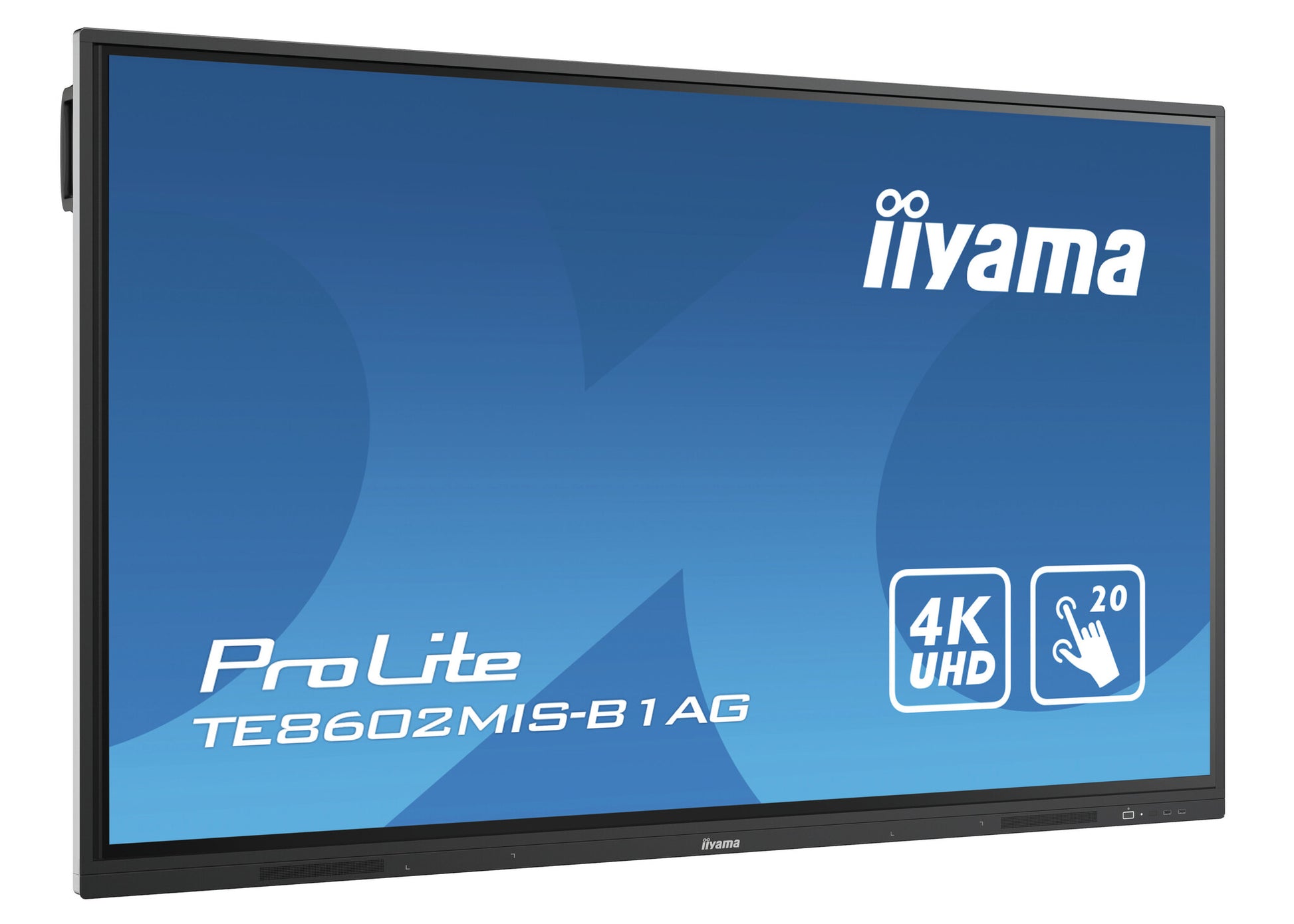

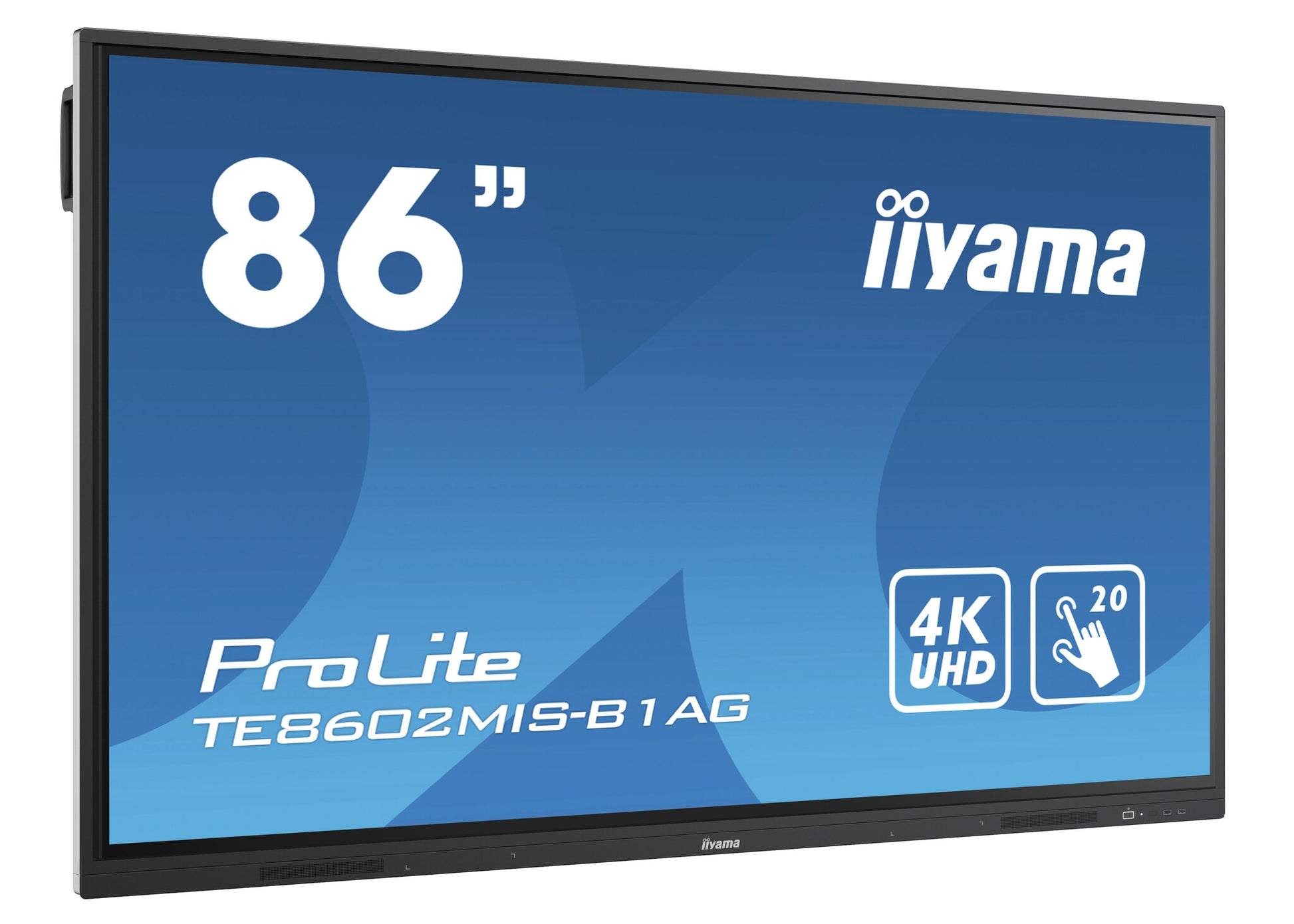

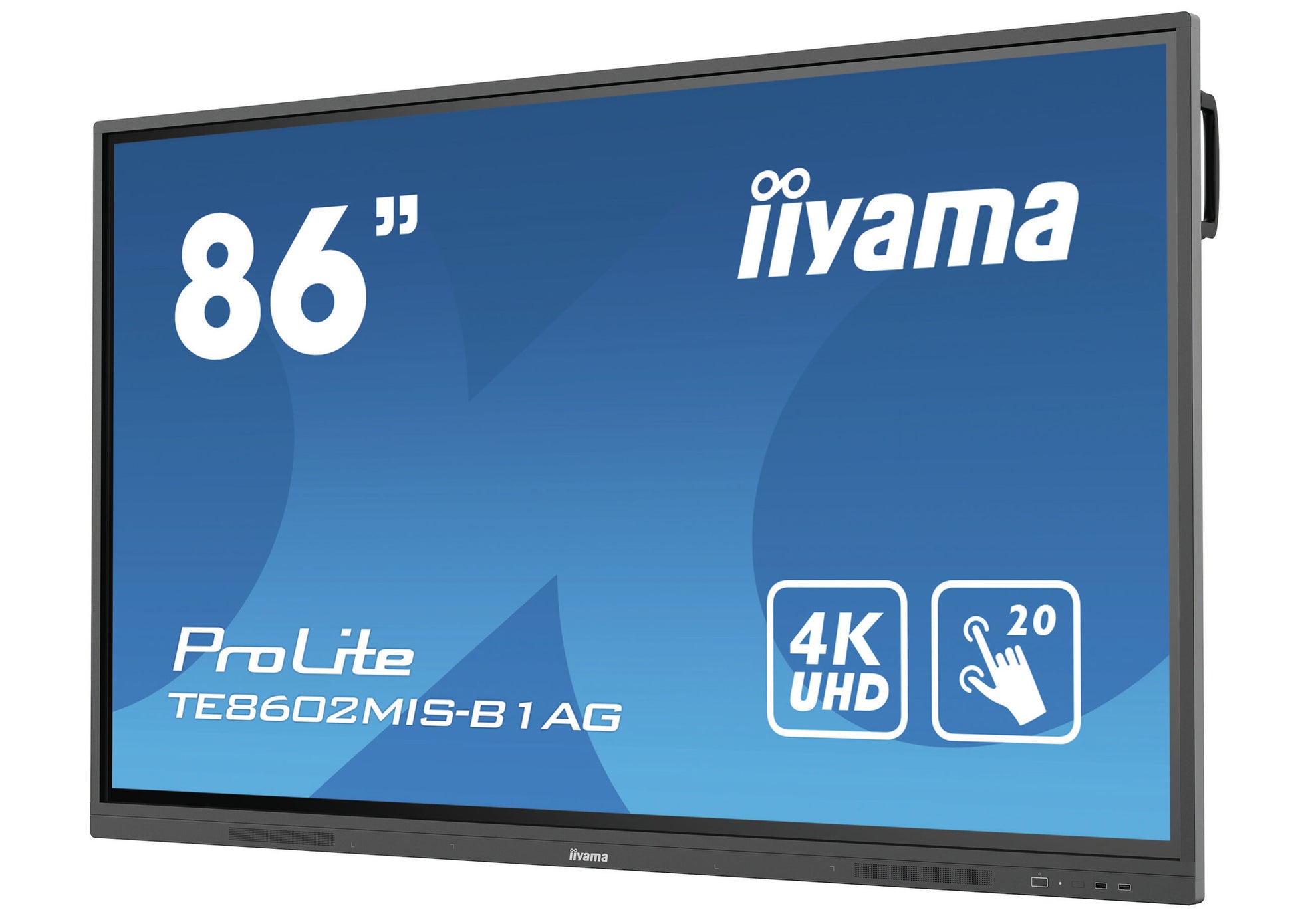

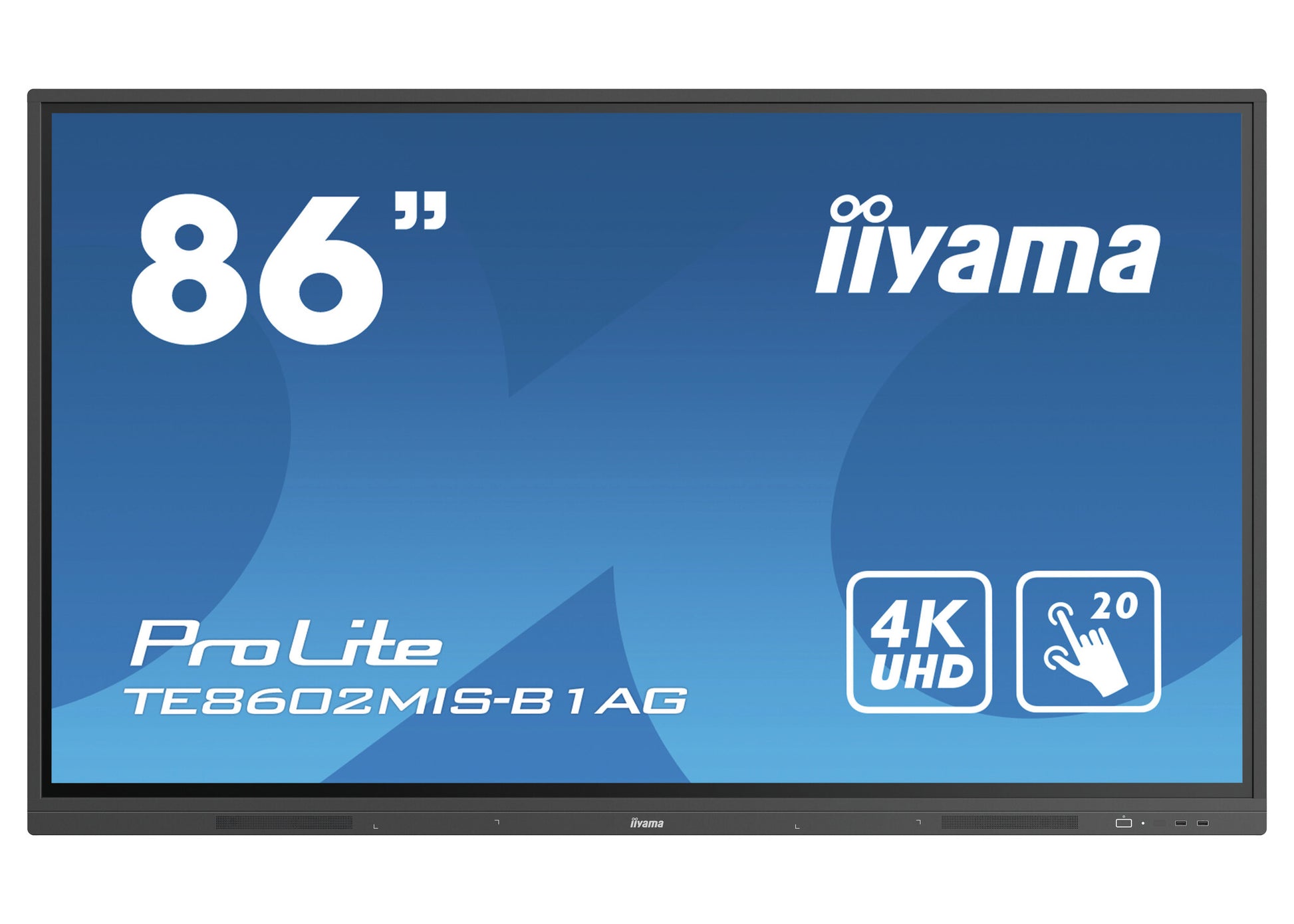

iiyama TE8602MIS-B1AG

iiyama TE8602MIS-B1AG

  • Indoor Interactive flat panel Black
  • 2.18 m (86") 3840 x 2160 pixels IPS 350 cd/m²
  • Touchscreen 8 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 20 W
  • SKU:4948570118854
  • GTIN/EAN:4948570118854
  • MPN:TE8602MIS-B1AG

You need to login to view the price.

Add To Favorite
View full details

iiyama TE8602MIS-B1AG. Product design: Interactive flat panel. Display diagonal: 2.18 m (86"), Display technology: IPS, Display resolution: 3840 x 2160 pixels, Display brightness: 350 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating system installed: Android 9.0. Product colour: Black

Display
Horizontal scan range
30 - 80 kHz
Vertical scan range
30 - 80 Hz
Panel type
IPS
Display diagonal (metric)
217.4 cm
Active display area (W x H)
1895 x 1066 mm
Pixel pitch
0.494 x 0.494 mm
Display number of colours
1.07 billion colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (dynamic)
3500:1
Contrast ratio (typical)
1200:1
Response time
8 ms
Native aspect ratio
16:9
Number of simultaneous touchpoints
20
Touchscreen technology
Infrared
Touchscreen
Yes
HD type
4K Ultra HD
Display brightness
350 cd/m²
Display resolution
3840 x 2160 pixels
Display technology
IPS
Display diagonal
2.18 m (86")
Ports & interfaces
RS-232C
Yes
PC Audio in
Yes
Wi-Fi
Yes
Ethernet LAN data rates
1000 Mbit/s
Ethernet LAN (RJ-45) ports
2
Ethernet LAN
Yes
USB version
2.0
USB ports quantity
4
USB port
Yes
VGA (D-Sub) input ports
1
DVI port
No
HDMI input ports quantity
2
HDMI version
2.0
HDMI ports quantity
2
Audio
RMS rated power
20 W
Number of built-in speakers
2
Built-in speaker(s)
Yes
Design
Bezel width (bottom)
4.4 cm
Bezel width (side)
1.6 cm
Bezel width (top)
1.6 cm
Panel mounting interface
800 x 600 mm
VESA mounting
Yes
Orientation
Horizontal
Placement supported
Indoor
Product colour
Black
Product design
Interactive flat panel
Performance
Mean time between failures (MTBF)
50000 h
HDCP
Yes
On Screen Display (OSD)
Yes
Number of OSD languages
9
On Screen Display (OSD) languages
Czech, German, Dutch, English, Spanish, French, Italian, Polish, Russian
Purpose
Universal
Power
AC input frequency
50 - 60 Hz
AC input voltage
180-240 V
Power consumption (off)
0.3 W
Power consumption (standby)
0.5 W
Power consumption (typical)
315 W
Computer system
Windows operating systems supported
Yes
Operating system installed
Android 9.0
Internal storage capacity
16 GB
Internal memory
2 GB
Processor cores
4
Built-in processor
Yes
Computer system
Yes
Weight & dimensions
Weight
66.8 kg
Height
1160 mm
Depth
87 mm
Width
1957 mm
Display weight
66.8 kg
Display height
1160 mm
Display depth
87 mm
Display width
1957 mm
Packaging data
Package weight
91 kg
Package height
280 mm
Package depth
1345 mm
Package width
2123 mm
Packaging content
Cables included
AC, HDMI, USB
Remote control included
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Logistics data
Quantity per pack
1 pc(s)
Features
Harmonized System (HS) code
85285210
Wall mountable
Yes
Technical details
Sustainability certificates
CE, REACH, RoHS, WEEE
Other features
Bluetooth
Yes
Bluetooth version
5.0
USB 2.0 ports quantity
4
Mobile operating systems supported
Android, iOS
User memory
16 GB
Graphics card
Mali-G31 MP2
