LG 86UH5J-H

LG 86UH5J-H

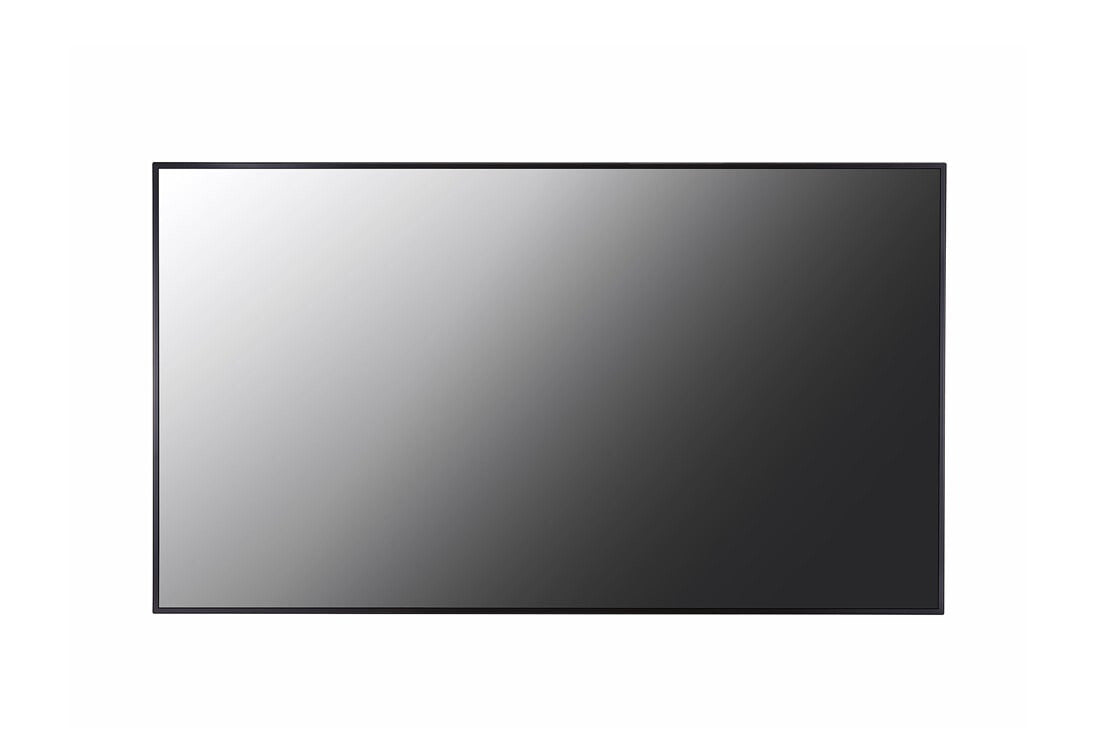

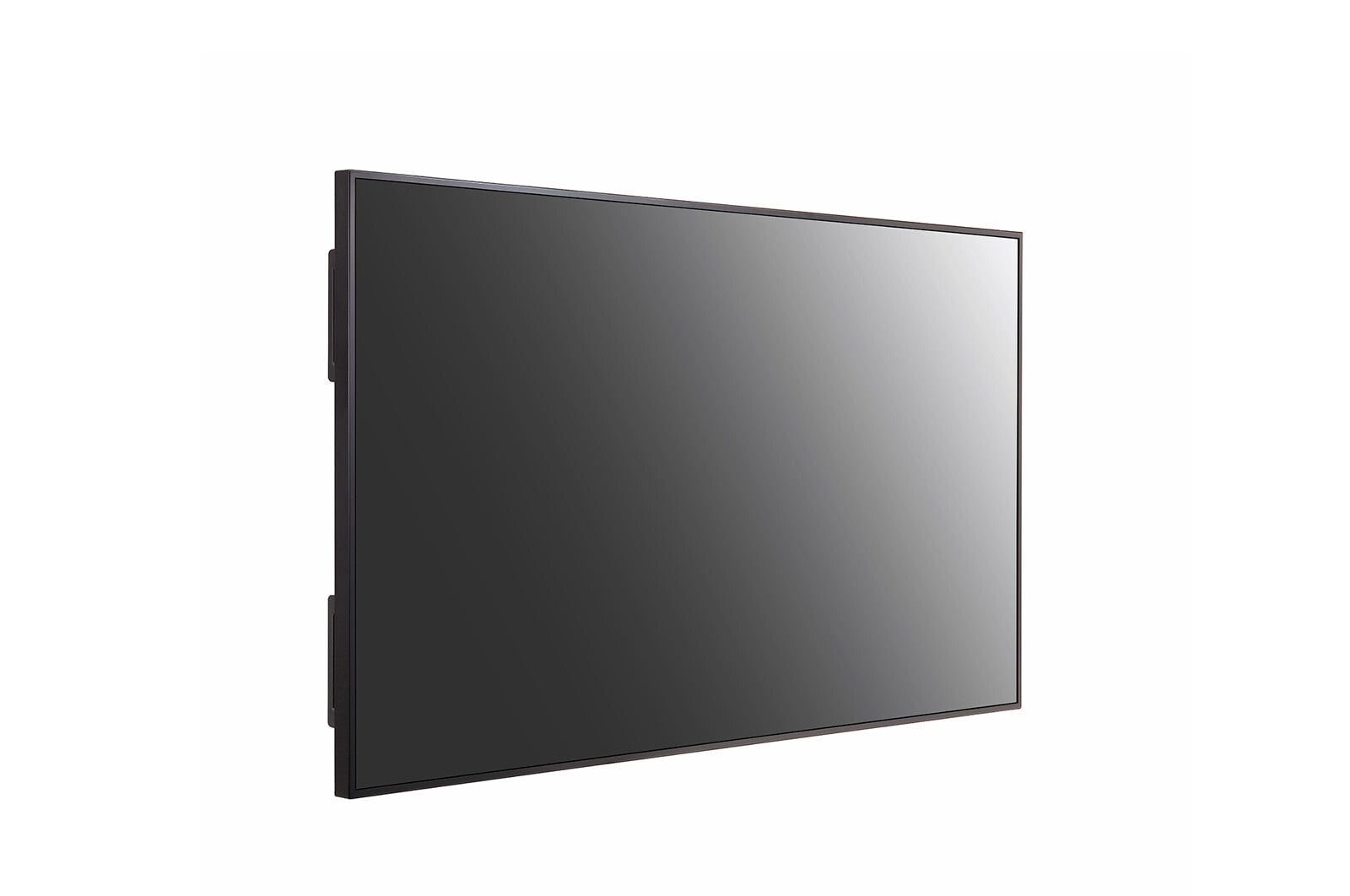

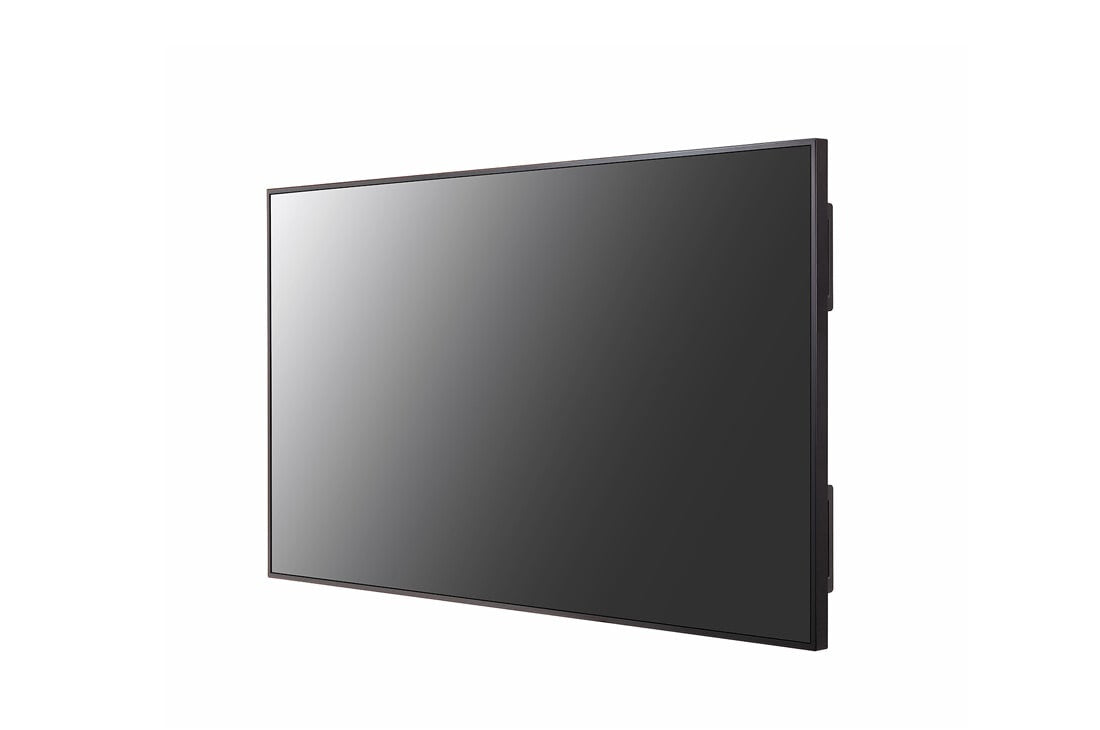

New High Haze UHD Standard Signage 86", 500 cd/m², HDMI(3)/ DP/ DVI-D/ USB 2.0/ RS232C/ RJ45/ Audio/ IR

  • Brightness(Typ.) : 500 cd/m²
  • Surface Treatement (Haze) : 28%

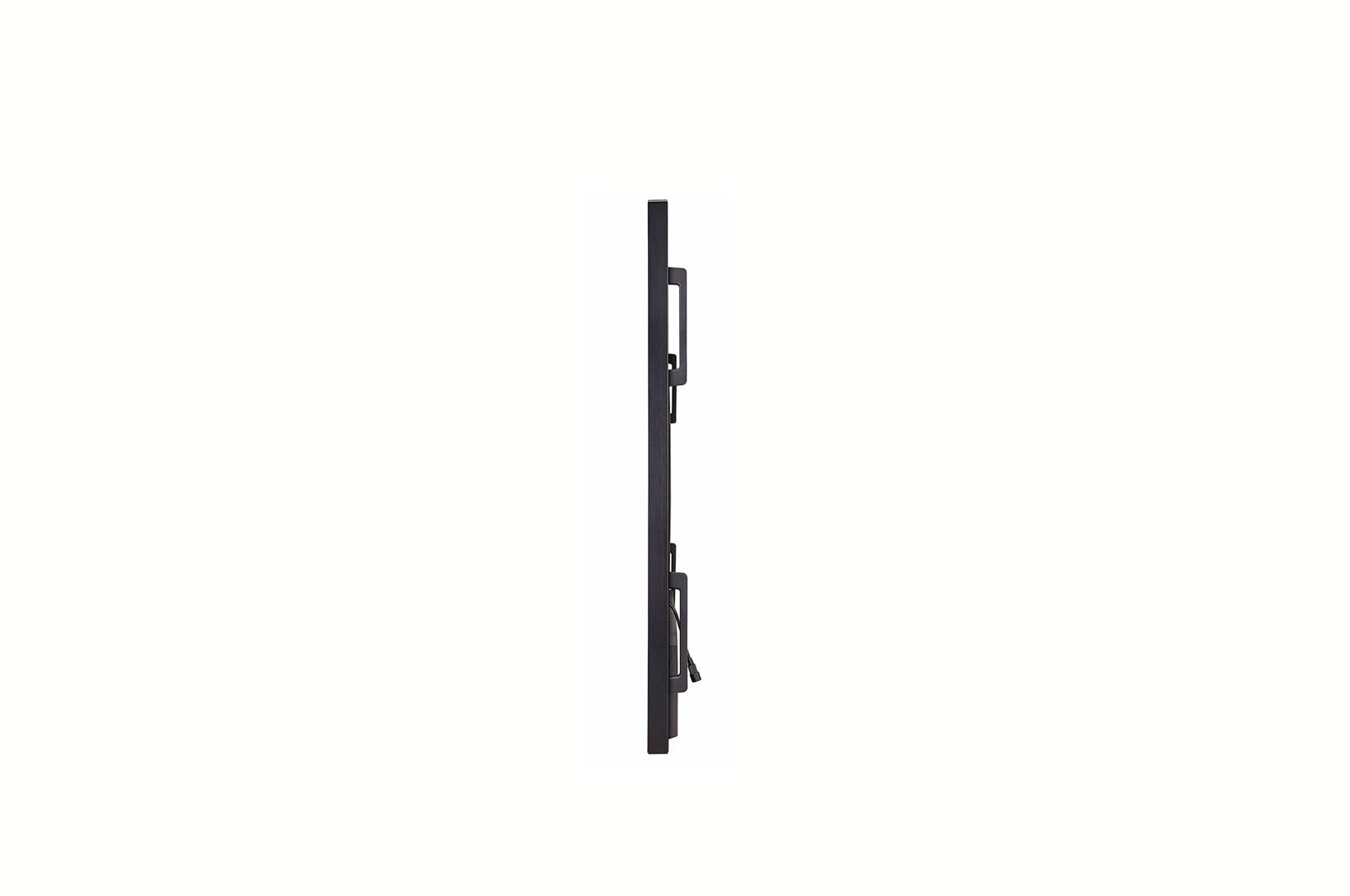

  • Bezel : 14.3 mm (Even bezel)

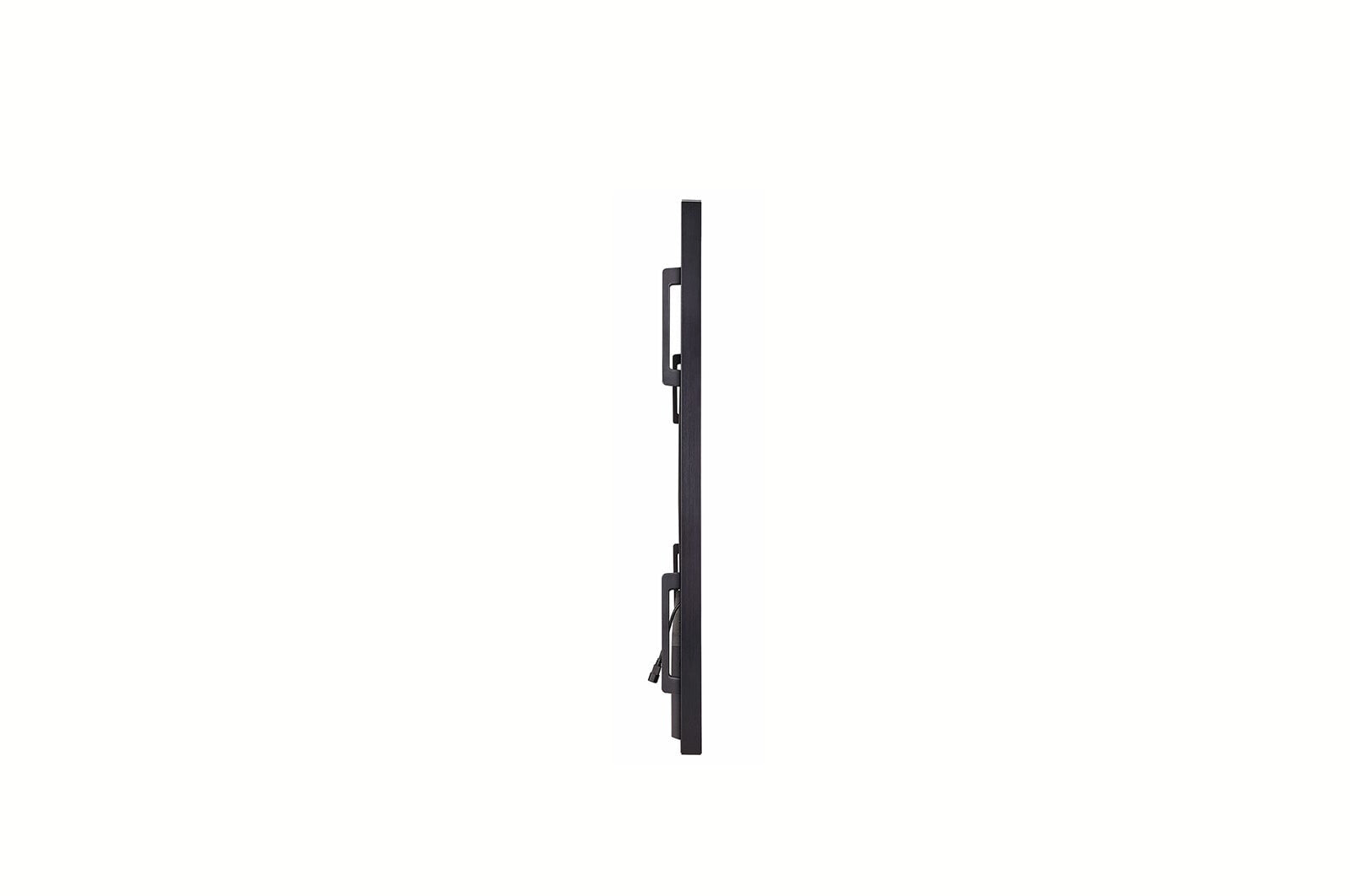

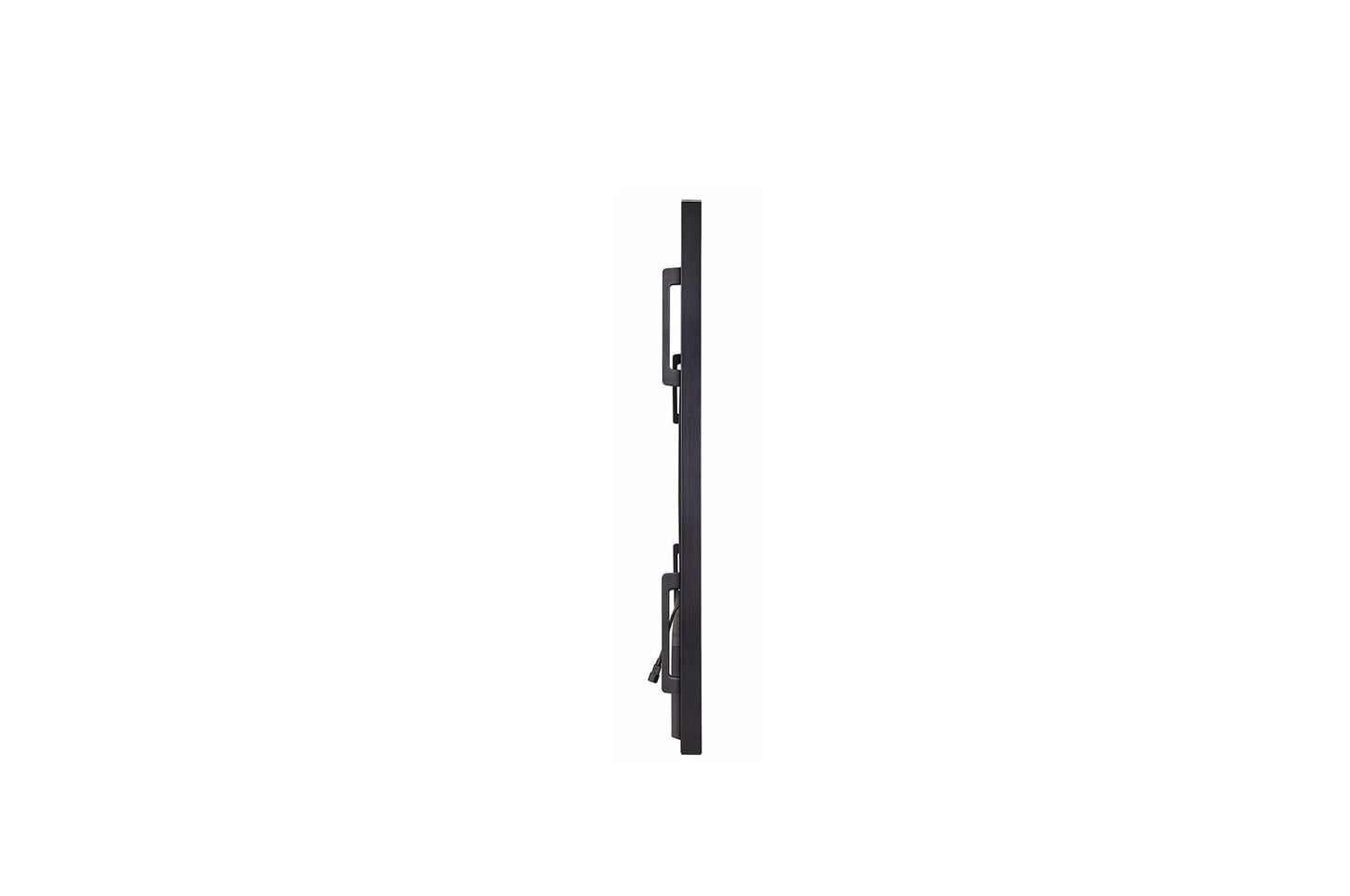

  • Depth : 60.6 mm
  • Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker
  • SKU:8806091848475
  • GTIN/EAN:8806091848475
  • MPN:86UH5J-H

You need to login to view the price.

Add To Favorite
View full details

LG 86UH5J-H. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86"), Display technology: IPS, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Web OS. Product colour: Black

Proper Display Brightness
With a recommend brightness of 500 cd/m² for an indoor display, the UH5J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls etc.

High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

Conformal Coating
In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc.

Mobile Content Management
You can create a store profile and get template recommendations using the Promota* app. Users can customize templates for all industries and easily create and manage content not only on PCs but also on mobile devices.

Display
RGB colour space
NTSC
Haze rate
28%
Native refresh rate
120 Hz
Panel life
50000 h
Display number of colours
1.07 billion colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (dynamic)
1000000:1
Contrast ratio (typical)
1100:1
Response time
8 ms
Native aspect ratio
16:9
Touchscreen
N
HD type
4K Ultra HD
Display brightness
500 cd/m²
Display resolution
3840 x 2160 pixels
LED backlighting type
Edge-LED
Display technology
IPS
Display diagonal
2.18 m (86")
Ports & interfaces
Remote (IR) input
1
Infrared data port
Y
RS-232C
Y
Audio (L/R) out
1
Audio (L/R) in
1
Wi-Fi
Y
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Y
USB version
2.0
USB ports quantity
1
USB port
Y
DisplayPorts quantity
1
DVI-D ports quantity
1
DVI port
Y
HDMI version
2.2/1.4
HDMI ports quantity
3
Audio
Built-in speaker(s)
Y
Design
Bezel width (bottom)
1.43 cm
Bezel width (side)
1.43 cm
Bezel width (top)
1.43 cm
Panel mounting interface
600 x 400 mm
VESA mounting
Y
Orientation
Horizontal/Vertical
Placement supported
Indoor
Product colour
Black
Product design
Digital signage flat panel
Performance
HDCP
Y
HDCP version
1.4/2.2
International Protection (IP) code
IP5X
Operating hours (hours/days)
24/7
Ambient light sensor
Y
On Screen Display (OSD)
Y
On Screen Display (OSD) languages
Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Portuguese, Russian, Swedish, Turkish
Purpose
Commercial
Power
Heat dissipation
733.69 BTU/h
AC input frequency
50-60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.5 W
Power consumption (sleep)
0.5 W
Power consumption (typical)
215 W
Computer system
Operating system installed
Web OS
Internal memory
16 GB
Weight & dimensions
Display weight
49 kg
Display height
1097.2 mm
Display depth
60.6 mm
Display width
1926.2 mm
Packaging data
Package weight
72.5 kg
Package height
1250 mm
Package depth
285 mm
Package width
2073 mm
Packaging content
Cables included
AC
Remote control included
Y
Operational conditions
Operating relative humidity (H-H)
10 - 80%
Operating temperature (T-T)
0 - 40 °C
Features
Heat dissipation (max)
955.5 BTU/h
