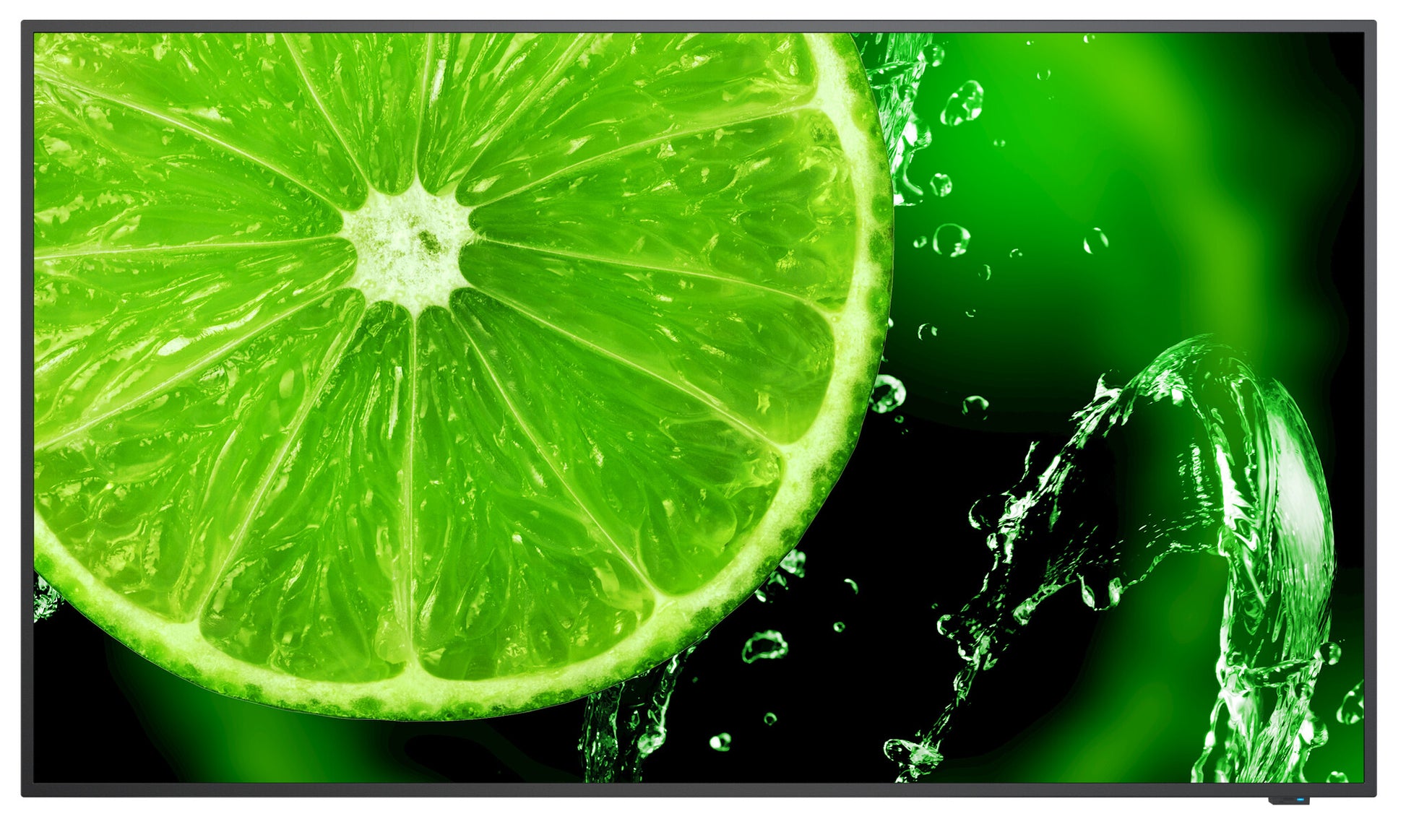

NEC E658

NEC E658

65" IPS, 3840x2160px, 350 cd/m², 20W RMS, Black

  • Indoor Black
  • 165.1 cm (65") 3840 x 2160 pixels IPS 350 cd/m²
  • Direct-LED 60 Hz 8 ms
  • Hybrid Log-Gamma (HLG)
  • Ethernet LAN
  • Built-in speaker(s) 20 W
  • SKU:5028695120495
  • GTIN/EAN:5028695120495
  • MPN:60005059
Add To Favorite

You need to login to view the price.

View full details

Functionality you need, at the price you want

A professional solution for low-budget applications, the E series forestalls the lure of domestic TVs which are not fit-for-purpose. Designed for the rigours of commercial usage, the E Series delivers the functionality and reliability you need, at the price you want. An integrated MediaPlayer supports native UHD resolution and High Dynamic Range (HDR) for deep contrasts and natural looking content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution. Meanwhile, a 10W USB interface supports connection of external devices should additional computing power be required. For instant start-up in meeting spaces, inputs are detected automatically with easy switching between HDMI sources. Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NEC’s NaviSet Administrator 2 functionality making the E Series the perfect choice for corporate meeting rooms and entry level digital signage.

Benefits

- Reduced Installation and Operating Costs – highly energy efficient LED backlit display ensures low power consumption, longer backlight lifetime and lighter design for easy transportation, mounting and integration.
- Slim Design and Integrated Speakers – the aesthetic design is pleasing to the eye and enables easy, low cost installation.
- Effortless content playback – the integrated USB media player supports various image video file formats for effortless and standalone content playback.
- Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
- Standalone operation – the display is designed for straightforward standalone operation due to integrated USB media player, speakers and scheduling functionality.

Display
Horizontal scan range
15 - 136 kHz
Vertical scan range
24 - 75 Hz
Haze rate
1%
Native refresh rate
60 Hz
High Dynamic Range (HDR) supported
Yes
High Dynamic Range (HDR) technology
Hybrid Log-Gamma (HLG)
Display diagonal (metric)
164 cm
Active display area (W x H)
1428.48 x 803.52 mm
Pixel pitch
0.372 x 0.372 mm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
1200:1
Response time
8 ms
Native aspect ratio
16:9
HD type
4K Ultra HD
Display brightness
350 cd/m²
Display resolution
3840 x 2160 pixels
LED backlighting type
Direct-LED
Display technology
IPS
Display diagonal
165.1 cm (65")
Ports & interfaces
Remote (IR) input
1
RS-232C
Yes
RS-232 interface
Yes
Component video (YPbPr/YCbCr) in
1
Composite video in
1
Ethernet LAN data rates
100 Mbit/s
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Yes
USB version
2.0
USB ports quantity
2
USB port
Yes
VGA (D-Sub) input ports
1
HDMI ports quantity
3
Audio
RMS rated power
20 W
Number of built-in speakers
2
Built-in speaker(s)
Yes
Design
Bezel width (bottom)
1.44 cm
Bezel width (side)
1.3 cm
Bezel width (top)
1.3 cm
Panel mounting interface
400 x 200 mm
VESA mounting
Yes
Orientation
Horizontal
Placement supported
Indoor
Product colour
Black
Performance
Operating hours (hours/days)
16/7
Ambient light sensor
Yes
Hybrid Log-Gamma (HLG)
Yes
Power
AC input frequency
50 - 60 Hz
AC input voltage
100-240 V
Energy consumption (HDR) per 1000 hours
127 kWh
Energy consumption (SDR) per 1000 hours
96 kWh
Energy efficiency class (HDR)
G
Energy efficiency class (SDR)
F
Power consumption (standby)
2 W
Power consumption (typical)
144 W
Computer system
Image formats supported
JPG
Audio formats supported
AAC, LPCM, MP3, WMV
Video formats supported
H.263, H.264, HEVC/H.265, MP4, MPEG1, MPEG2, MPEG4, MPG, TS
Weight & dimensions
Weight
23.8 kg
Height
833.9 mm
Depth
73 mm
Width
1457.5 mm
Packaging content
Cables included
AC, HDMI
Remote control included
Yes
Operational conditions
Storage relative humidity (H-H)
5 - 85%
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
10 - 80%
Operating temperature (T-T)
0 - 40 °C
Certificates
Certification
CE; EAC; EMC Class B; Energy Star 8; FCC; PSB; RCM; REACH; RoHS; SASO; TÜV S; UL/C-UL; VCCI
Algemeen
Productfamilie
MultiSync
Features
Harmonized System (HS) code
85285210
Technical details
Sustainability certificates
ENERGY STAR
