NEC ME551-MPi4

NEC ME551-MPi4

LCD 55" Midrange Large Format Display (incl. NEC MediaPlayer)

  • Modern and slim design – robust yet elegant allowing for an unobtrusive integration into any application and environment
  • Intuitive Plug & Play solution – even when not familiar with using digital signage, users can facilitate stunning signage creation for immersive real-time visual experiences
  • Install third party software – expand the NEC MediaPlayer functionality via additional Apps or even switch to your preferred Content Management Systems (CMS) directly from of the NEC MediaPlayer
  • Everything under control – one single interface is needed to manage both the NEC MediaPlayer and the display directly, via a web-interface or the NEC Display remote control
  • Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
  • SKU:5028695122567
  • GTIN/EAN:5028695122567
  • MPN:60005374

You need to login to view the price.

Add To Favorite
View full details

Digital Signage and real-time information deployed easily

Initiating effective communication to your target audience has never been easier to plan, install and operate. Deploying Signage with consistently updated information, real-time content adaption and scheduling has never been so simple.

The MultiSync® ME-MPi4 displays offer out-of-the-box playback for local retailers, restaurants and small business enterprises. With the NEC MediaPlayer you can deliver dynamic advertising and infotainment to your customers whilst benefiting from the efficiencies gleaned through digitisation.

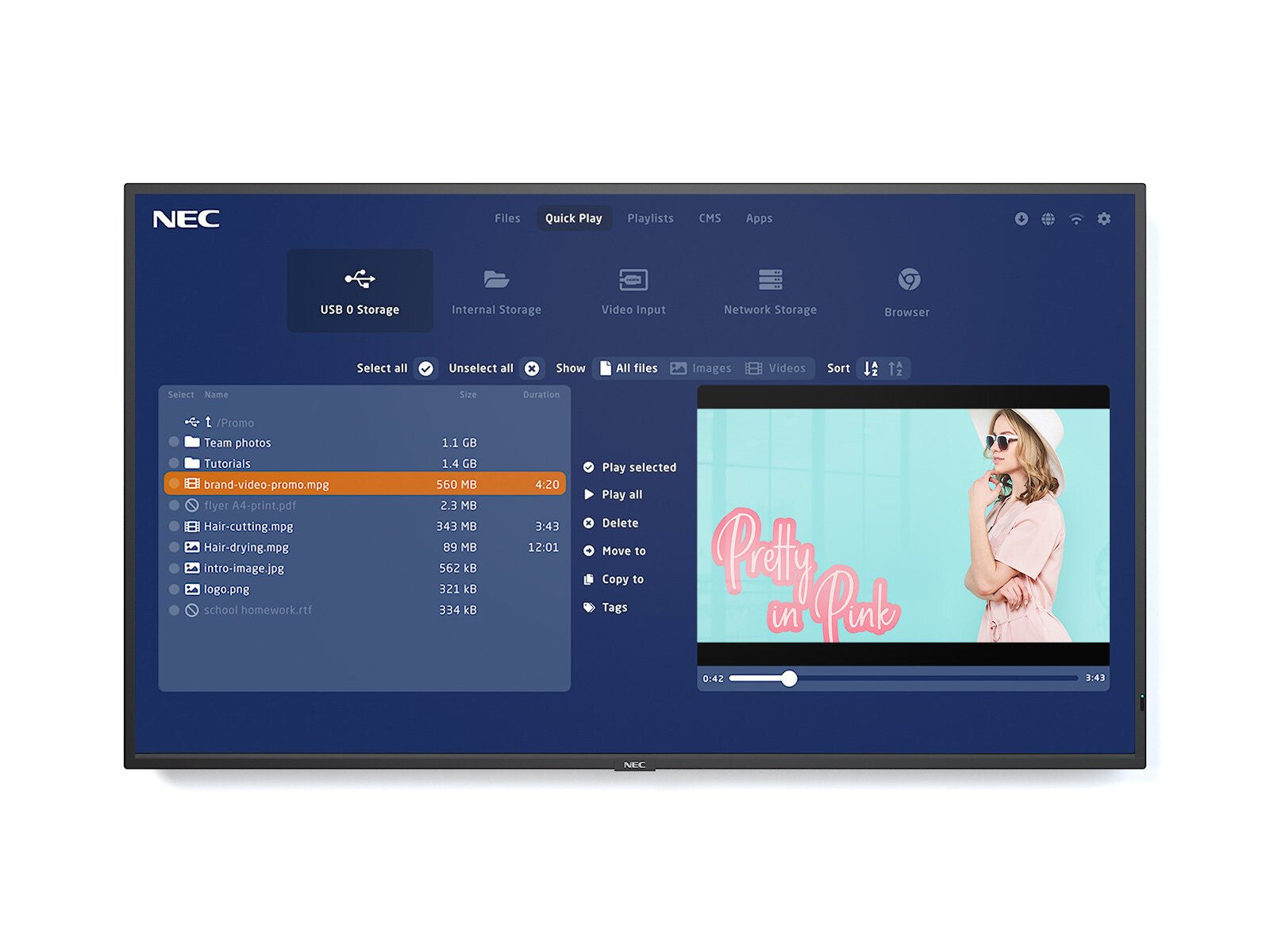

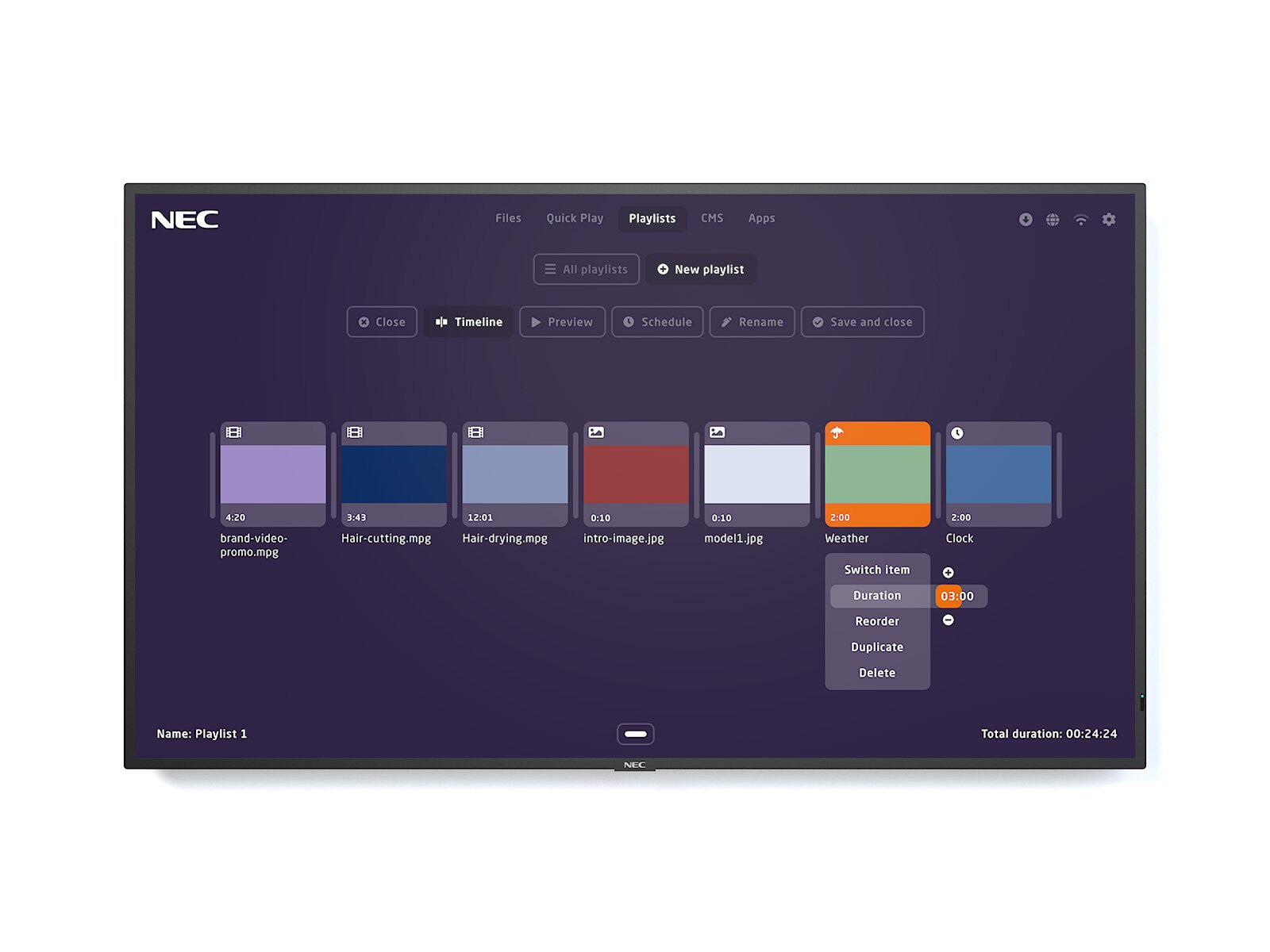

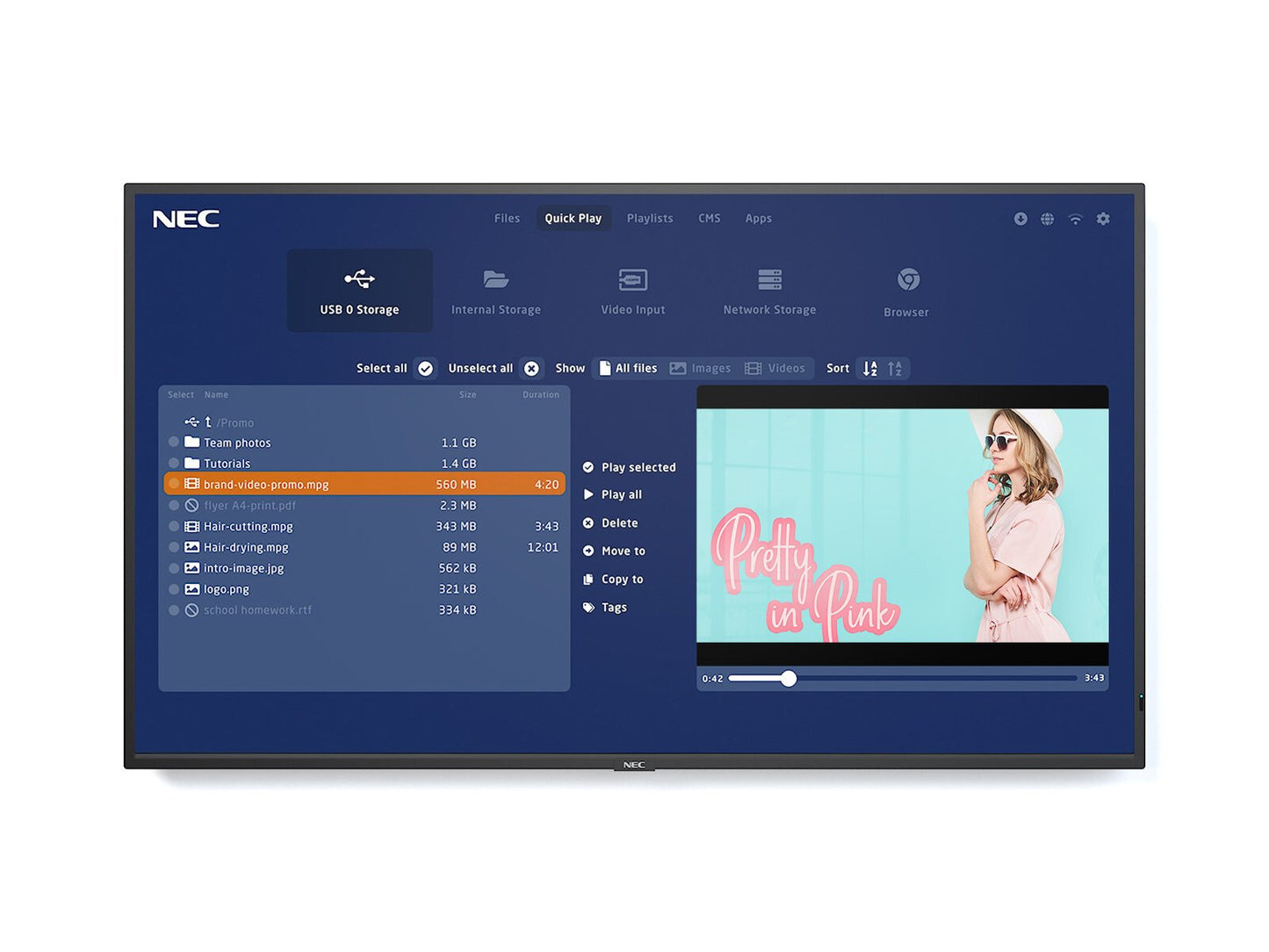

Future-proof and upgradable, the NEC MediaPlayer software is powered by a pre-installed modular SoC Raspberry Pi module. Enabling remote operation of single and multiple display installations, benefit from flexible usage of many media types and a scheduling function for smart content management. For specific feature demands, the NEC MediaPlayer grants easy switching to the integrated Content Management Systems directly.

Display
Horizontal scan range
26 - 135 kHz
Vertical scan range
23 - 86 Hz
Haze rate
1%
Native refresh rate
60 Hz
Display diagonal (metric)
138.8 cm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
8000:1
Response time
8 ms
Native aspect ratio
16:9
Touchscreen
No
HD type
4K Ultra HD
Display brightness
400 cd/m²
Display resolution
3840 x 2160 pixels
LED backlighting type
Direct-LED
Display technology
LED
Display diagonal
139.7 cm (55")
Ports & interfaces
RS-232 interface
Yes
Audio (L/R) out
1
Audio (L/R) in
1
Wi-Fi
No
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Yes
USB version
2.0
USB ports quantity
1
USB port
Yes
DisplayPorts in
1
DisplayPorts quantity
1
DVI port
No
HDMI input ports quantity
2
HDMI ports quantity
2
Audio
RMS rated power
20 W
Number of built-in speakers
2
Built-in speaker(s)
Yes
Design
Panel mounting interface
400 x 400 mm
VESA mounting
Yes
Orientation
Horizontal/Vertical
Placement supported
Indoor
Product colour
Black
Product design
Digital signage flat panel
Performance
HDCP
Yes
International Protection (IP) code
IP5X, IP2X
Operating hours (hours/days)
18/7
Purpose
Universal
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Energy consumption (HDR) per 1000 hours
91 kWh
Energy consumption (SDR) per 1000 hours
118 kWh
Energy efficiency class (HDR)
G
Energy efficiency class (SDR)
G
Power consumption (standby)
0.5 W
Power consumption (typical)
120 W
Computer system
Image formats supported
JPEG, JPG, PNG
Audio formats supported
AAC, AC3, MP3
Video formats supported
AVI, M4V, MKV, MOV, MP4, MPEG, MPEG2, MPG, VOB, VP8, VP9, WMV
Internal storage capacity
32 GB
Processor frequency
1.5 GHz
Processor model
A72
Processor family
ARM Cortex
Built-in processor
Yes
Computer system type
System on Chip (SoC)
Computer system
Yes
Weight & dimensions
Weight
19.8 kg
Height
712.6 mm
Depth
62.6 mm
Width
1241.8 mm
Packaging data
Package weight
29.4 kg
Package height
920 mm
Package depth
250 mm
Package width
1430 mm
Packaging content
Cables included
AC, HDMI
Remote control included
Yes
Operational conditions
Storage relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Operating temperature (T-T)
0 - 40 °C
Algemeen
Productfamilie
MultiSync
Features
Harmonized System (HS) code
85285210
