NWP400/B Network input panel - USB Type-C + BT (4 CH), Black

NWP400/B Network input panel - USB Type-C + BT (4 CH), Black

  • Front USB type-C port
  • Integrated Bluetooth receiver
  • Internal mixing & DSP processing
  • 4-channel Dante™/AES67
  • SKU:NWP400/B
  • GTIN/EAN:
  • MPN:NWP400/B
Add To Favorite

You need to login to view the price.

View full details

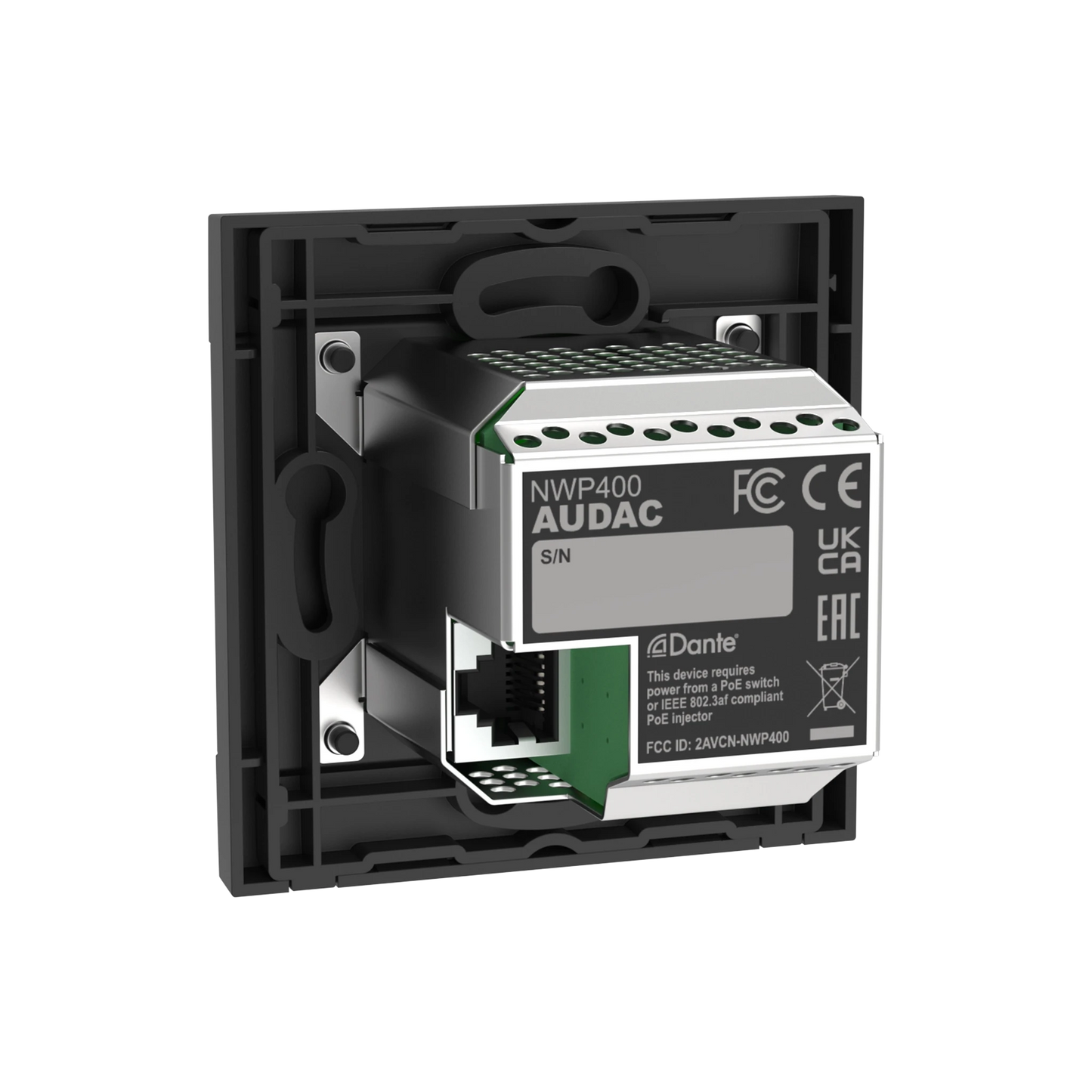

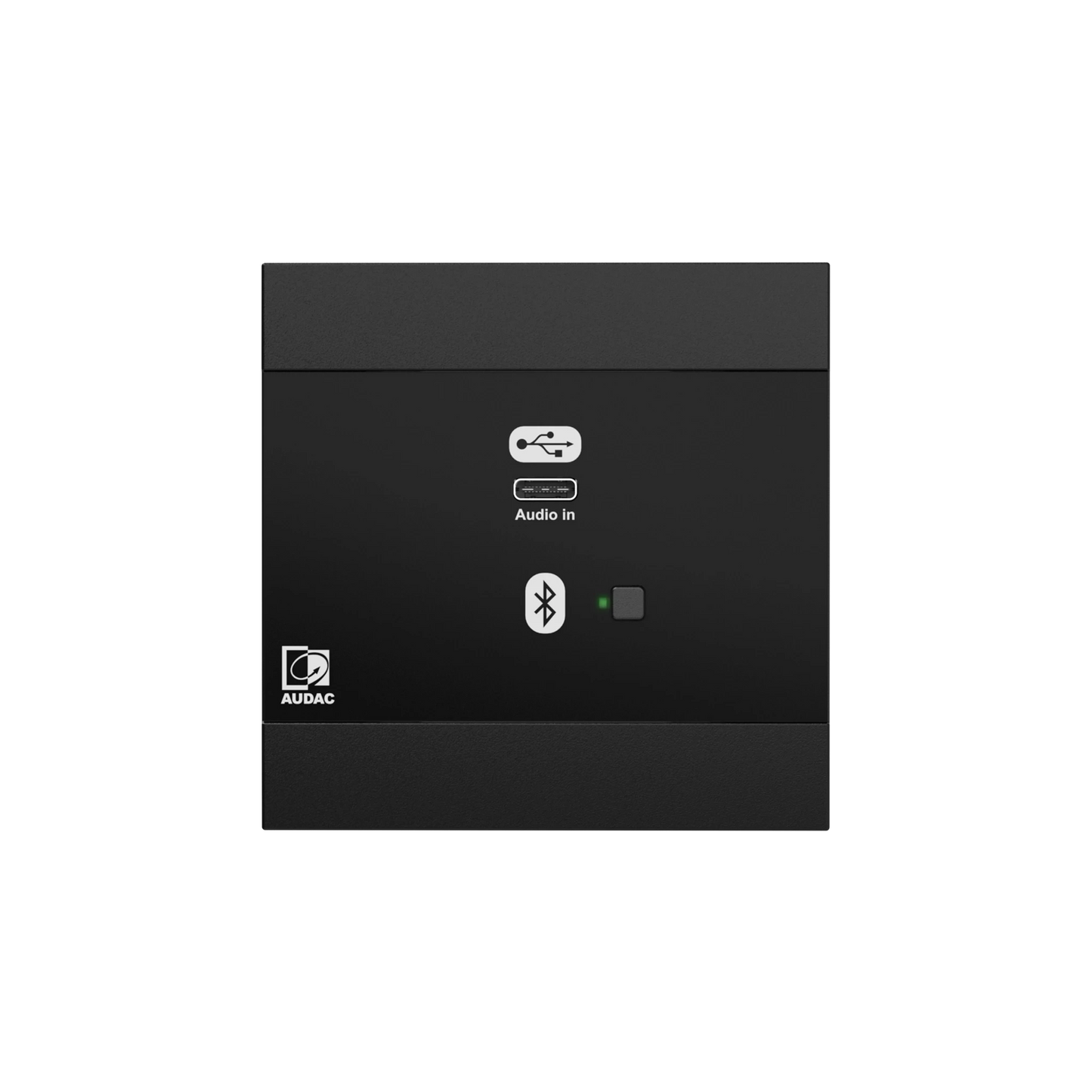

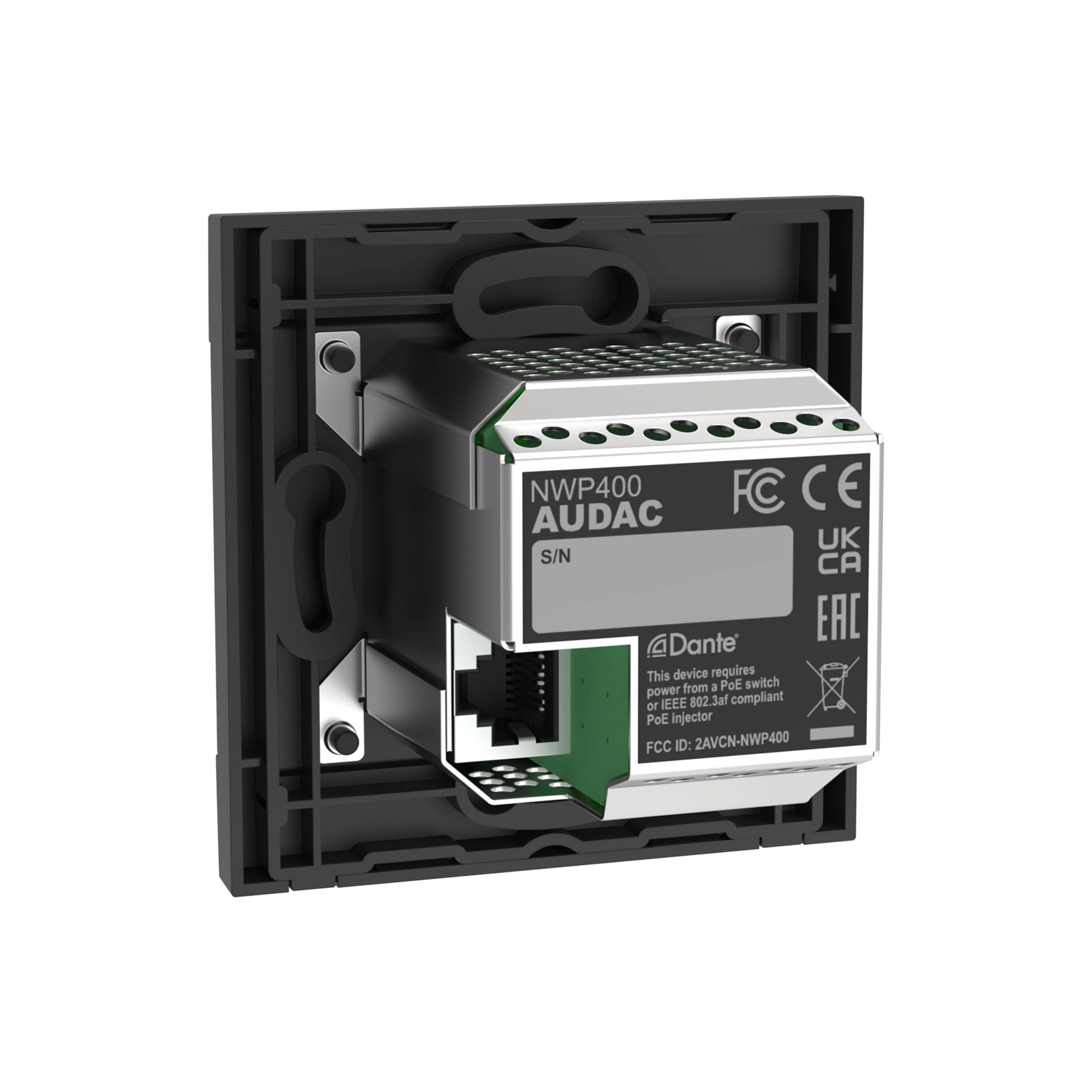

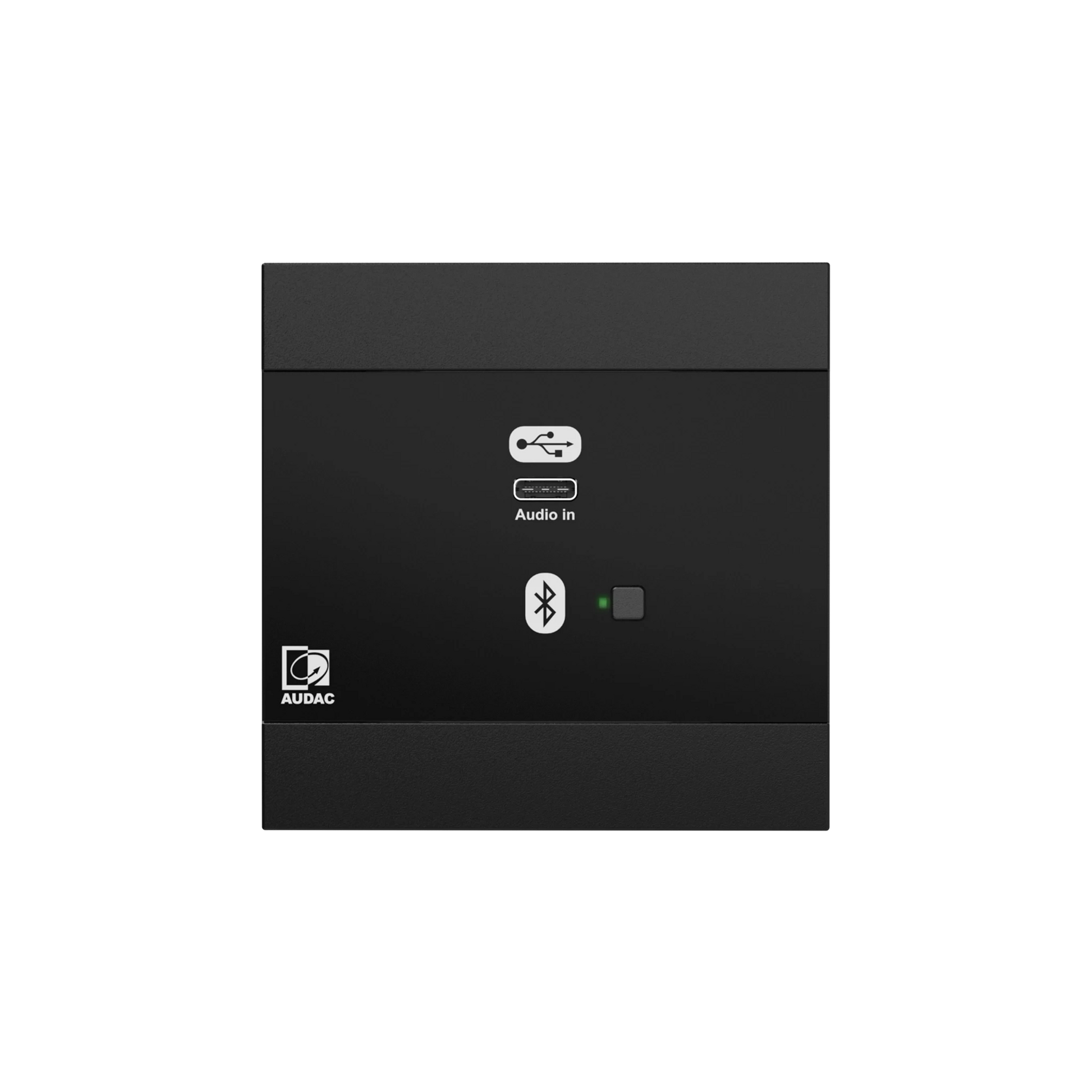

The NWP400 is a Dante™/AES67 network input panel, featuring a USB Type-C port, and an integrated Bluetooth receiver, which can be used to transmit audio signals in a Dante™ audio network.

Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™.

The IP-based communication makes it future-proof while also being backwards compatible with many existing products. Thanks to the limited PoE power consumption, NWP400 is compatible with any PoE network-based installation.

Besides the elegant design, the front panel is finished with high-quality fingerprint-resistant glass. The wall panels are compatible with standard EU-style in-wall boxes, making the wall panel the ideal solution for solid and hollow walls. Black and white color options are available to blend into any architectural design.

System specifications
Inputs
Bluetooth and USB Type C (in)
Control
1 button - Bluetooth discoverable
Indicators
1 LED (RGB) - Bluetooth status
Configurable settings
IP settings Device name Gain DSP (EQ) Mixing
Configuration
Audac Touch™
Integrated DSP
Yes (EQ)
Automatic level control
Yes
Phantom power
+48 V DC
Power Supply
PoE powered (IEEE 802.3at)
Connectors
USB Type C (audio in) RJ45 (network + PoE)
Product Features
Construction
ABS
Front finish
Elegant ABS front panel with glass
Colours
White (RAL9003) Black (RAL9005)
Compatible devices
Any Dante™/AES67 compatible audio device
Dimensions
80 x 80 mm (W x H) (Remote wall panel)
Installation standard
Compatible with EU installation materials
