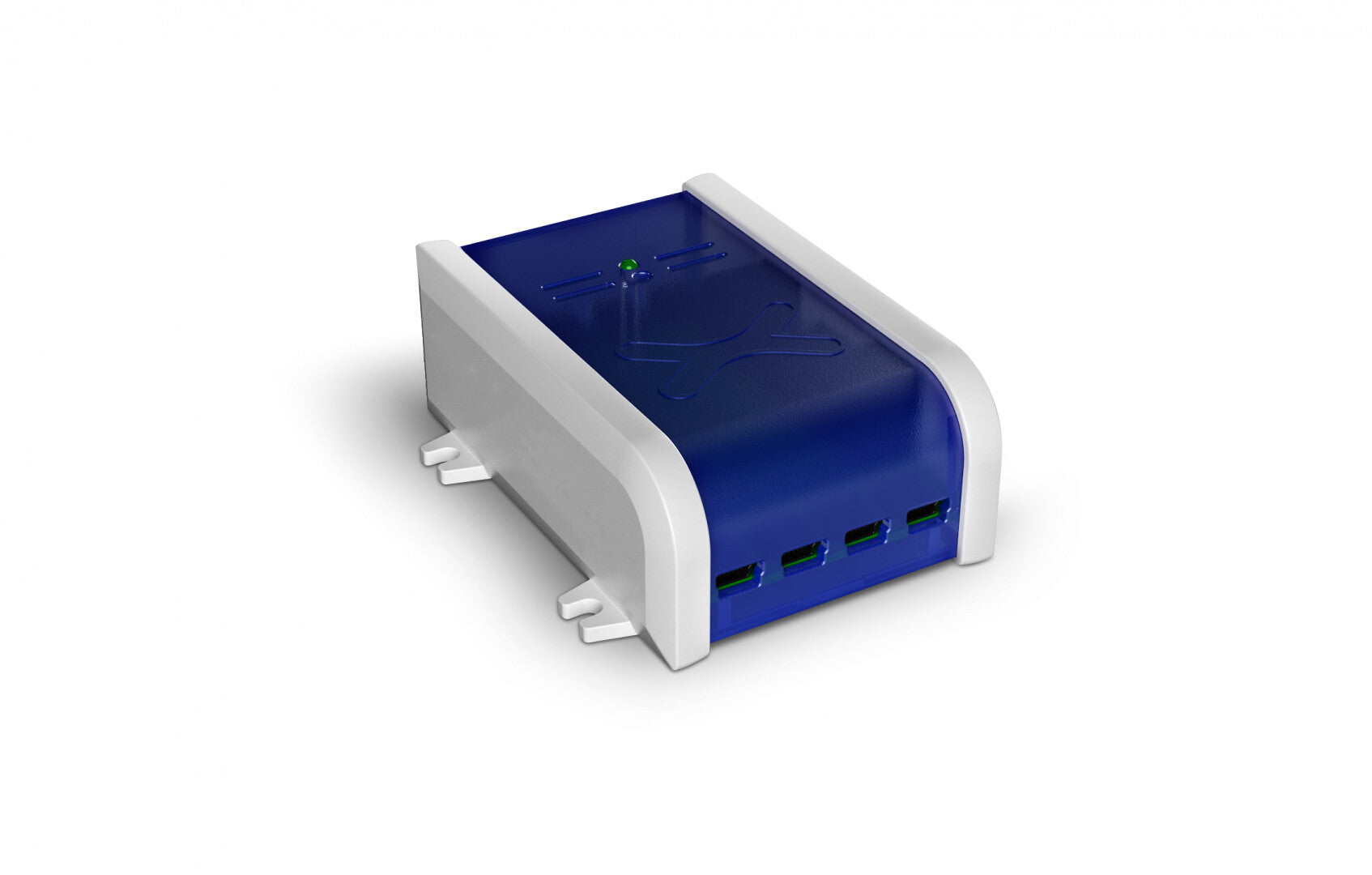

Nexmosphere ShopBus interface, 8x X-talk, 5x LED output

Nexmosphere ShopBus interface, 8x X-talk, 5x LED output

ShopBus module, 8x X-talk, 5x mono LED output

  • 8x X-talk interface for easy sensor connection
  • Auto start-up and configuration for highly reliable standalone applications (24/7 operability)
  • Create large-size setups that can be controlled through one single serial connection using the X-script API
  • Combine any of the ShopBus module and XM modules to make an exact fit for your application
  • SKU:40218
  • GTIN/EAN:8720064402184
  • MPN:SM-110

You need to login to view the price.

Add To Favorite
View full details

Nexmosphere ShopBus interface, 8x X-talk, 5x LED output. Controller interface type: 8x X-talk, mono LED output. Country of origin: Netherlands

ShopBus modules are specifically designed for two reasons; firstly, creating large systems where more interfaces are needed than one XM controller with connected EM modules can provide. And secondly; allowing large interspacing between several control units, when Elements are needed far apart from each other. The Shopbus architecture enables connecting multiple control units, with the possibility of using long cable lengths between the units. All the while, the interfacing towards the connected device can still take place through one serial connection.

Connect a wide range of sensors, buttons, LEDs, or any other of the Nexmosphere Elements to create your unique shopper experience. Due to auto-configuration, no additional setup is required for seamless operation.

- Connect Shopbus modules as far as 25 meters away from the XM controller using the ShopBus interface -and cable.
- ShopBus cables are available with and without power feedthrough (with power feed-through = red, without = black).
- Daisy-chain up to 8 ShopBus modules onto 1 XM controller
- Additional power input possible on each ShopBus module for applications that require higher amounts of power.

Technical details
Dimensions (WxDxH)
76 x 94 x 36 mm
Operating temperature (T-T)
10 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
140 g
Ports & interfaces
Controller interface type
8x X-talk, mono LED output
Logistics data
Country of origin
Customs product code (TARIC)
