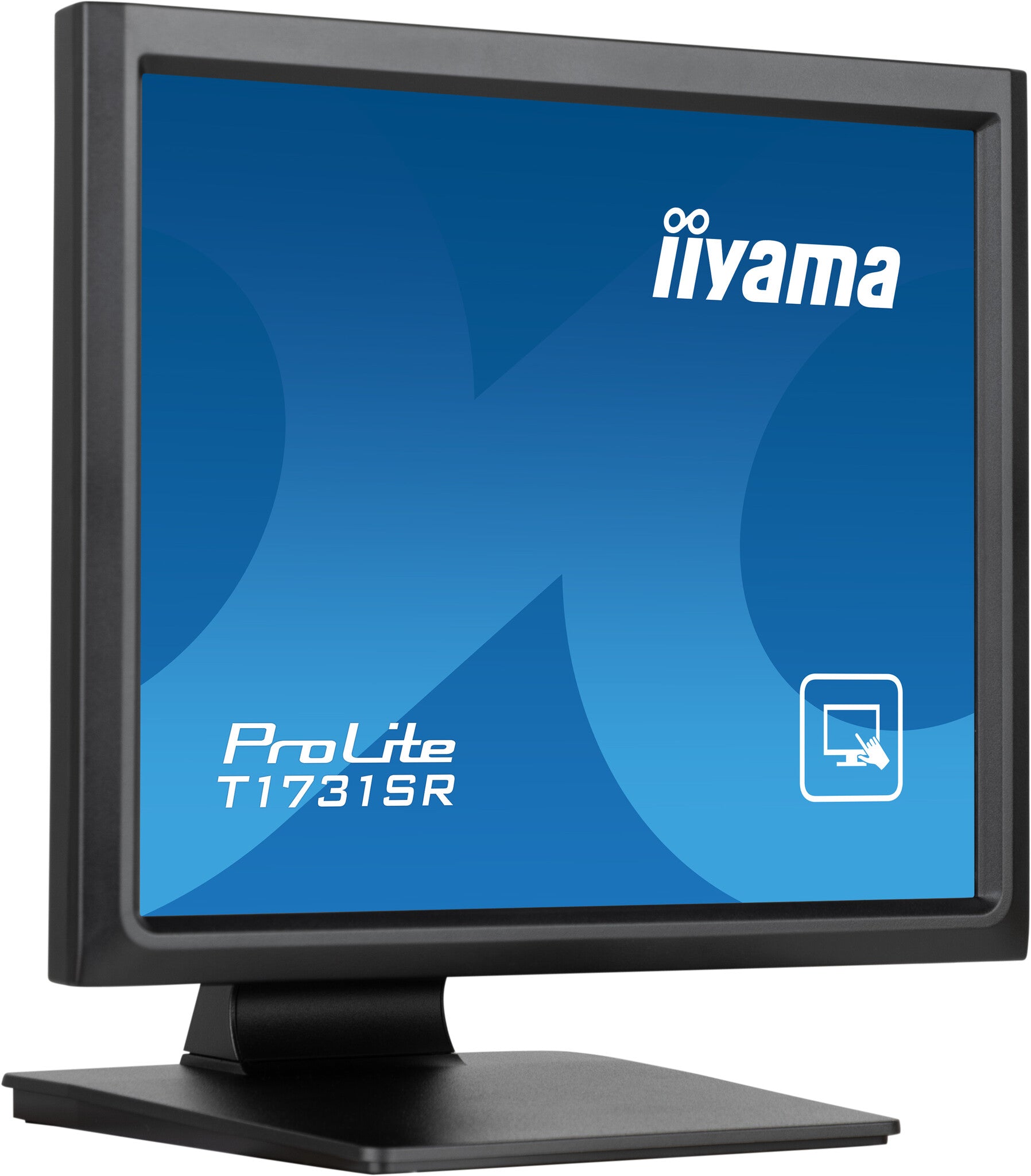

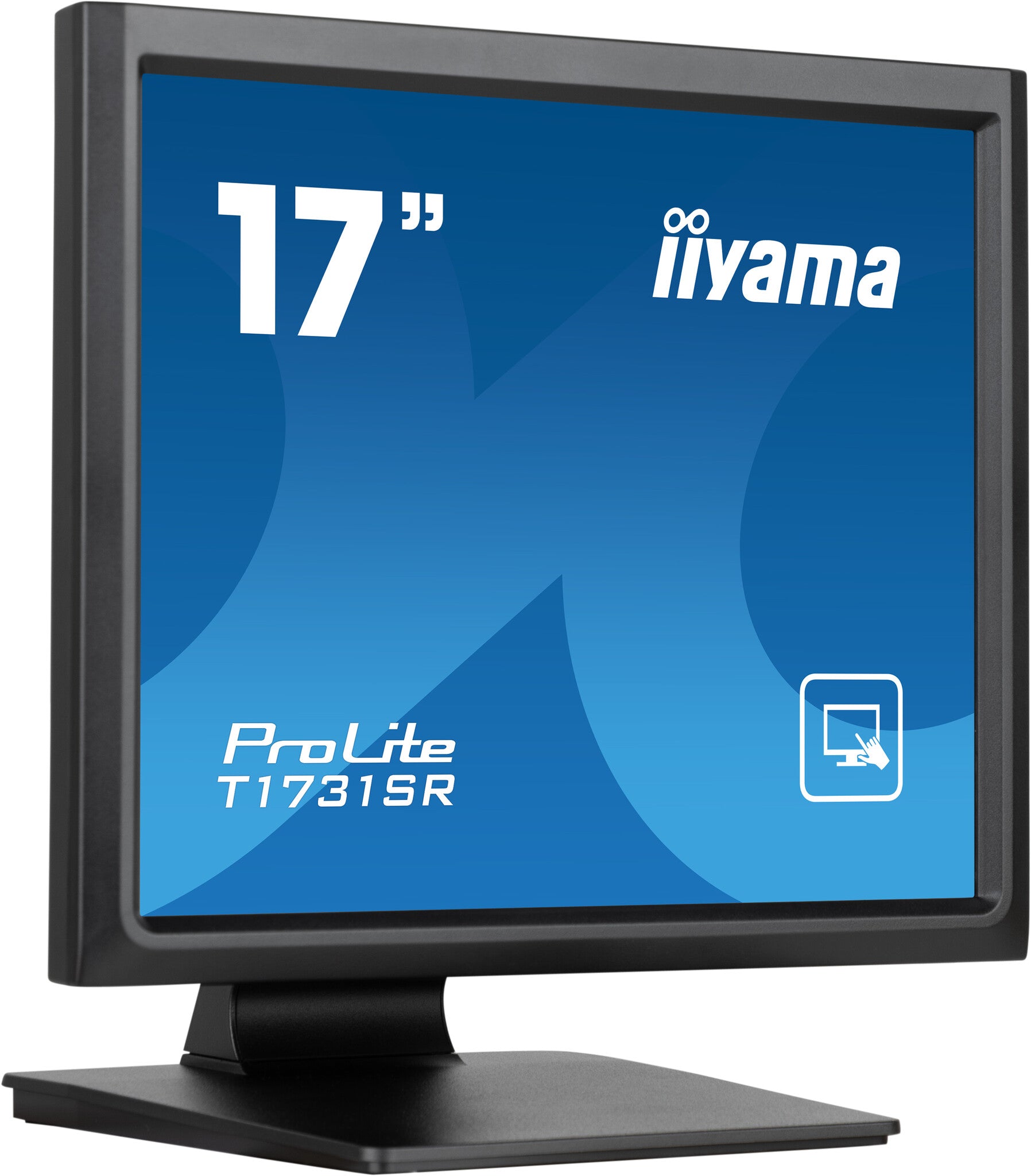

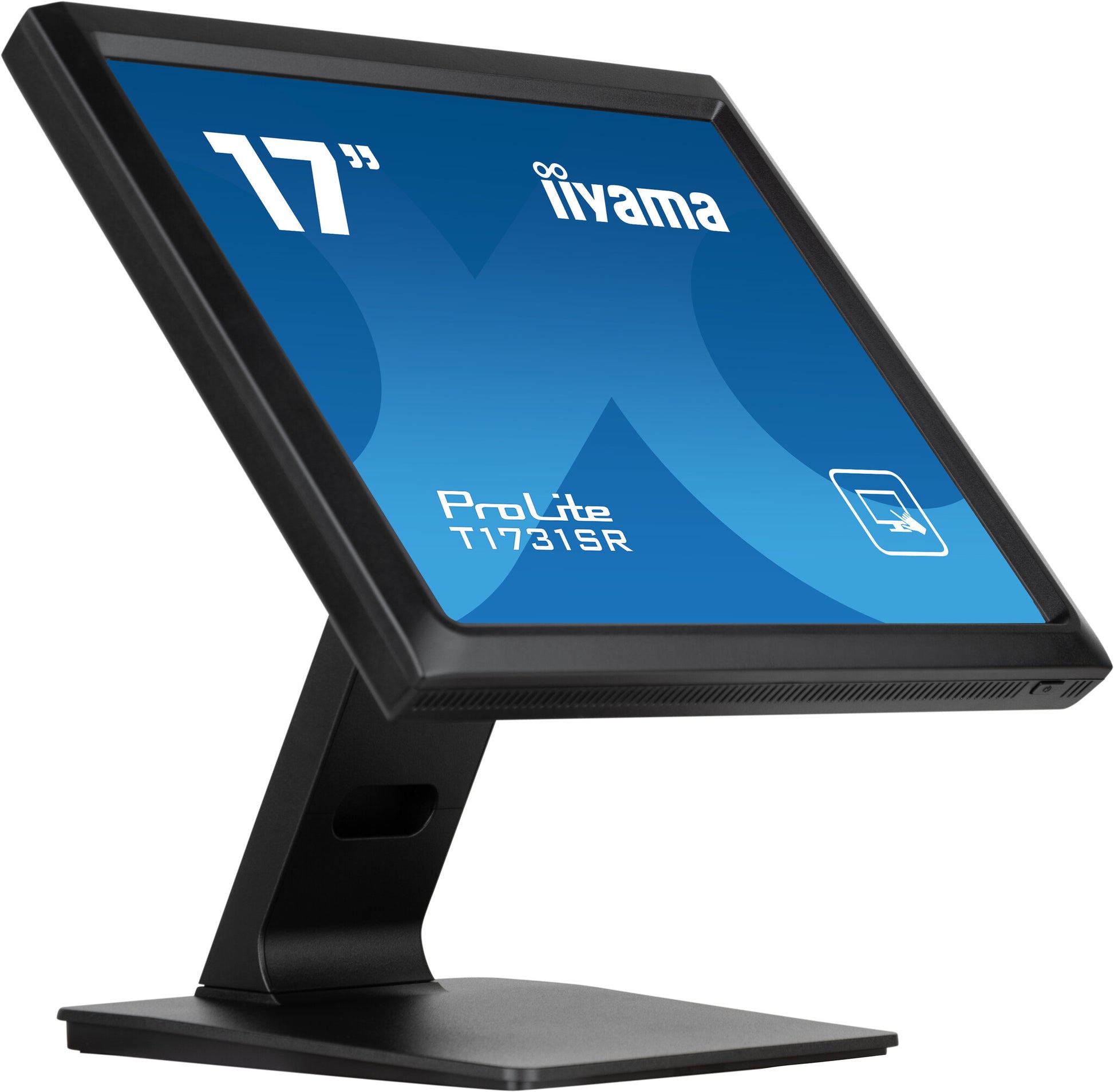

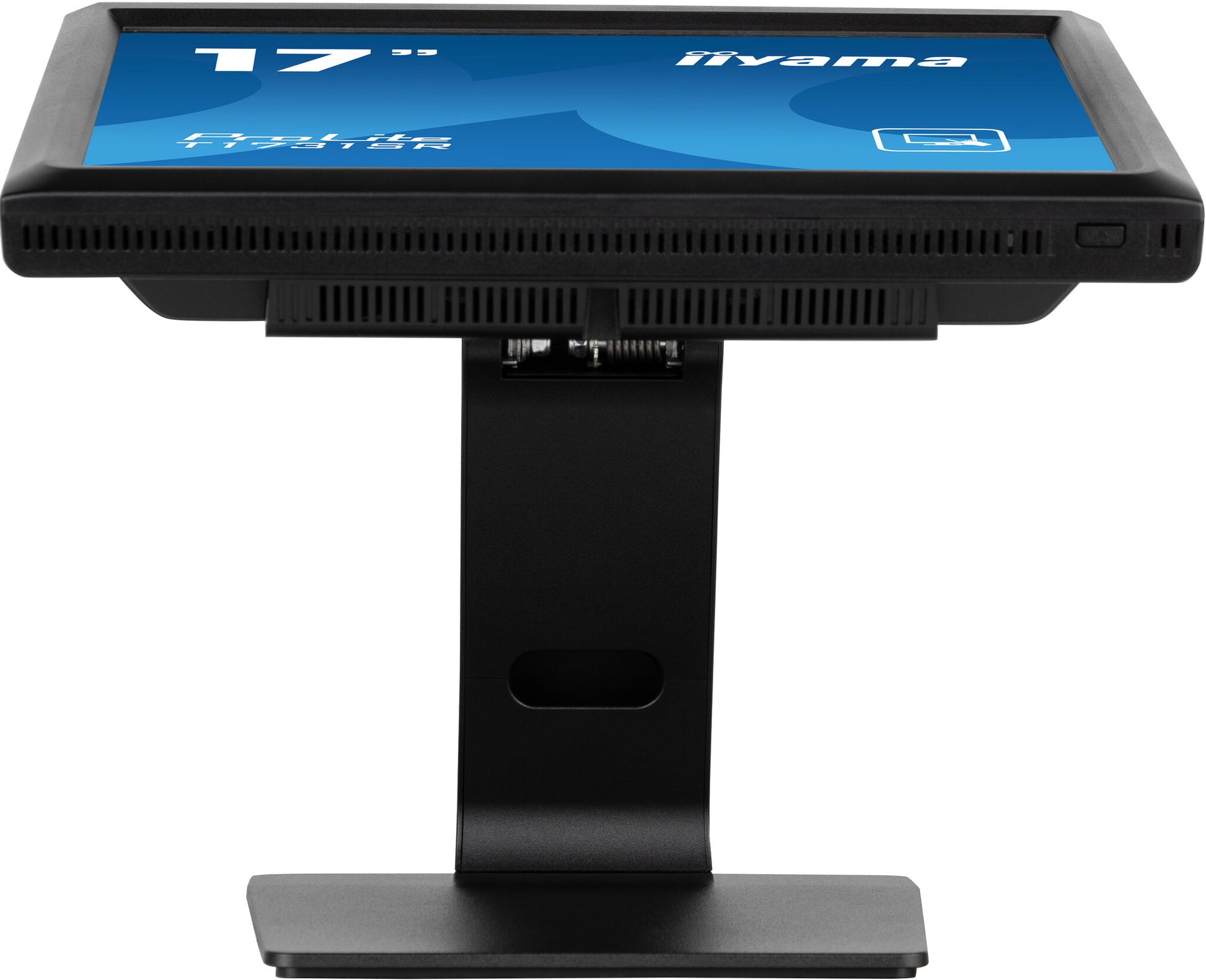

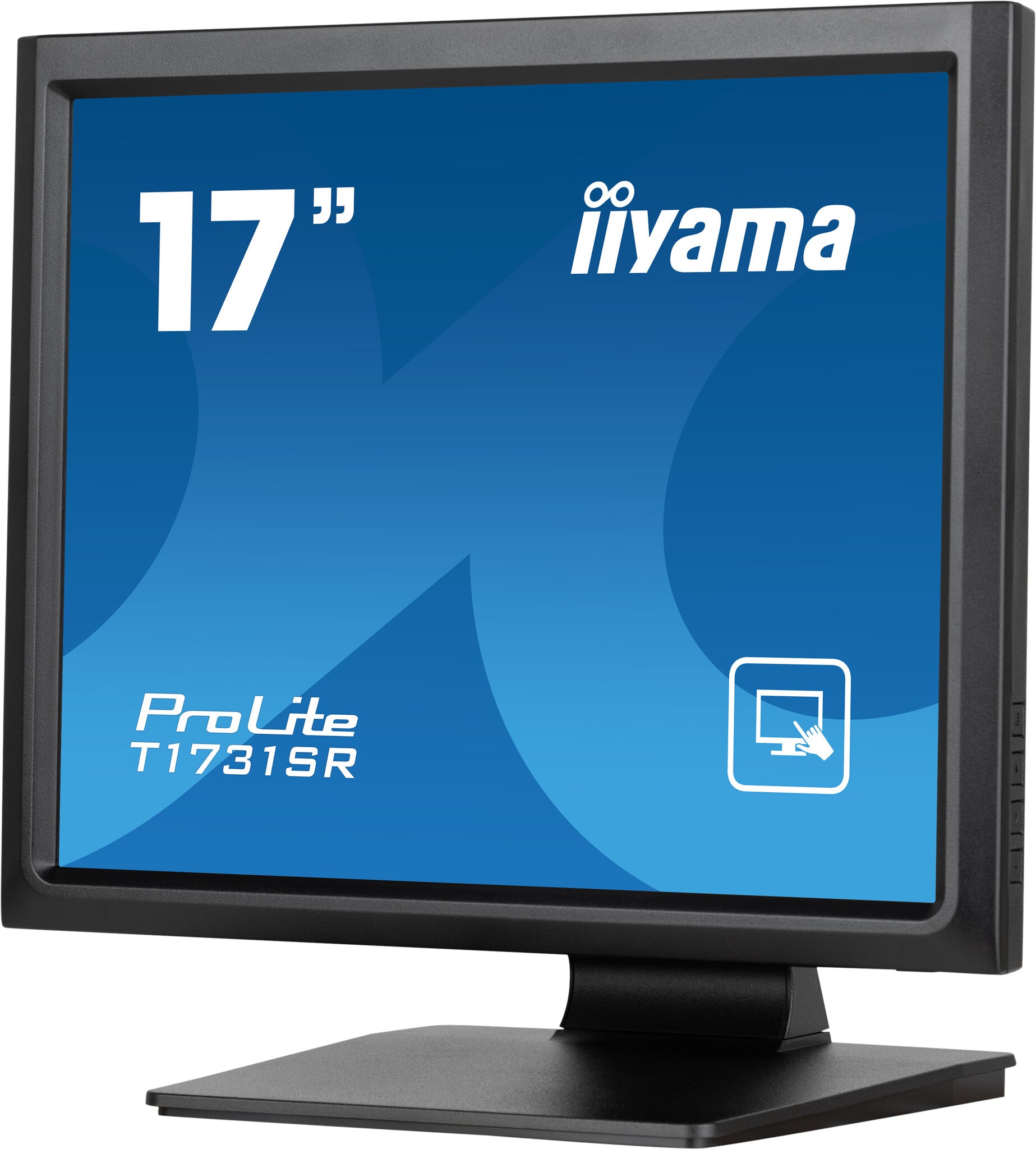

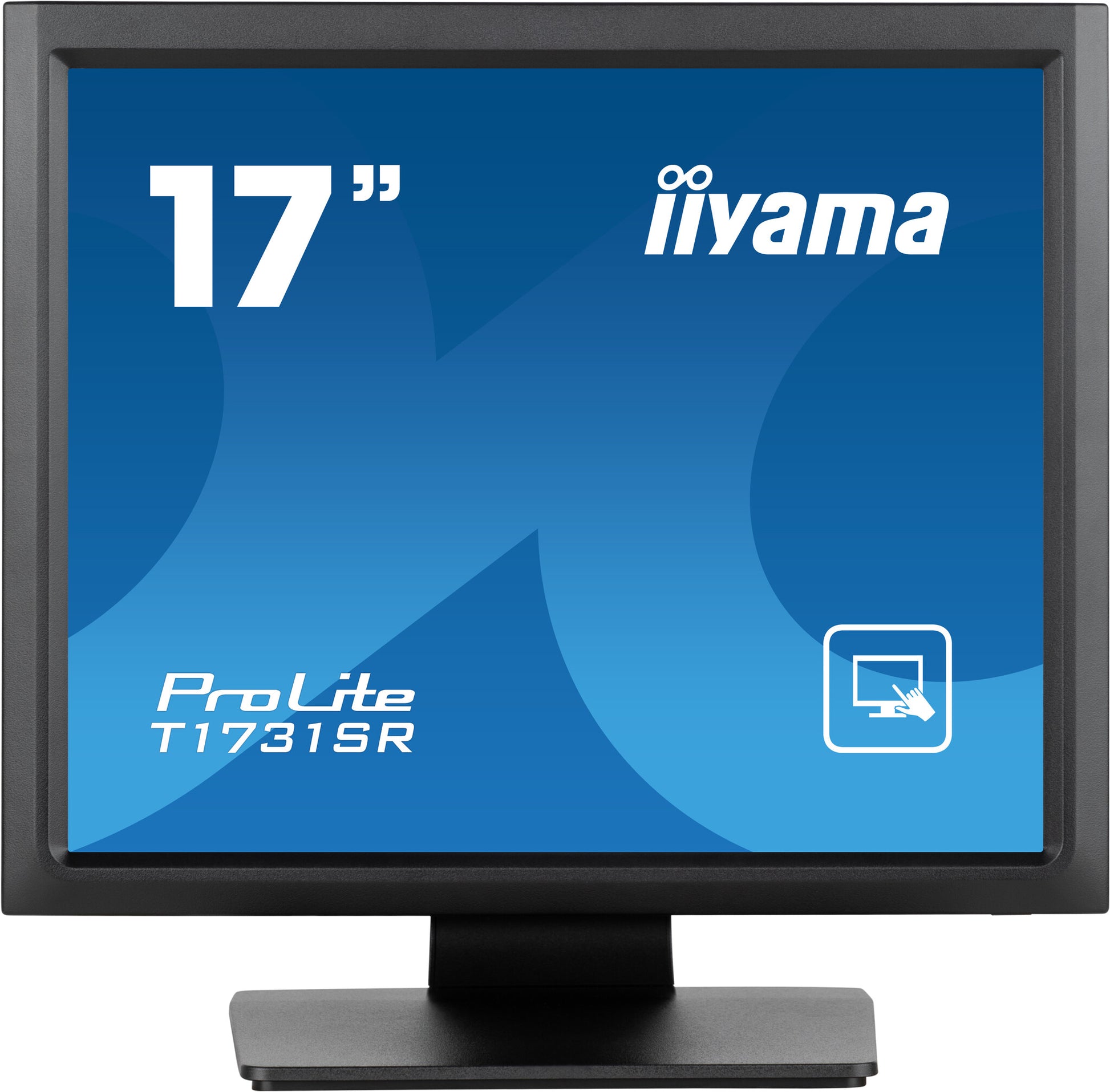

iiyama T1731SR-B1S

iiyama T1731SR-B1S

17", TN, 1280 x 1024 px, 5 ms, resistive touch technology, VGA, HDMI, DisplayPort, haut-parleurs 2 x 1W, AC 100 - 240V, 50/60Hz, 387 x 378 x 239.5 mm, 5.4 kg

  • Speakers
  • Touch technology - Resistive
  • IP54
  • VESA
  • SKU:4948570122127
  • GTIN/EAN:4948570122127
  • MPN:T1731SR-B1S
Add To Favorite

You need to login to view the price.

View full details

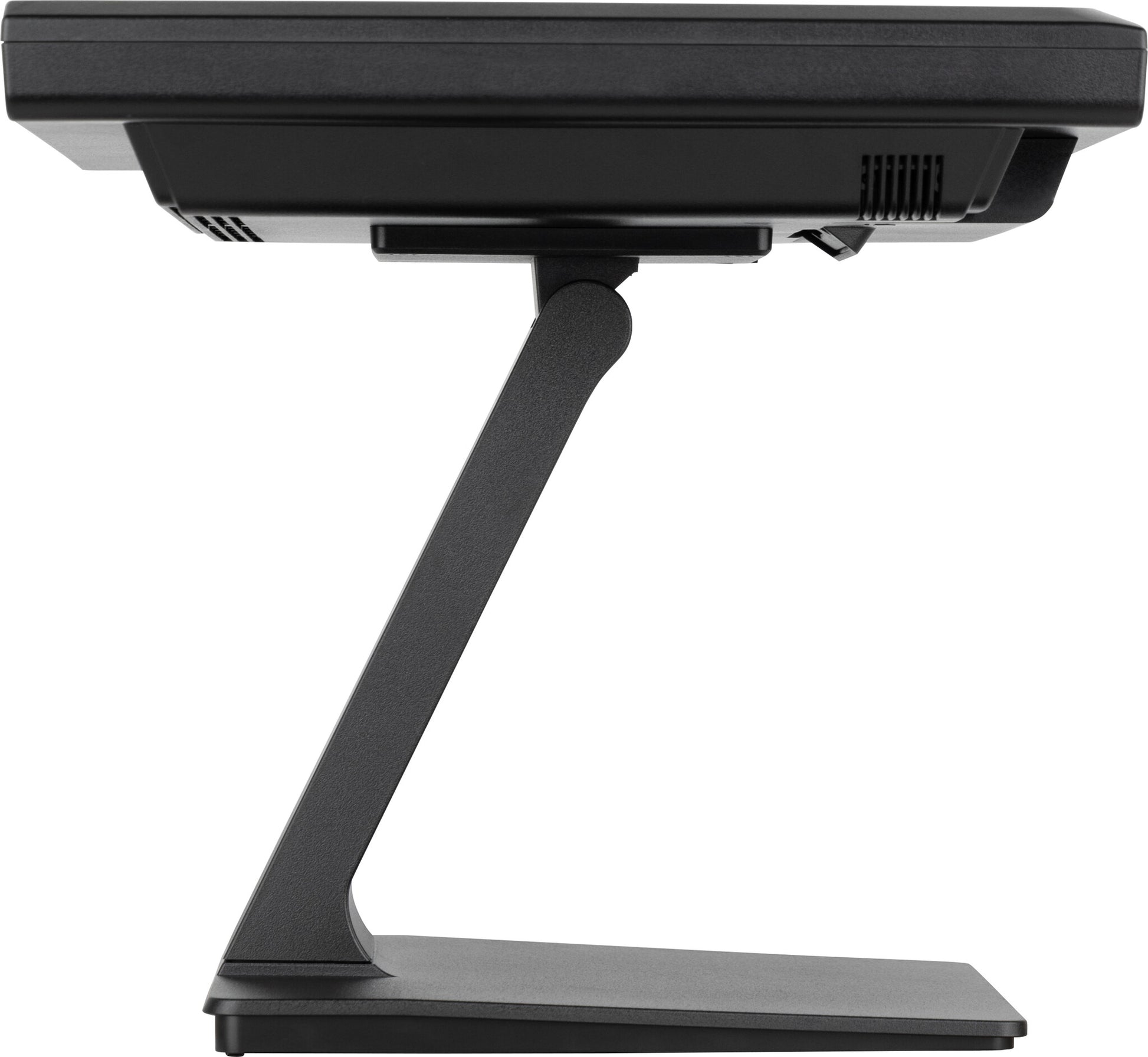

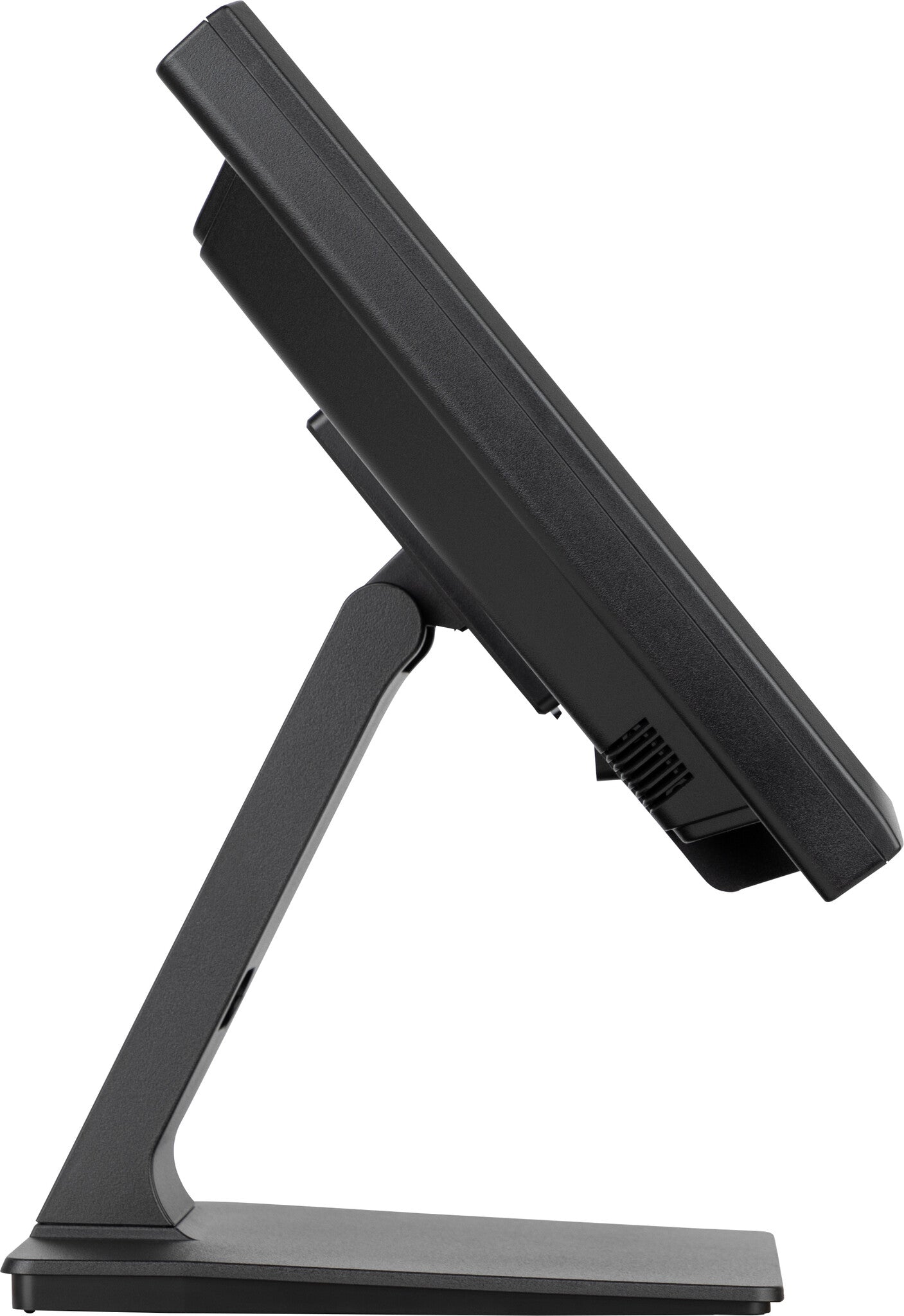

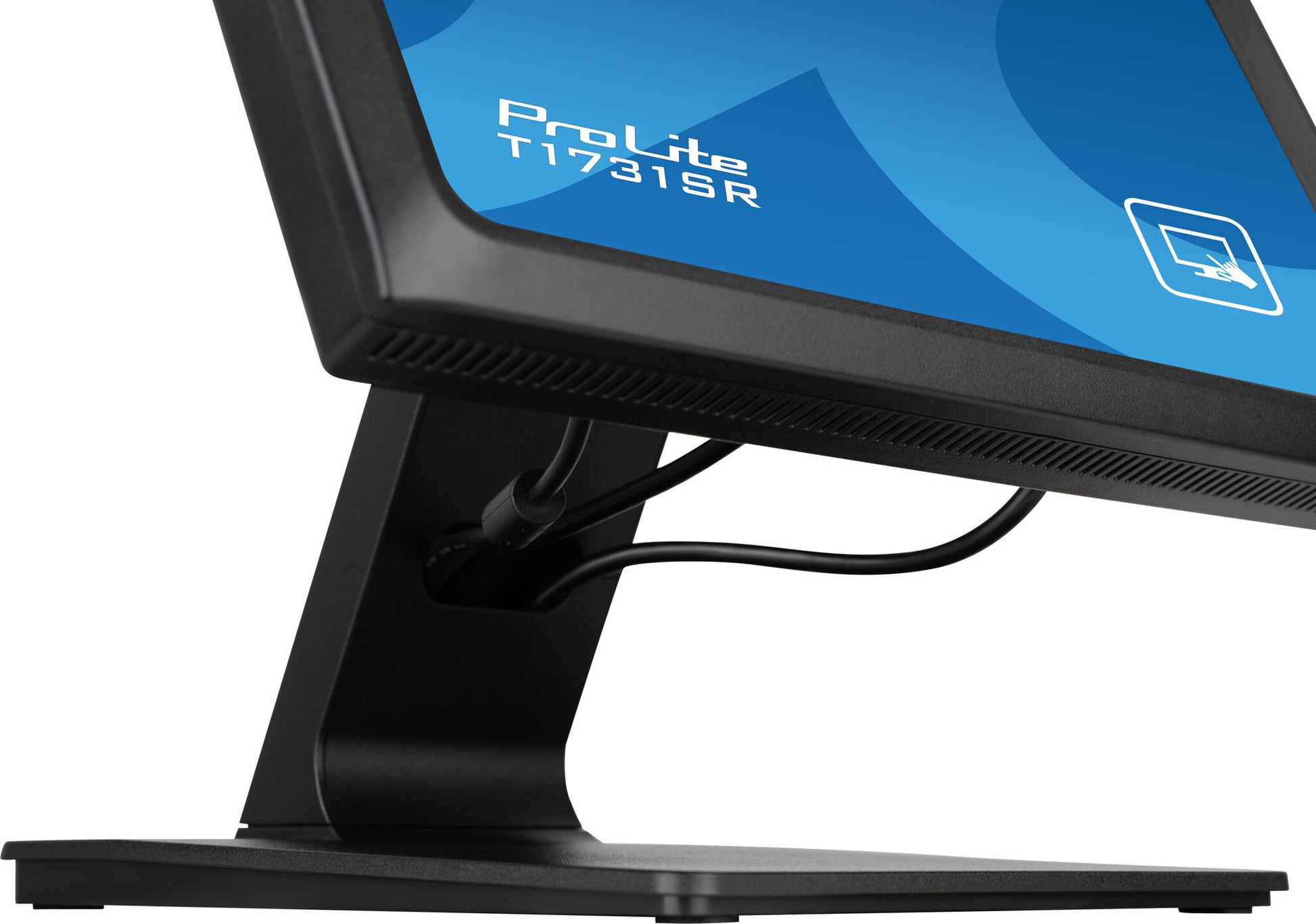

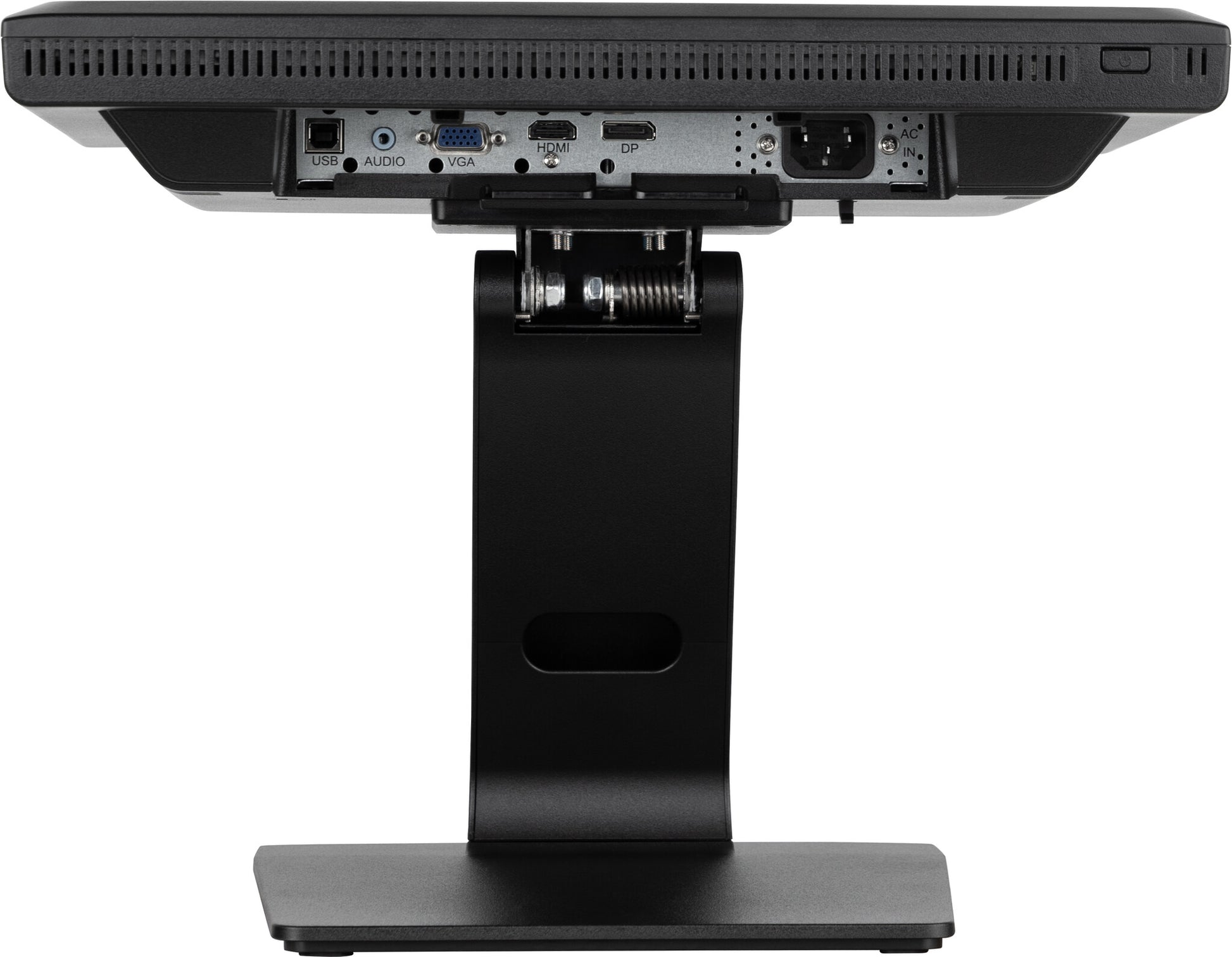

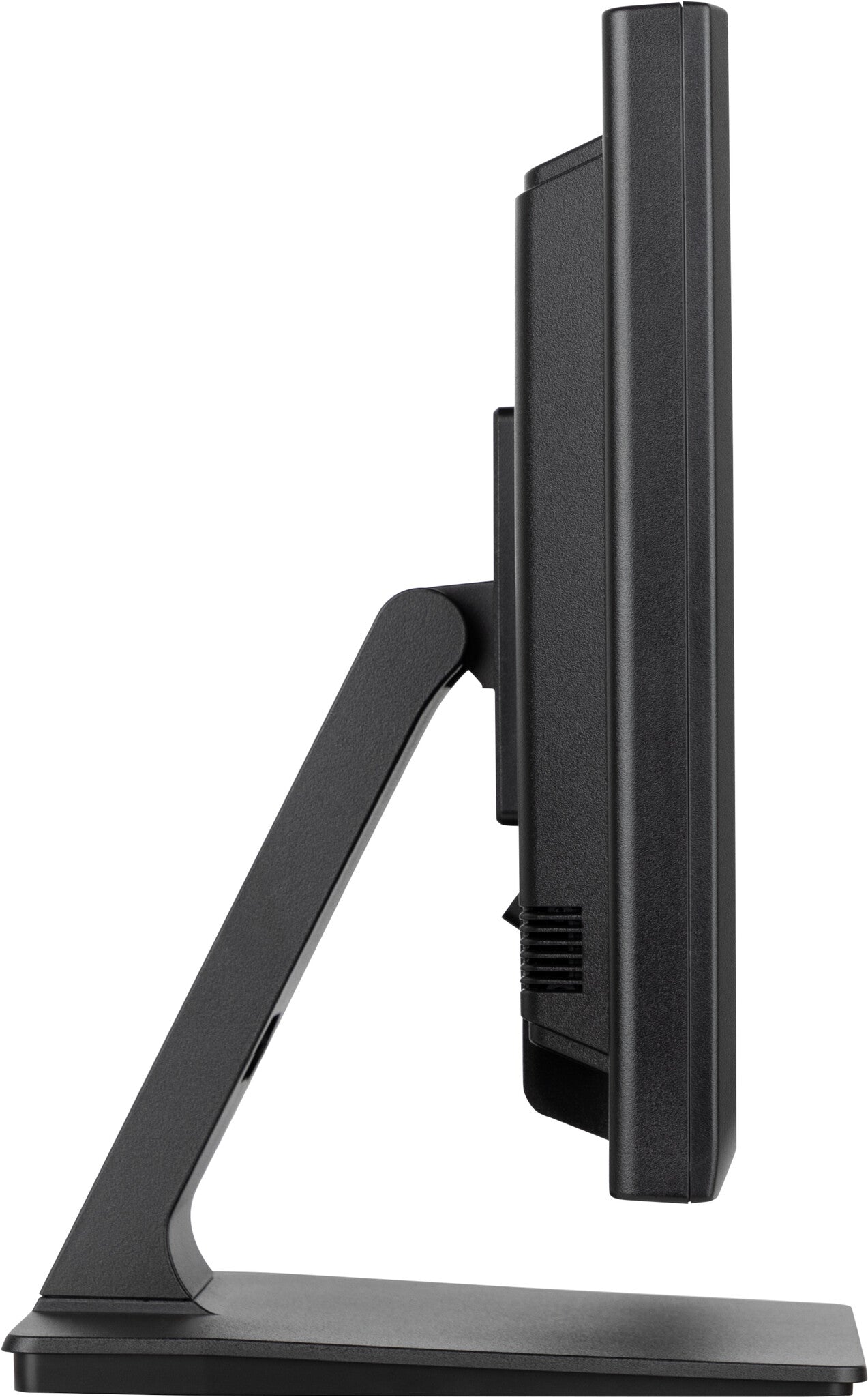

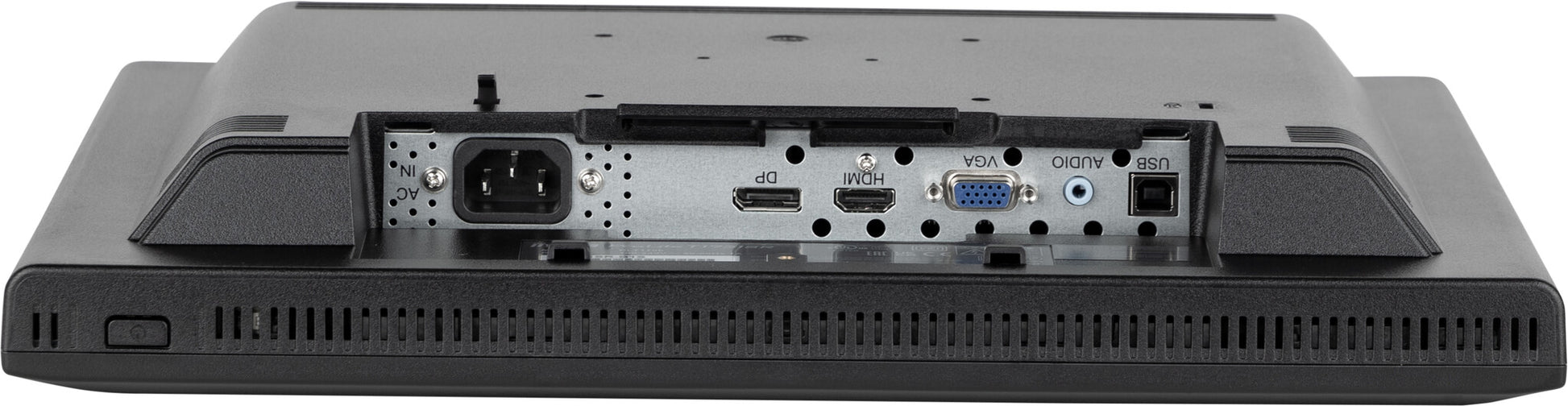

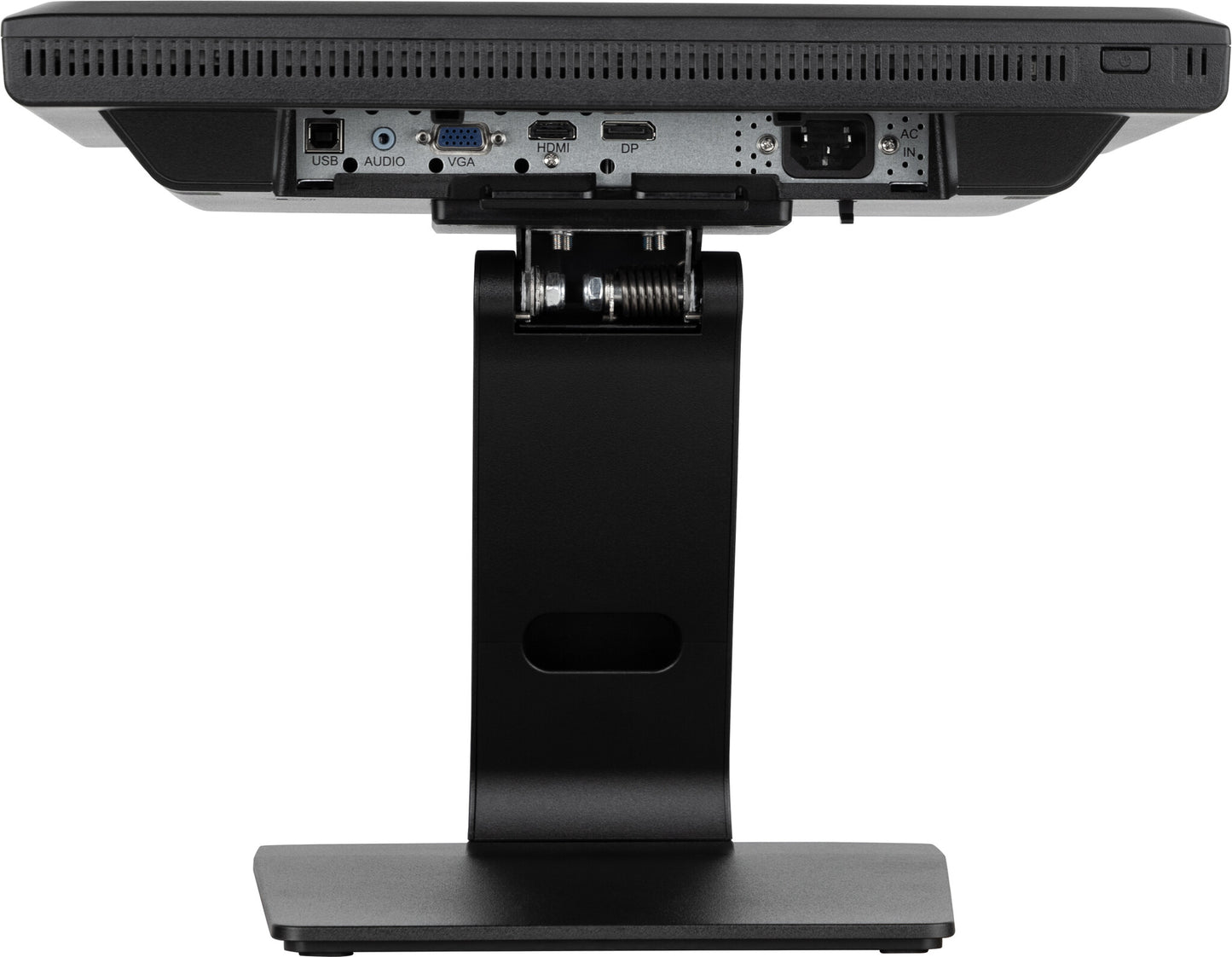

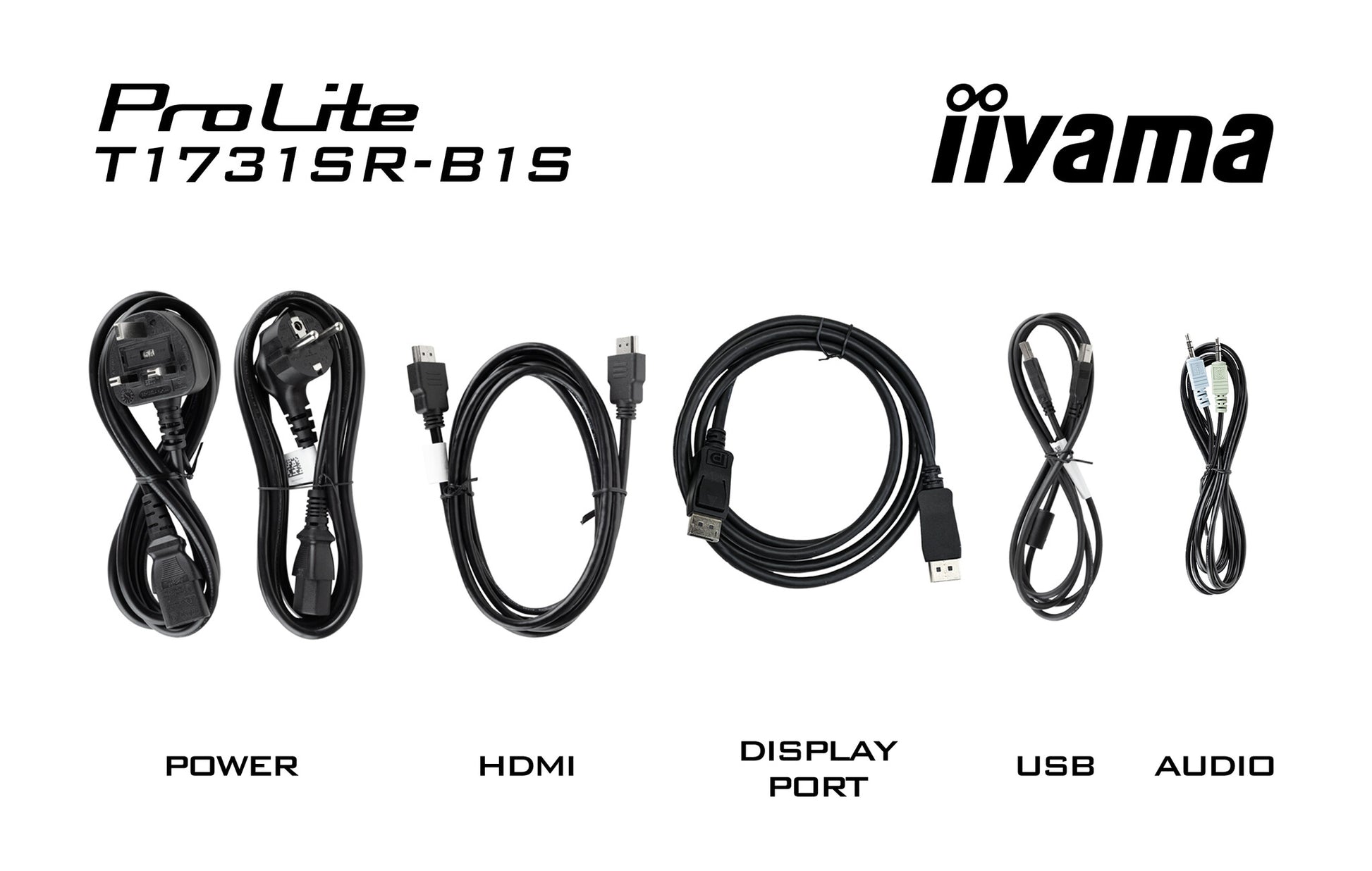

The T1731SR-B1S is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display inputs include both analogue and digital (HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The T1731SR-B1S can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes.

Display
Viewable size, vertical
27 cm
Viewable size, horizontal
33.8 cm
Horizontal scan range
31.5 - 80 kHz
Display number of colours
16.7 million colours
Contrast ratio (typical)
1000:1
Screen shape
Flat
Response time
5 ms
Display brightness (typical)
250 cd/m²
Touchscreen technology
Resistive
Panel type
TN
Display resolution
1280 x 1024 pixels
Display diagonal
43.2 cm (17")
Multimedia
RMS rated power
2 W
Number of speakers
2
Built-in speaker(s)
Yes
Design
International Protection (IP) code
IP54
Detachable stand
No
Product colour
Black
Ergonomics
Tilt adjustment
Yes
On Screen Display (OSD) languages
Simplified Chinese, German, English, Spanish, French, Italian, Japanese
On Screen Display (OSD)
Yes
Tilt angle range
-5 - 90°
Cable lock slot type
Kensington
Cable lock slot
Yes

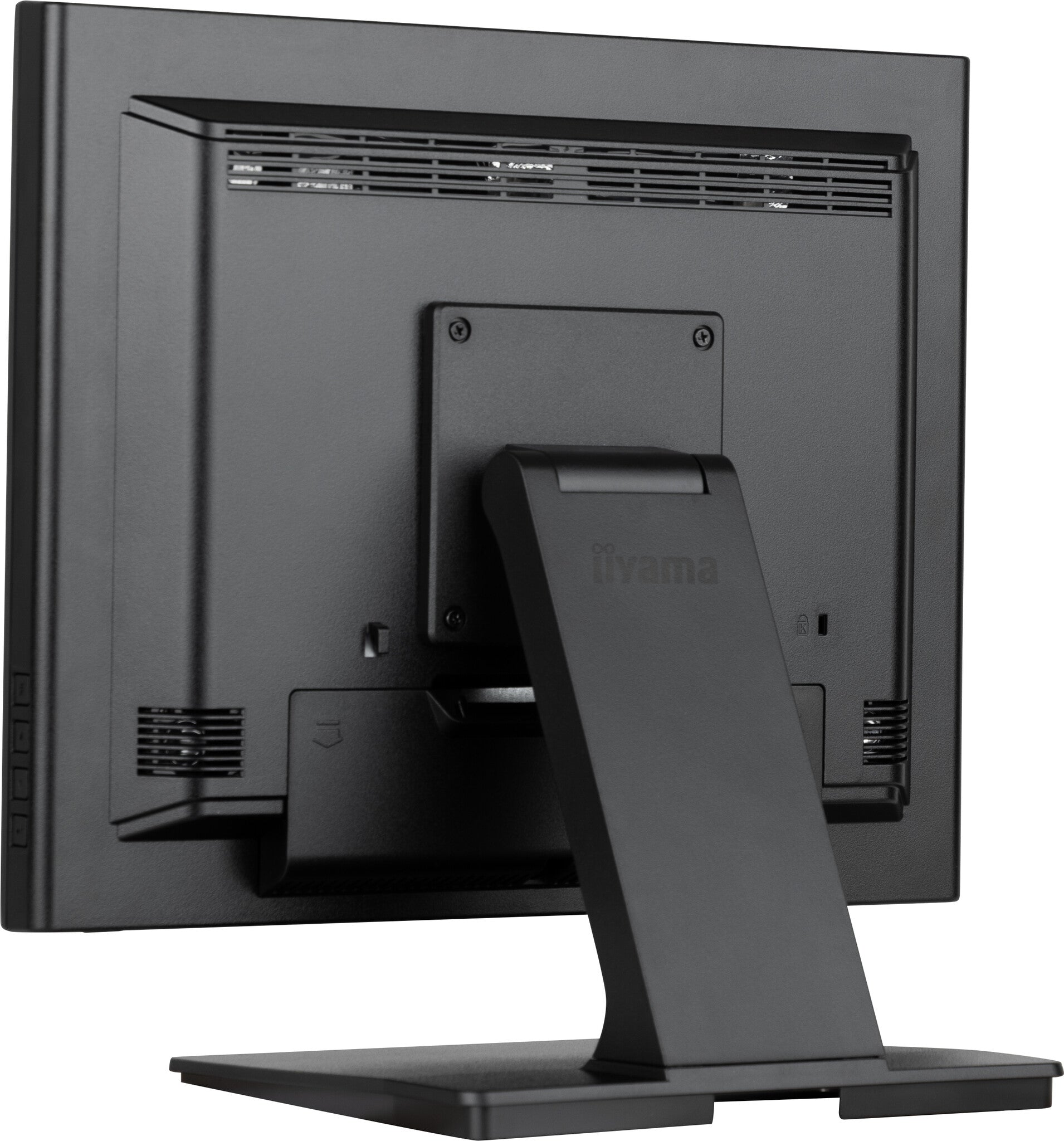

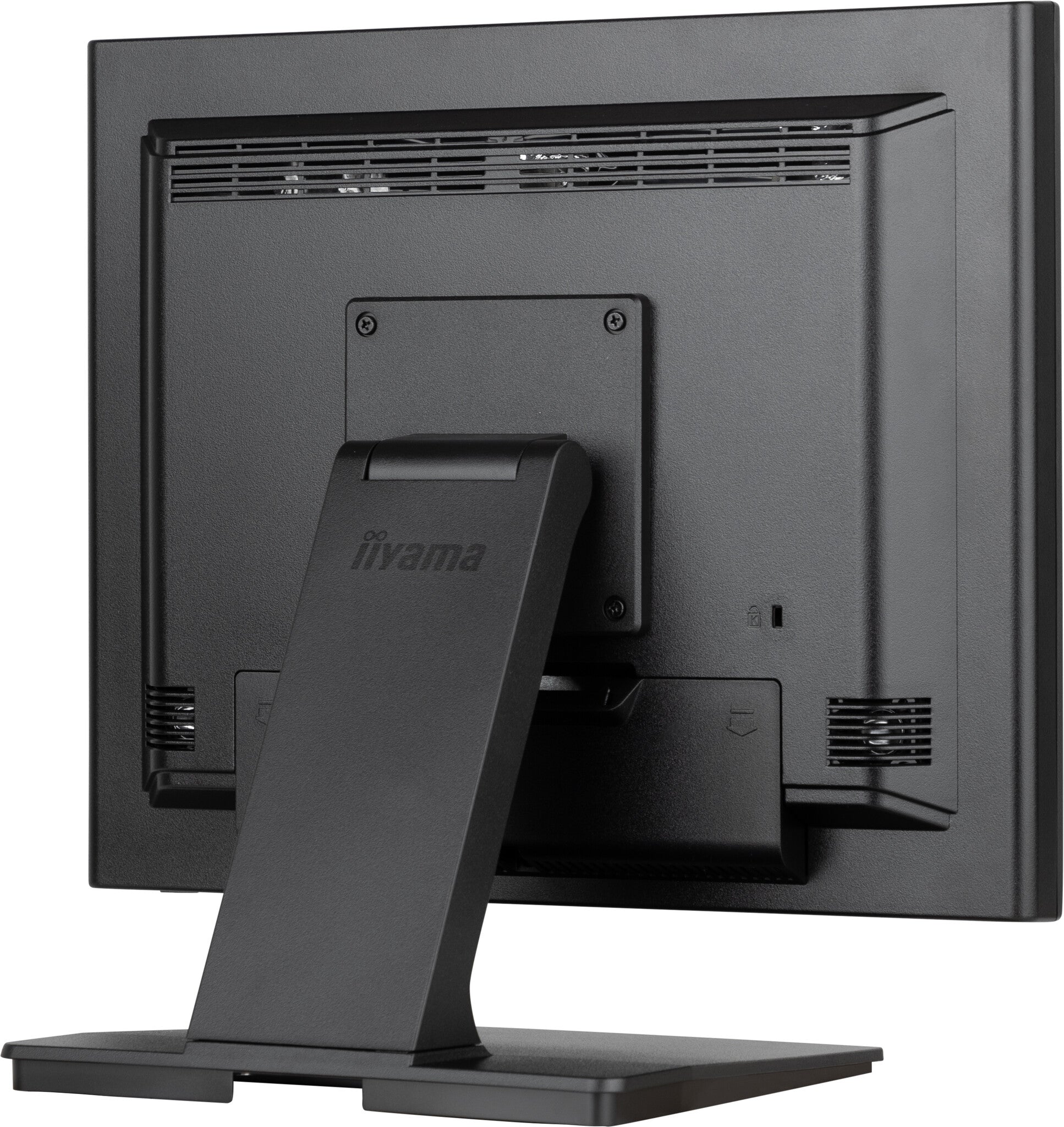

Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Power
Energy efficiency scale
A to G
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.3 W
Power consumption (standby)
1.5 W
Power consumption (typical)
20 W
Energy consumption (SDR) per 1000 hours
13 kWh
Energy efficiency class (SDR)
E
Sustainability
European Product Registry for Energy Labelling (EPREL) code
1552074
Algemeen
Productfamilie
ProLite
Weight & dimensions
Weight (with stand)
5.4 kg
Height (with stand)
378 mm
Depth (with stand)
239.5 mm
Width (with stand)
387 mm
Packaging data
Stand included
Yes
Surface hardness
HDCP
Yes
Display diagonal (metric)
43 cm
Pixel pitch
0.264 x 0.264 mm
Viewing angle, vertical
160°
Viewing angle, horizontal
170°
DisplayPorts quantity
1
HDMI ports quantity
1
HDMI
Yes
VGA (D-Sub) ports quantity
1
Touch technology
Single-touch
Built-in camera
No
Display technology
LCD
Native aspect ratio
5:4
HD type
SXGA
Touchscreen
Yes
