iiyama T1931SR-B1S

iiyama T1931SR-B1S

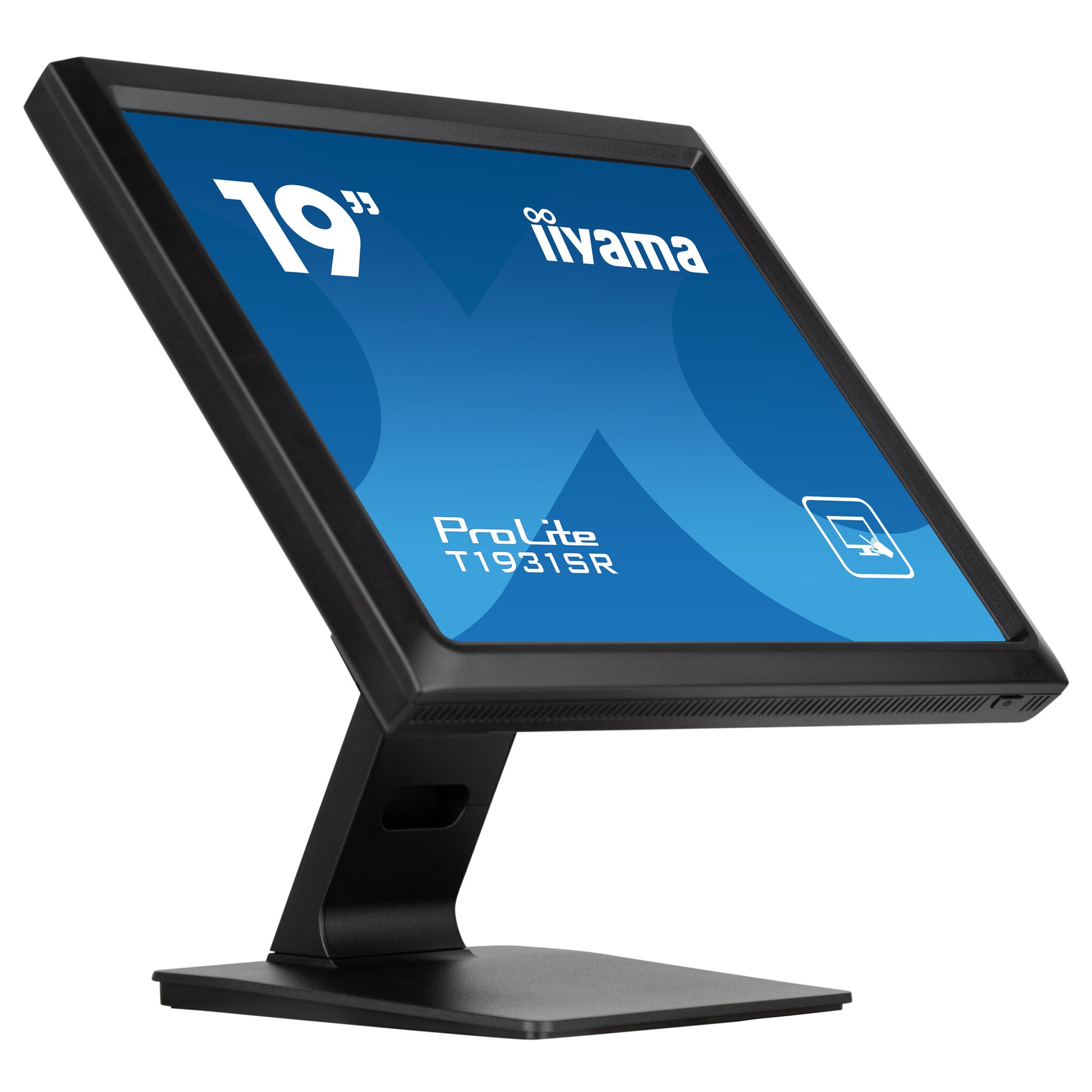

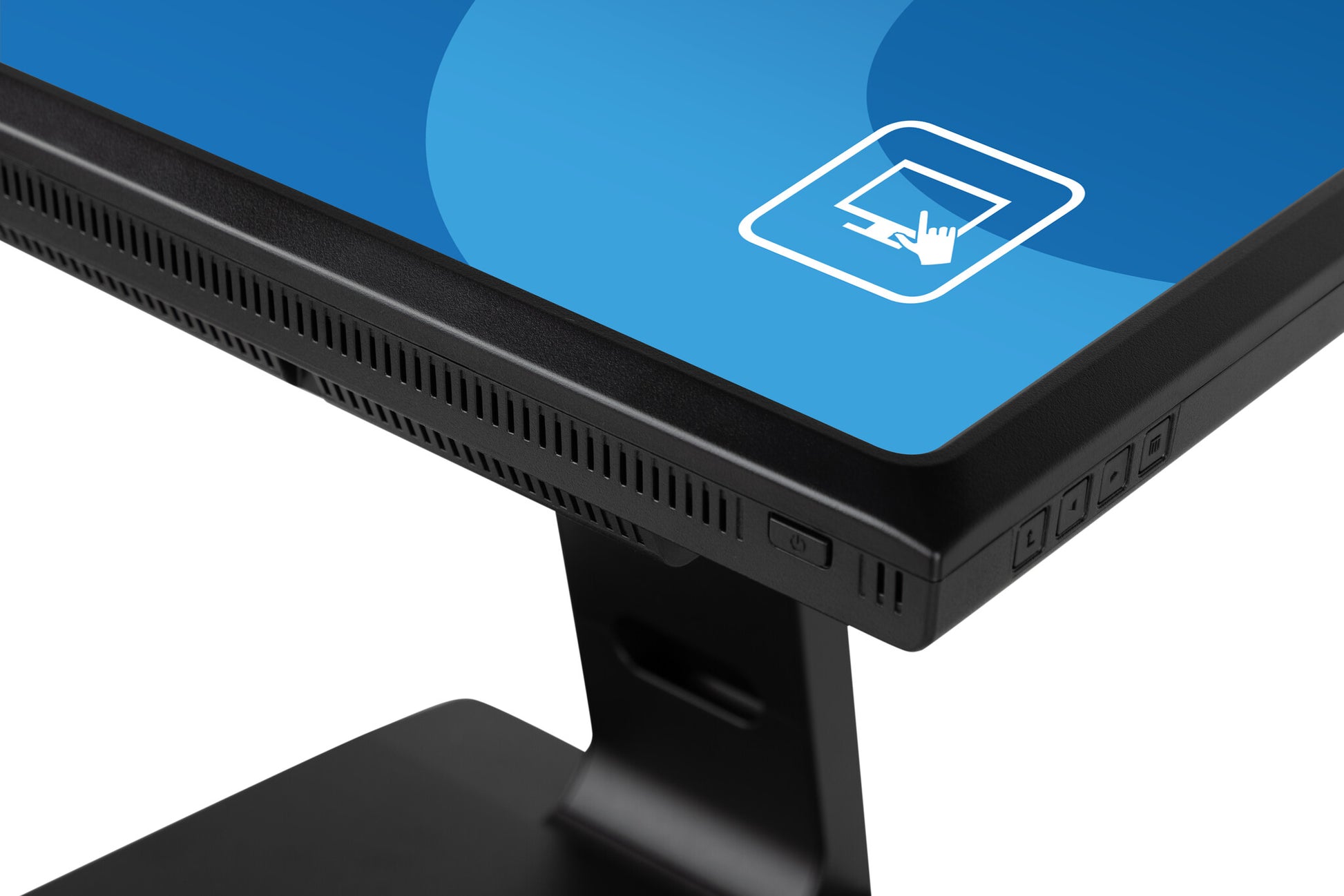

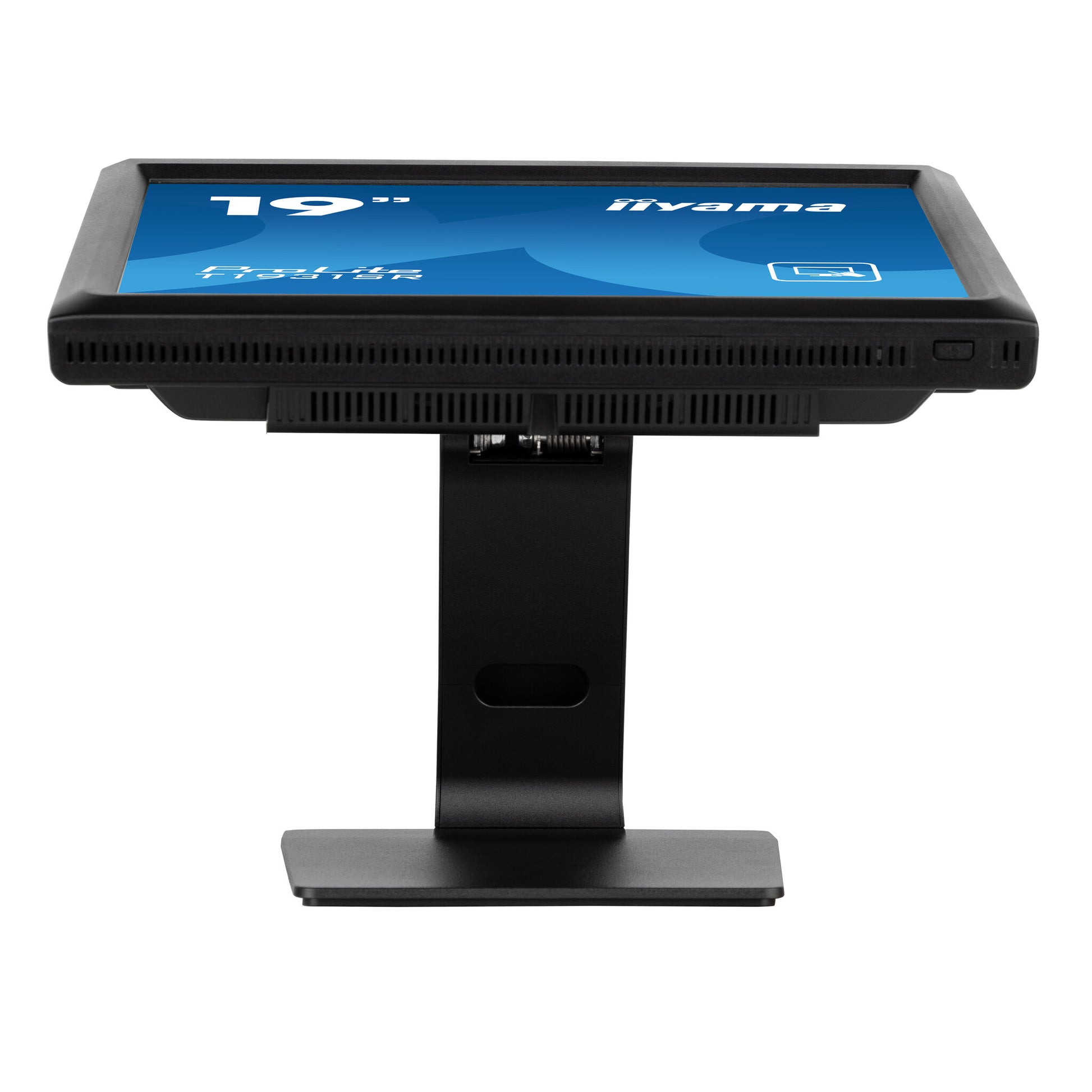

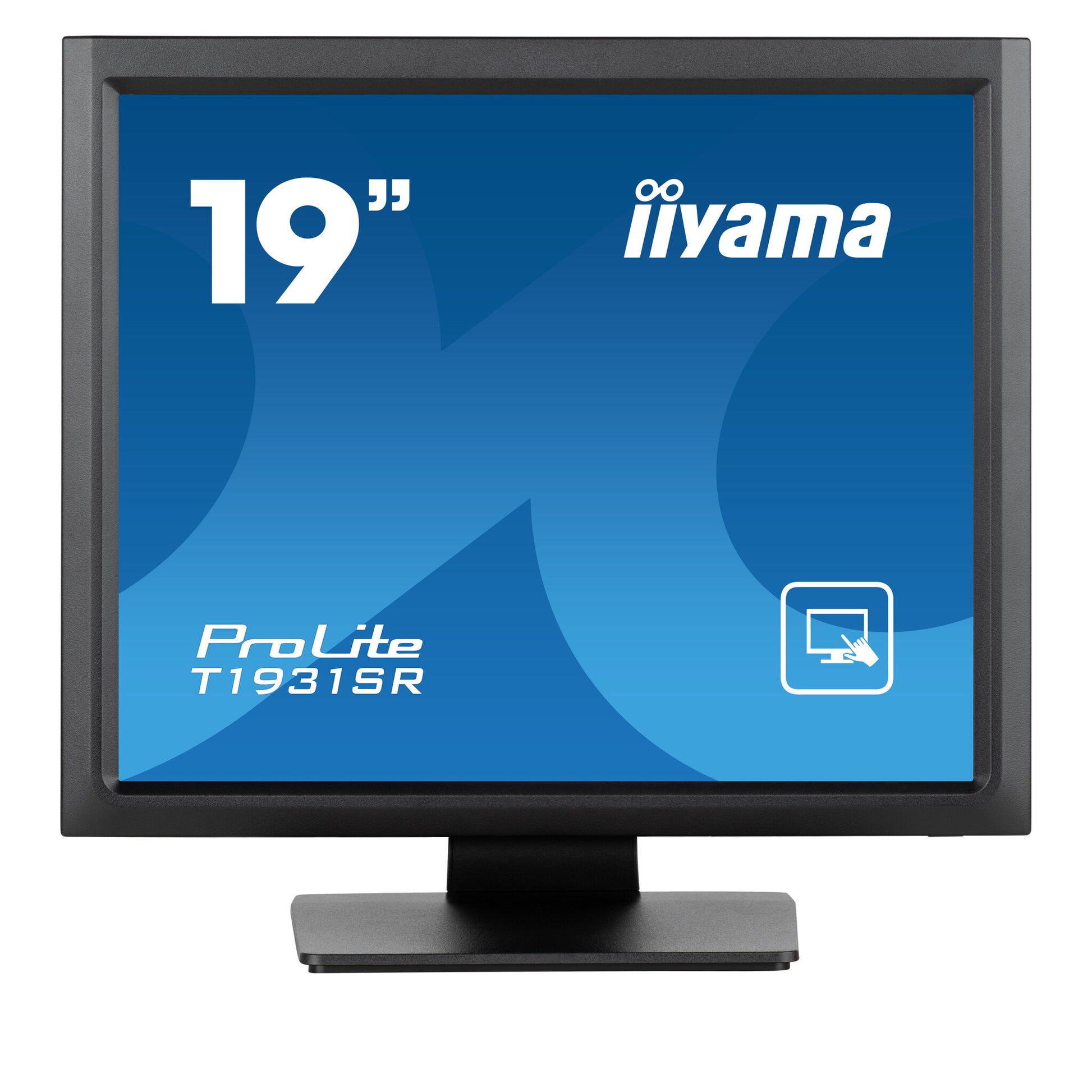

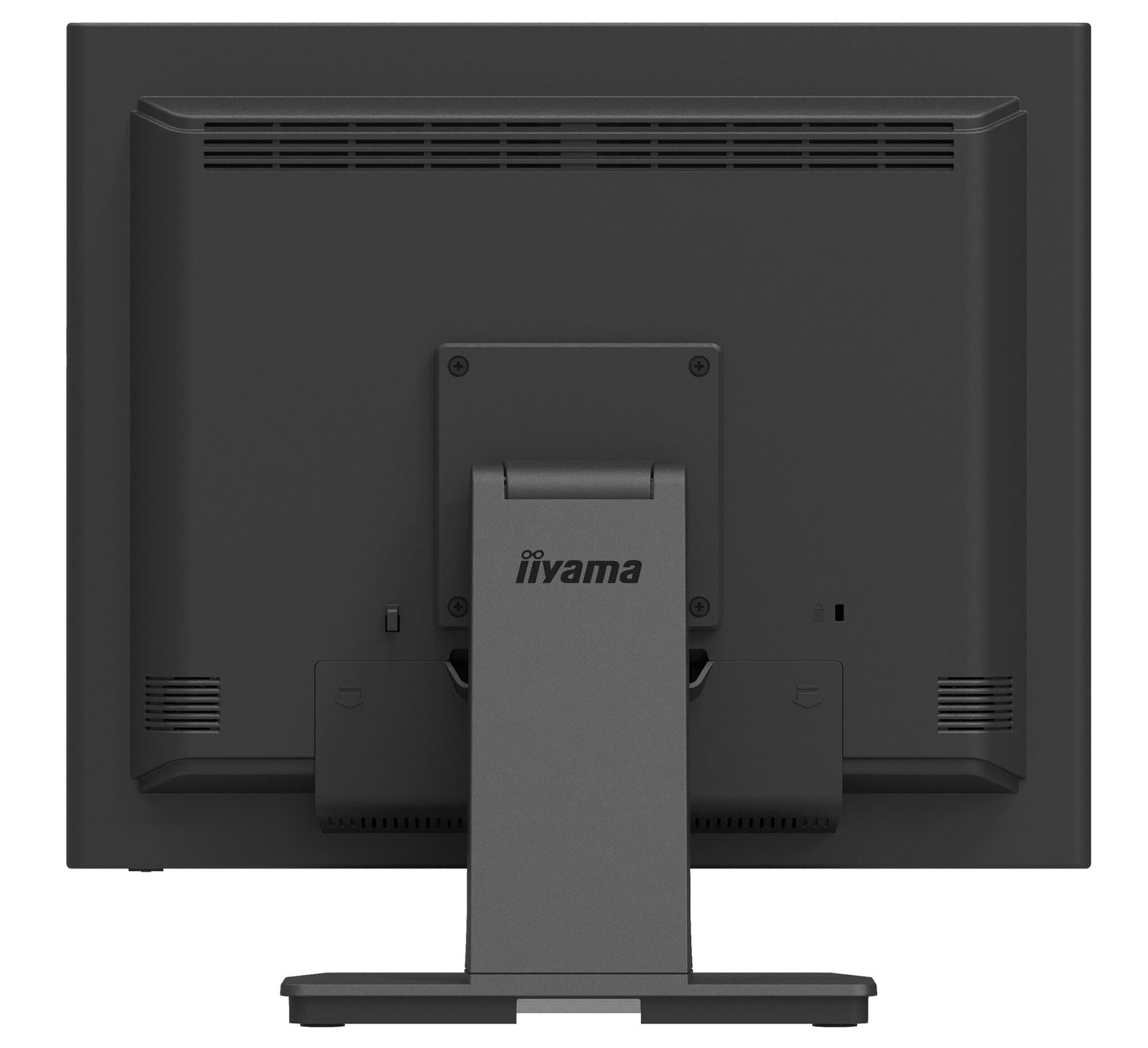

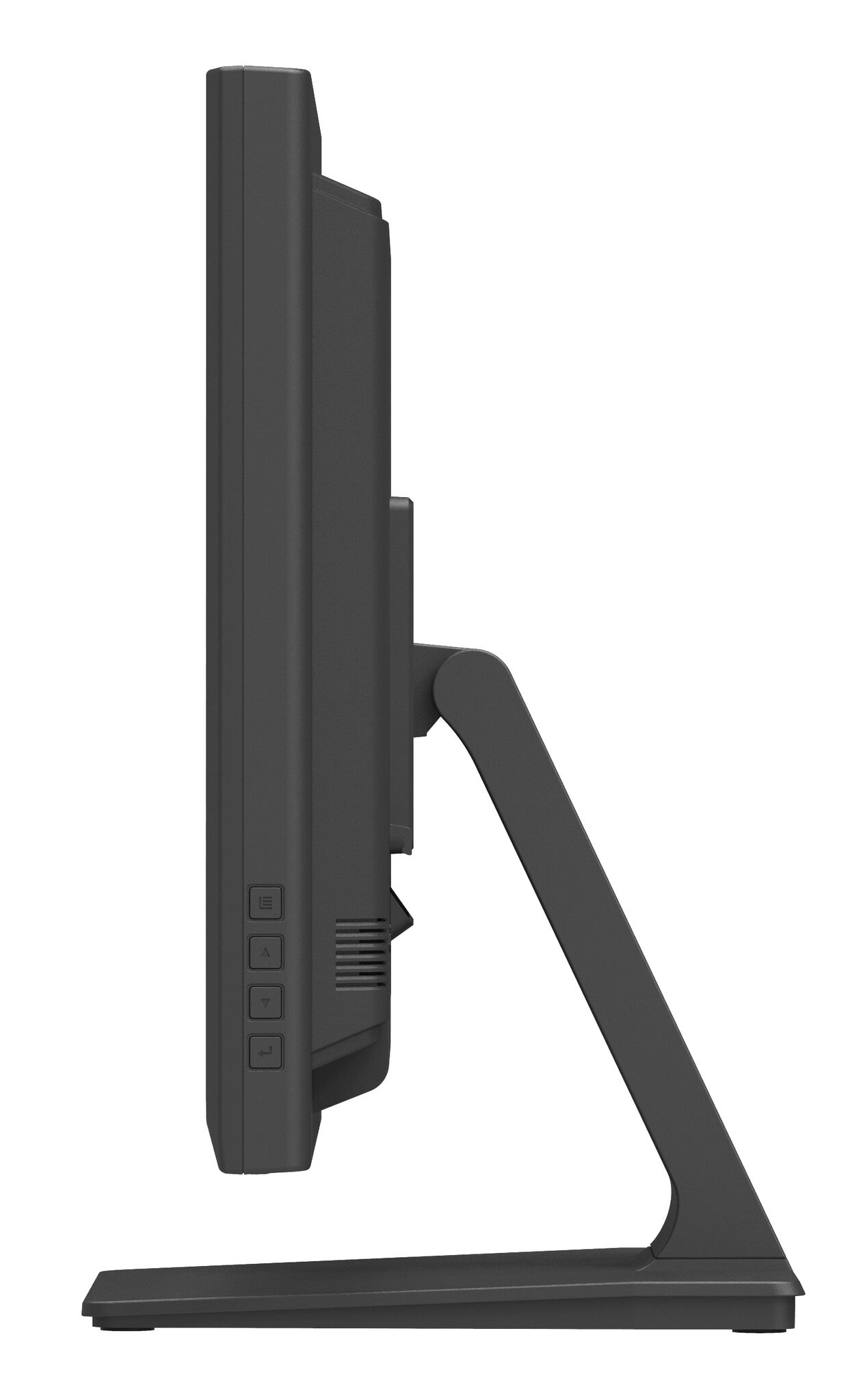

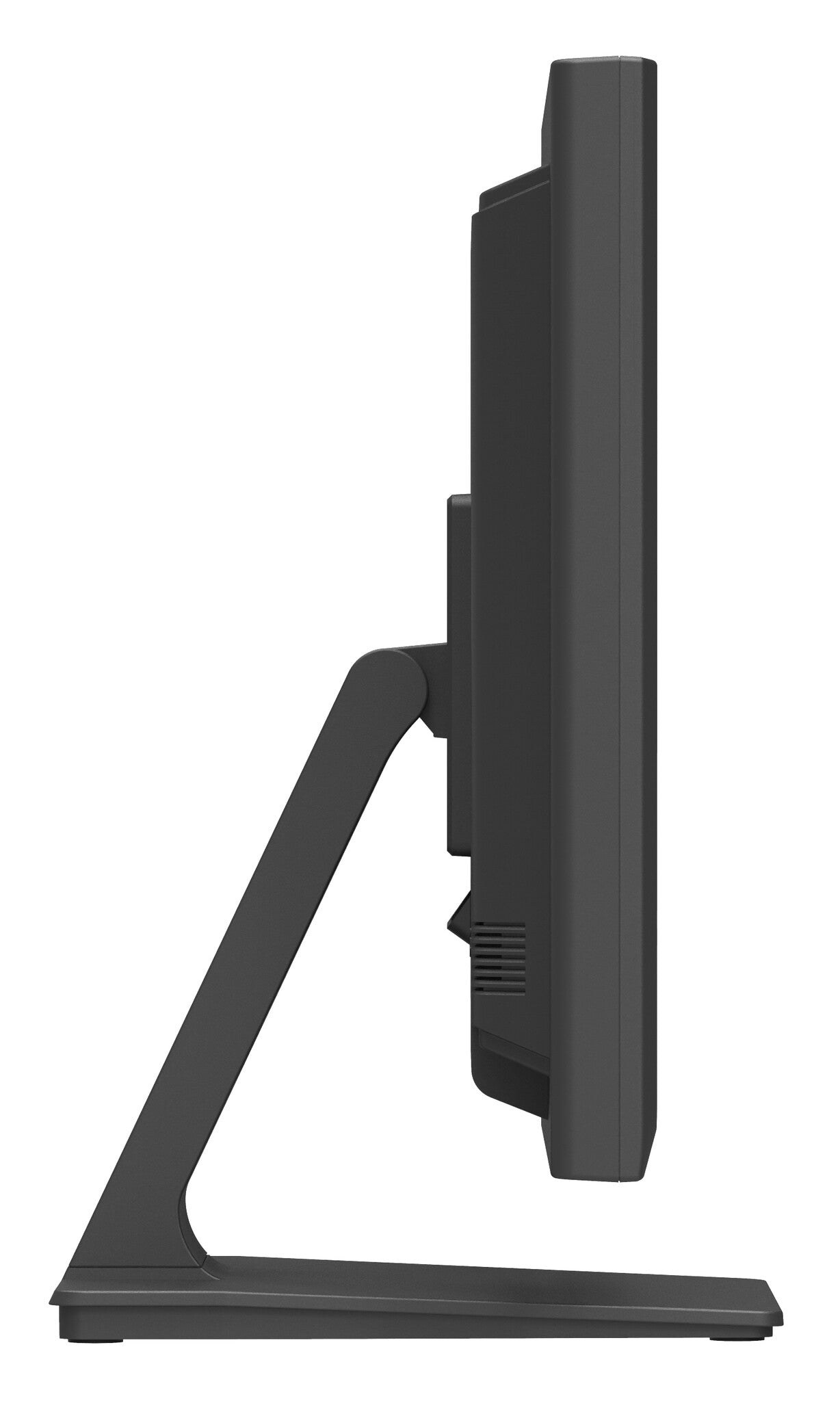

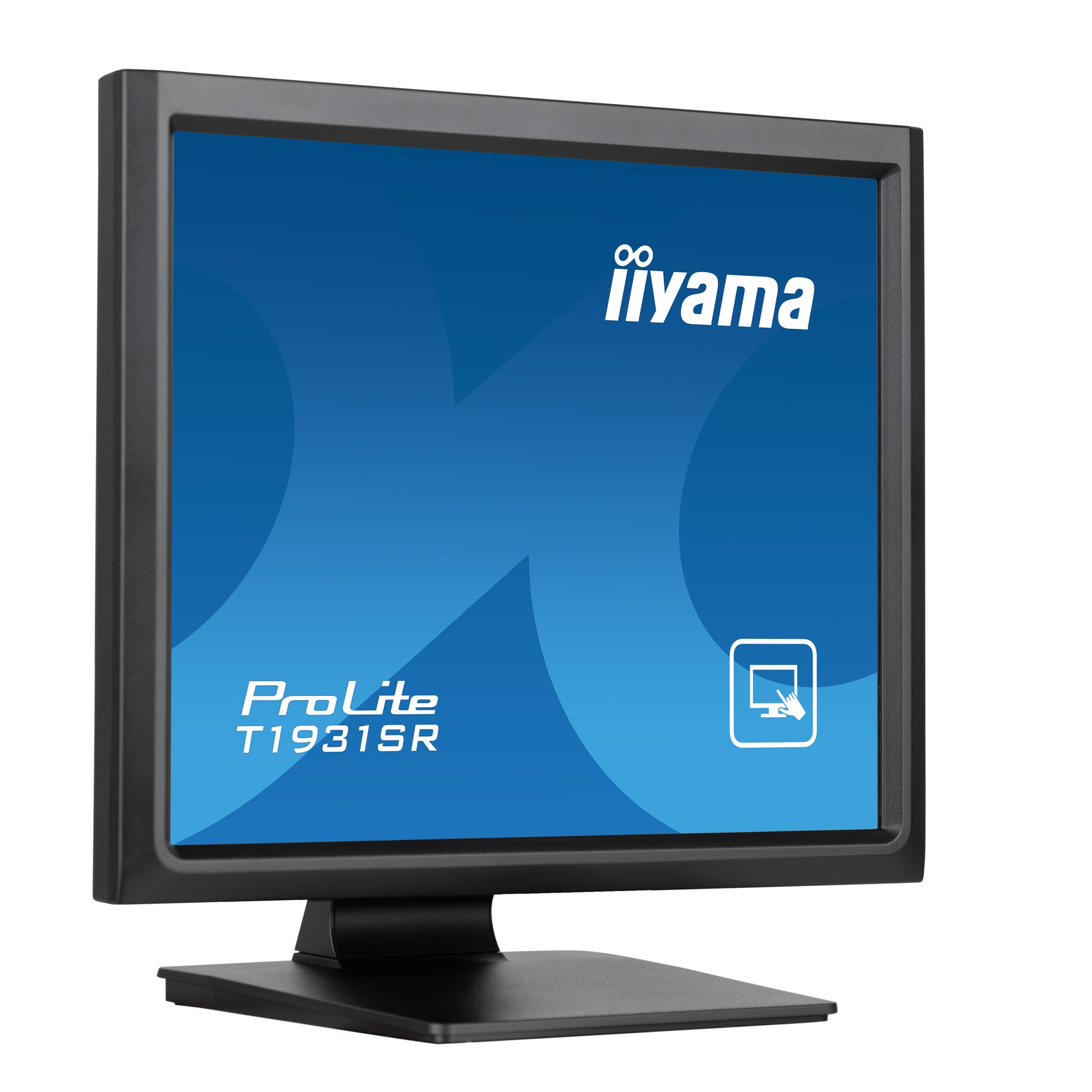

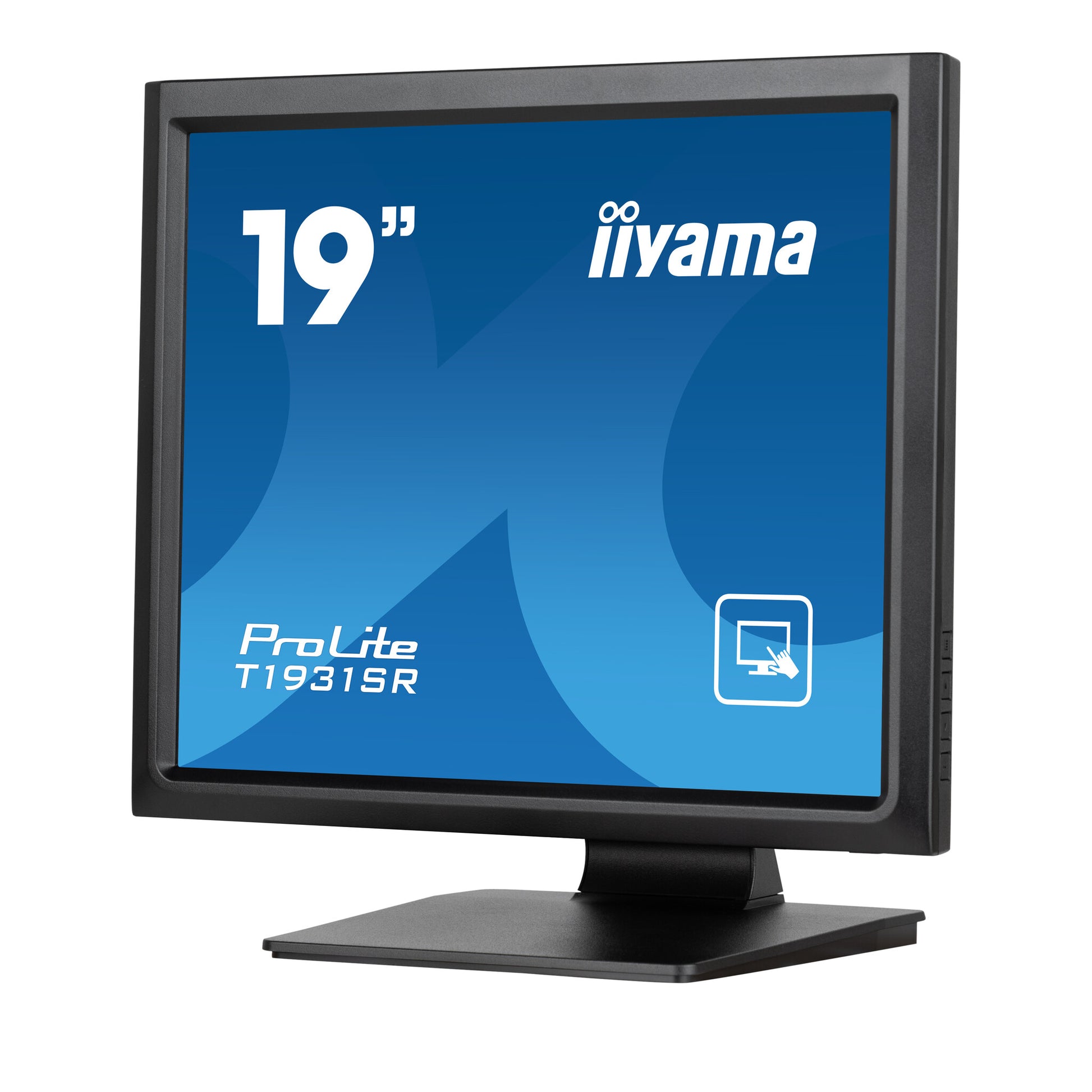

PROLITE T1931SR-B1S 19” Touchscreen with 5-Wire Resistive Touch Technology

  • IPS
  • serial resistive
  • VGA x1
  • HDMI x1
  • DisplayPort x1
  • SKU:4948570122172
  • GTIN/EAN:4948570122172
  • MPN:T1931SR-B1S
Add To Favorite

You need to login to view the price.

View full details

iiyama ProLite T1931SR-B1S. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, HD type: SXGA, Display technology: LCD, Response time: 14 ms, Native aspect ratio: 5:4, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: Black

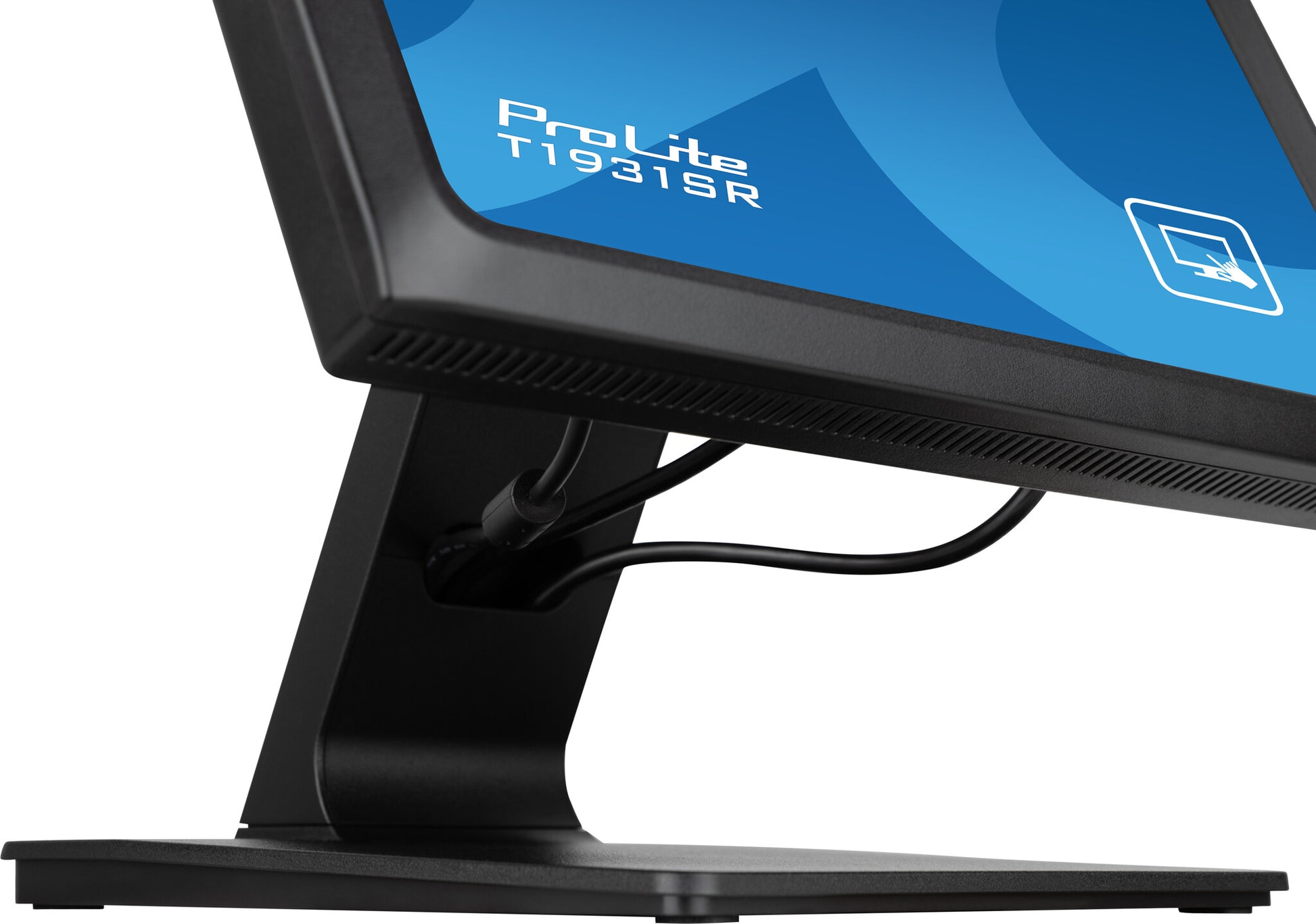

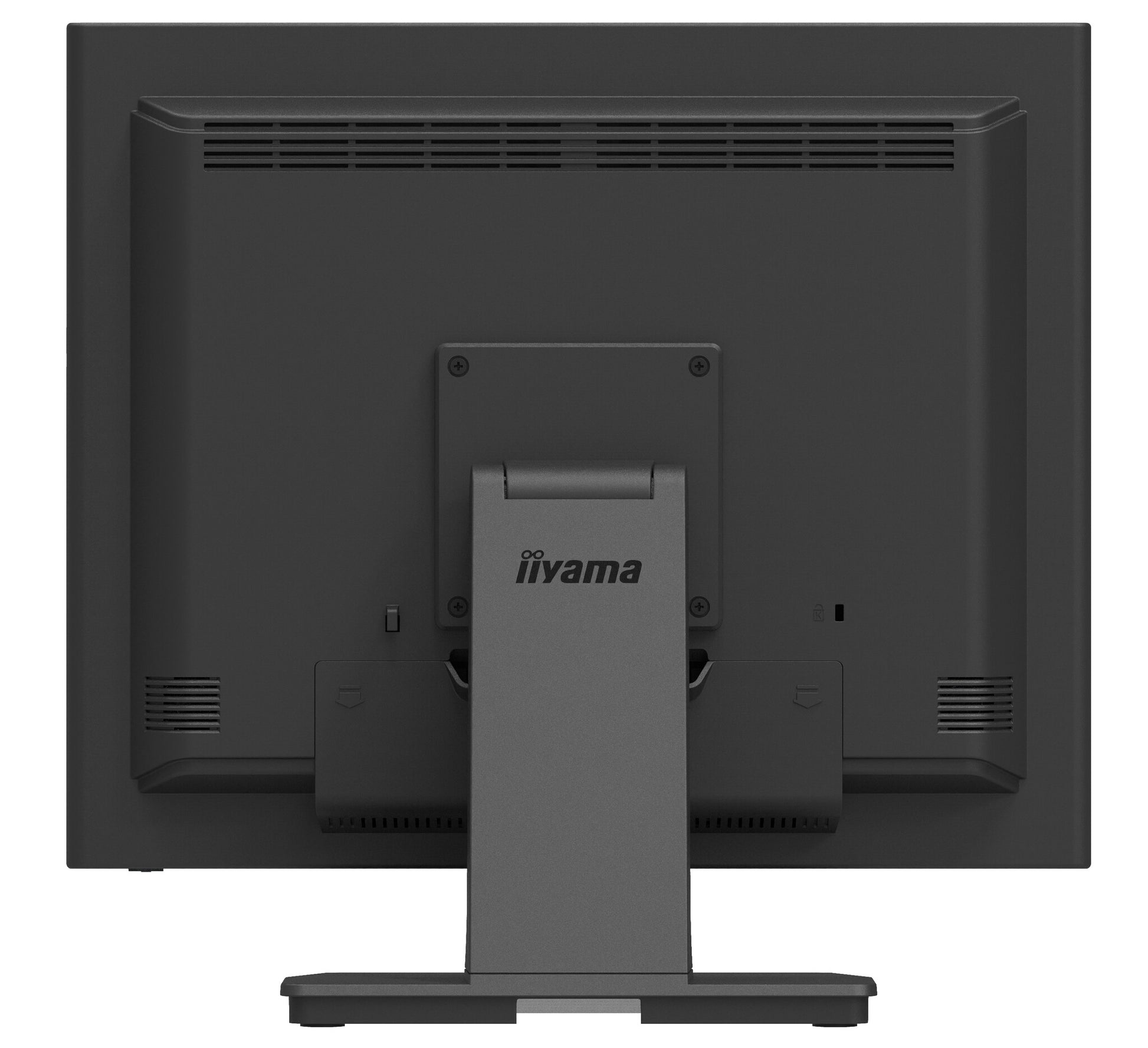

The T1931SR-B1S is based on 5-wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display includes both analogue (VGA) and digital inputs (HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The T1931SR-B1S can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes.

Display
Viewable size, vertical
30 cm
Viewable size, horizontal
37.5 cm
Horizontal scan range
31.5 - 80 kHz
Display number of colours
16.7 million colours
Contrast ratio (typical)
1000:1
Screen shape
Flat
Response time
14 ms
Display brightness (typical)
250 cd/m²
Touchscreen technology
Resistive
Panel type
IPS
Display resolution
1280 x 1024 pixels
Display diagonal
48.3 cm (19")
Performance
AMD FreeSync
No
NVIDIA G-SYNC
No
Multimedia
RMS rated power
2 W
Number of speakers
2
Built-in speaker(s)
Yes
Design
Certification
CE, EAC, RoHS, ErP, WEEE, cULus, VCCI, REACH, UKCA
International Protection (IP) code
IP54
Product colour
Black
Market positioning
Business
Ports & interfaces
USB Touch ports quantity
1
Built-in USB hub
No
Ergonomics
On Screen Display (OSD) languages
Traditional Chinese, German, English, Estonian, French, Italian, Japanese
Number of OSD languages
7
On Screen Display (OSD)
Yes
Tilt angle range
90 - 5°
Height adjustment
No
Cable lock slot type
Kensington
Cable lock slot
Yes
Cable management
Yes
Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Power
Energy efficiency scale
A to G
Power supply type
Internal
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.3 W
Power consumption (standby)
1.5 W
Power consumption (typical)
20 W
Energy consumption (SDR) per 1000 hours
13 kWh
Energy efficiency class (SDR)
E
Sustainability
European Product Registry for Energy Labelling (EPREL) code
1554894
Algemeen
Productfamilie
ProLite
Weight & dimensions
Weight (with stand)
6 kg
Height (with stand)
431.5 mm
Depth (with stand)
239.5 mm
Width (with stand)
432 mm
Packaging data
Package weight
8 kg
Package height
495 mm
Package depth
190 mm
Package width
530 mm
Quick start guide
Yes
Cables included
AC, Audio, DisplayPort, HDMI, USB
Package type
Box
Surface hardness
HDCP
Yes
Pixel pitch
0.293 x 0.293 mm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
DisplayPorts quantity
1
HDMI ports quantity
1
HDMI
Yes
VGA (D-Sub) ports quantity
1
USB Touch port
Yes
Built-in camera
No
Display technology
LCD
Native aspect ratio
5:4
HD type
SXGA
Touchscreen
Yes
