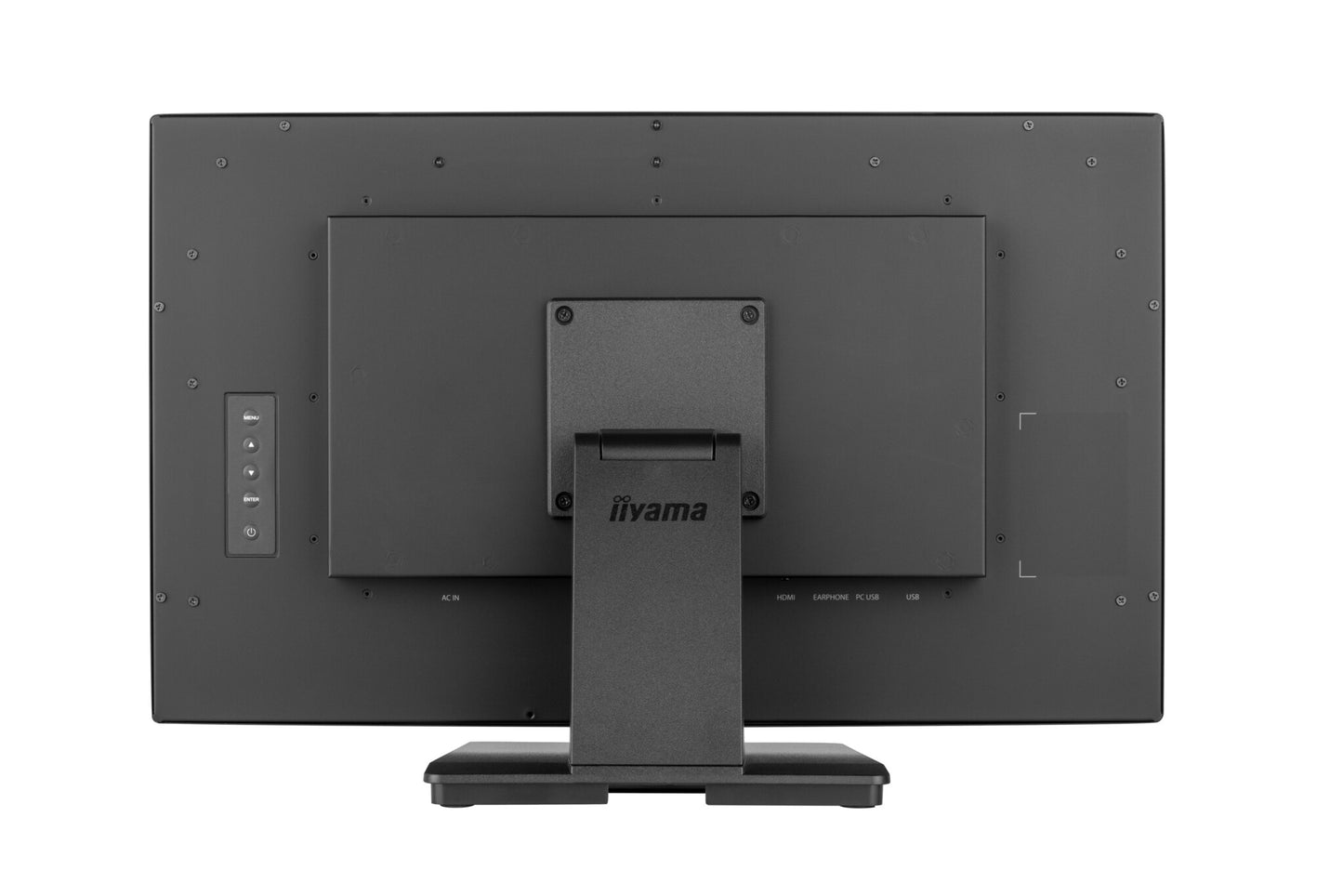

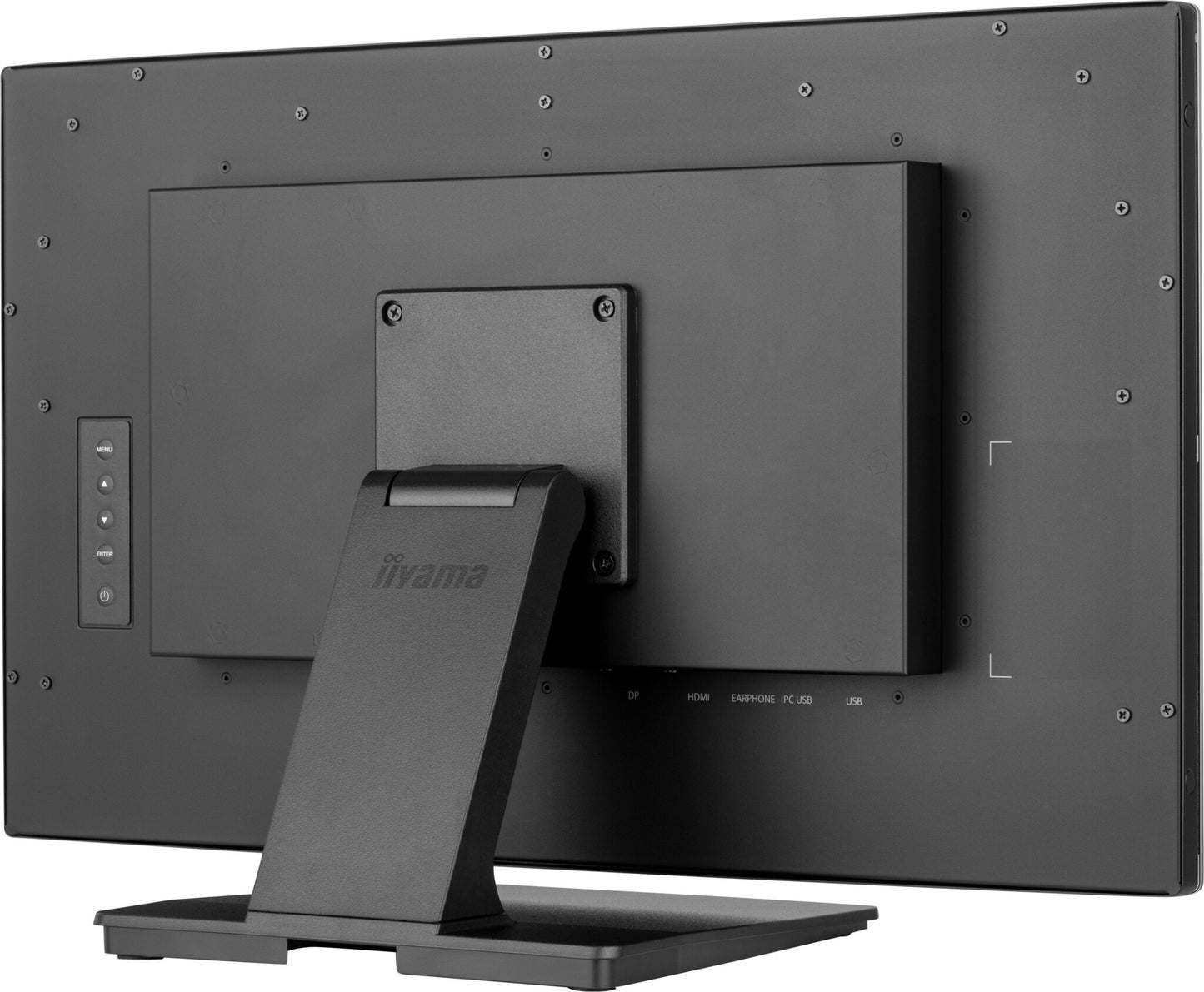

PROLITE T2438MSC-B1

PROLITE T2438MSC-B1

23.8", 22W, 60.5cm, 7H, IPS, 1920 x 1080, 16:9, 600 cd/m², HDMI x1, DisplayPort x1, Speakers 2 x 2W, USB x2, IP1X, 561.5 x 366 x 239.5mm, 8.2kg, Black

  • OPTICAL BONDED PCAP
  • SCRATCH RESISTANCE
  • SKU:4948570122905
  • GTIN/EAN:4948570122905
  • MPN:T2438MSC-B1
Add To Favorite

You need to login to view the price.

View full details

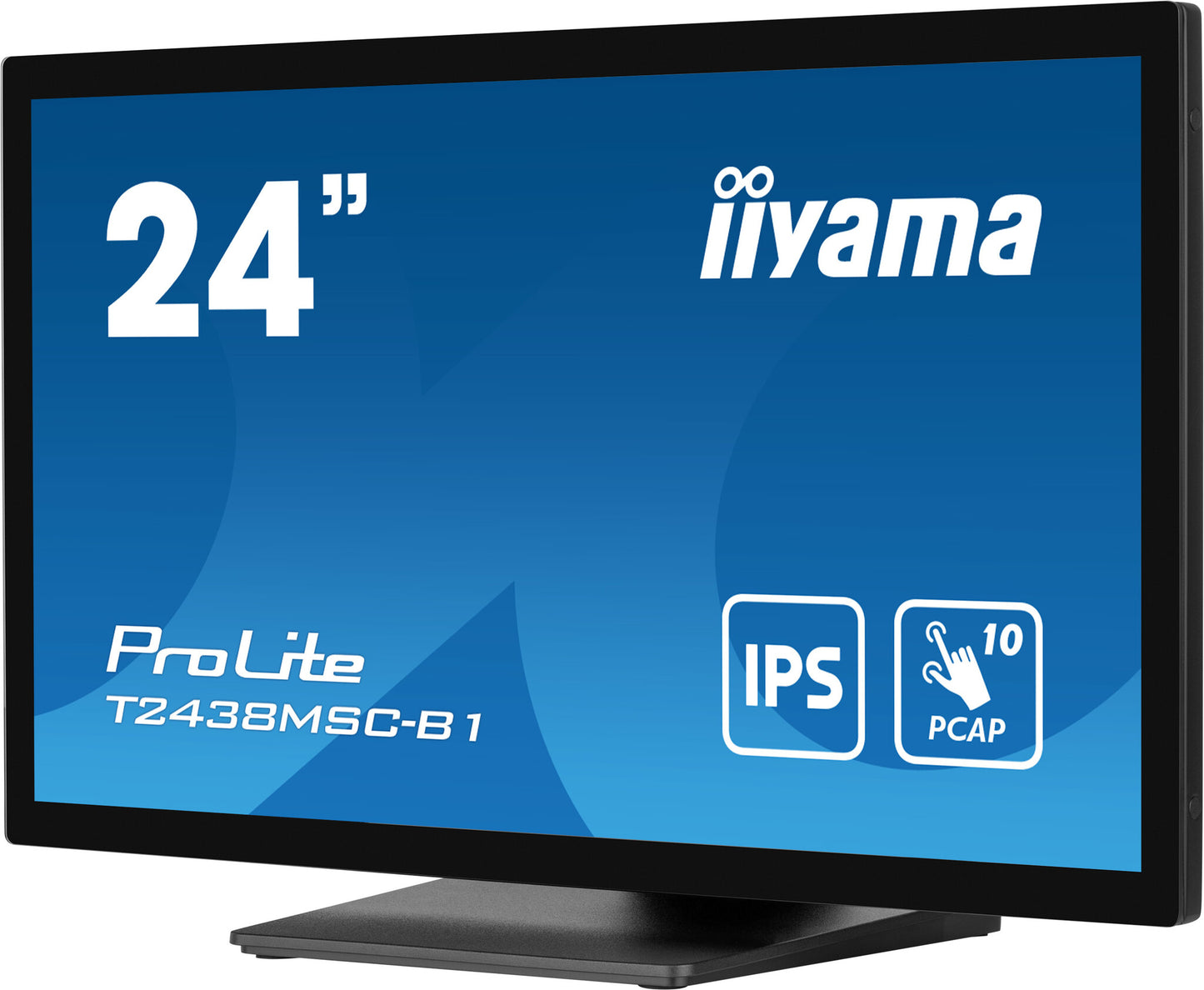

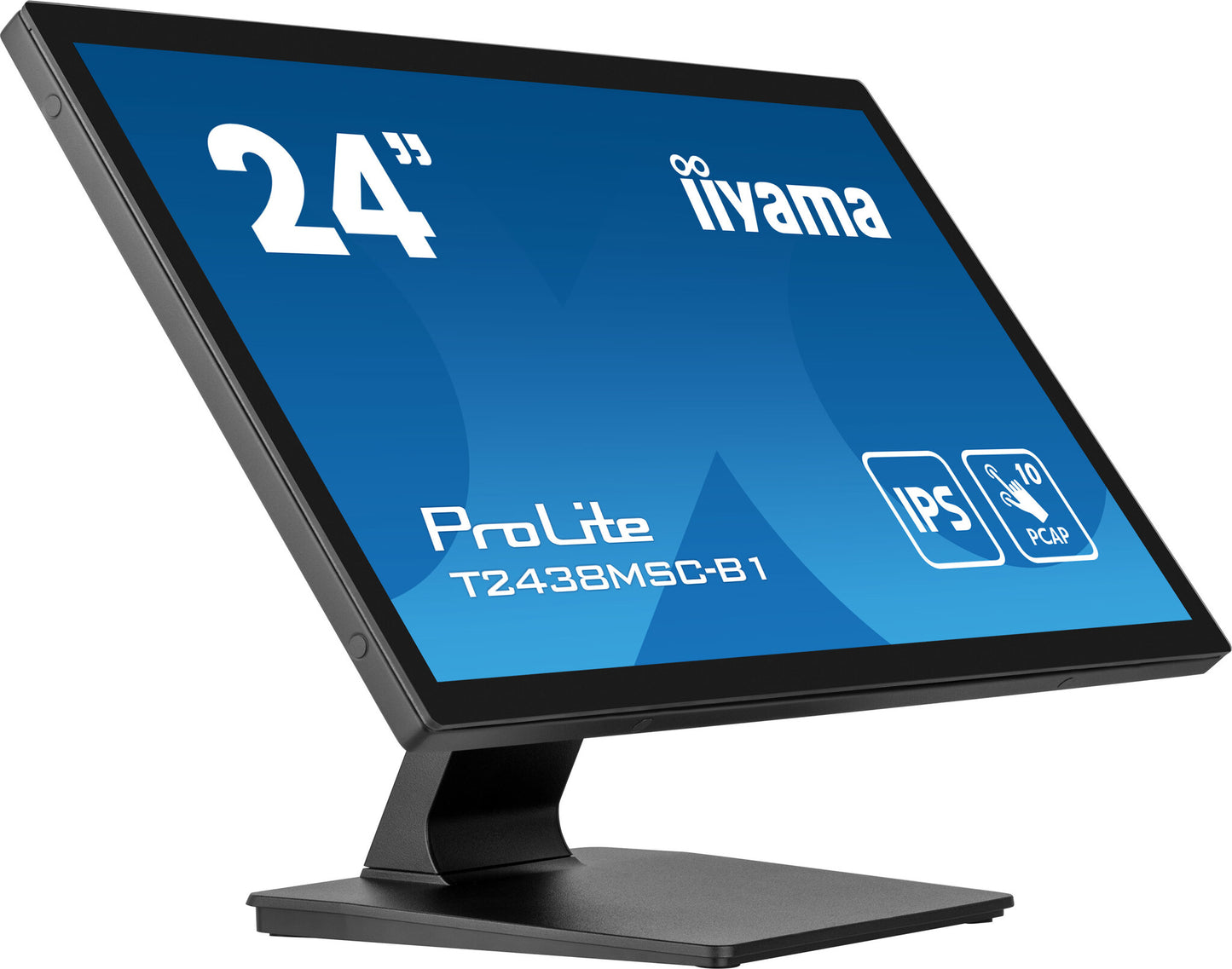

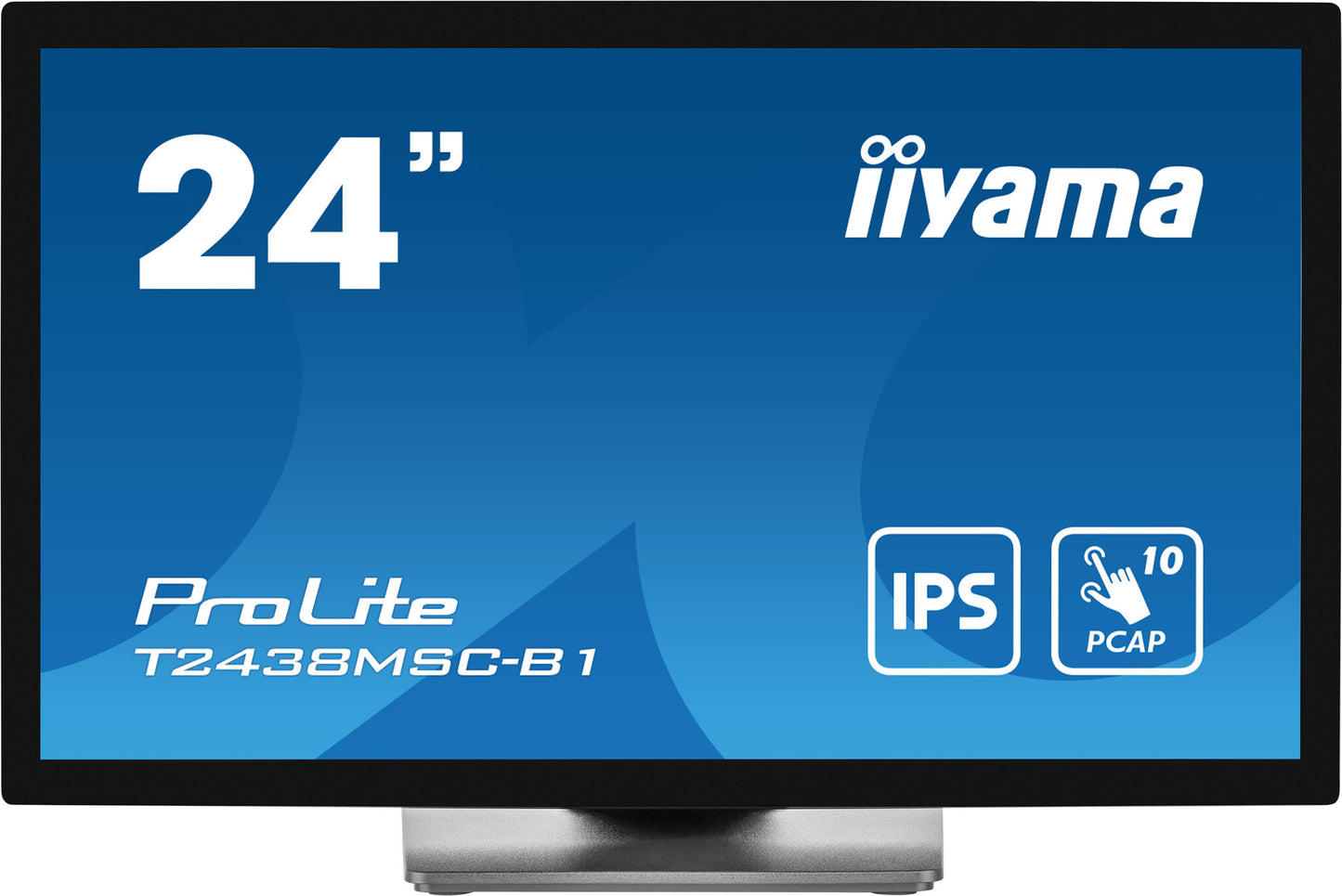

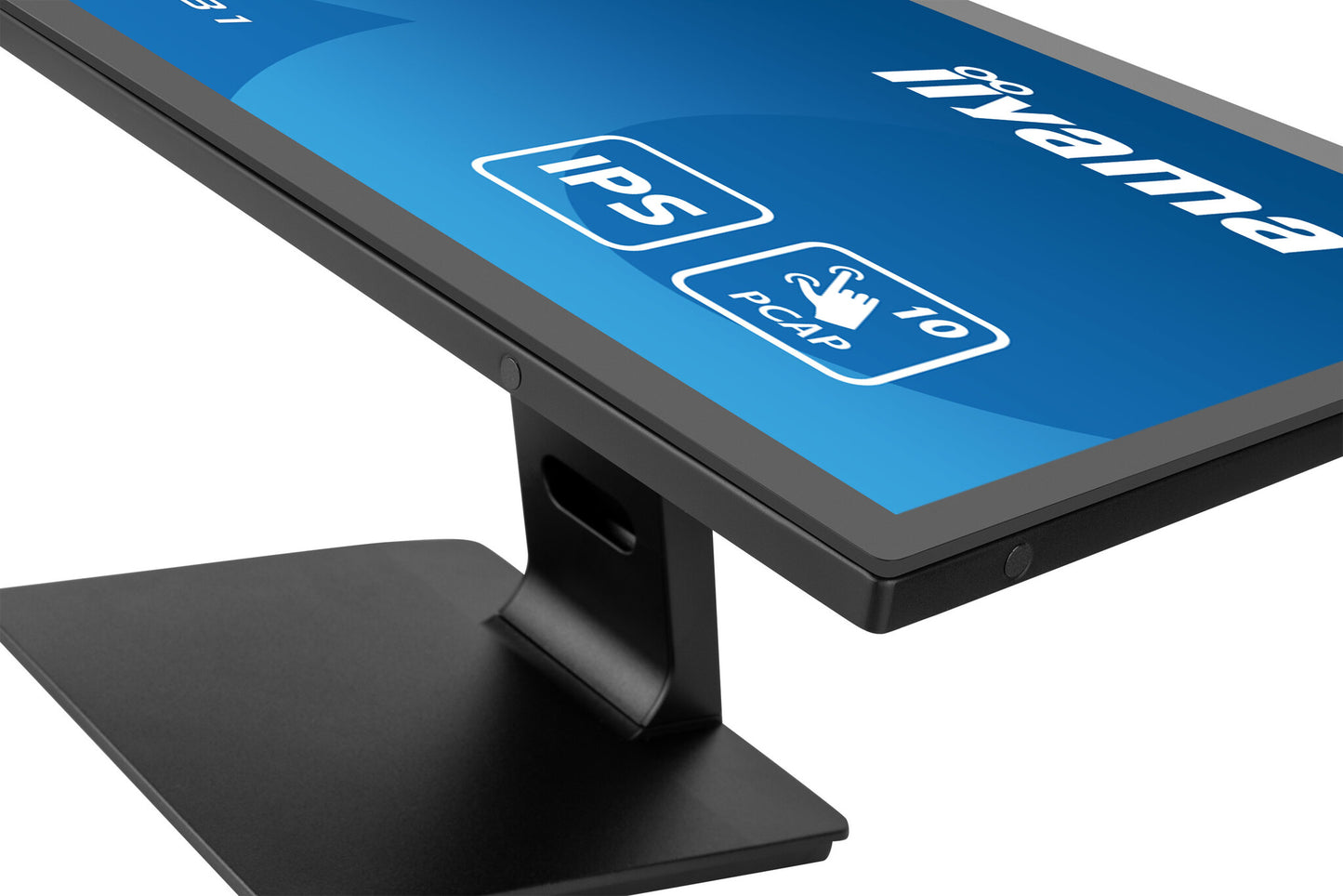

23.8” 10pt Optical Bonded PCAP touchscreen monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing

The Full HD (1920x1080) monitor ProLite T2438MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water.

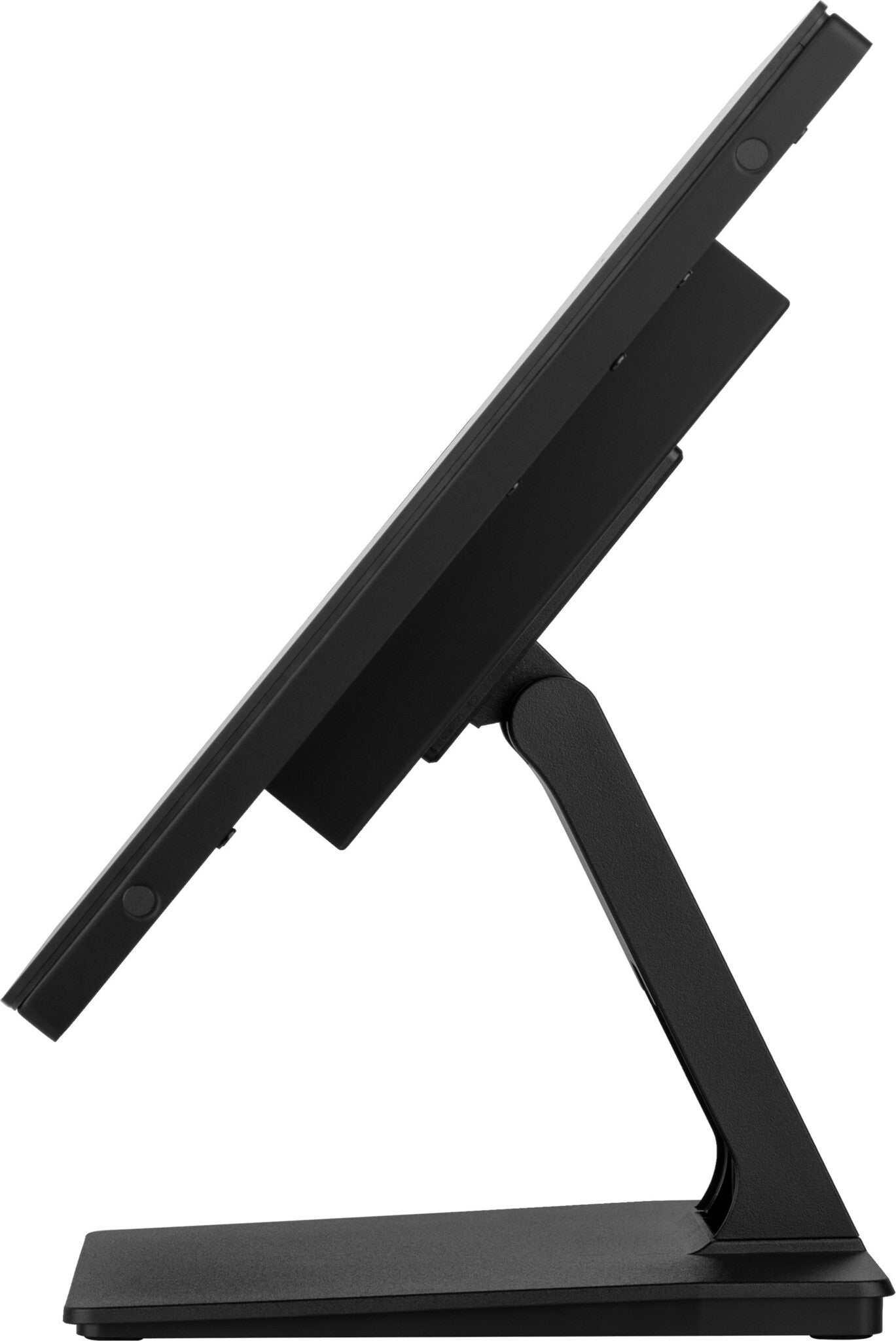

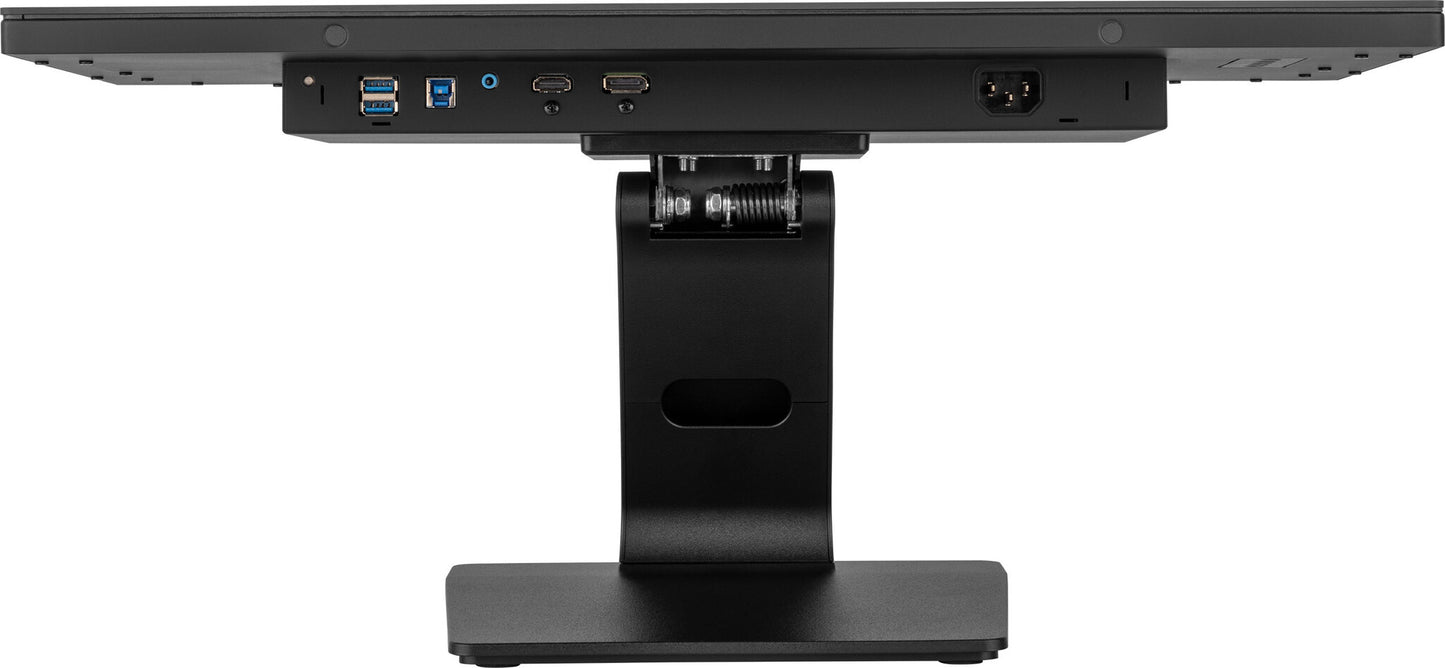

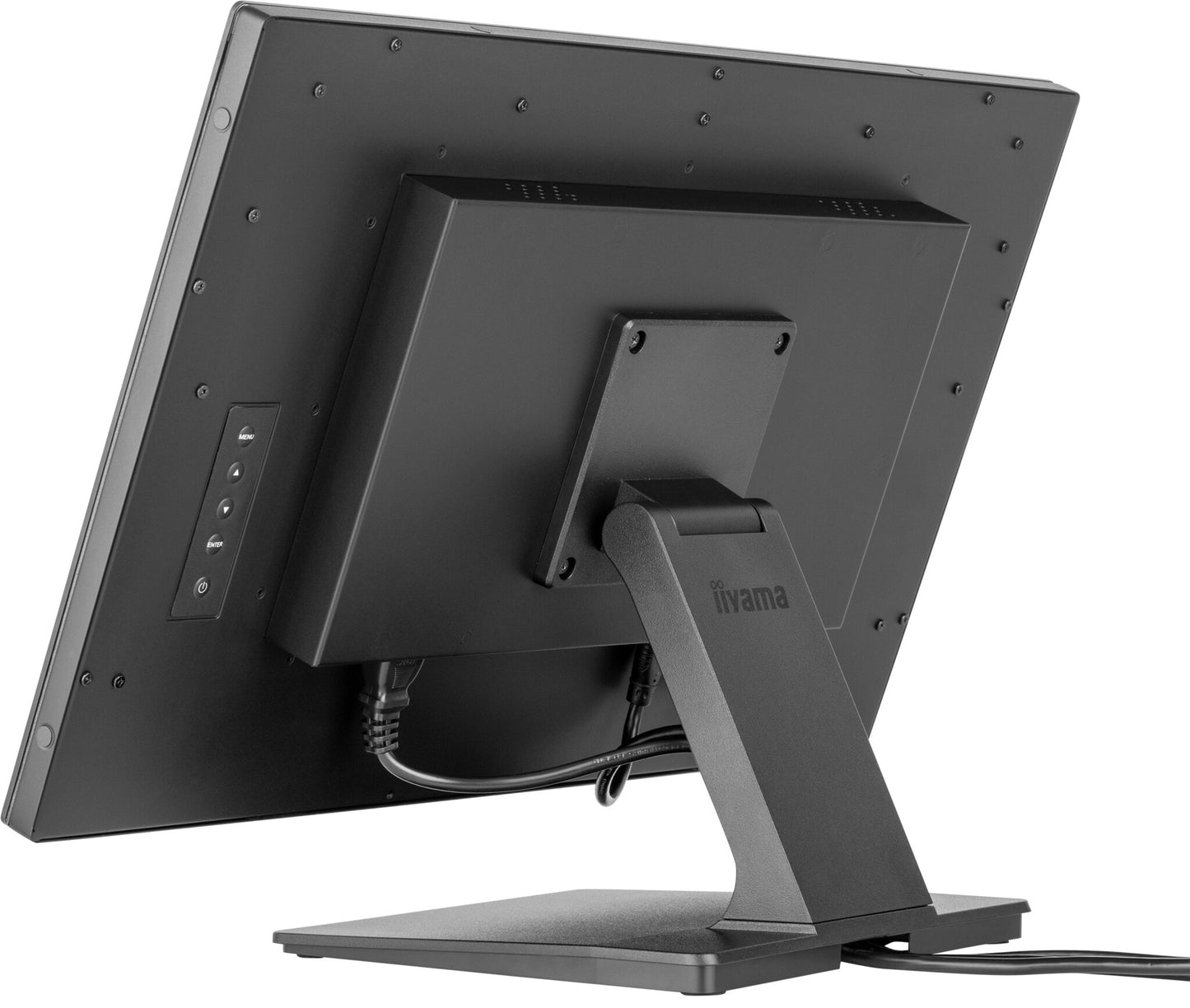

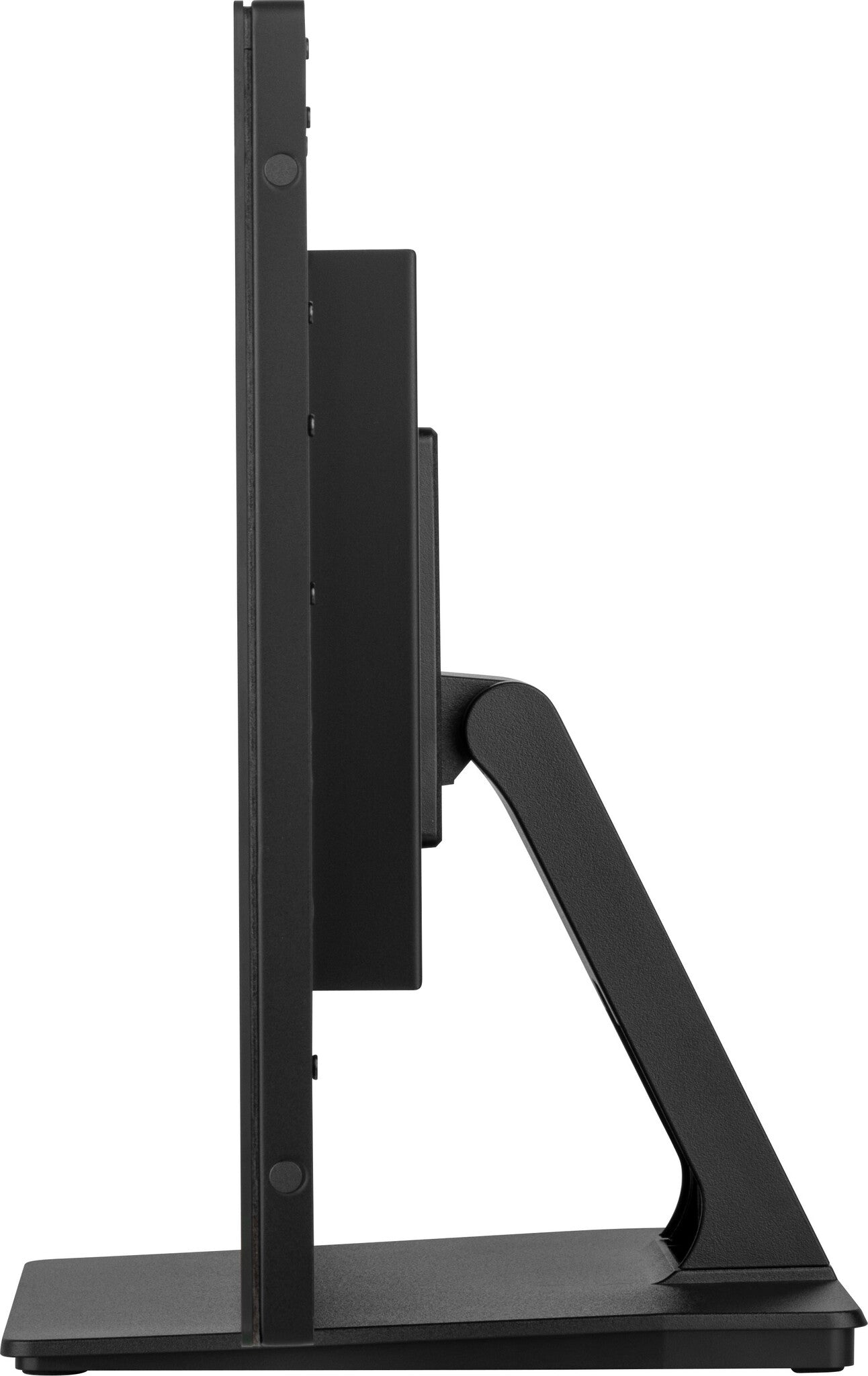

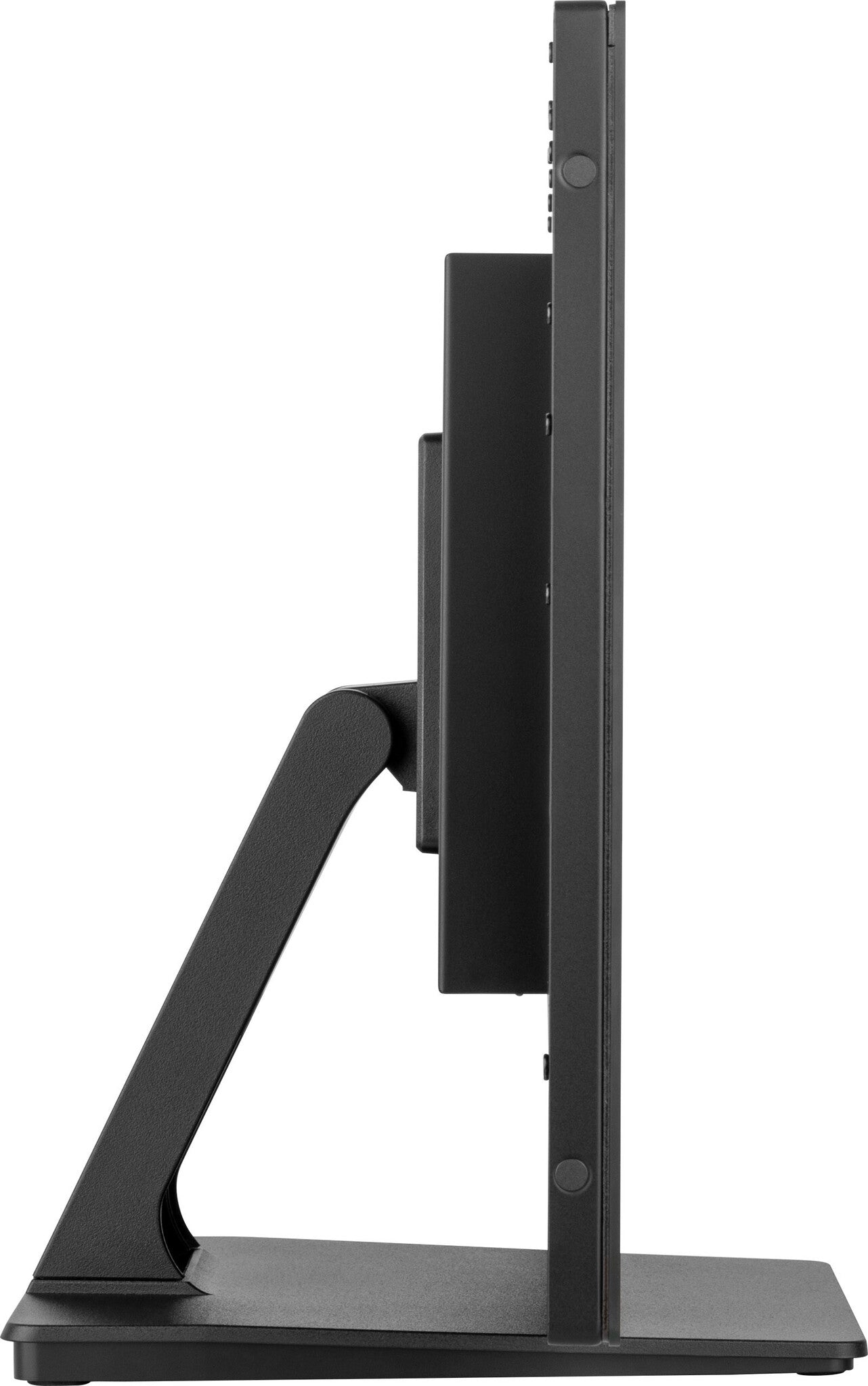

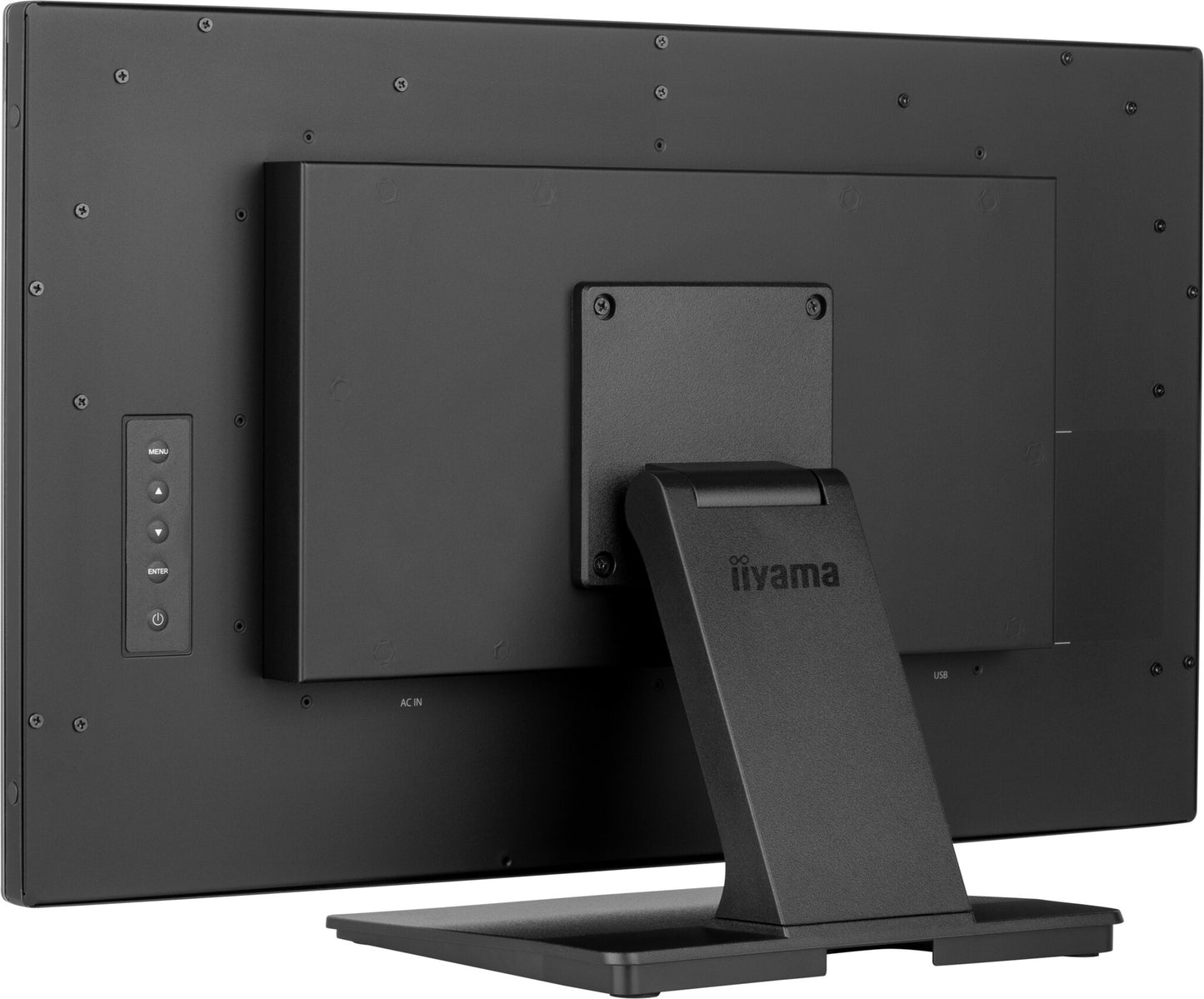

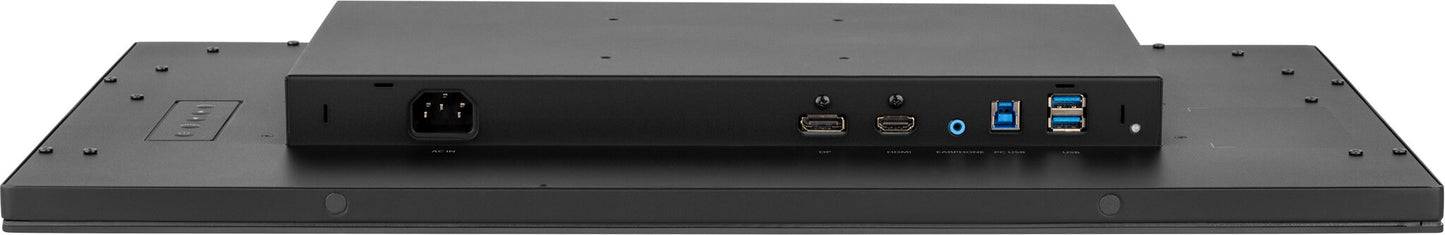

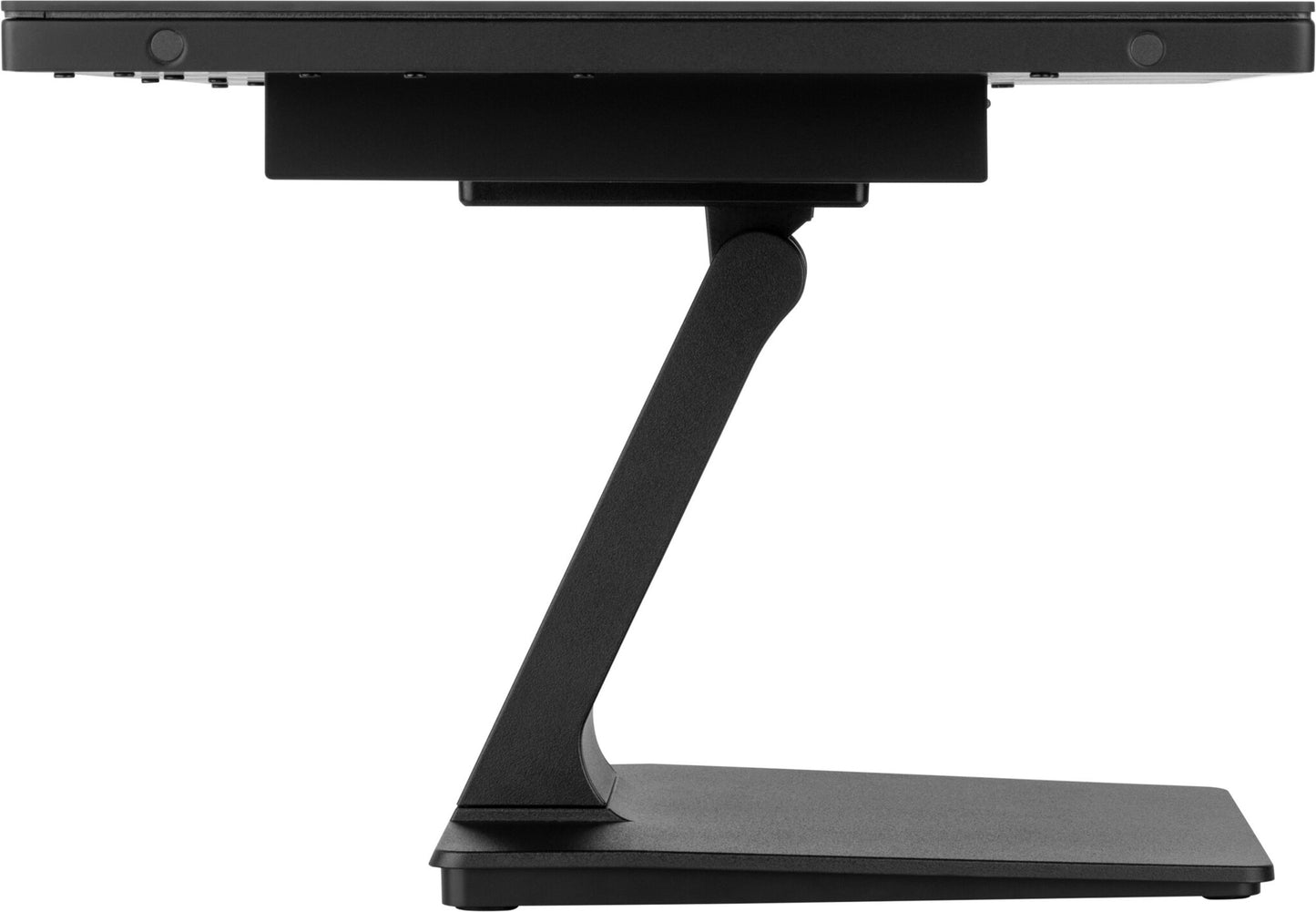

The flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The ProLite T2438MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for interactive signage, instore retail, POS and interactive presentations.

OPTICAL BONDED PCAP
The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.

IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.

Display
Horizontal scan range
30 - 83 kHz
Display number of colours
16.7 million colours
Contrast ratio (typical)
1000:1
Aspect ratio
16:9
Screen shape
Flat
Response time (fast)
5 ms
Display brightness (typical)
525 cd/m²
Display brightness (peak)
600 cd/m²
Touchscreen technology
Projected capacitive system
Panel type
IPS
Display resolution
1920 x 1080 pixels
Display diagonal
60.5 cm (23.8")
Performance
AMD FreeSync
No
NVIDIA G-SYNC
No
Multimedia
RMS rated power
2 W
Number of speakers
2
Built-in speaker(s)
Yes
Design
Certification
CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
International Protection (IP) code
IP1X
Glass thickness
3.6 mm
Product colour
Black
Ports & interfaces
USB Type-A downstream ports quantity
2
USB hub version
3.2 Gen 1 (3.1 Gen 1)
Headphone out
No
Built-in USB hub
Yes
Ergonomics
Plug and Play
Yes
On Screen Display (OSD) languages
German, English, French, Japanese, Polish, Russian
On Screen Display (OSD)
Yes
Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Power
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.3 W
Power consumption (standby)
1.5 W
Power consumption (typical)
22 W
Energy efficiency class (HDR)
Not available
Energy efficiency class (SDR)
E
Sustainability
European Product Registry for Energy Labelling (EPREL) code
1530357
Algemeen
Productfamilie
ProLite
Weight & dimensions
Weight (with stand)
8.2 kg
Height (with stand)
366 mm
Depth (with stand)
239.5 mm
Width (with stand)
561.5 mm
Bezel width (bottom)
2.03 cm
Bezel width (top)
2.03 cm
Bezel width (side)
1.73 cm
Packaging data
Package weight
10 kg
Package height
430 mm
Package depth
155 mm
Package width
650 mm
Quick start guide
Yes
Cables included
HDMI, Power, USB
Surface hardness
Surface hardness
7H
HDCP
Yes
Display diagonal (metric)
60.5 cm
Pixel pitch
0.275 x 0.275 mm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
DisplayPorts quantity
1
HDMI ports quantity
1
HDMI
Yes
Number of simultaneous touchpoints
10
Touch technology
Multi-touch
Built-in camera
No
Display technology
LED
Native aspect ratio
16:9
HD type
Full HD
Touchscreen
Yes
