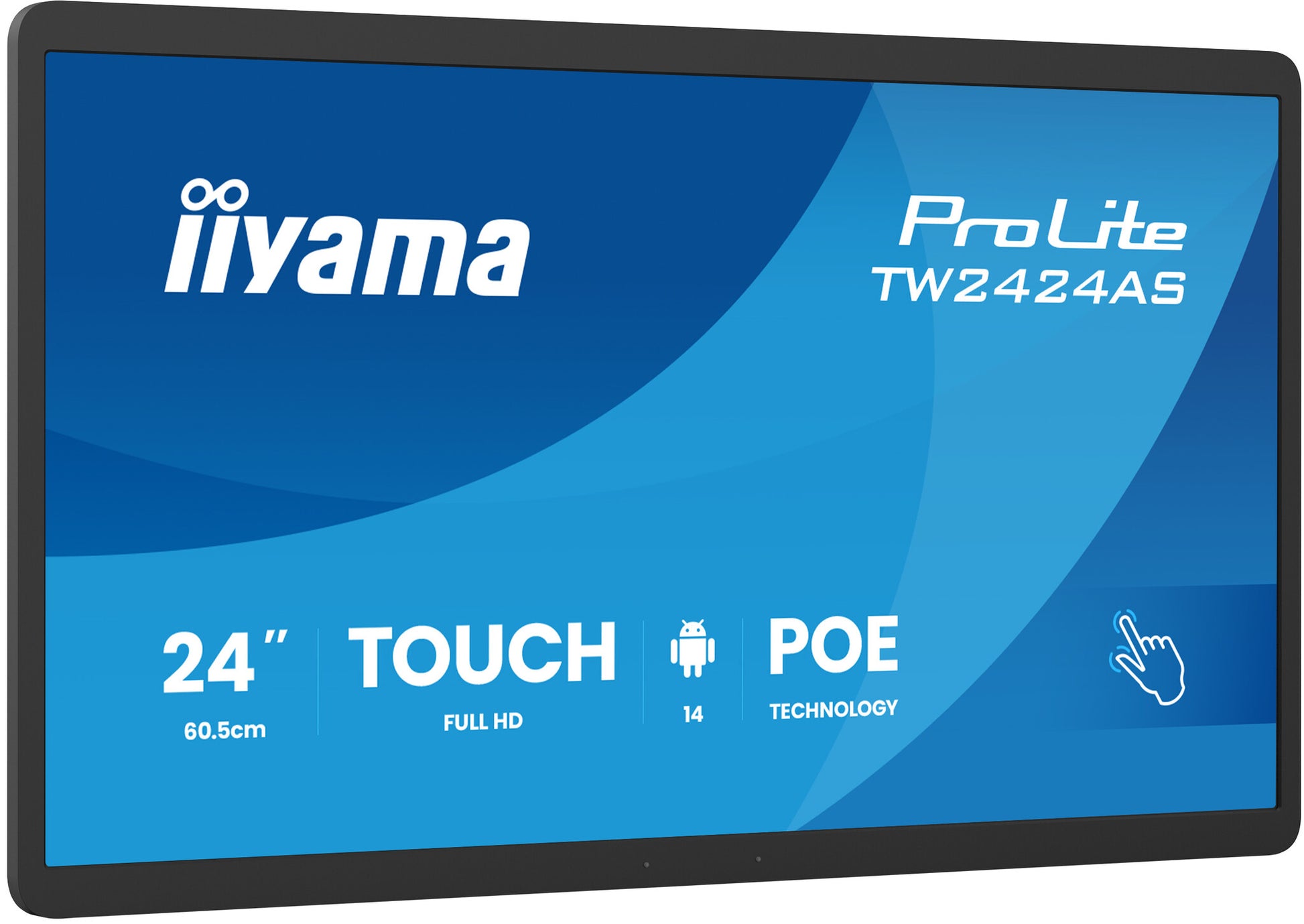

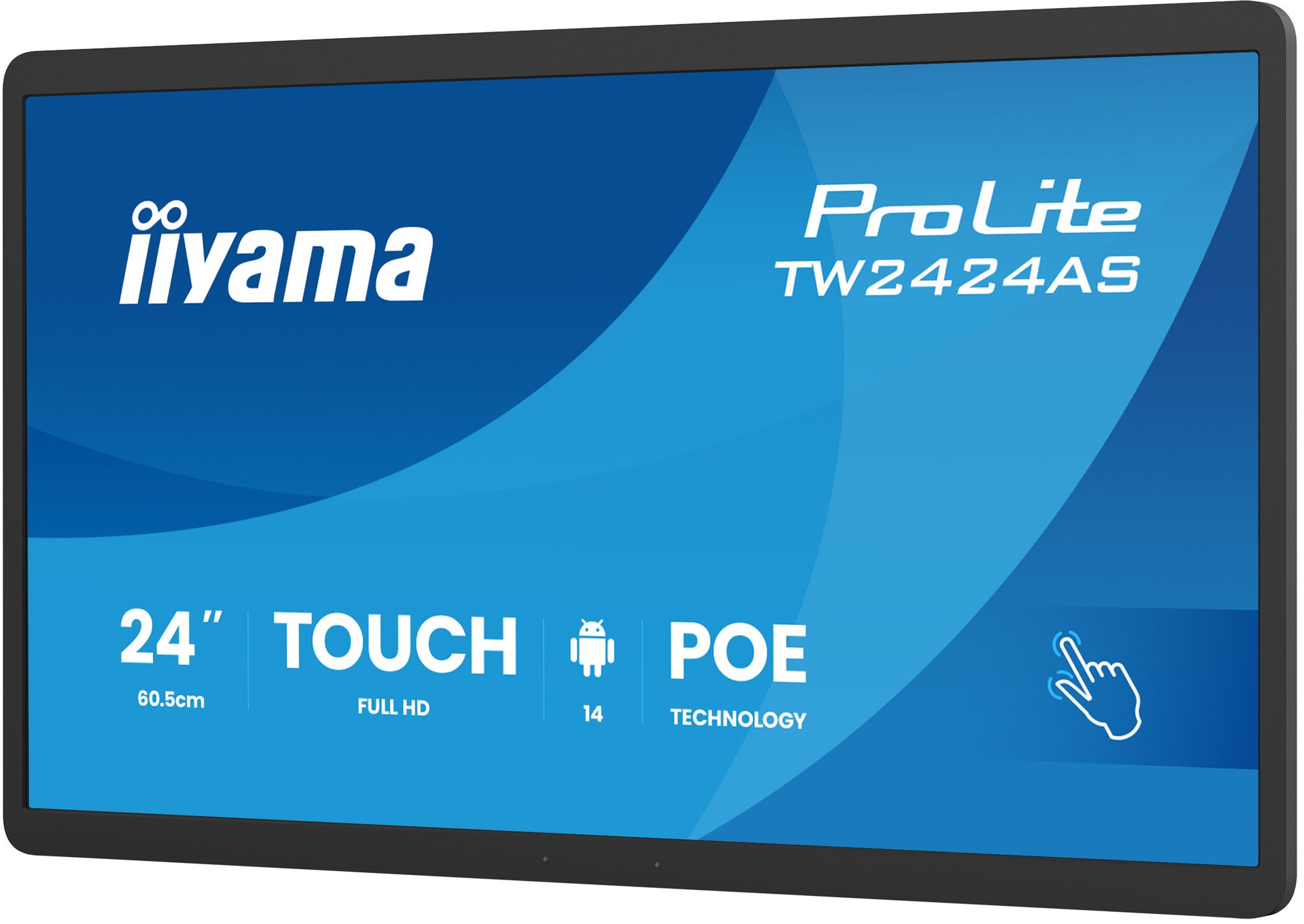

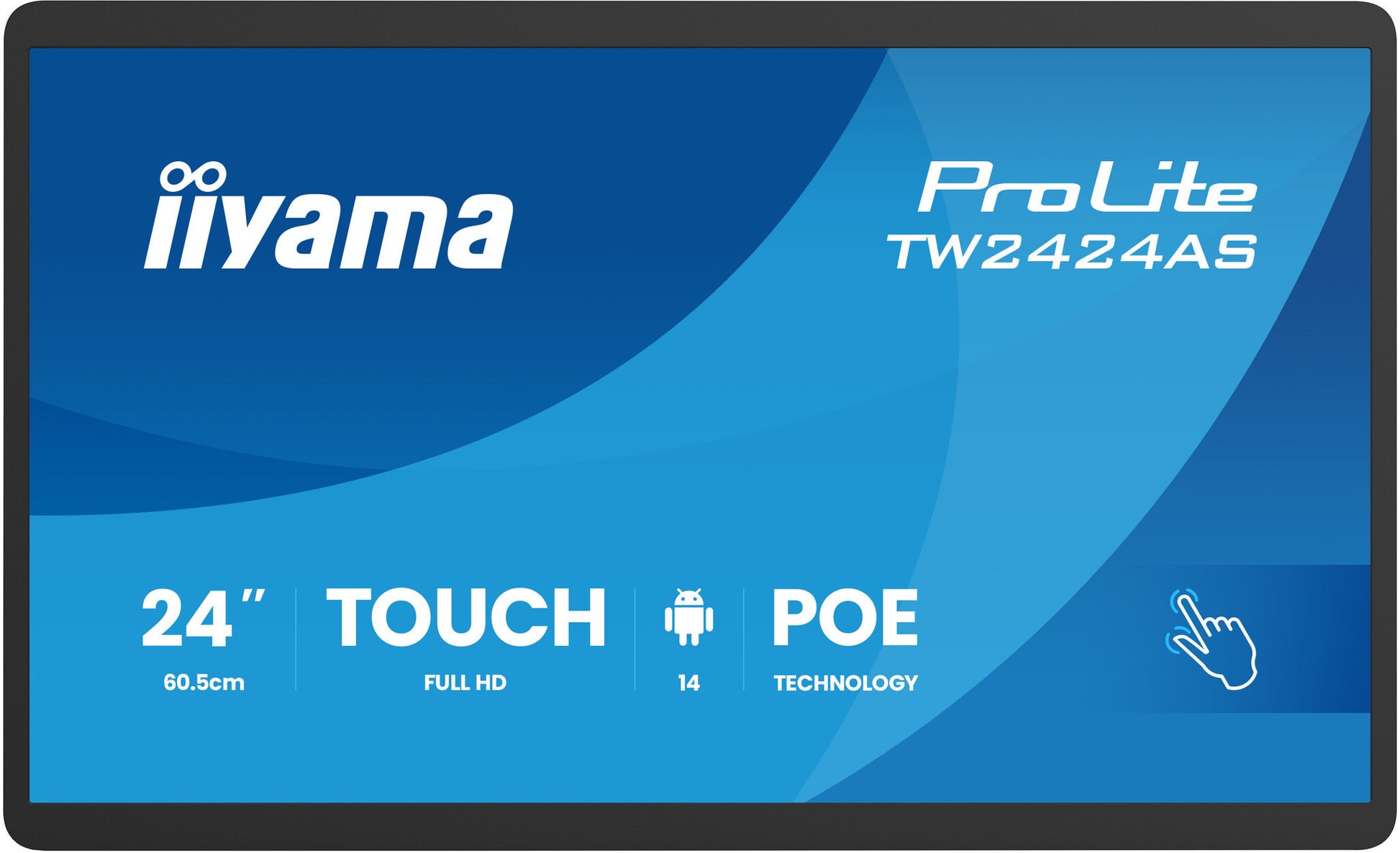

iiyama TW2424AS-B3P Signage Display Interactive flat panel 60.5 cm (23.8") Wi-Fi 450 cd/m² Full HD Black Touchscreen Built-in processor Android 24/7

iiyama TW2424AS-B3P Signage Display Interactive flat panel 60.5 cm (23.8") Wi-Fi 450 cd/m² Full HD Black Touchscreen Built-in processor Android 24/7

24” Full HD In-cell PCAP 10pt interactive Touch Panel PC with Android OS, IPS panel technology, anti glare coating, PoE Technology and iiSignage²

  • Indoor Interactive flat panel Black
  • 60.5 cm (23.8") 1920 x 1080 pixels 450 cd/m²
  • Touchscreen 14 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 10 W
  • SKU:4948570127153
  • GTIN/EAN:4948570127153
  • MPN:TW2424AS-B3P

You need to login to view the price.

View full details

iiyama TW2424AS-B3P. Product design: Interactive flat panel. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, Display brightness: 450 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

The ProLite TW2424AS-B3P interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 14 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising.

Display
Display diagonal
60.5 cm (23.8")
Display resolution
1920 x 1080 pixels
Display brightness
450 cd/m²
HD type
Full HD
Touchscreen
Yes
Touchscreen technology
Projected capacitive system
Number of simultaneous touchpoints
10
Native aspect ratio
16:9
Response time
14 ms
Contrast ratio (typical)
1000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.275 x 0.275 mm
Active display area (W x H)
527 x 296.5 mm
Display diagonal (metric)
60.5 cm
Colour depth
8 bit
Surface hardness
6H
Panel type
IPS
Ports & interfaces
DVI port
No
USB port
Yes
USB ports quantity
2
USB 2.0 Type-B ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
1000 Mbit/s
Wi-Fi
Yes
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
2
RMS rated power
10 W
Design
Product design
Interactive flat panel
Product colour
Black
Placement supported
Indoor
Orientation
Horizontal/Vertical
Screen shape
Flat
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Bezel colour
Black
Anti-glare screen
Yes
Performance
Purpose
Universal
On Screen Display (OSD)
Yes
Operating hours (hours/days)
24/7
HDCP
Yes
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)
17.5 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
Computer system
Computer system
Yes
Built-in processor
Yes
Processor manufacturer
Rockchip
Processor family
ARM Rockchip
Processor model
Rockchip RK3576
Processor frequency
1.8 GHz
Internal memory
4 GB
Internal storage capacity
32 GB
Operating system installed
Android
Operating system version
14
Google applications
Google Chrome, Gmail, Google Calendar
Weight & dimensions
Display width
550 mm
Display depth
28 mm
Display height
336 mm
Display weight
4.24 kg
Width
550 mm
Depth
28 mm
Height
336 mm
Weight
4.24 kg
Width (with stand)
550 mm
Depth (with stand)
28 mm
Height (with stand)
336 mm
Weight (with stand)
4.24 kg
Packaging data
Package width
640 mm
Package depth
121 mm
Package height
410 mm
Package weight
6.2 kg
Packaging content
Cables included
AC
Technical details
Compliance certificates
CE, EAC, REACH, RoHS, UKCA, WEEE
Sustainability certificates
ErP
User controls
Power switch, volume/ button +, volume/ button -
Audio in (mini jack)
Yes
Other features
Brightness
450 cd/m²
Cable management
Yes
Built-in microphone
Yes
AC adapter included
Yes
Viewable size, vertical
29.6 cm
Viewable size, horizontal
52.7 cm
Audio input
Y
Power supply type
External
Wi-Fi standards
Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Bluetooth version
5.3
Bluetooth
Yes
Quick start guide
Yes
