iiyama TF3215MC-B1AG

iiyama TF3215MC-B1AG

32", AMVA3 LED, (1920 x 1080), 16:9, 500 cd/m², USB, VGA x1, HDMI x1, HDCP, 43W, 100 - 240V, 50/60Hz

  • Touchscreen 81.3 cm (32") LED
  • Full HD 1920 x 1080 pixels 16:9
  • 8 ms 16:9
  • F 32 kWh 43 W
  • SKU:4948570117161
  • GTIN/EAN:4948570117161
  • MPN:TF3215MC-B1AG

You need to login to view the price.

Add To Favorite
View full details

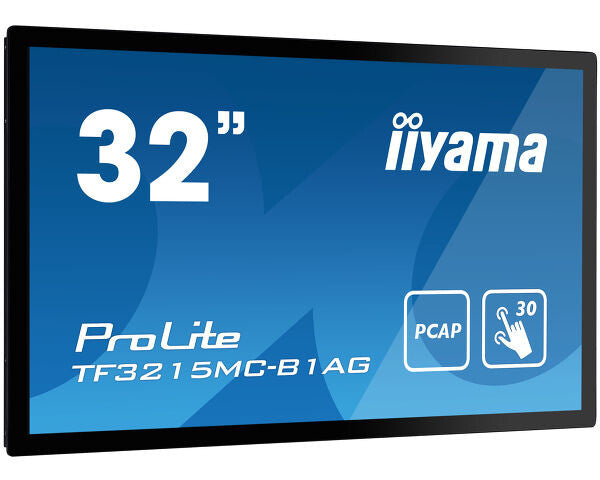

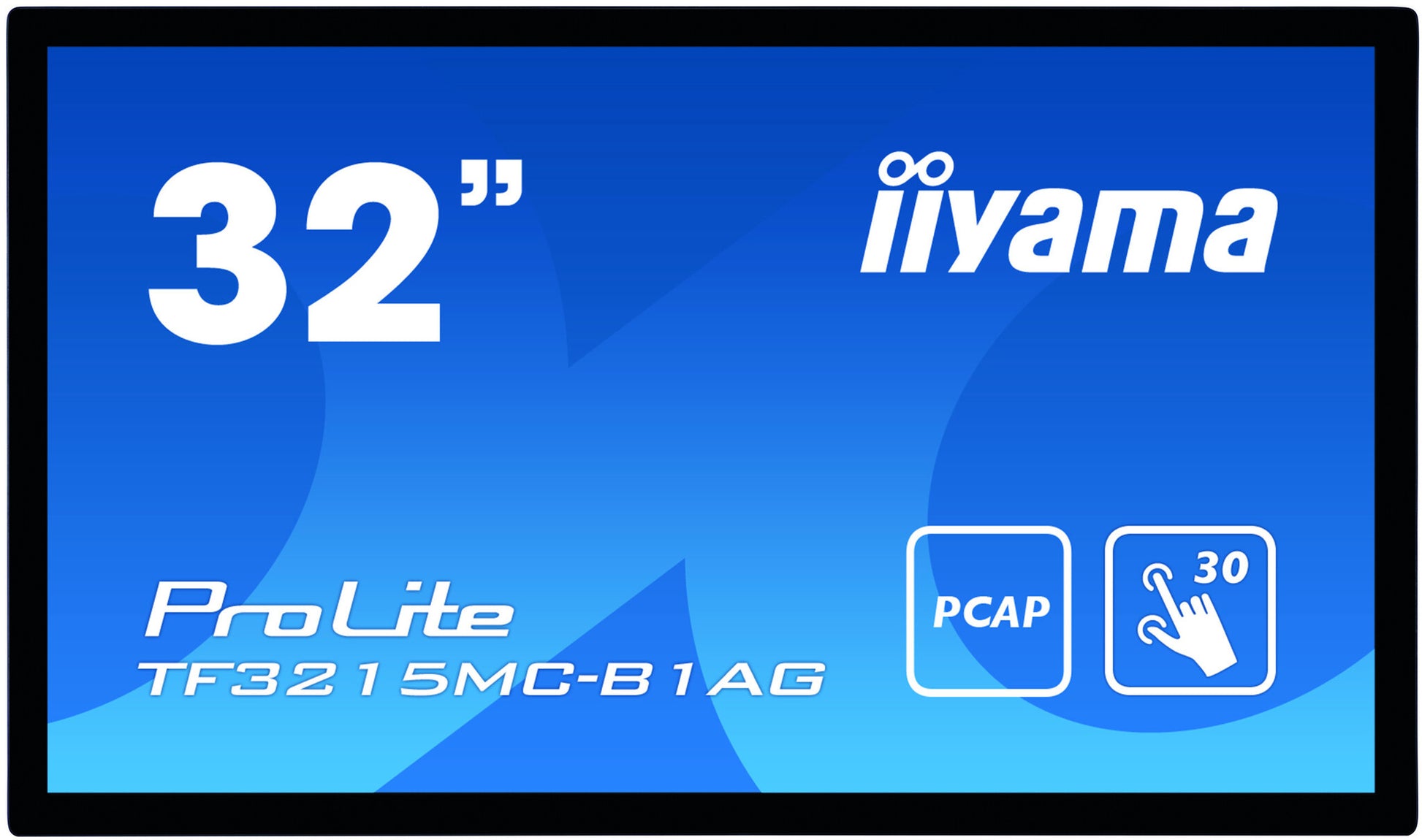

iiyama ProLite TF3215MC-B1AG. Display diagonal: 81.3 cm (32"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black

The ProLite TF3215MC-B1AG (31.5 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge anti-glare coated glass drastically reducing ambient reflections in high-brightness environments without compromising the sharpness and clarity of the image. The rugged bezel equipped with a foam seal finish supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front making it perfect for high use public facing applications. Landscape and portrait orientation ensures flexible mounting possibilities in almost any installation. The TF3215MC-B1AG is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Warranty: 3 year

Display
Display glass type
Tempered glass
Vertical scan range
47 - 63 Hz
Horizontal scan range
30 - 68 kHz
Display number of colours
16.78 million colours
Contrast ratio (typical)
16:9
Screen shape
Flat
Display brightness
425 cd/m²
Response time
8 ms
Touchscreen technology
Projected capacitive system
Display resolution
1920 x 1080 pixels
Display diagonal
81.3 cm (32")
Performance
Operating hours (hours/days)
24/7
OmniTapps Multitouch compatibility
N
Linux operating systems supported
Y
Windows operating systems supported
Y
AMD FreeSync
N
NVIDIA G-SYNC
N
Multimedia
Megapixel (approx.)
2.1 MP
Design
Country of origin
China
International Protection (IP) code
IP65
Glass thickness
3 mm
Housing material
Metal
Product colour
Black
Ergonomics
Plug and Play
Y
On Screen Display (OSD) languages
German, English, Estonian, French, Italian, Japanese
Number of OSD languages
7
Wall mountable
Y
VESA mounting
Y
Power
Energy efficiency scale
A to G
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (standby)
2 W
Power consumption (typical)
43 W
Energy consumption (SDR) per 1000 hours
32 kWh
Energy efficiency class (SDR)
F
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Algemeen
Productfamilie
ProLite
Weight & dimensions
Weight (without stand)
10.3 kg
Height (without stand)
434 mm
Depth (without stand)
61 mm
Width (without stand)
739.5 mm
Packaging data
Package weight
12.8 kg
Package height
630 mm
Package depth
155 mm
Package width
890 mm
Quick start guide
Y
Cables included
AC, HDMI, USB
Logistics data
Harmonized System (HS) code
85285210
Other features
Mean time between failures (MTBF)
50000 h
Display viewable area (HxV)
392.8 x 698.4 mm
Full HD
Y
Surface hardness
Surface hardness
7H
HDCP
Y
Display diagonal (metric)
80 cm
Built-in microphone
N
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (dynamic)
3000:1
HDMI ports quantity
1
HDMI
Y
VGA (D-Sub) ports quantity
1
Number of simultaneous touchpoints
30
Touchscreen type
Kiosk
Touch technology
Single-touch
Built-in camera
N
Display technology
LED
Native aspect ratio
16:9
HD type
Full HD
Touchscreen
Y
