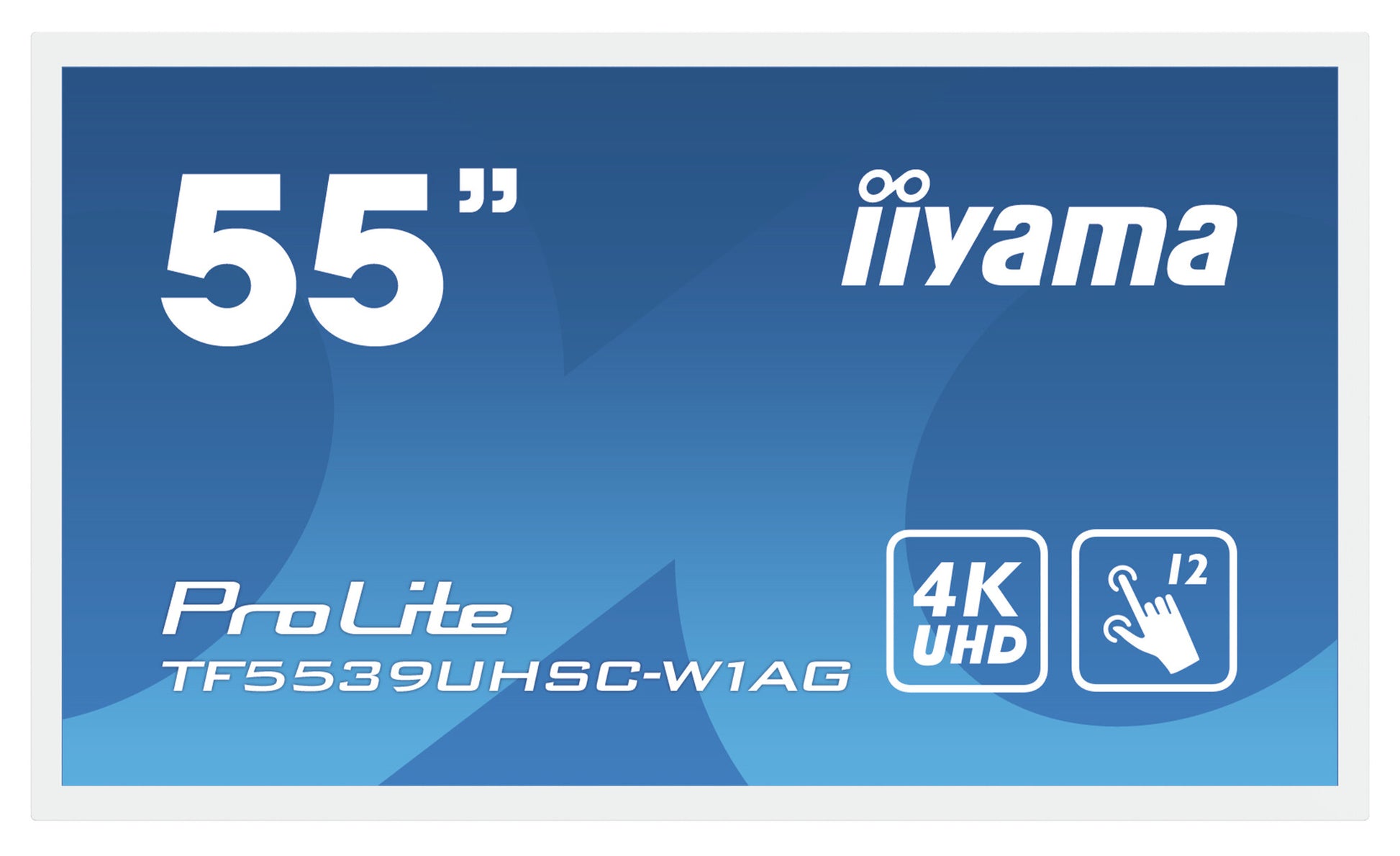

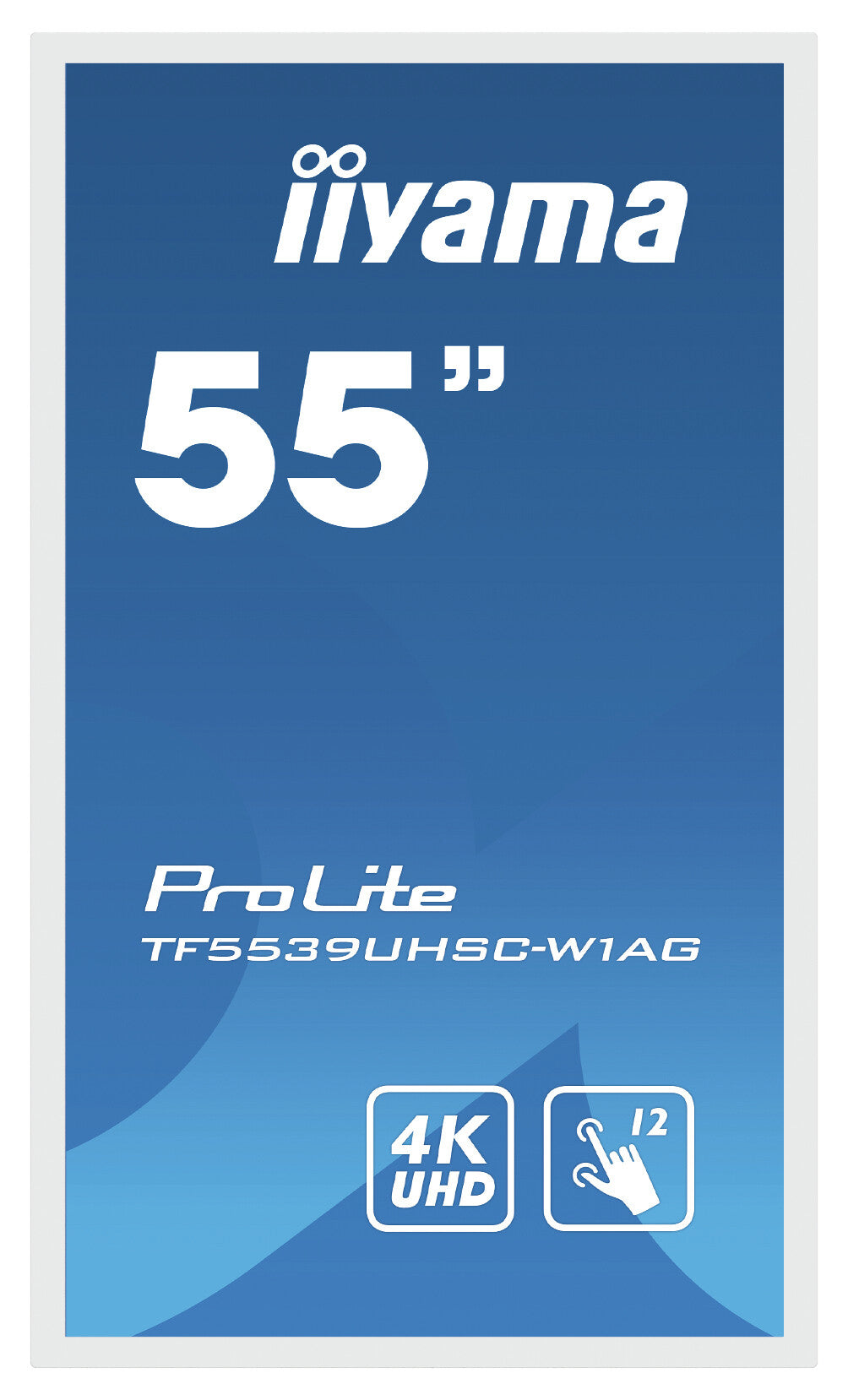

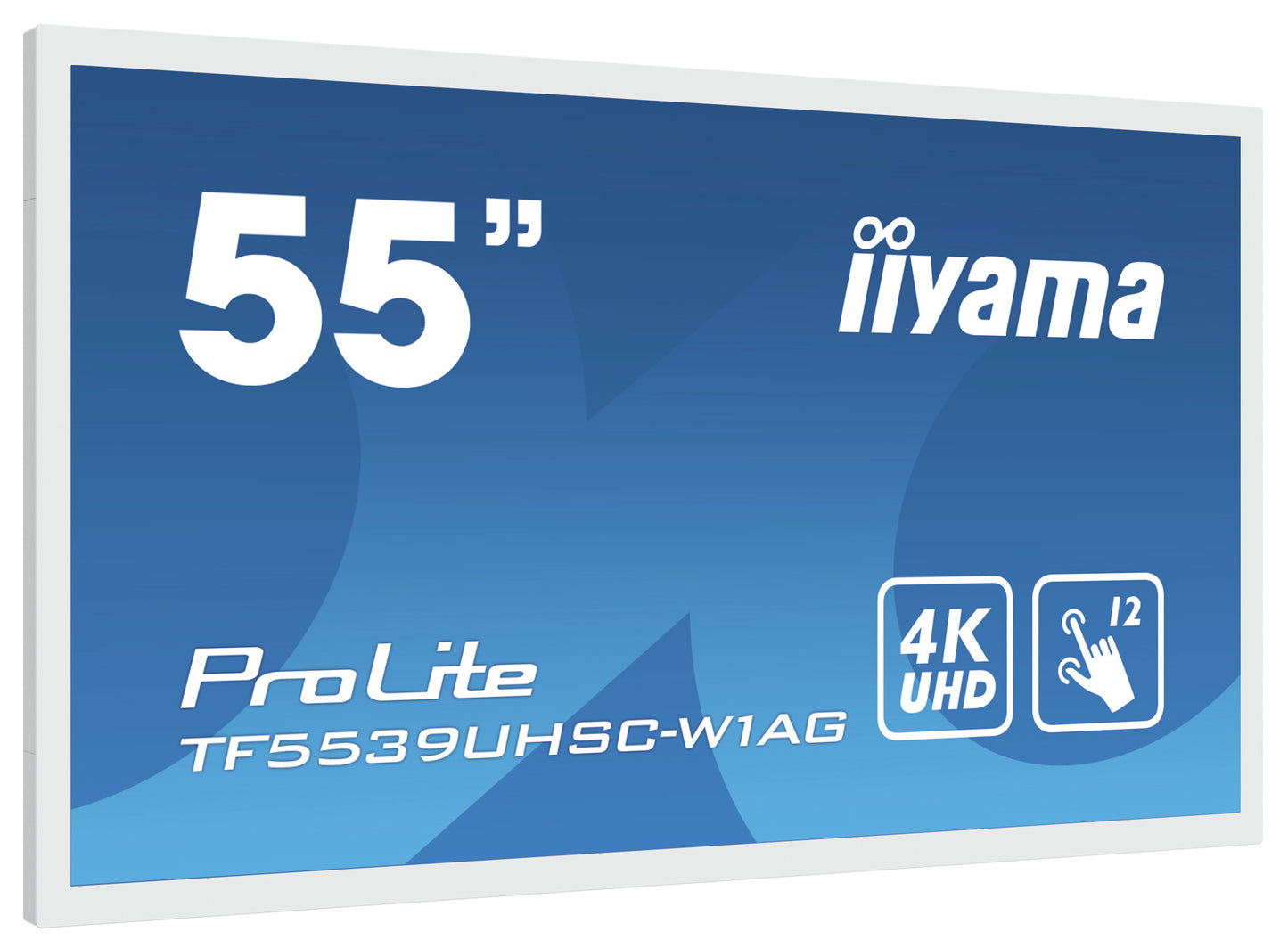

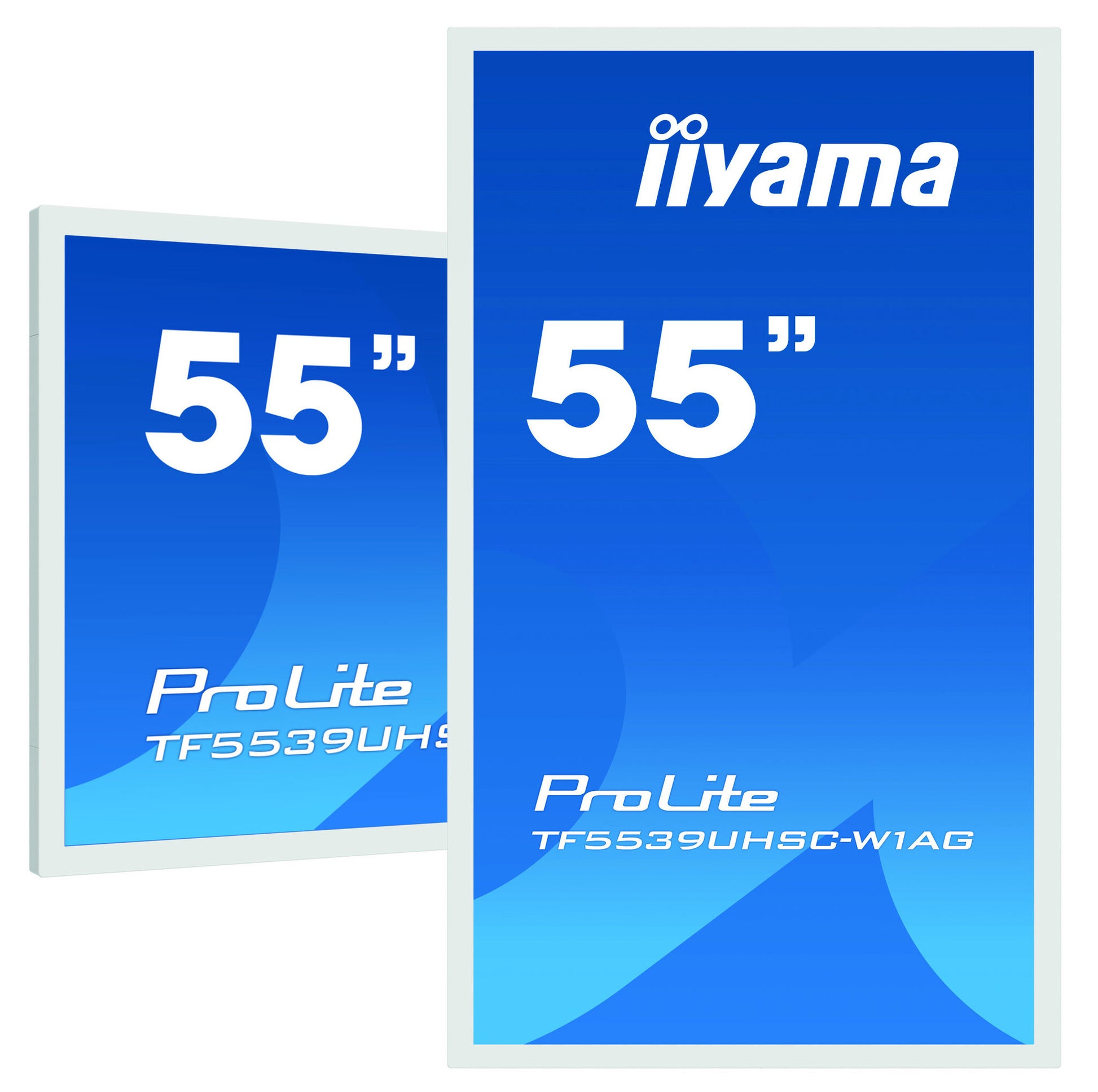

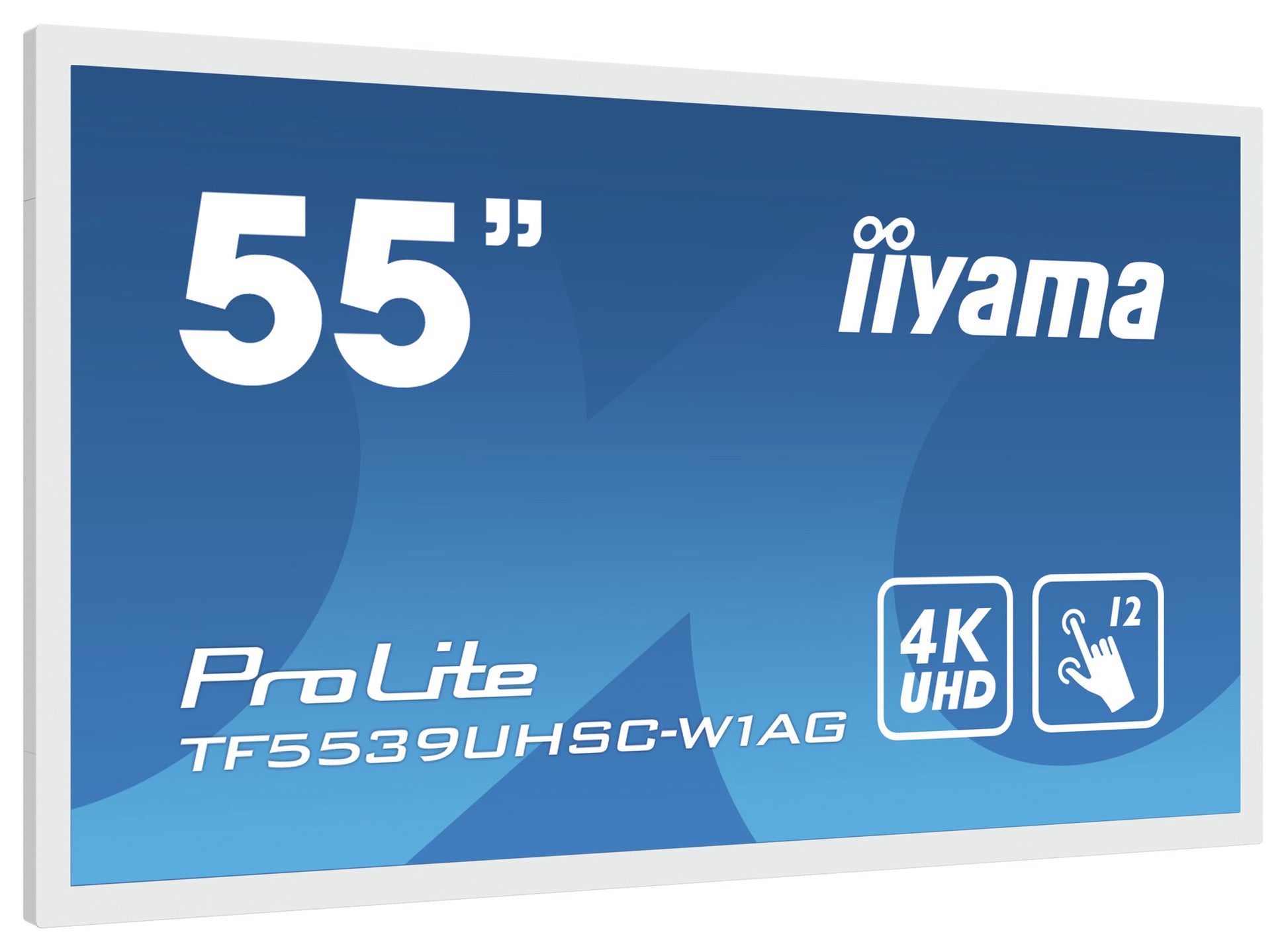

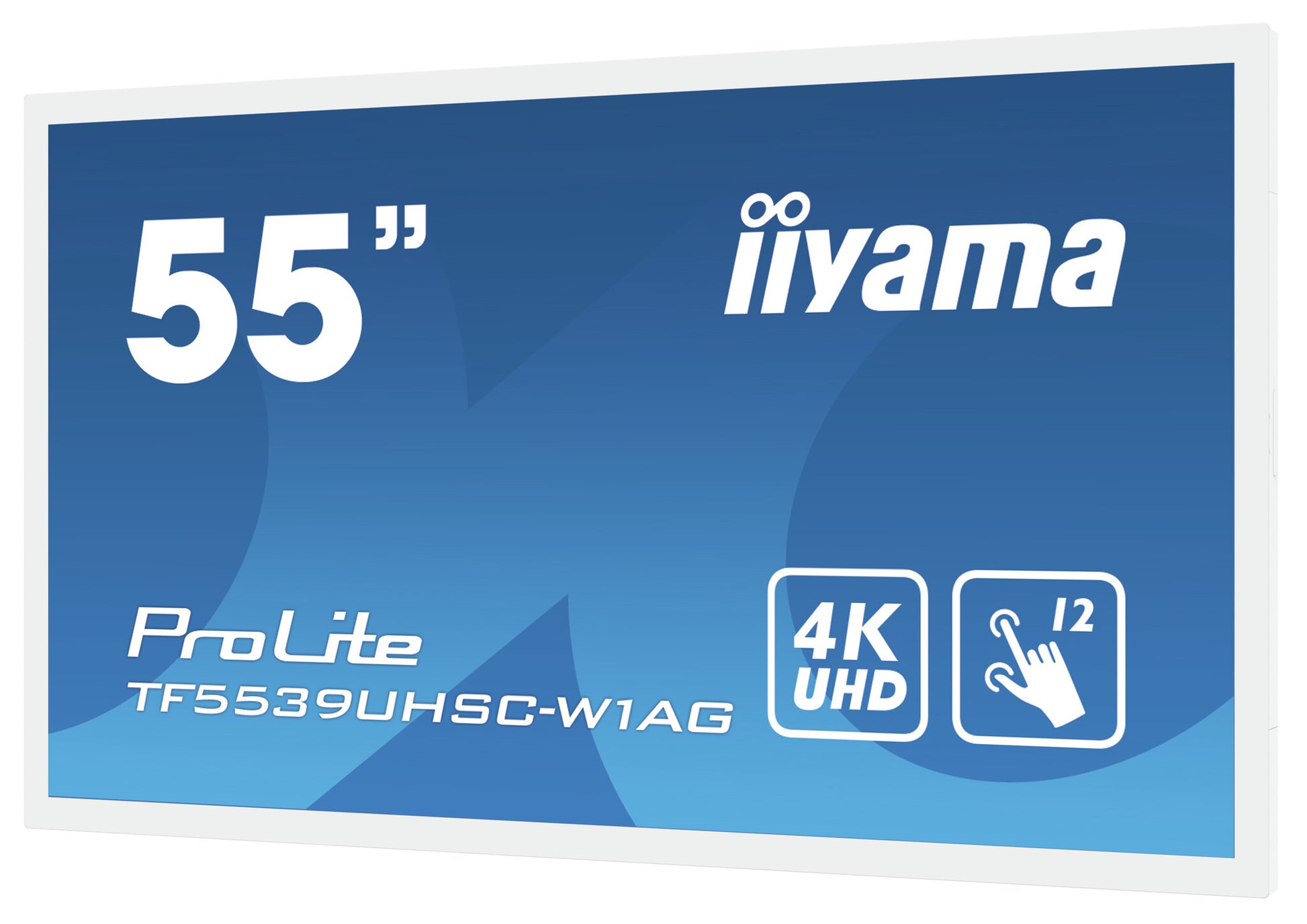

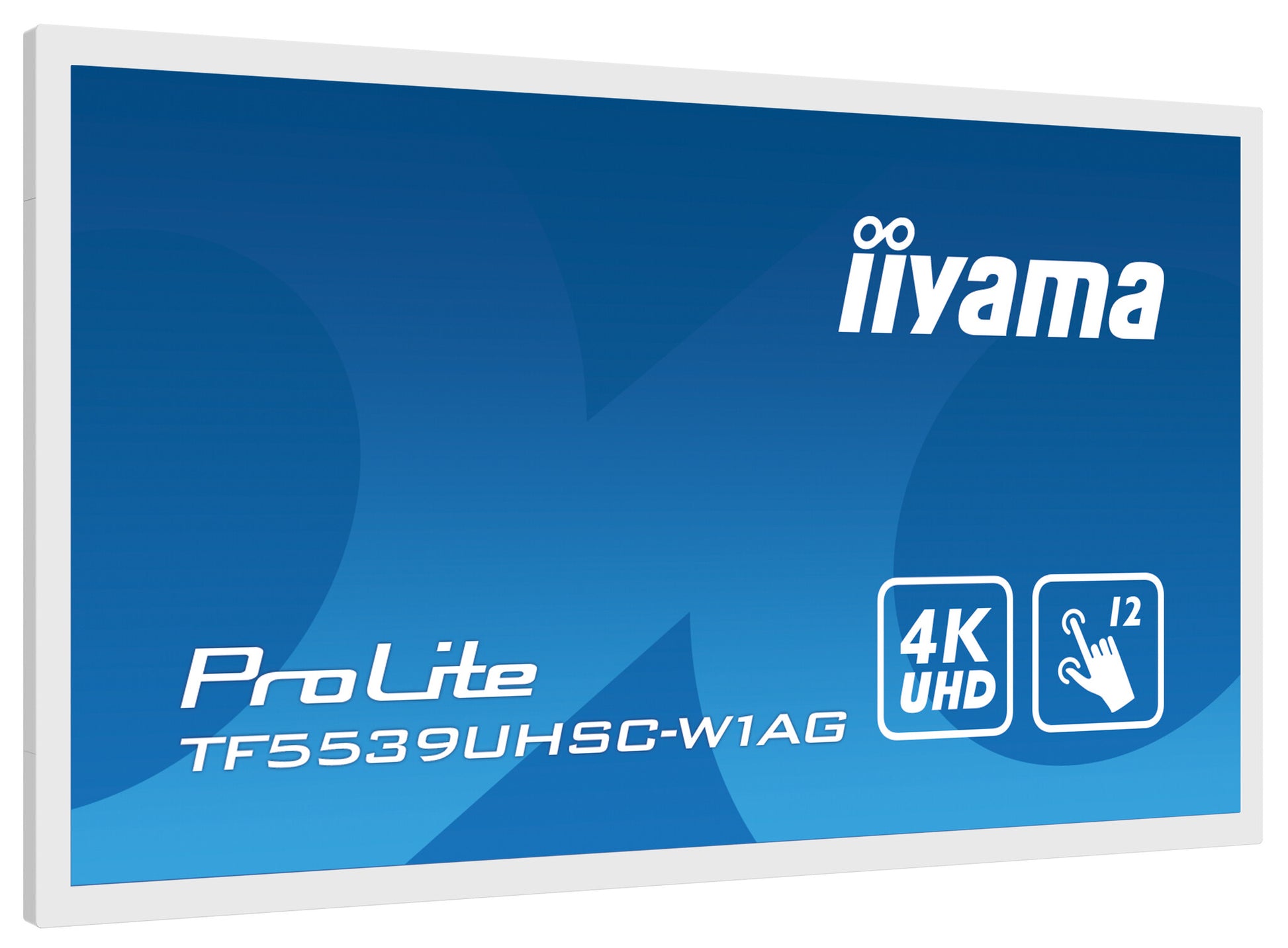

iiyama TF5539UHSC-W1AG

iiyama TF5539UHSC-W1AG

55 ", 3840 x 2160 @ 60Hz, IPS LED, 16:9, VGA, HDMI, DP, RS-232C, RJ-45, RMS 2x 8W, IP54, 1271.5x749.4x68 mm

  • Touchscreen 139.7 cm (55") LED IPS
  • 4K Ultra HD 3840 x 2160 pixels 16:9
  • 60 Hz 8 ms 1100:1
  • 155 W
  • SKU:4948570118076
  • GTIN/EAN:4948570118076
  • MPN:TF5539UHSC-W1AG

You need to login to view the price.

Add To Favorite
View full details

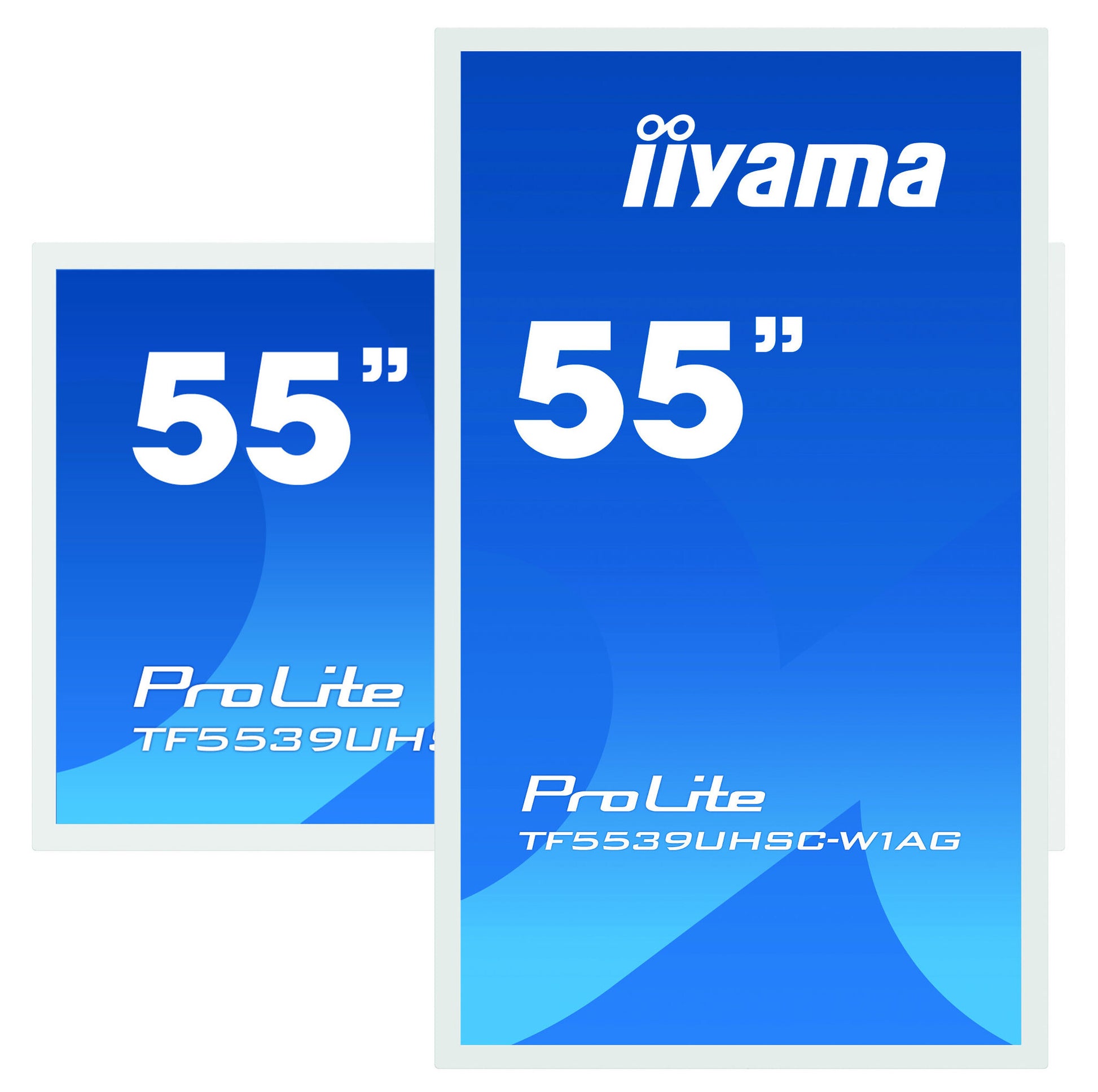

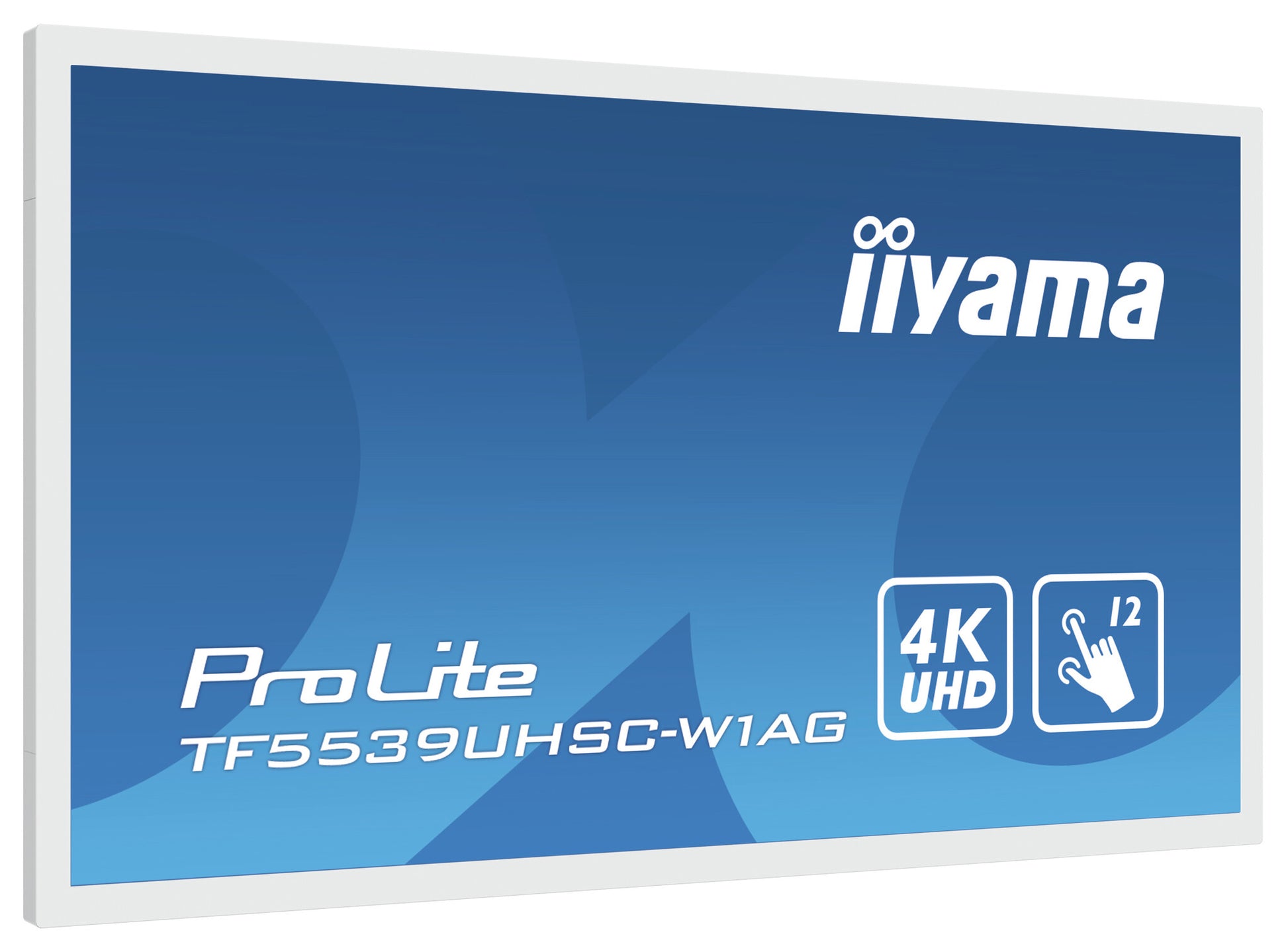

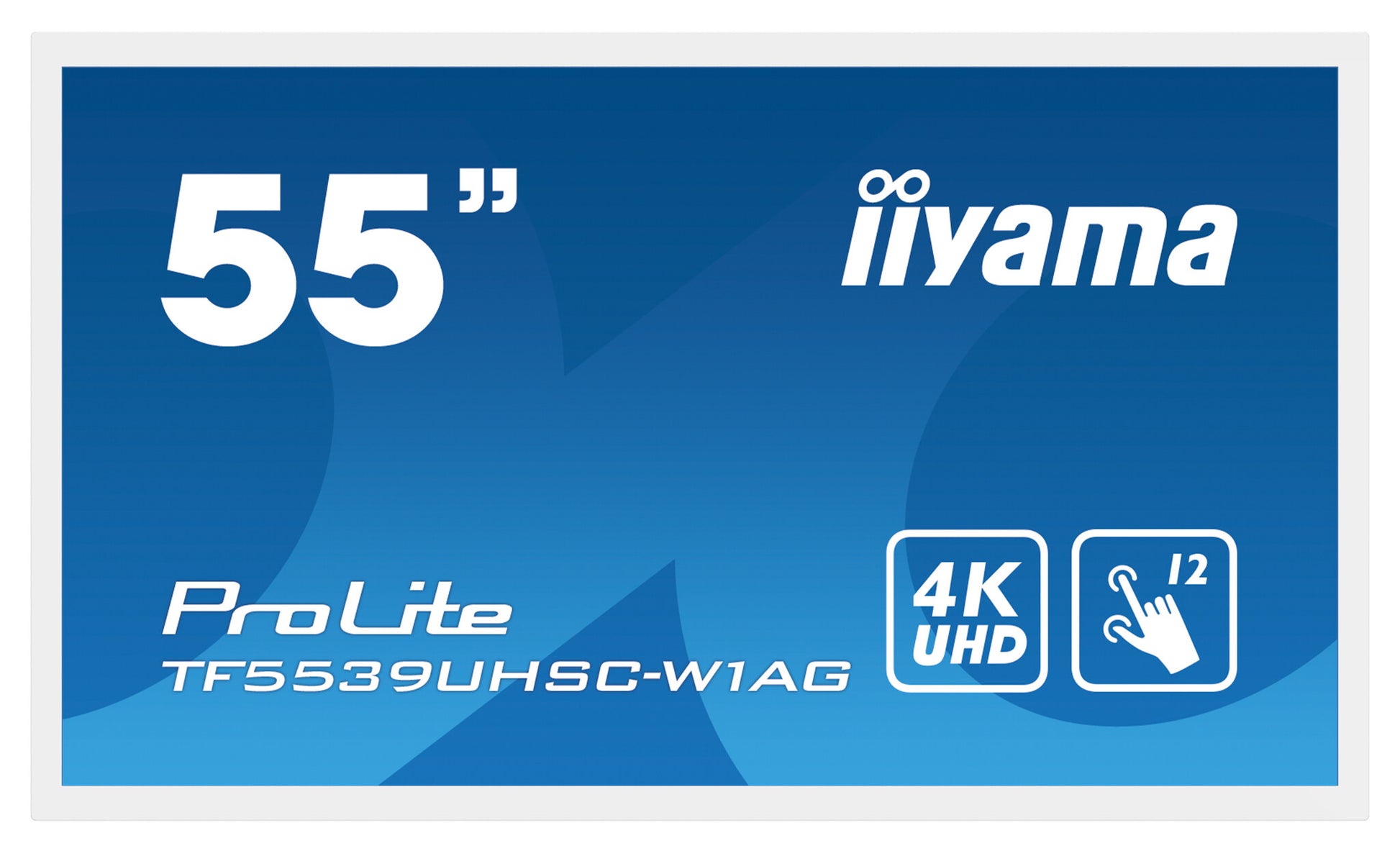

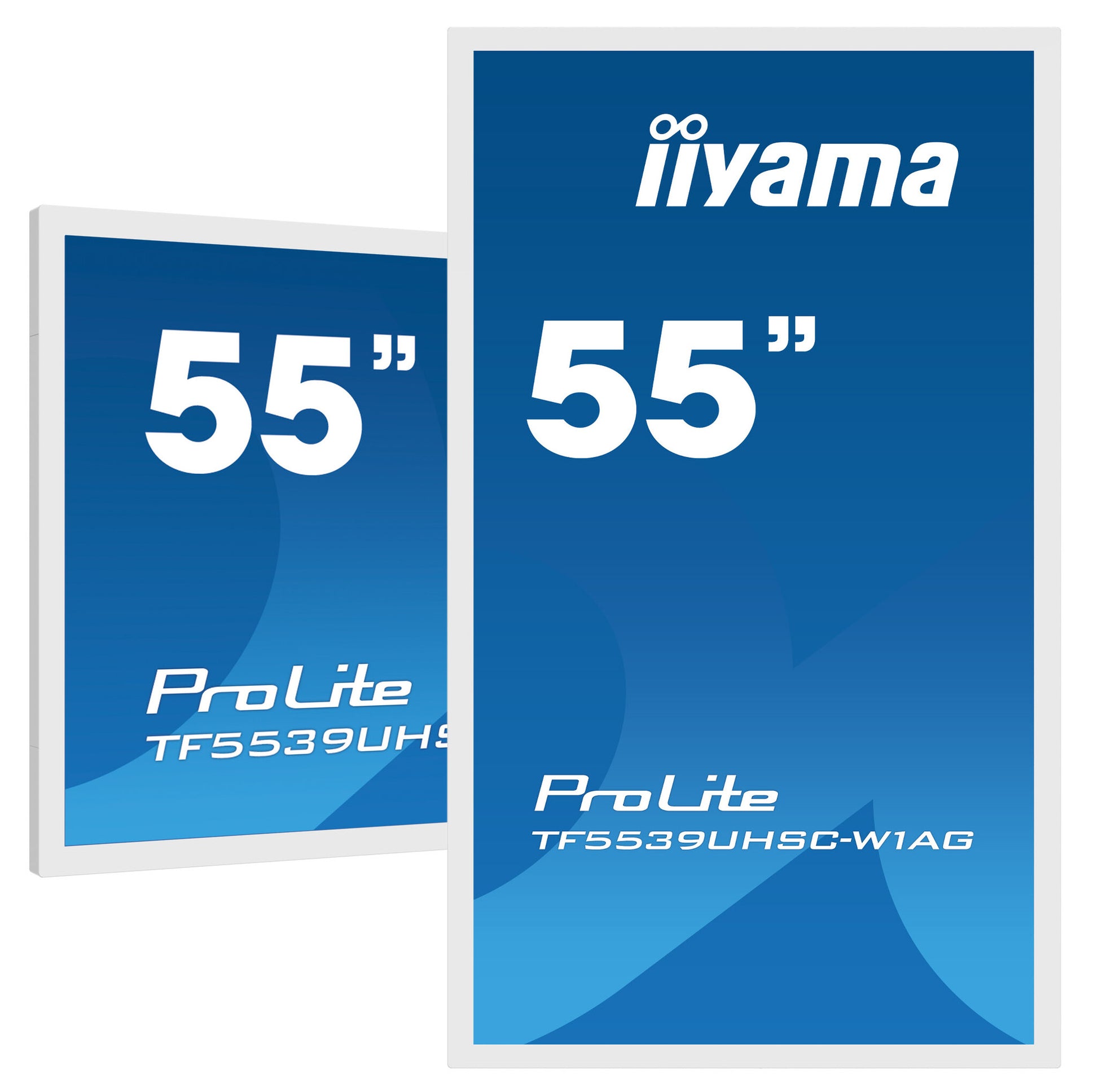

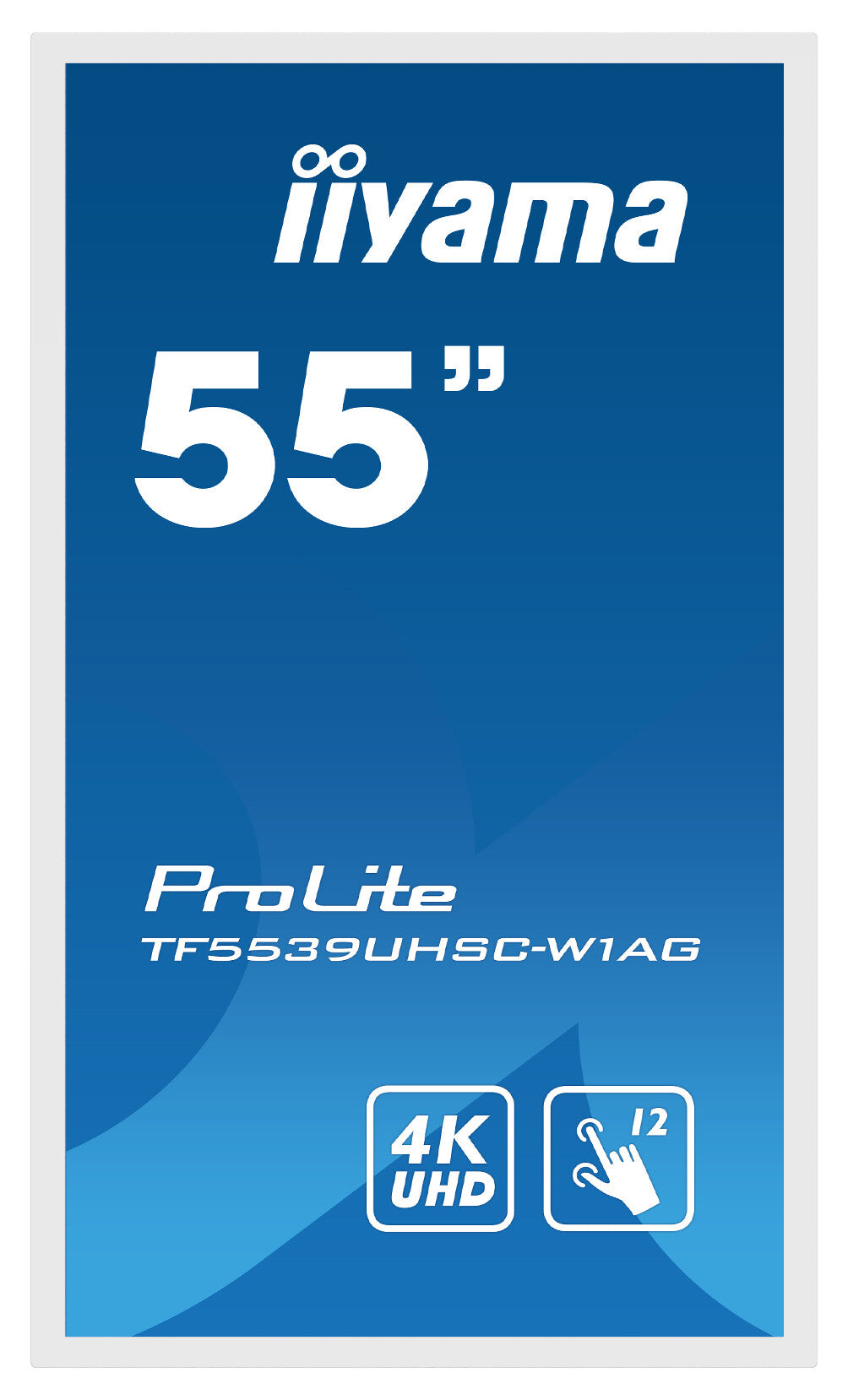

55" Open Frame PCAP interactive large format display with 15pt touch capability, IPS panel technology and touch through glass function for landscape, portrait or face up use

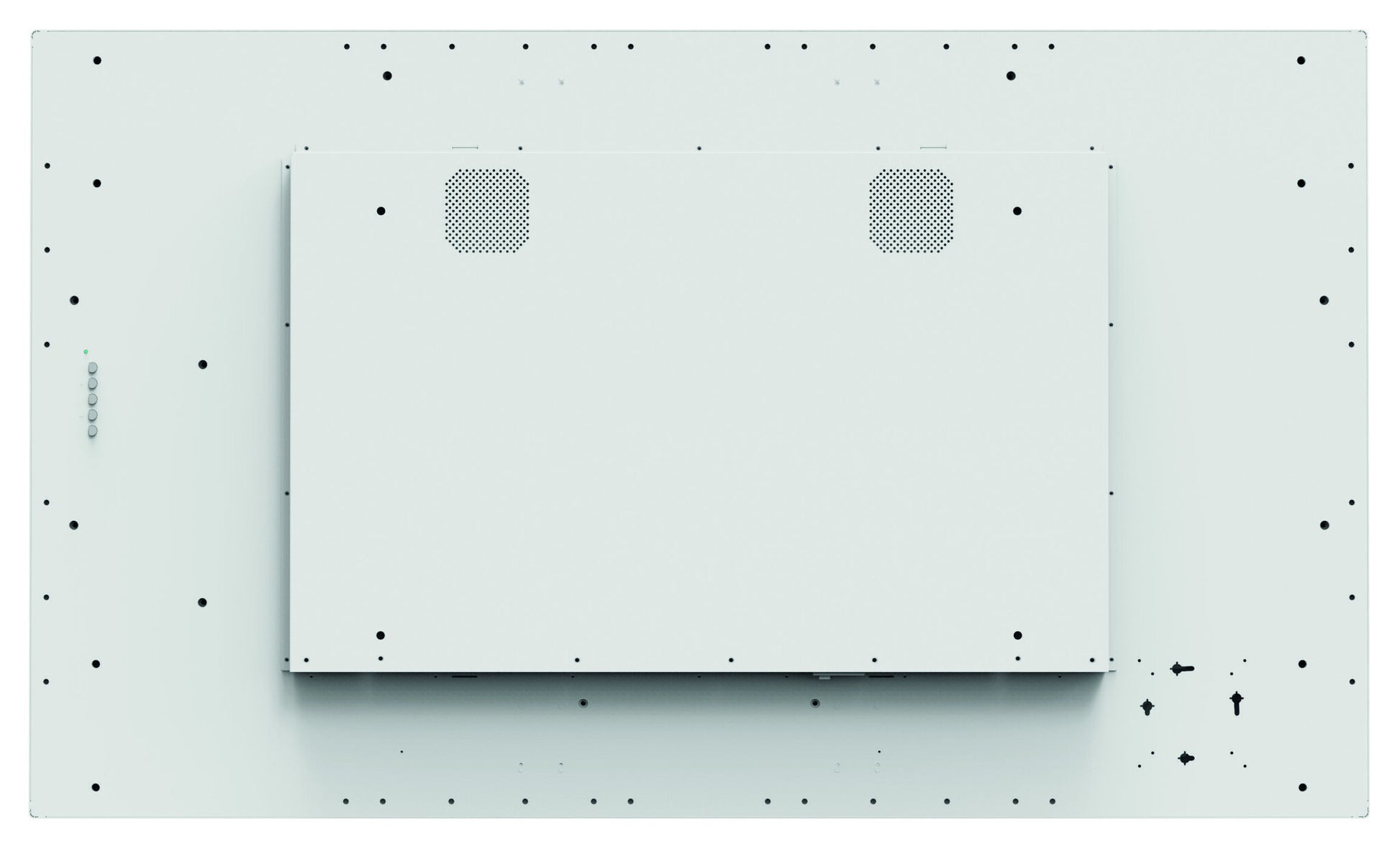

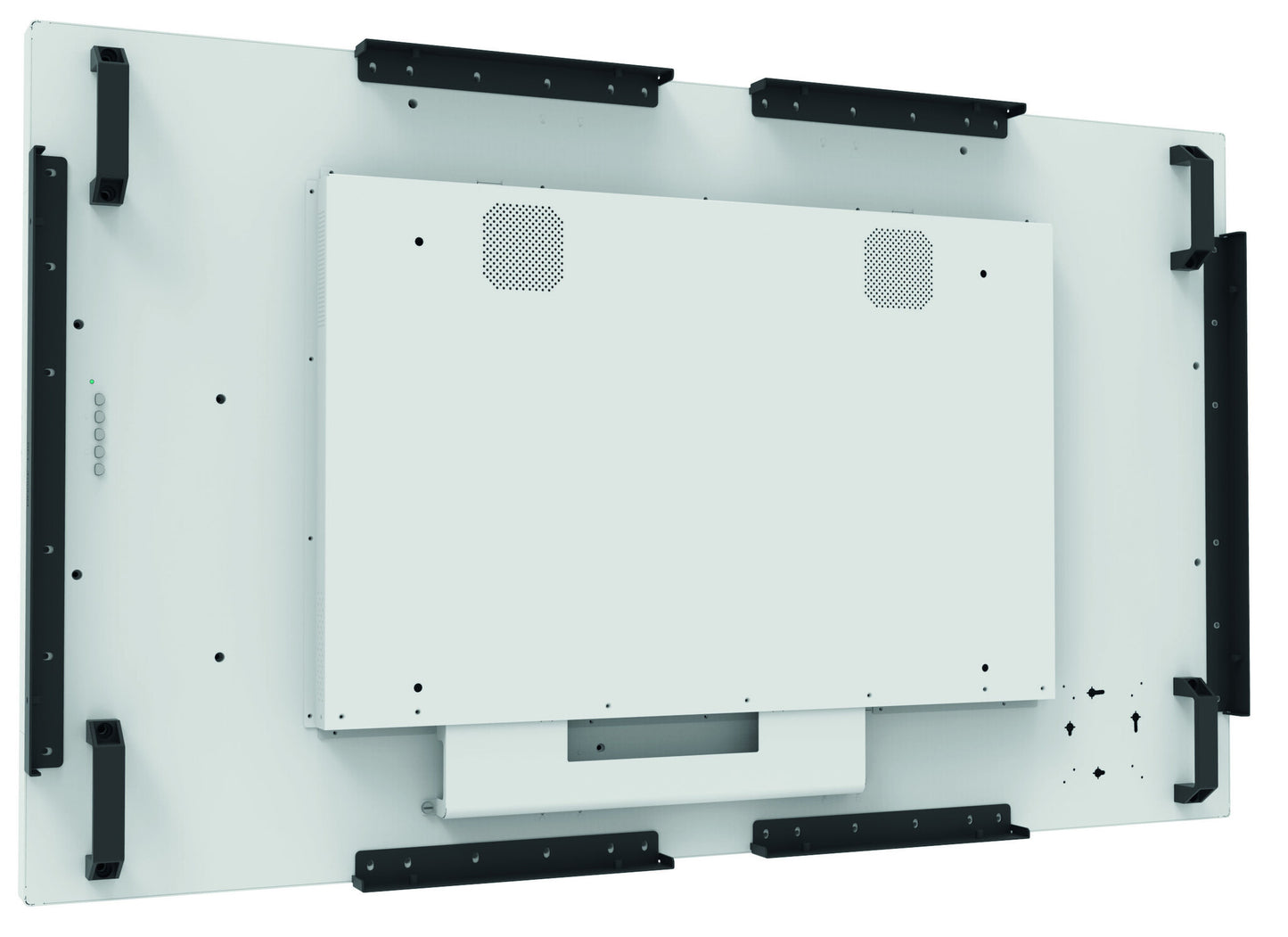

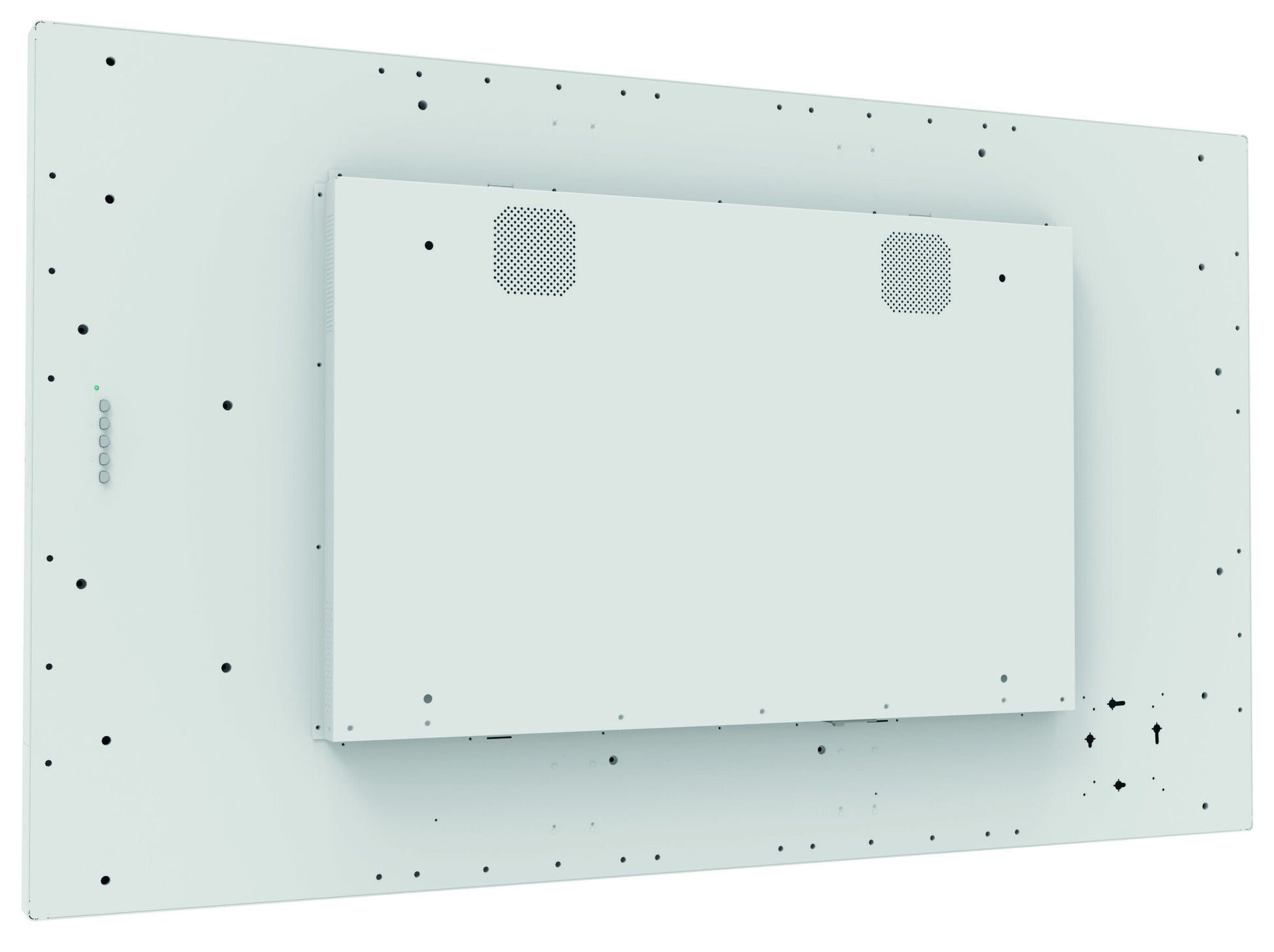

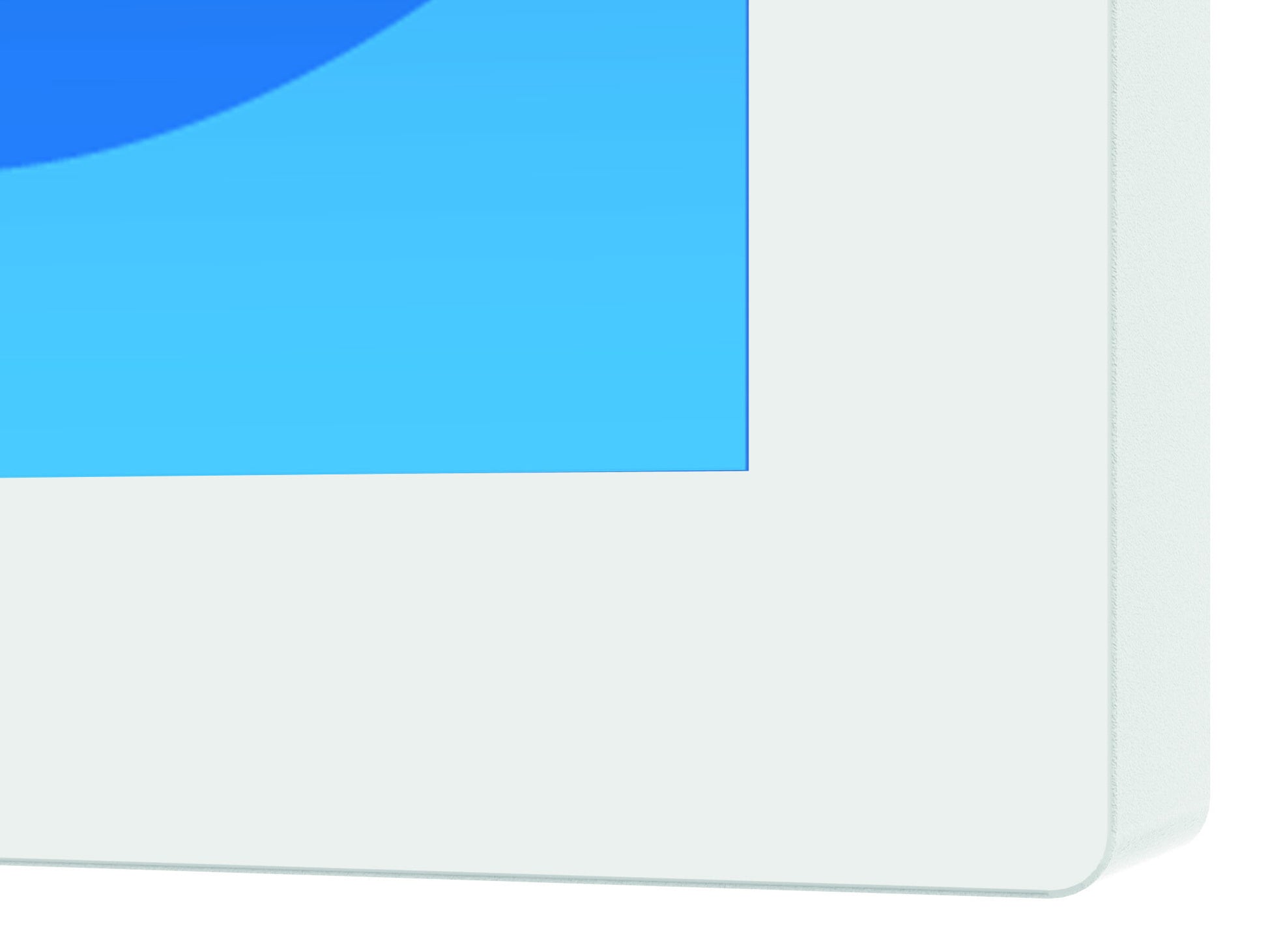

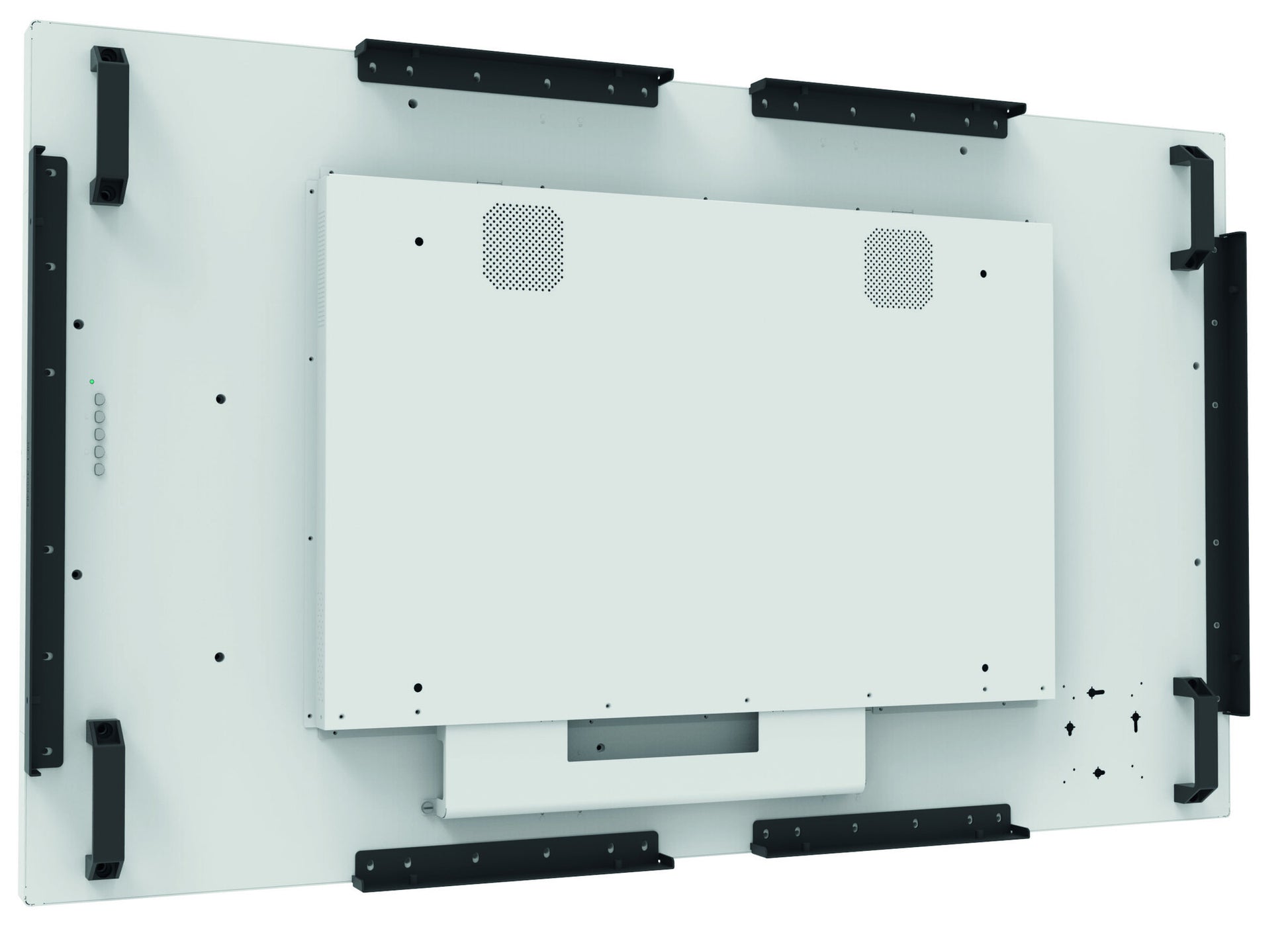

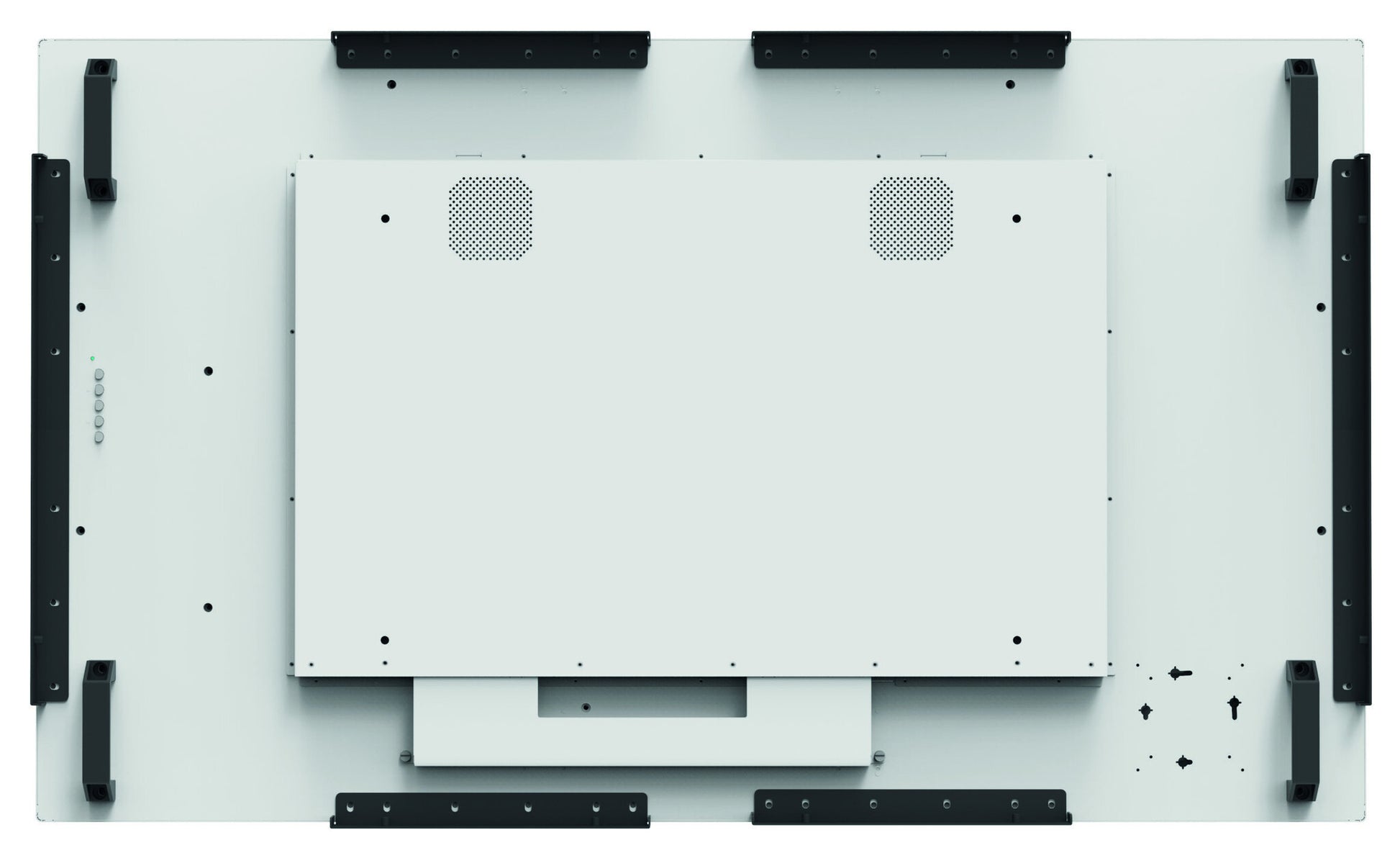

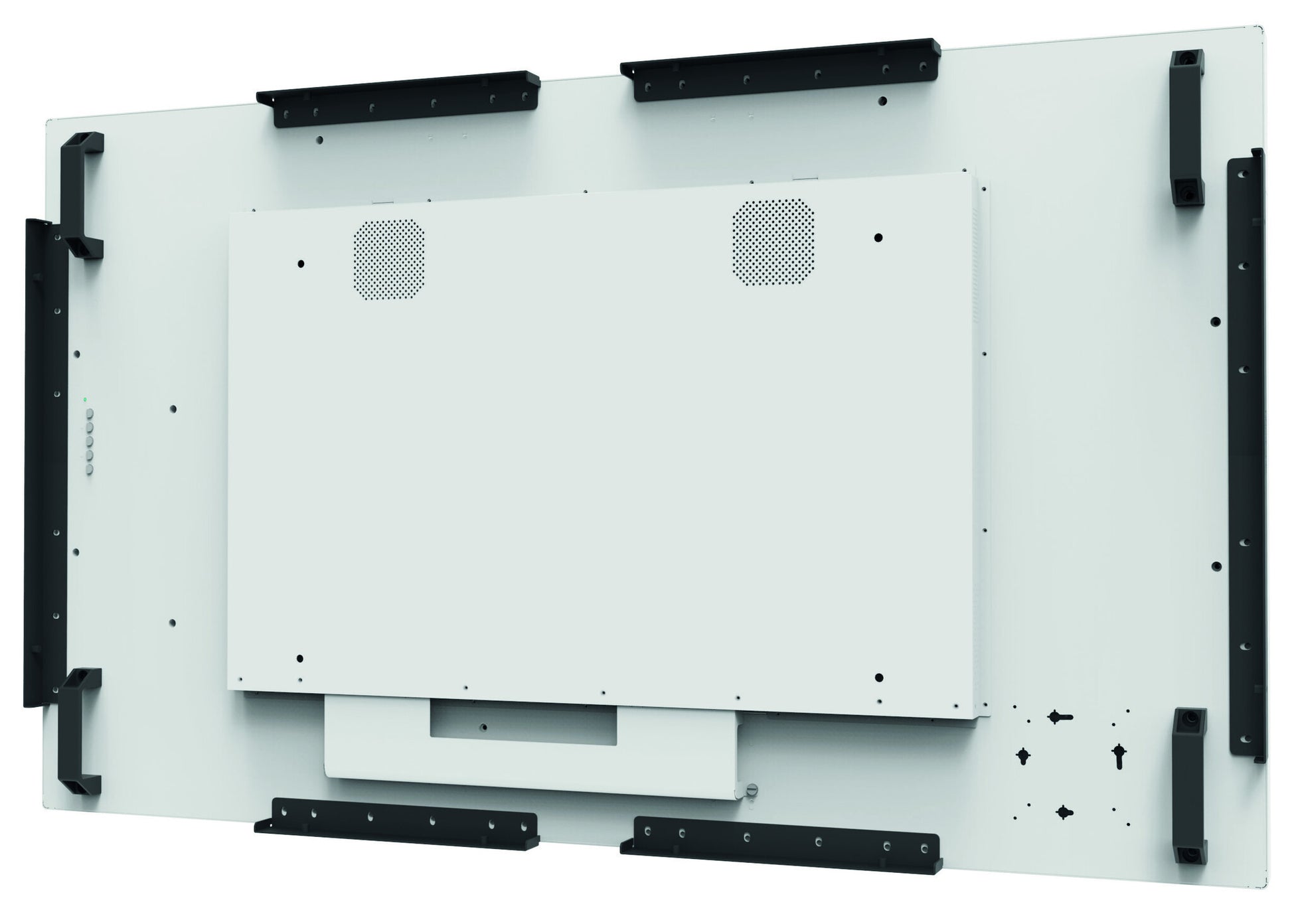

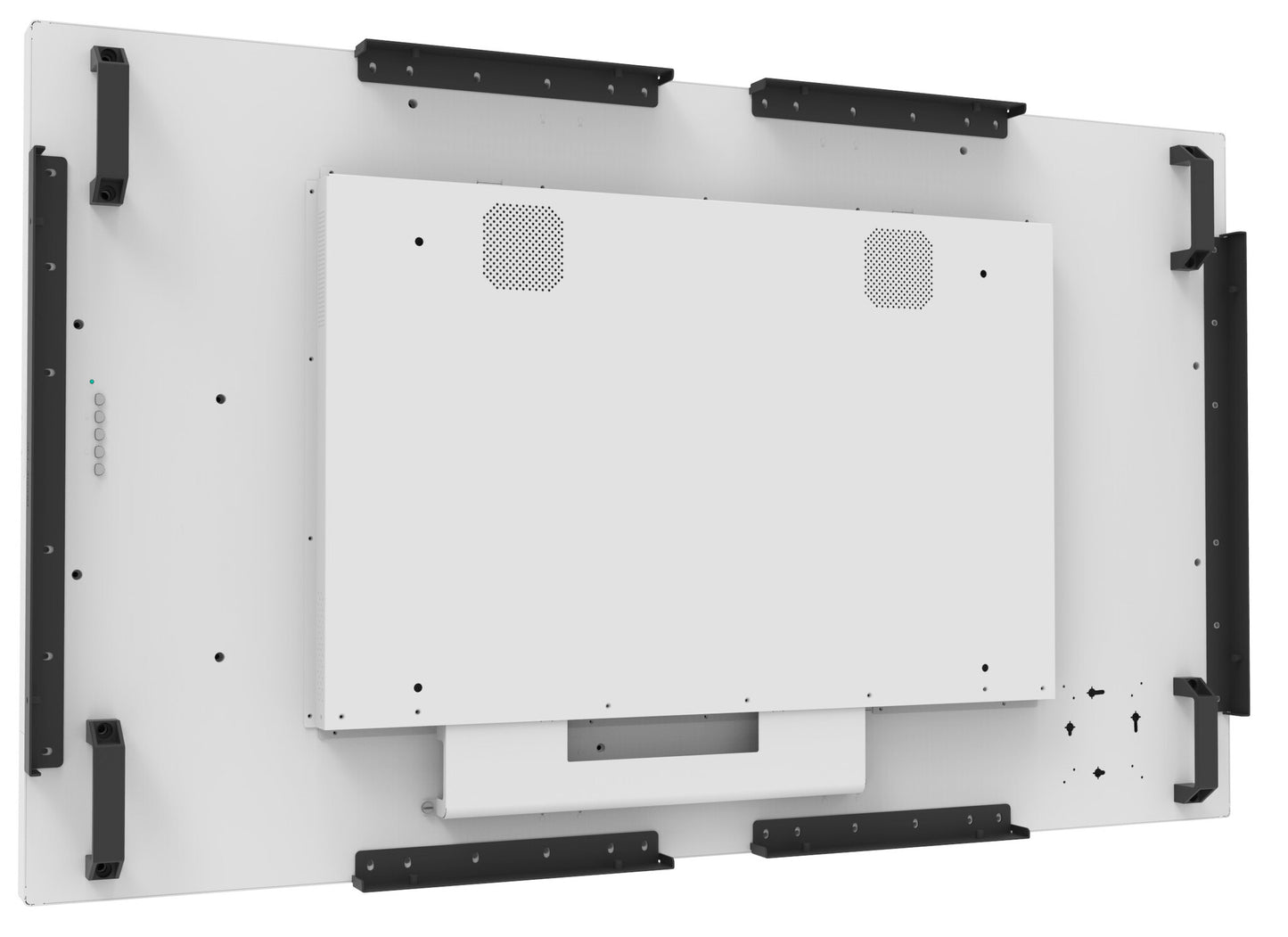

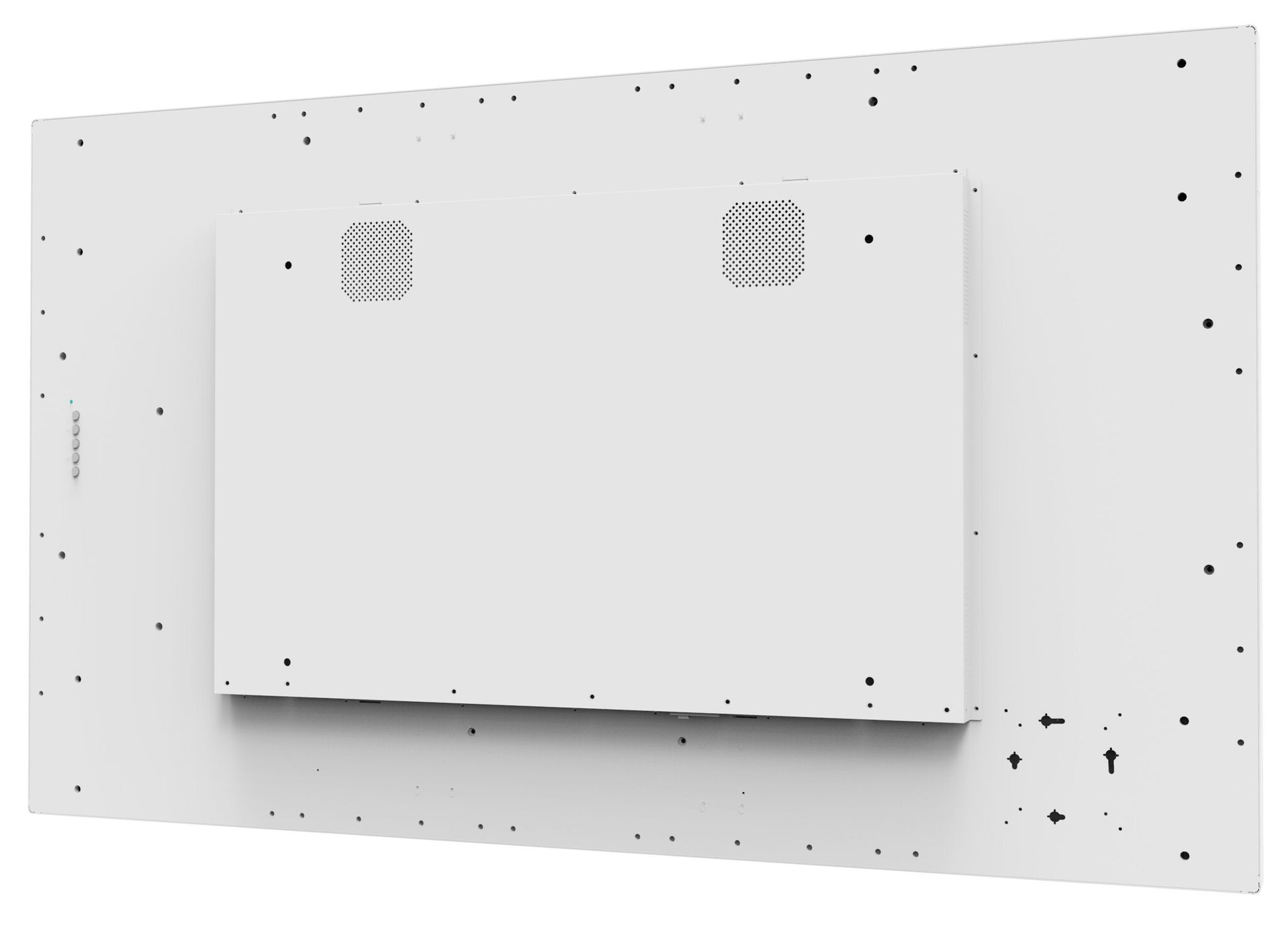

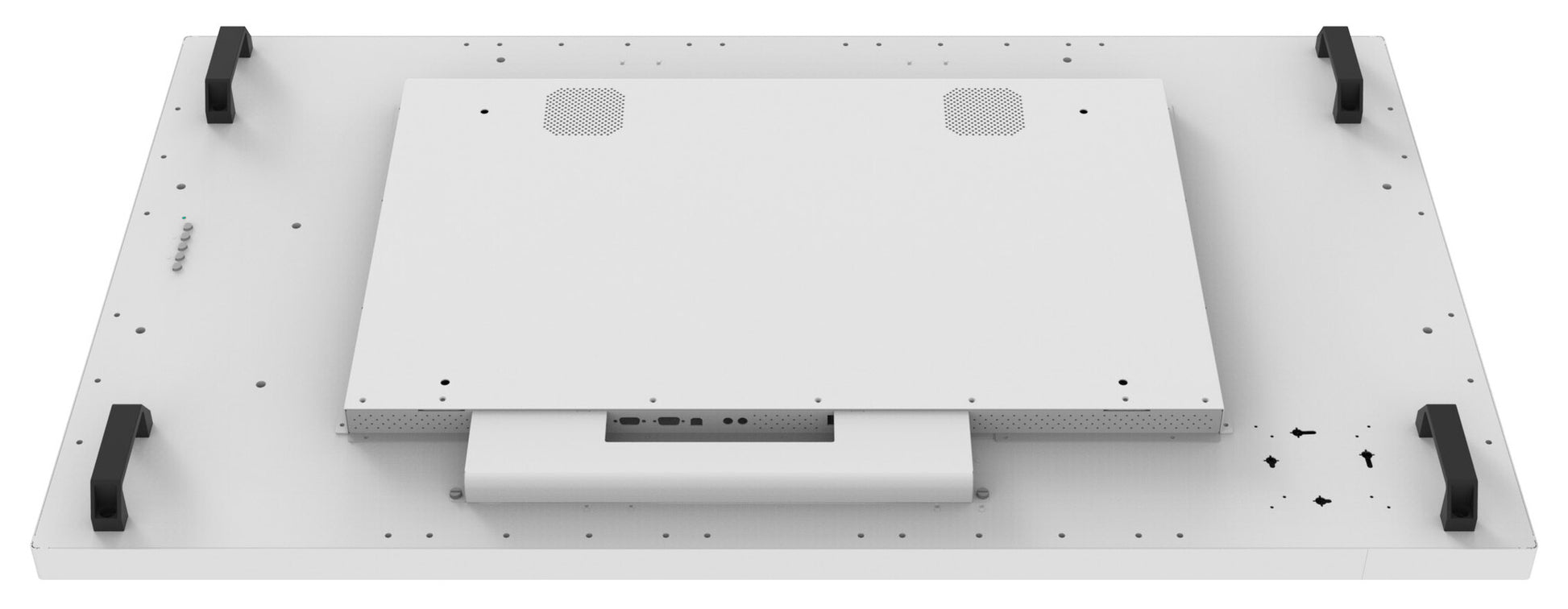

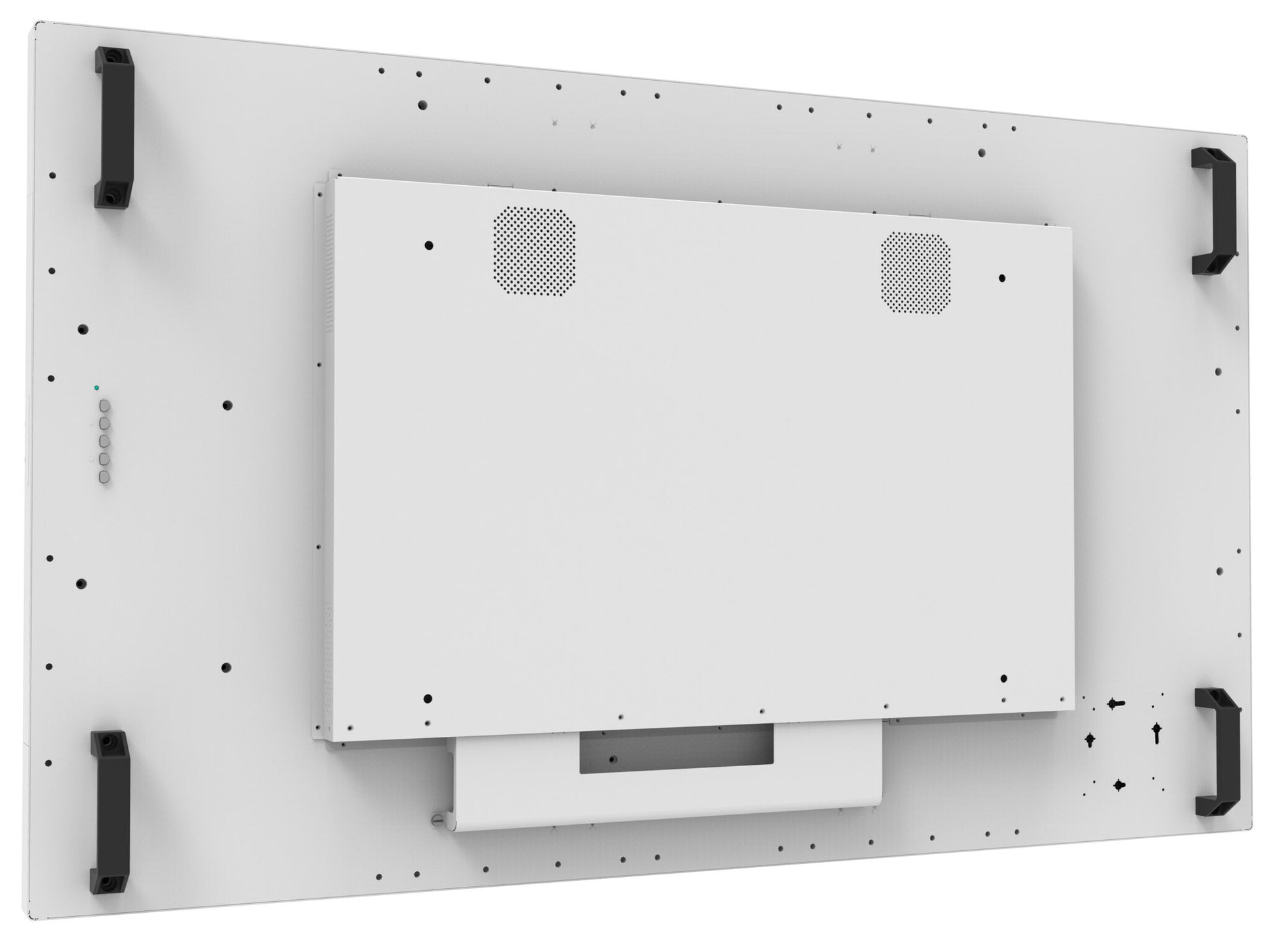

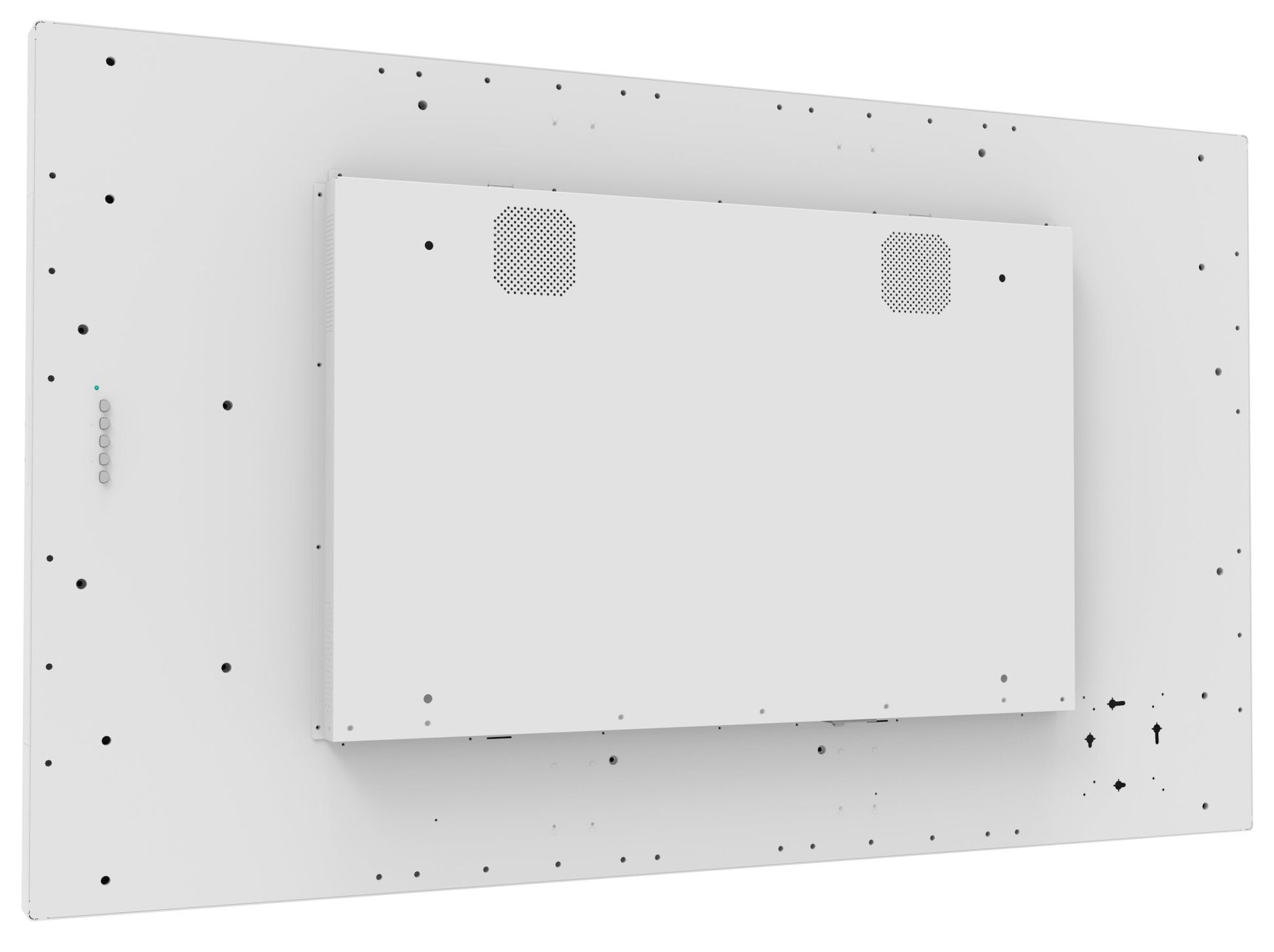

The 4K UHD (3840x2160) Open Frame TF5539UHSC-W1AG with Touch-Through-Glass function guarantees a seamless and accurate touch response for true kiosk integration or interactive behind-glass-retail applications. The IPS panel technology offers exceptional colour performance and wide viewing angles, making it a perfect solution for interactive shop windows, education, kiosks and in-store communications. Featuring a metal housing with 60950-1 ball-drop proof, scratch-resistant and edge-to-edge glass, this display can be installed in the most demanding environments for an 24/7 usage and in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF5539UHSC-W1AG can be equipped with optional external mounting brackets (OMK4-2) making it an ideal solution for kiosk integrators and interactive multimedia.

TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

Display
Digital horizontal frequency
30 - 83 kHz
Viewable size, vertical
68.3 cm
Viewable size, horizontal
121.2 cm
Display number of colours
16.78 million colours
Maximum refresh rate
60 Hz
Contrast ratio (typical)
1100:1
Screen shape
Flat
Display brightness
500 cd/m²
Response time
8 ms
Touchscreen technology
Projected capacitive system
Panel type
IPS
Display resolution
3840 x 2160 pixels
Display diagonal
139.7 cm (55")
Performance
AMD FreeSync
No
NVIDIA G-SYNC
No
Multimedia
RMS rated power
16 W
Number of speakers
2
Built-in speaker(s)
Yes
Design
International Protection (IP) code
IP54
Glass thickness
4 mm
Housing material
Metal
Product colour
White

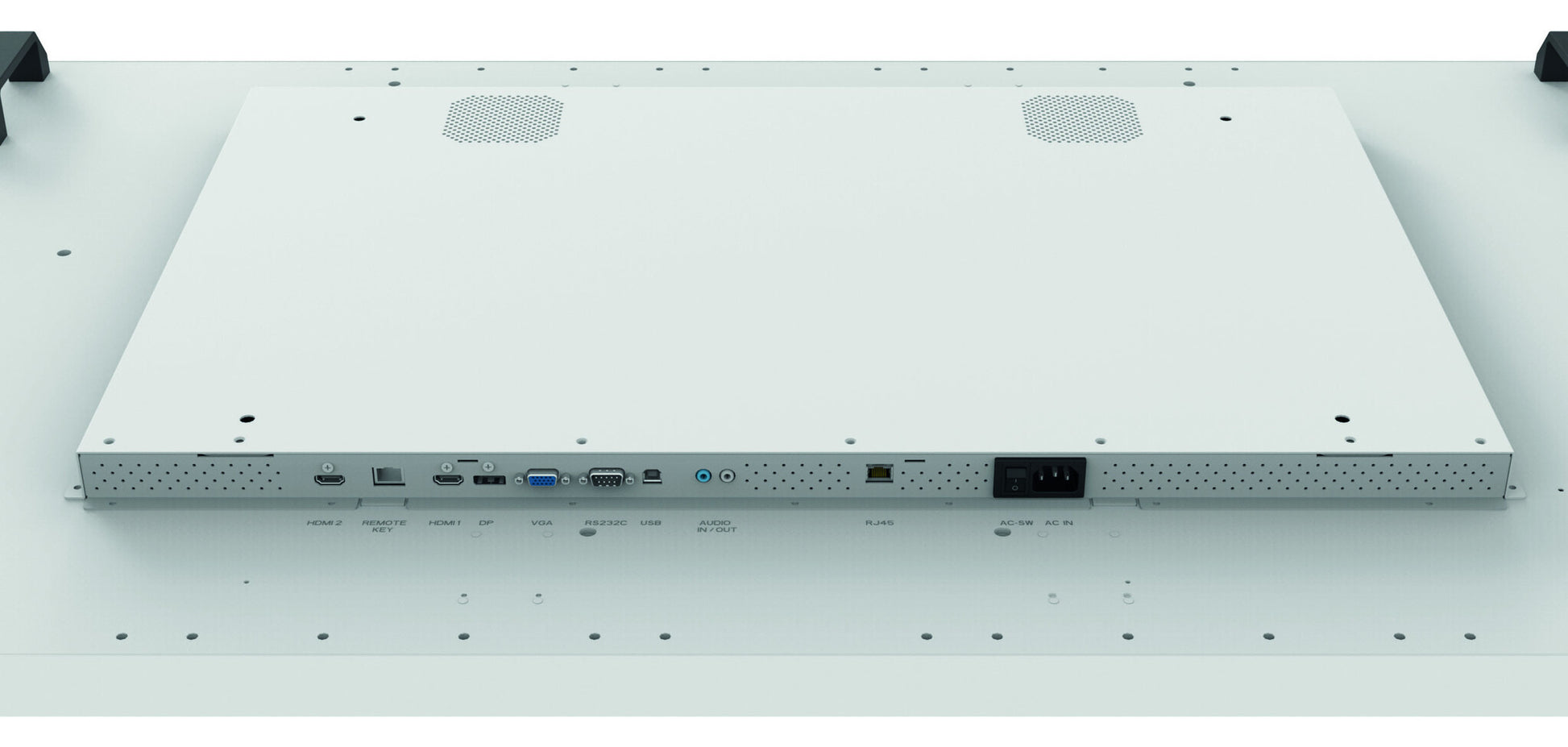

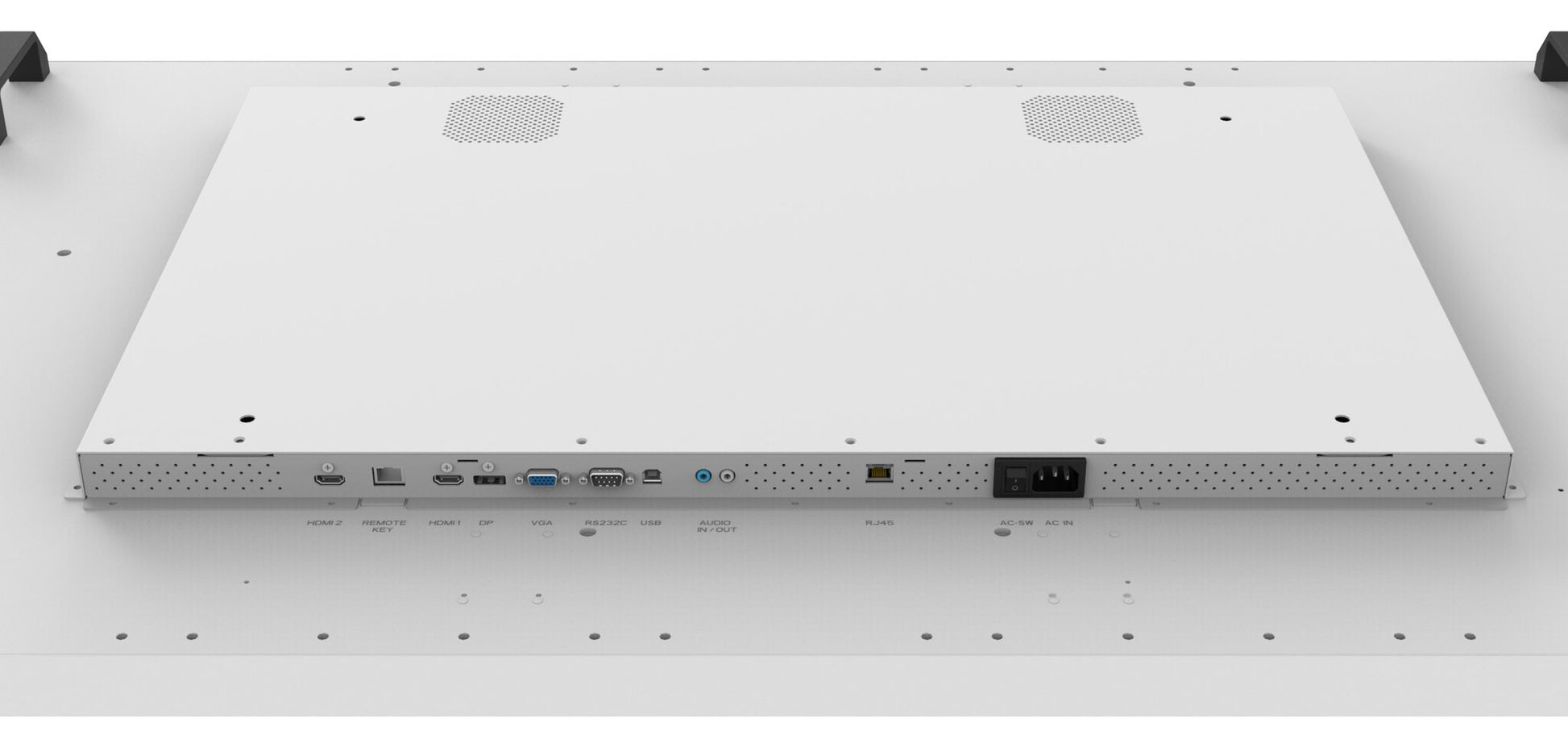

Ports & interfaces
RS-232C
Yes
Audio output
1
Audio input
1
DisplayPort version
1.2
HDMI version
1.4/2.0
Ergonomics
Wall mountable
Yes
Panel mounting interface
600 x 400 mm
VESA mounting
Yes
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (standby)
1.5 W
Power consumption (typical)
155 W
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Sustainability
European Product Registry for Energy Labelling (EPREL) code
431973
Algemeen
Productfamilie
ProLite
Weight & dimensions
Weight (without stand)
41 kg
Height (without stand)
749.4 mm
Depth (without stand)
68 mm
Width (without stand)
1271.5 mm
Packaging data
Package weight
46.5 kg
Package height
930 mm
Package depth
245 mm
Package width
1400 mm

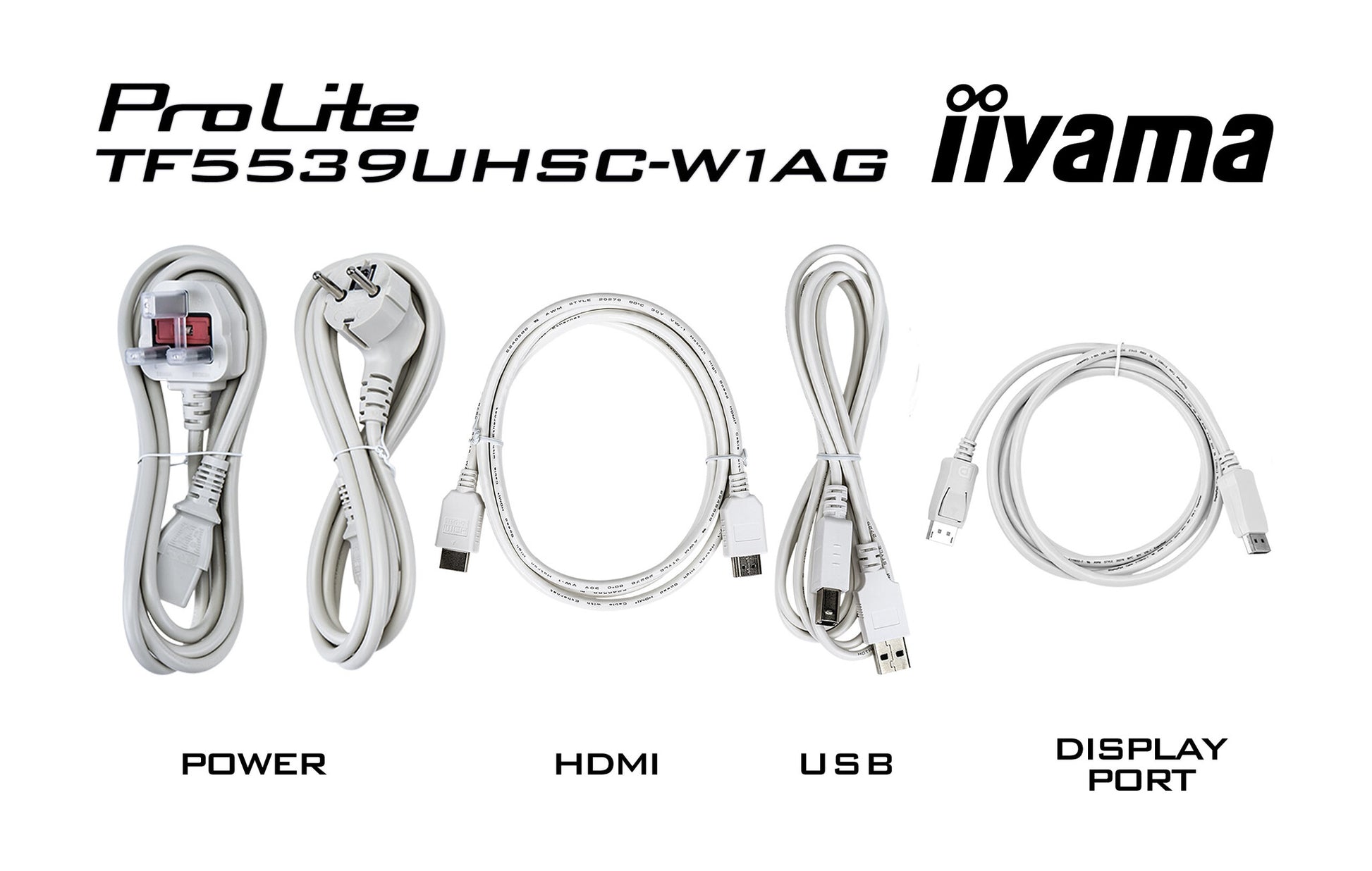

Cables included
DisplayPort, HDMI, LAN (RJ-45), USB
Logistics data
Harmonized System (HS) code
85285210
Other features
Ethernet LAN (RJ-45) ports
1
Mean time between failures (MTBF)
50000 h
Placement supported
Horizontal/Vertical
Surface hardness
Surface hardness
7H
HDCP
Yes
Display diagonal (metric)
139 cm
Built-in microphone
No
Pixel pitch
0.315 x 0.315 mm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
DisplayPorts quantity
1
HDMI ports quantity
2
HDMI
Yes
VGA (D-Sub) ports quantity
1
Number of simultaneous touchpoints
15
Touchscreen type
Multi-user
Touch technology
Multi-touch
Built-in camera
No
Display technology
LED
Native aspect ratio
16:9
HD type
4K Ultra HD
Touchscreen
Yes
