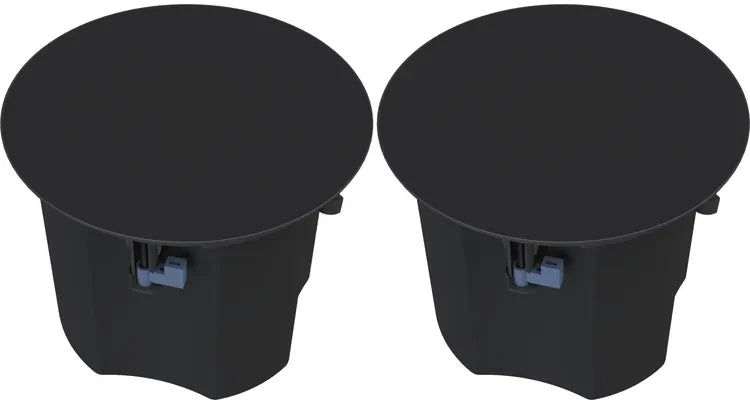

Origin PRO PC60B-TB

The Origin PRO PC60B-TB is a professional-grade 6.5-inch 2-way in-ceiling loudspeaker designed for commercial distributed audio installations. Sold as a black pair and bundled with a tile bridge for drop-ceiling compatibility, it suits retail environments, houses of worship, corporate spaces, and hospitality venues. The speaker delivers audiophile-grade sonics through a zinc-plated metal enclosure, multi-tap 70V/100V transformer, and patented DSPD tweeter with Multi-Motion Pivot. Integrator-friendly features — including heavy-duty dog-ears, a conduit lock, euro-block connections, and a safety strap attachment point — make it ready for demanding commercial installs where quality, reliability, and minimal ceiling impact are essential.

Patented Multi-Motion Pivot Tweeter

The PC60B uses Origin PRO's patented Multi-Motion Pivot (MMP) technology, which allows the 1-inch Silk DSPD tweeter to tilt up to 30 degrees independently of the woofer. In most standard in-ceiling speakers, the high-frequency driver fires straight down — meaning rooms with off-centre seating or irregular shapes will suffer uneven treble response. With MMP, the installer can angle the tweeter toward the primary listening zone during mounting, correcting dispersion without repositioning the entire speaker. The result for listeners is consistently clear, present audio regardless of where they sit relative to the ceiling cutout — a meaningful difference in retail aisles, restaurant dining areas, or tiered seating in a house of worship.

Transparent 70V-100V Multi-Tap Transformer

The PC60B integrates a premium nearly-transparent multi-tap transformer directly into the enclosure, switchable from the front-mounted tap switch without tools. Taps are available at 60W, 30W, 15W, and 7.5W on 70V; and 60W, 30W, and 15W on 100V. This flexibility means the same speaker can drop into a small retail zone at low wattage or anchor a larger distributed system at full power — without any external device changes. The 'nearly transparent' transformer design preserves audio fidelity across the full frequency range, avoiding the midrange roll-off and high-frequency loss common in budget commercial speakers. For integrators, front-accessibility of the tap switch dramatically reduces commissioning time, particularly in drop-ceiling environments where repeated access would otherwise be disruptive.

115° coverage. 108 dB SPL. Zero compromise on fidelity.

UL 1480A & UL 2043 certified · Limited 5-year warranty

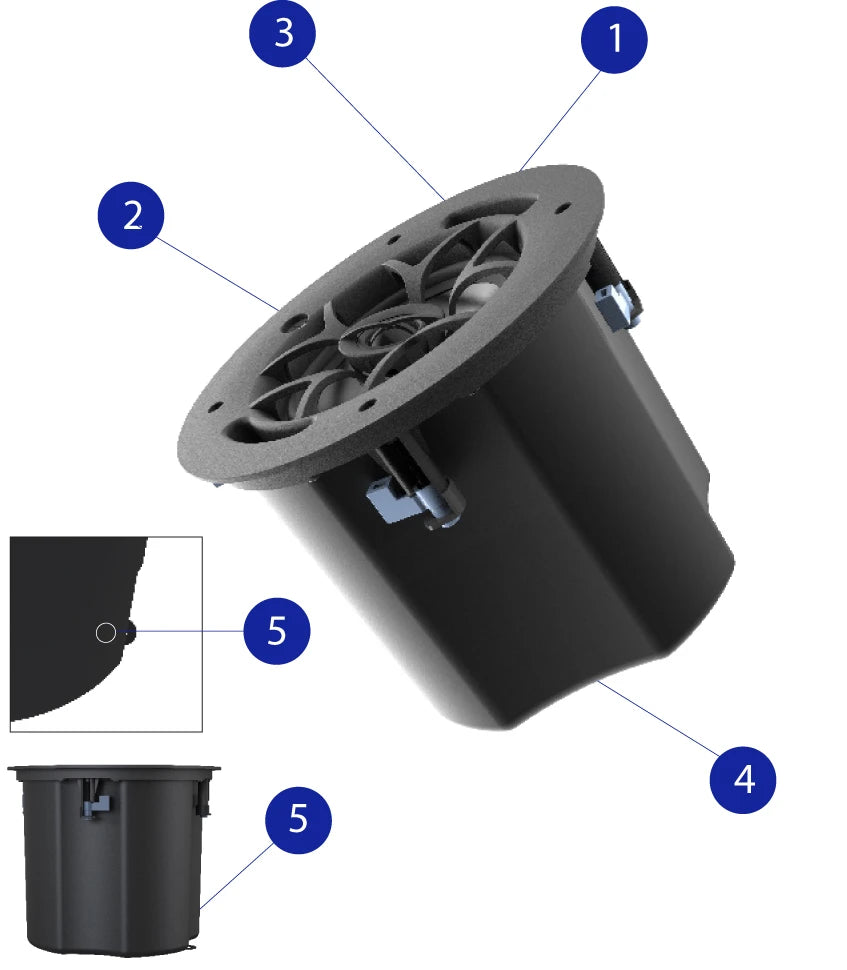

Integrator-Ready Mechanical Design

The PC60B-TB is built around a zinc-plated metal can enclosure with features specifically chosen to reduce installation time and long-term service calls. Heavy-duty spring-loaded dog ears clamp the speaker firmly into drywall or tile without additional hardware. The integrated conduit lock secures cable conduit at the enclosure, keeping wiring tidy and preventing accidental pull-out. Secure euro-block (Phoenix) connectors eliminate the loose wire connections that can loosen over time with vibration or thermal expansion. A safety strap attachment point is also included for compliance in seismic zones — a requirement in many US commercial building codes. Together, these features mean a faster, more reliable install that holds up over the long term.

Tile Bridge for Drop-Ceiling Compatibility

The -TB suffix denotes that this kit includes a tile bridge — a hardware bracket specifically designed for suspended grid ceilings. Without a tile bridge, in-ceiling speakers in drop-ceiling environments require cutting through the ceiling tile, which is fragile, non-reversible, and can compromise the grid. The included tile bridge allows the speaker assembly to rest on and clamp to the ceiling grid frame itself, keeping the tile intact and making future service or repositioning straightforward. This is a practical advantage in commercial spaces such as offices, retail chains, and hospitality venues — where ceiling systems may be managed by a facilities team rather than the installing integrator, and where non-destructive installation is often a contractual or design requirement.

UL 1480A & UL 2043 Safety Compliance

The PC60B holds UL 1480A certification for commercial and professional loudspeaker use, and UL 2043 certification for heat and smoke release in air-handling spaces — the key safety standard for speakers installed above suspended ceilings, where they sit inside the plenum. UL 2043 compliance is a code requirement in most US commercial construction governed by NFPA 90A and NFPA 70, and is increasingly scrutinised by building inspectors in renovation projects. Products without this listing can trigger failed inspections or require rework. Specifying a UL 2043-listed speaker from the outset protects both the integrator and the end customer against compliance risk and the cost of replacing installed hardware.

Patented DSPD Tweeter for Low-Distortion Highs

The 1-inch Dual Plane Stabilized Diaphragm (DSPD) tweeter is an Origin PRO proprietary design that stabilises the dome diaphragm across two planes simultaneously, reducing the flexing distortions that affect conventional dome tweeters at moderate-to-high SPL. Practically, this enables a lower crossover point — meaning the woofer hands off to the tweeter earlier in the frequency range, in a region where the woofer is already beginning to beam and distort. The crossover therefore operates in a cleaner window for both drivers, producing smoother midrange response and cleaner upper-treble detail. In a retail or restaurant environment playing background music or intelligible speech, this translates to a noticeably natural tonal character that does not fatigue over extended periods.
