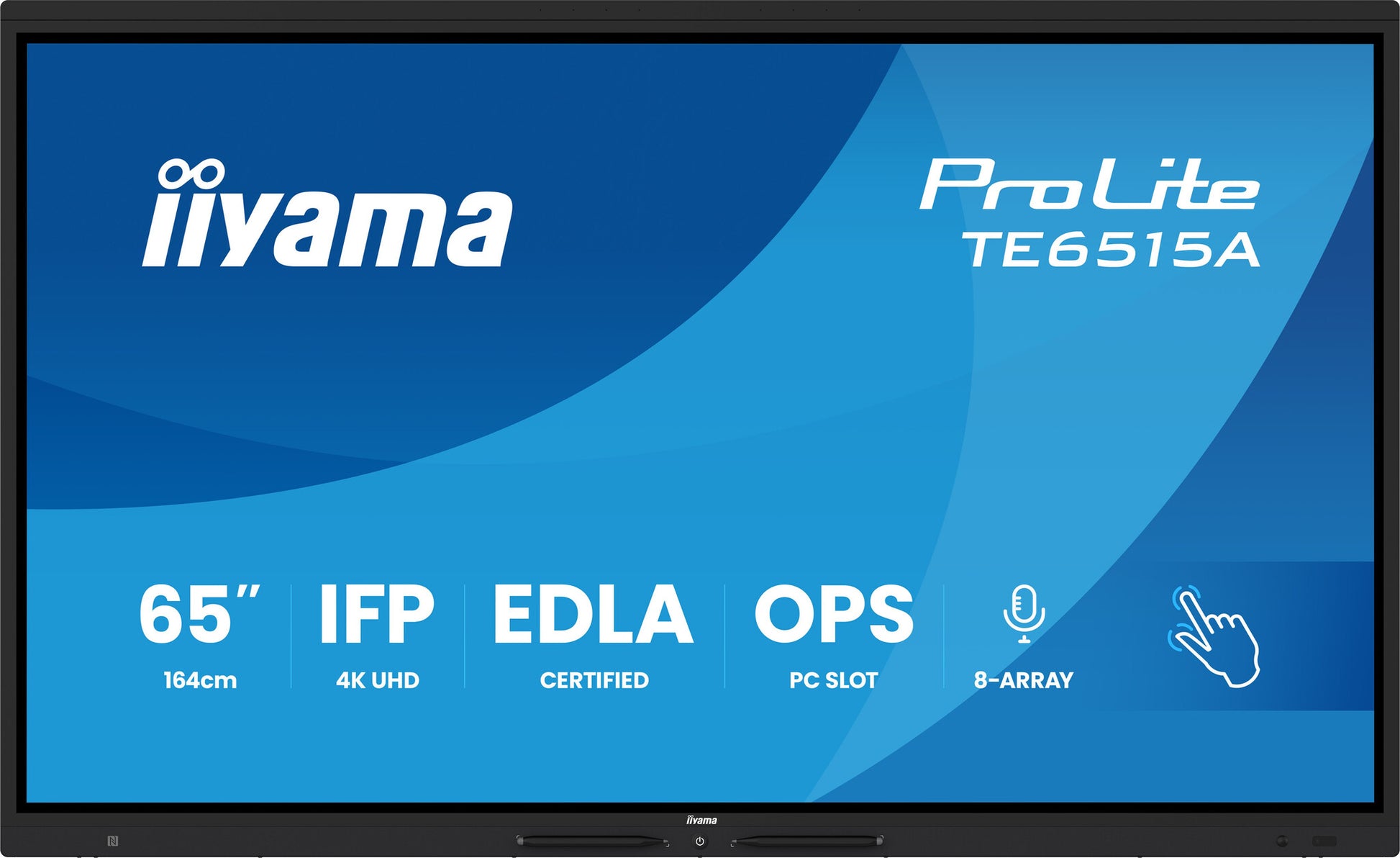

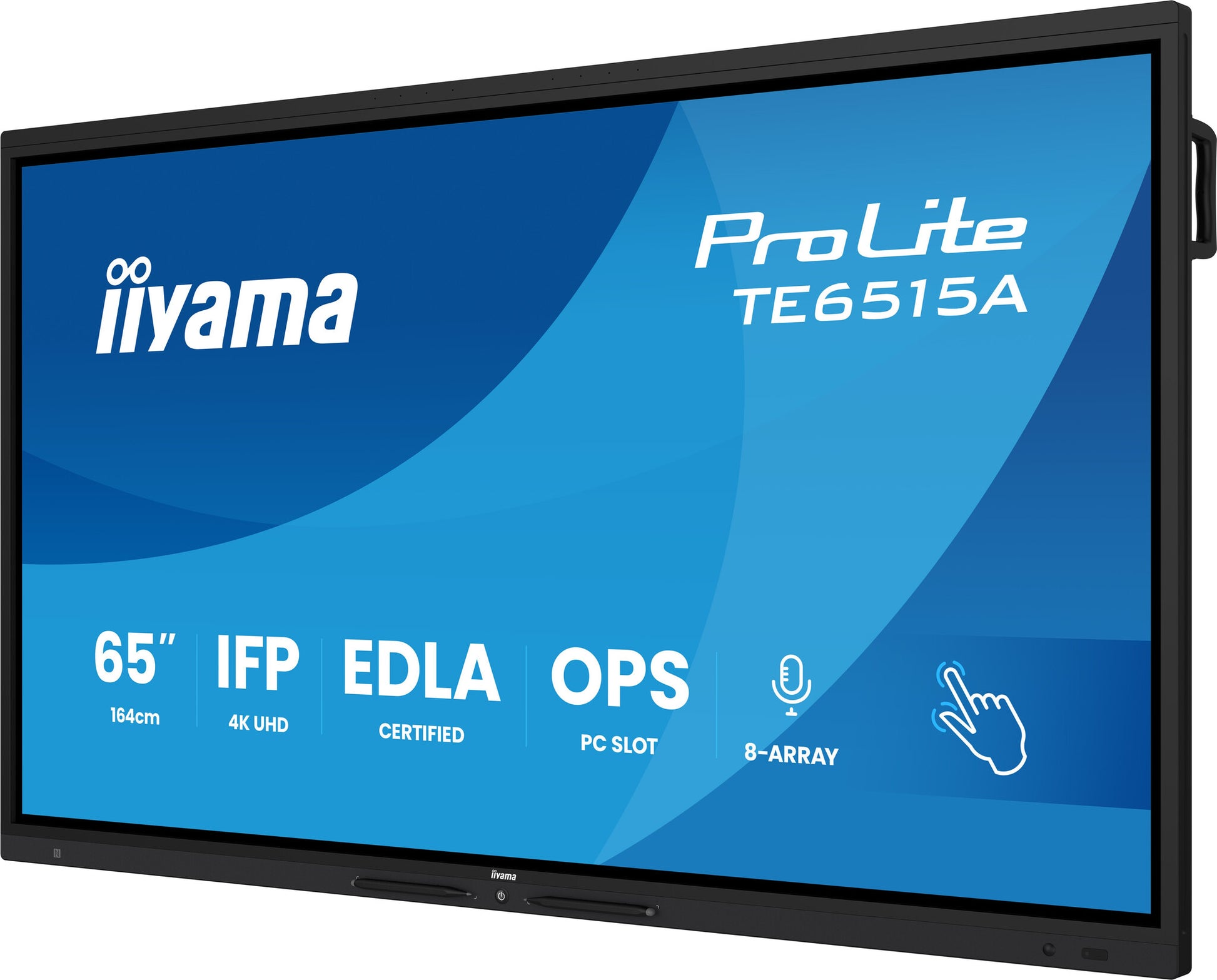

iiyama TE6515A-B2AG Signage Display Kiosk design 163.8 cm (64.5") Wi-Fi 550 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 24/7

iiyama TE6515A-B2AG Signage Display Kiosk design 163.8 cm (64.5") Wi-Fi 550 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 24/7

65” 4K UHD Google EDLA Certified IFP Interactive Display – Where Design Meets Performance

  • Indoor Kiosk design Black
  • 163.8 cm (64.5") 3840 x 2160 pixels 550 cd/m²
  • Touchscreen 6.5 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 60 W
  • SKU:4948570127481
  • GTIN/EAN:4948570127481
  • MPN:TE6515A-B2AG

You need to login to view the price.

View full details

iiyama TE6515A-B2AG. Product design: Kiosk design. Display diagonal: 163.8 cm (64.5"), Display resolution: 3840 x 2160 pixels, Display brightness: 550 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

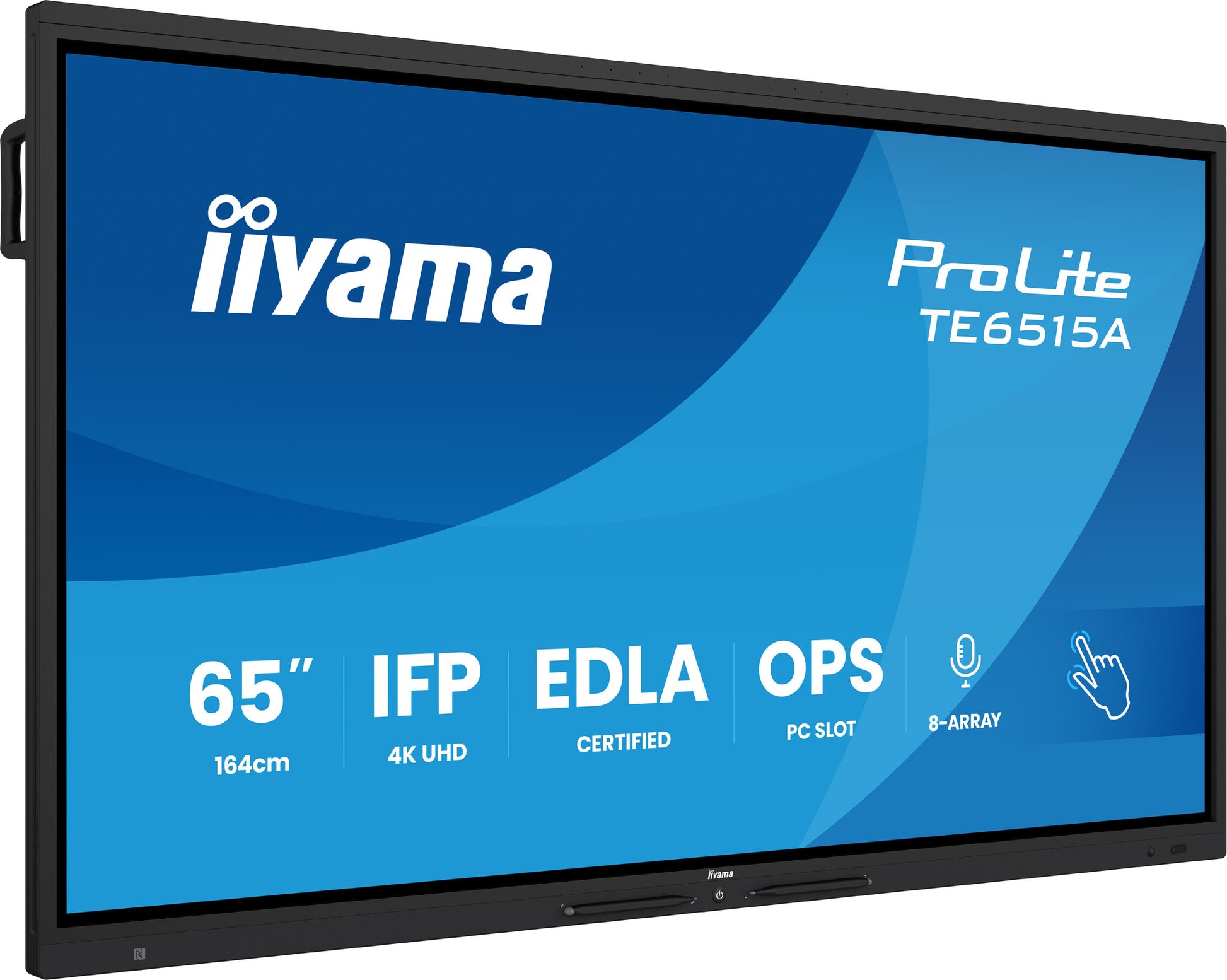

Elegance and functionality come together in the ProLite TE6515A-B2AG. This 65” 4K UHD panel not only delivers precision and performance, but also brings a premium look to modern classrooms and collaborative business environments. With its button-free front panel (only a discreet power button), integrated pen holders, and a stylish fabric-covered bottom bezel that subtly houses high-quality front-facing speakers, the TE6515A elevates the visual experience of any room. It’s more than a tool—it’s part of your space. Coupled with DeepContrast-IR++ technology and Palm Rejection, it offers fluid and natural writing on the Optical Bonding LCD, eliminating parallax for an intuitive feel. Powered by iiWare 21E with Android 14 (EDLA Certified), the display integrates effortlessly into Google environments. Features like WiFi6E, Bluetooth 5.0 and PIR motion sensor add a layer of connectivity, energy efficiency, and access control. With iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), the TE6515A promotes seamless teamwork—whether you're presenting, teaching, or brainstorming. The TE6515A-B2AG isn’t just an interactive display—it’s a centerpiece for connection, creativity, and collaboration, all wrapped in a refined, modern design.

Display
Display diagonal
163.8 cm (64.5")
Display resolution
3840 x 2160 pixels
Display brightness
550 cd/m²
HD type
4K Ultra HD
Touchscreen
Yes
Touchscreen technology
Infrared
Number of simultaneous touchpoints
40
Native aspect ratio
16:9
Response time
6.5 ms
Contrast ratio (typical)
5000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.124 x 0.124 mm
Active display area (W x H)
1428.5 x 803.5 mm
Display diagonal (metric)
163.9 cm
Glass thickness
3.2 mm
Touch response time
5 ms
Horizontal scan range
30 - 135 kHz
Surface hardness
7H
Panel type
VA

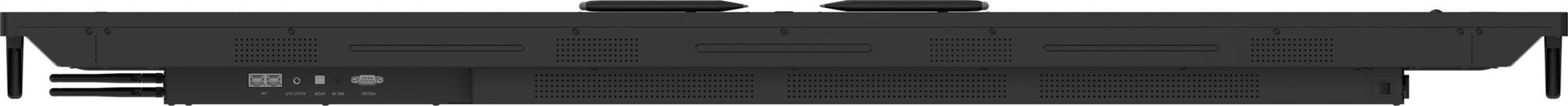

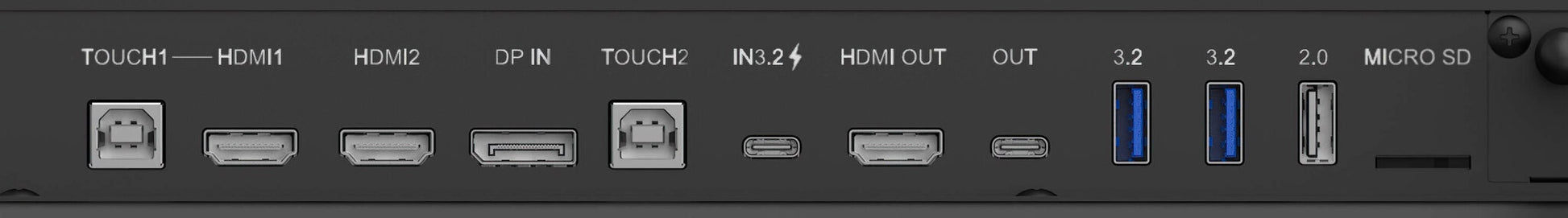

Ports & interfaces
HDMI ports quantity
3
HDMI version
2.0
HDMI input ports quantity
1
HDMI output ports quantity
1
DisplayPorts quantity
1
USB port
Yes
USB ports quantity
4
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
USB 2.0 Type-B ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB Power Delivery
Yes
USB Power Delivery up to
100 W
USB Type-C DisplayPort Alternate Mode
Yes
Ethernet LAN
Yes

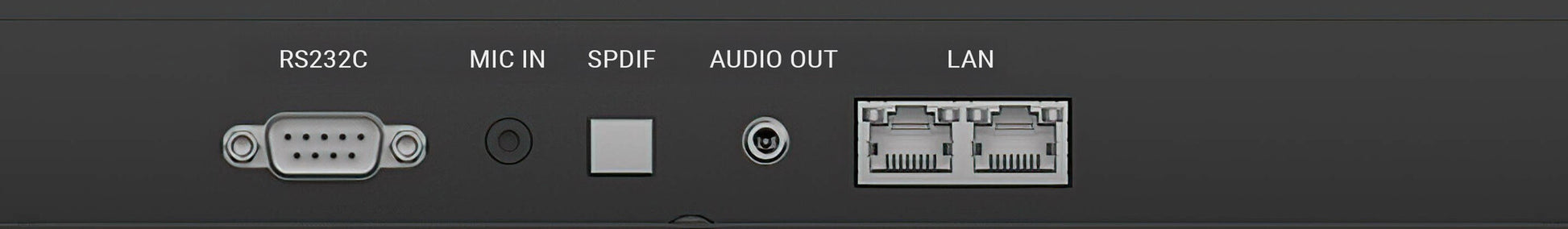

Ethernet LAN (RJ-45) ports
2
Ethernet LAN data rates
1000 Mbit/s
Wi-Fi
Yes
RS-232C
Yes
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash)
Audio Return Channel (ARC)
Yes
OPS module slot
Yes
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
2
RMS rated power
60 W
Design
Product design
Kiosk design
Product colour
Black
Placement supported
Indoor
Orientation
Horizontal

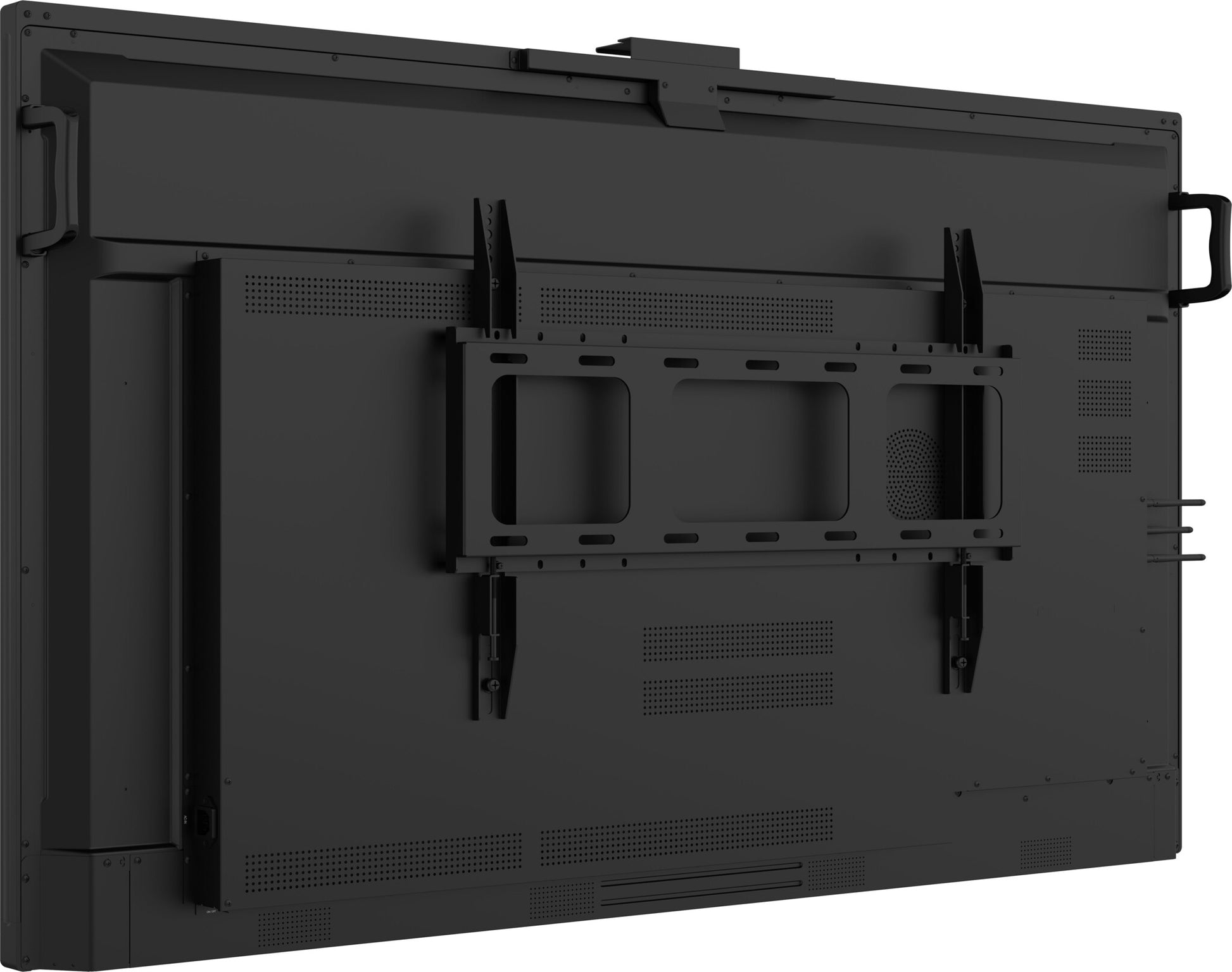

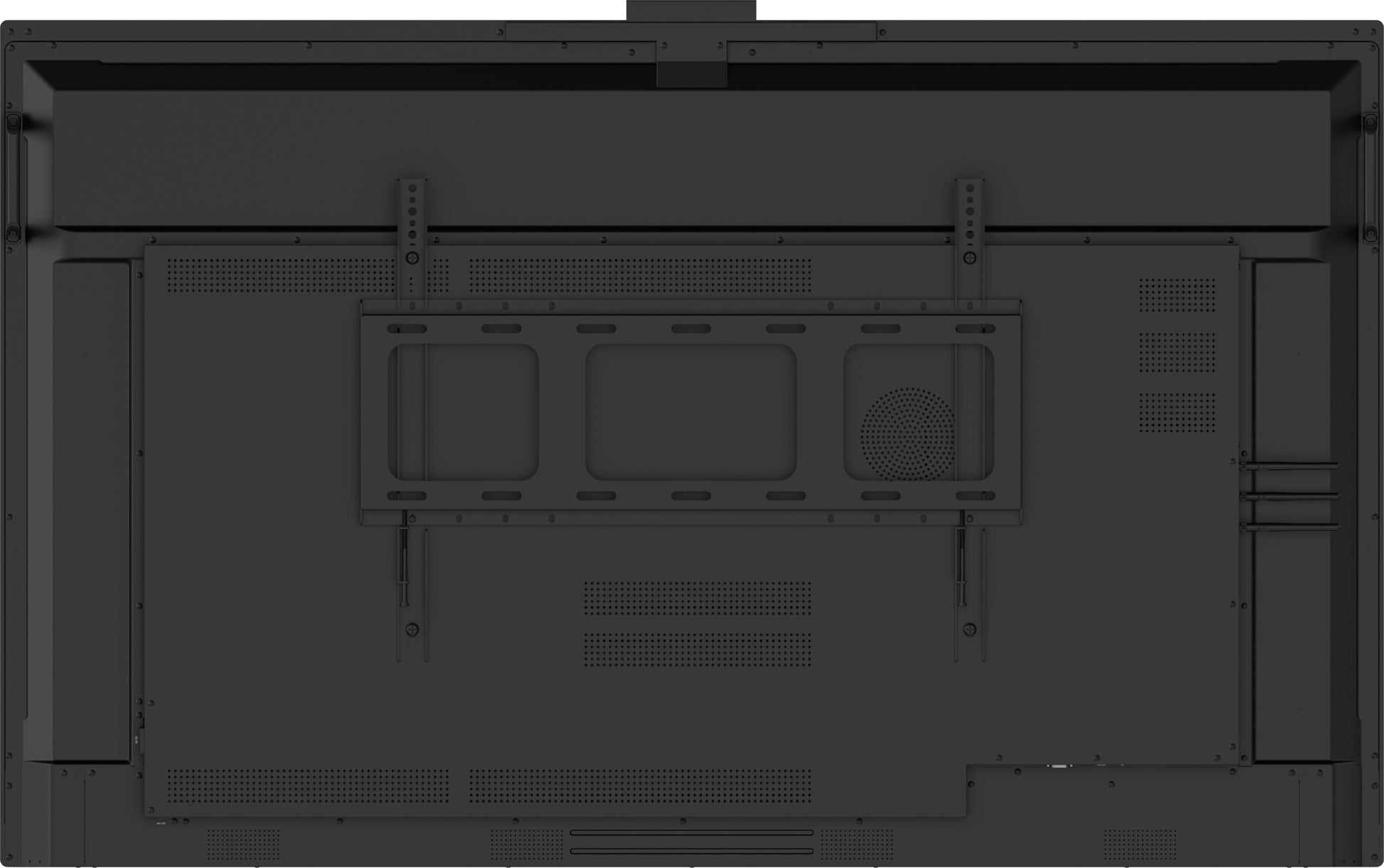

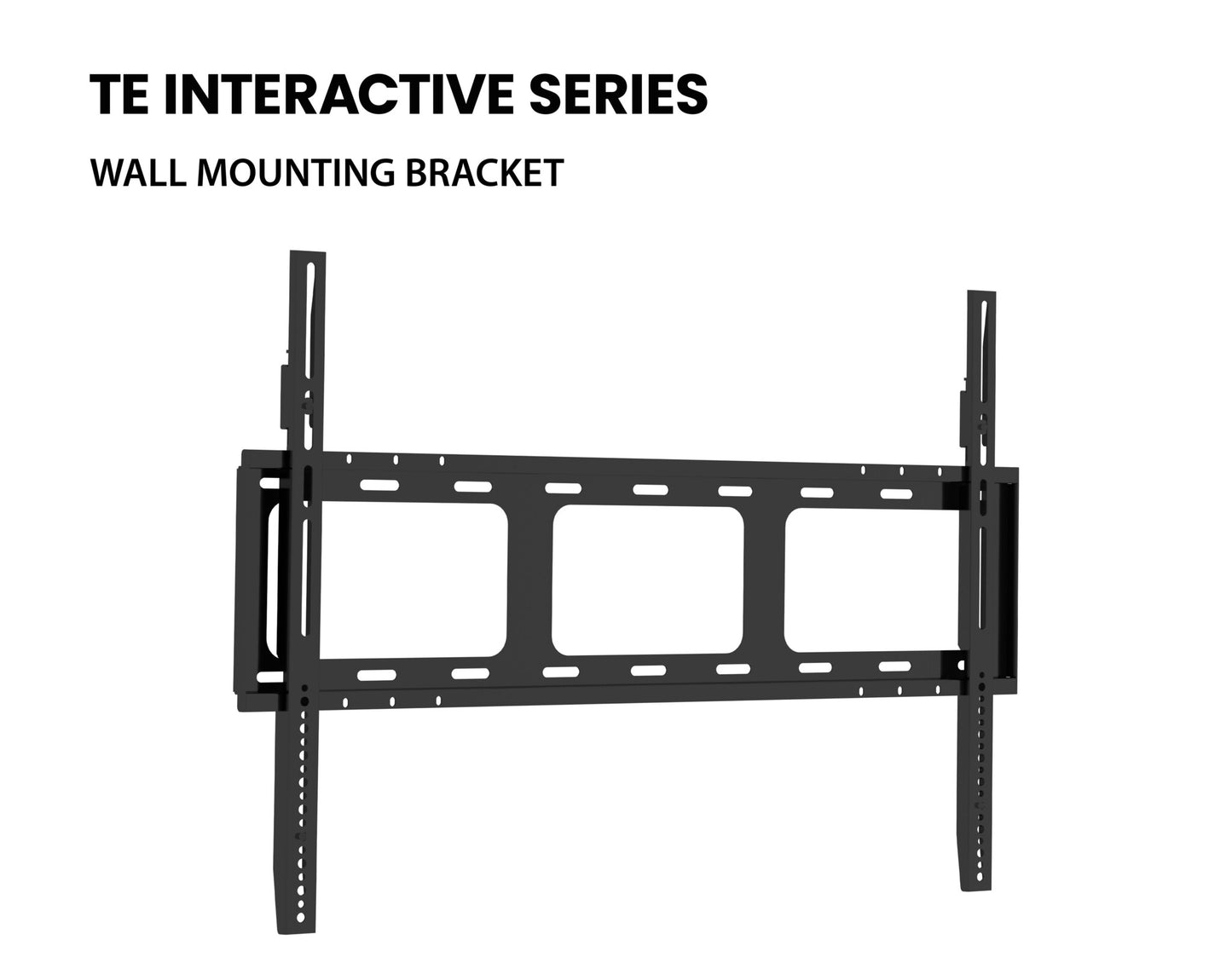

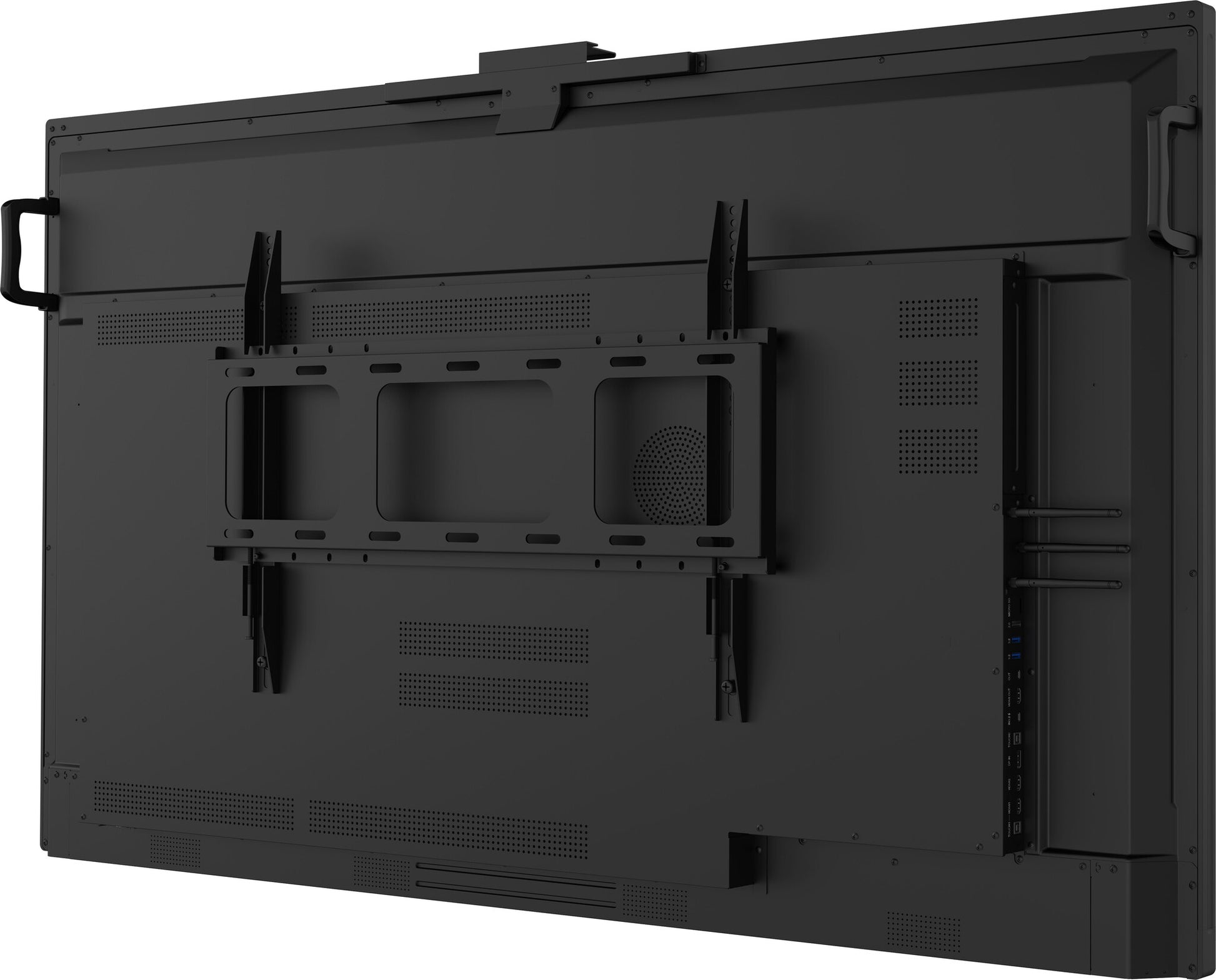

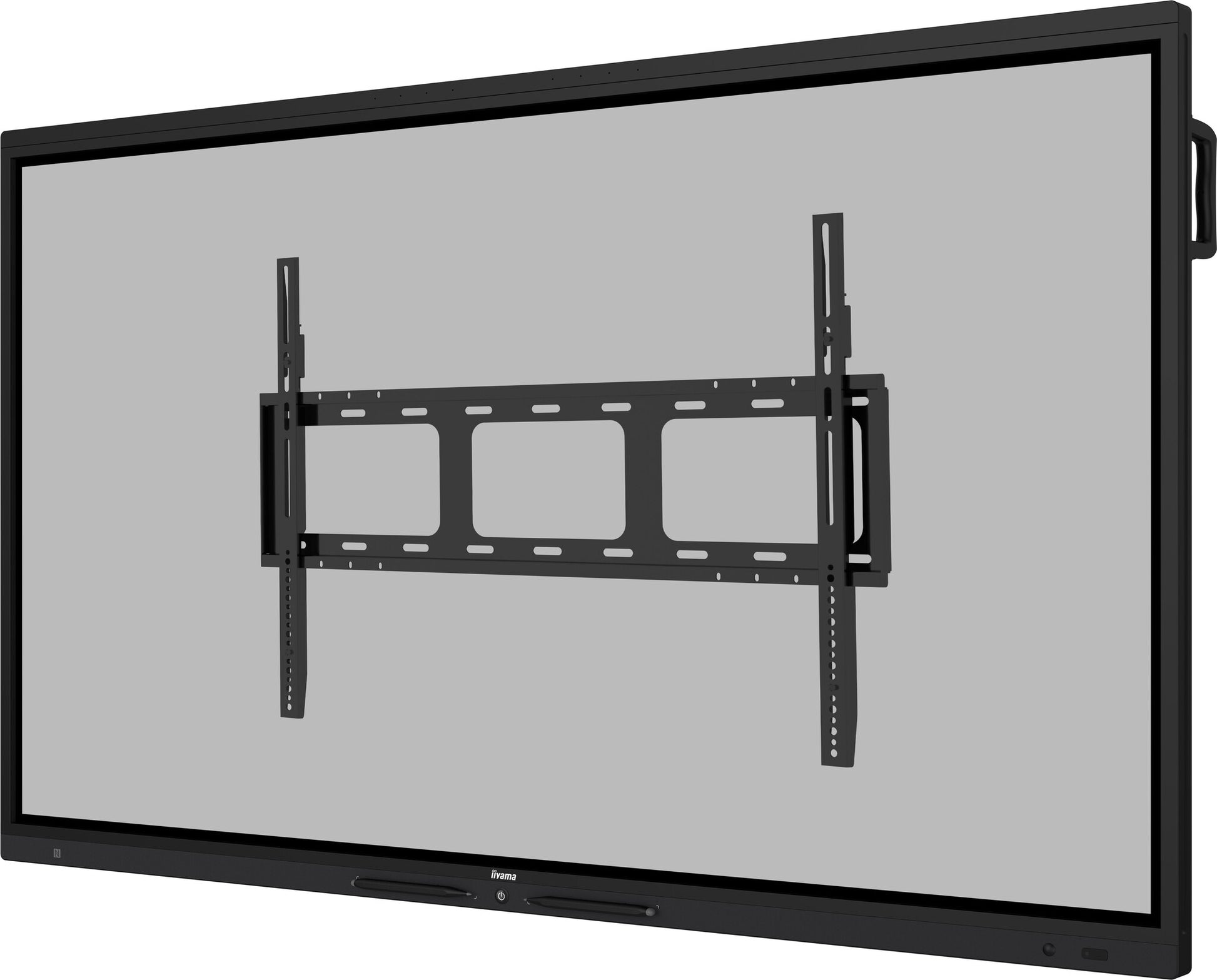

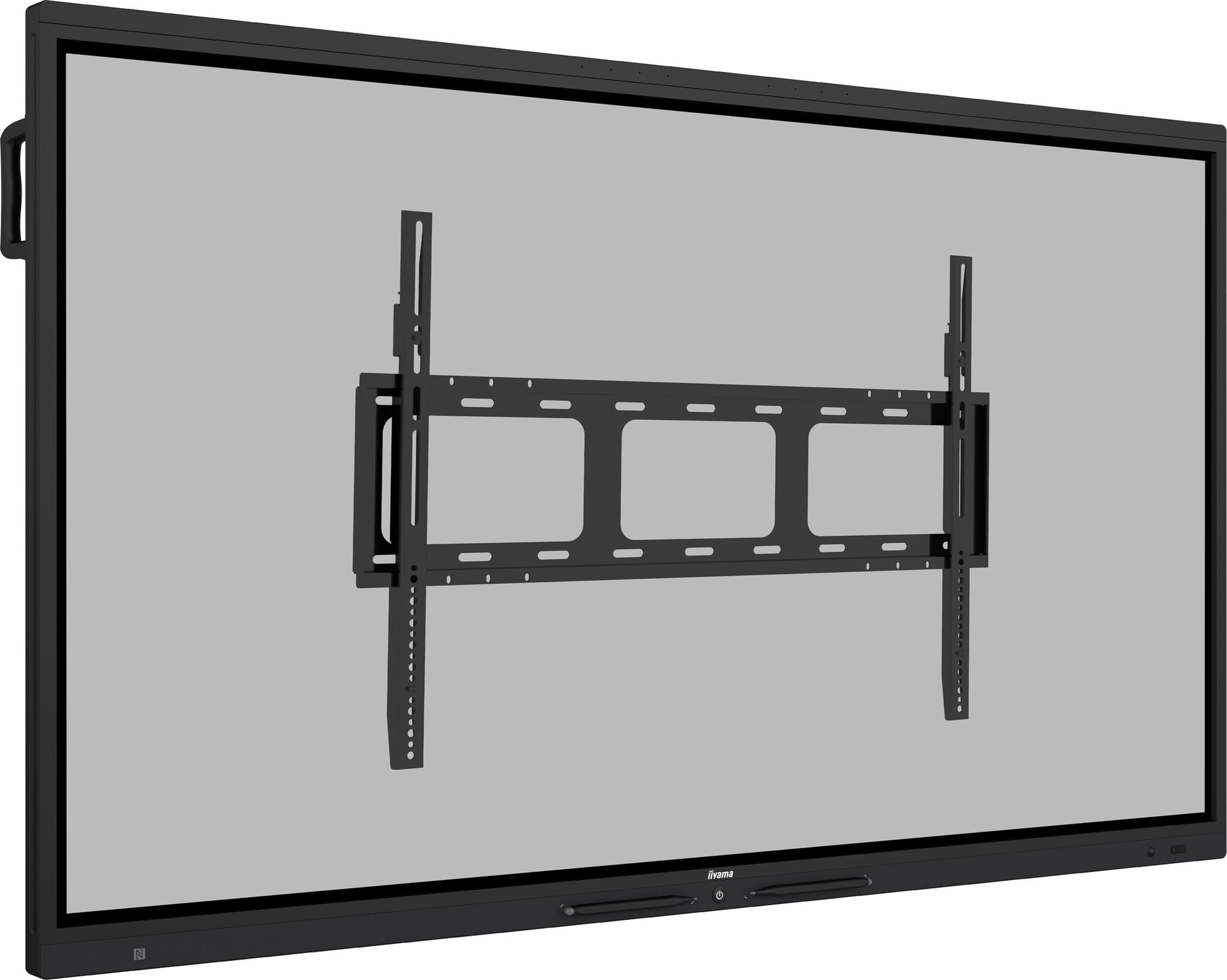

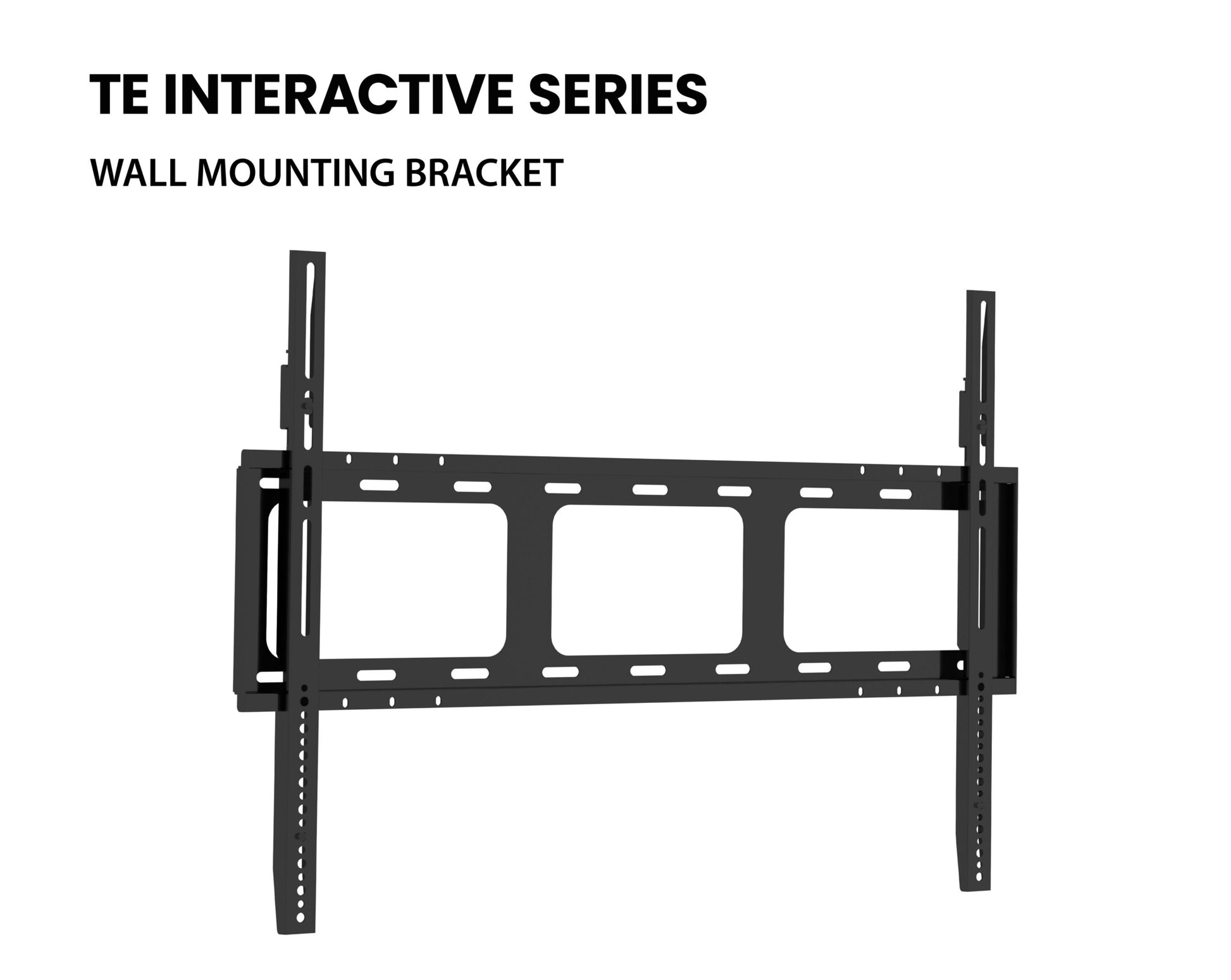

VESA mounting
Yes
Panel mounting interface
600 x 400 mm
Bezel colour
Black
Positioning accuracy
1 mm
Anti-glare screen
Yes
Bezel width (top)
3.43 cm
Bezel width (side)
1.67 cm
Bezel width (bottom)
4.67 cm
Performance
Purpose
Education
Picture-in-Picture
Yes
On Screen Display (OSD) languages
CAT, Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, Norwegian, Dutch, Polish, Russian, Swedish
Number of OSD languages
13
On Screen Display (OSD)
Yes
Operating hours (hours/days)
24/7
HDCP version
2.2
HDCP
Yes
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)
170 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
G
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
170 kWh
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G
Computer system
Computer system
Yes
Built-in processor
Yes
Processor architecture
ARM Cortex-A53+Cortex-A72
Internal memory
8 GB
On-board graphics card model
ARM Mali-G52
Internal storage capacity
128 GB
Operating system installed
Android
Operating system version
14
Weight & dimensions
Display width
1489.1 mm
Display depth
87.1 mm
Display height
911.8 mm
Display weight
43.5 kg
Width
1489.1 mm
Depth
87.1 mm
Height
911.8 mm
Weight
43.5 kg
Packaging data
Package width
1640 mm
Package depth
185 mm
Package height
1010 mm
Package weight
47.4 kg
Packaging content
Remote control included
Yes

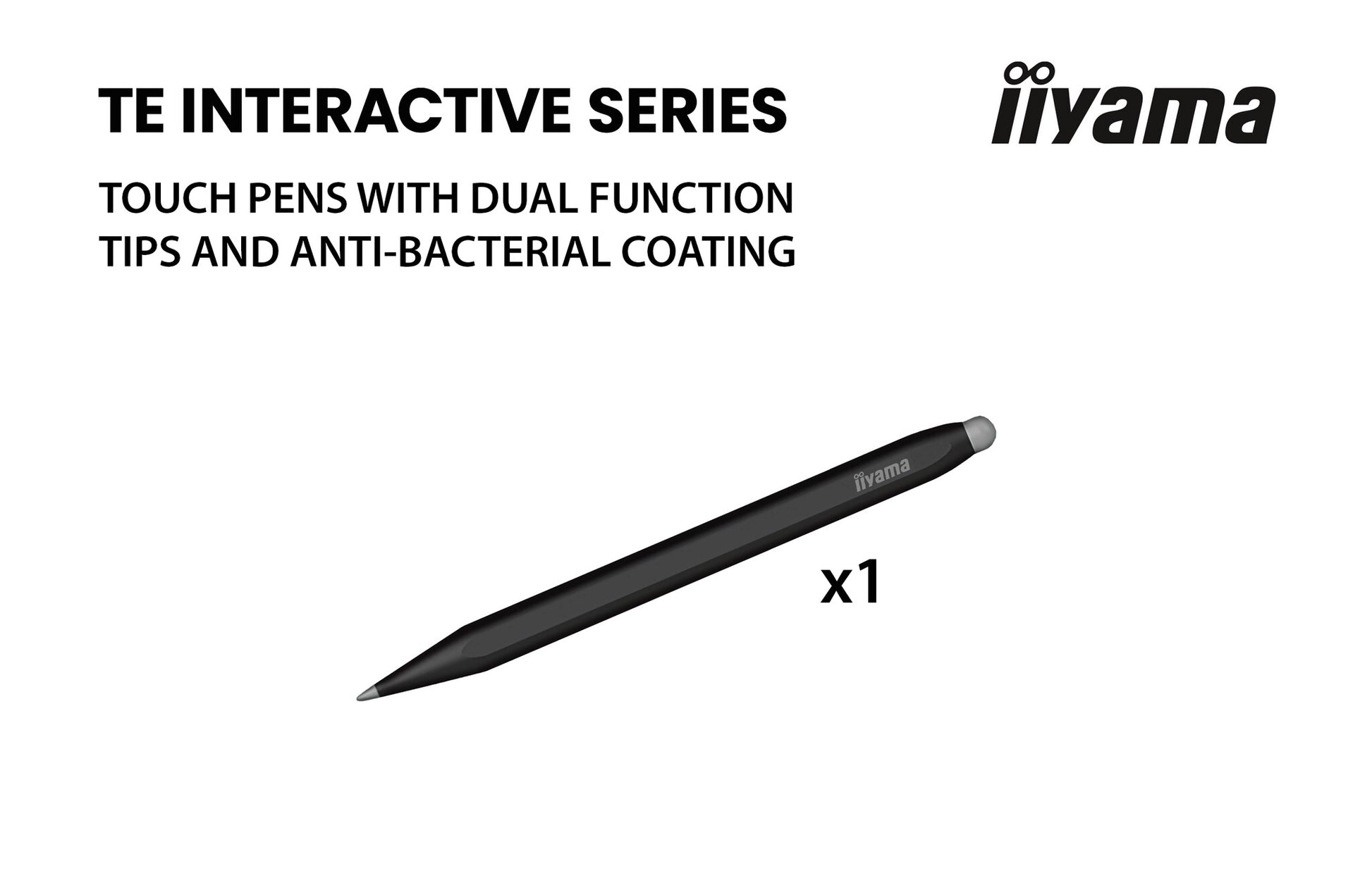

Number of stylus pens
4
Stylus pen
Yes

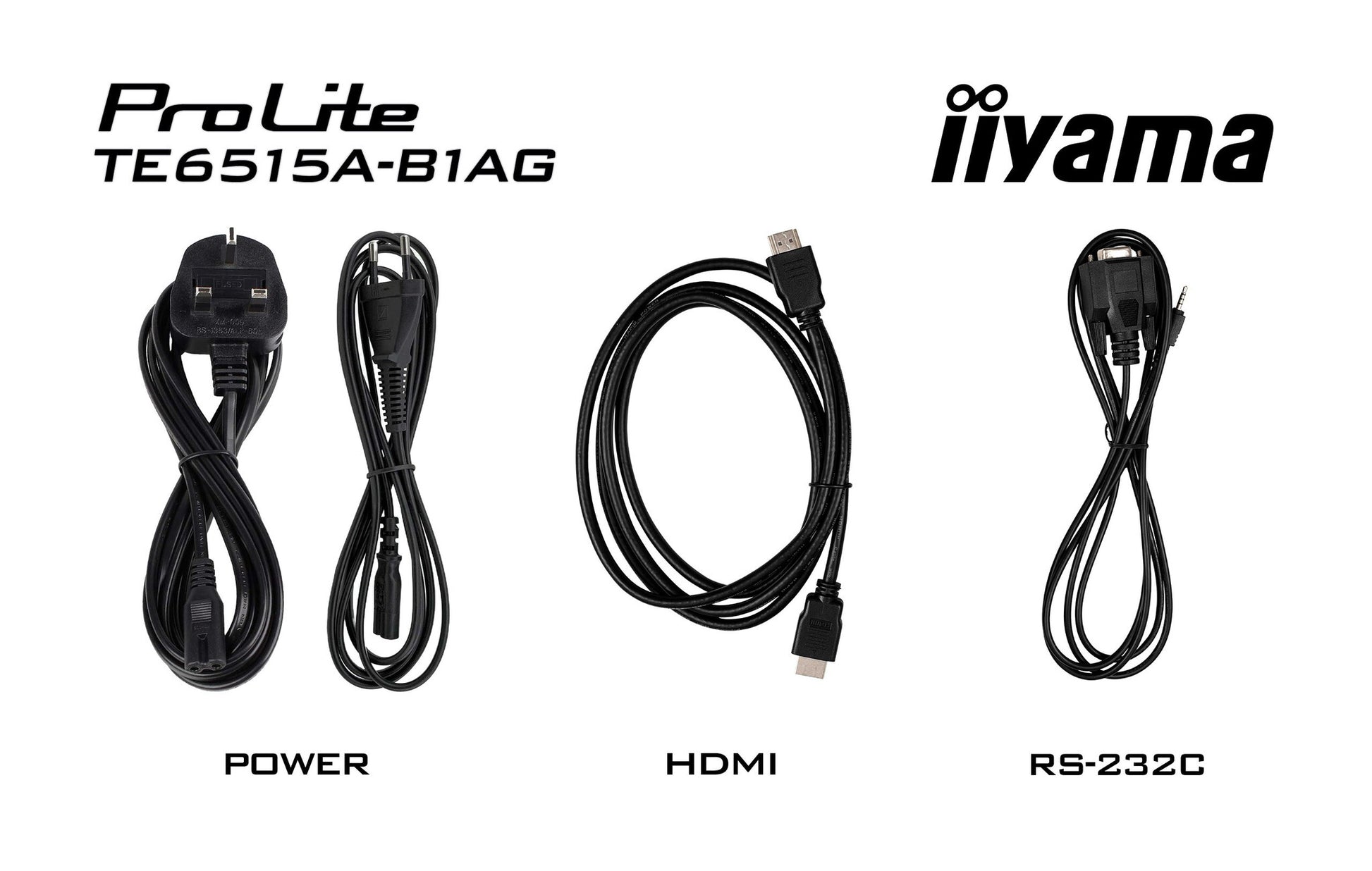

Cables included
AC, USB, HDMI
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Logistics data
Products per pallet
4 pc(s)
Technical details
Warranty period
5 year(s)
Compliance certificates
CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
OPS slot
1
Sustainability certificates
EPEAT, ErP, EPEAT Bronze
User controls
personalization (theme, wallpaper, auto loop, screensaver), display (backlight, image mode, brightness, contrast, saturation, Hue, colour temp., eye protection mode, energy saving, HDMI range), sound (volume direct, max volume, equalizer, balance, sound mode, bass, treble), general (radial menu, side menu bar, gesture interaction, screen recorder, free annotation), device (microphone, camera (external), speaker, NFC, CEC, ambient light sensor, stylus pen pickup sensor, PIR motion sensor), input settings (source lost detection, auto source switch, auto wakeup, OPS boot with system, power on source, rename input setting), system (power status, build version), admin (menu lock, system security, meeting mode, screen share, HDMI Mode, wake On Lan), applications (network & internet, connected devices, apps, notifications, storage, sound & vibration, display, wallpaper, accessibility, security & privacy, location, safety & emergency, passwords & accounts, digital wellbeing & parental controls, Google, system, about device)
Audio in (mini jack)
Yes
Playback media
Y
Other features
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Built-in microphone
Yes
DisplayPort version
1.2
Power supply type
Internal
Wi-Fi standards
Wi-Fi 6 (802.11ax)
Bluetooth version
5.0
Bluetooth
Yes
USB connector type
USB Type-C, USB Type-A, USB Type-B
Quick start guide
Yes
