Commercial 8-inch in-ceiling speaker pair with tile bridges

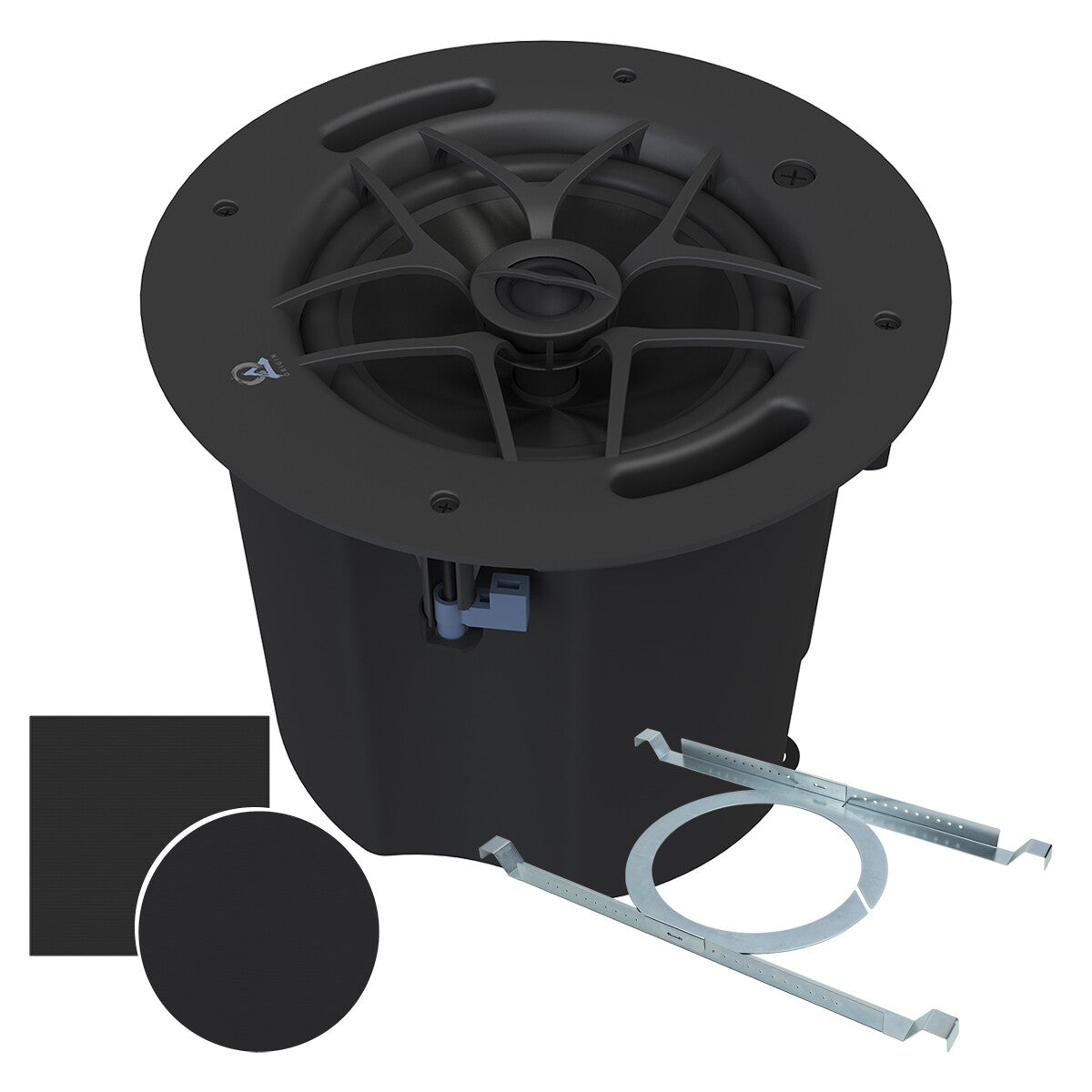

Origin PRO PC80B-TB
The Origin PRO PC80B-TB is a complete kit for commercial distributed-audio installations: two black 8-inch in-ceiling loudspeakers paired with two OA-TB80 tile bridges for straightforward drop-ceiling fitting. Designed for hospitality venues, retail spaces, restaurants, corporate offices and any environment demanding reliable, high-quality background or foreground audio, these speakers combine audiophile-grade components with integrator-friendly installation features. Each loudspeaker handles 120 watts of program power, delivers 112 dB maximum SPL and covers a 100-degree conical zone — making it a strong performer for medium to large commercial rooms. Sold in black finish with both round and square paintable grilles included.
Front-Accessible 70V-100V Transformer Taps
The PC80B-TB provides front-facing tap switches covering four power settings on 70V (60W, 30W, 15W, 7.5W) and three on 100V (60W, 30W, 15W). This is meaningful in practice because it lets the installer tune each speaker's output level and system load without rewiring — useful when covering zones of different sizes or adjusting for ambient noise differences across a venue. The premium, near-transparent transformer preserves full audio fidelity at every tap setting, avoiding the tonal coloration that budget transformers typically introduce. In a restaurant or hotel environment this translates to consistent, natural-sounding audio whether the system is carrying gentle background music in a lobby or foreground levels in a bar.
Pivoting DPSD Tweeter for Precise Aiming
Origin PRO's patented Dual Plane Stabilized Diaphragm (DPSD) tweeter is mounted on the Multi-Motion Pivot (MMP) mechanism, allowing directional aiming after installation. Where ceiling layout forces speakers away from the ideal position — a common reality in retrofit projects with existing conduit runs or structural constraints — the pivoting head lets the integrator redirect the high-frequency dispersion toward the listening area. The DPSD design itself suspends the dome at both the voice-coil and the dome peak, which suppresses distortion and allows a lower crossover point. The practical result for the listener is cleaner, more extended high-frequency reproduction that still sounds natural even when the speaker is mounted off-axis.
Two speakers. Two tile bridges. One complete install kit.
UL 1480A · UL 2043 · NFPA 70 · NFPA 90A listed — 5-year limited warranty
Included OA-TB80 Tile Bridges for Drop-Ceiling Installs
The -TB suffix on this SKU means two OA-TB80 tile bridges are in the box — no separate accessory order, no forgotten hardware on install day. Tile bridges span standard suspended ceiling T-bar grids and provide a stable, rattle-free mounting frame without requiring access to the structural ceiling above. This is a significant time-saver in commercial retrofit scenarios such as offices, restaurants or hotels where the ceiling is already finished and the installation window is tight. The 266mm cutout diameter and 247mm mounting depth are fixed requirements, so verifying these against the actual ceiling before scheduling the job is essential — but once confirmed, fitting is straightforward even for a single technician.
UL and NFPA Certifications for Commercial Compliance
The PC80 series carries UL 1480A (speakers for commercial and professional use), UL 2043 (fire test for heat and smoke release in air-handling spaces), NFPA 70 and NFPA 90A listings. In practice, UL 2043 is the critical certification for above-ceiling plenum installations: it confirms the speaker enclosure will not release excessive heat or smoke into the air-handling space in a fire event. Many commercial projects — schools, healthcare facilities, office buildings and retail chains — specify or legally require UL 2043 compliance for any product installed in the plenum. Having this certification built in eliminates the need for a separately rated enclosure and removes a common tender objection before it arises.
Integrator-Friendly Mechanical Design
Every hardware detail on the PC80B-TB is chosen to reduce installation time and minimise callbacks. Heavy-duty dog-ear clamps grip a wide range of ceiling thicknesses securely; an integrated conduit lock keeps the speaker stable when wiring is routed through conduit; and the Euroblock (euro-block) connector accepts multi-strand wire terminations that can be pre-prepared on the bench before going up the ladder. Low-profile paintable grilles in both round and square formats are included, so the finished look can match the ceiling tile pattern without an extra accessories order. The metal can with zinc-plated construction resists corrosion and adds mechanical rigidity — relevant in high-humidity commercial environments such as kitchens or pool areas.
