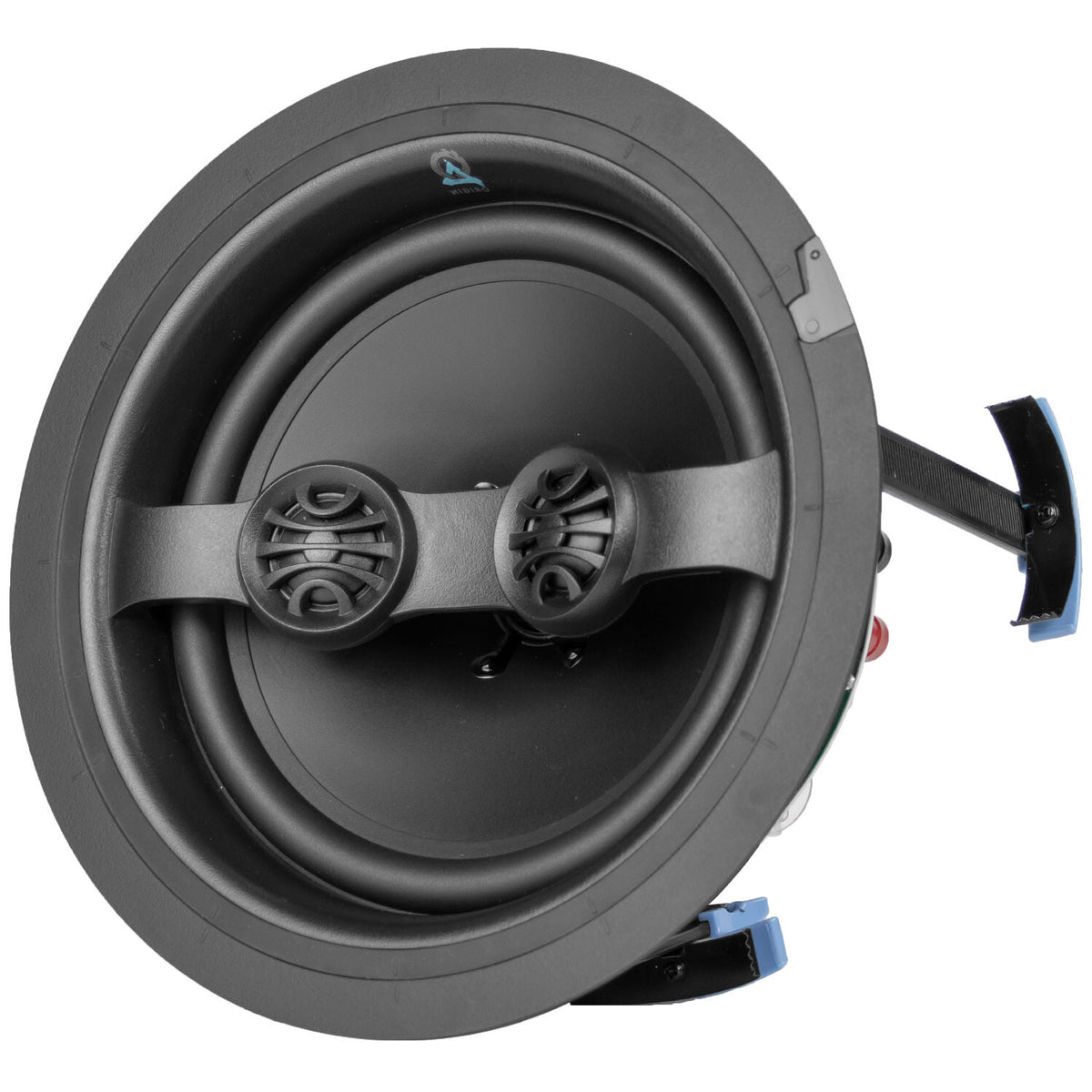

Origin Acoustics D80DT

The Origin Acoustics Director D80DT is an 8-inch in-ceiling loudspeaker designed for residential whole-home audio installations where space is at a premium but stereo performance is non-negotiable. Its dual 1-inch silk dome tweeters reproduce left and right audio channels simultaneously from a single ceiling cut-out — making it the ideal solution for bathrooms, kitchens, hallways, and any compact space that cannot accommodate a speaker pair. A poly-rubber woofer with Origin's proprietary X-Wave surround delivers deep, controlled bass, while the tool-less bayonet mounting system and paintable magnetic micro bezel grille ensure a fast, clean installation that blends invisibly into any décor.

True Stereo from One Ceiling Opening

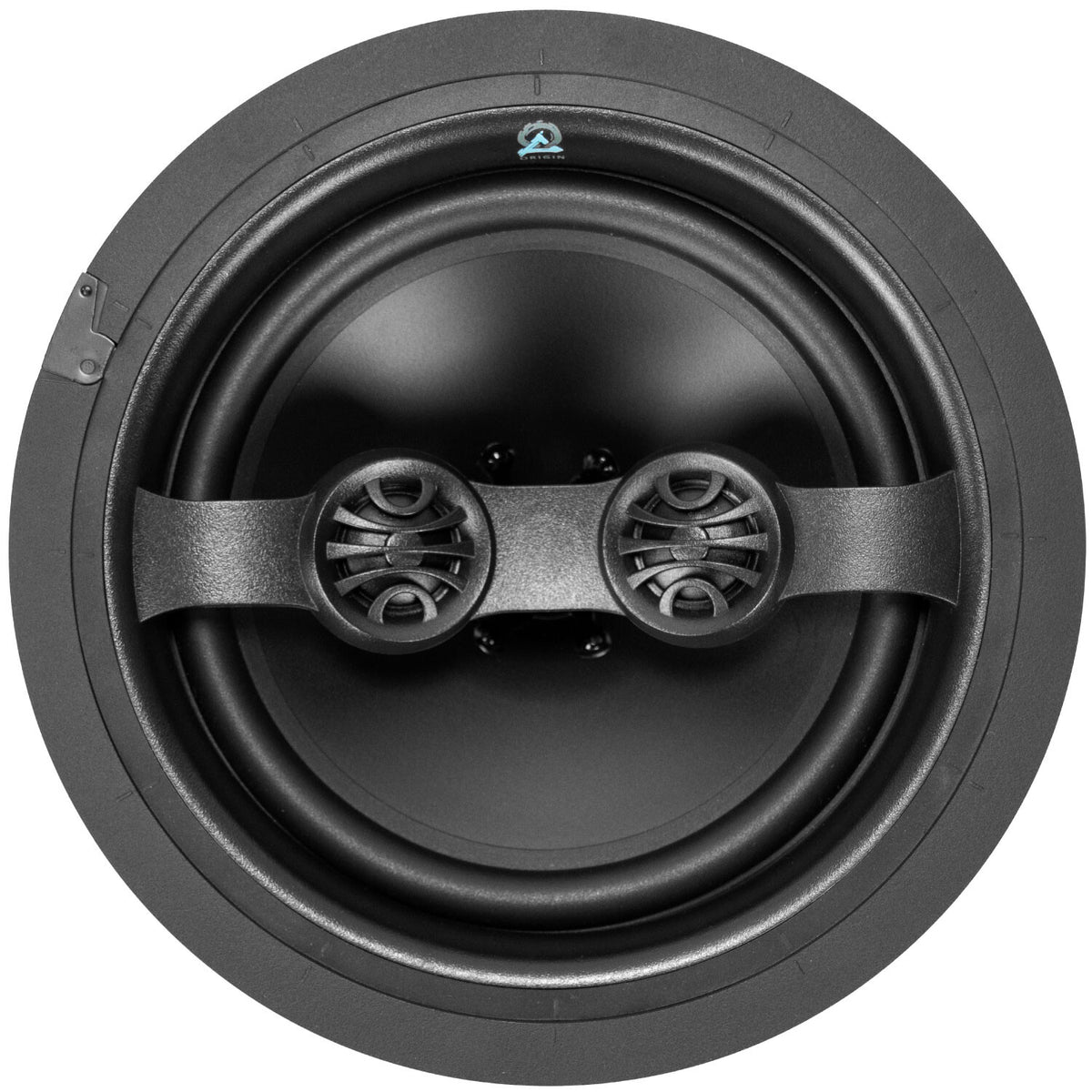

The D80DT carries two independent 1-inch silk dome tweeters — one dedicated to the left channel, one to the right. This DPSD (Dual Point Stereo Design) topology means a single speaker and a single ceiling cut-out deliver a complete stereo image rather than one-half of it. For integrators, this is the decisive argument in rooms where running two speaker drops is impractical: walk-in closets, narrow hallways, laundry rooms, en-suite bathrooms. The end user hears genuine stereo separation, not a mono blend — a meaningful difference when the source is music with distinct left-right instrumentation.

8-Inch Bass in a 6-Inch Footprint

Origin's 80 Series was engineered around a counterintuitive claim: an 8-inch driver that requires the same ceiling cut-out as a competitor's 6-inch. The cutout diameter is 8.75 inches (222 mm) — unusually small for an 8-inch woofer. The result is that integrators can specify the D80DT in retrofit scenarios where ceiling joists or other obstacles constrain the available opening, without sacrificing the bass extension and SPL headroom that an 8-inch cone provides over smaller alternatives. Clients perceive fuller, richer sound without any change to the structural ceiling footprint.

One speaker. Two channels. Full stereo coverage.

Director Collection · Part No. SCD2T80000

X-Wave Surround Reduces Cone Distortion

When a woofer cone reaches the limit of its excursion and abruptly stops, standing waves ripple back and forth along the cone surface — a source of harmonic distortion that is particularly audible in the 700–1,400 Hz midrange. Origin's X-Wave surround is shaped to progressively absorb this impact rather than reflect it, damping the disturbance before it colours the output. The surround geometry simultaneously maximises effective cone area by keeping the surround itself narrow, so more of the driver diameter contributes to moving air. The practical outcome for the listener is a cleaner, more natural midrange — vocals and acoustic instruments sound more like the recording.

Tool-Less Bayonet Mounting System

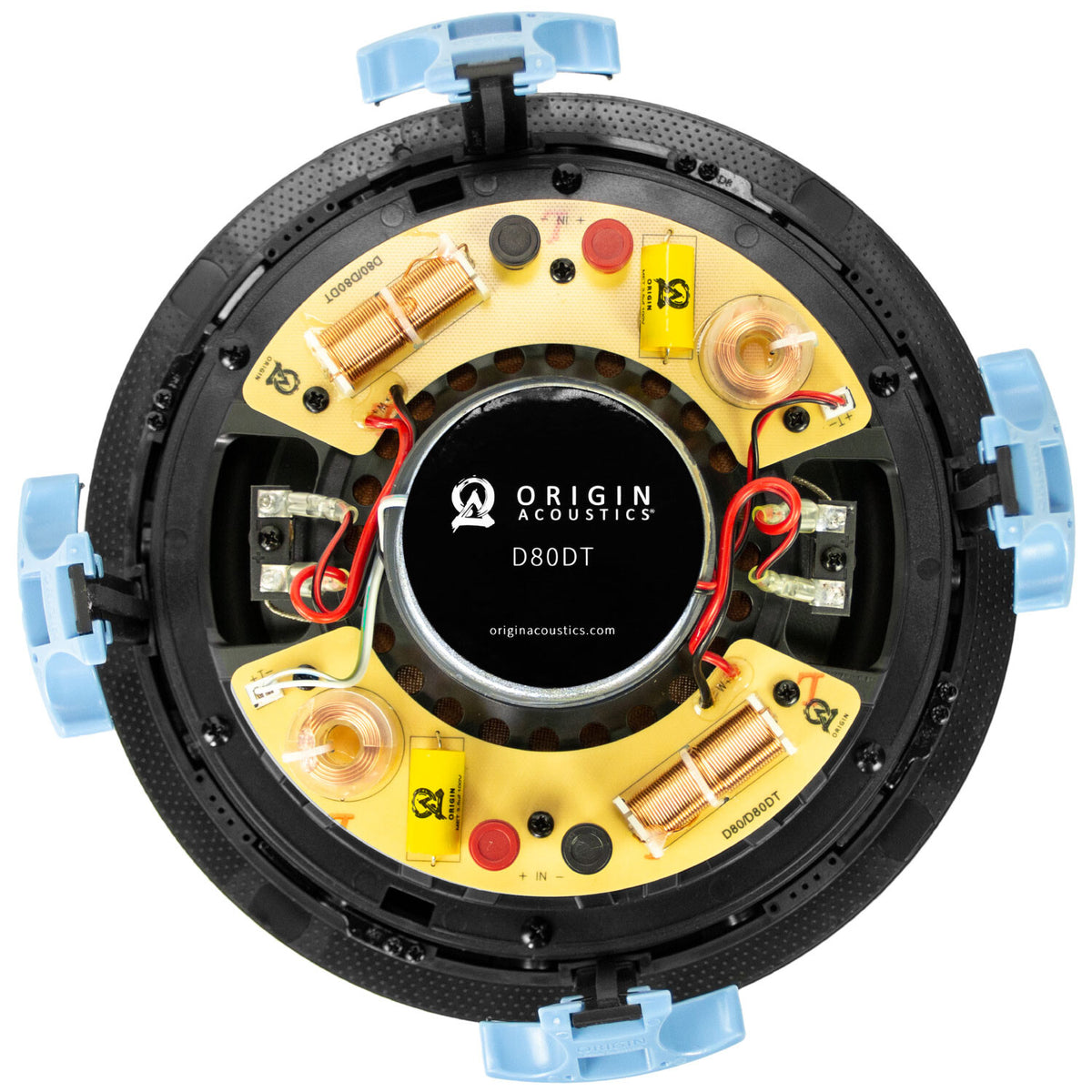

The Director Collection's patented tool-less mounting mechanism uses a bayonet ring and spring-loaded clips that make contact at multiple points around the ceiling opening. Unlike traditional dog-leg clips that concentrate clamping force at two points, the multi-contact design distributes the speaker's weight more evenly across the ceiling material — reducing the risk of drywall cracking over time and minimising vibration transfer into the structure. Installation is reduced to inserting the ring, clicking in the speaker, and giving it a quarter-turn. For integrators handling multi-room projects with dozens of speakers, the cumulative time saving is significant, and the secure fit means fewer callbacks for rattling speakers.

Paintable Magnetic Micro Bezel Grille
