Origin Acoustics Ambisonic Systems AM3600OW

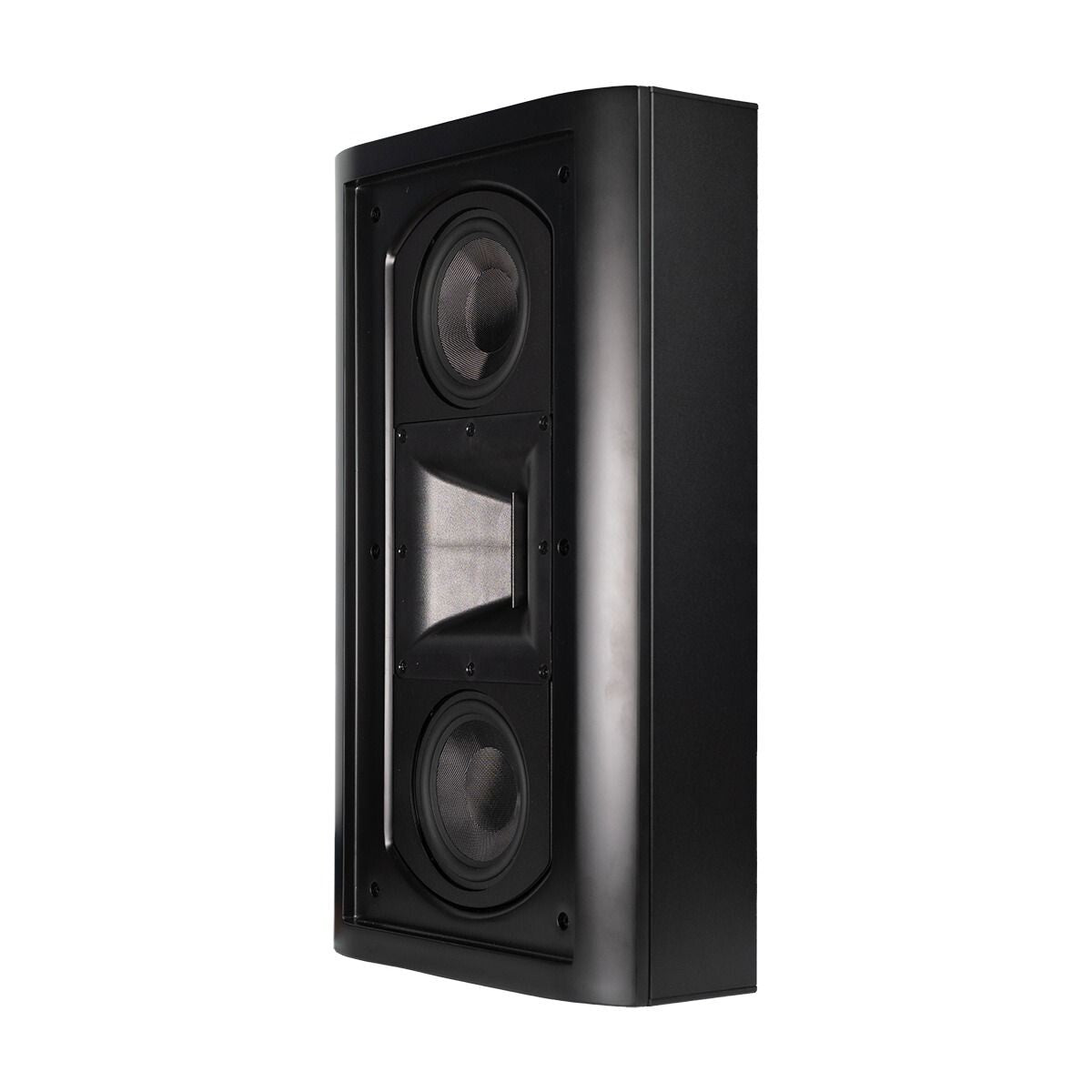

The Ambisonic Systems AM3600OW is the flagship on-wall loudspeaker from the Ambisonic Marquee home theater series — the brand's first dedicated high-performance planar ribbon theater system. Designed for high-end residential custom integration, it serves equally as a front LCR speaker or a surround channel, making it a versatile single-model solution for full theater builds. Drawing on Ambisonic's decades of experience in luxury outdoor audio, the Marquee system brings those same proprietary technologies and premium materials into dedicated screening rooms. The result is a visually striking, cinema-aesthetic loudspeaker capable of reference-level output, engineered to be paired with Origin PRO amplifiers for DSP-optimised performance.

Magnetic Planar Ribbon Tweeter Technology

At the heart of the AM3600OW is a 3-inch magnetic planar ribbon tweeter paired with a proprietary waveguide. Unlike conventional dome tweeters, a planar ribbon driver uses an ultra-thin aluminum diaphragm energized by a neodymium motor across its entire surface — resulting in far lower moving mass, faster transient response, and significantly reduced harmonic distortion at high output levels. The waveguide controls dispersion precisely, directing high-frequency energy into the room rather than scattering it. For theater installations where dialogue intelligibility and detail retrieval are critical, this translates to an effortlessly clear, fatigue-free treble even at sustained high playback levels.

Flexible LCR and Surround Dual-Role Design

The AM3600OW is engineered to serve either as a front LCR (left, centre, right) channel speaker or as a dedicated surround speaker within the same Ambisonic Marquee system. This single-model versatility is a significant practical advantage for integrators: a single SKU covers the entire speaker array of a theater build, simplifying procurement, stock management, and system configuration. Tonally matched speakers throughout the room — front and surround — eliminate the timbral inconsistencies that arise when mixing different driver types across channels, resulting in a seamless, immersive soundfield that passes cleanly from screen to listener to rear wall.

Ribbon precision. Cinema power. One speaker does it all.

Pairs natively with Origin PRO Amplifiers for custom DSP optimisation

Reference-Level 115 dB Output in an On-Wall Cabinet

The AM3600OW reaches 115 dB SPL continuous program (118 dB peak) measured at 1 metre — a performance threshold usually associated with large free-standing or custom-built in-wall enclosures. Achieving this from a relatively slim on-wall cabinet (119 mm deep) is notable: it means theater designers are not forced to compromise room dimensions or wall-depth for acoustic performance. Dual 5.25-inch woven fiberglass woofers provide the cone area and material stiffness needed to move enough air at high excursion without breakup, ensuring the bass stays tight and controlled even at cinematic peak levels.

Native Integration with Origin PRO Amplifiers and DSP

The AM3600OW is specifically tuned to pair with Origin PRO amplifiers, which include custom DSP profiles optimised for Ambisonic Marquee loudspeakers. Rather than relying on a generic amplifier and third-party DSP tuning, integrators can deploy a complete, pre-matched system where the amplifier's DSP voicing has been developed against the speaker's actual driver characteristics. This reduces commissioning time, eliminates guesswork in crossover setup, and ensures the speakers are always driven correctly — both in terms of protection and tonal balance. The practical outcome is faster installs and a system that performs to its measured specification from day one.
