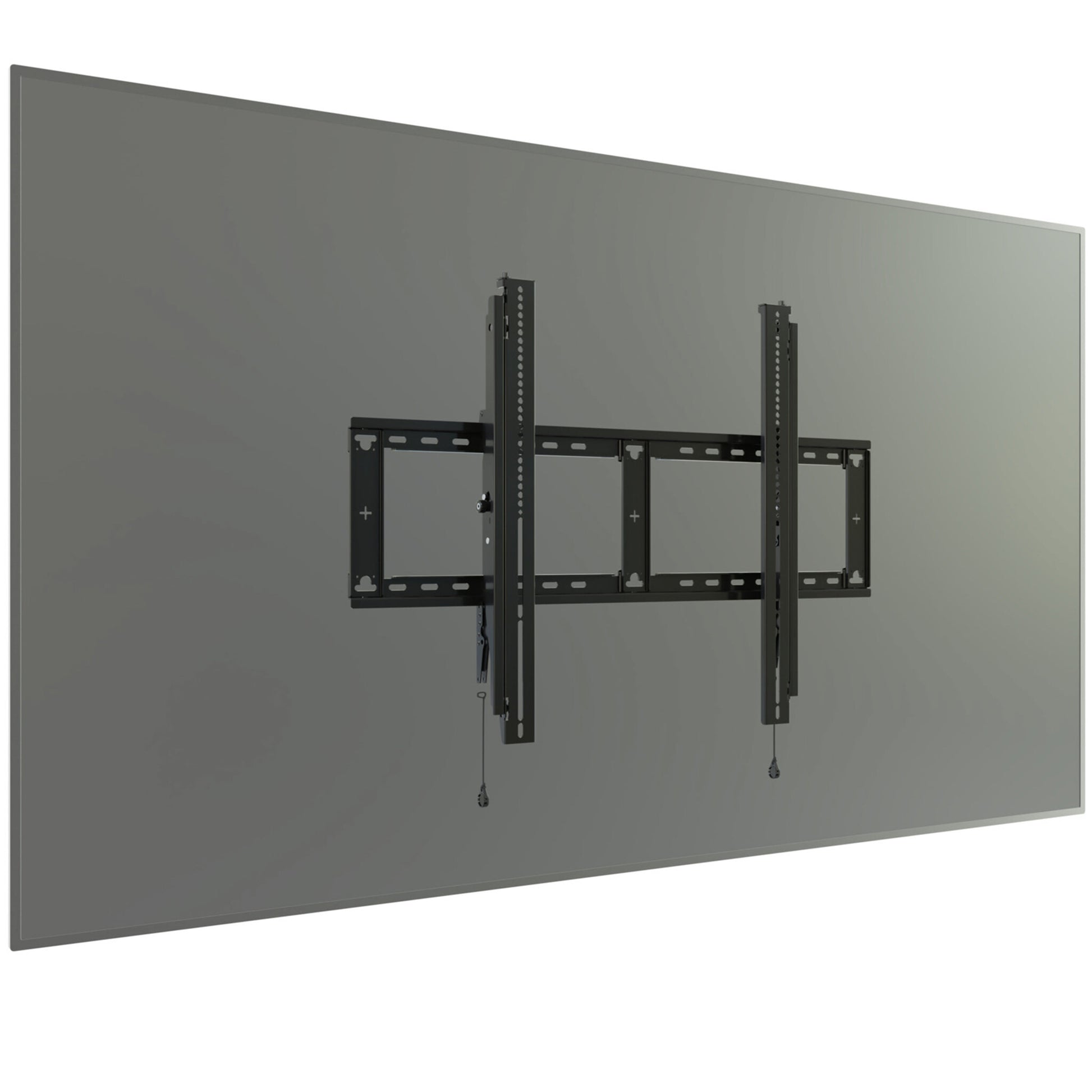

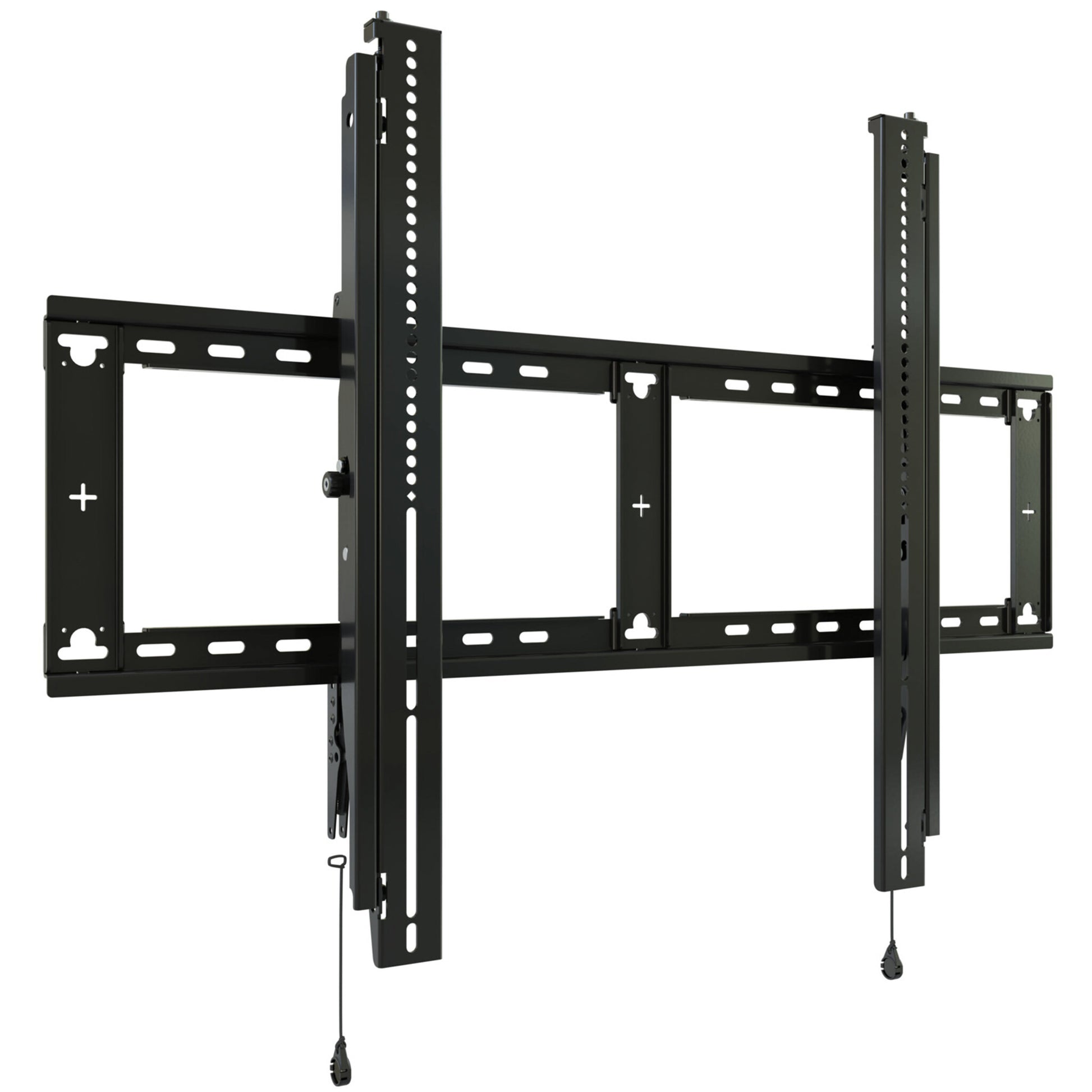

Chief Extra-Large FitTM Tilt Display Wall Mount

Chief Extra-Large FitTM Tilt Display Wall Mount

49" - 98", max. 113.4 kg, max. 915 x 650 mm, -12° Tilt, Black

  • Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included

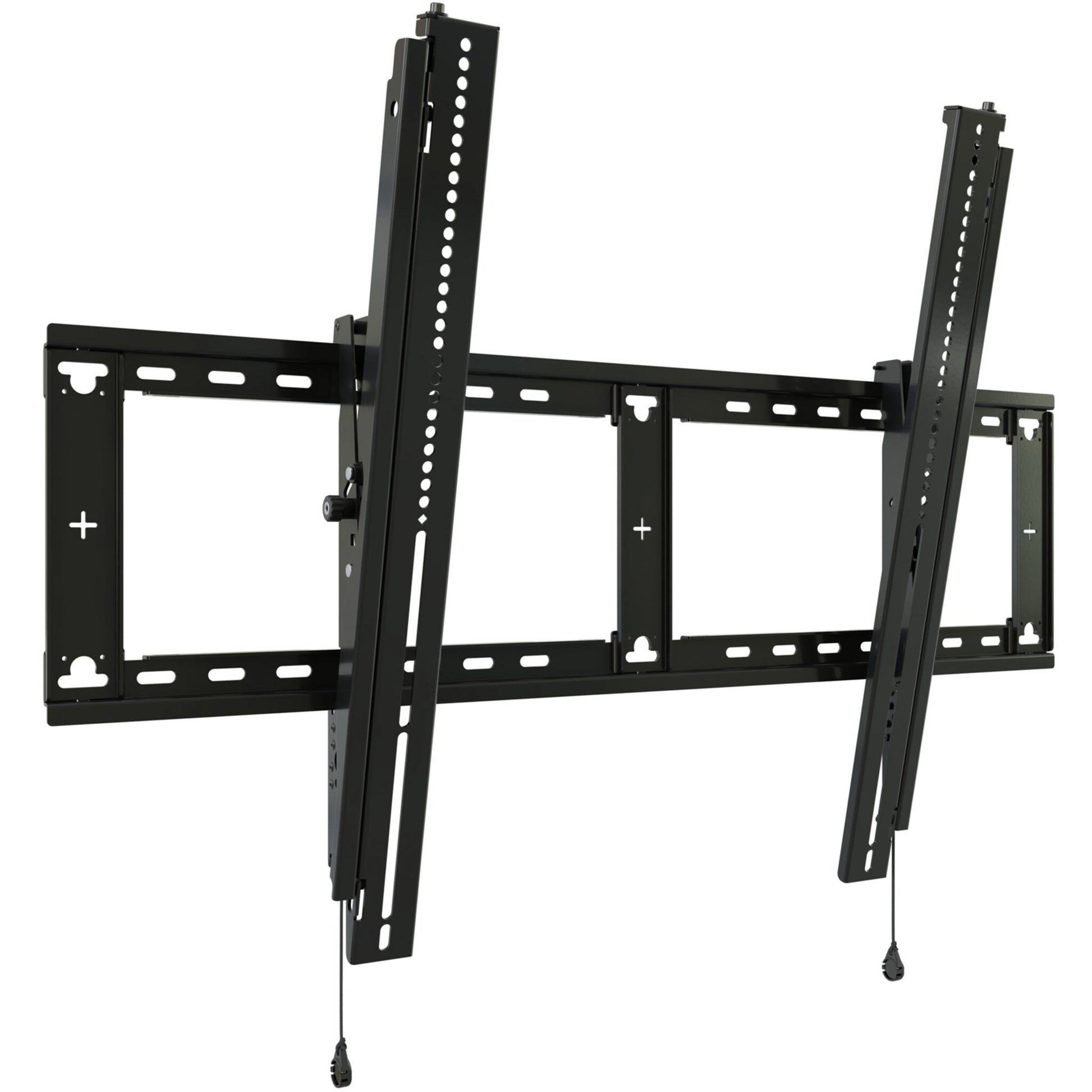

  • Display can be tilted up to 12° to set the optimal viewing angle
  • Open wall plate allows for flexible positioning around power and data wall boxes
  • Supports display mounting patterns up to 915 x 650 mm
  • Re-designed rigid wall plate supports up to 250 lbs (113.4 kg) and has additional mounting slots for improved installation experience
  • Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
  • Easy access magnetic quick-store release pullcords
  • Kickstand for easy access to power and signal connections
  • Theft deterrent security options (not included)
  • UL and TUV safety standards approved
  • SKU:IM1_RXT3
  • GTIN/EAN:841872176697
  • MPN:RXT3

You need to login to view the price.

View full details

Chief Extra-Large FitTM Tilt Display Wall Mount. Maximum weight capacity: 113.4 kg, Minimum screen size: 124.5 cm (49"), Maximum screen size: 2.49 m (98"), Maximum VESA mount: 915 x 650 mm. Tilt angle range: -12 - 0°. Product colour: Black

The Fit series RXT3 is an extra-large tilt display wall mount for 49” to 98” typical display sizes and supports mounting patterns up to 915 x 650 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 2.5” (64 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standards approved.

Mounting
Maximum weight capacity
113.4 kg
Minimum screen size
124.5 cm (49")
Maximum screen size
2.49 m (98")
Mounting type
Wall
Maximum VESA mount
915 x 650 mm
Number of displays supported
1
Ergonomics
Height adjustment
Yes
Height adjustment type
Manual
Tilt adjustment
Yes
Design
Product colour
Black
Certification
TUV, UL Listed
Weight & dimensions
Width
965 mm
Depth (min)
6.4 cm
Depth (max)
6.4 cm
Height
687 mm
Packaging data
Quantity per pack
1 pair(s)
Package weight
9.3 kg
