iiyama SDM51201BC-1L PC/workstation Intel® Core™ i5 i5-12450H 8 GB DDR4-SDRAM 256 GB SSD Windows 11 IoT Enterprise Slot-in PC Mini PC Black

iiyama SDM51201BC-1L PC/workstation Intel® Core™ i5 i5-12450H 8 GB DDR4-SDRAM 256 GB SSD Windows 11 IoT Enterprise Slot-in PC Mini PC Black

An Intel i5 SDM-L slot PC with Windows 11 which supports 4K (3840x2160) resolution

  • Mini PC Black
  • Intel® Core™ i5 i5-12450H
  • 8 GB DDR4-SDRAM 3200 MHz
  • 256 GB SSD
  • Intel® UHD Graphics
  • Ethernet LAN 10,100,1000 Mbit/s Wi-Fi 6E (802.11ax) Bluetooth 5.3
  • Windows 11 IoT Enterprise 64-bit
  • SKU:4948570033577
  • GTIN/EAN:4948570033577
  • MPN:SDM51201BC-1L

You need to login to view the price.

View full details

iiyama SDM51201BC-1L. Processor family: Intel® Core™ i5, Processor model: i5-12450H. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM, Memory clock speed: 3200 MHz. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics. Wi-Fi. Operating system installed: Windows 11 IoT Enterprise, Operating system architecture: 64-bit. Chassis type: Slot-in PC. Product type: Mini PC. Weight: 400 g. Product colour: Black

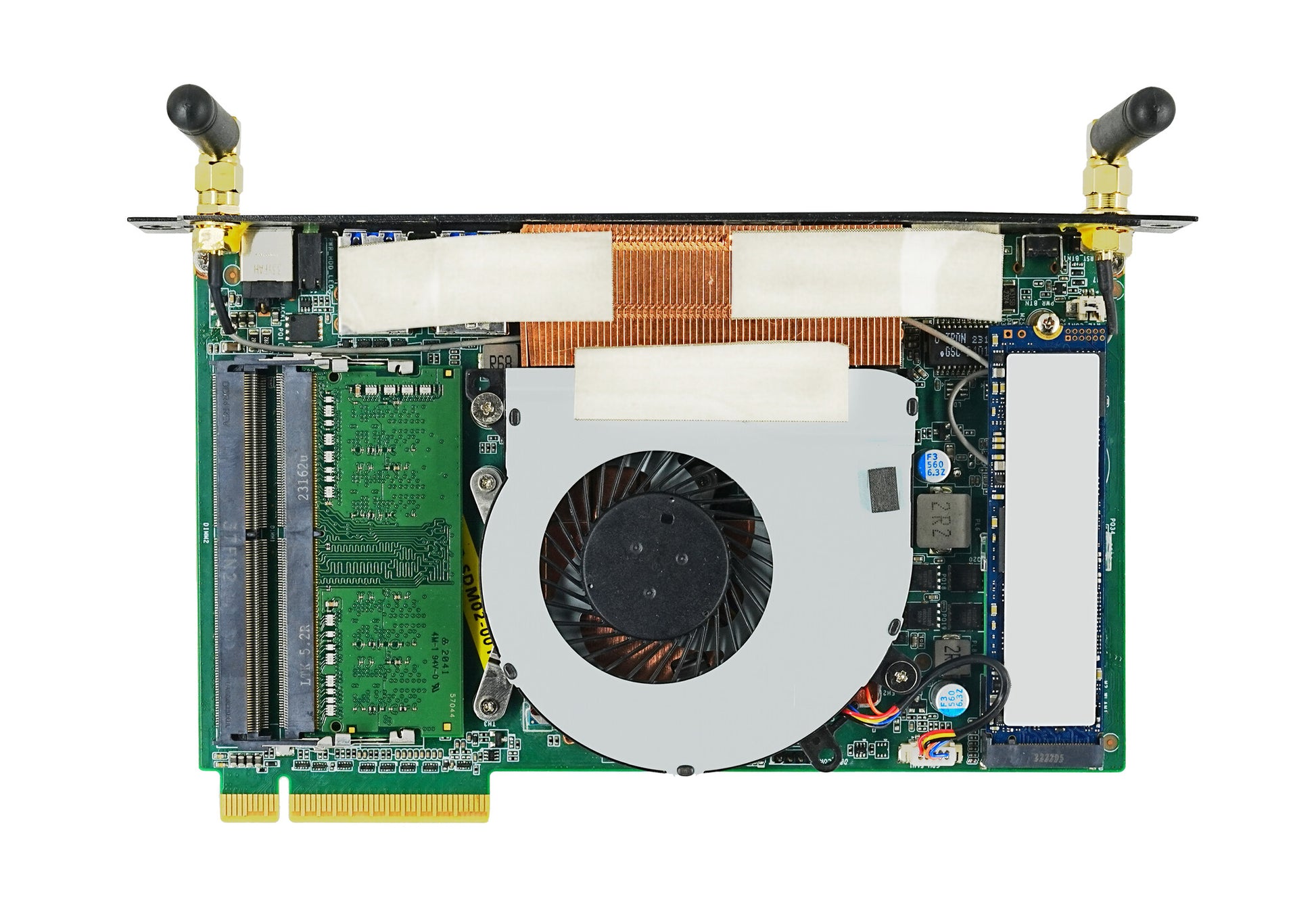

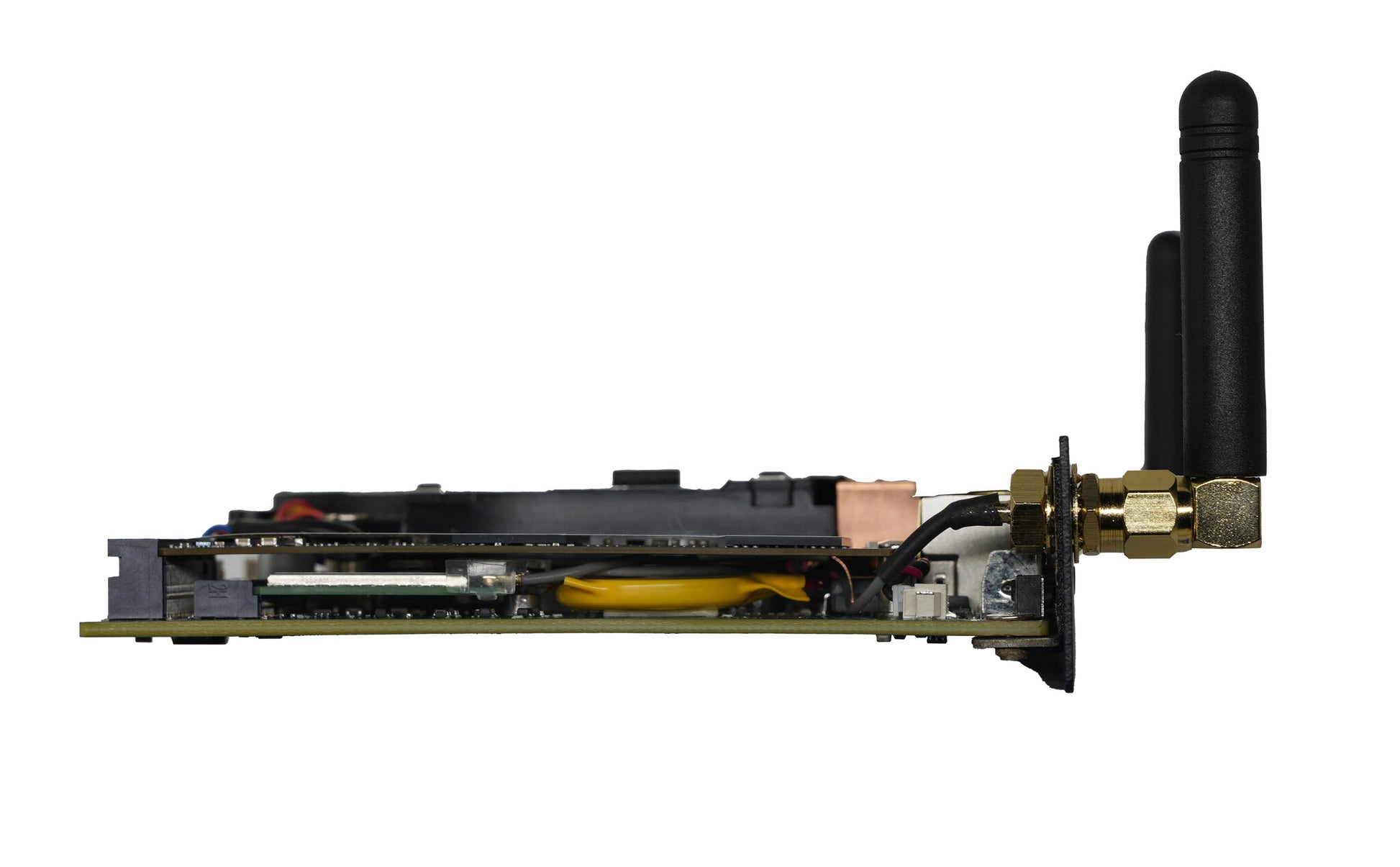

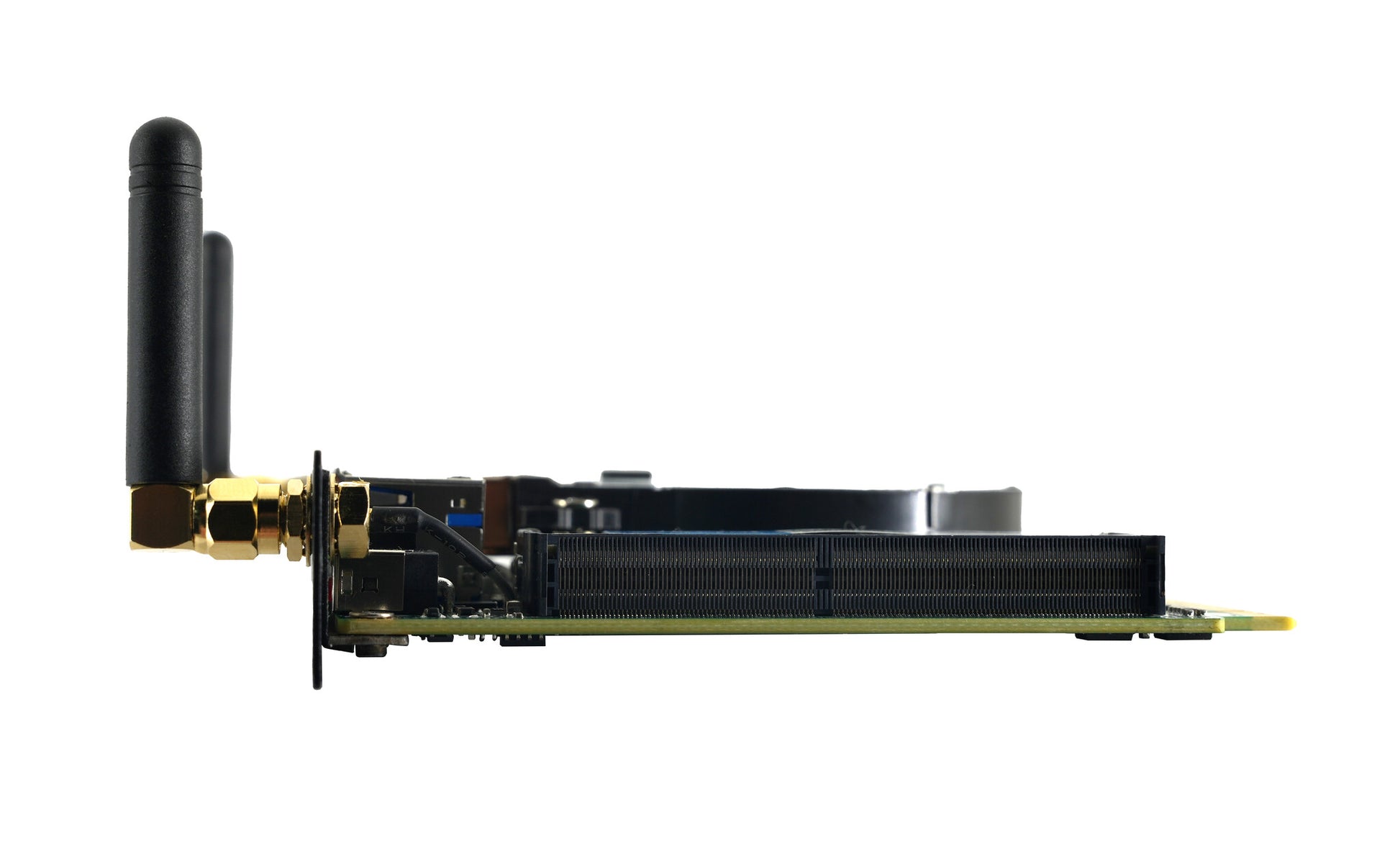

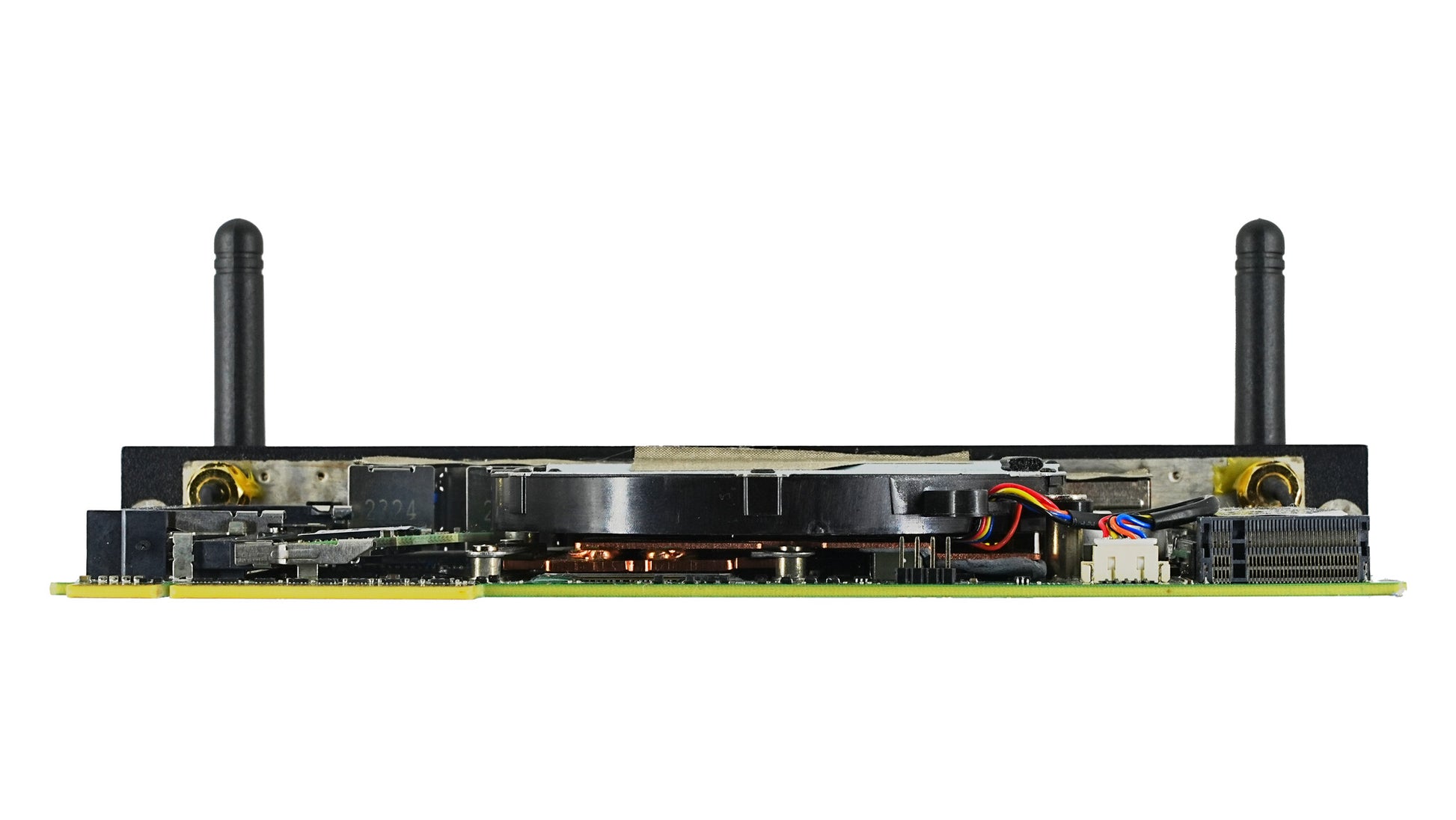

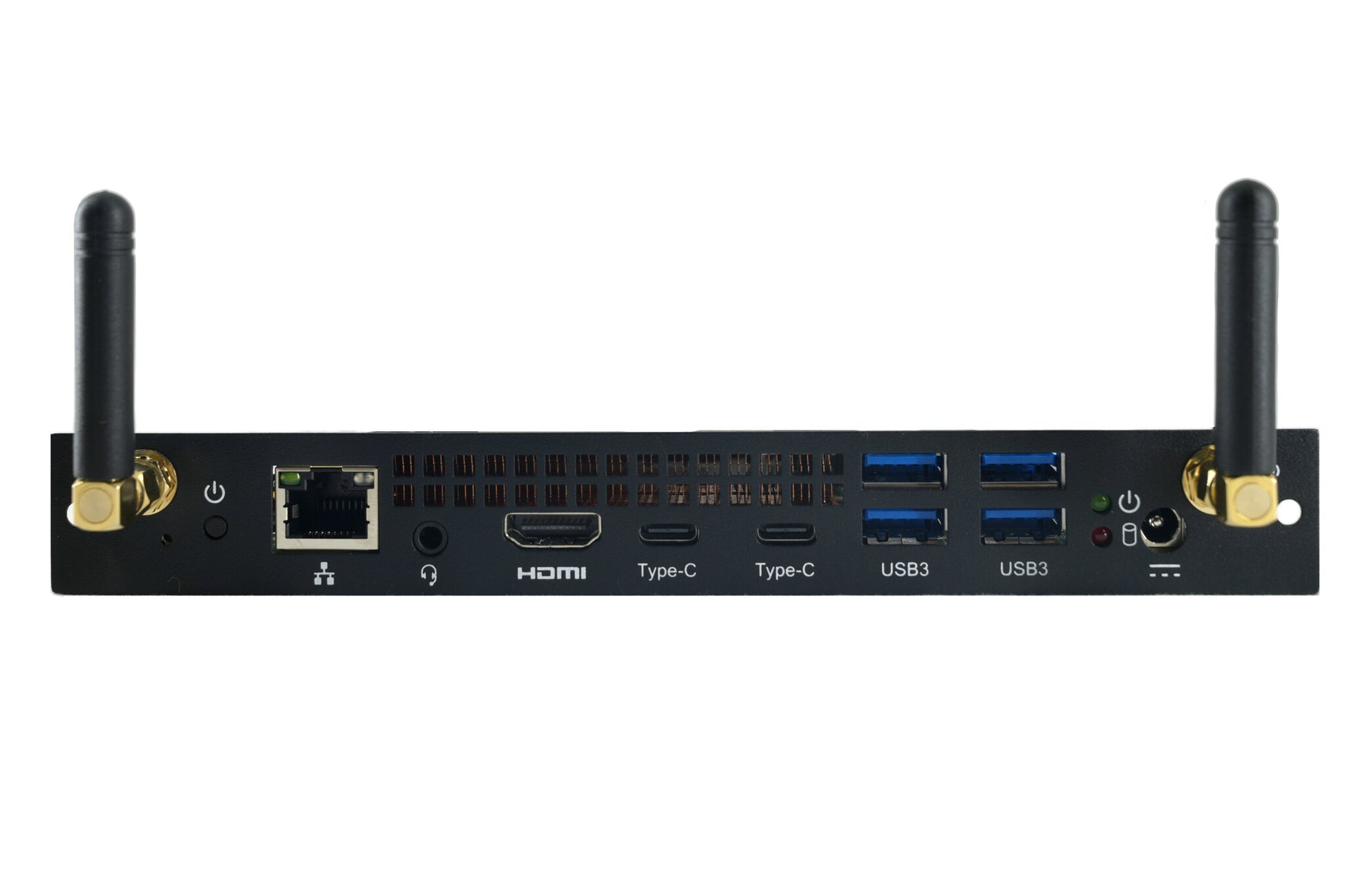

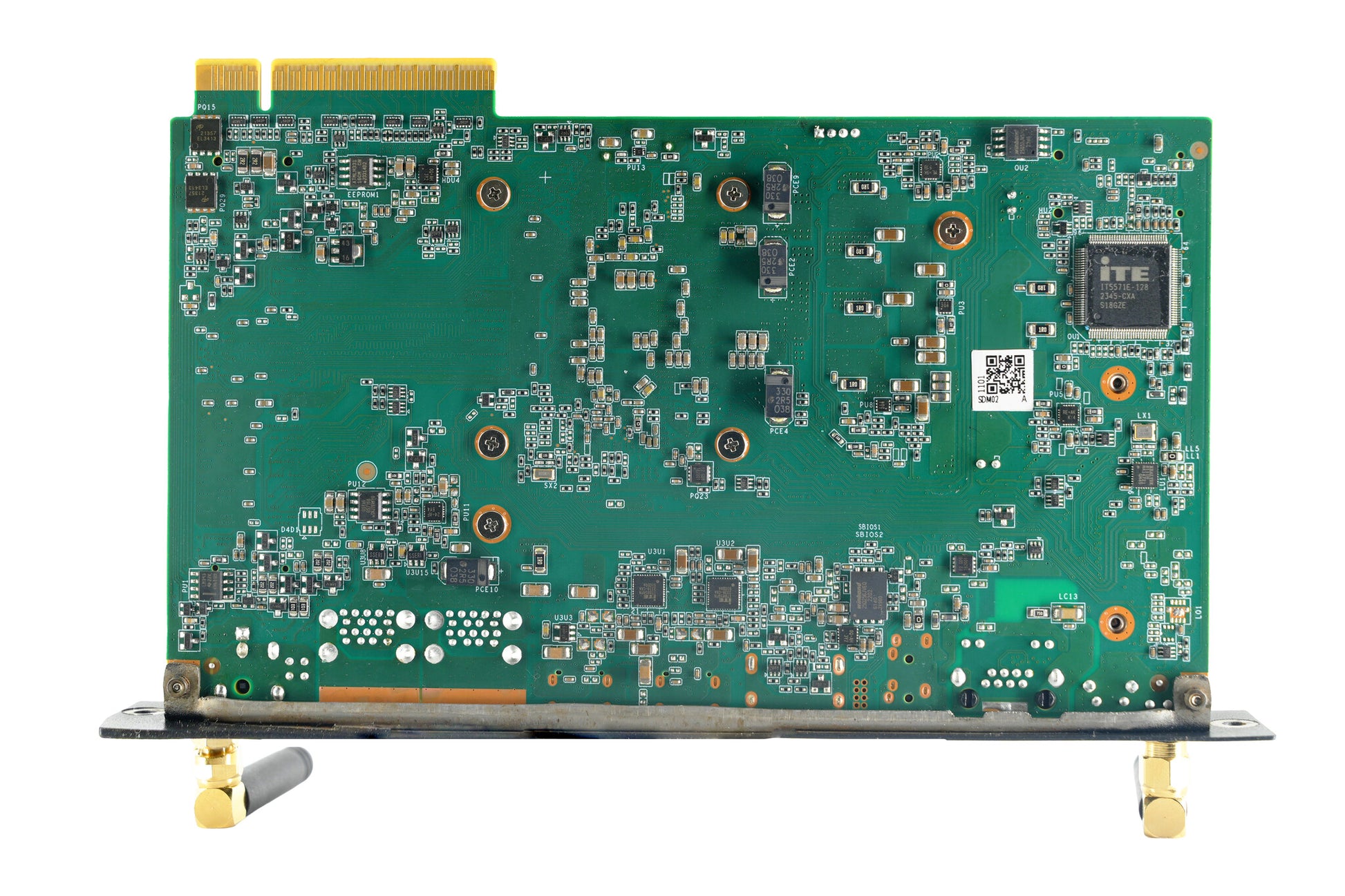

Equipped with an Intel Core i5-12450H processor, this SDM-L PC transforms your iiyama large format display into a powerful, standalone solution. It features Intel UHD Graphics, a high-speed M.2 NVMe PCIe SSD, four USB 3.2 Gen1 ports, and two Type-C ports (supporting USB 3.2 Gen1 and DP Alt Mode) for ultimate connectivity.

Processor
Processor manufacturer
Intel
Processor family
Intel® Core™ i5
Processor model
i5-12450H
Neural processor unit (NPU)
Copilot+ PC
No
Memory
Internal memory
8 GB
Maximum internal memory
32 GB
Internal memory type
DDR4-SDRAM
Memory clock speed
3200 MHz
Storage
Total storage capacity
256 GB
Optical drive type
No
Storage media
SSD
Number of storage drives installed
1
SSD capacity
256 GB
NVMe
Yes
SSD interface
PCI Express
SSD form factor
M.2
Graphics
Discrete graphics card
No
On-board graphics card
Yes
Discrete GPU manufacturer
Intel
Discrete graphics card model
Not available
On-board graphics card model
Intel® UHD Graphics
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
LAN controller
Realtek RTL8111H
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller manufacturer
Intel
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Bluetooth
Yes
Bluetooth version
5.3
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
USB Type-C DisplayPort Alternate Mode
Yes
HDMI ports quantity
1
HDMI version
2.0
DisplayPort version
1.4
Ethernet LAN (RJ-45) ports
1
Microphone in
Yes
Combo headphone/mic port
Yes
Design
Chassis type
Slot-in PC
Product colour
Black
Performance
Product type
Mini PC
Audio system
High Definition Audio
Trusted Platform Module (TPM) version
2.0
Trusted Platform Module (TPM)
Yes
Software
Operating system installed
Windows 11 IoT Enterprise
Operating system architecture
64-bit
Compatible operating systems
Windows 11 loT Enterprise (SAC) 64Bit
Audio
Audio chip
Realtek ALC245
Power
Power consumption (standby)
0.5 W
Power consumption (typical)
72 W
Operational conditions
Operating temperature (T-T)
-5 - 45 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Certificates
Compliance certificates
REACH, RoHS, WEEE
Weight & dimensions
Width
110 mm
Depth
195 mm
Height
25 mm
Weight
400 g
Package width
279 mm
Package depth
67 mm
Package height
201 mm
Package weight
610 g
Sustainability
Sustainability certificates
ErP
Packaging content
Display included
No
