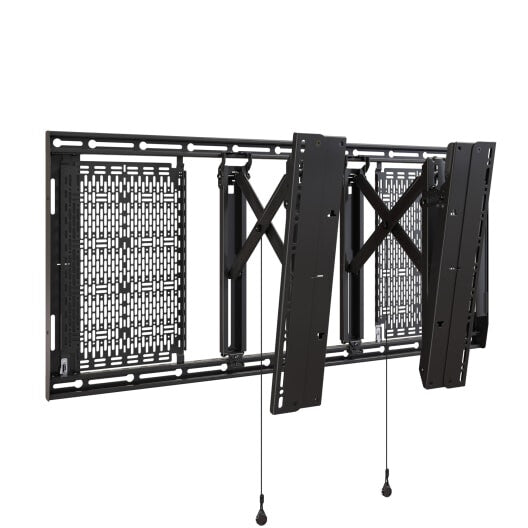

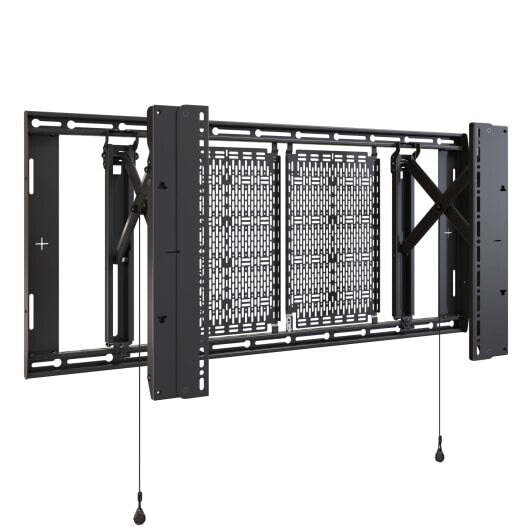

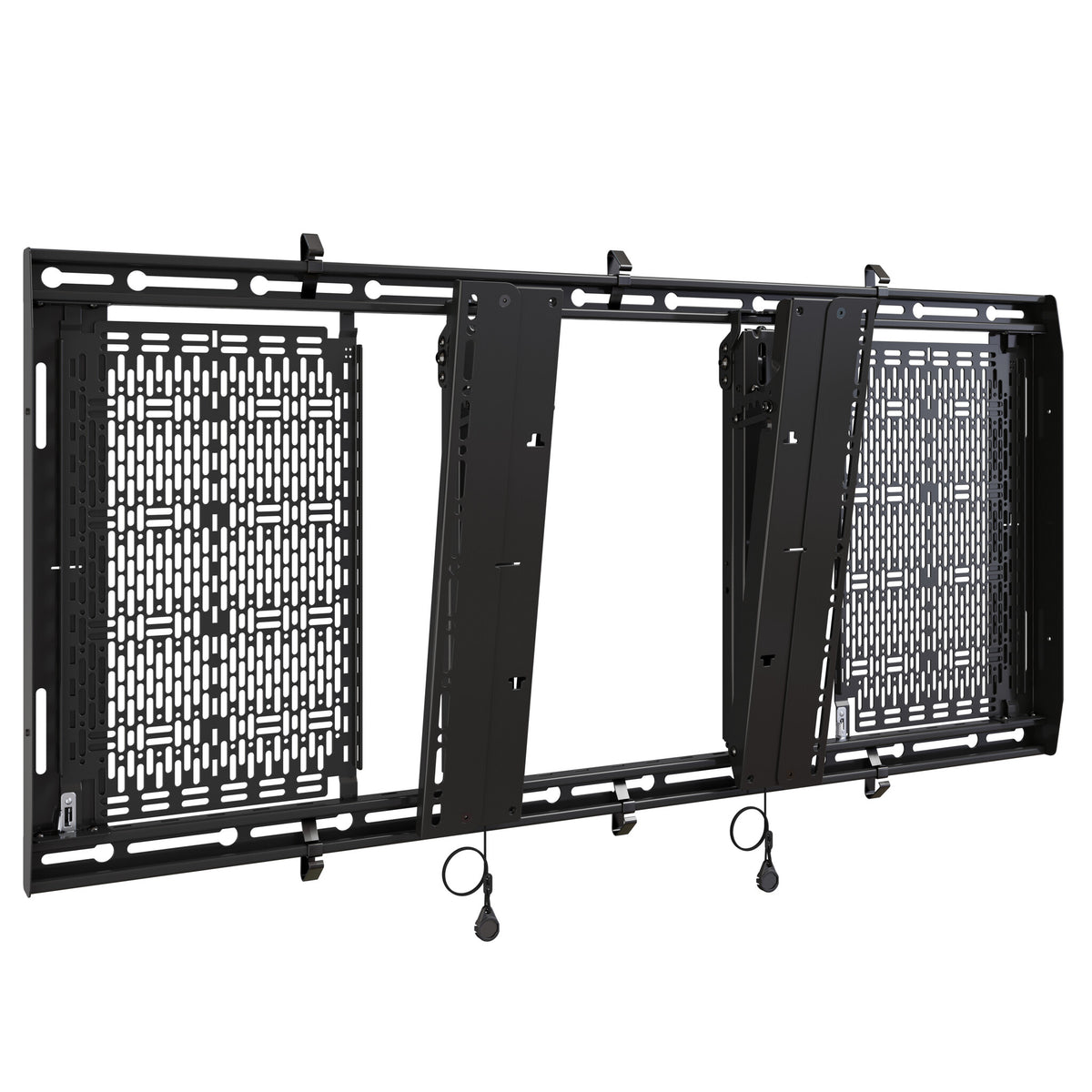

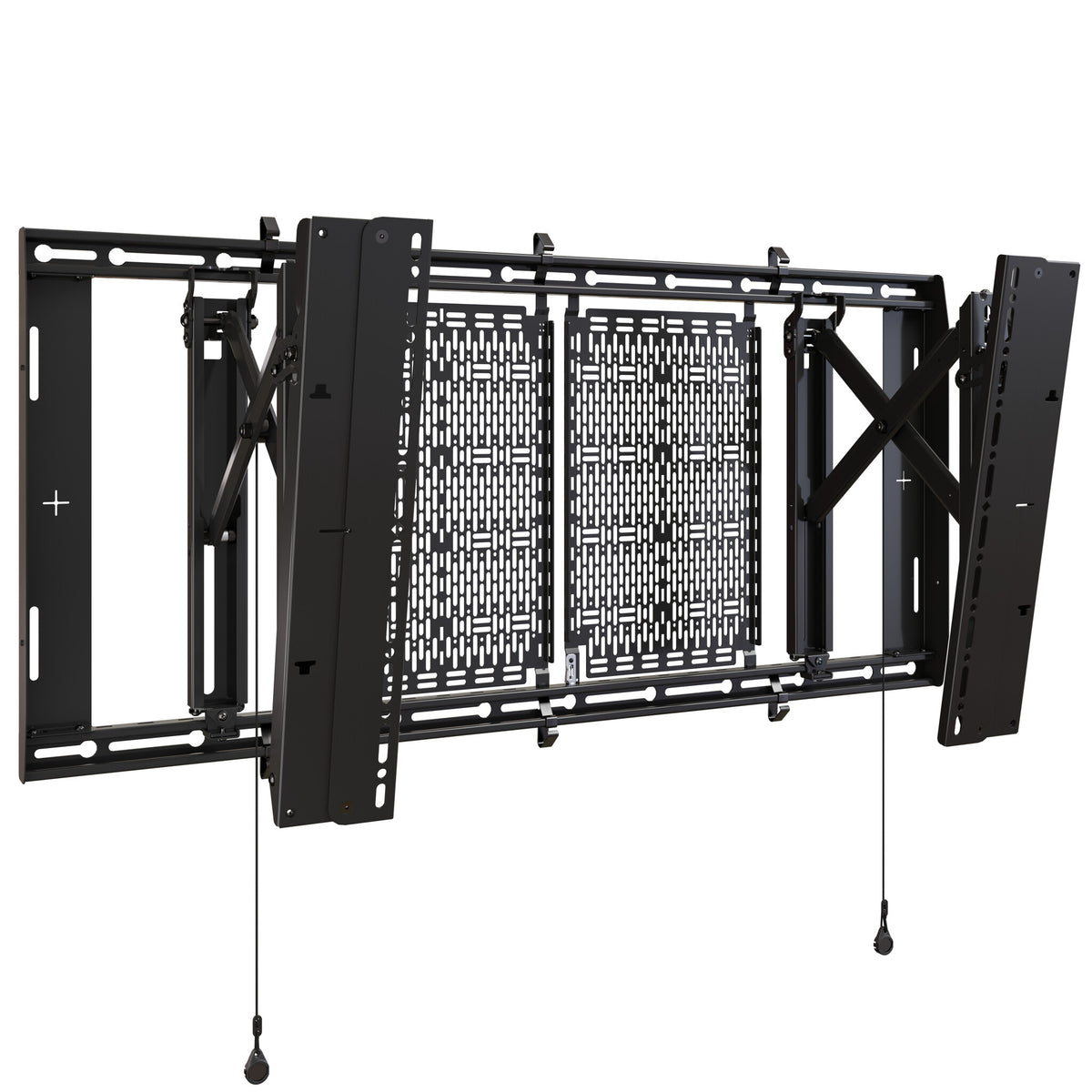

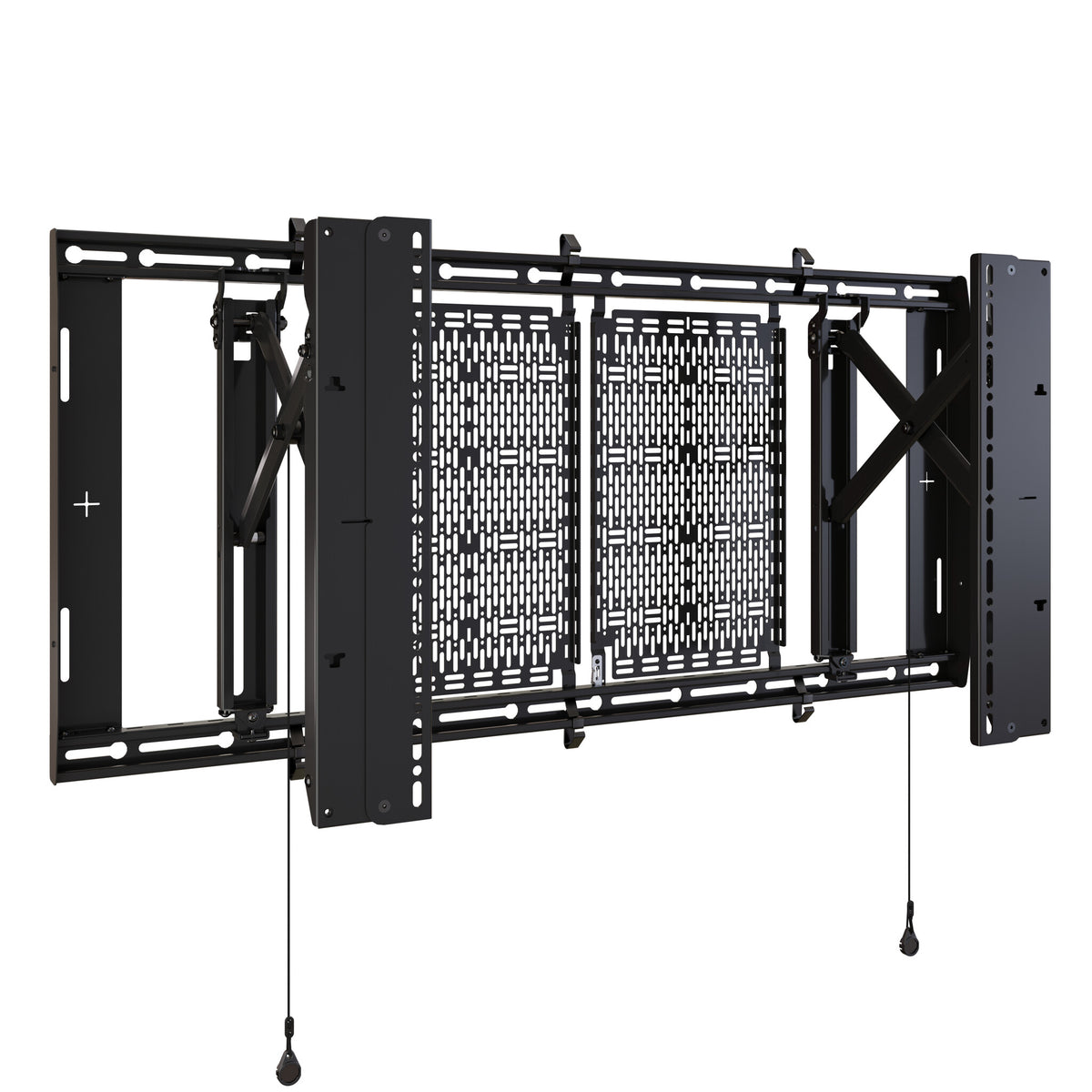

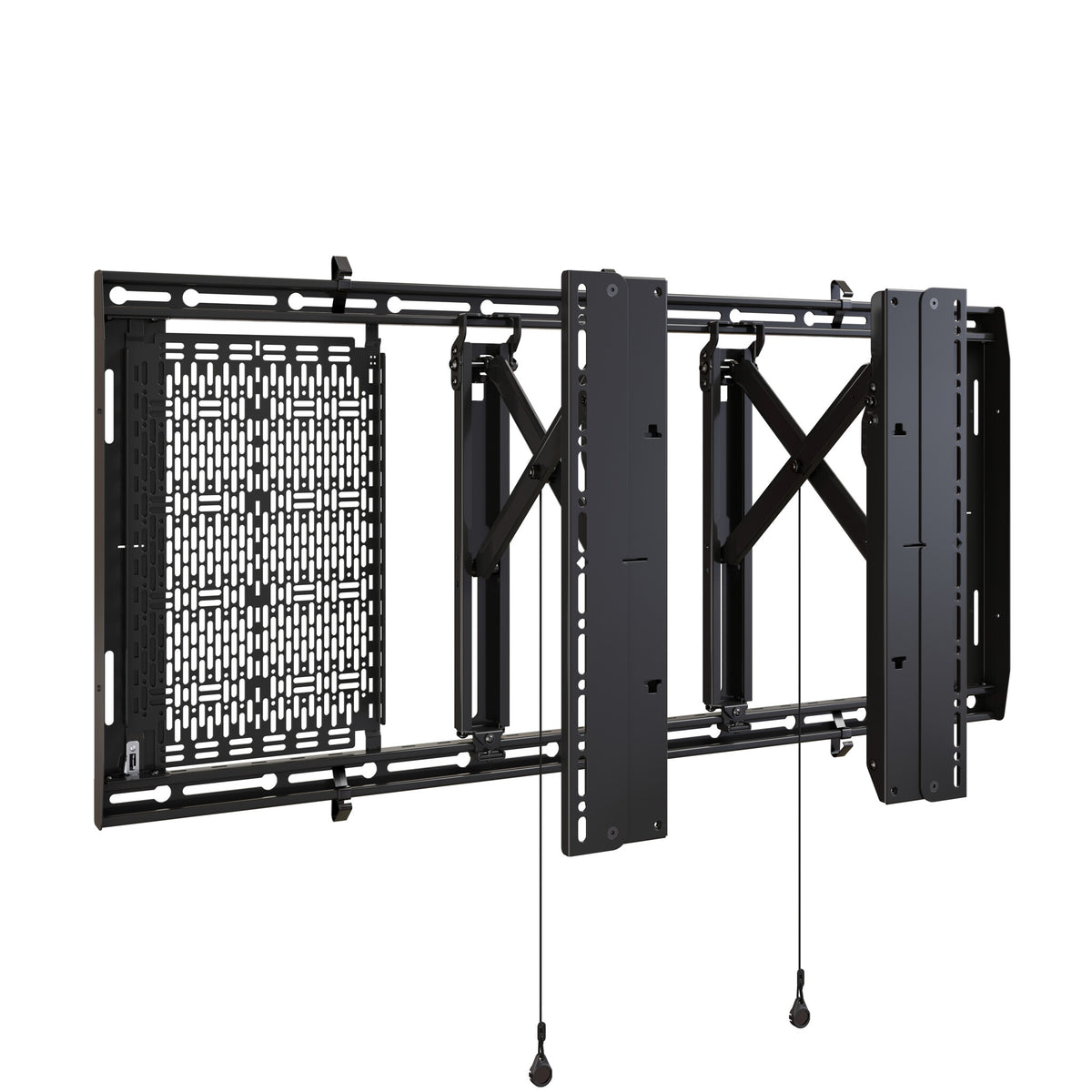

Chief AS3LD

The Chief Tempo AS3LD is an all-in-one configurable wall mount system engineered for fast, repeatable commercial flat panel installations. Designed with direct installer feedback, it consolidates mount, storage, and cable management into a single part number and single shipment — making it especially well suited to large-scale rollouts in corporate, education, retail, and hospitality environments. The system accommodates displays from 124 to 218 cm (49" to 86") and carries a 90,7 kg load capacity, while its slim total installation depth supports ADA compliance. Integrated Lever Lock storage panels keep AV devices neatly behind the display and fully accessible for servicing, reducing on-site time and minimising post-installation support calls.

One SKU, One Box, Rapid Mass Rollouts

The AS3LD ships as a single part number containing everything needed for a complete landscape wall installation — mount, interface brackets, integrated storage panels, and hardware. For AV integrators managing large deployments across multiple sites, this eliminates the procurement complexity of ordering individual components separately and virtually removes the risk of delayed jobs caused by missing parts. The system can even be pre-loaded with small AV devices and cabling before shipment, so installation crews arrive on site with a near-complete assembly ready to hang. In practice, this compresses multi-day installs into a fraction of the time and keeps project costs predictable.

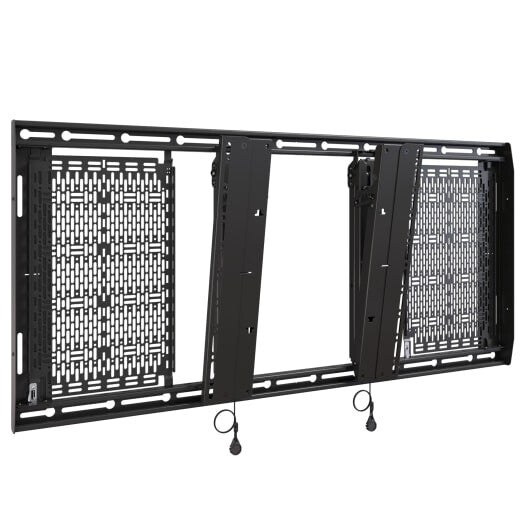

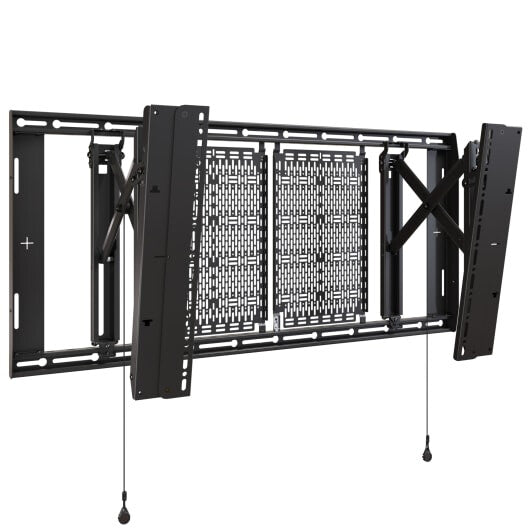

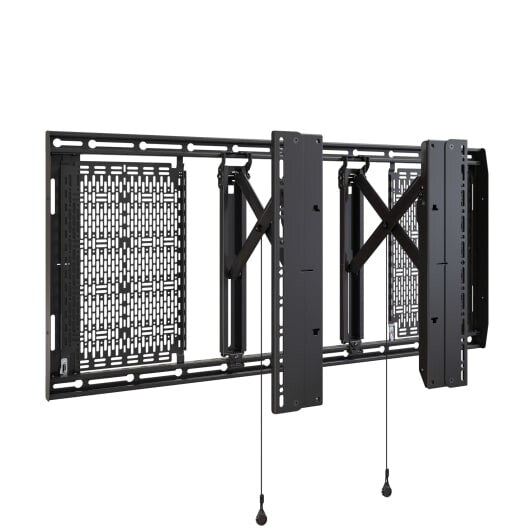

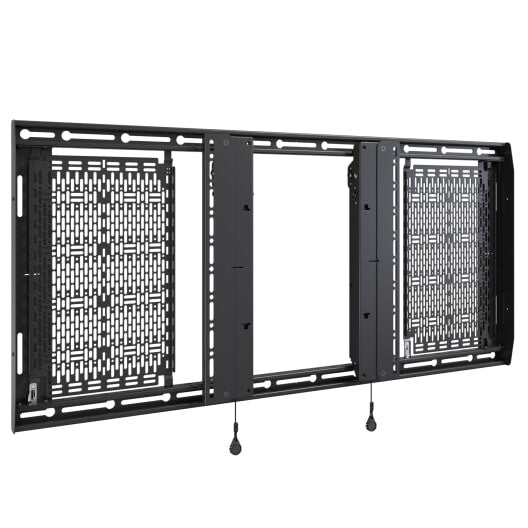

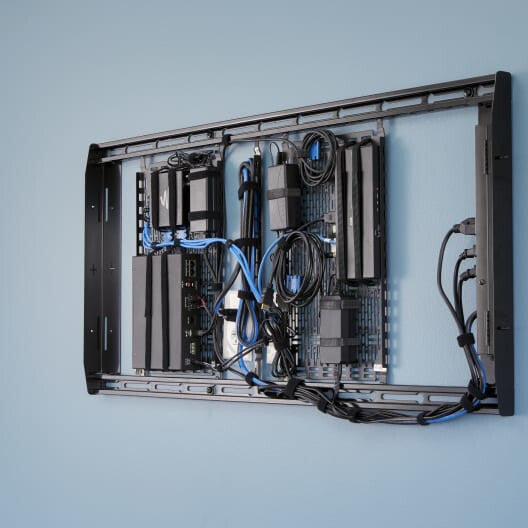

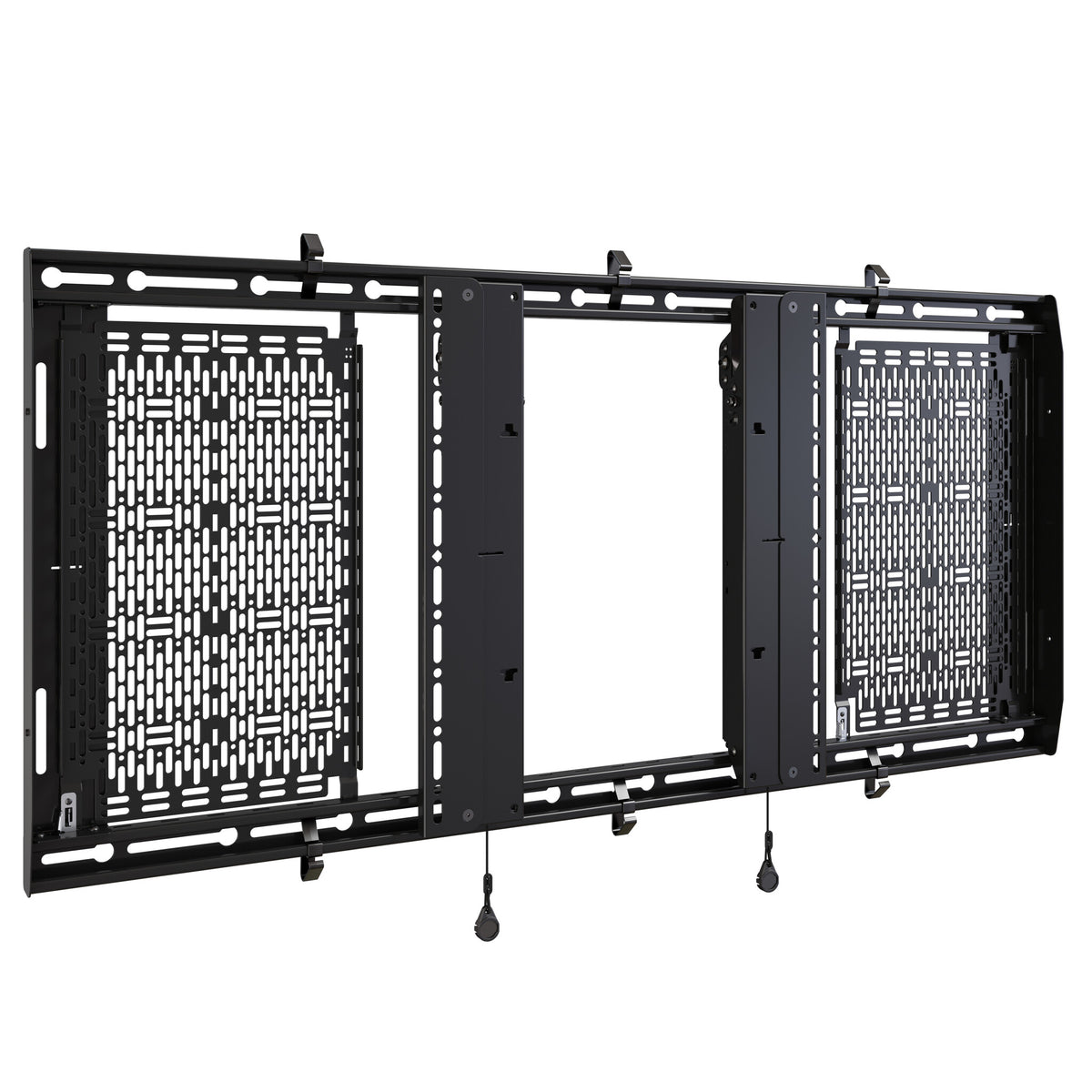

Integrated Lever Lock Device Storage

The system ships with two Lever Lock storage plates (approximately 38 × 25 cm each), and additional plates can be added along the mounting rail to accommodate project requirements. Up to 2–6 small AV devices — media players, receivers, wireless presenters — mount securely behind the display without cluttering the wall or requiring a separate rack. The Lever Lock mechanism allows plates to be repositioned along the rail for optimal device placement relative to power and data outlets. For end users, this means a clean installation with no visible equipment and no loose cabling, contributing to a professional appearance in boardrooms, classrooms, and public spaces.

One box. One order. Display up in record time.

UL certified · Fits 16" and 24" OC stud walls, concrete and block

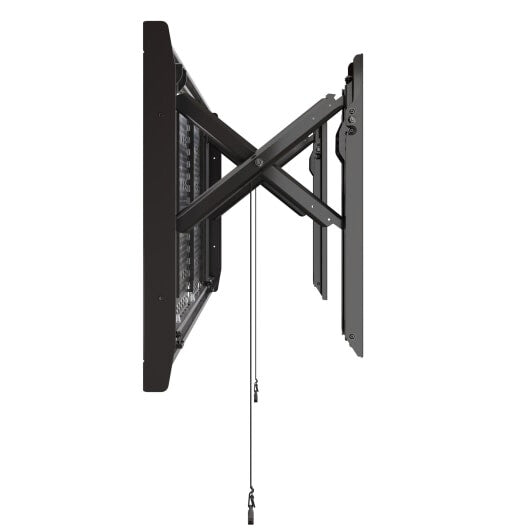

32 cm Service Extension for Easy Maintenance

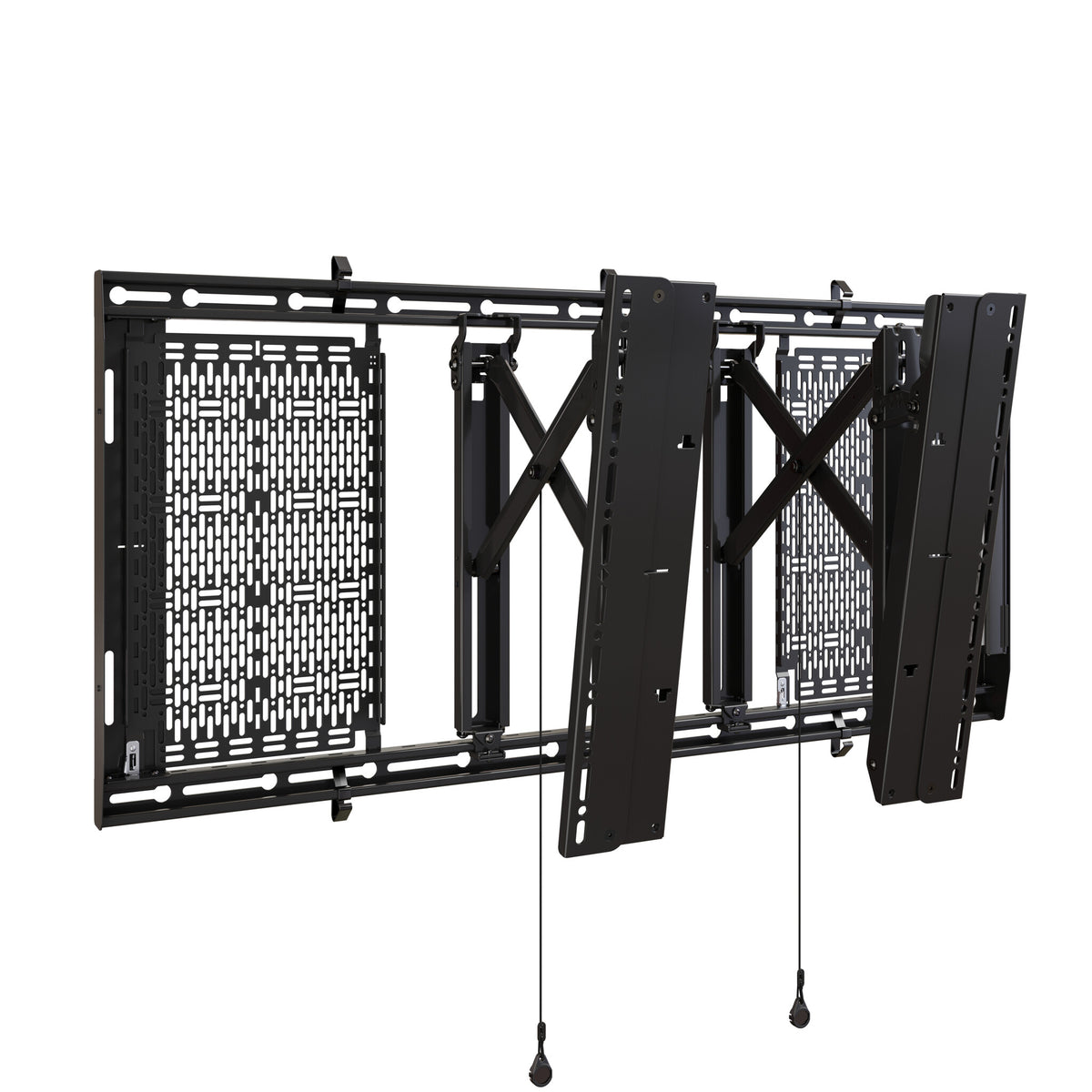

The AS3LD provides 32 cm (12,6") of service access extension, allowing the display to swing out from the wall on the interface without full removal. The open wall plate design also provides direct access to in-wall power and data sources. This dramatically reduces service time during routine maintenance or AV device replacement — the display stays mounted and stable while technicians work behind it. In high-traffic environments such as retail or hospitality, minimising display downtime during service visits directly benefits the end customer's operation.

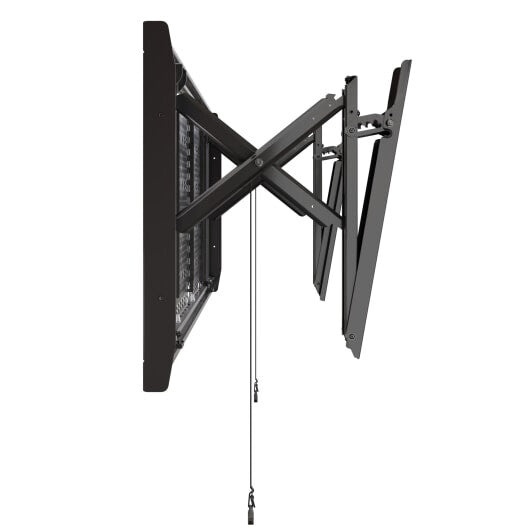

Micro-Adjustable Tilt and Post-Install Leveling

Display tilt is adjustable from 0° to -10° in precise 2,5° increments, allowing the viewing angle to be dialled in to suit seating heights or wall positions without compromising image quality. Additionally, up to 2,5 cm (1") of post-installation roll leveling corrects for walls that are not perfectly plumb — a common real-world issue in renovation projects and older buildings. Lateral shift adjustment further centres the display on the wall plate independently of stud positions. Together, these micro-adjustment features allow a single installer to achieve a perfectly squared, correctly angled display without returning for a second visit.

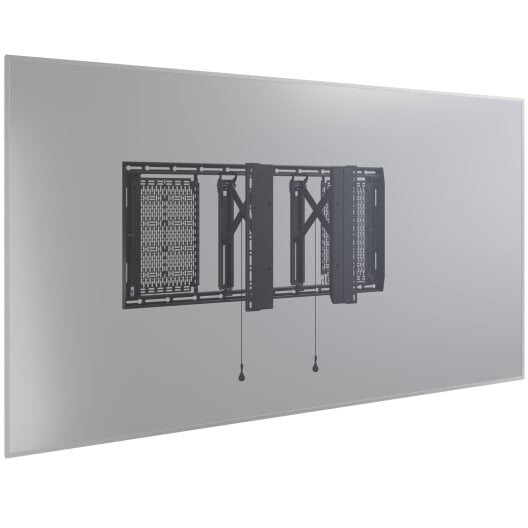

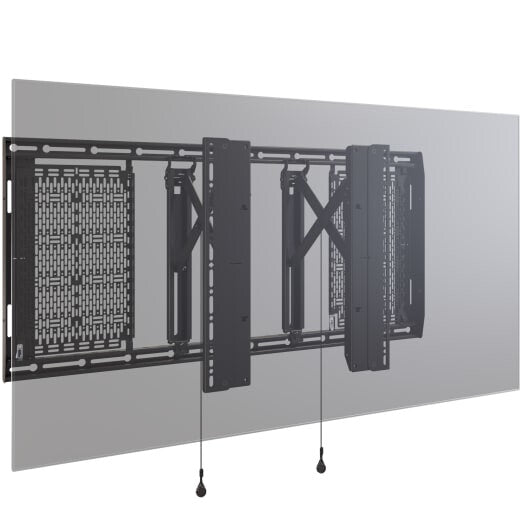

Universal Wall Compatibility and ADA-Conscious Depth

The AS3LD mounts to 16" and 24" on-centre wood or metal stud walls as well as concrete and concrete block surfaces, covering virtually any commercial wall construction encountered in practice. Its minimum installation depth of just 5 cm (1,96") keeps the total display protrusion to a minimum, which is significant for installations in corridors, lobbies, and public areas where ADA (Americans with Disabilities Act) clearance requirements apply. For integrators specifying displays in ADA-regulated spaces, this low-profile characteristic simplifies compliance sign-off without requiring custom wall recesses or special hardware.

90,7 kg Capacity with UL Certification
