Chief LVS1U

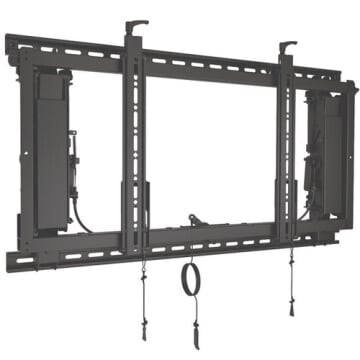

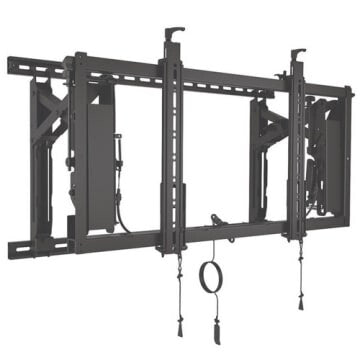

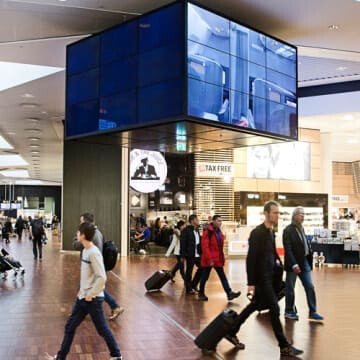

The Chief LVS1U ConnexSys Video Wall Landscape Mounting System with Rails is engineered for professional large-format video wall installations in corporate lobbies, control rooms, retail environments, and public venues. It solves the four most common video wall pain points — installation speed, precise alignment, long-term rigidity, and display serviceability — in a single, field-proven system. By mounting to standard 41 mm strut channel, an entire row of screens can be levelled in one step rather than screen by screen. The built-in PowerZone six-point micro-adjustment and RapidDraw pull-out mechanism give installers and facility managers fast, repeatable control over every display without disturbing adjacent panels.

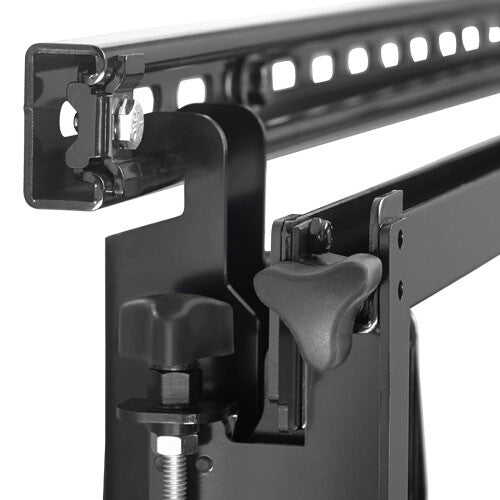

Strut-Channel Rail: Row Levelling in One Step

The LVS1U mounts to a standard 41 mm channel strut so all displays in a row share a common horizontal reference. In practice this means the installer levels the strut once, then hangs every screen in that row — instead of adjusting each mount individually against the wall. On a 3×3 video wall, that alone can cut installation time by hours. The strut also distributes load evenly across multiple attachment points, so the wall sees a spread force rather than concentrated loads at each screen — important on older plasterboard or lightweight partition walls.

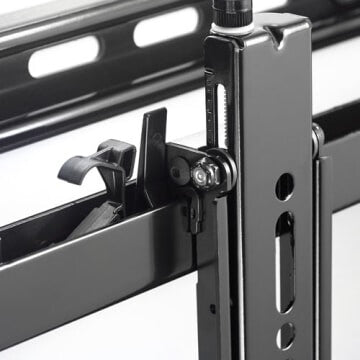

6-Point PowerZone Micro-Adjustment

Six axes of fine-tune adjustment — height (±2,5 cm), forward-back tilt (+4,0°/-2,5°), lateral shift, and depth — are all accessible from a single point at the top of the mount. This matters in video walls because a misaligned screen is immediately visible across the entire array. Having all adjustments co-located means one technician can dial in a screen without a second person holding it or reaching around to the back. The single-pivot tilt point is specifically designed to prevent the screen from twisting as it tilts — a common cause of gaps between bezels in cheaper mounts.

One rail. One level. Every screen perfectly aligned.

UL Listed · Limited 10-year warranty

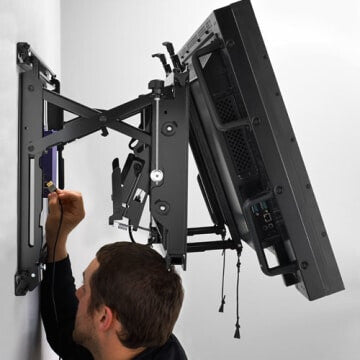

RapidDraw Pull-Out for Safe, Fast Servicing

A cord-release mechanism pops any individual display outward by 34 cm without the operator having to push or manhandle the screen. An integrated kickstand then locks the display at 20° of bottom tilt, creating a stable working platform for cable management, rebooting a player, or swapping hardware. Critically, the mount's structural geometry maintains alignment for all surrounding displays while one screen is pulled out — so a service call on one panel does not require re-aligning its neighbours. For venues with 24-7 content obligations, this directly reduces downtime.

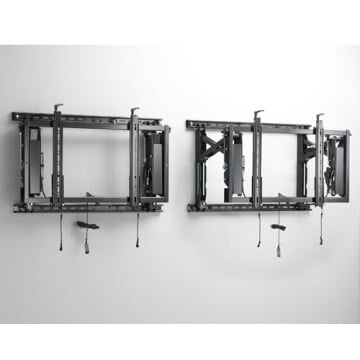

Independent Left-Right Adjustment for Imperfect Walls

Both sides of the mount adjust independently from each other, and the system tolerates horizontal wall irregularities of up to 51 cm. Real-world installation sites — concrete cores, pre-existing cabling chases, refurbished spaces — rarely have perfectly flat walls. A mount that cannot compensate forces the installer to shim, grout or re-route, adding cost and time. With the LVS1U, the depth of each side can be set anywhere in a 100–188 cm range from the wall surface, covering a wide variety of recessed, flush and projecting installation scenarios.

Broad VESA Compatibility for Commercial Panels

The LVS1U accepts any VESA pattern between 200×100 mm and 700×400 mm, covering virtually every commercial flat panel from 107 to 203 cm (42–80") used in video wall configurations today. Weight capacity is 68 kg per screen. This universality means the same mount stock can be used across different display brands or upgraded display generations without a forklift change of mounting hardware — a meaningful reduction in lifecycle costs for integrators managing multi-site roll-outs.
