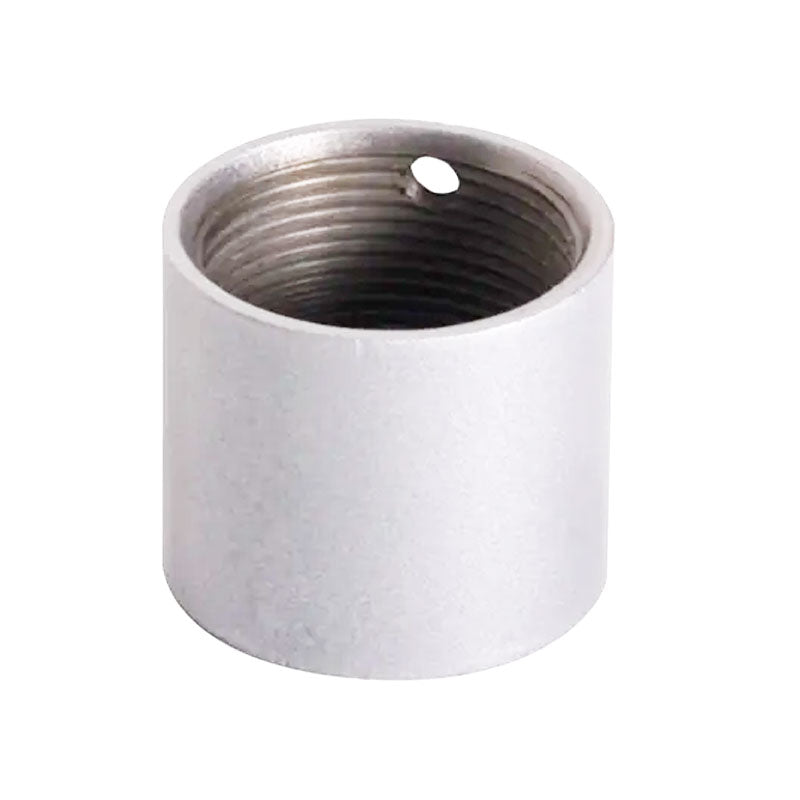

Chief CMA270W — Threaded pipe coupler for 1.5" NPT columns, white
The Chief CMA270W is a threaded pipe coupler designed to join two 1.5" NPT threaded extension columns, allowing installers to achieve greater ceiling-to-projector drop distances than a single column provides. Finished in white to match white-coloured Chief column systems, it is aimed at AV installers working on projector ceiling mounts in classrooms, auditoriums, conference rooms and houses of worship. The coupler is UL Listed, carries a 226.8 kg weight capacity that matches virtually every Chief 1.5" NPT column and column extension, and comes backed by Chief's 10-year warranty.
High-Capacity, UL-Listed Connection
The CMA270W is rated for a 226.8 kg (500 lb) load — equal to the rated capacity of virtually all Chief 1.5" NPT threaded columns and column extensions. This means the coupler is never the weakest link in the assembly: the full structural rating of the column system is preserved end-to-end. UL Listing provides independent verification of the safety claim, which is a requirement for many commercial installations in educational facilities, government buildings and corporate environments. Installers can specify the coupler with confidence that it will satisfy site safety requirements without a separate engineering review.
Dual Set-Screw Locking for Rigid Joins
Two set screws tighten against the threaded columns once assembled, preventing rotation and any vertical play between the joined sections. In a ceiling projector installation, any looseness in a column coupling translates directly into image drift and vibration — which means callback visits and frustrated end users. The dual set-screw design eliminates this failure mode, giving the projector a stable platform that stays aligned over the life of the installation without periodic re-tightening.
Minimal Height Penalty
At 52.6 mm tall (adding just 5.23 cm / 2.06" to the overall drop), the CMA270W introduces negligible height overhead compared to the column length it enables. In height-constrained spaces — such as rooms with low ceilings or strict throw-distance requirements — this compact form factor means the coupler can be used without forcing a redesign of the column configuration or affecting the projector's calculated throw distance.
