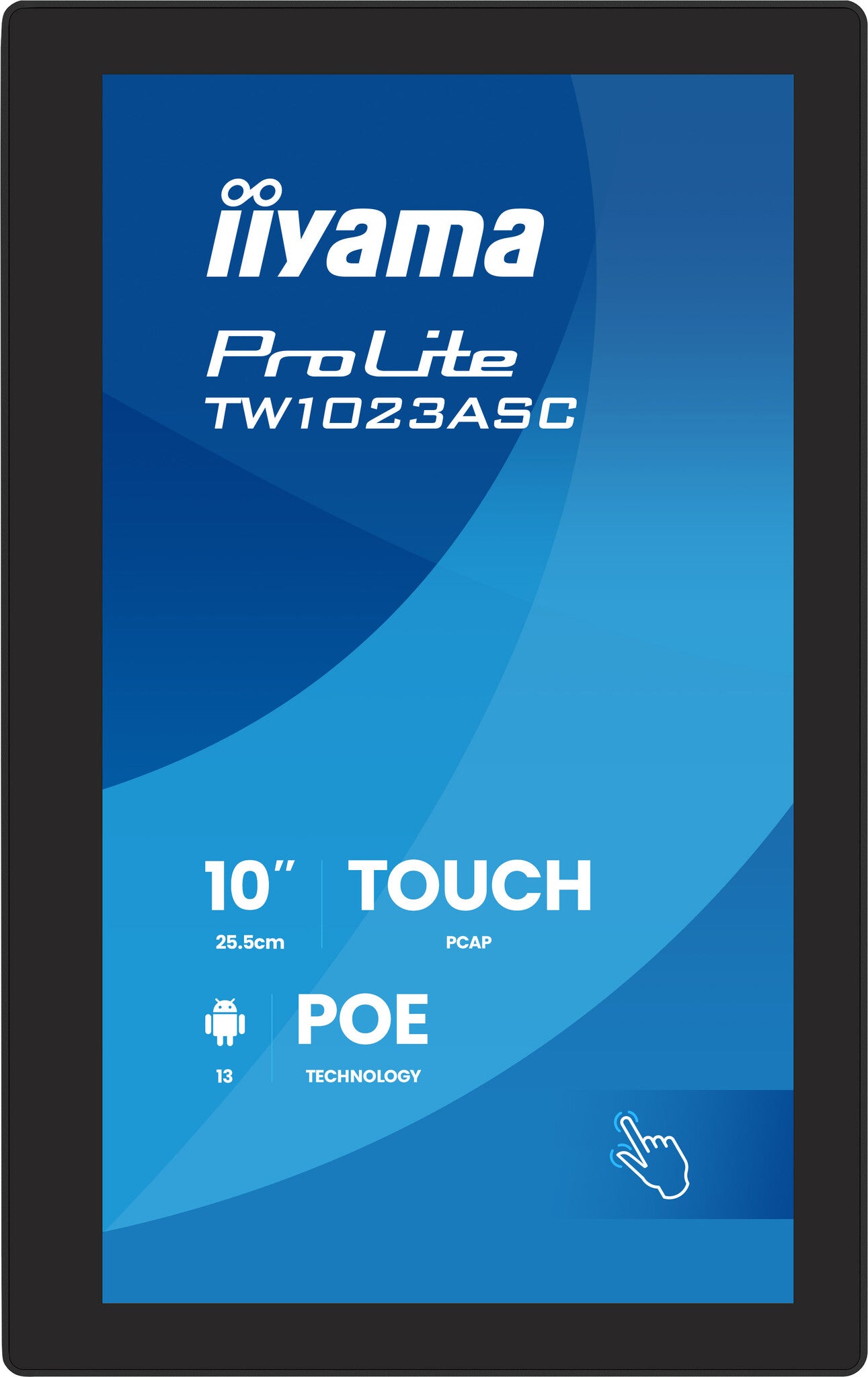

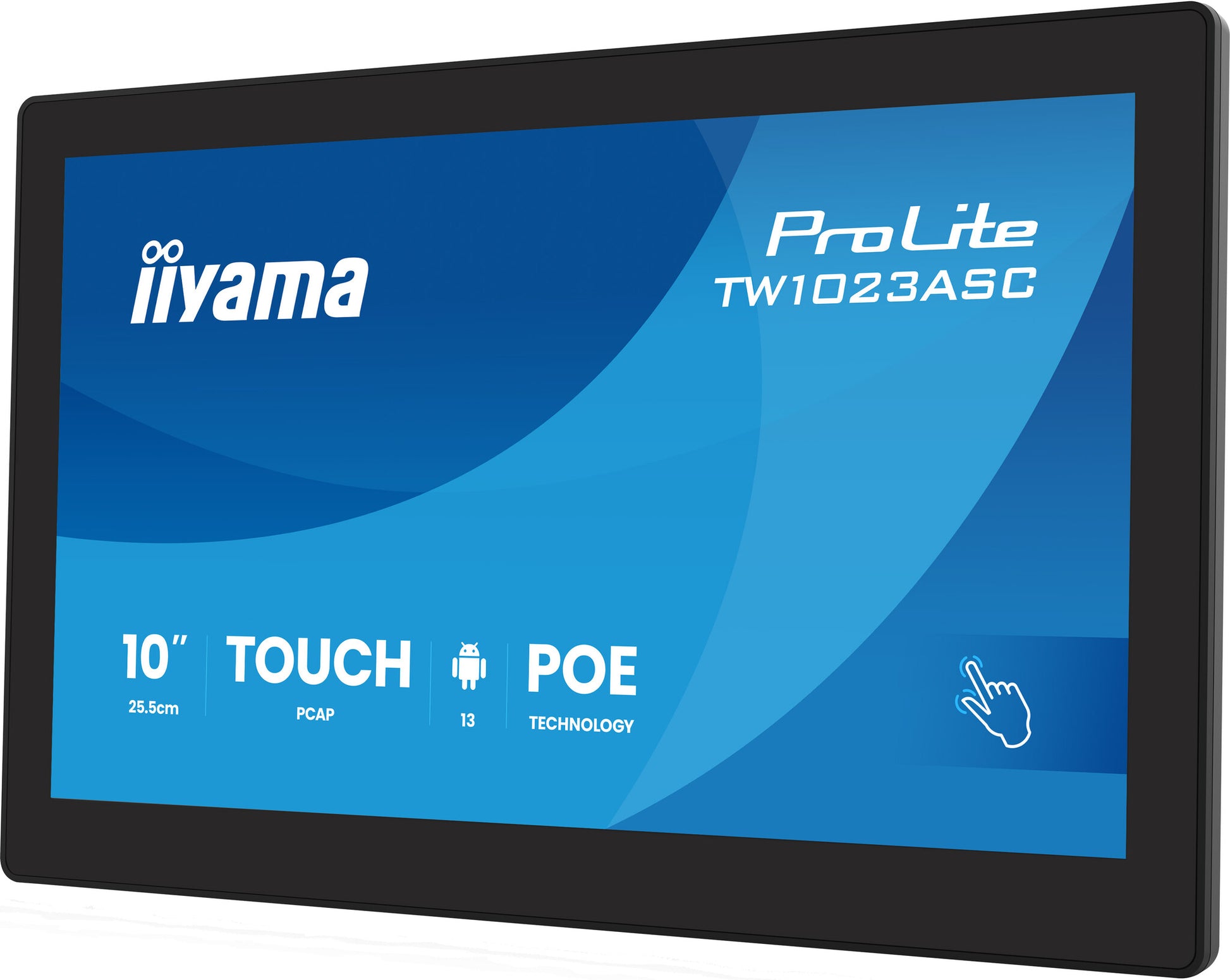

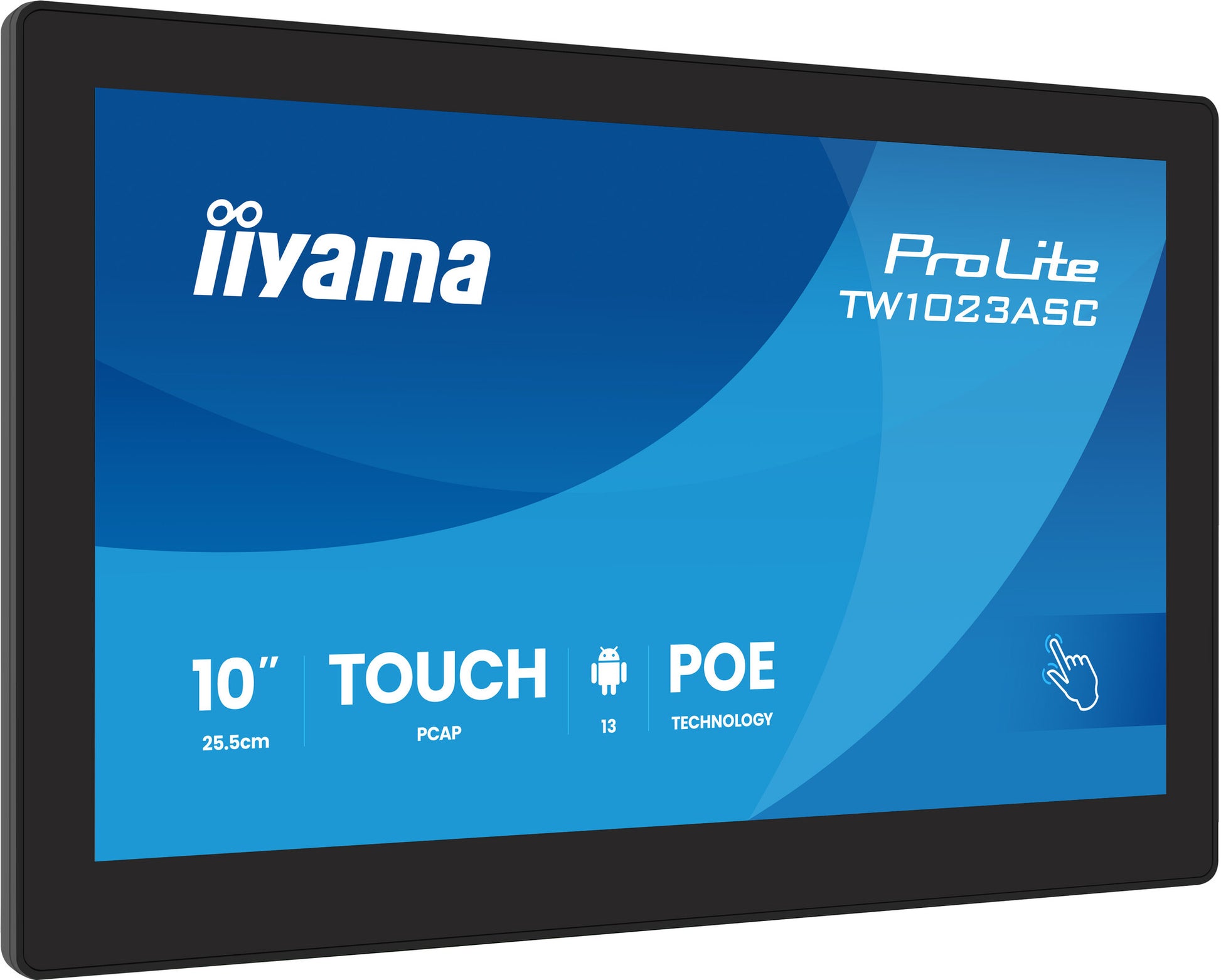

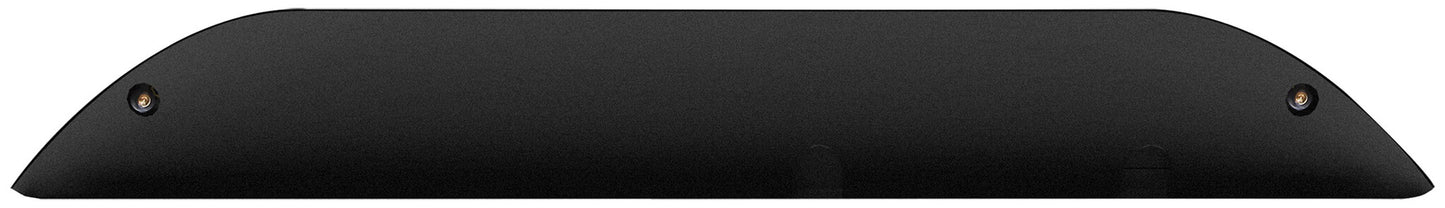

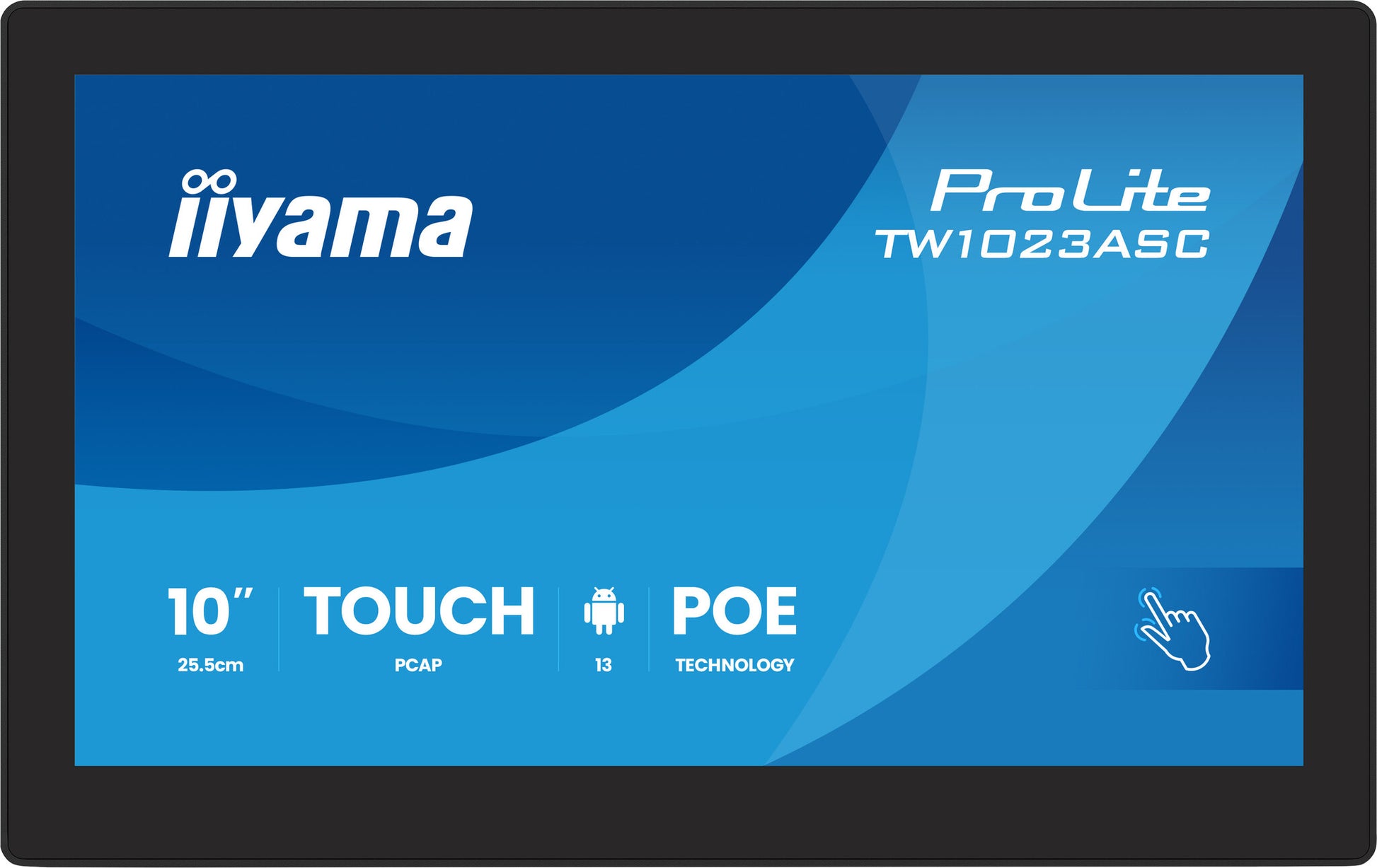

iiyama TW1023ASC-B3P Signage Display Kiosk design 25.6 cm (10.1") Wi-Fi 385 cd/m² WXGA Black Touchscreen Built-in processor Android 24/7

iiyama TW1023ASC-B3P Signage Display Kiosk design 25.6 cm (10.1") Wi-Fi 385 cd/m² WXGA Black Touchscreen Built-in processor Android 24/7

10.1” PCAP 10pt touchscreen PC with Android, PoE Technology and iiSignage²

  • Kiosk design Black
  • 25.6 cm (10.1") 1280 x 800 pixels 385 cd/m²
  • Touchscreen 25 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 3 W
  • SKU:4948570126927
  • GTIN/EAN:4948570126927
  • MPN:TW1023ASC-B3P
Add To Favorite

You need to login to view the price.

View full details

iiyama TW1023ASC-B3P. Product design: Kiosk design. Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels, Display brightness: 385 cd/m², HD type: WXGA, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

The ProLite TW1023AS-B3P is a smart and intuitive 10.1" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 13, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in camera, microphone and speakers, the TW1023AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position. Together with the built-in 5 megapixel camera, microphone and speakers it offers limitless, interactive installation possibilities.

Display
Colour depth
8 bit
Panel type
IPS
Glass thickness
1.25 mm
Surface hardness
6H
Display diagonal (metric)
25.5 cm
Active display area (W x H)
216.6 x 135.4 mm
Pixel pitch
0.1692 x 0.1692 mm
Display number of colours
16.7 million colours
Viewing angle, vertical
160°
Viewing angle, horizontal
160°
Contrast ratio (typical)
1000:1
Response time
25 ms
Native aspect ratio
16:10
Number of simultaneous touchpoints
10
Multi-touch
Yes
Touchscreen technology
Projected capacitive system
Touchscreen
Yes
HD type
WXGA
Display brightness
385 cd/m²
Display resolution
1280 x 800 pixels
Display diagonal
25.6 cm (10.1")

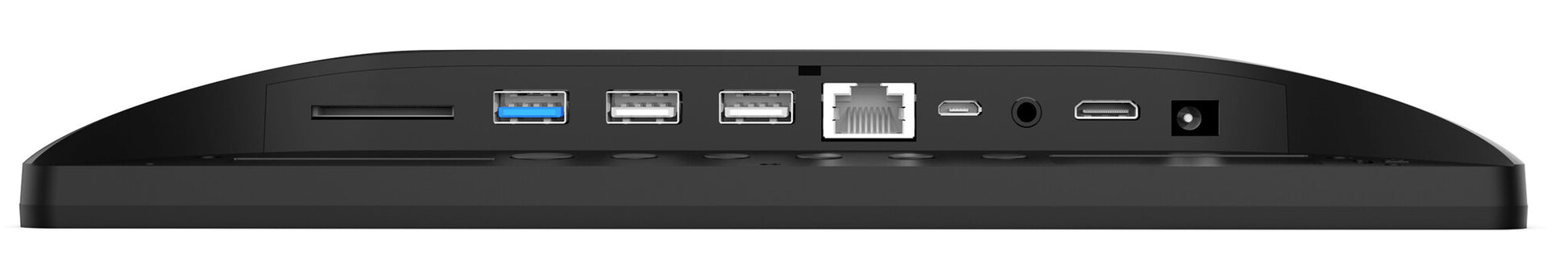

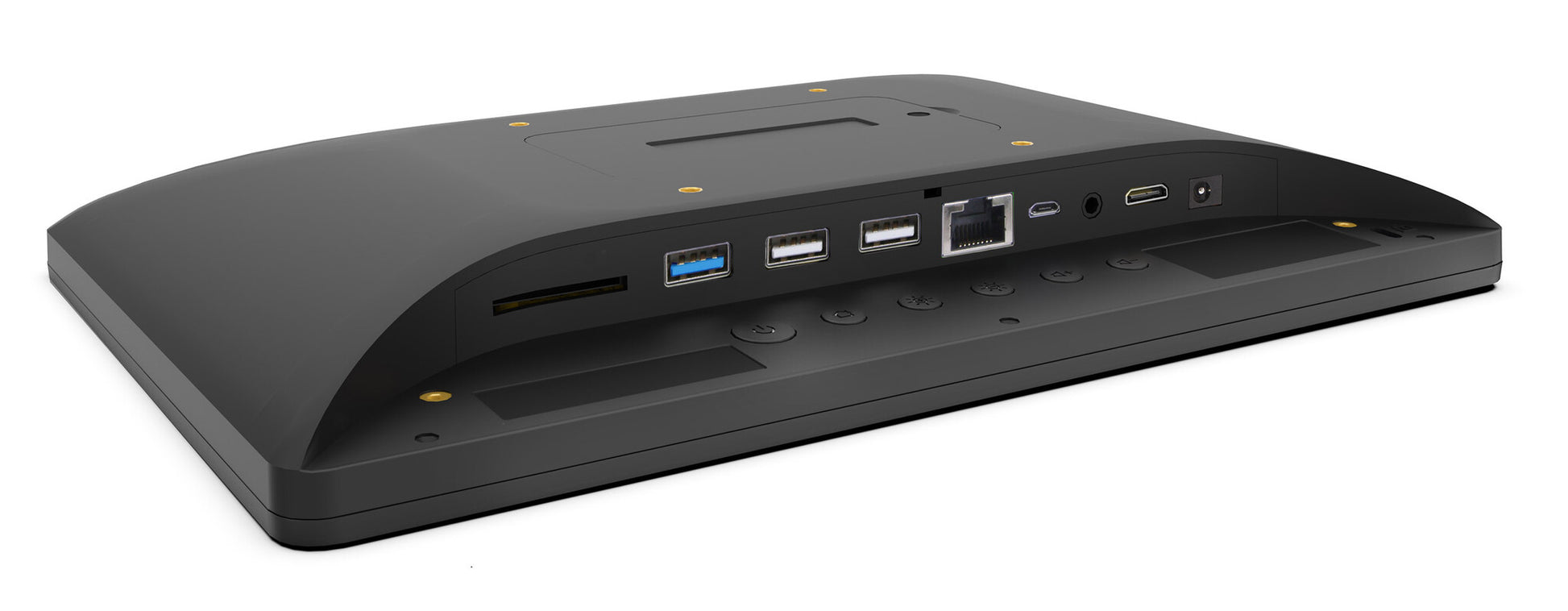

Ports & interfaces
DC-in jack
Yes
Compatible memory cards
SD
Card reader integrated
Yes
PC Audio in
Yes
Wi-Fi
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity
4
USB port
Yes
DVI port
No
Mini HDMI ports quantity
1
HDMI input ports quantity
1
Audio
RMS rated power
3 W
Number of built-in speakers
2
Built-in speaker(s)
Yes
Design
Fingerprint resistant
Yes
Bezel colour
Black

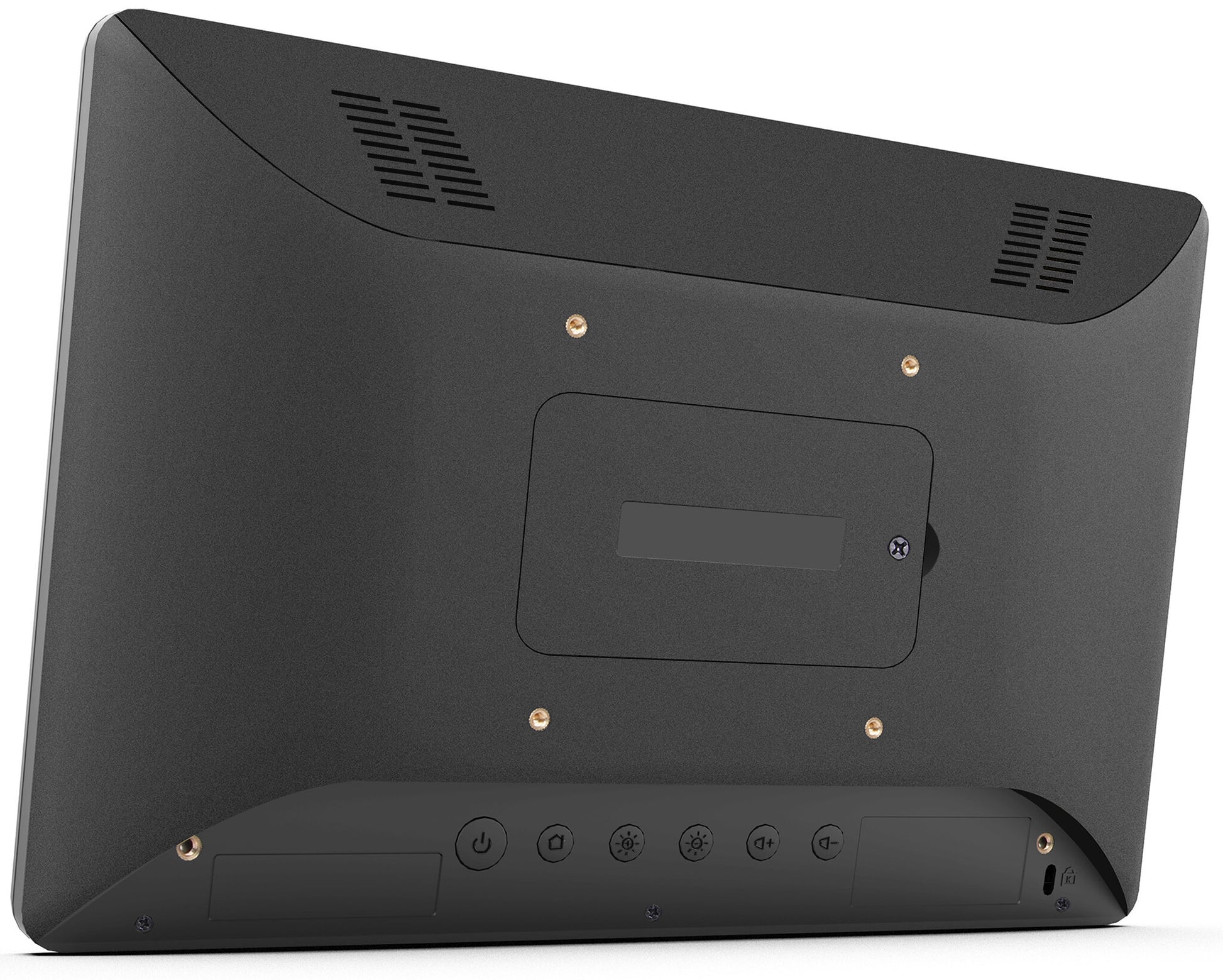

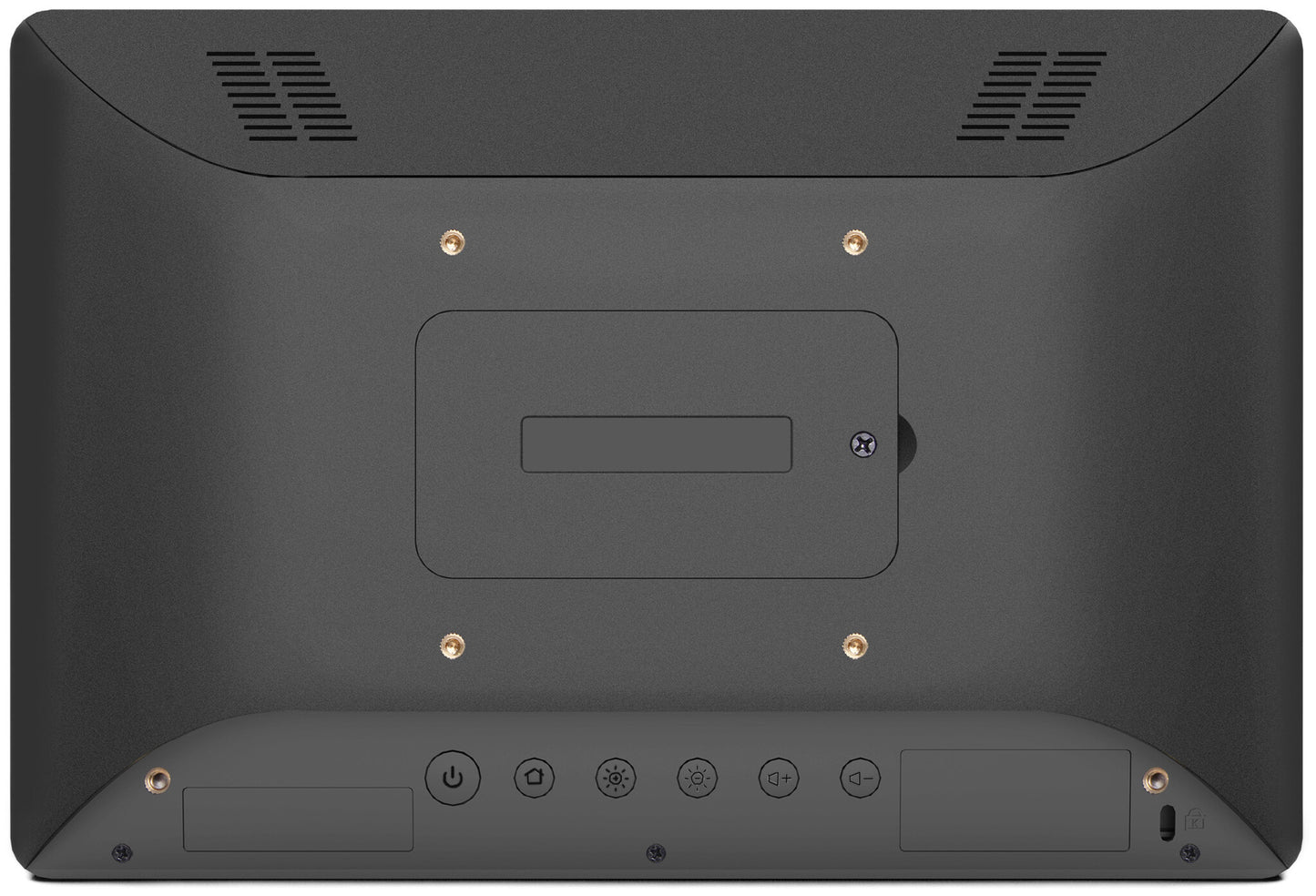

VESA mounting
Yes
Orientation
Horizontal/Vertical
Product colour
Black
Product design
Kiosk design
Performance
Number of microphones
1
Operating hours (hours/days)
24/7
Purpose
Universal
Power
Power consumption (off)
0.3 W
Power consumption (standby)
0.5 W
Input voltage
12 V
Power consumption (typical)
18 W
Computer system
Google applications
Google Chrome, Gmail, Google Calendar
Operating system version
13
Operating system installed
Android
Internal storage capacity
32 GB
On-board graphics card model
Mali-G52 MC1
Internal memory
4 GB
Processor cores
4
Processor frequency
2 GHz
Processor model
RK3568
Processor family
ARM Rockchip
Processor manufacturer
Rockchip
Built-in processor
Yes
Weight & dimensions
Weight
800 g
Height
172 mm
Depth
30.5 mm
Width
255 mm
Display weight
800 g
Display height
172 mm
Display depth
30.5 mm
Display width
255 mm
Packaging data
Package weight
1.36 kg
Package height
223 mm
Package depth
68 mm
Package width
398 mm
Packaging content
Cables included
AC
Power adapter included
Yes
Certificates
Certification
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Logistics data
Pallet gross length
100 cm
Pallet gross width
2.15 m
Pallet gross height
120 cm
Products per pallet
256 pc(s)
Features
Suitable for indoor use
Yes
Technical details
User controls
Power, home, brightness +, brightness -, volume +, volume -
Audio in (mini jack)
Yes
Internal memory
32000 MB
Sustainability certificates
ErP
Compliance certificates
CE, EAC, REACH, RoHS, UKCA, WEEE
Other features
Quick start guide
Yes
AC adapter included
Yes
Built-in microphone
Yes
Brightness
385 cd/m²
USB connector type
Micro-USB, USB Type-A
Viewable size, horizontal
21.7 cm
Wi-Fi standards
Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Viewable size, vertical
13.5 cm
Power supply type
External
Bluetooth
Yes
Audio input
Y
Bluetooth version
5.2
Megapixel (approx.)
5 MP
USB 2.0 ports quantity
2
RJ-45 ports quantity
1
Built-in camera
Yes
Cable management
Yes
Micro-USB ports quantity
1
