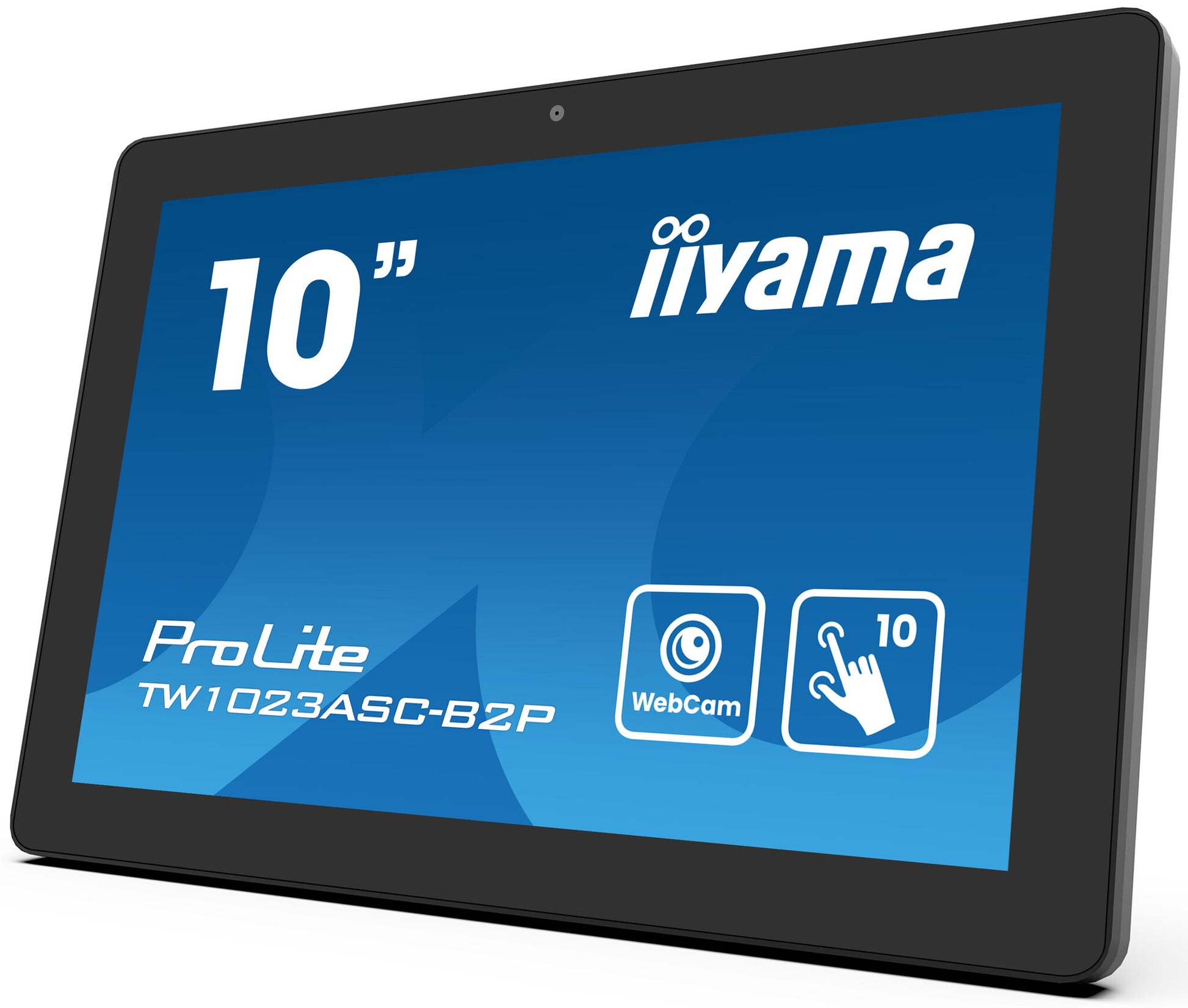

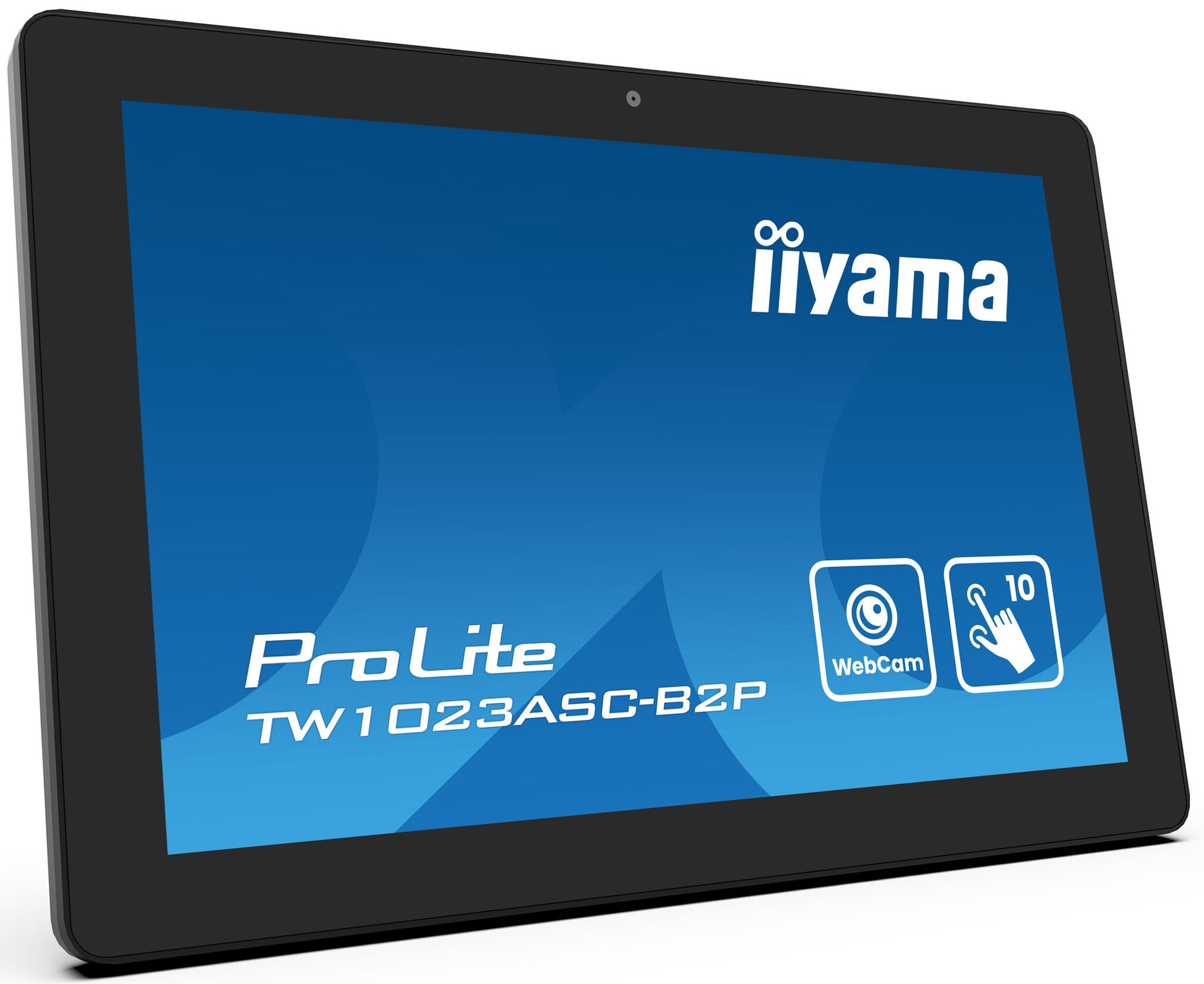

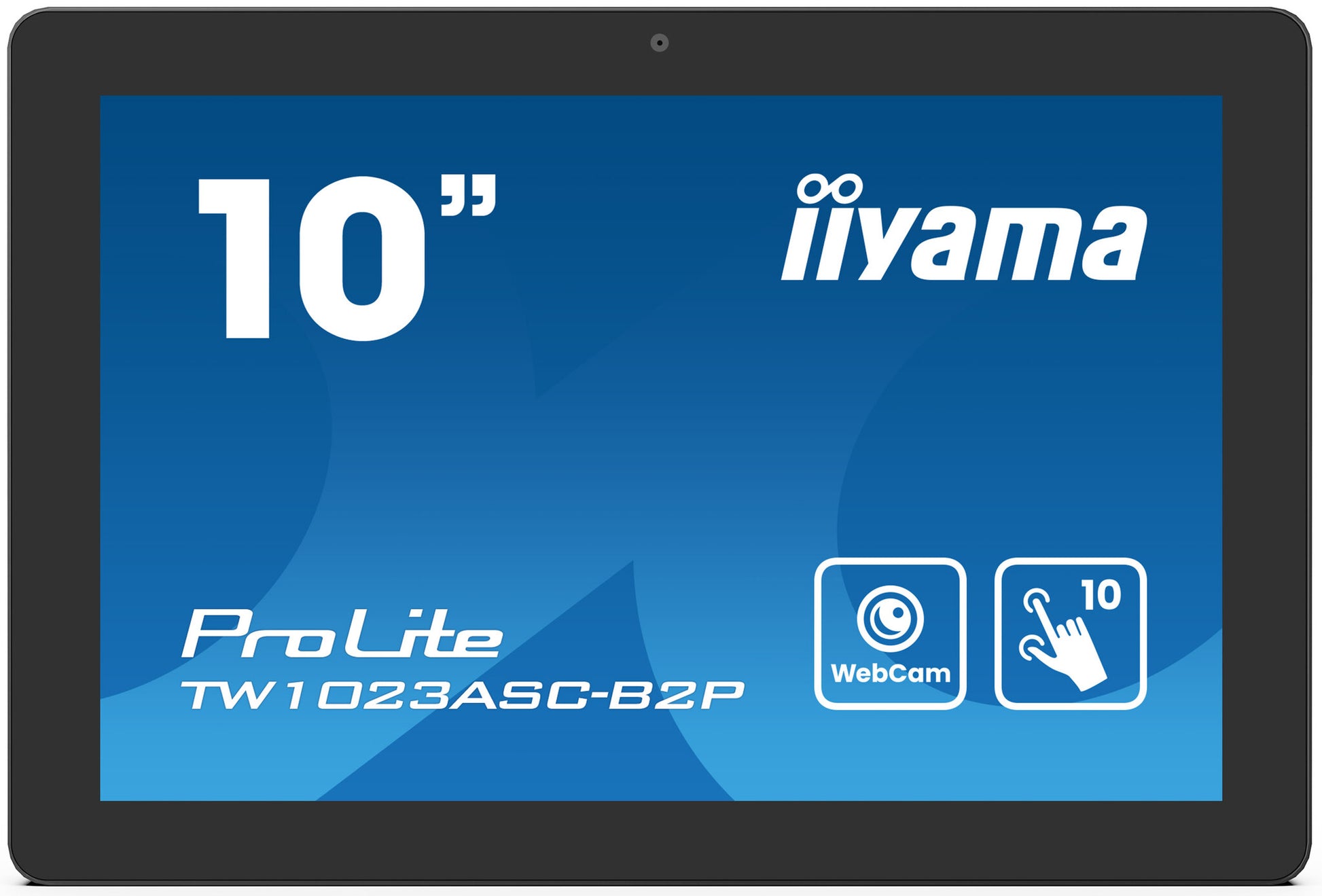

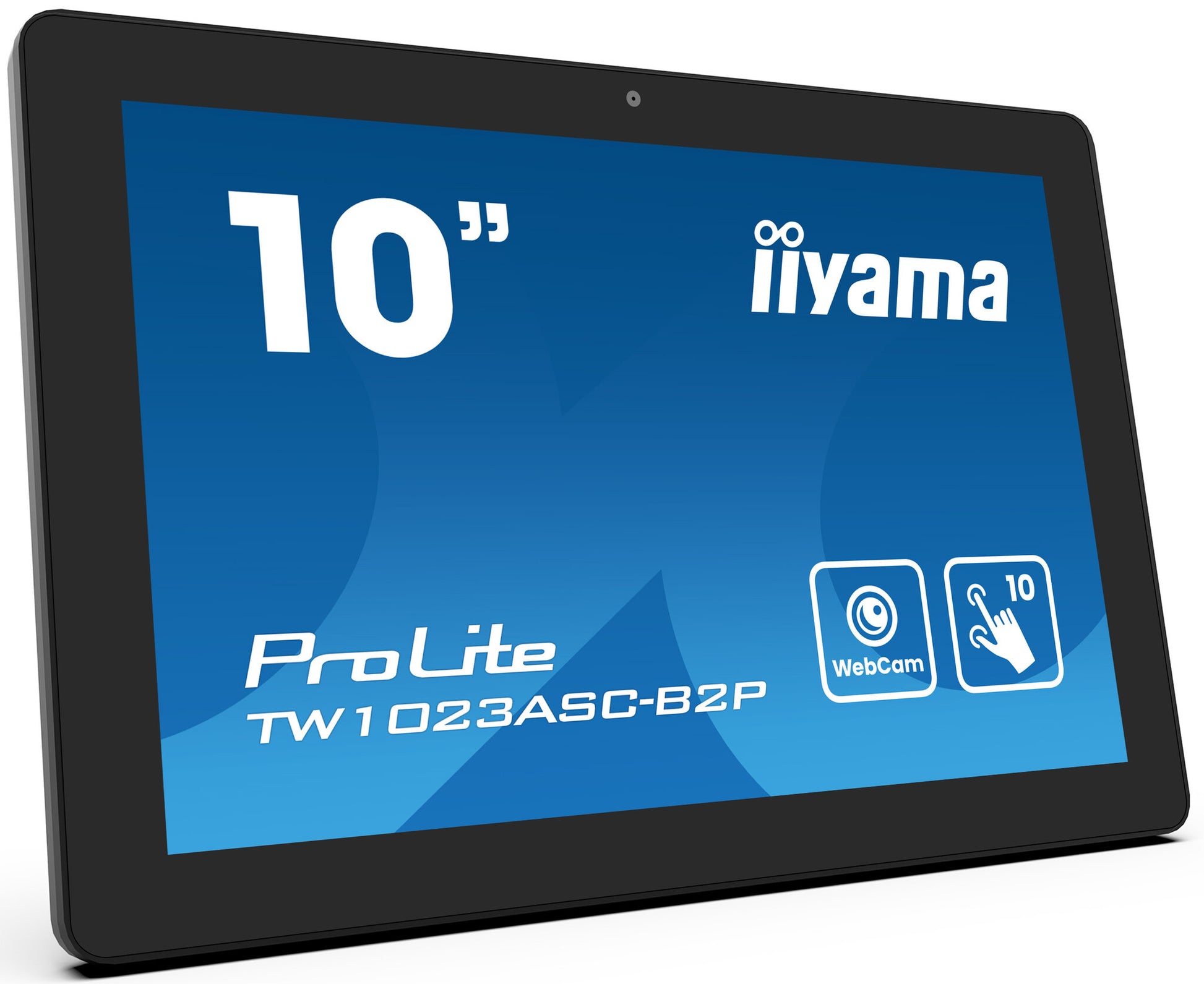

    iiyama TW1023ASC-B2P

    iiyama TW1023ASC-B2P

    10.1” PCAP 10pt Touchscreen with Android and Power over Ethernet Technology

    • Touchscreen 25.6 cm (10.1") IPS
    • 1280 x 800 pixels 16:10
    • 25 ms 450 cd/m² 1000:1
    • Flicker-free technology
    • 18 W
    • SKU:4948570124541
    • GTIN/EAN:4948570124541
    • MPN:TW1023ASC-B2P
    Add To Favorite

    You need to login to view the price.

    View full details

    iiyama TW1023ASC-B2P. Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels, Response time: 25 ms. Contrast ratio: 1000:1. Native aspect ratio: 16:10, Viewing angle, horizontal: 160°, Viewing angle, vertical: 160°. Built-in speaker(s). VESA mounting. Product colour: Black

    The ProLite TW1023ASC-B2P touch panel PC is a perfect choice for high-use environments such as retail, interactive POS, information desks or hospitality applications. Thanks to the pre-installed Android operating system, it is possible to easily customize the monitor by installing applications directly to it. The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. This monitor can operate in landscape, portrait or face-up orientation. Together with the built-in camera, microphone and speakers it offers limitless, interactive installation possibilities.

    Display
    Viewable size, vertical
    13.5 cm
    Viewable size, horizontal
    21.7 cm
    Display number of colours
    16.7 million colours
    Contrast ratio (typical)
    1000:1
    Display brightness
    387 cd/m²
    Colour depth
    8 bit
    Response time measurement type
    GTG (Gray to Gray)
    Response time
    25 ms
    Display brightness (typical)
    450 cd/m²
    Touchscreen technology
    Projected capacitive system
    Panel type
    IPS
    Display resolution
    1280 x 800 pixels
    Display diagonal
    25.6 cm (10.1")
    Performance
    Operating hours (hours/days)
    24/7
    Operating system installed
    Android
    Flicker-free technology
    Yes
    Multimedia
    Megapixel (approx.)
    5 MP
    RMS rated power
    3 W
    Number of speakers
    2
    Built-in speaker(s)
    Yes
    Design
    Glass thickness
    1.25 mm
    Front bezel colour
    Black
    Product colour
    Black

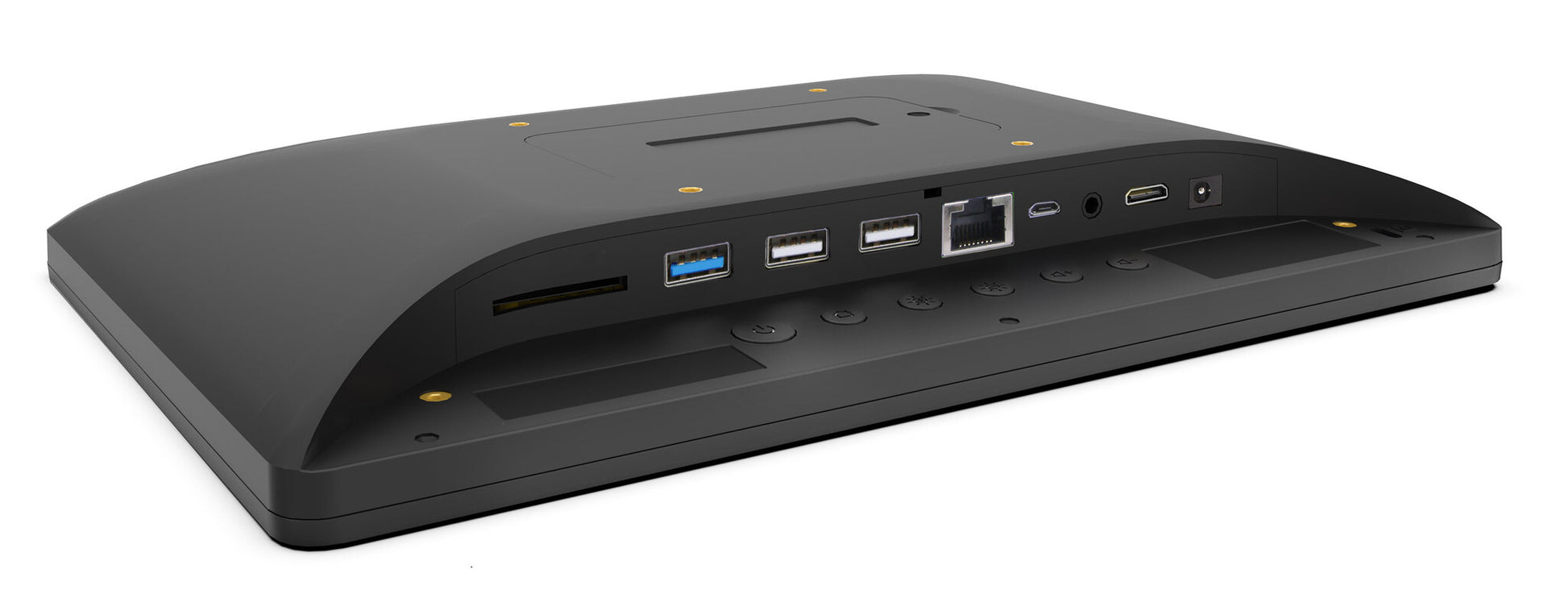

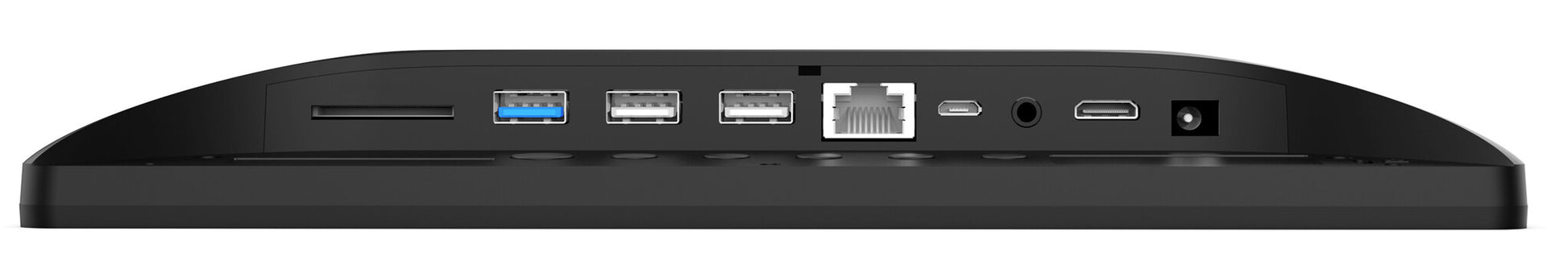

    Ports & interfaces
    Compatible memory cards
    SD
    Card reader integrated
    Yes
    USB 2.0 Type-A ports quantity
    2
    Ergonomics

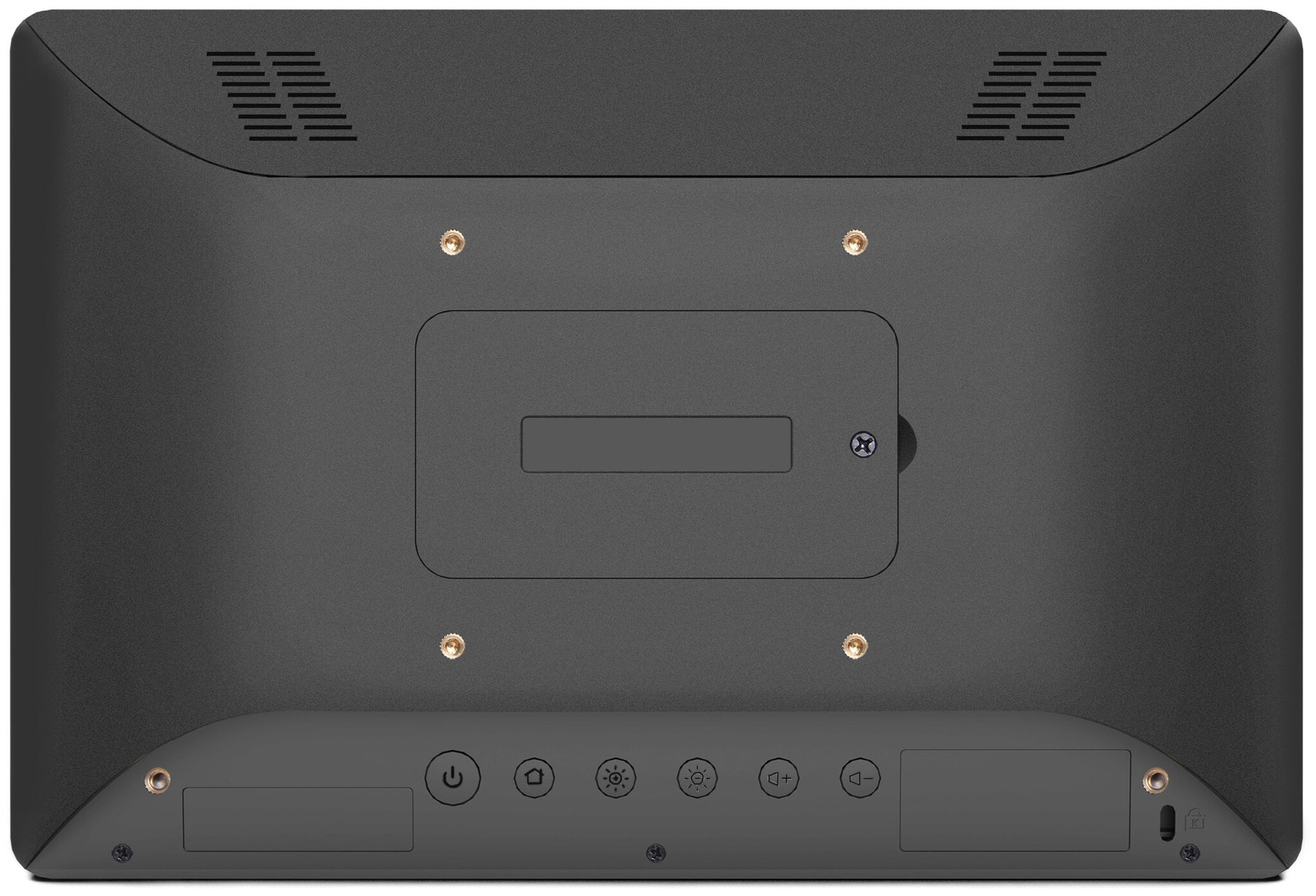

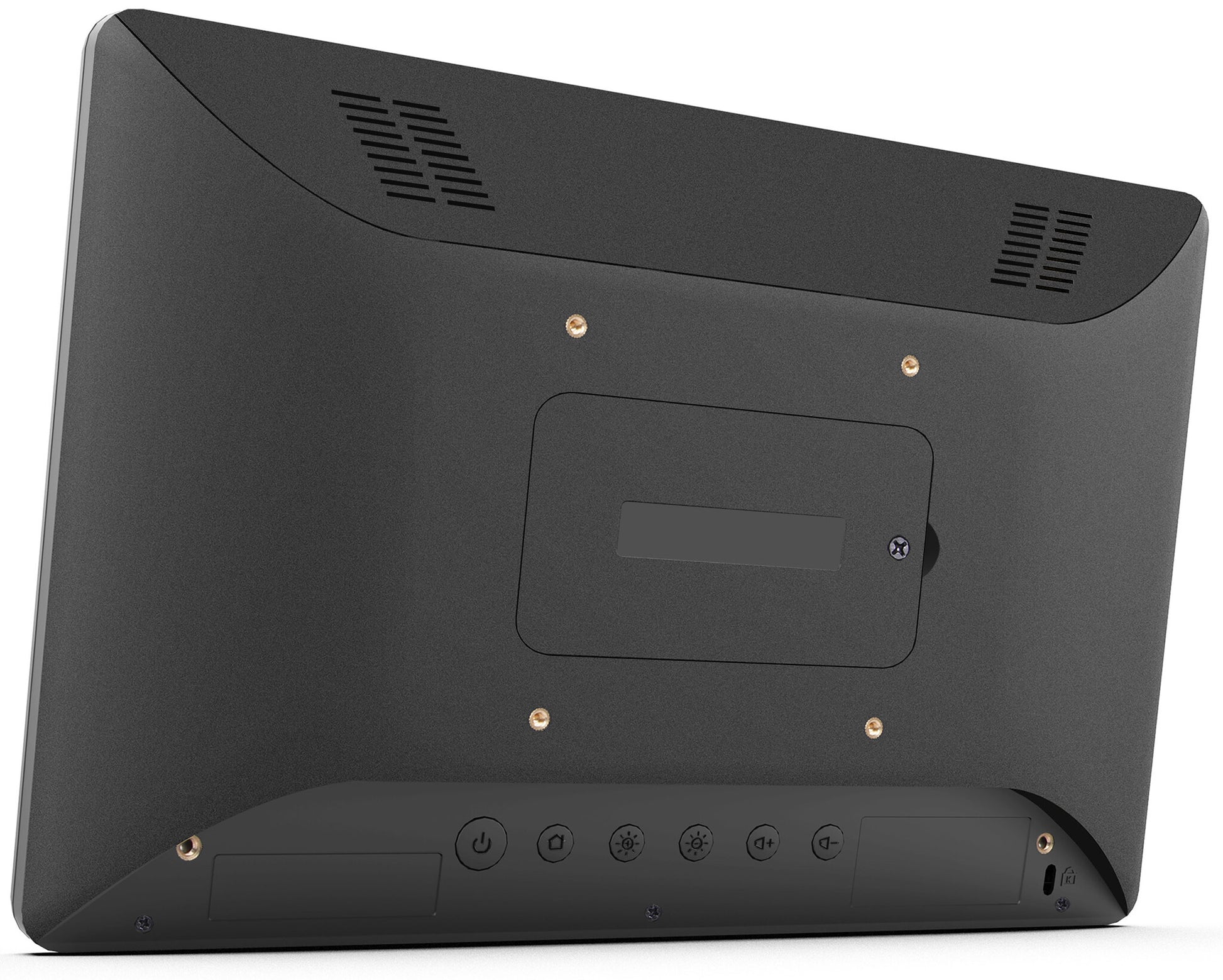

    Panel mounting interface
    75 x 75 mm
    VESA mounting
    Yes
    Thin Client
    Internal memory
    4000 MB
    Power
    Power supply type
    External
    AC adapter output voltage
    12 V
    Power consumption (standby)
    0.5 W
    Power consumption (typical)
    18 W
    Network
    Ethernet LAN
    Yes
    Bluetooth version
    5.2
    Bluetooth
    Yes
    Wi-Fi standards
    802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
    Wi-Fi
    Yes
    Weight & dimensions
    Weight (with stand)
    800 g
    Height (with stand)
    172 mm
    Depth (with stand)
    30.5 mm
    Width (with stand)
    255 mm
    Packaging data
    Quantity per pack
    1 pc(s)
    Package weight
    1.36 kg
    Package height
    223 mm
    Package depth
    398 mm
    Package width
    398 mm
    Quick start guide
    Yes
    Cables included
    AC
    Package type
    Box
    Logistics data
    Pallet net height
    120 cm
    Pallet net length
    2.15 m
    Pallet net width
    100 cm
    Products per pallet
    256 pc(s)
    Other features
    Ethernet LAN (RJ-45) ports
    1
    Weight
    800 g
    Height
    172 mm
    Width
    255 mm
    Depth
    30.5 mm
    RJ-45 ports quantity
    1
    Contrast ratio
    1000:1
    Surface hardness
    Surface hardness
    6H
    Display diagonal (metric)
    25.5 cm
    Built-in microphone
    Yes
    Pixel pitch
    0.1692 x 0.1692 mm
    Viewing angle, vertical
    160°
    Viewing angle, horizontal
    160°
    HDMI ports quantity
    1
    USB Touch port
    Yes
    Number of simultaneous touchpoints
    10
    Built-in camera
    Yes
    Native aspect ratio
    16:10
    Touchscreen
    Yes
