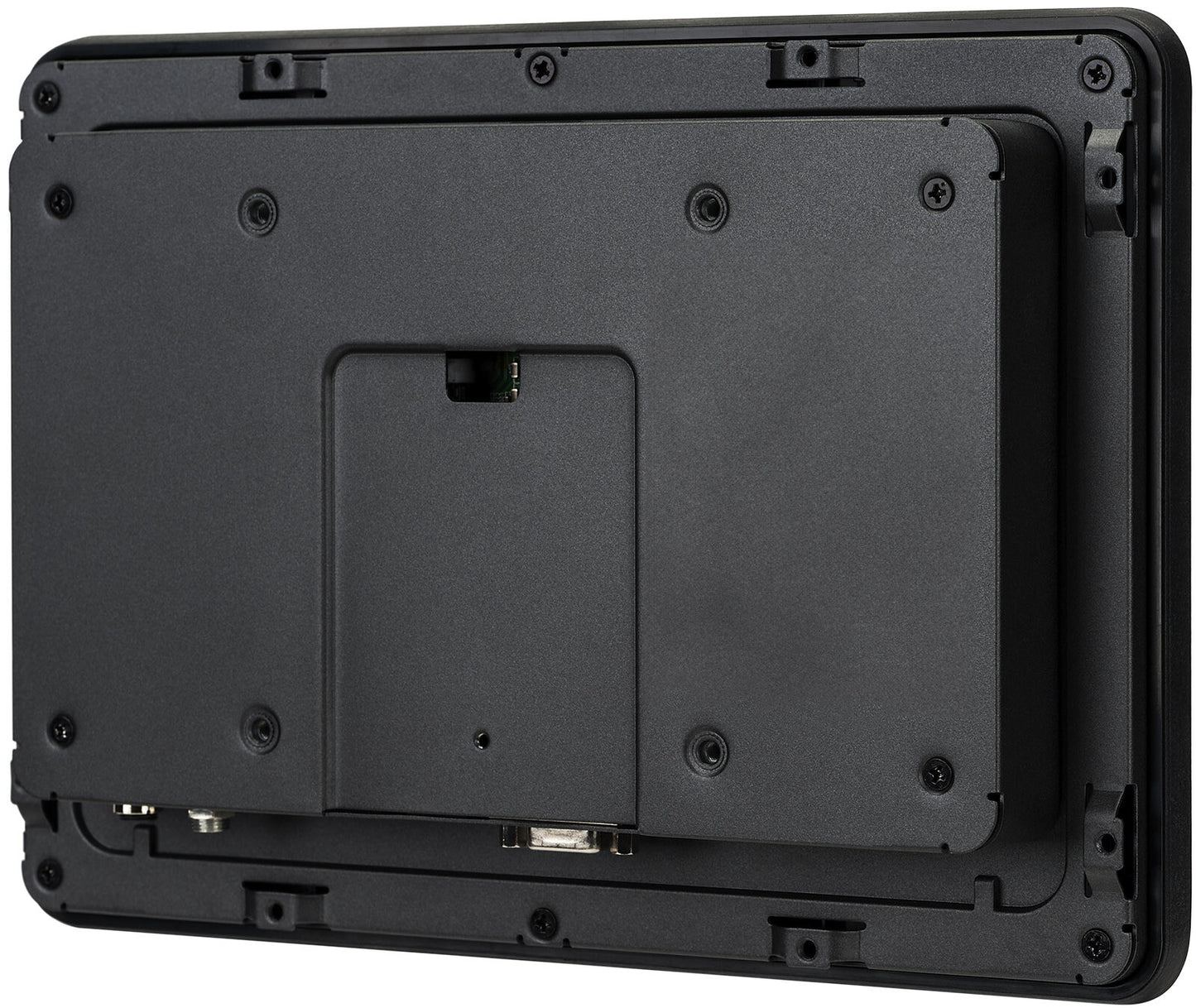

iiyama 10.1" Open Frame PCAP 10 point touch screen equipped with IPS panel technology and a foam seal finish for seamless integration

iiyama 10.1" Open Frame PCAP 10 point touch screen equipped with IPS panel technology and a foam seal finish for seamless integration

10.1" Open Frame PCAP 10 point touch screen equipped with IPS panel technology and a foam seal finish for seamless integration

  • Indoor Interactive flat panel Black
  • 25.6 cm (10.1") 1280 x 800 pixels LED 500 cd/m²
  • Touchscreen 29 ms
  • Ethernet LAN
  • SKU:4948570124107
  • GTIN/EAN:4948570124107
  • MPN:TF1015MC-B3
Add To Favorite

You need to login to view the price.

View full details

iiyama 10.1" Open Frame PCAP 10 point touch screen equipped with IPS panel technology and a foam seal finish for seamless integration. Product design: Interactive flat panel. Display diagonal: 25.6 cm (10.1"), Display technology: LED, Display resolution: 1280 x 800 pixels, Display brightness: 500 cd/m², HD type: HD, Touchscreen. Product colour: Black

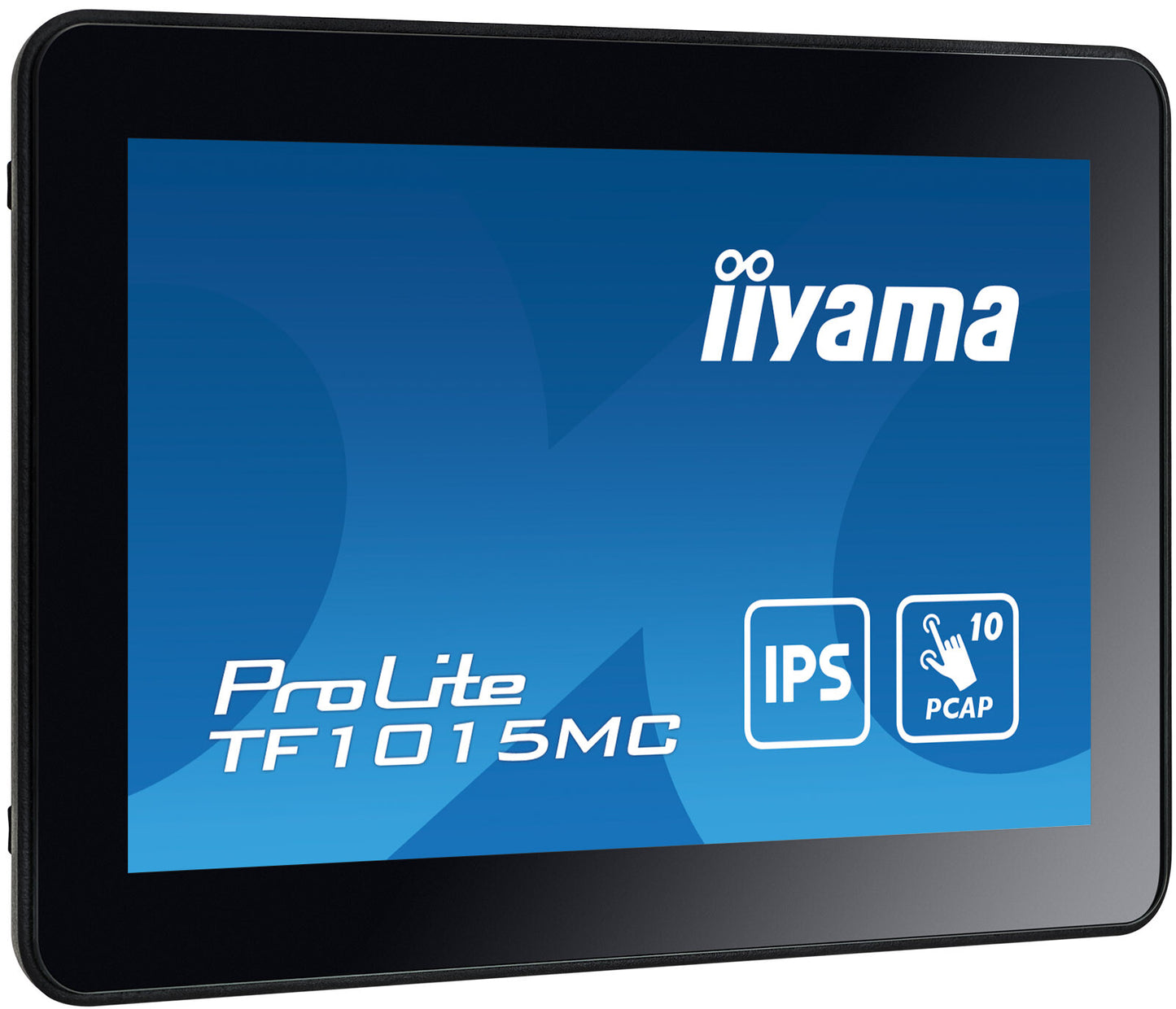

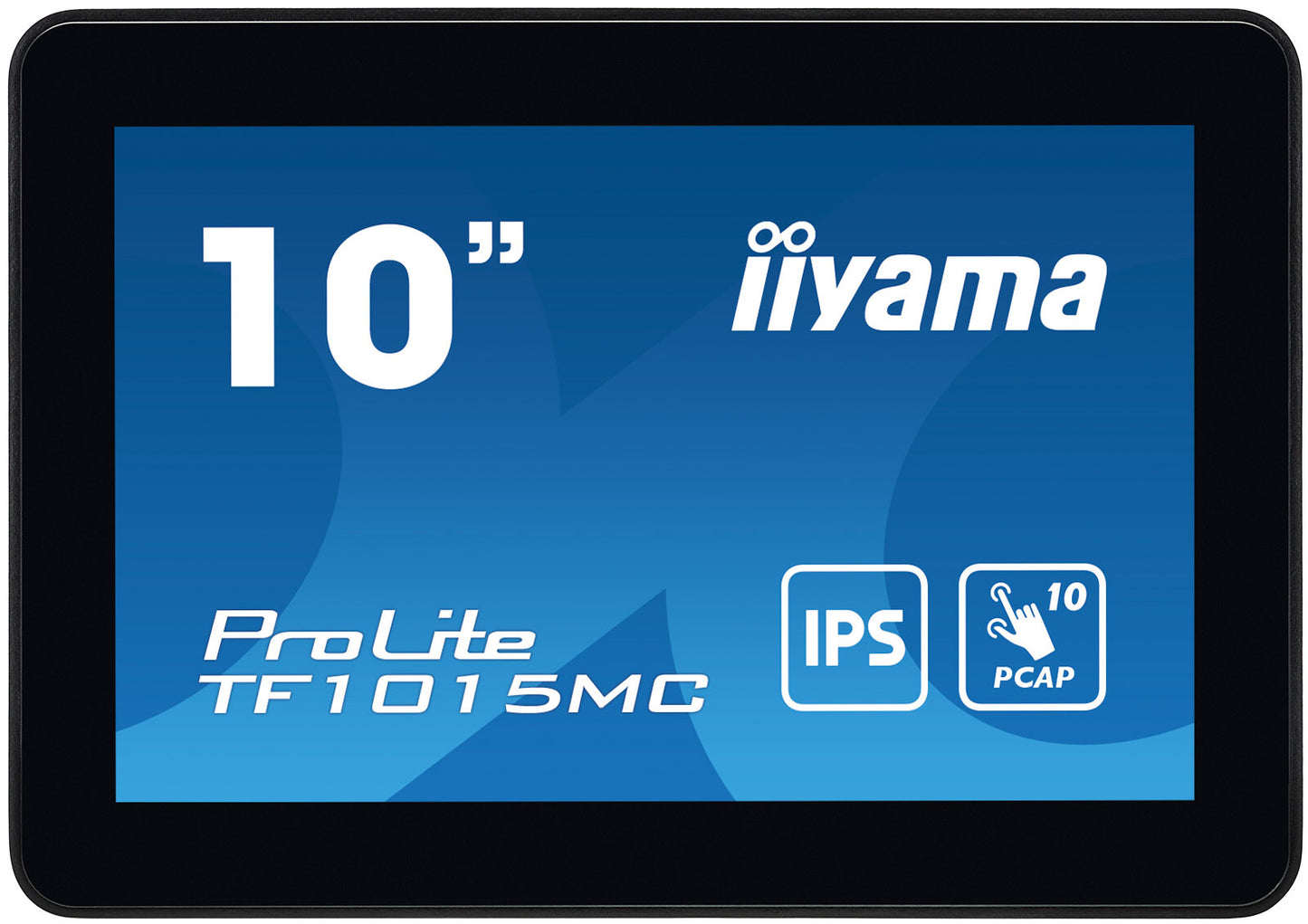

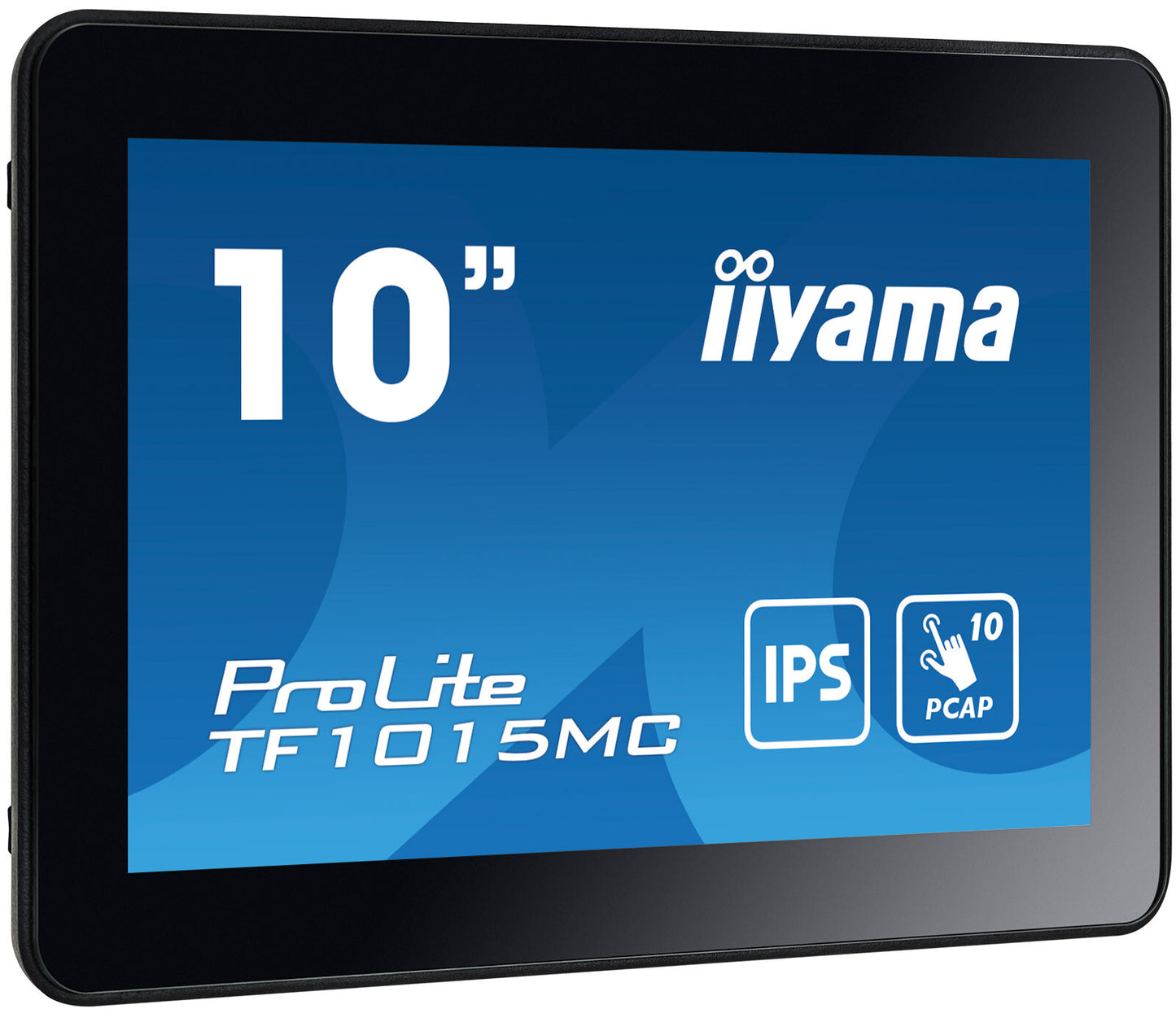

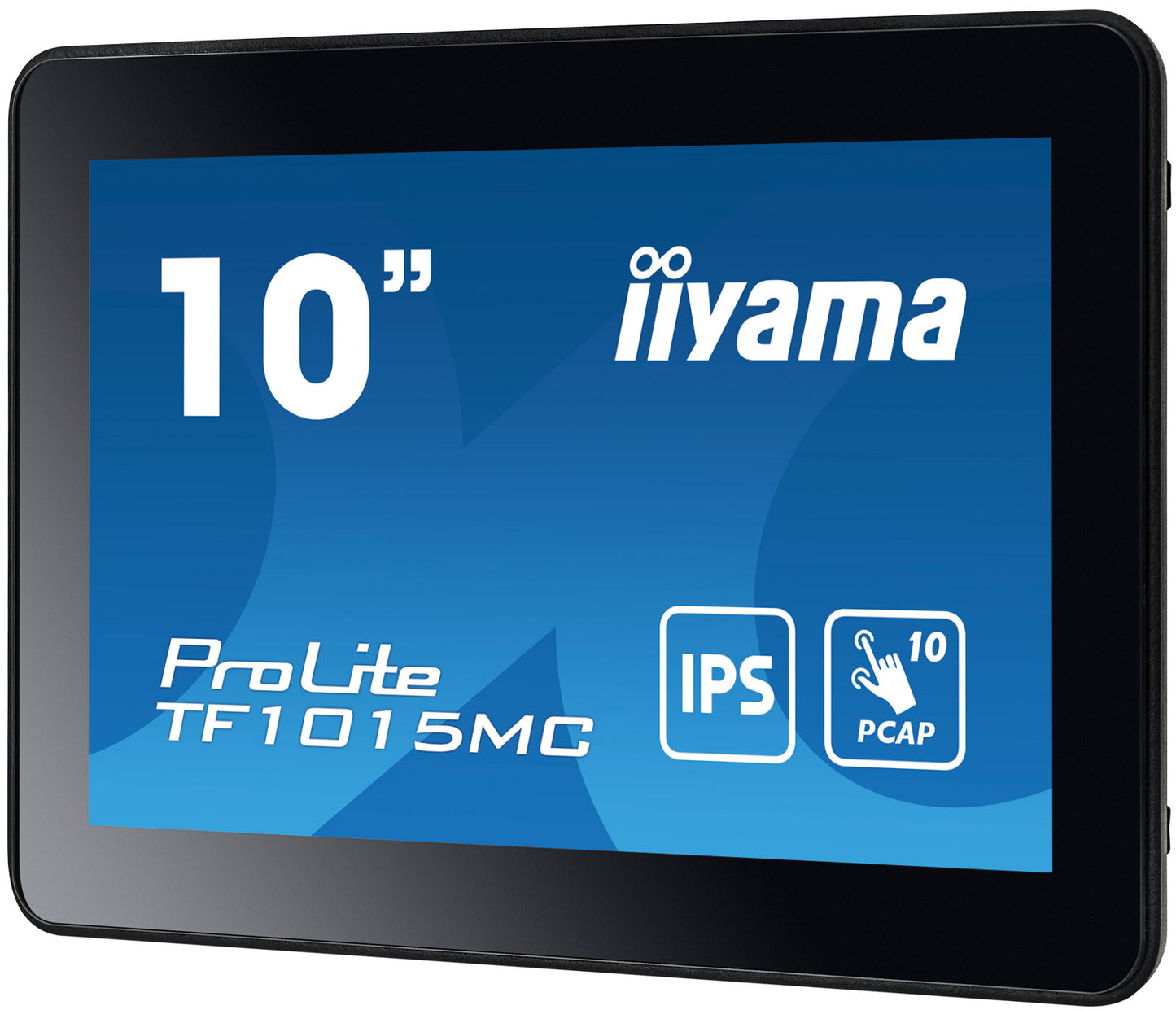

The ProLite TF1015MC (10.1 inch) uses PCAP touch technology and is built into an eye catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1015MC can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Display
Horizontal scan range
30 - 49.7 kHz
Panel type
IPS
Glass thickness
3.3 mm
Surface hardness
7H
Maximum frame rate
75 fps
Display diagonal (metric)
25.7 cm
Active display area (W x H)
216.96 x 135.6 mm
Pixel pitch
0.1695 x 0.1695 mm
Display number of colours
16.7 million colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
800:1
Response time
29 ms
Native aspect ratio
16:10
Number of simultaneous touchpoints
10
Touchscreen technology
Projected capacitive system
Touchscreen
Yes
HD type
HD
Display brightness
500 cd/m²
Display resolution
1280 x 800 pixels
Display technology
LED
Display diagonal
25.6 cm (10.1")

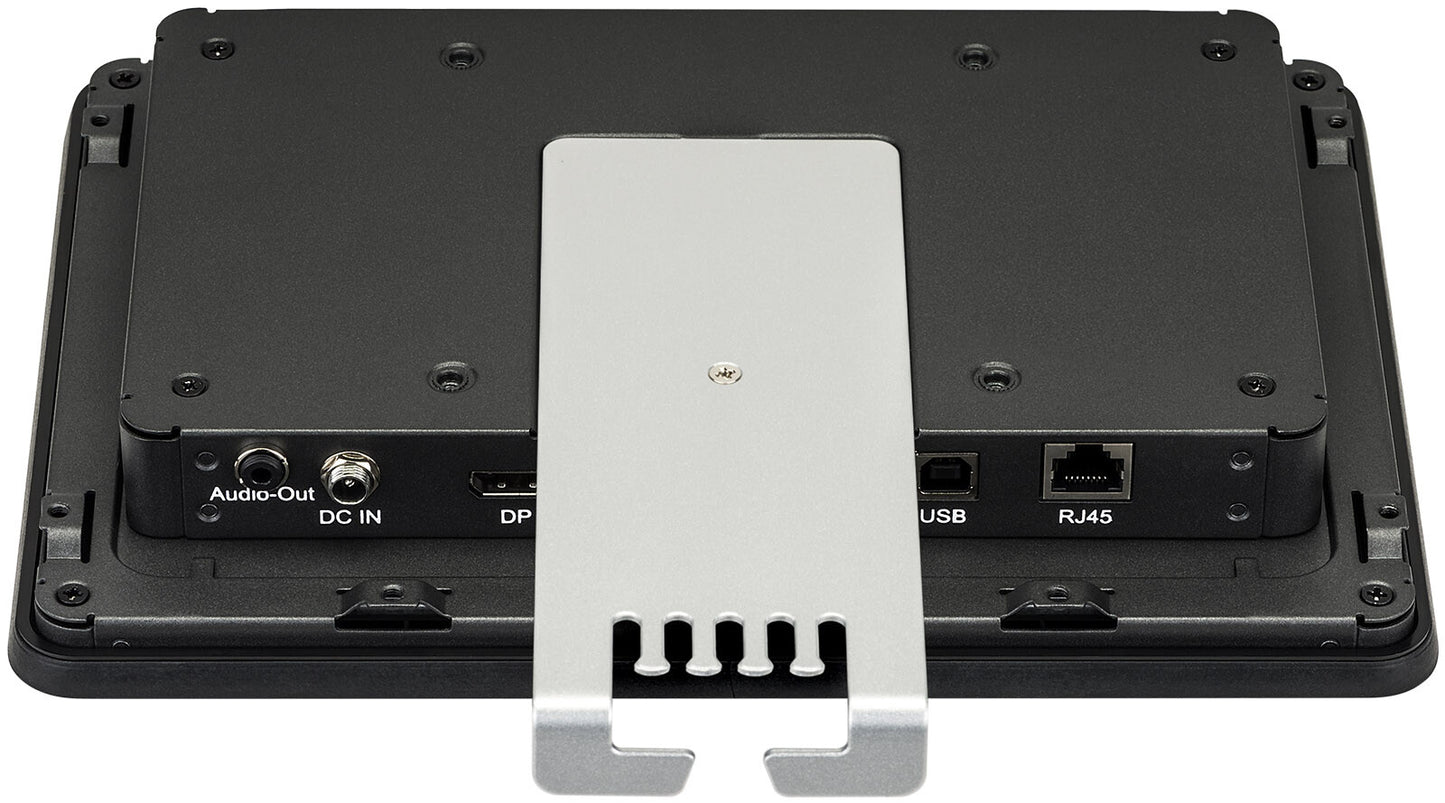

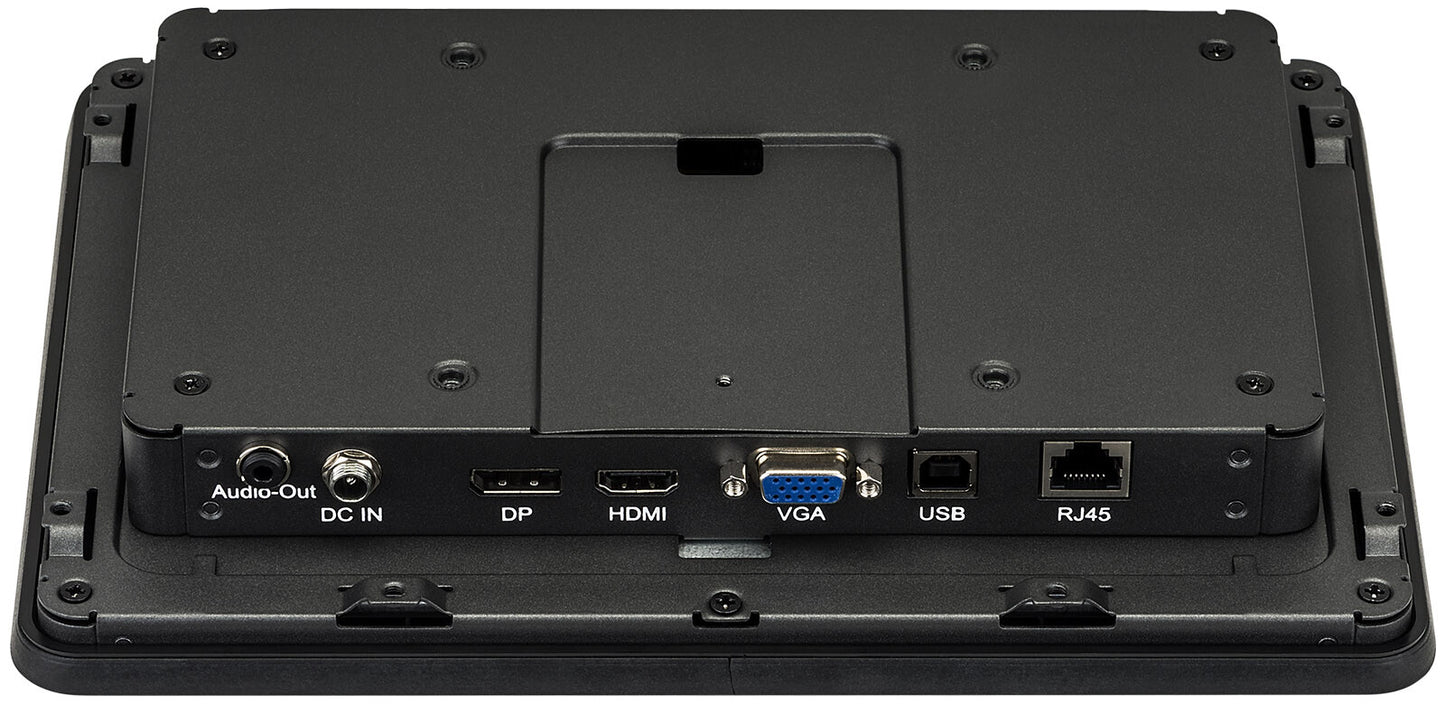

Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Yes
USB ports quantity
1
USB port
Yes
DisplayPorts quantity
1
VGA (D-Sub) input ports
1
DVI port
No
HDMI ports quantity
1
Design

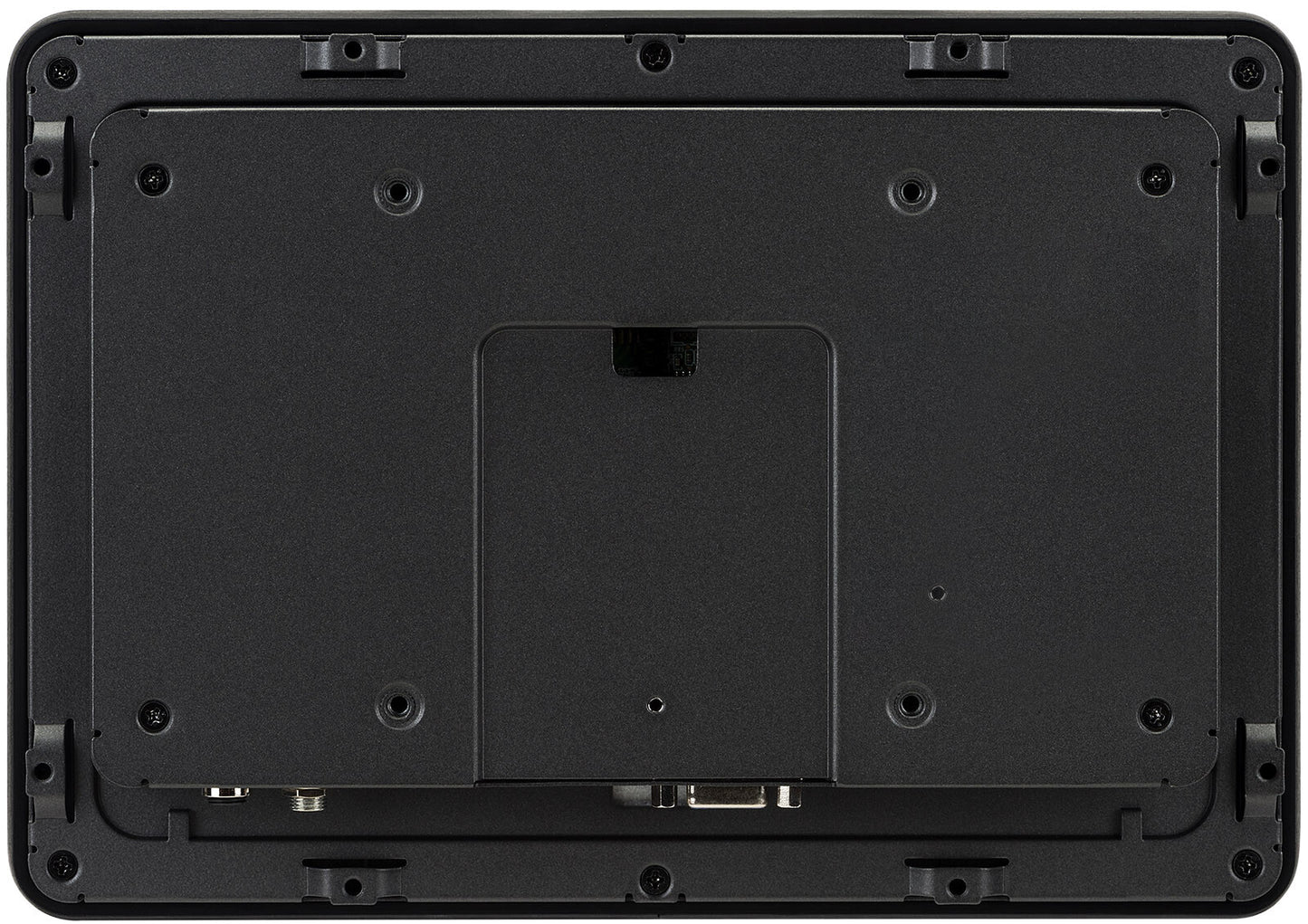

Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Screen shape
Flat
Orientation
Horizontal/Vertical
Placement supported
Indoor
Product colour
Black
Product design
Interactive flat panel
Performance
Mean time between failures (MTBF)
50000 h
HDCP
Yes
International Protection (IP) code
IP65
On Screen Display (OSD)
Yes
Number of OSD languages
7
On Screen Display (OSD) languages
Simplified Chinese, German, English, Spanish, French, Italian, Japanese
Purpose
Universal
Power
Energy efficiency scale
A to G
Energy consumption (SDR) per 1000 hours
6 kWh
Energy efficiency class (HDR)
Not available
Energy efficiency class (SDR)
C
Power consumption (off)
0.3 W
Power consumption (standby)
1.5 W
Power consumption (typical)
6 W
Weight & dimensions
Display weight
1.4 kg
Display height
183.5 mm
Display depth
39.5 mm
Display width
260.5 mm
Packaging data
Package weight
2.7 kg
Package height
160 mm
Package depth
370 mm
Package width
310 mm

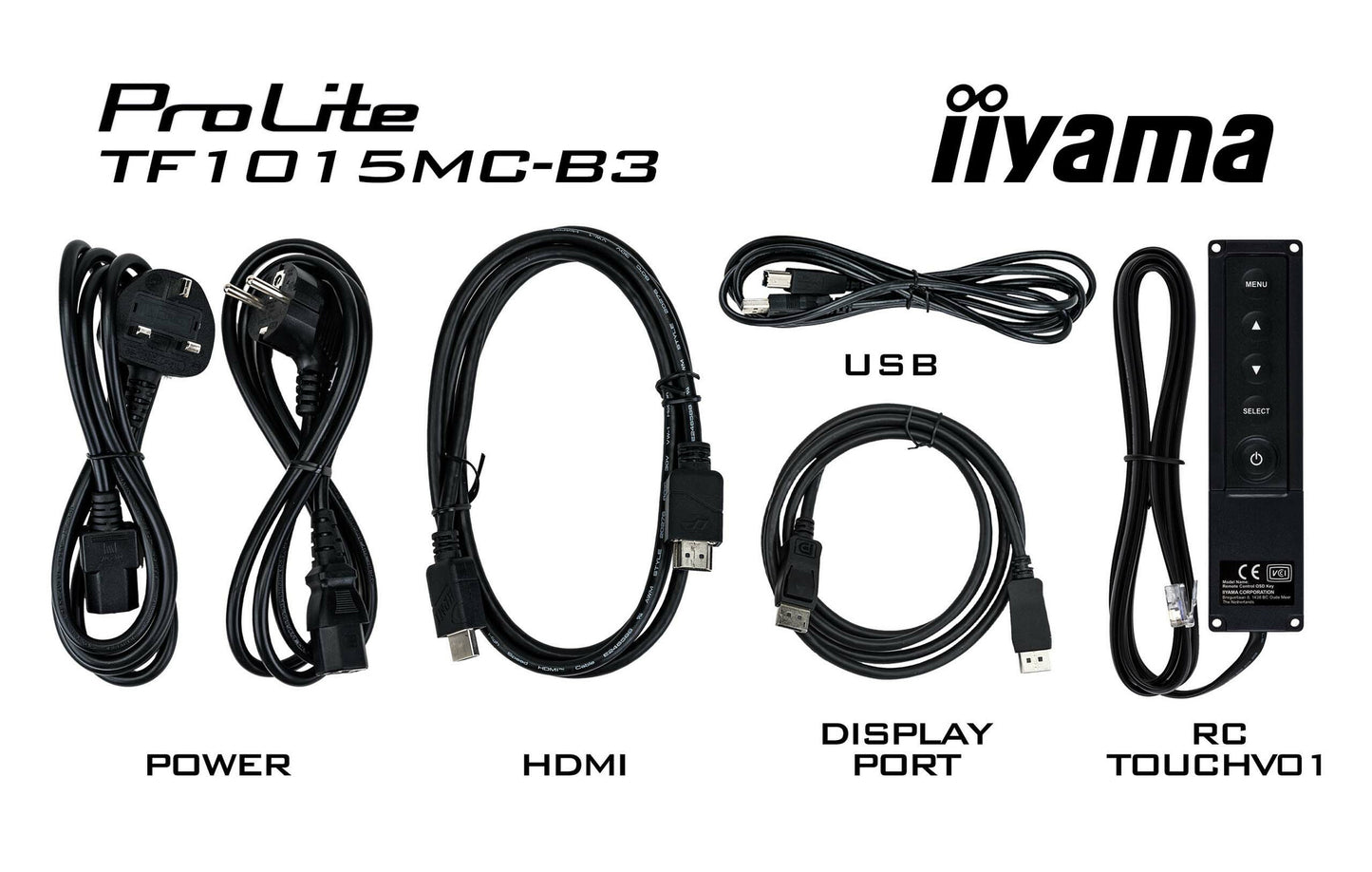

Packaging content
Cables included
AC, DisplayPort, HDMI, USB
Remote control included
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Certificates
Certification
CB, CE, TÜV-Bauart, EAC, cULus
Sustainability
European Product Registry for Energy Labelling (EPREL) code
378636
Features
Wall mountable
Yes
Technical details
Audio out (mini jack)
1
Other features
Plug and Play
Yes
Quick start guide
Yes
