iiyama TW1025LASC-B1PNR meeting room display 25.6 cm (10.1") 1280 x 800 pixels LED Wi-Fi 4 (802.11n), 802.11g, 802.11b Black Plastic Bluetooth

iiyama TW1025LASC-B1PNR meeting room display 25.6 cm (10.1") 1280 x 800 pixels LED Wi-Fi 4 (802.11n), 802.11g, 802.11b Black Plastic Bluetooth

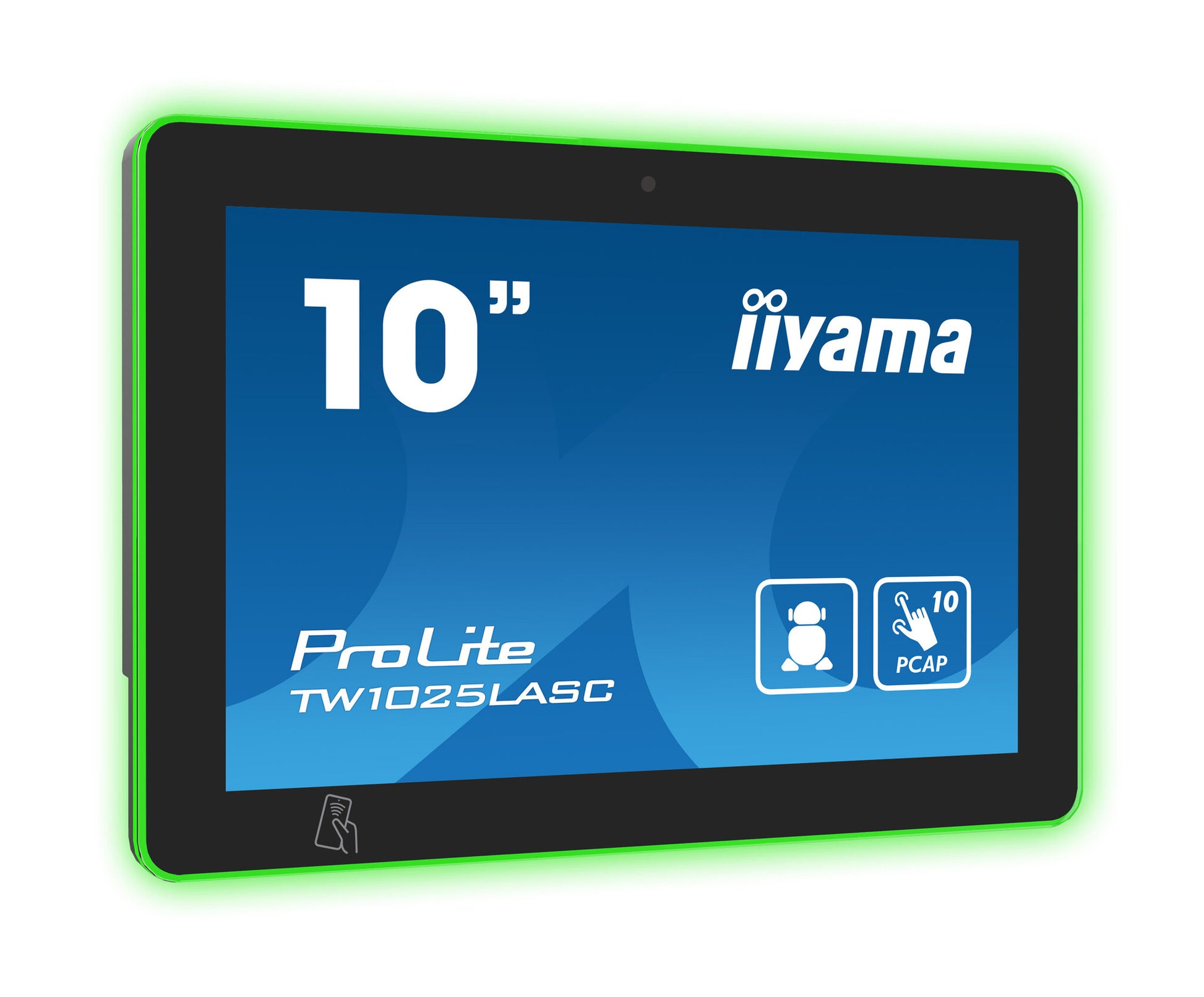

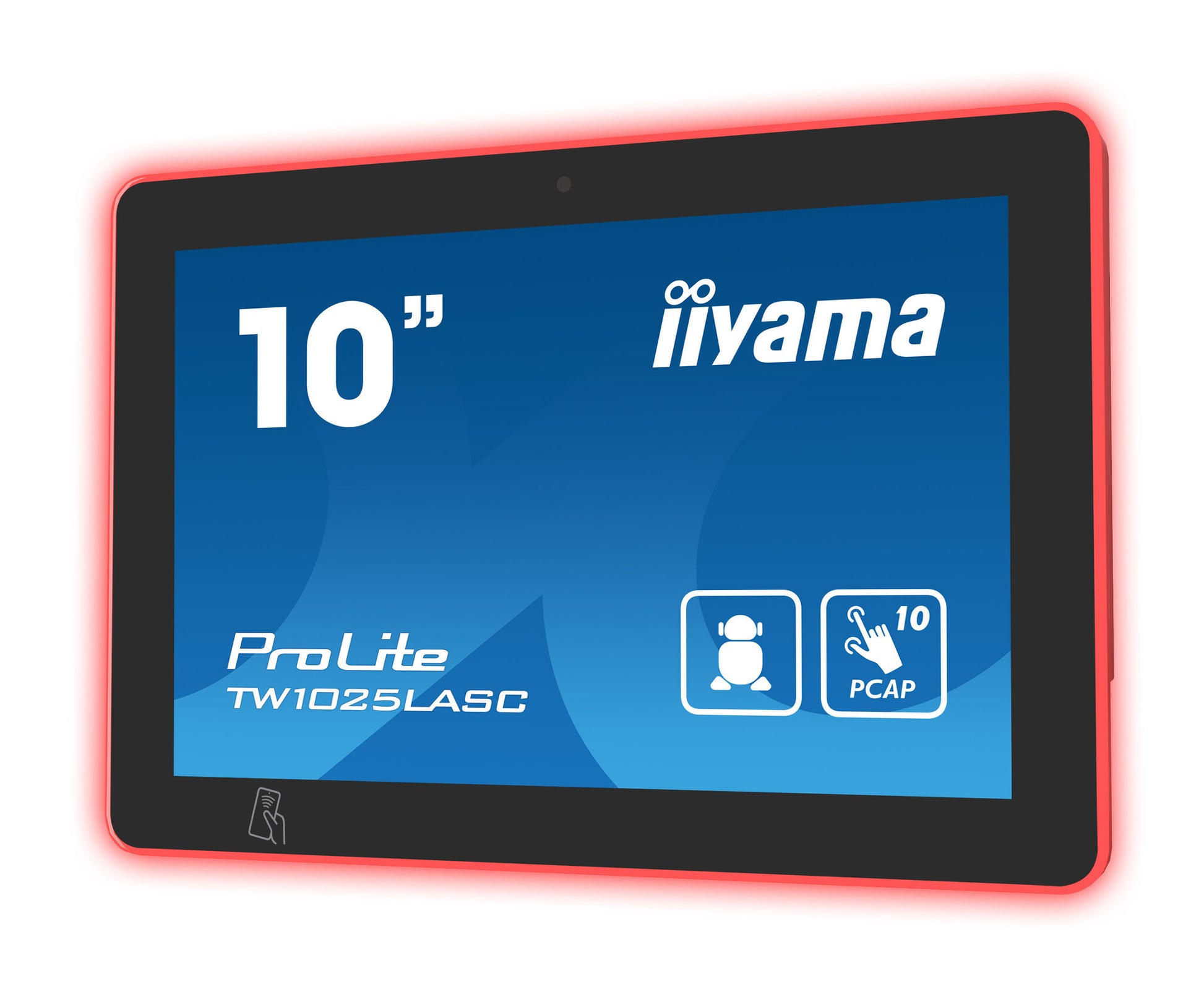

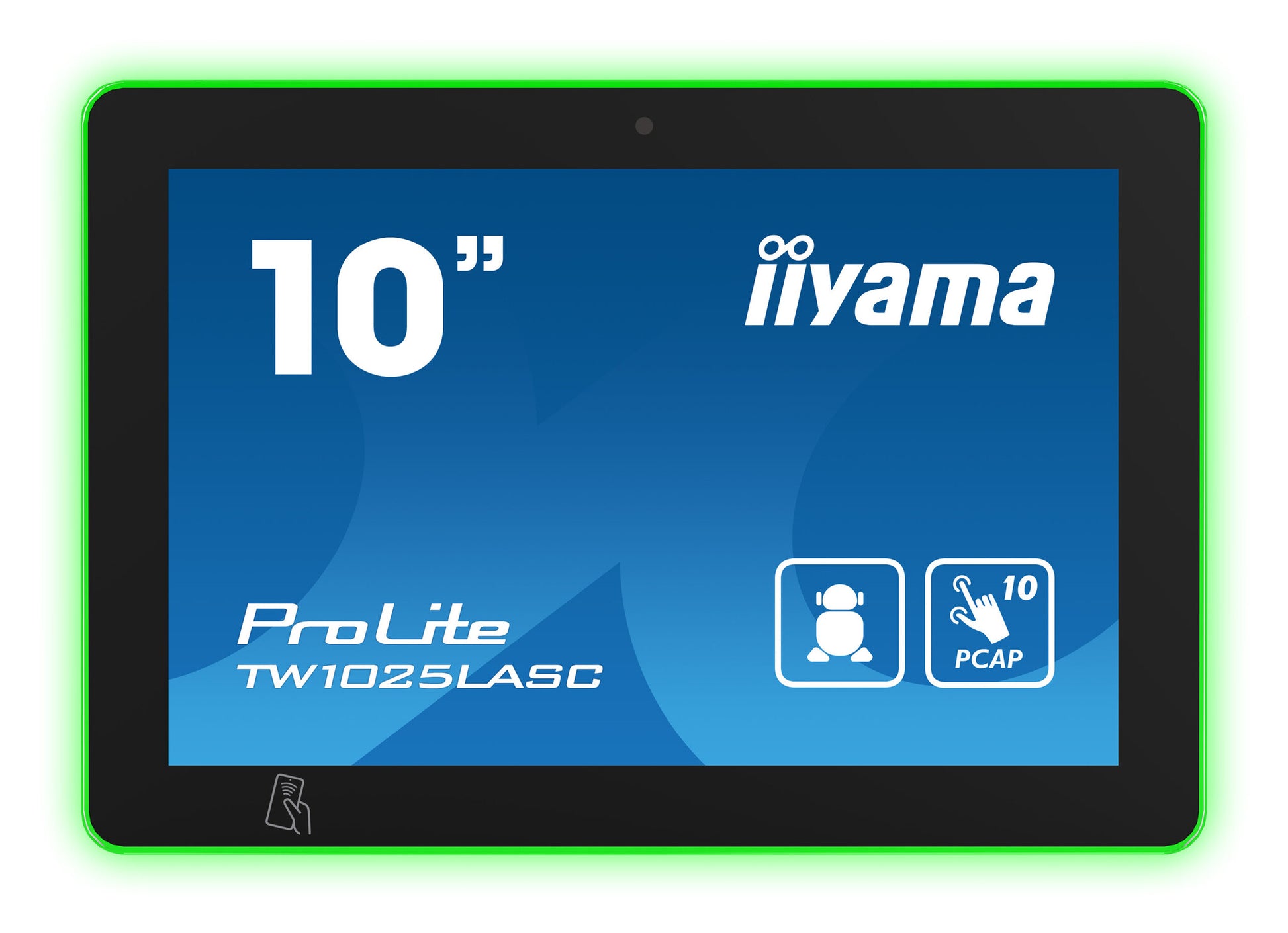

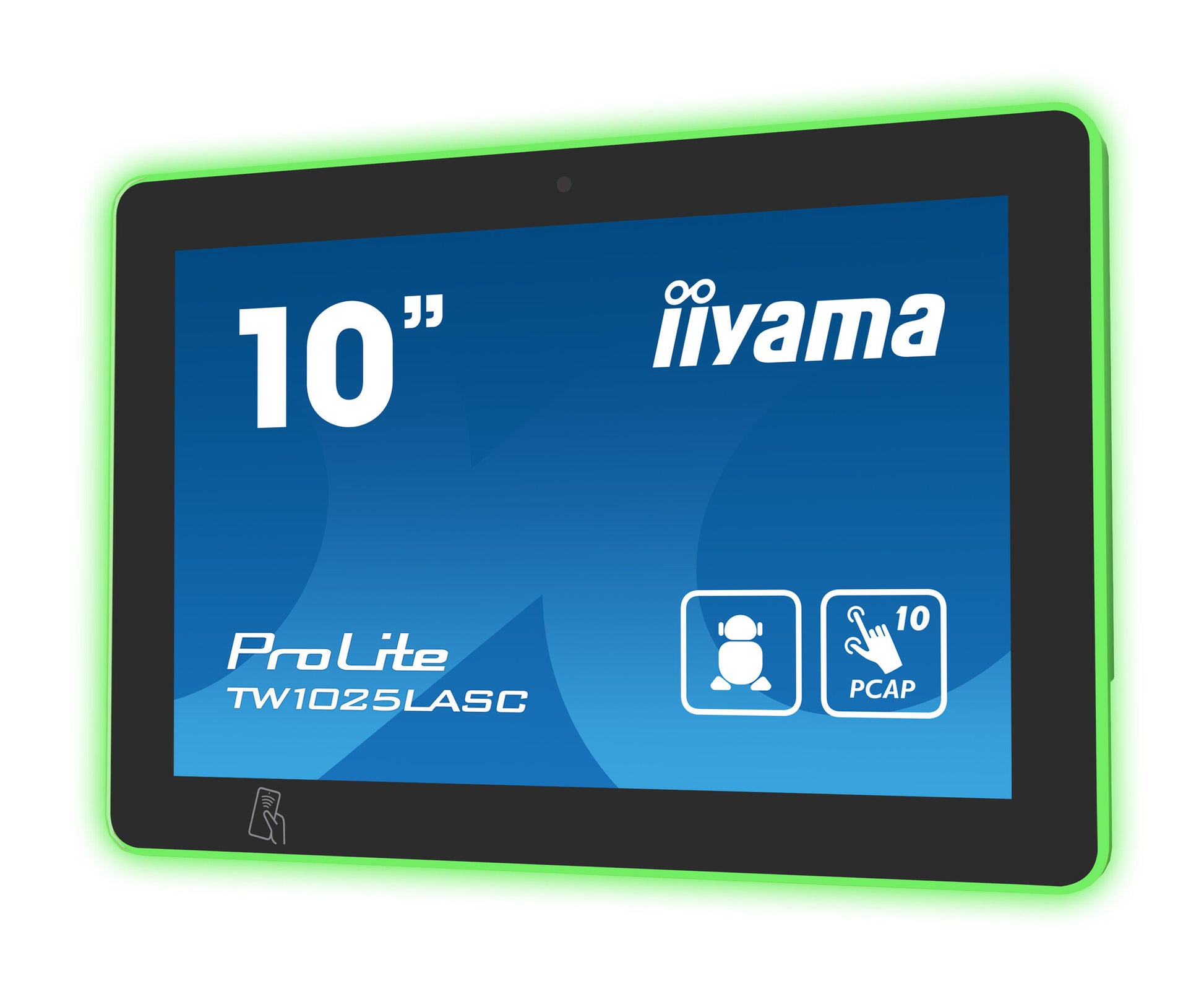

10.1” PCAP 10pt touch screen with Android, Power over Ethernet Technology, NFC/RFID reader and a RGB LED bar around the screen

  • 25.6 cm (10.1") 1280 x 800 pixels Display technology: LED
  • 16:10 390 cd/m²
  • Touchscreen
  • Housing material: Plastic VESA mounting
  • RAM capacity: 4 GB Storage capacity: 32000 MB
  • Built-in speaker(s) Built-in microphone
  • Built-in camera 5 MP

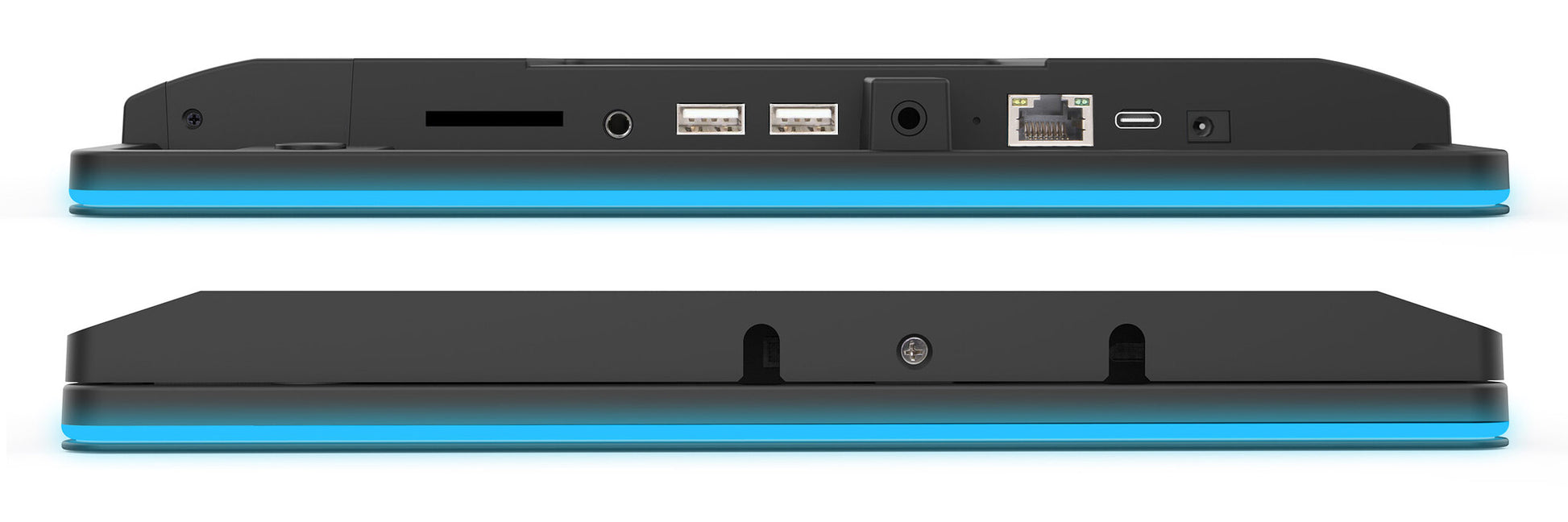

  • Ethernet LAN Bluetooth Near Field Communication (NFC) USB port Wi-Fi Wi-Fi 4 (802.11n), 802.11g, 802.11b
  • Power source type: DC
  • Black
  • SKU:4948570124275
  • GTIN/EAN:4948570124275
  • MPN:TW1025LASC-B1PNR

You need to login to view the price.

View full details

iiyama TW1025LASC-B1PNR. Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels, Display technology: LED. Housing colour: Black, Housing material: Plastic, Panel mounting interface: 75 x 75 mm. Processor manufacturer: Rockchip, RAM capacity: 4 GB, Storage capacity: 32000 MB. Speaker power: 2 W. Total megapixels: 5 MP

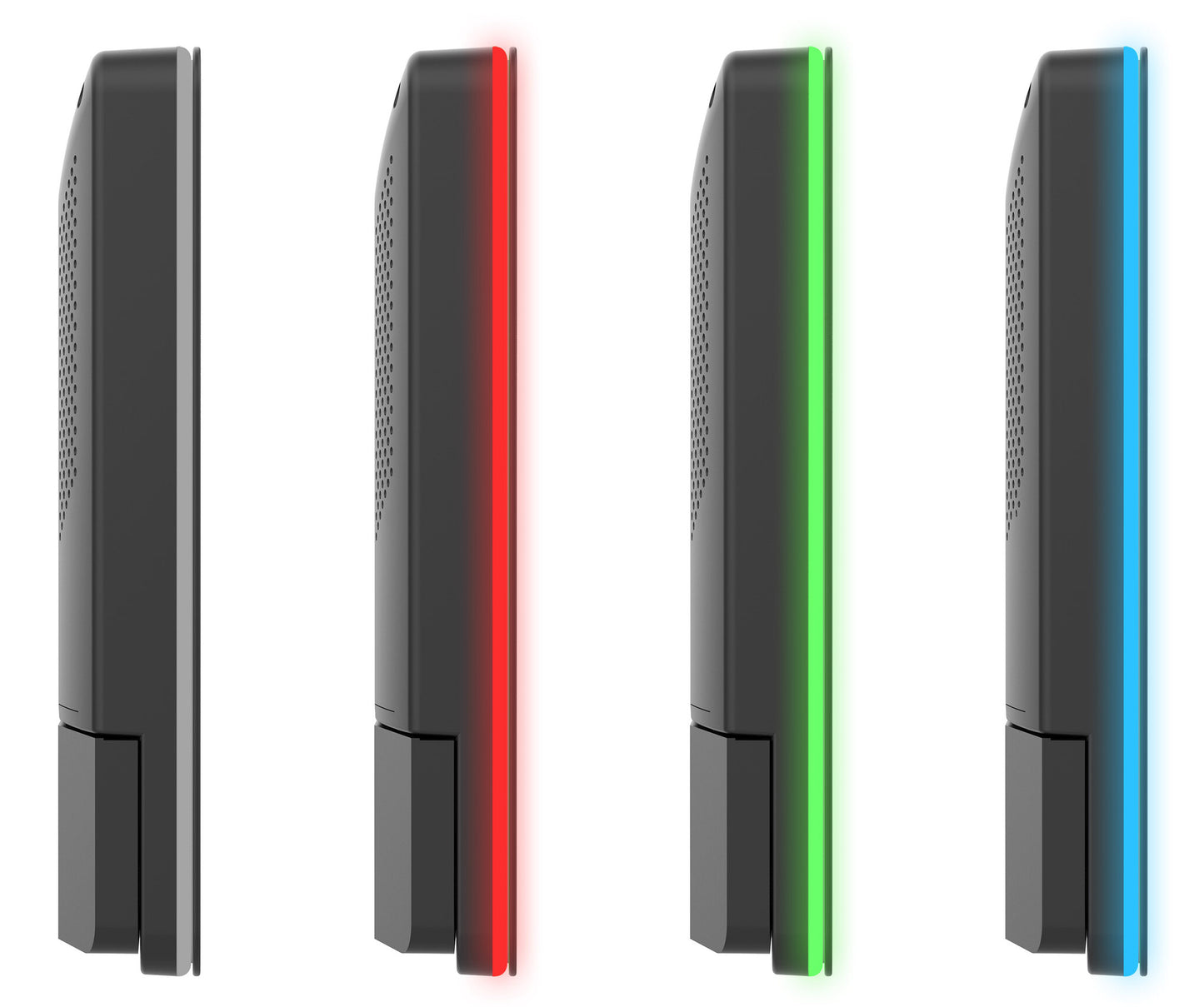

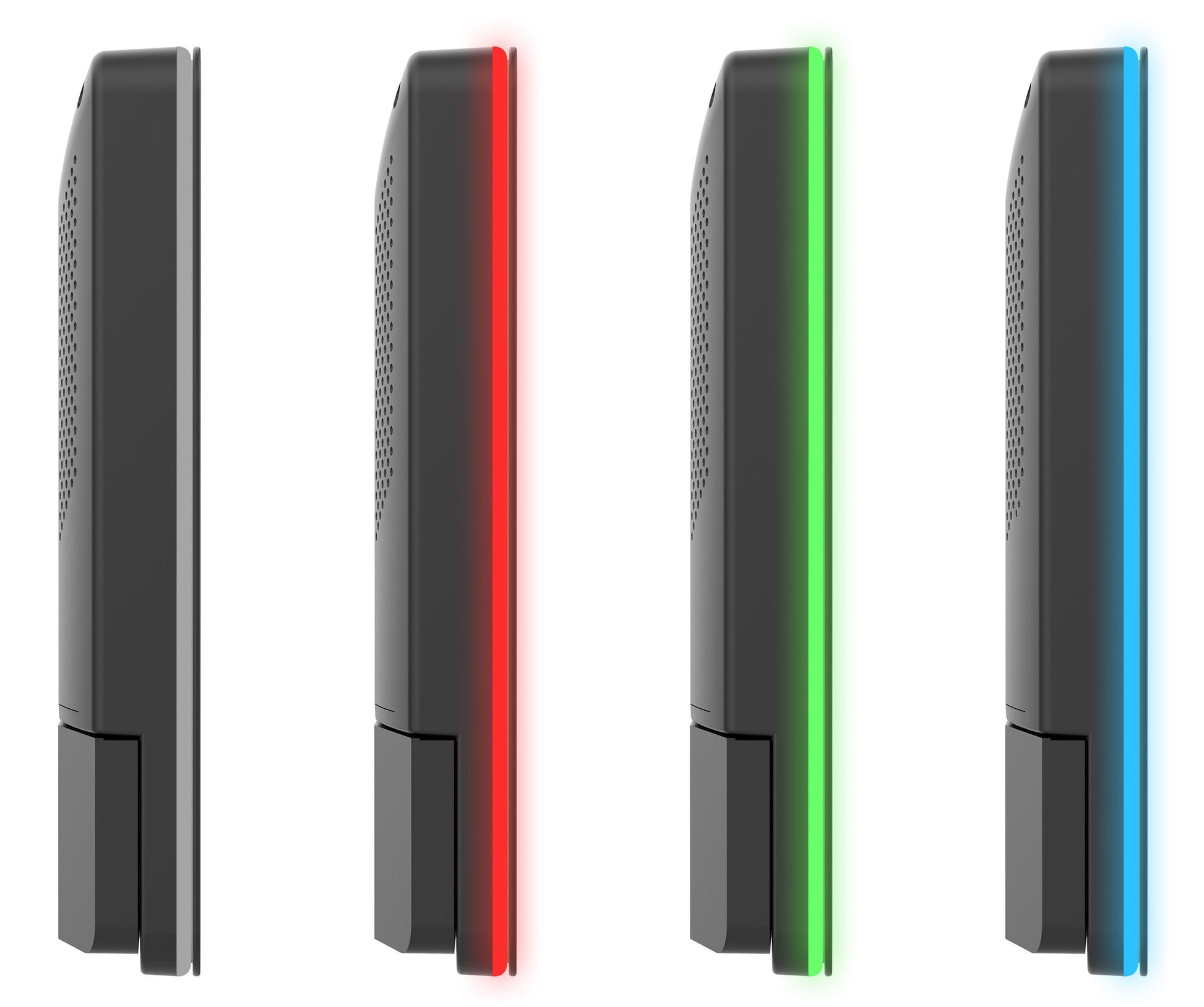

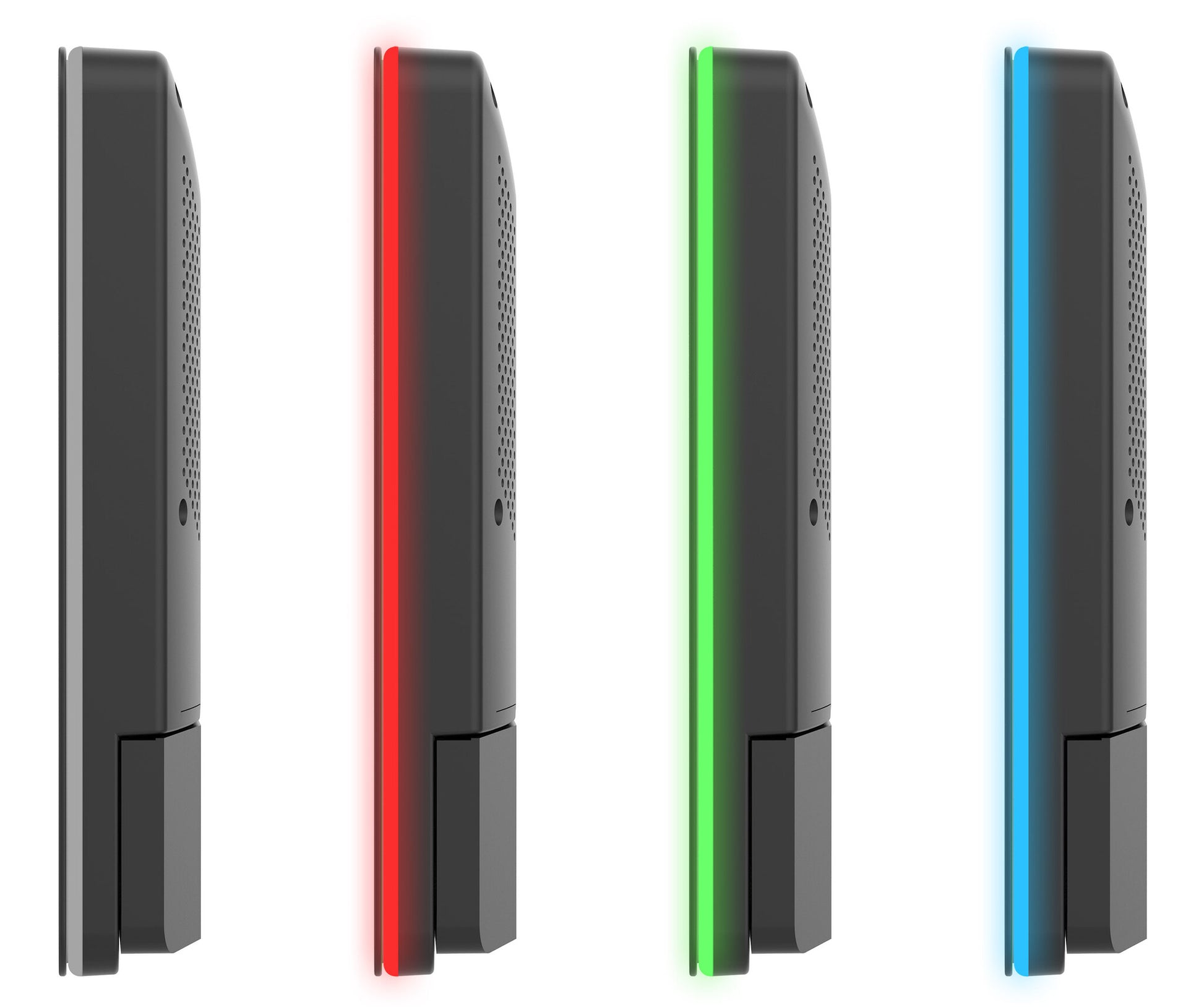

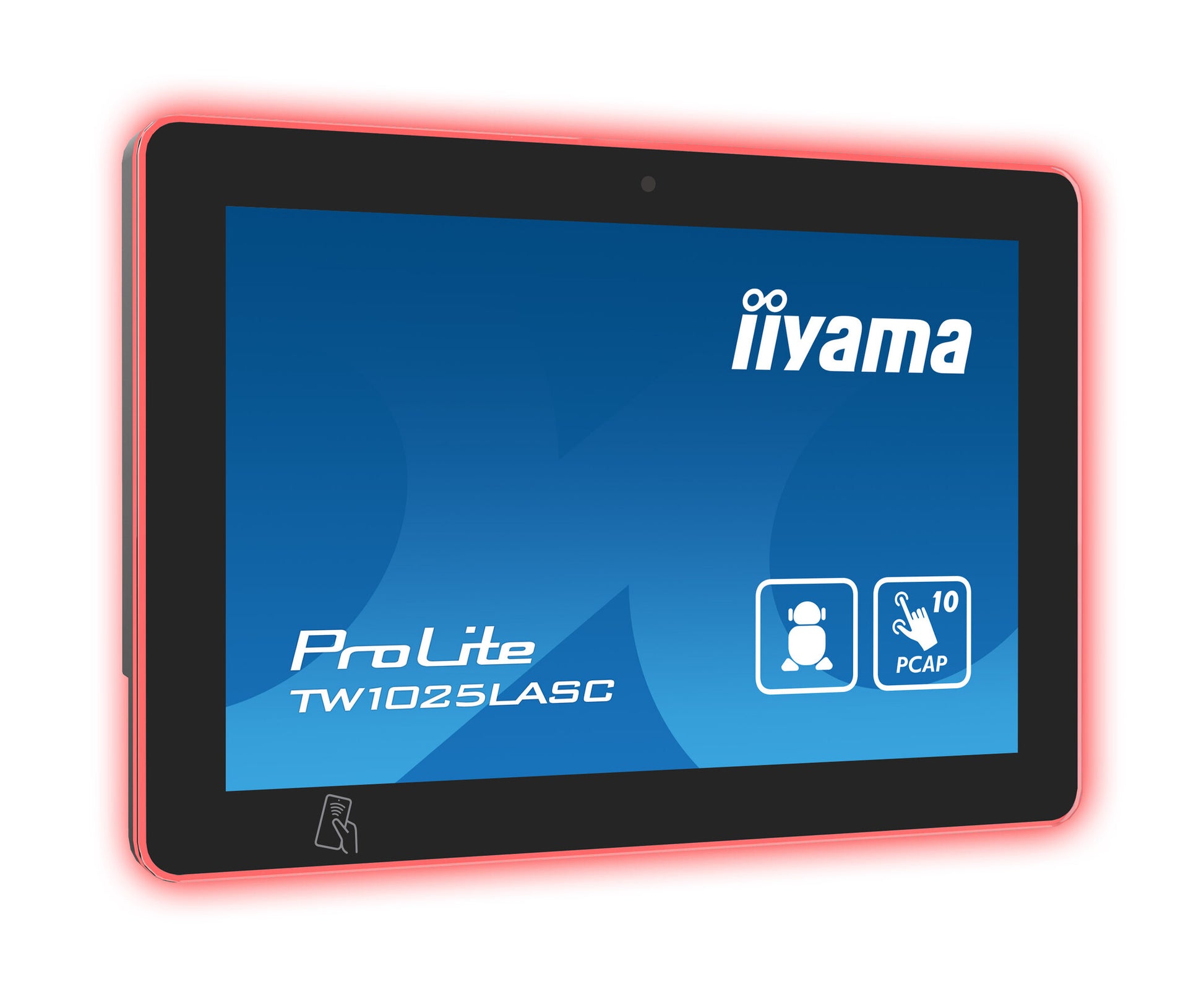

The ProLite TW1025LASC-B1PNR touch panel PC is a perfect choice for high-use environments such as booking rooms, information desks or other corporate and hospitality applications. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. Thanks to the pre-installed Android 12 operating system, it is possible to easily customize the monitor by installing applications directly to it. The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. Thanks to the NFC/RFID reader, the touch panel PC allows to communicate wirelessly with enabled devices or tags within close proximity and the RGB Led bar will clearly and intuitively indicate the availability status of the room. Together with the built-in 5 megapixel camera, microphone and speakers it offers limitless, interactive installation possibilities.

Display
Display diagonal
25.6 cm (10.1")
Display technology
LED
Display resolution
1280 x 800 pixels
Pixel pitch
0.1692 x 0.1692 mm
Aspect ratio
16:10
Response time
25 ms
Display brightness
390 cd/m²
Contrast ratio (typical)
1000:1
Touchscreen
Yes
Touchscreen technology
Projected capacitive system
Number of simultaneous touchpoints
10
Fingerprint resistant
Yes
Design
Housing colour
Black
Housing material
Plastic

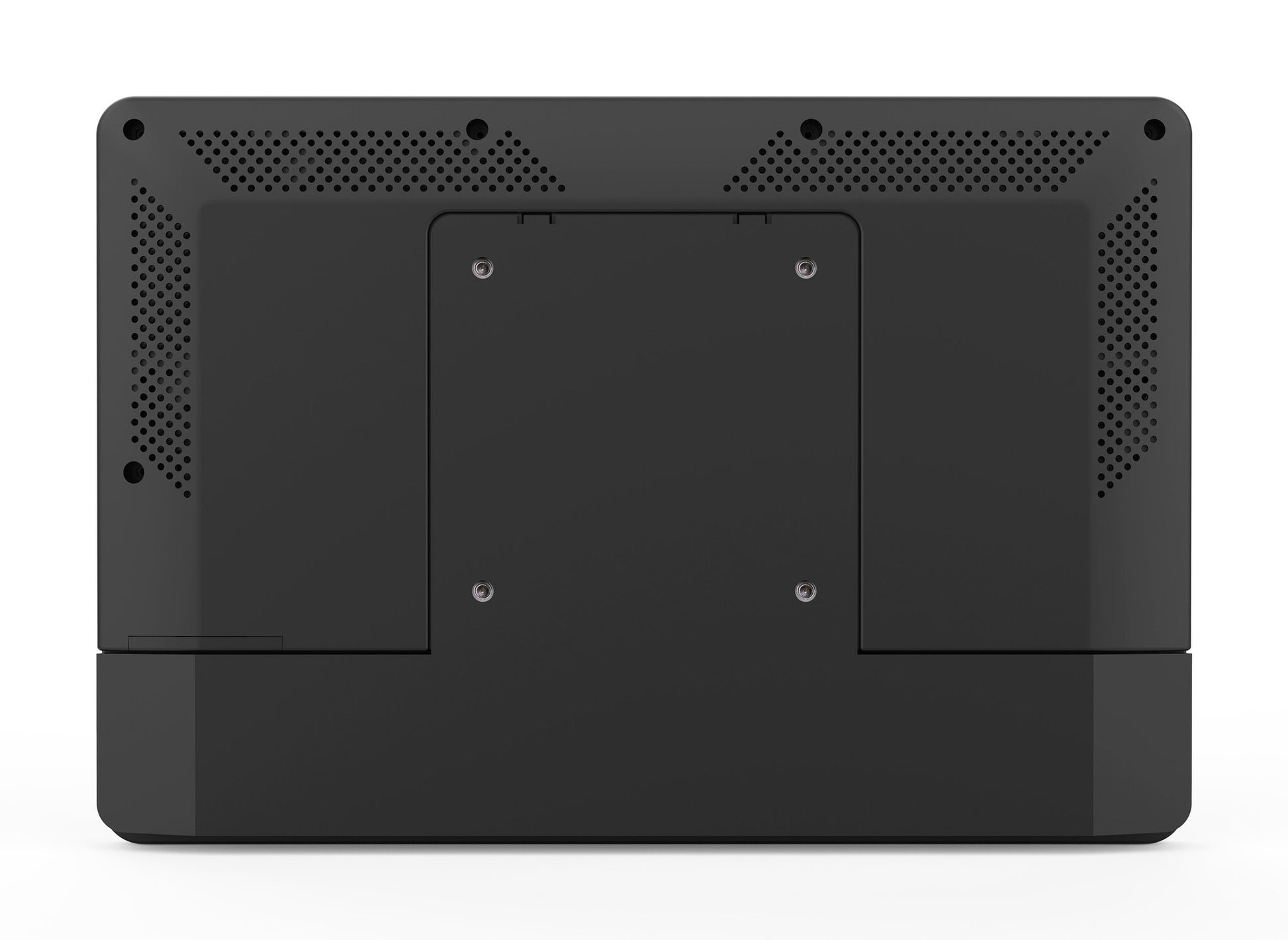

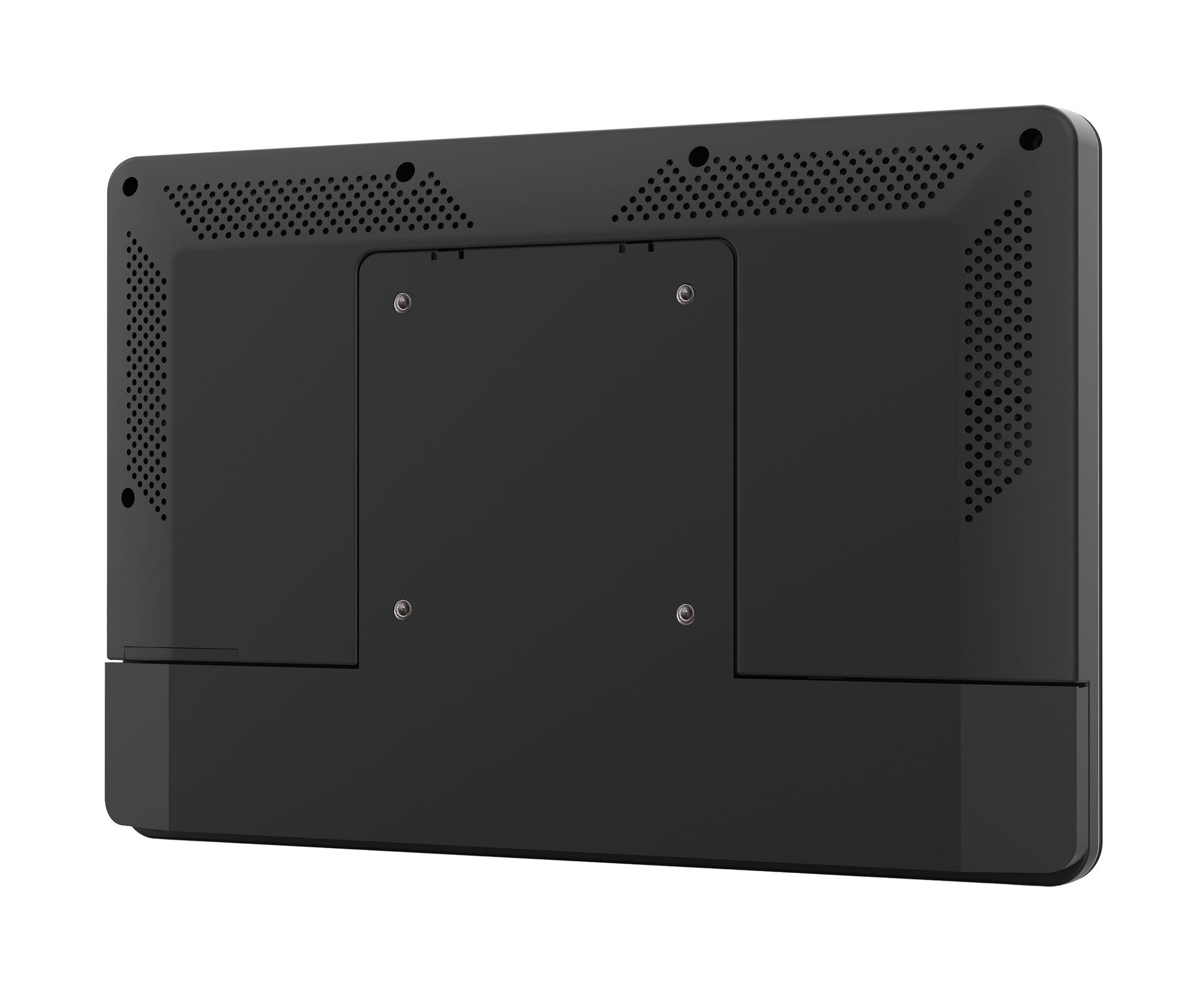

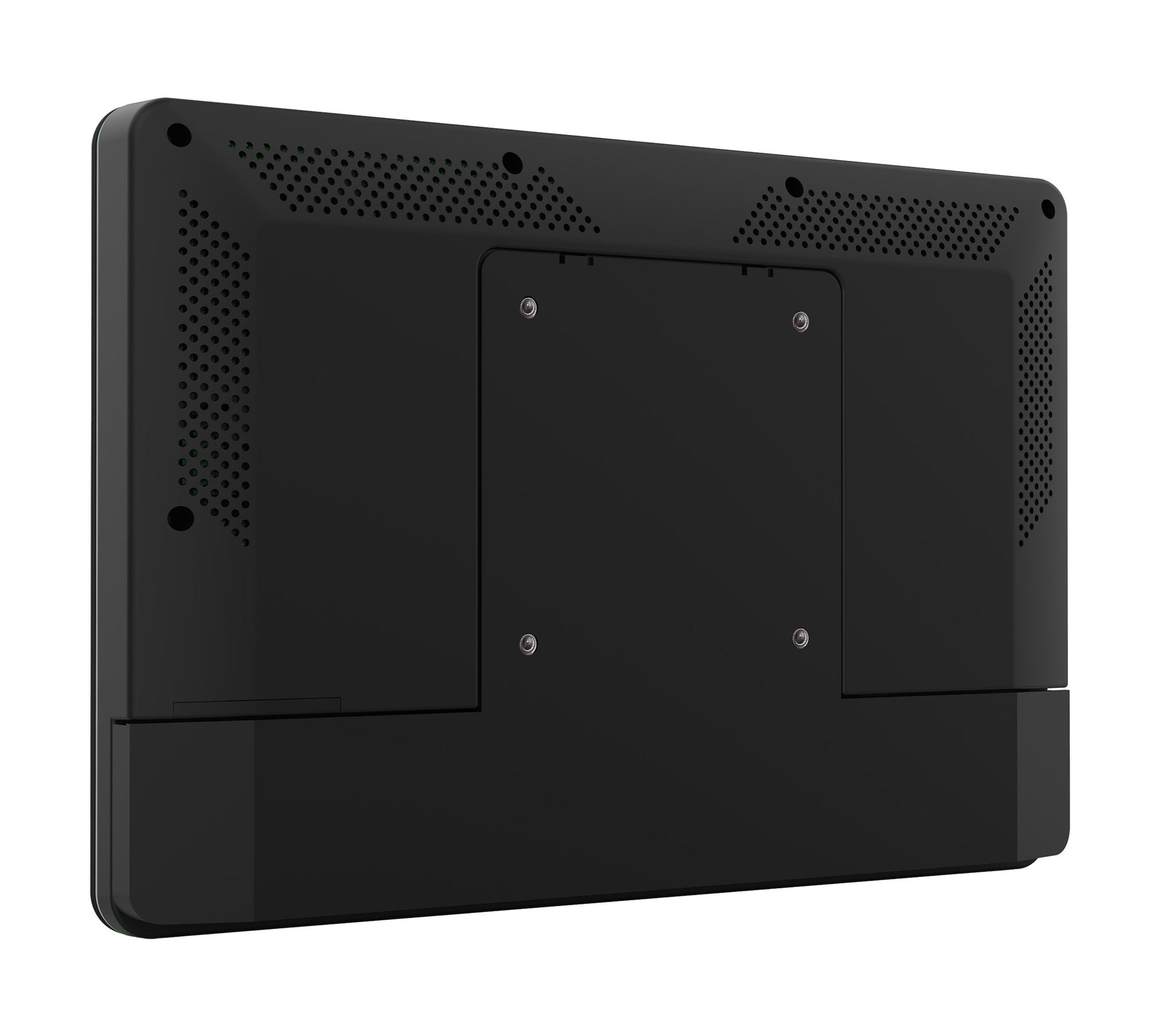

VESA mounting
Yes

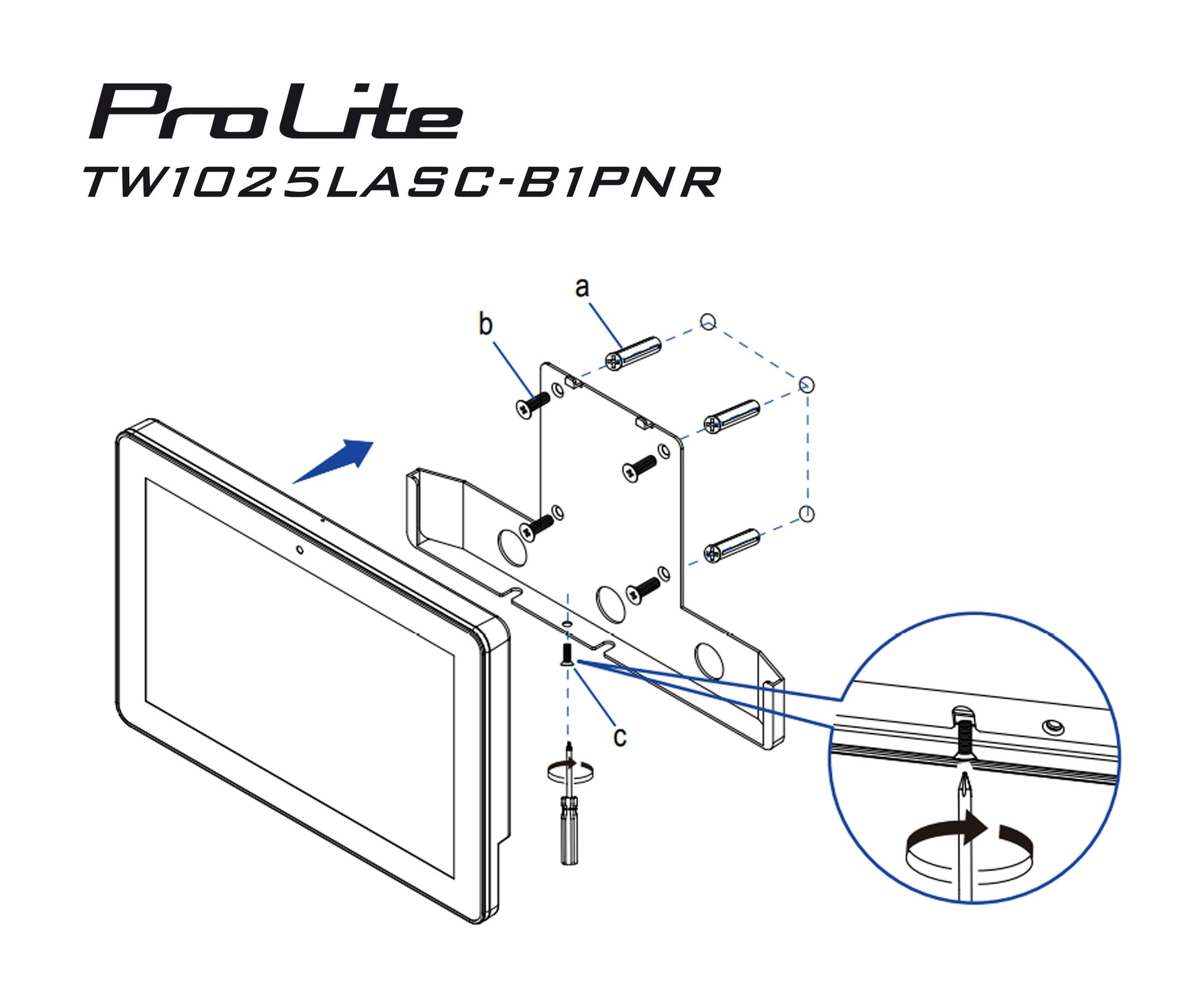

Panel mounting interface
75 x 75 mm
Certification
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Performance
Built-in processor
Yes
Processor manufacturer
Rockchip
RAM capacity
4 GB
Storage capacity
32000 MB
Operating system installed
Android
Audio
Built-in microphone
Yes
Built-in speaker(s)
Yes
Number of speakers
2
Speaker power
2 W
Number of microphones
1
Camera
Built-in camera
Yes
Total megapixels
5 MP
Network
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 4 (802.11n), 802.11g, 802.11b
Bluetooth
Yes
Bluetooth version
5.2
Ethernet LAN
Yes
Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Near Field Communication (NFC)
Yes
Ports & interfaces
USB port
Yes
USB port type
USB Type-A
USB 2.0 Type-A ports quantity
1
Power
Power source type
DC
Input voltage
12 V
Power consumption (idle)
18 W
Weight & dimensions
Width
259.5 mm
Depth
28 mm
Height
178.5 mm
Weight
1.1 kg
Packaging data
Package width
363 mm
Package depth
65 mm
Package height
225 mm
Packaging content
Quick start guide
Yes
Packaging content
AC adapter, interchangeable plugs (EU/UK)
Sustainability
Sustainability certificates
ErP
Technical details
Compliance certificates
CE, EAC, REACH, RoHS, UKCA, WEEE
