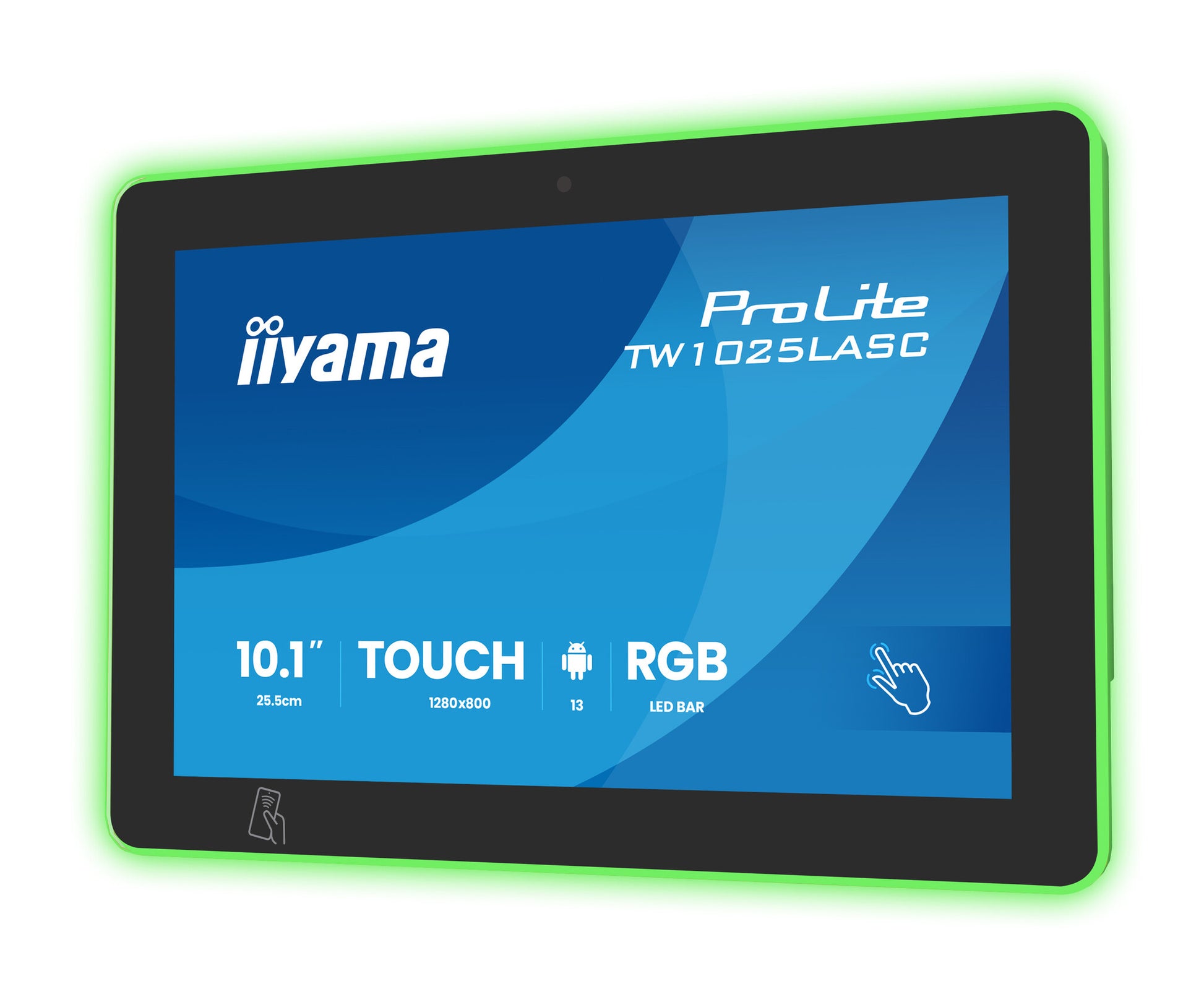

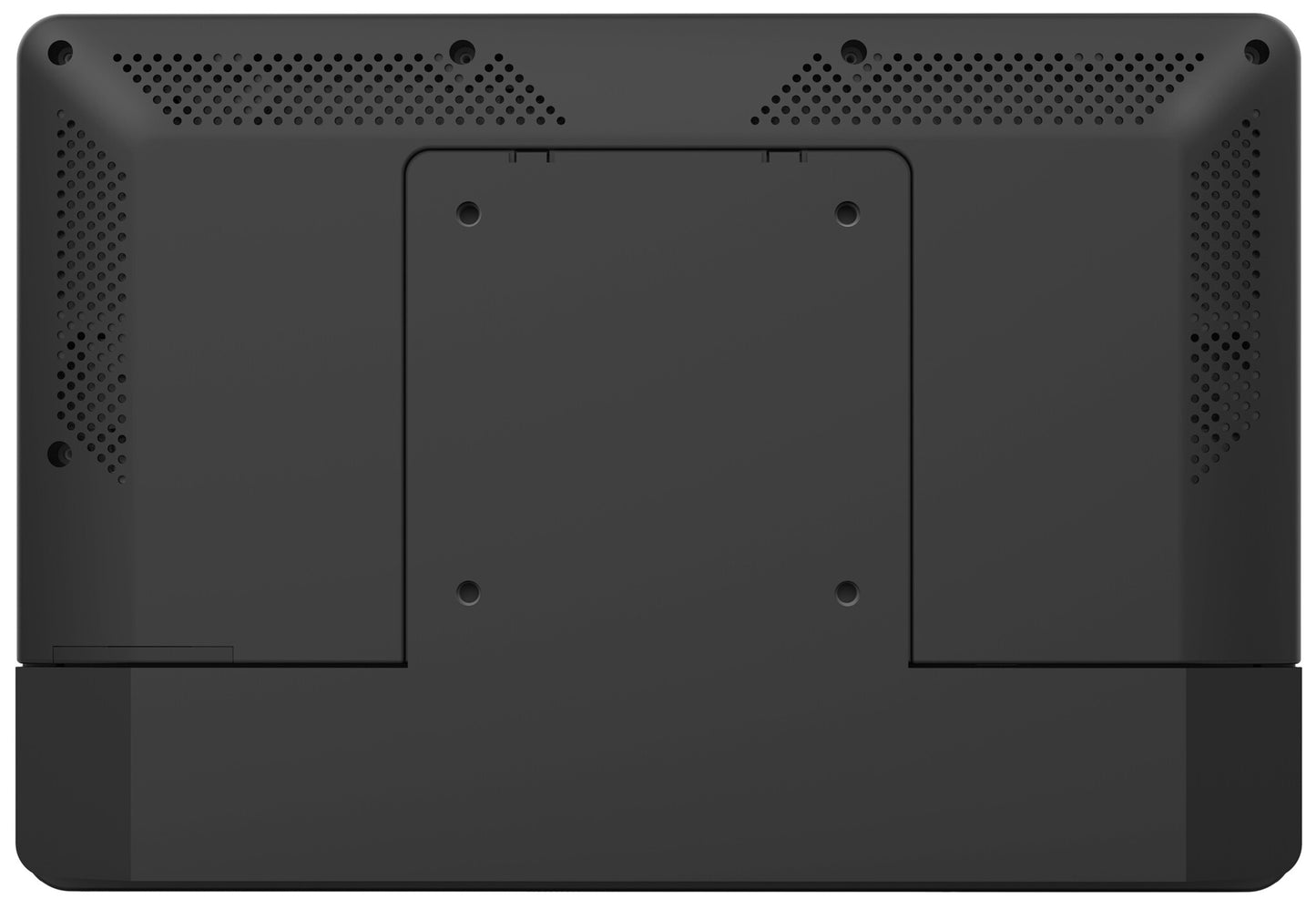

iiyama ProLite TW1025LASC-B3PNR computer monitor 25.6 cm (10.1") 1280 x 800 pixels WXGA LED Touchscreen Multi-user Black

iiyama ProLite TW1025LASC-B3PNR computer monitor 25.6 cm (10.1") 1280 x 800 pixels WXGA LED Touchscreen Multi-user Black

10.1” PCAP 10pt touch screen with Android, Power over Ethernet Technology, NFC/RFID reader and a RGB LED bar around the screen

  • 25.6 cm (10.1") Black
  • Built-in speaker(s) Built-in camera
  • Screen shape: Flat
  • Response time: 25 ms Response time measurement type: GTG (Gray to Gray)
  • 1280 x 800 pixels WXGA Panel type: IPS
  • ErP CE, EAC, REACH, RoHS, UKCA, WEEE
  • SKU:4948570127146
  • GTIN/EAN:4948570127146
  • MPN:TW1025LASC-B3PNR

You need to login to view the price.

View full details

iiyama ProLite TW1025LASC-B3PNR. Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels, HD type: WXGA, Display technology: LED, Response time: 25 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 160°, Viewing angle, vertical: 160°. Built-in speaker(s). Built-in USB hub. VESA mounting. Product colour: Black

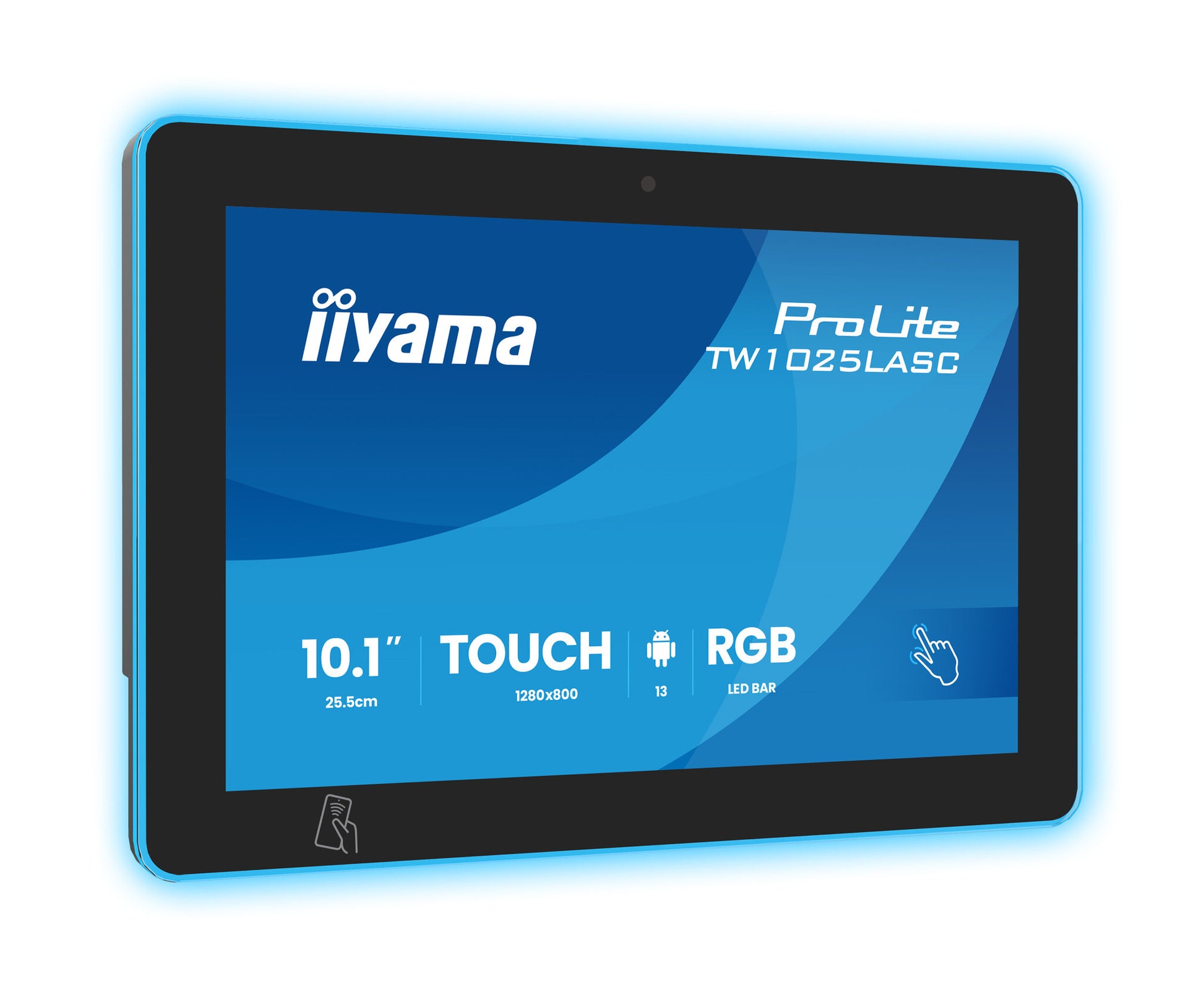

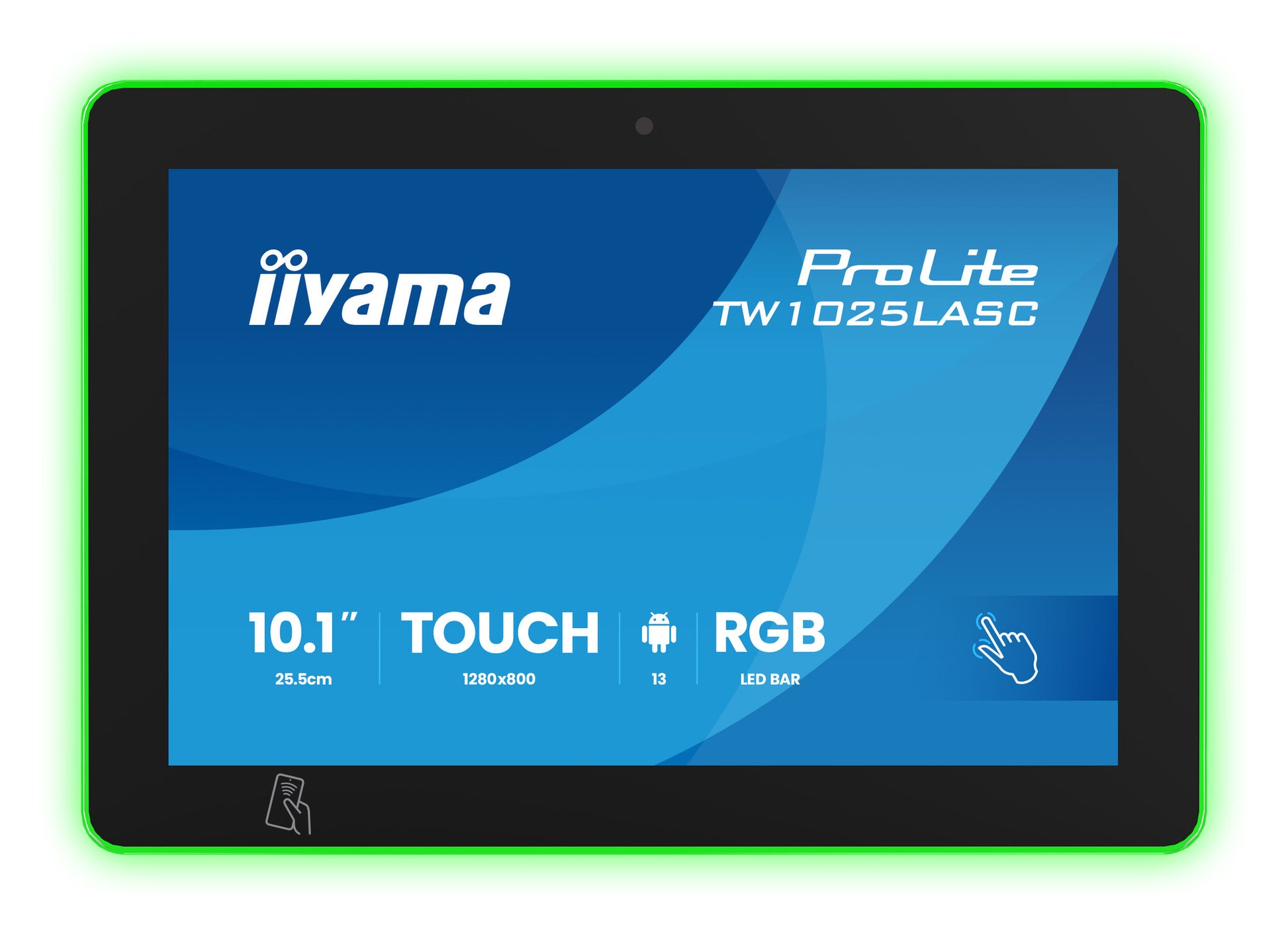

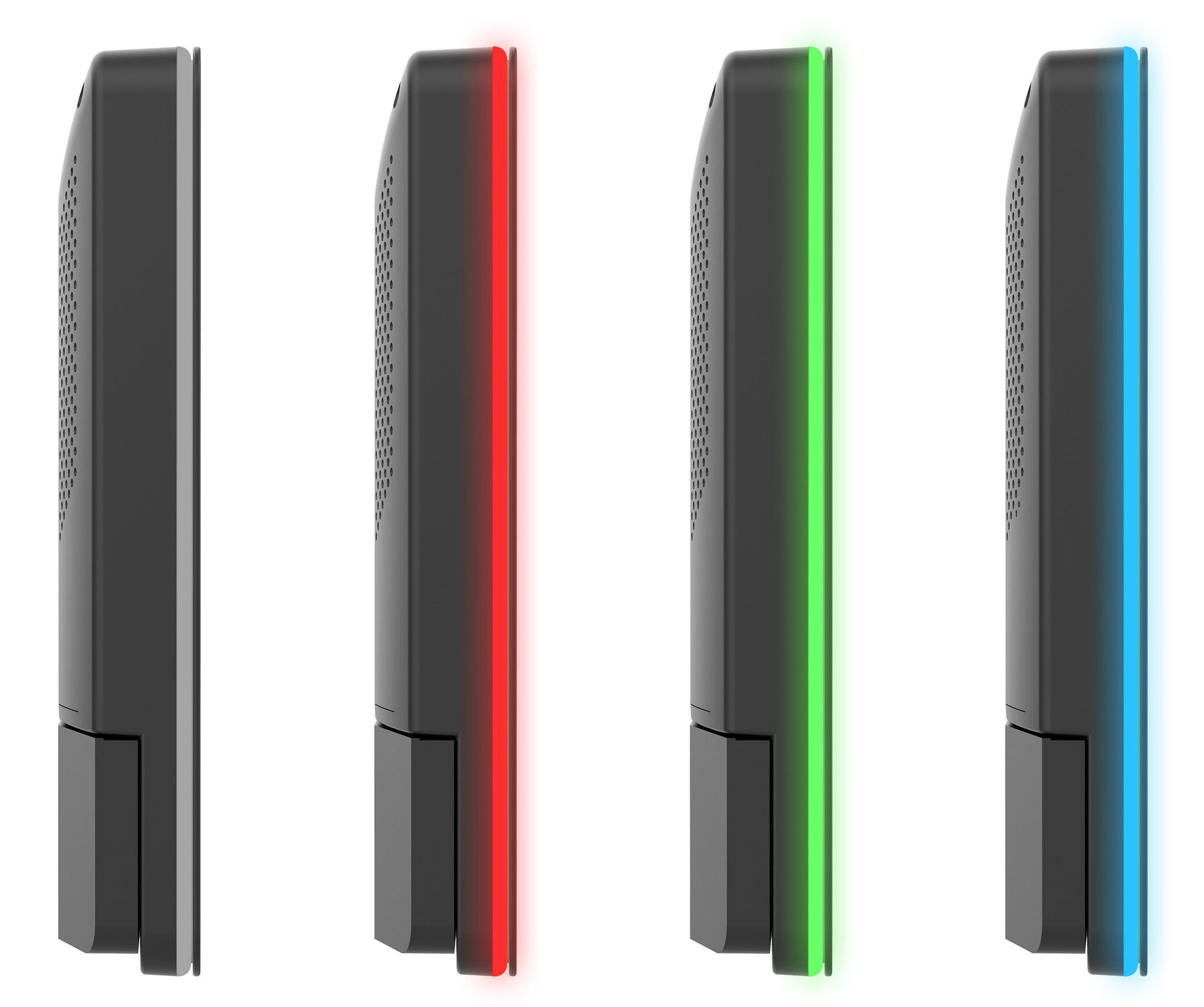

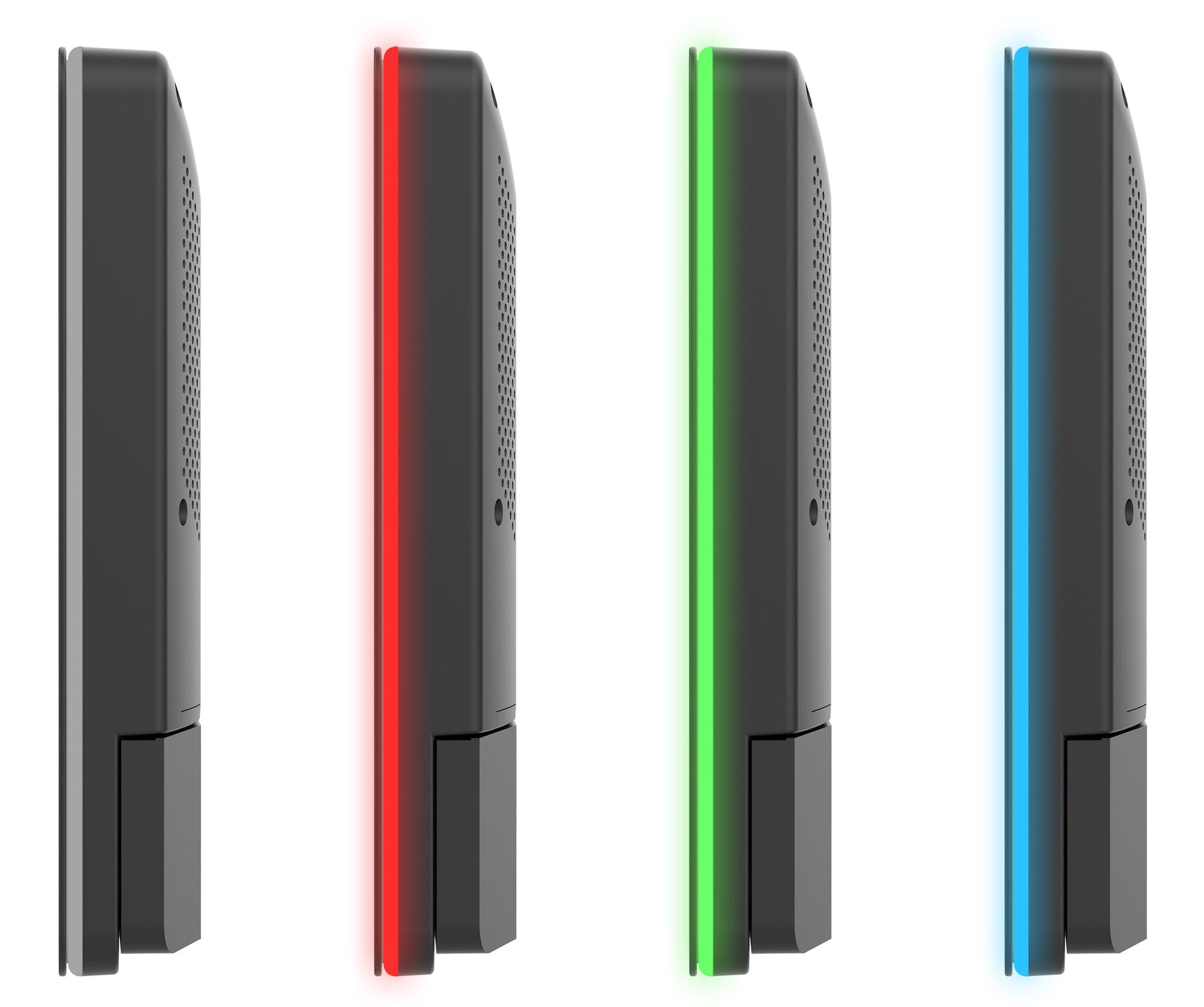

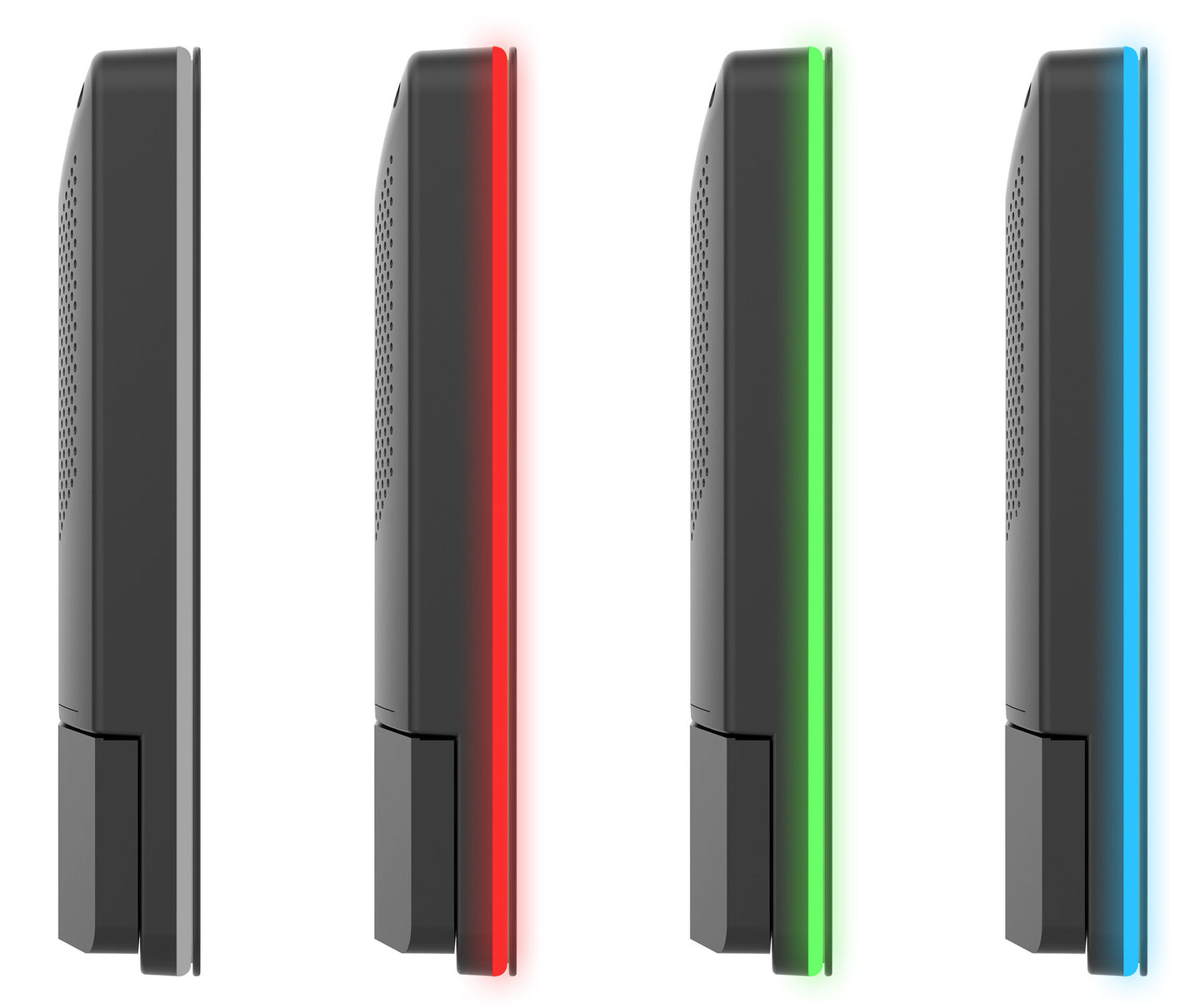

The ProLite TW1025LASC-B3PNR touch panel PC is a perfect choice for high-use environments such as booking rooms, information desks or other corporate and hospitality applications. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. Thanks to the pre-installed Android 13 operating system, it is possible to easily customize the monitor by installing applications directly to it. The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. Thanks to the NFC/RFID reader, the touch panel PC allows to communicate wirelessly with enabled devices or tags within close proximity and the RGB Led bar will clearly and intuitively indicate the availability status of the room. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position. Together with the built-in 5 megapixel camera, microphone and speakers it offers limitless, interactive installation possibilities.

Display
Display diagonal
25.6 cm (10.1")
Display resolution
1280 x 800 pixels
Panel type
IPS
Touchscreen technology
Projected capacitive system
Display brightness (typical)
450 cd/m²
Response time
25 ms
Response time measurement type
GTG (Gray to Gray)
Colour depth
8 bit
Display brightness
390 cd/m²
Screen shape
Flat
Contrast ratio (typical)
1000:1
Display number of colours
16.7 million colours
Viewable size, horizontal
21.7 cm
Viewable size, vertical
13.5 cm
Performance
Operating system version
13
Operating hours (hours/days)
24/7
Multimedia
Built-in speaker(s)
Yes
Number of speakers
2
RMS rated power
4 W
Megapixel (approx.)
5 MP
Design
Product colour
Black
Front bezel colour
Black
Glass thickness
1.85 mm
Ports & interfaces
Built-in USB hub
Yes
Card reader integrated
Yes
Compatible memory cards
SD
Ergonomics

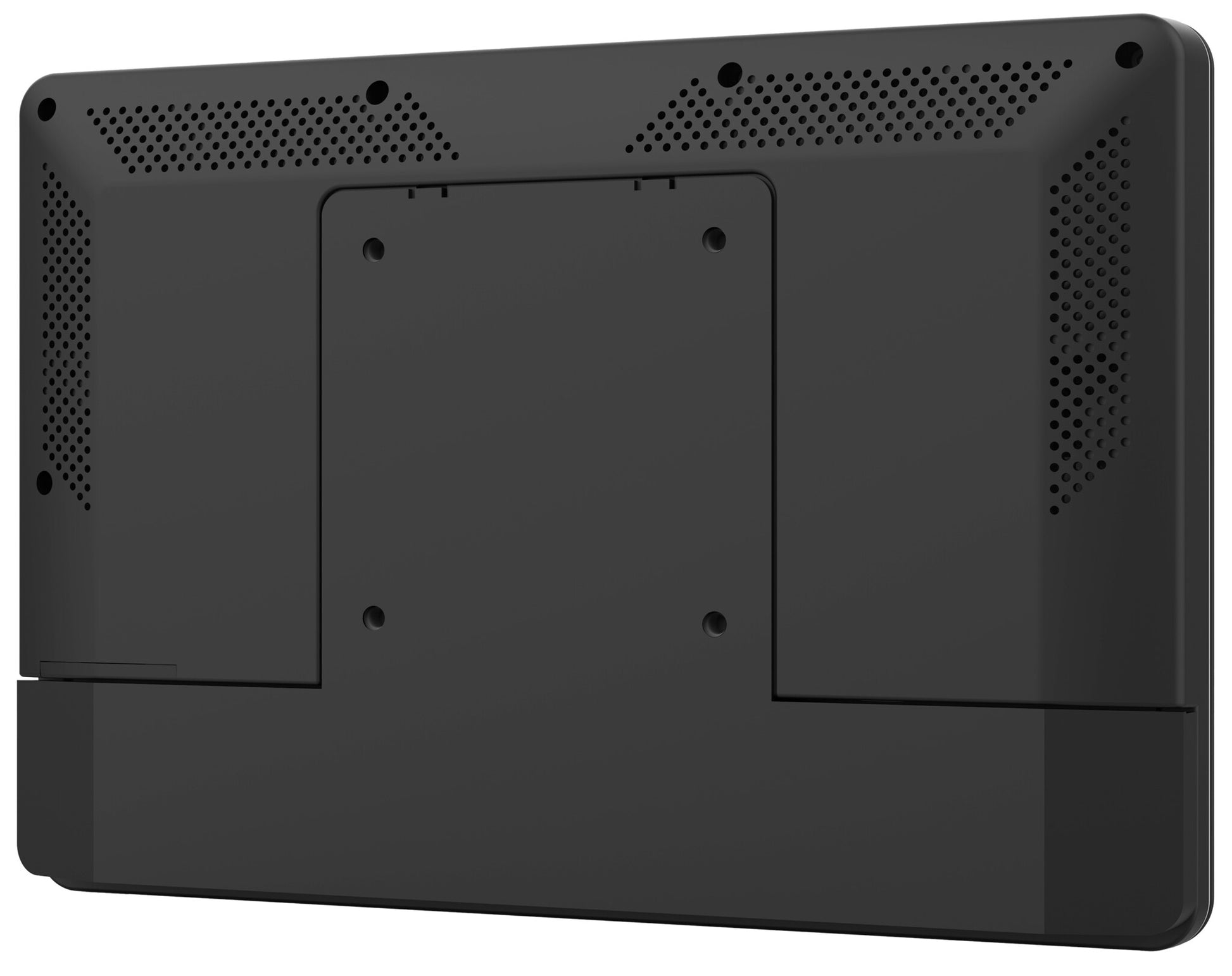

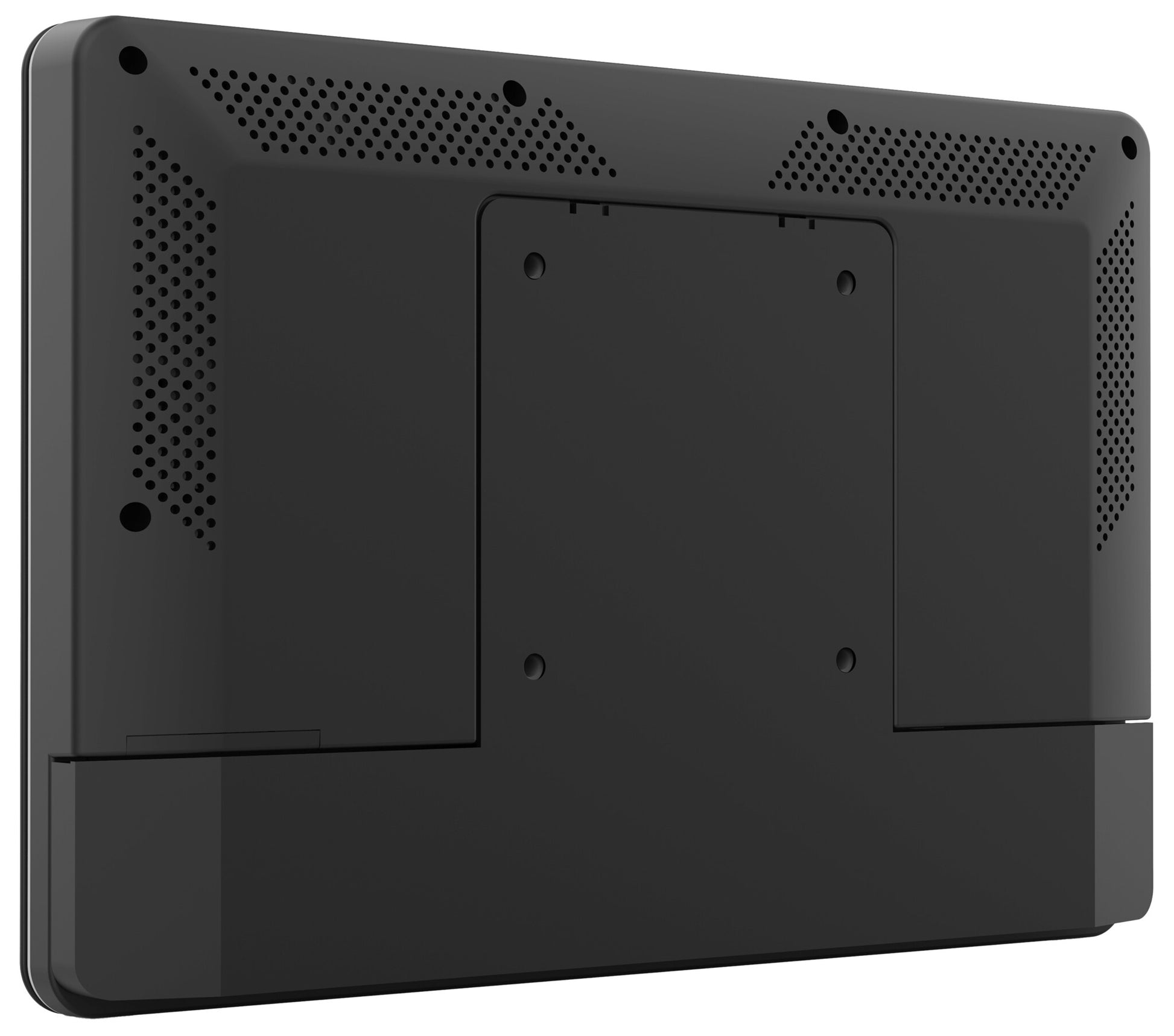

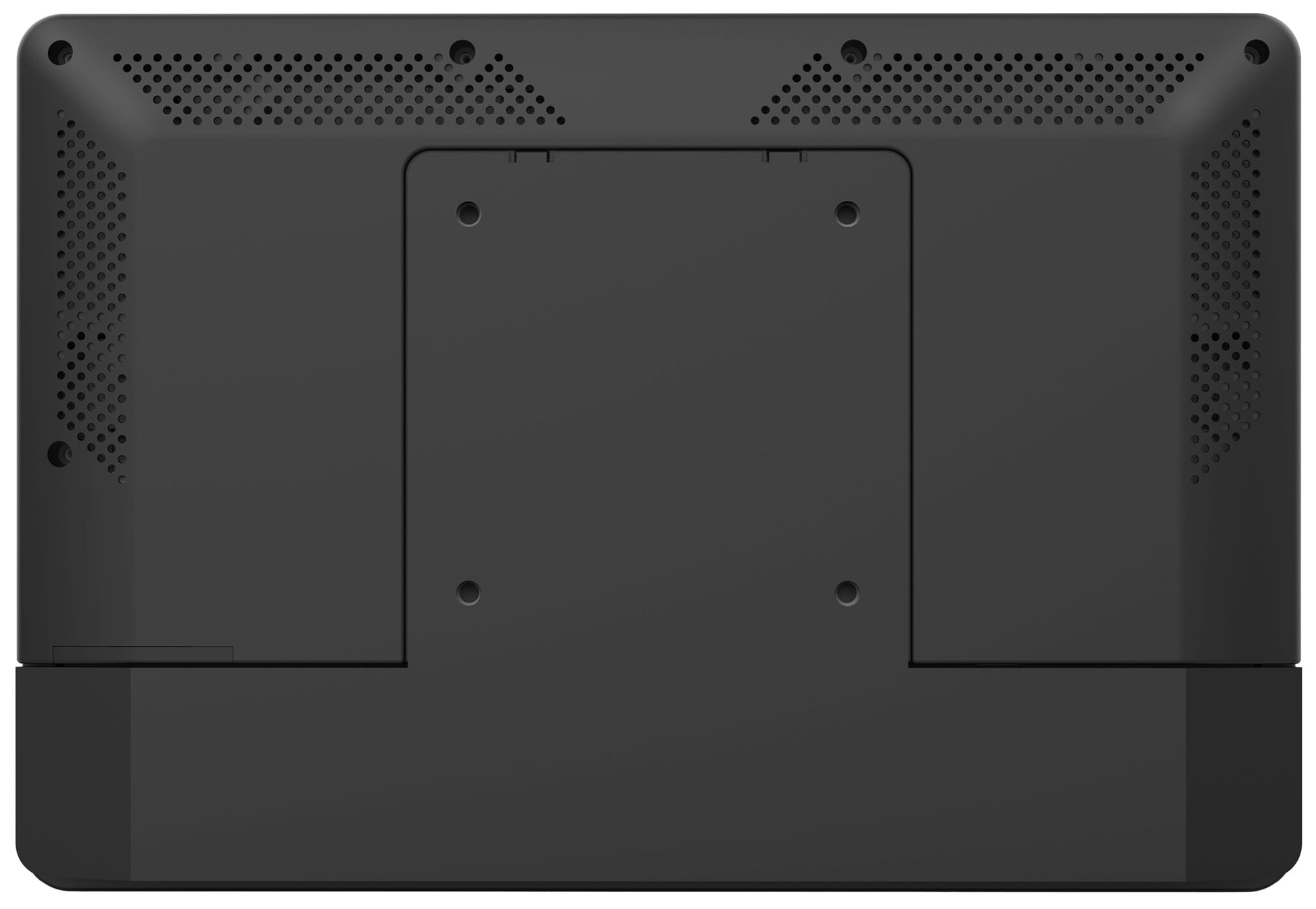

VESA mounting
Yes
Panel mounting interface
75 x 75 mm
Cable management
Yes
Power
Power consumption (typical)
10 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
AC adapter output voltage
12 V
Power supply type
External
Network
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11b
Bluetooth
Yes
Bluetooth version
5.2
Ethernet LAN
Yes
Sustainability
Sustainability certificates
ErP
Algemeen
Productfamilie
ProLite
Weight & dimensions
Width (with stand)
259.5 mm
Depth (with stand)
28 mm
Height (with stand)
178.5 mm
Weight (with stand)
1.1 kg
Weight (without stand)
1.6 kg
Packaging data
Quick start guide
Yes
Package width
363 mm
Package depth
65 mm
Package height
225 mm
Technical details
Compliance certificates
CE, EAC, REACH, RoHS, UKCA, WEEE
Other features
AC adapter included
Yes
Google applications
Google Chrome, Gmail, Google Calendar
Packaging content

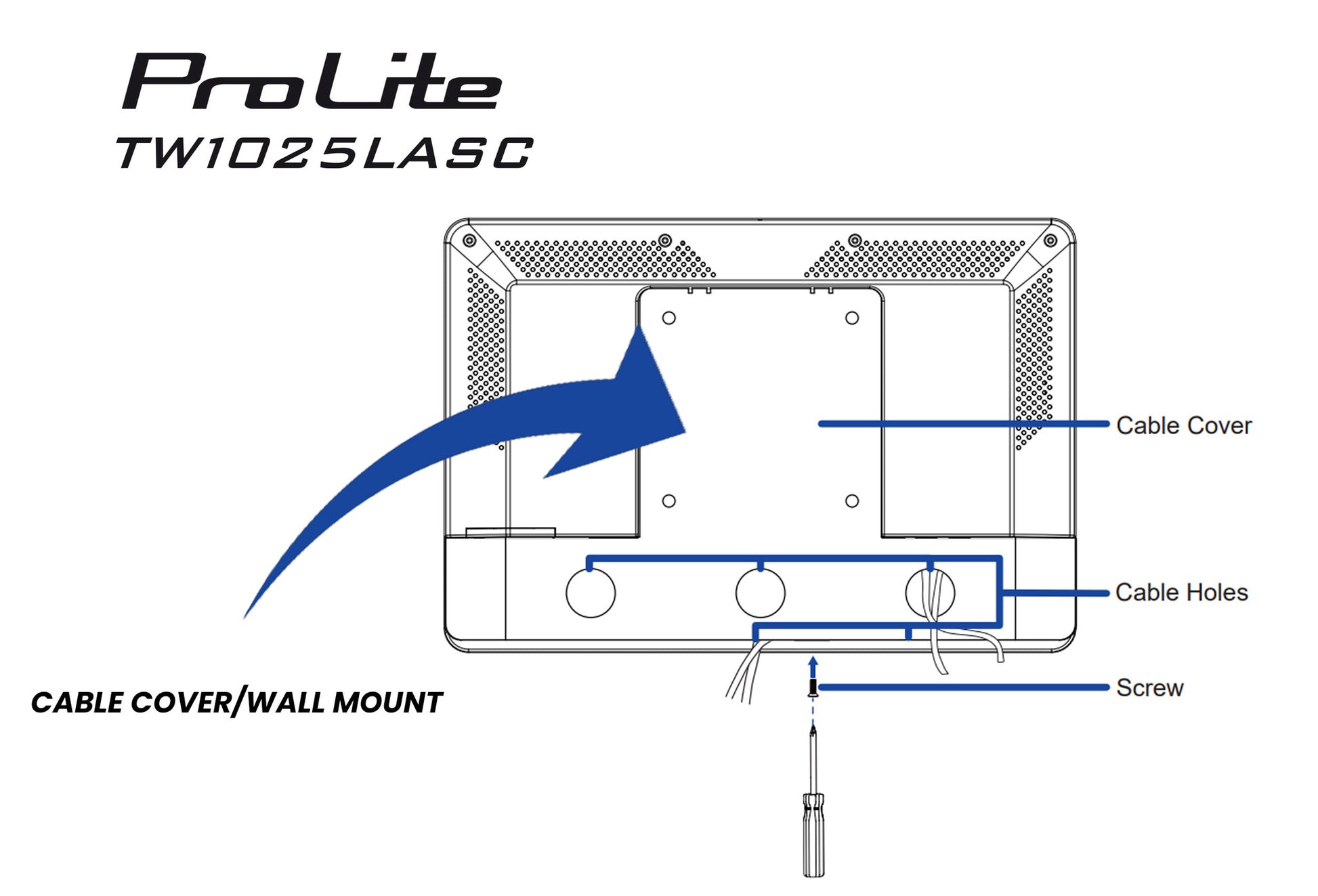

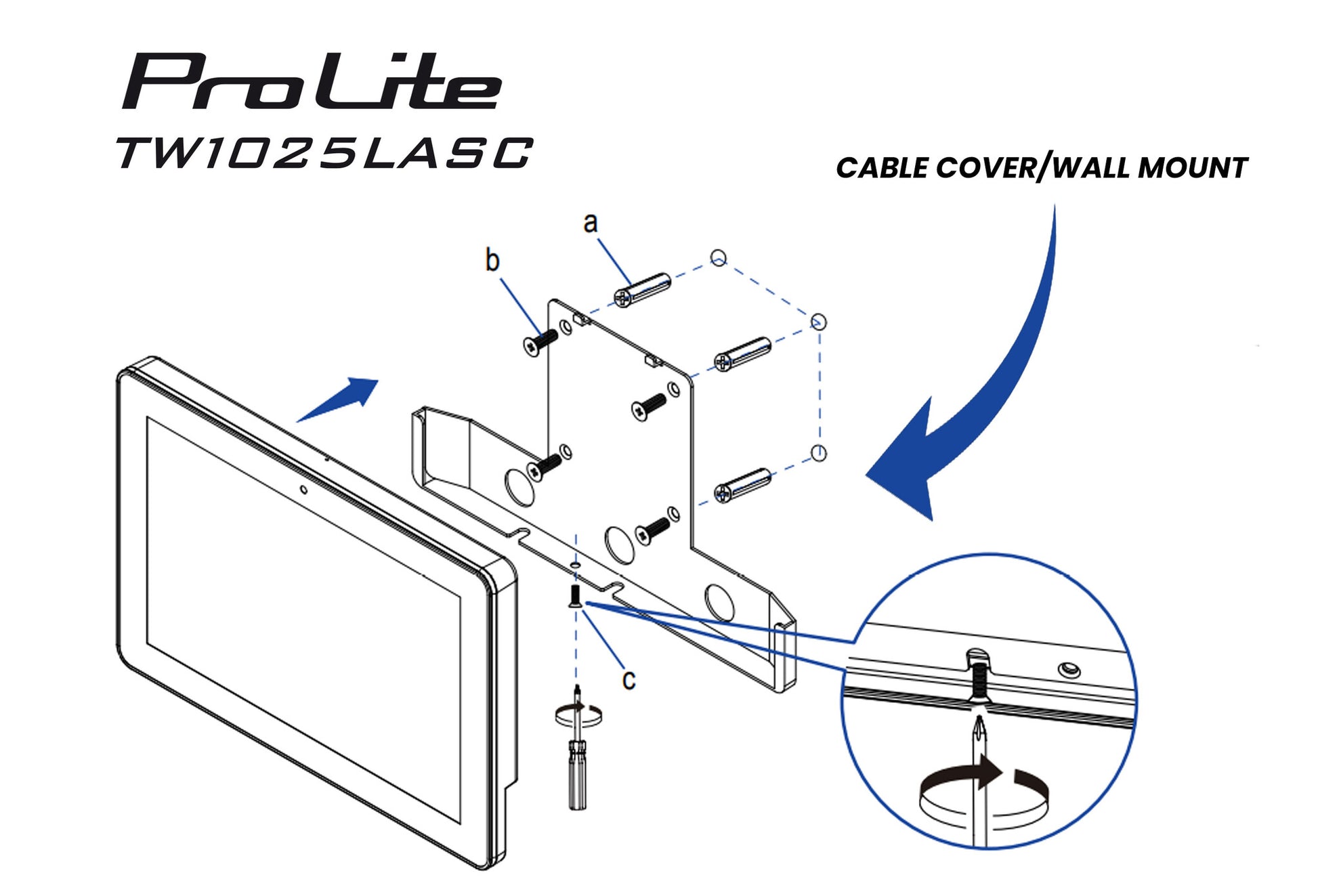

AC adapter, interchangeable plugs (EU/UK), cable cover/wall mount
Brightness
390 cd/m²
Depth
28 mm
Width
259.5 mm
Height
178.5 mm
Weight
1.1 kg
Active display area (W x H)
216.6 x 135.4 mm

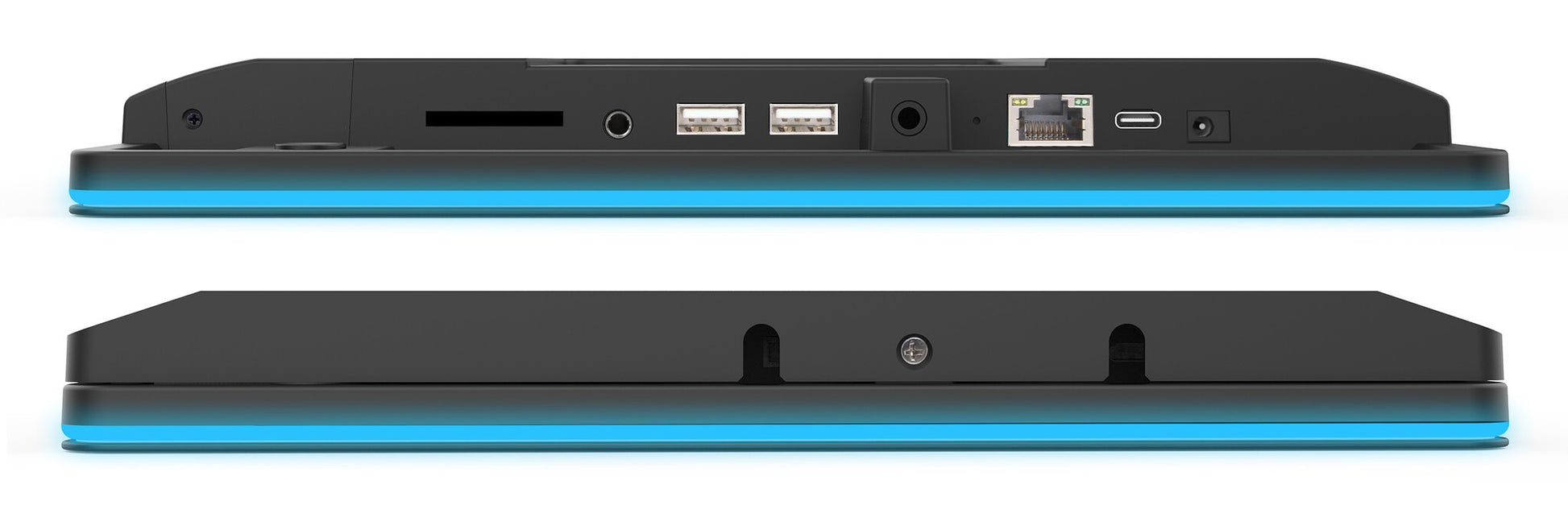

USB ports quantity
3
Built-in processor
Yes
Ethernet LAN (RJ-45) ports
1
Control panel
Power switch
Touch method
finger, glove (latex), capacitive stylus
User controls
Power switch
Touchscreen
Touchscreen
Yes
HD type
WXGA
Native aspect ratio
16:10
Display technology
LED
Built-in camera
Yes
Touchscreen type
Multi-user
Number of simultaneous touchpoints
10
USB Touch port
Yes
HDMI
No
Viewing angle, horizontal
160°
Viewing angle, vertical
160°
Pixel pitch
0.1692 x 0.1692 mm
Display diagonal (metric)
25.5 cm
Surface hardness
6H
