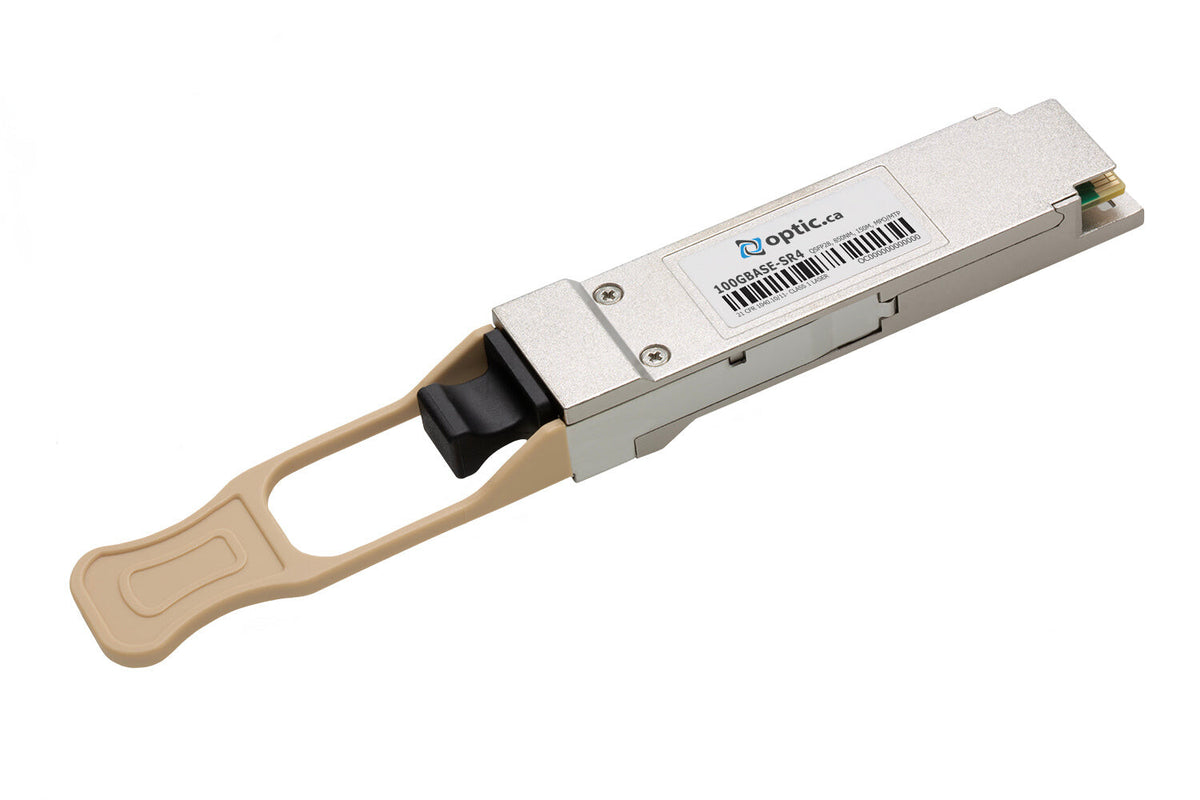

Optic.ca NGQ100G-SR4-OC

The Optic.ca NGQ100G-SR4-OC is a 100GBASE-SR4 QSFP28 optical transceiver purpose-coded for seamless, certified compatibility with NETGEAR networking equipment. Designed for data centres, enterprise backbone infrastructure, and high-performance computing environments, it delivers a full 100 Gbps aggregate data rate over multimode fiber — reaching 70 m on OM3 and 100 m on OM4/OM5 cable plants. The transceiver also supports 4 × 25G breakout mode for flexible interconnects with 25GBASE-SR links. Built-in DDM enables real-time monitoring of optical and electrical parameters. Every unit is coded and tested in-house by Optic.ca and is backed by a lifetime warranty.

100% NETGEAR Certified Compatibility

Unlike generic third-party optics that rely on passive MSA compliance alone, every NGQ100G-SR4-OC is custom-coded by Optic.ca's in-house engineers specifically for NETGEAR platforms. This means the switch recognises the module natively — no CLI workarounds, no unsupported-transceiver warnings, no risk of the port being disabled. For operations teams, this translates directly to faster deployment, fewer support escalations, and confidence that the link will behave identically to an OEM module — at a significantly lower cost per port.

Flexible Reach: OM3, OM4, and OM5 Support

The NGQ100G-SR4-OC operates at 850 nm over multimode fiber and achieves 70 m on OM3 and 100 m on OM4 or OM5 cable plants. This makes it compatible with the vast majority of installed multimode infrastructure in data centres and enterprise buildings — including newer wideband OM5 runs that may later serve SWDM4 applications. Sites upgrading from 10G or 40G to 100G can typically reuse their existing MPO trunk cables, avoiding costly recabling while gaining the full 100G aggregate bandwidth.

100G. NETGEAR certified. Lifetime warranty. Canadian precision.

Coded and tested in-house · Lifetime warranty · Meets or exceeds Tier 1 MTBF

4 × 25G Breakout Mode for Network Flexibility

In addition to native 100G operation, the transceiver supports 4 × 25G breakout mode, allowing a single 100G QSFP28 port to connect four separate 25GBASE-SR SFP28 devices via a breakout MPO-to-LC cable. This is particularly valuable in top-of-rack deployments where a spine switch's 100G uplink ports are used to feed multiple 25G server ports — effectively quadrupling the port density without adding dedicated 25G hardware. It also provides a straightforward migration path as server counts grow.

Built-in DDM for Real-Time Diagnostics

The NGQ100G-SR4-OC integrates Digital Diagnostic Monitoring (DDM), exposing live readings of transceiver temperature, laser bias current, transmitted optical power, received optical power, and supply voltage over the I²C management interface. Network operators can poll these parameters from the switch CLI or NMS without any additional hardware, enabling proactive fault detection before a link degrades. In practice this shortens mean-time-to-diagnose considerably, particularly in high-density 100G deployments where manually tracing a marginal link would otherwise require dedicated optical test equipment.

Tier 1 MTBF Standards and Lifetime Warranty

Optic.ca transceivers meet or exceed Tier 1 MTBF (Mean Time Between Failures) standards — the same reliability benchmark used to evaluate OEM optics. Each unit undergoes rigorous testing before shipment. Combined with a lifetime warranty, this makes the NGQ100G-SR4-OC a genuinely low-risk alternative to OEM modules: if a unit fails at any point during its service life, Optic.ca will replace it. For network operators running always-on infrastructure, that commitment removes the hidden cost calculation around long-term sparing and replacement budgets.
