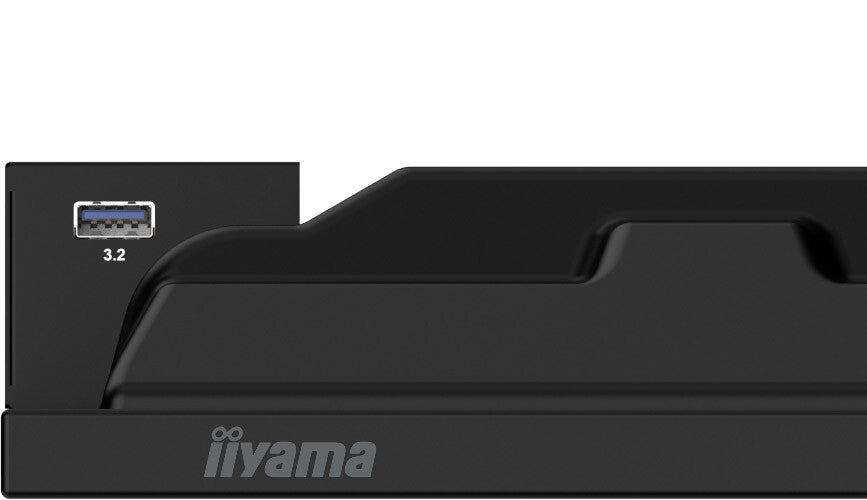

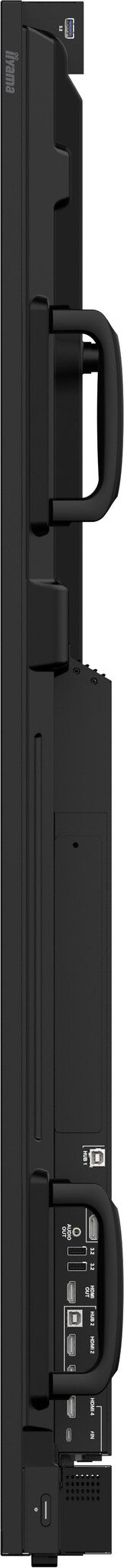

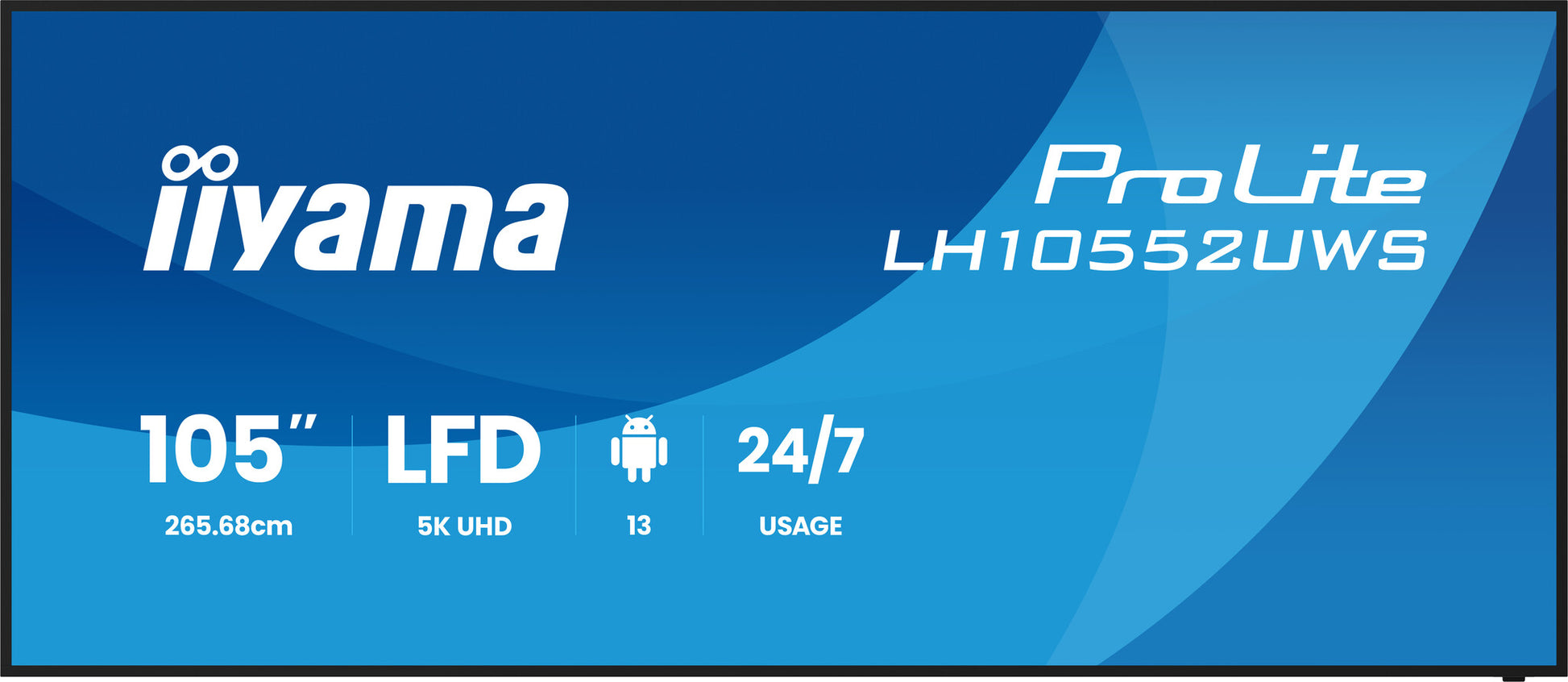

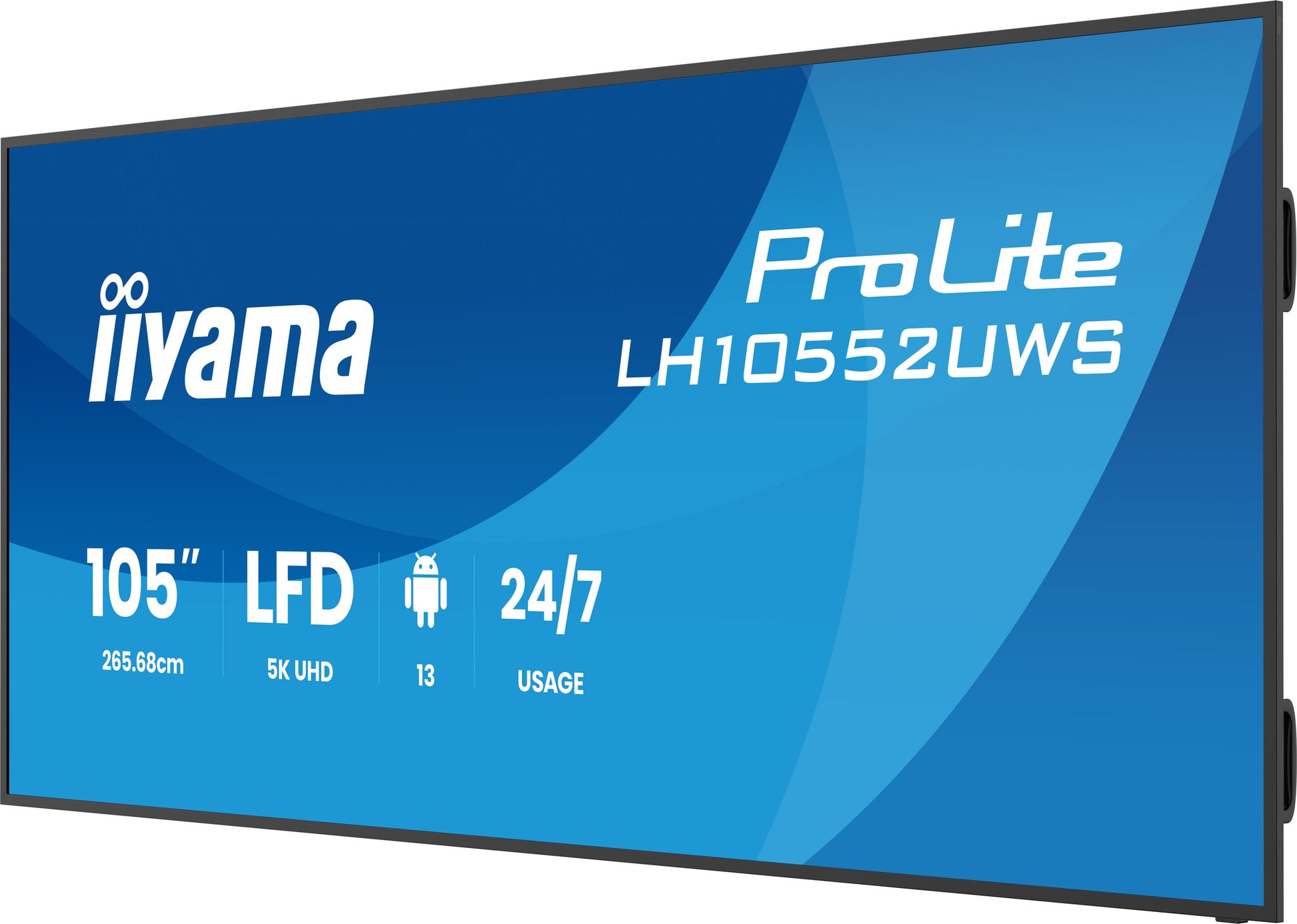

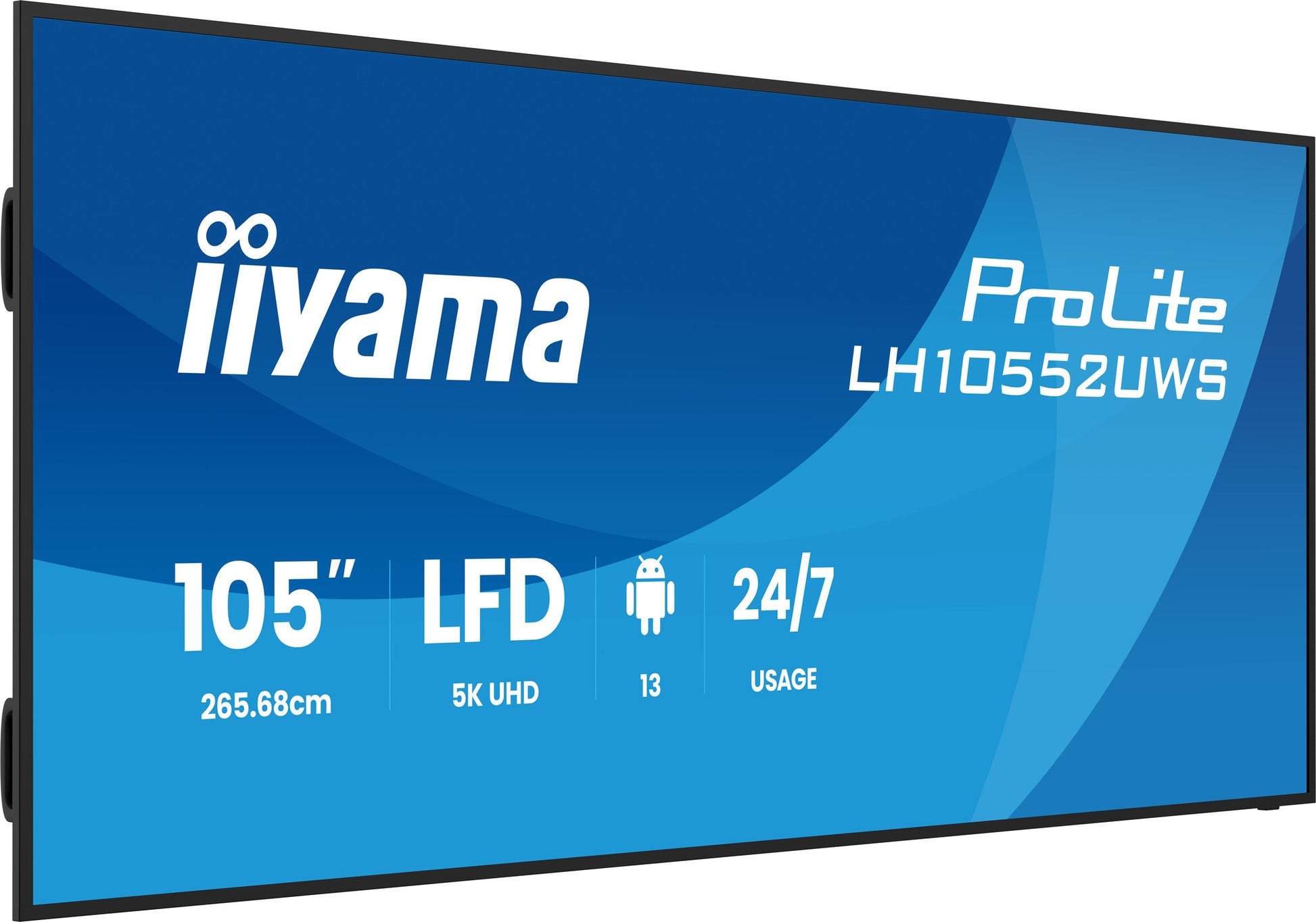

iiyama LH10552UWS-B1AG Signage Display Kiosk design 2.66 m (104.6") LCD Wi-Fi 500 cd/m² UltraWide 5K HD Black Built-in processor Android 24/7

iiyama LH10552UWS-B1AG Signage Display Kiosk design 2.66 m (104.6") LCD Wi-Fi 500 cd/m² UltraWide 5K HD Black Built-in processor Android 24/7

104.6" IPS, 5120x2160 px, 21:9, 500 cd/m², 1200:1, HDMI x4, DisplayPort, USB 2.0 x3, RJ-45 x2, Wi-Fi 6E, Bluetooth 5.2, Android 13

  • Indoor Kiosk design Black
  • 2.66 m (104.6") 5120 x 2160 pixels LCD 500 cd/m²
  • 60 Hz 8 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 20 W
  • SKU:4948570128020
  • GTIN/EAN:4948570128020
  • MPN:LH10552UWS-B1AG

You need to login to view the price.

View full details

iiyama LH10552UWS-B1AG. Product design: Kiosk design. Display diagonal: 2.66 m (104.6"), Display technology: LCD, Display resolution: 5120 x 2160 pixels, Display brightness: 500 cd/m², HD type: UltraWide 5K HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

The ProLite LH10552UWS-B1AG delivers stunning 5K UltraWide resolution on a 105" IPS panel, ideal for hybrid meetings, control rooms and immersive presentations. With USB-C connectivity, 100W power delivery, Android OS and integrated speakers with subwoofer, it offers a complete all-in-one solution for modern workspaces.

Display
Display diagonal
2.66 m (104.6")
Display technology
LCD
Display resolution
5120 x 2160 pixels
Display brightness
500 cd/m²
HD type
UltraWide 5K HD
Touchscreen
No
Native aspect ratio
21:9
Response time
8 ms
Contrast ratio (typical)
1200:1
Contrast ratio (dynamic)
5000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Active display area (W x H)
2449.92 x 1033.56 mm
Display diagonal (metric)
265.68 cm
Horizontal scan range
30 - 135 kHz
Native refresh rate
60 Hz
Panel type
IPS
Haze rate
25%

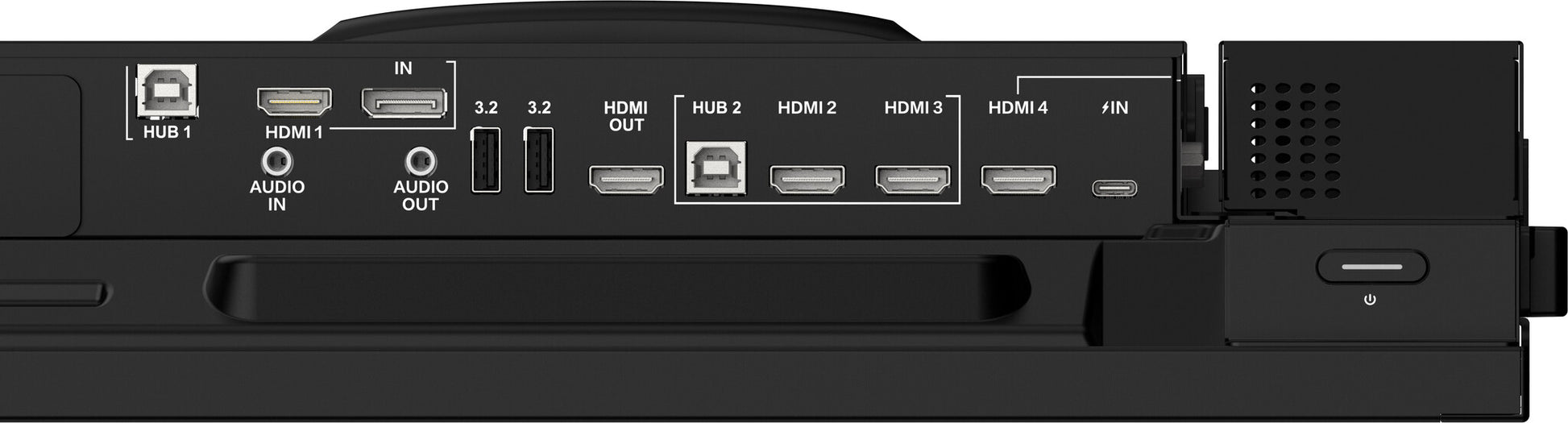

Ports & interfaces
HDMI ports quantity
5
HDMI version
2.0
HDMI input ports quantity
4
HDMI output ports quantity
1
DVI port
No
DisplayPorts quantity
1
USB port
Yes
USB ports quantity
3
USB version
2.0
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Ethernet LAN data rates
1000 Mbit/s
Wi-Fi
Yes
RS-232C
Yes
OPS module slot
Yes
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
2
RMS rated power
20 W
Design
Product design
Kiosk design
Product colour
Black
Placement supported
Indoor

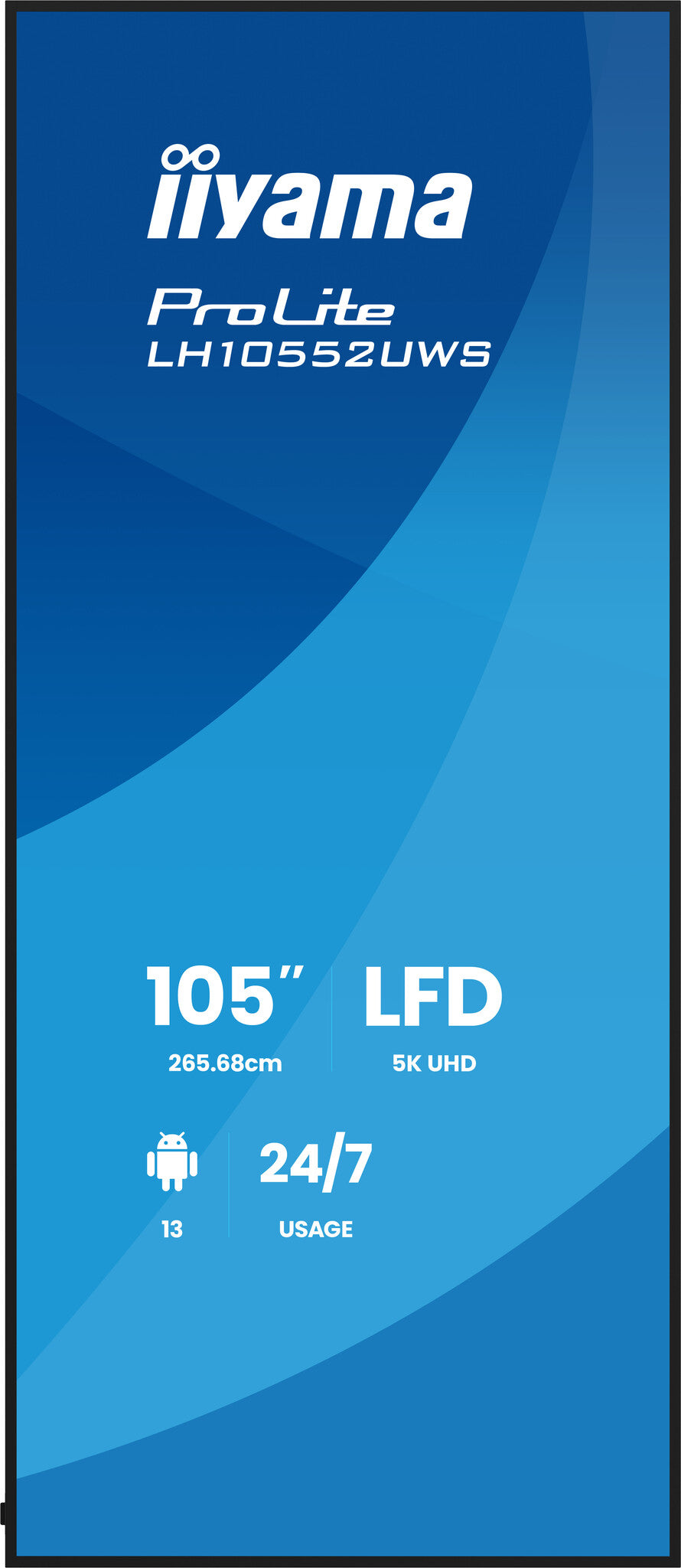

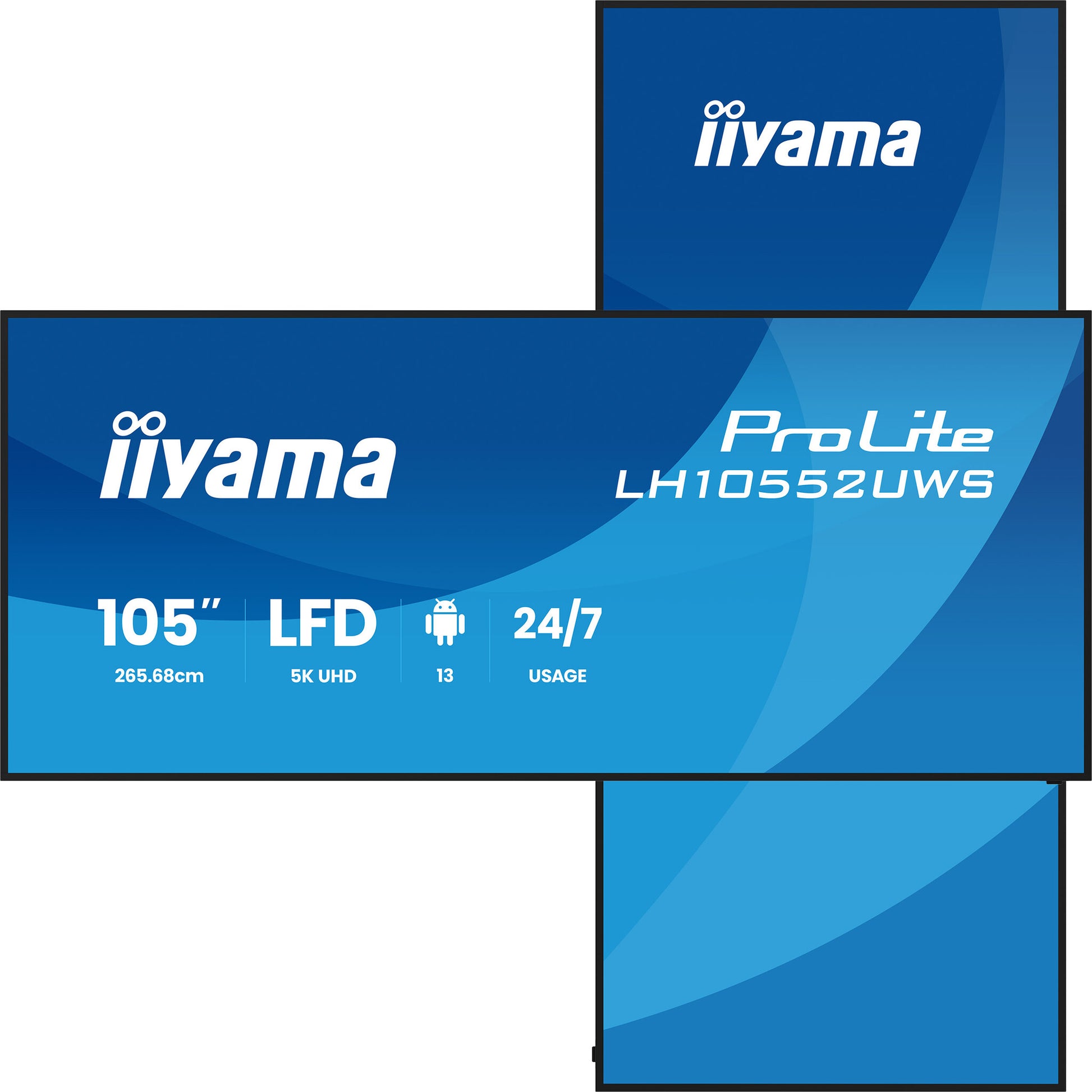

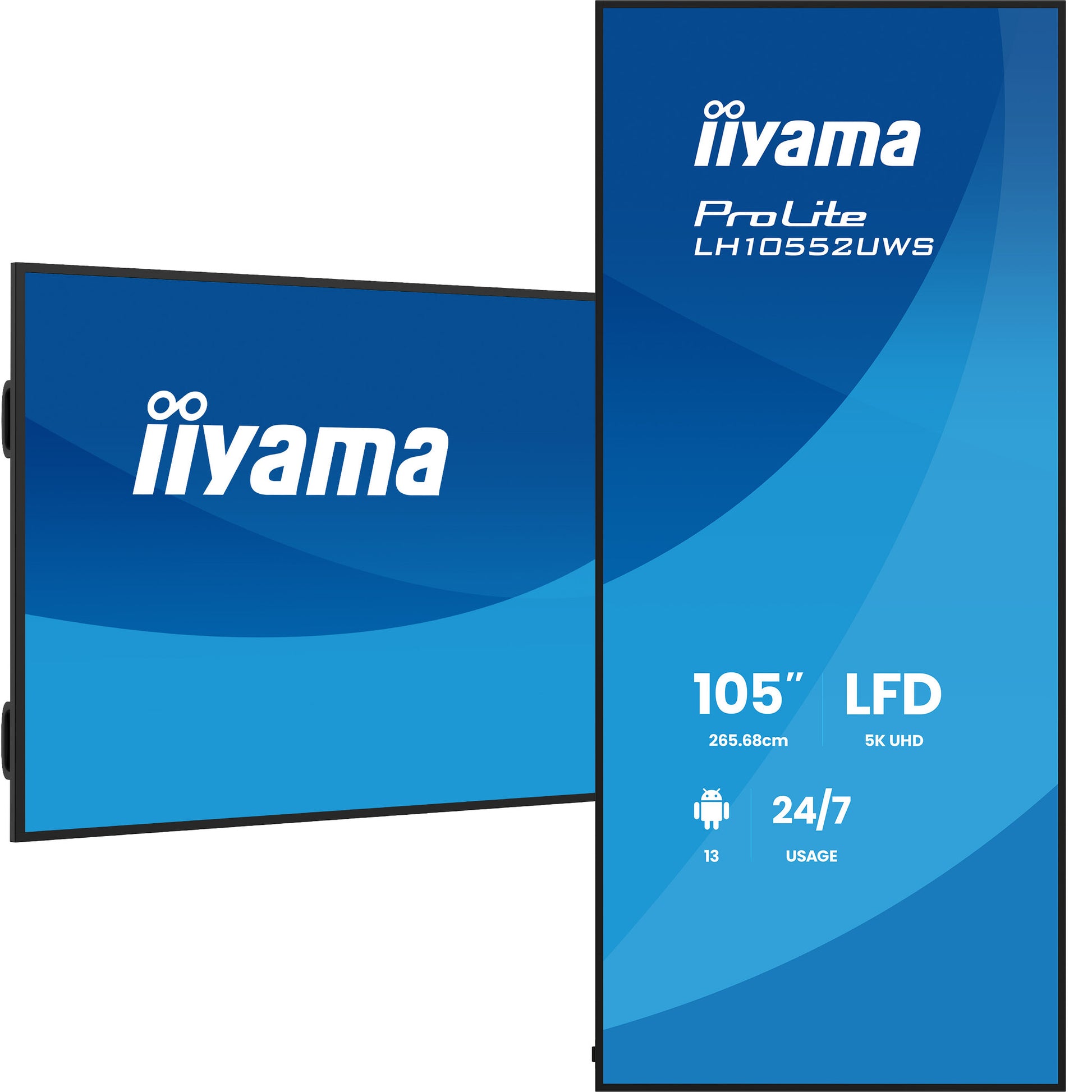

Orientation
Horizontal/Vertical

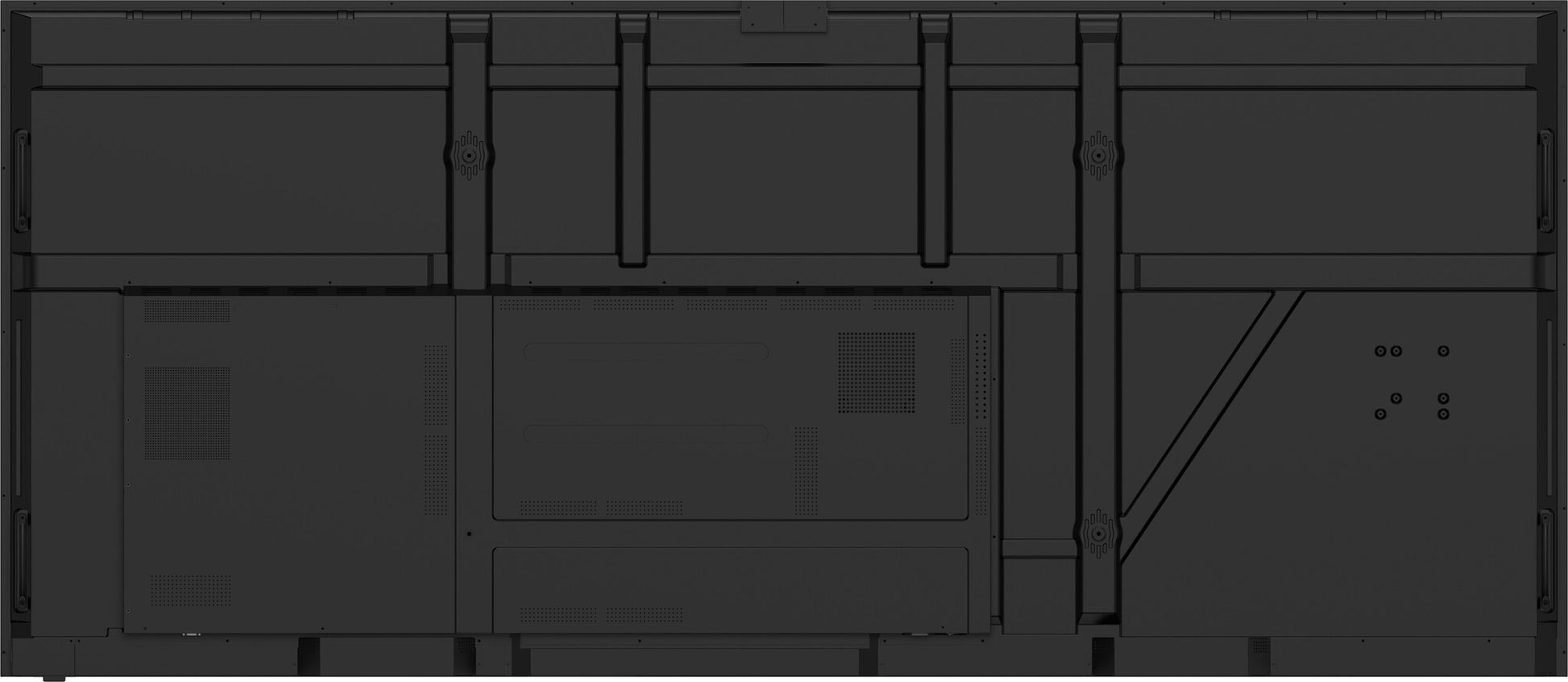

VESA mounting
Yes
Panel mounting interface
1000 x 600 mm
Anti-glare screen
Yes
Bezel width (top)
1.49 cm
Bezel width (side)
1.49 cm
Bezel width (bottom)
1.49 cm
Performance
Purpose
Universal
On Screen Display (OSD) languages
CAT, Traditional Chinese, Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Japanese, Lithuanian, LAT, Dutch, Polish, Russian
On Screen Display (OSD)
Yes
Operating hours (hours/days)
24/7
Power
Power consumption (typical)
248 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
G
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Computer system
Built-in processor
Yes
Processor manufacturer
Rockchip
Processor family
ARM Rockchip
Processor model
RK3588
Internal memory
8 GB
On-board graphics card model
ARM Mali-G610 MP4
Internal storage capacity
128 GB
Operating system installed
Android
Operating system version
13
Weight & dimensions
Display width
2489.9 mm
Display depth
77 mm
Display height
1081.4 mm
Display weight
53.5 kg
Packaging data
Package width
2668 mm
Package depth
280 mm
Package height
1233 mm
Package weight
79.5 kg
Packaging content
Remote control included
Yes
Cables included

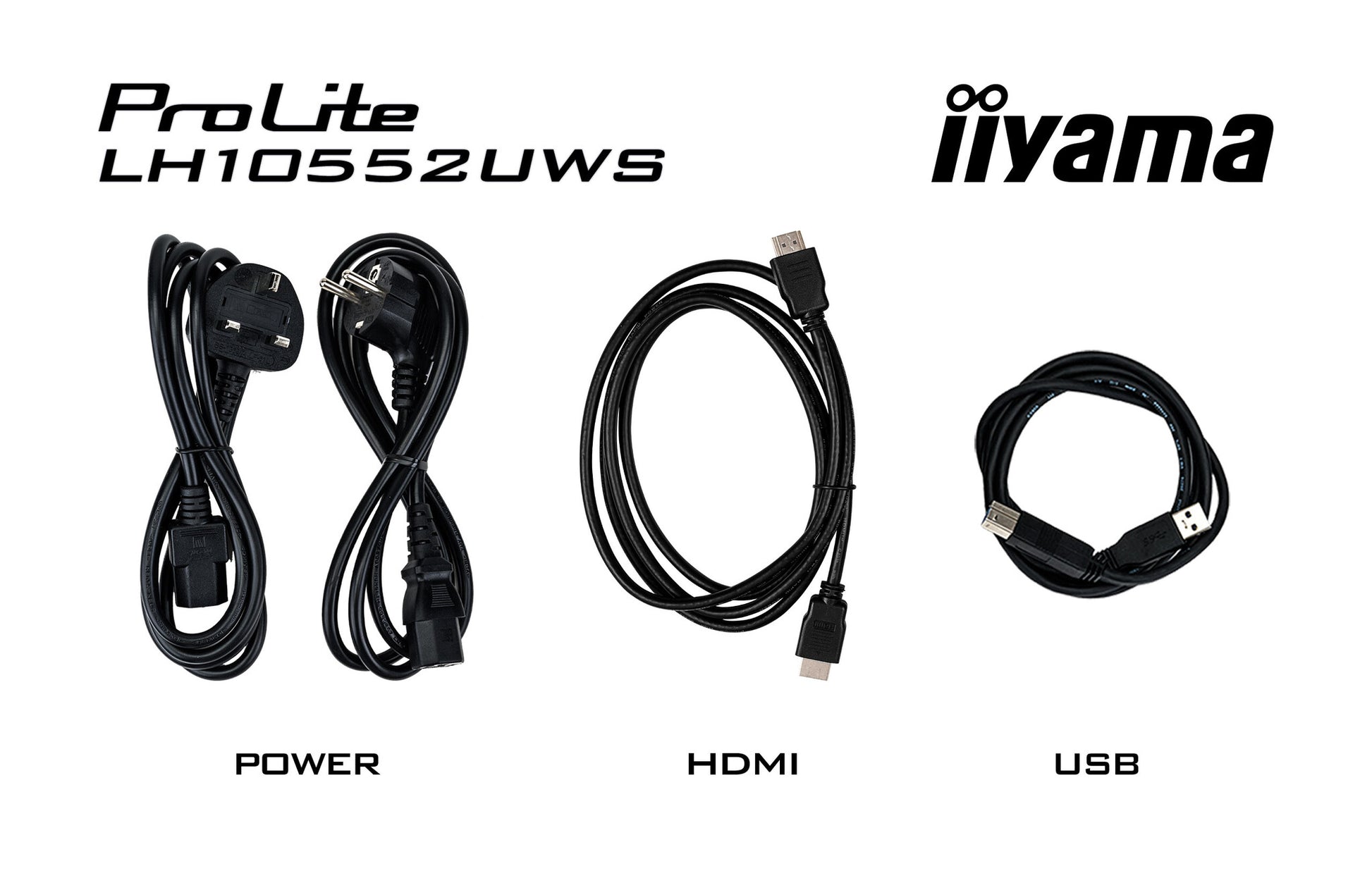

AC, HDMI, DisplayPort, RS-232
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Logistics data
Products per pallet
32 pc(s)
Technical details
Compliance certificates
CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
OPS slot
1
Pallet net width
2.38 m
Pallet net length
12.9 cm
Pallet net height
114 cm
Sustainability certificates
ErP
Other features
Wi-Fi standards
Wi-Fi 6E (802.11ax)
