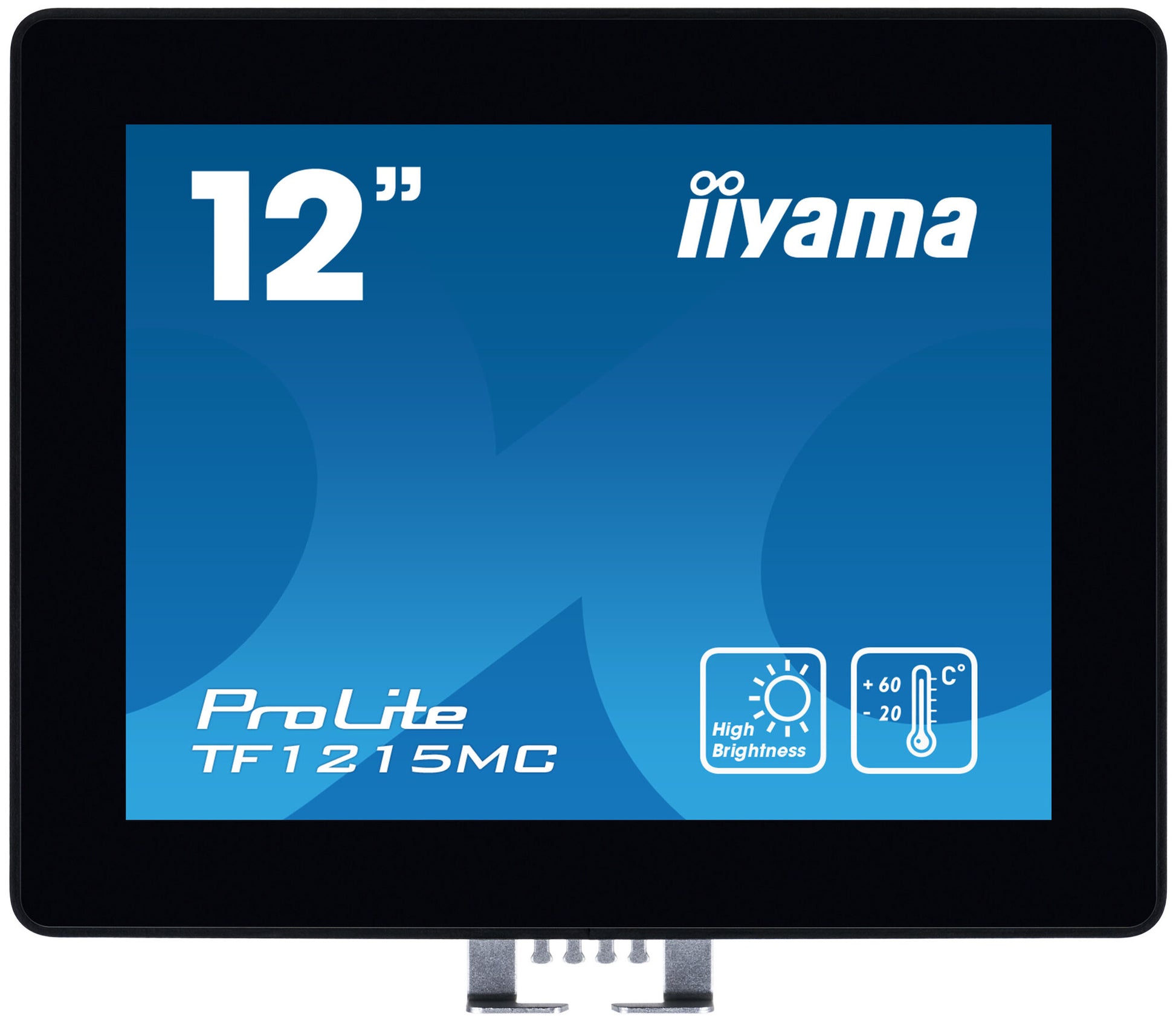

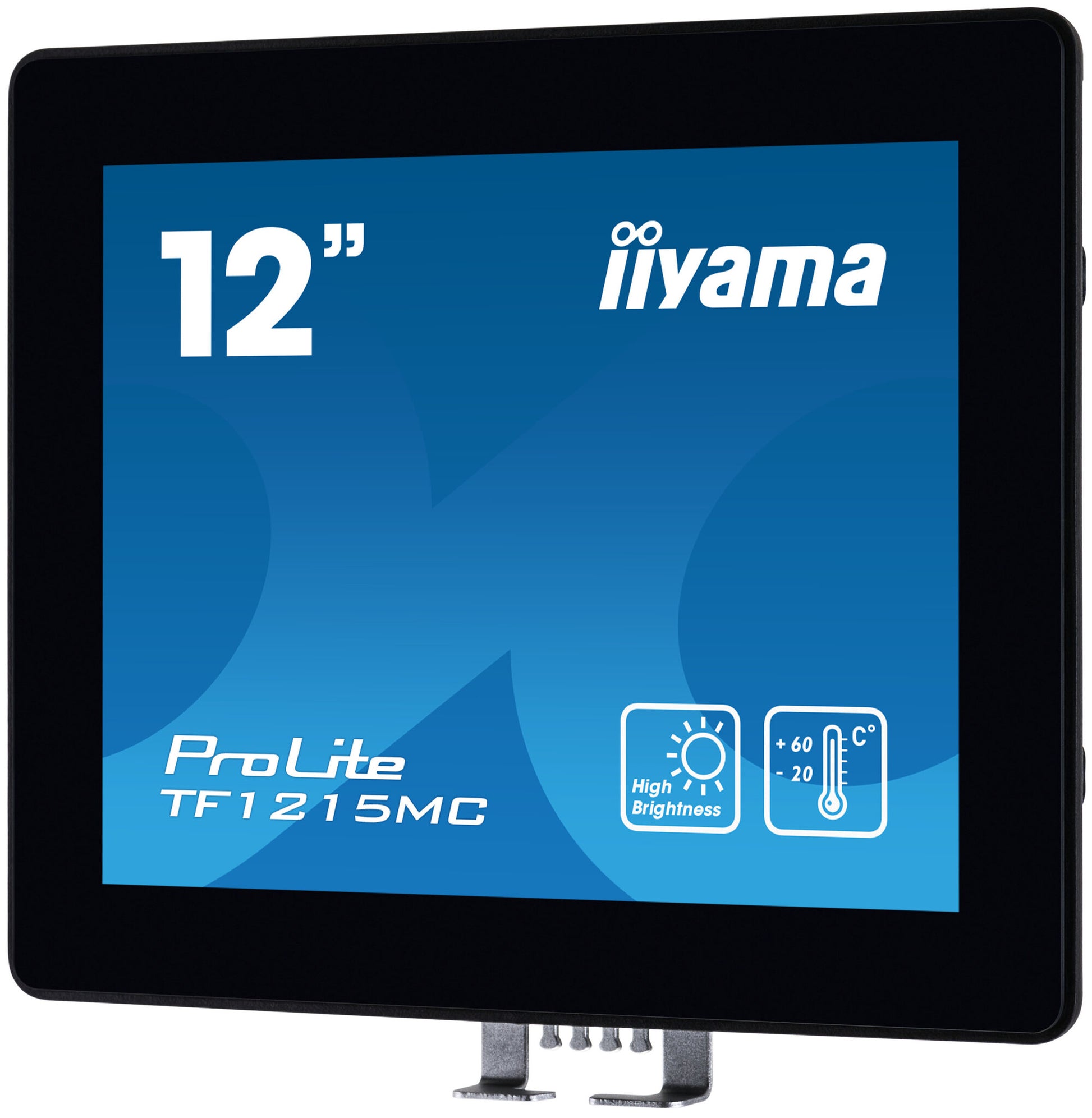

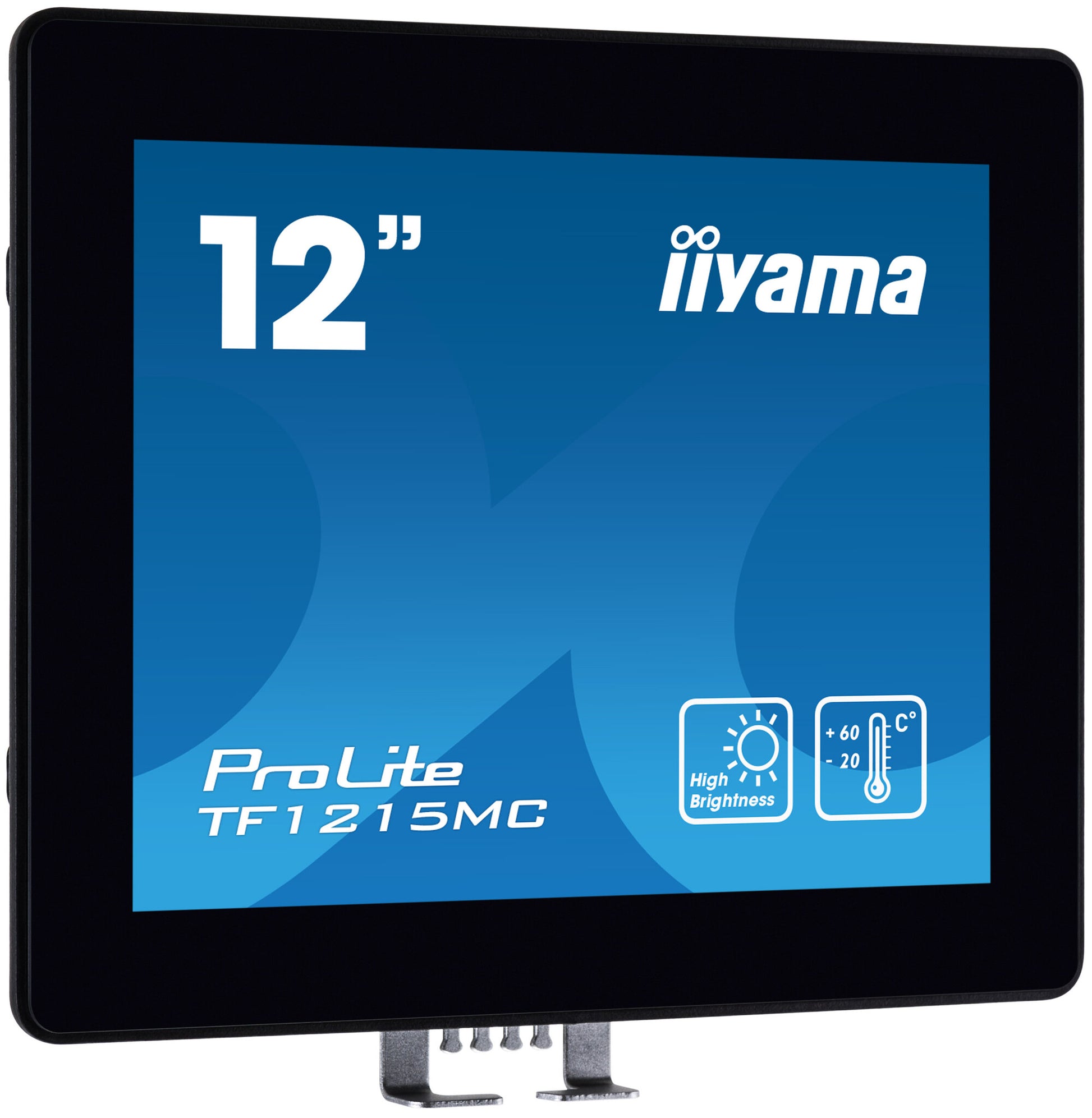

12,1" PCAP Bezel Free 10P Touch, 1024x768, DisplayPort, HDMI, VGA, 450cd/m² (with touch), Wide Temp

12.1’’ PCAP 10pt touchscreen solution for pick-up points

  • Semi outdoor solution
  • Touch through-glass
  • Anti-fingerprint coating
  • Touch technology - Capacitive

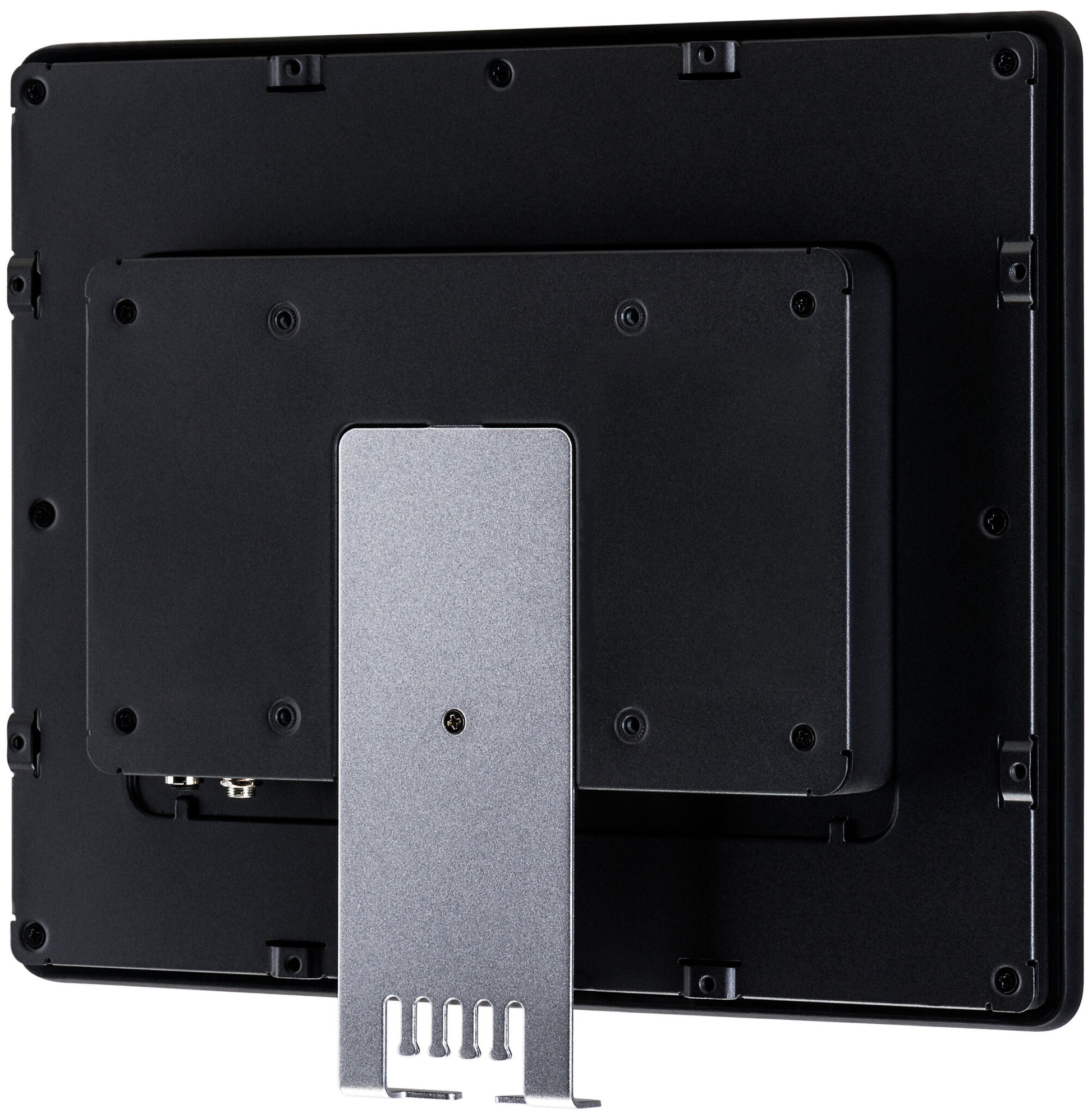

  • Open frame brackets
  • SKU:4948570118007
  • GTIN:4948570118007
  • MPN:TF1215MC-B1

You need to login to view the price.

View full details

iiyama 12.1’’ PCAP 10pt touchscreen solution for pick-up points. Response time: 25 ms, Product colour: Black. Display diagonal: 30.7 cm (12.1"). Package width: 435 mm, Package depth: 165 mm, Package height: 355 mm. International Protection (IP) code: IP65, Certification: CE, EAC, RoHS, ErP, WEEE, cULus, REACH. Cables included: AC, DisplayPort, HDMI, USB

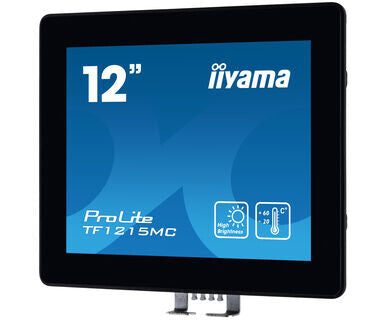

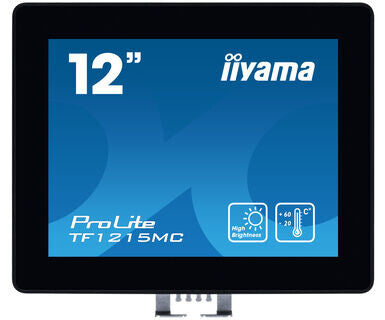

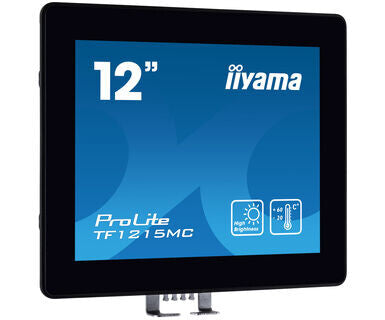

Built into a rugged, edge-to-edge glass bezel the ProLite TF1215MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use semi-outdoor public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It can operate in temperatures ranging from -20˚C-to 60˚C and is IP65 rated, resulting in dust and water resistance from the front making it a reliable solution for pick-up points and kiosks. For ease of integration, the TF1215MC-B1 can be equipped with optional external mounting brackets ( OMK3-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Display
Display diagonal
30.7 cm (12.1")
Display resolution
1024 x 768 pixels
Panel type
IPS
Touchscreen technology
Projected capacitive system
Display brightness (typical)
540 cd/m²
Response time
25 ms
Display brightness
450 cd/m²
Screen shape
Flat
Contrast ratio (typical)
1000:1
Display number of colours
16.2 million colours
Horizontal scan range
31.4 - 60 kHz
Vertical scan range
56 - 75 Hz
Viewable size, horizontal
24.6 cm
Viewable size, vertical
18.4 cm
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Palm rejection
Yes
Design
Product colour
Black
Front bezel colour
Black
Glass thickness
3.15 mm
International Protection (IP) code
IP65
Certification
CE, EAC, RoHS, ErP, WEEE, cULus, REACH

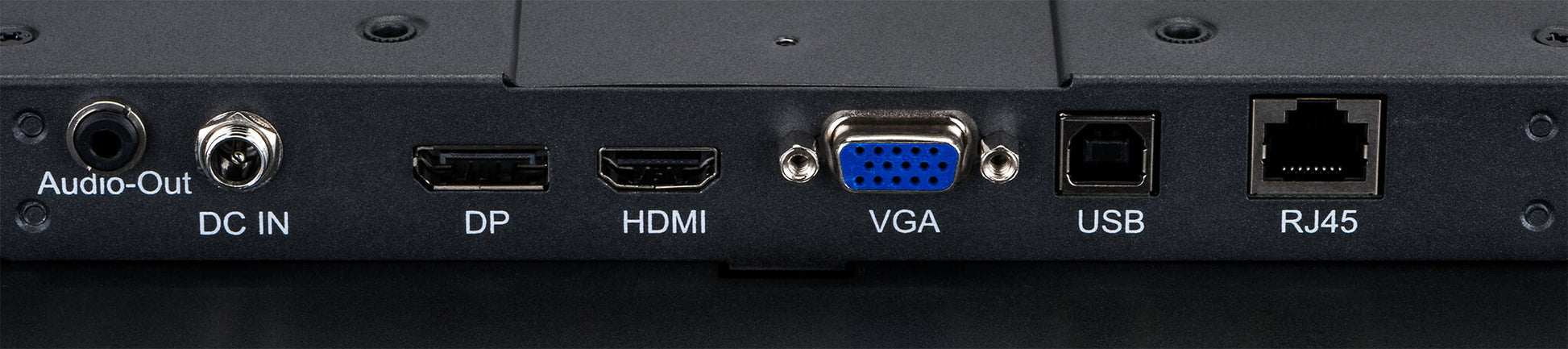

Ports & interfaces
Audio output
1
Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Wall mountable
Yes
On Screen Display (OSD)
Yes
Number of OSD languages
7
On Screen Display (OSD) languages
Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Plug and Play
Yes
LED indicators
Yes
Power
Energy efficiency class (SDR)
F
Energy consumption (SDR) per 1000 hours
11 kWh
Power consumption (typical)
10 W
Power consumption (standby)
0.55 W
Power consumption (off)
0.5 W
AC adapter output voltage
12 V
Power supply type
External
Energy efficiency scale
A to G
Operational conditions
Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-20 - 60 °C
Sustainability
Sustainability compliance
Yes
Sustainability certificates
ErP
Weight & dimensions
Width (with stand)
308.5 mm
Depth (with stand)
41.5 mm
Height (with stand)
248 mm
Weight (with stand)
2.1 kg
Width (without stand)
308.5 mm
Depth (without stand)
41.5 mm
Height (without stand)
248 mm
Weight (without stand)
2.1 kg
Packaging data
Cables included
AC, USB, HDMI, DisplayPort
Quick start guide
Yes
Package width
435 mm
Package depth
165 mm
Package height
355 mm
Package weight
3.9 kg
Logistics data
Harmonized System (HS) code
85285210
Technical details
Compliance certificates
CE, cULus, EAC, REACH, RoHS, WEEE
Other features
AC adapter included
Yes
Packaging content
AC adapter, external control pad
Brightness
450 cd/m²
Depth
41.5 mm
Width
308.5 mm
Height
248 mm
Weight
2.1 kg
Active display area (W x H)
245.8 x 184.3 mm
Display viewable area (HxV)
245.8 x 184.3 mm
Control panel
Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power
Touch method
finger, glove (latex), capacitive stylus
User controls
picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch), option (reset, language, source select, display mode, factory)
Touchscreen
Touchscreen
Yes
Native aspect ratio
4:3
Display technology
LCD
Built-in camera
No
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
USB Touch port
Yes

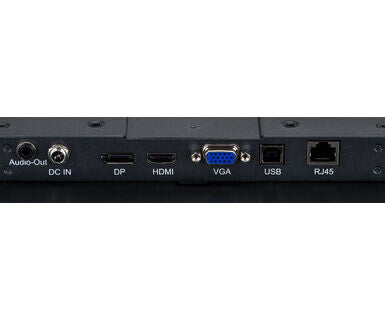

VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.24 x 0.24 mm
Display diagonal (metric)
31 cm
HDCP
Yes
Surface hardness
7H
