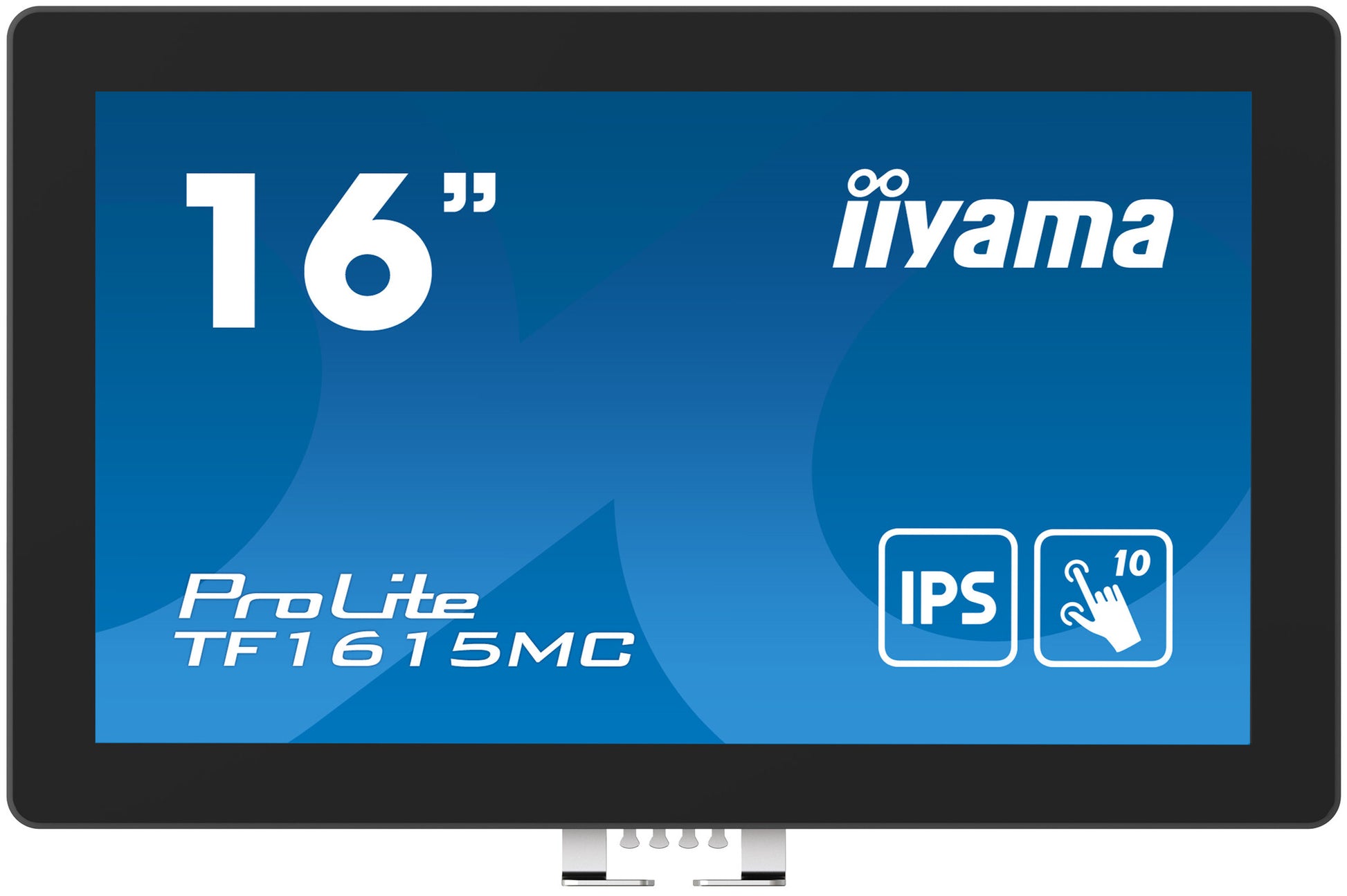

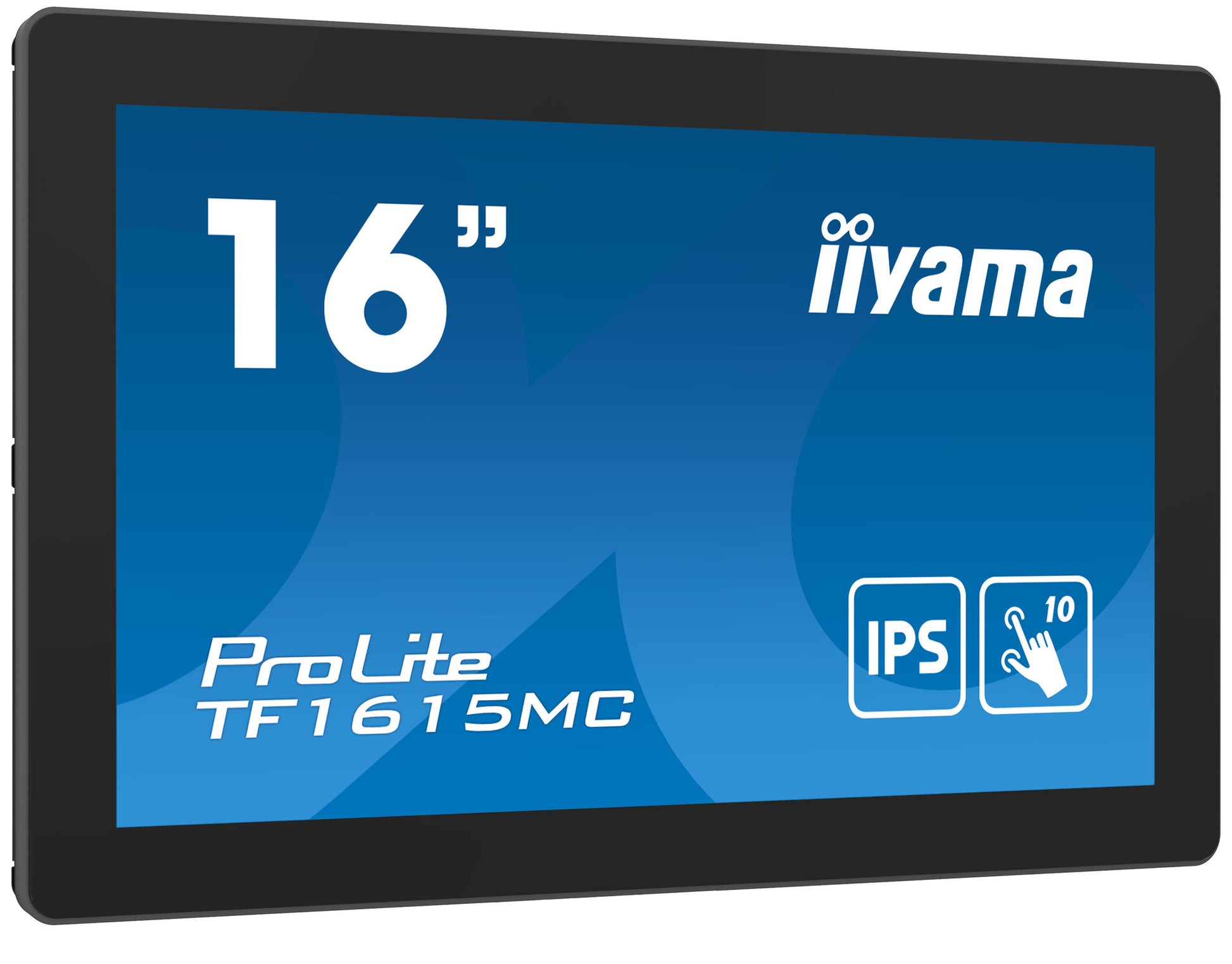

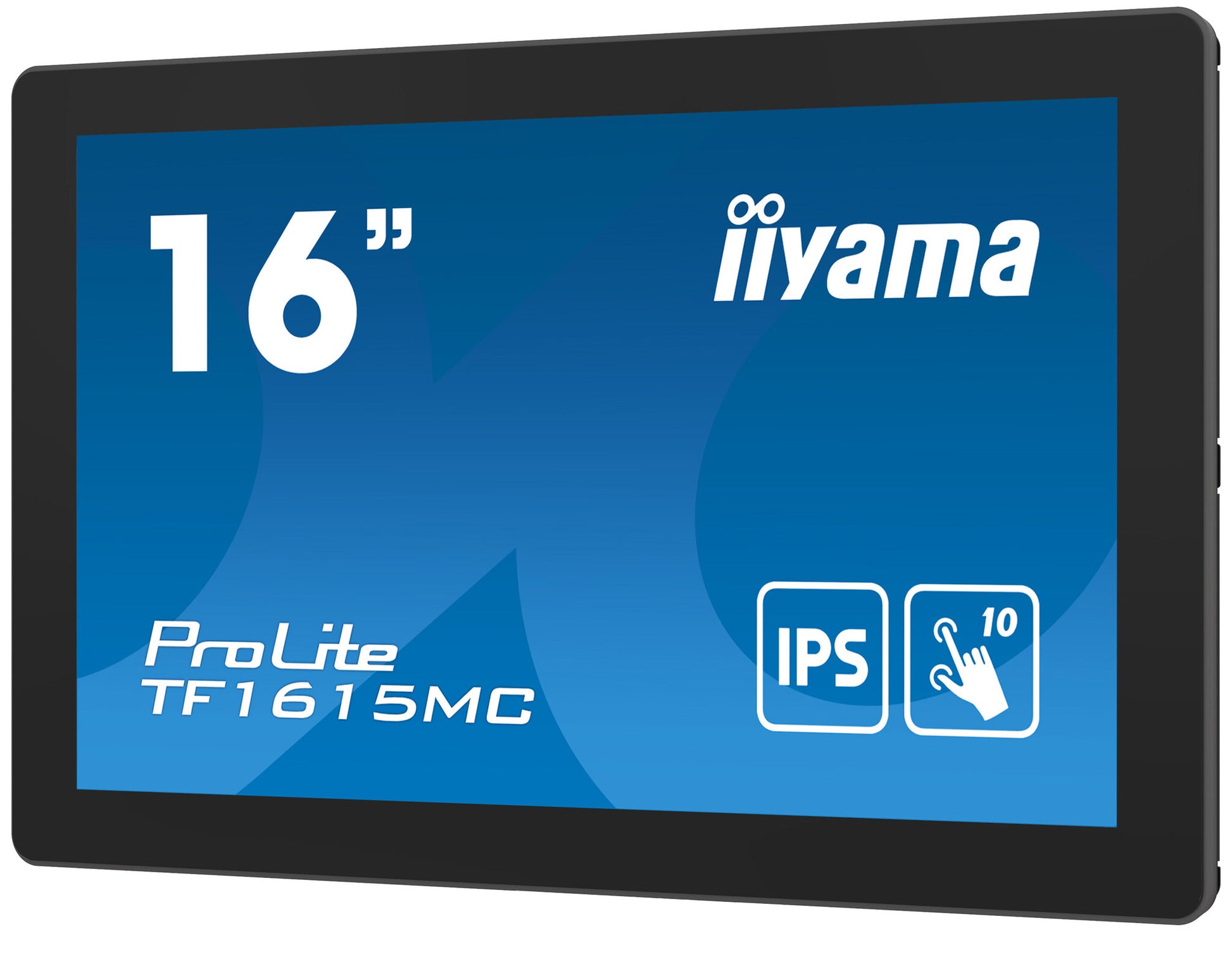

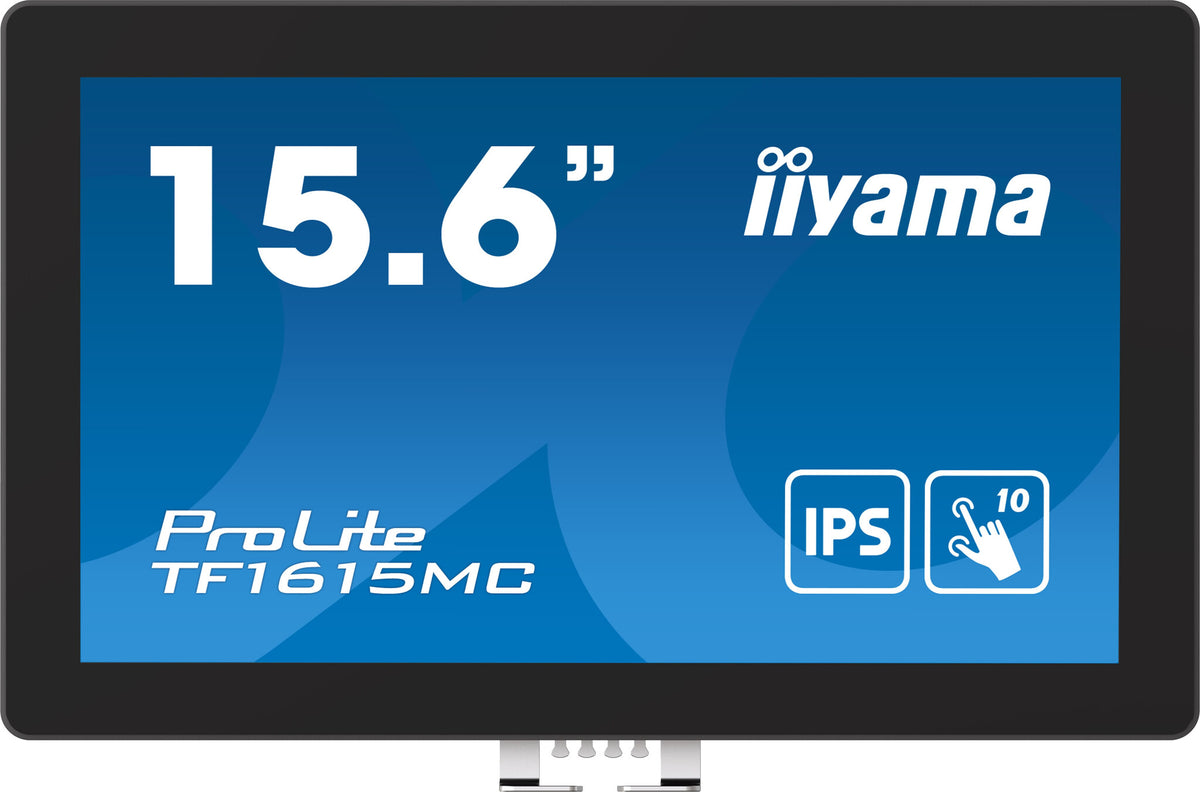

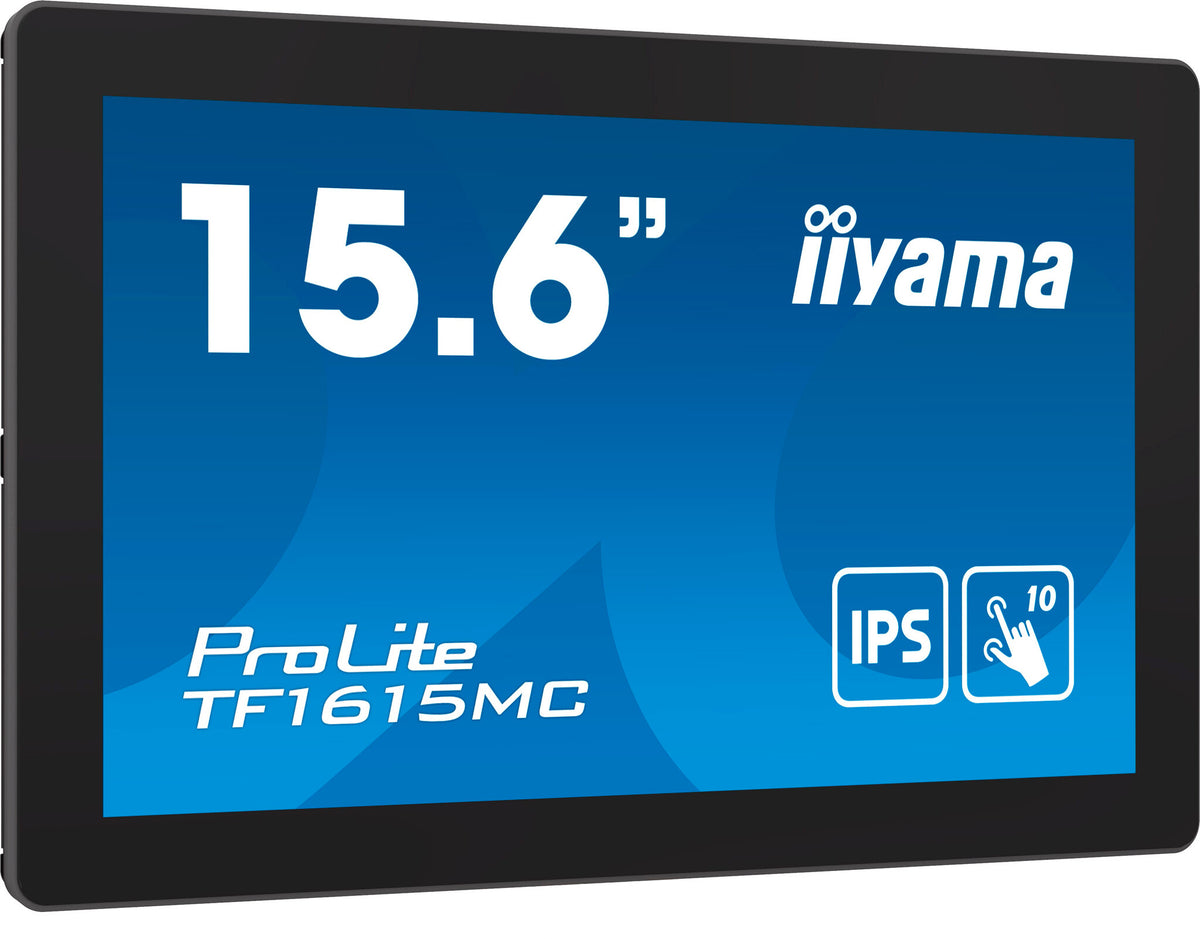

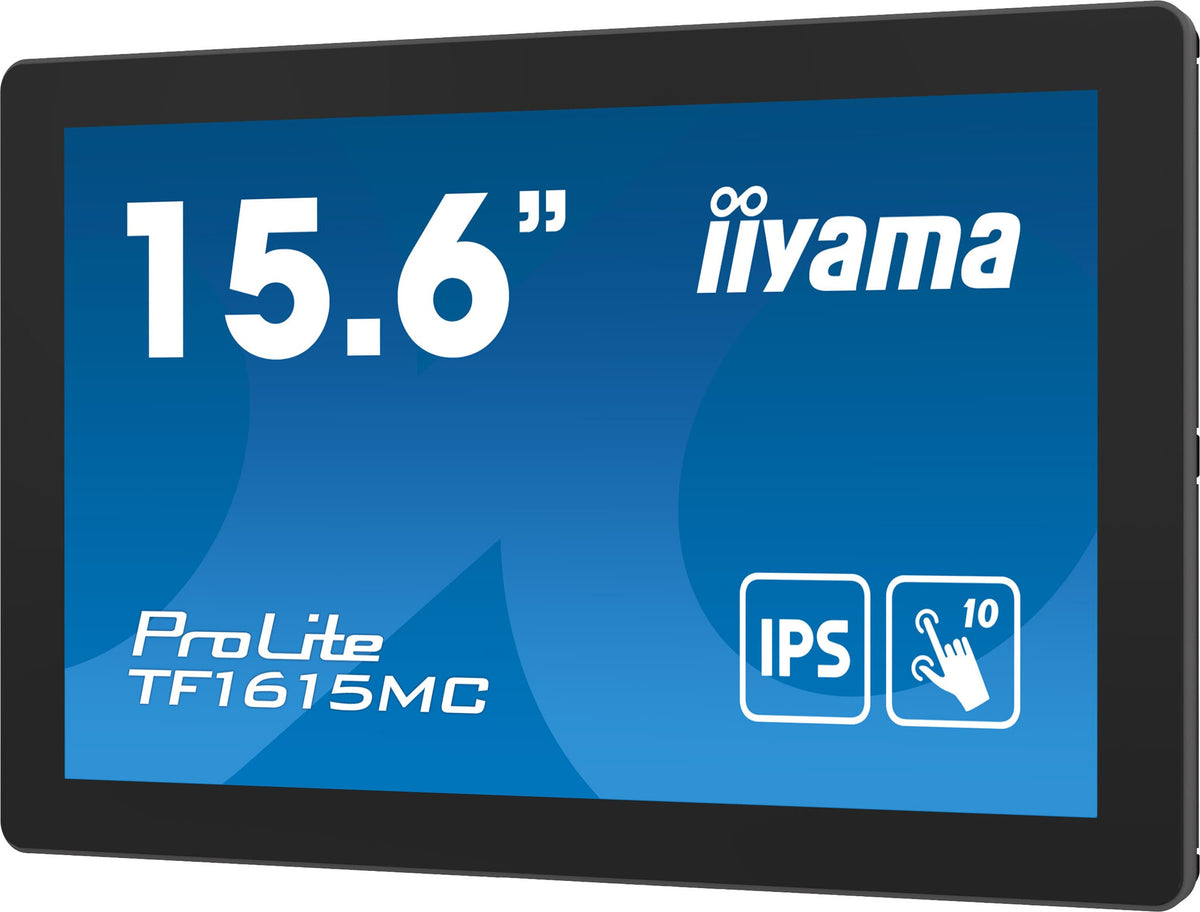

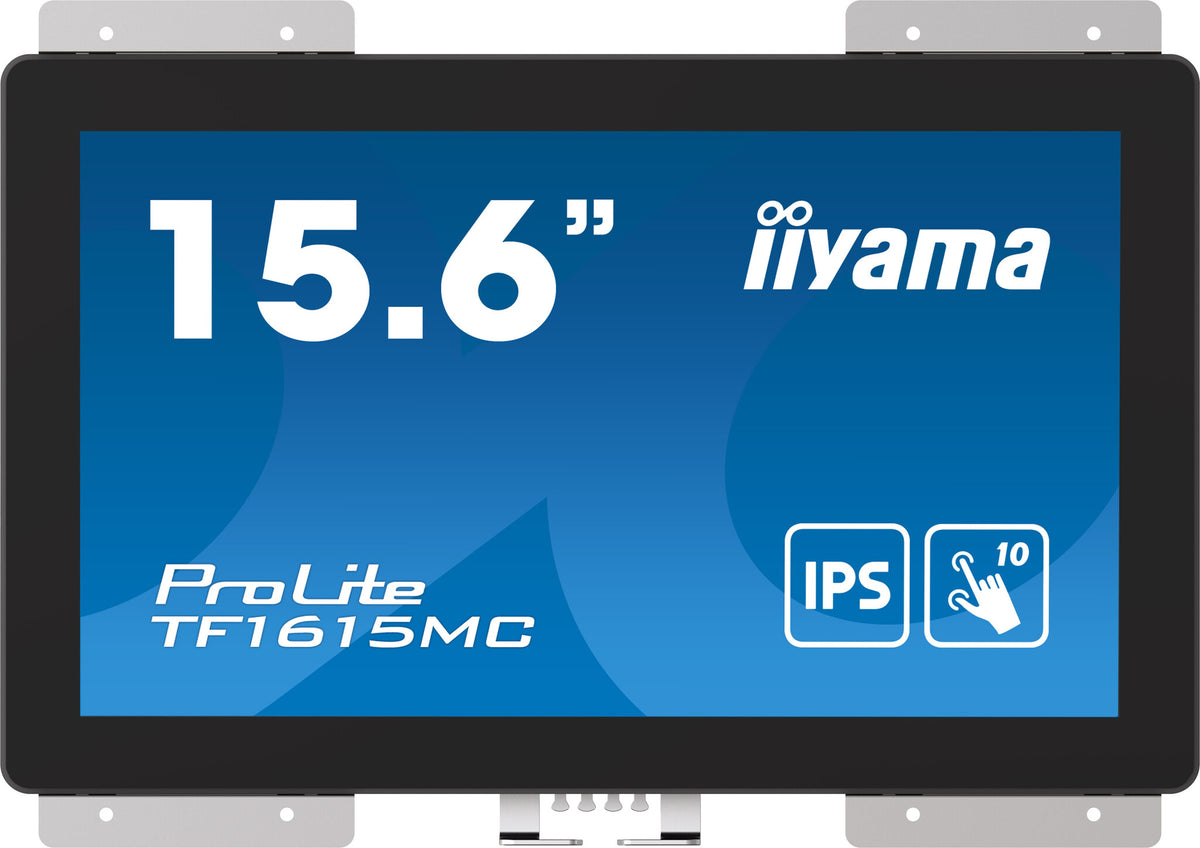

TF1615MC-B1

Open Frame PCAP 10 point touch screen equipped with touch through glass function

  • 39.6 cm (15.6") Black
  • HDMI DisplayPorts quantity: 1
  • Screen shape: Flat
  • Response time: 25 ms
  • 1920 x 1080 pixels Full HD Panel type: IPS
  • Energy efficiency class (SDR): E ErP CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
  • SKU:4948570121793
  • GTIN:4948570121793
  • MPN:TF1615MC-B1

You need to login to view the price.

View full details

iiyama ProLite Open Frame PCAP 10 point touch screen equipped with touch through glass function. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Response time: 25 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub. VESA mounting. Product colour: Black

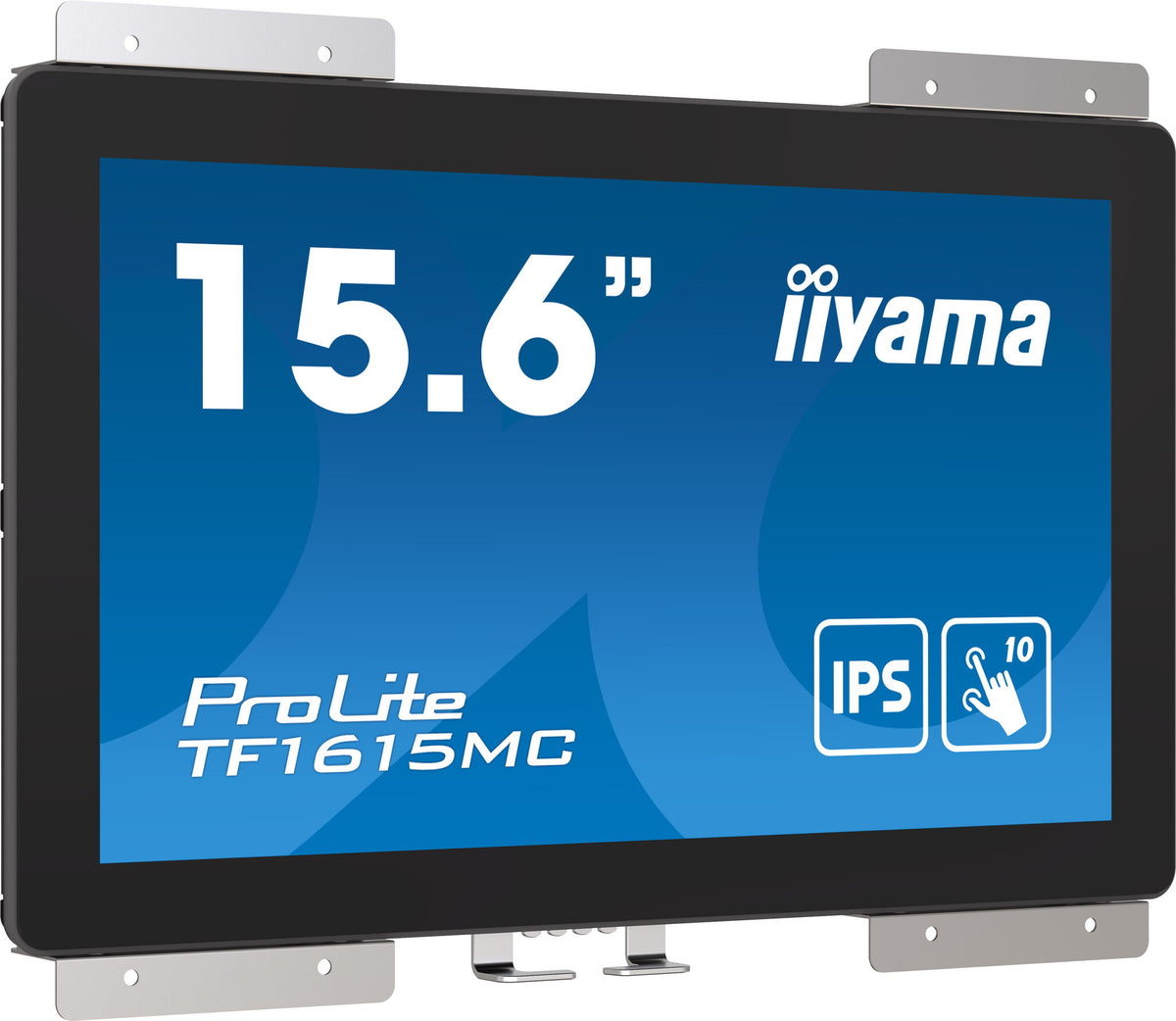

The ProLite TF1615MC-B1 (15.6 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the ProLite TF1615MC-B1 can be equipped with optional external mounting brackets ( OMK5-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Display
Display diagonal
39.6 cm (15.6")
Display resolution
1920 x 1080 pixels
Panel type
IPS
Touchscreen technology
Projected capacitive system
Display brightness (peak)
450 cd/m²
Display brightness (typical)
450 cd/m²
Response time
25 ms
Display brightness
405 cd/m²
Screen shape
Flat
Aspect ratio
16:9
Contrast ratio (typical)
1000:1
Horizontal scan range
31.5 - 67.5 kHz
Viewable size, horizontal
34.5 cm
Viewable size, vertical
19.5 cm
Performance
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Design
Market positioning
Business
Product colour
Black
Front bezel colour
Black
Glass thickness
3.3 mm
International Protection (IP) code
IP65
Certification
CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Ports & interfaces
Built-in USB hub
Yes
Headphone out
Yes
Ergonomics

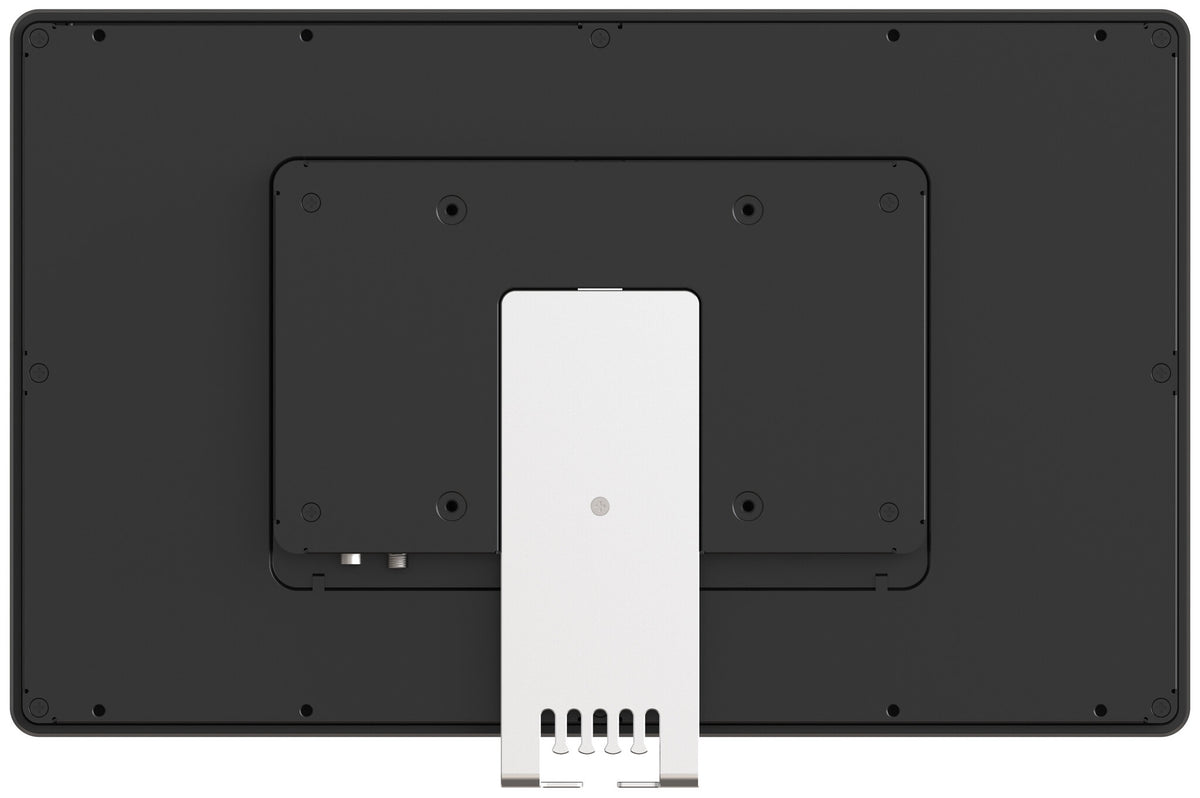

VESA mounting
Yes
Panel mounting interface
100 x 100 mm
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Packaging content
Power adapter included
Yes
Power
Energy efficiency class (SDR)
E
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
11 kWh
Power consumption (typical)
18 W
Power consumption (standby)
1.5 W
Power consumption (off)
0.3 W
AC adapter output voltage
12 V
Power supply type
External
Energy efficiency scale
A to G
Network
Ethernet LAN
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Sustainability
Sustainability certificates
ErP
Algemeen
Productfamilie
ProLite
Weight & dimensions
Width (with stand)
398.5 mm
Depth (with stand)
42 mm
Height (with stand)
246 mm
Weight (with stand)
2.5 kg
Width (without stand)
398.5 mm
Depth (without stand)
42 mm
Height (without stand)
246 mm
Weight (without stand)
2.5 kg
Packaging data
Package type
Box
Cables included
AC, USB, HDMI, DisplayPort
Quick start guide
Yes
Package width
470 mm
Package depth
343 mm
Package height
145 mm
Package weight
4.3 kg
Technical details
Compliance certificates
CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Other features
AC adapter included
Yes
Packaging content
AC adapter, external control pad
Brightness
405 cd/m²
Depth
42 mm
Width
398.5 mm
Height
246 mm
Weight
2.5 kg
Active display area (W x H)
345.2 x 194.6 mm
Mean time between failures (MTBF)
50000 h
Ethernet LAN (RJ-45) ports
1
Control panel
menu,scroll up/ brightness, scroll down/ contrast, select, power
Touch method
stylus, finger, glove (latex)
User controls
picture (contrast, brightness, H.position, V.position, H.size, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H.position, OSD V.position, touch switch), option (reset, language, source select, display mode, factory)
Touchscreen
Touchscreen
Yes
HD type
Full HD
Native aspect ratio
16:9
Number of simultaneous touchpoints
10
USB Touch port
Yes
VGA (D-Sub) ports quantity
1
HDMI
Yes
DisplayPorts quantity
1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.17925 x 0.17925 mm
Display diagonal (metric)
39.5 cm
HDCP
Yes
Surface hardness
7H
