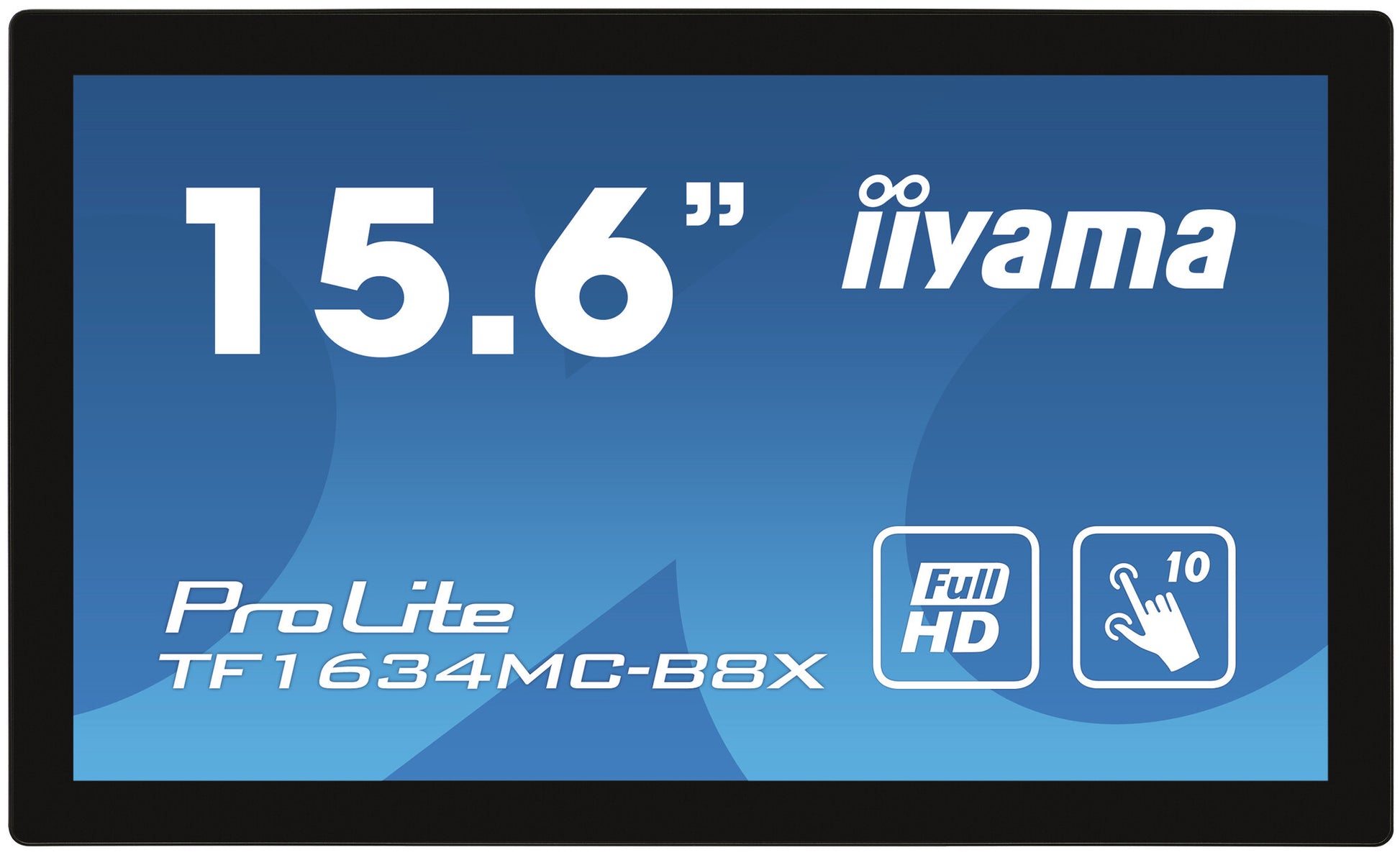

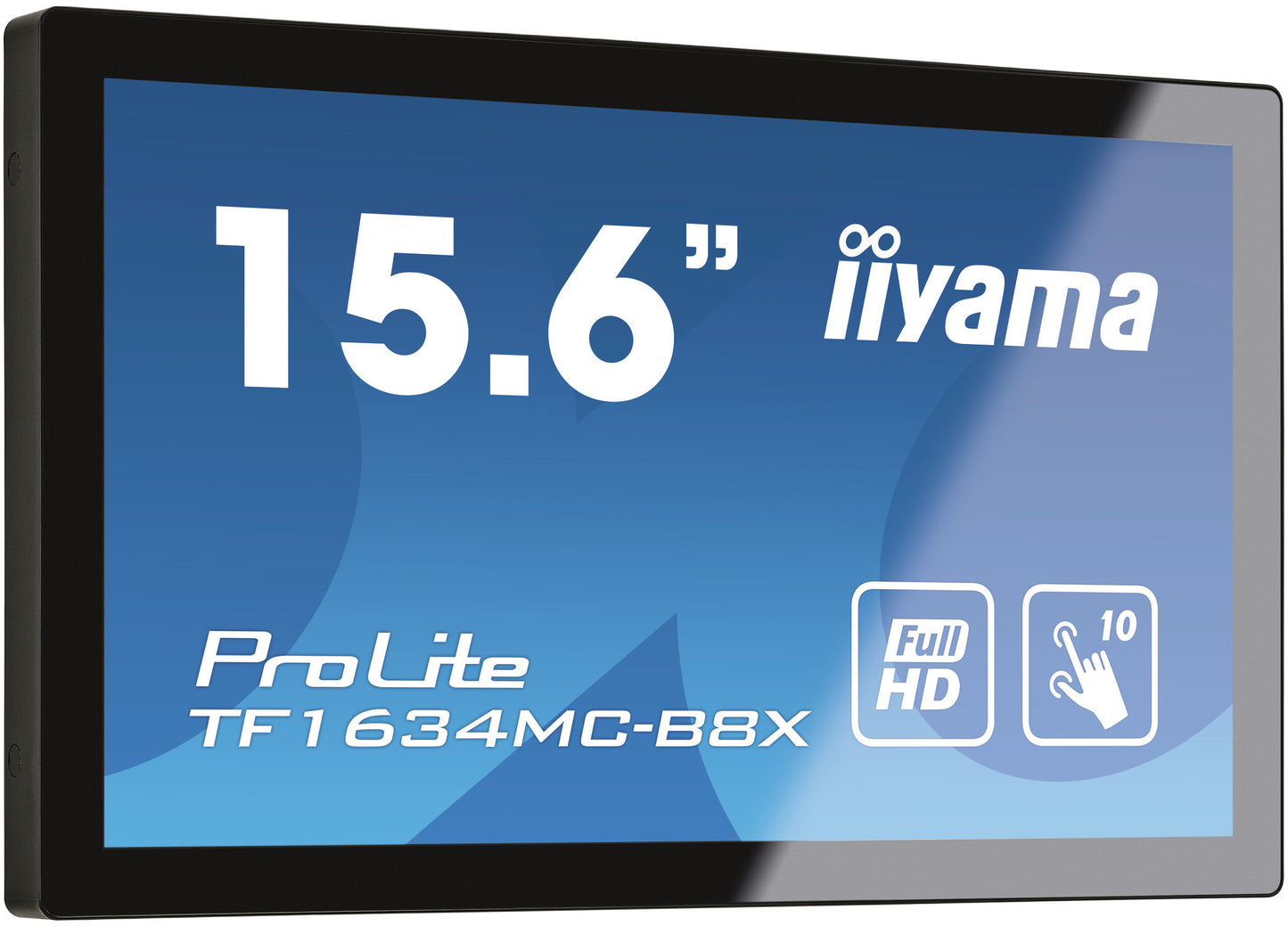

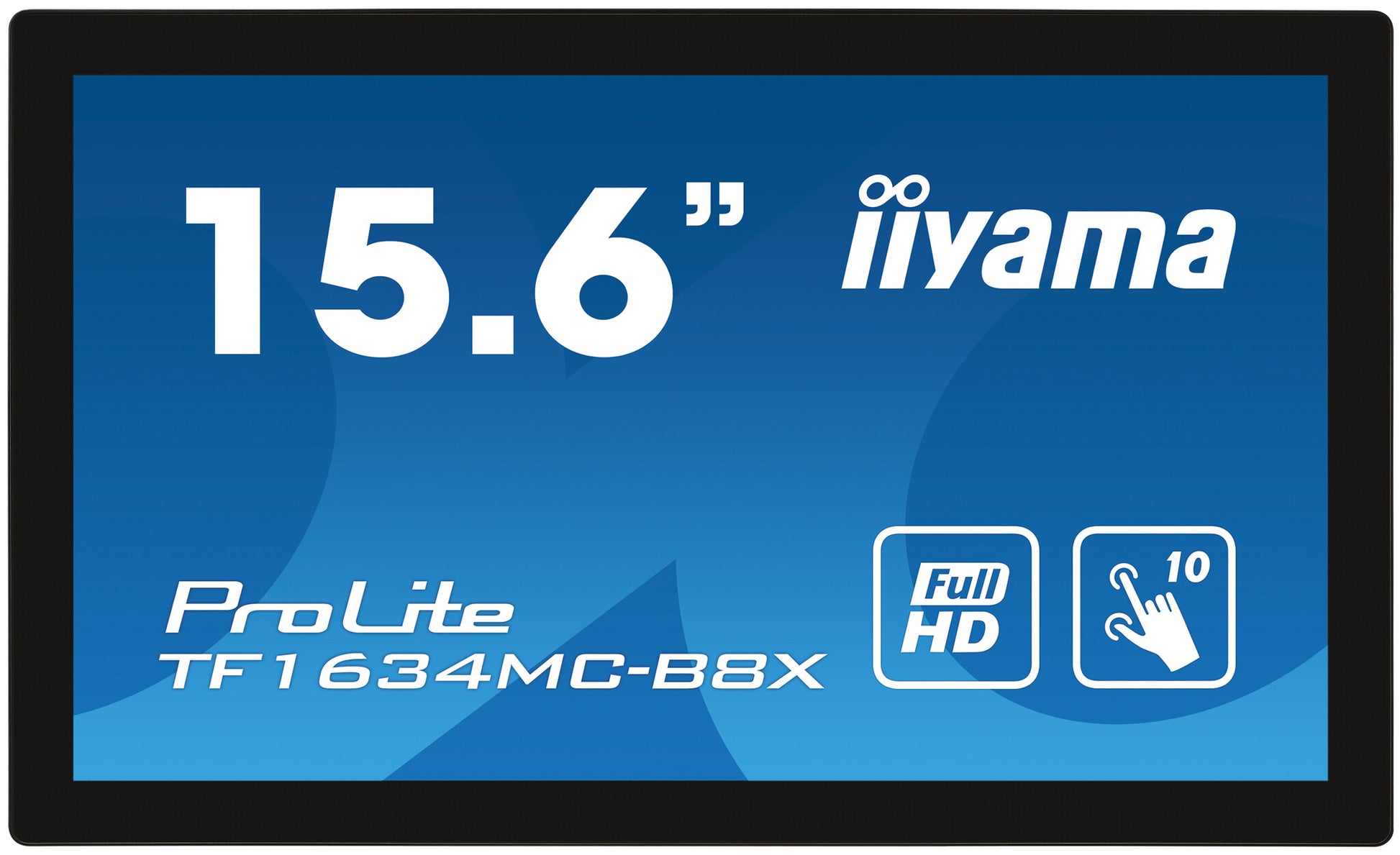

TF1634MC-B8X

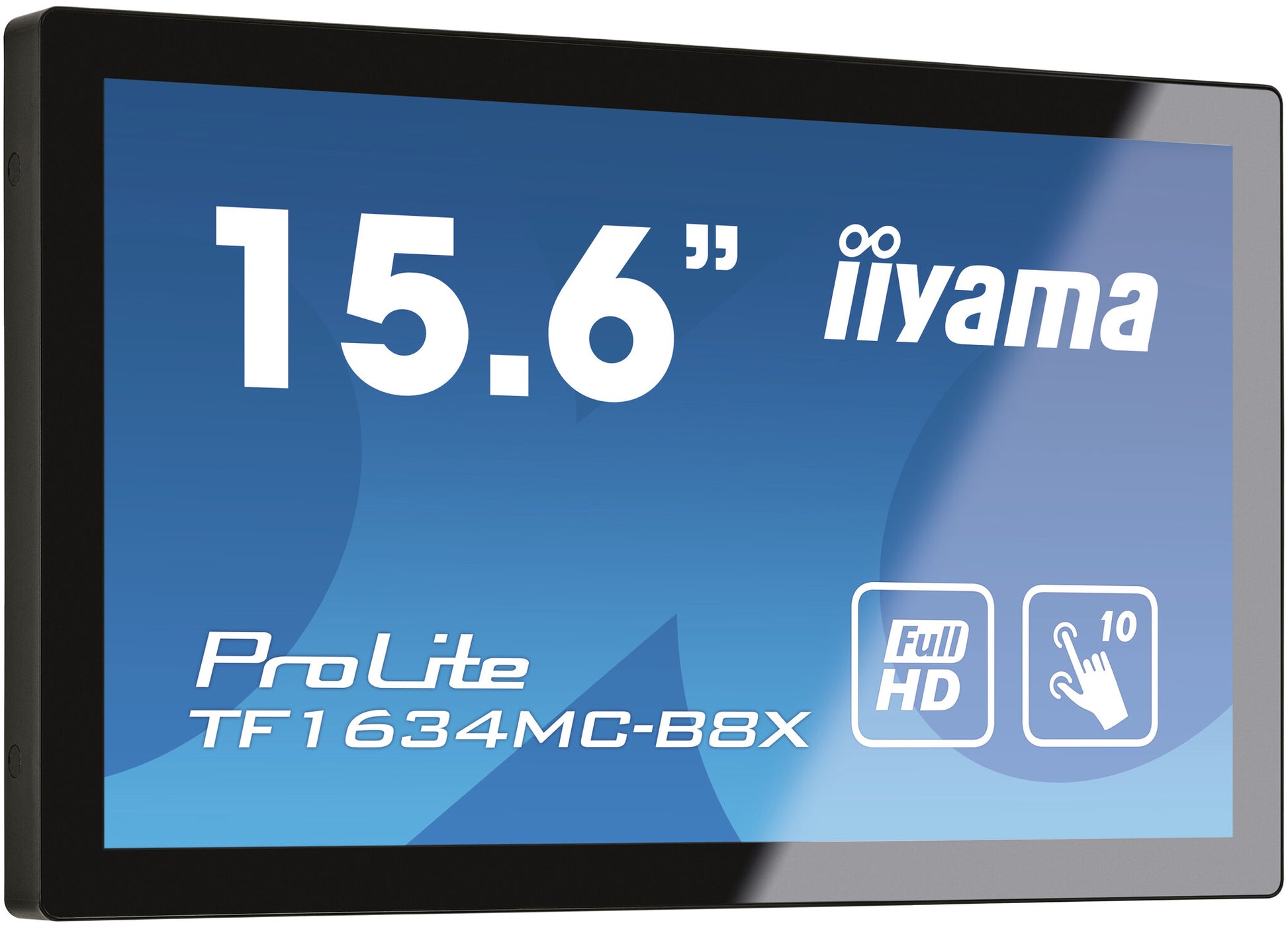

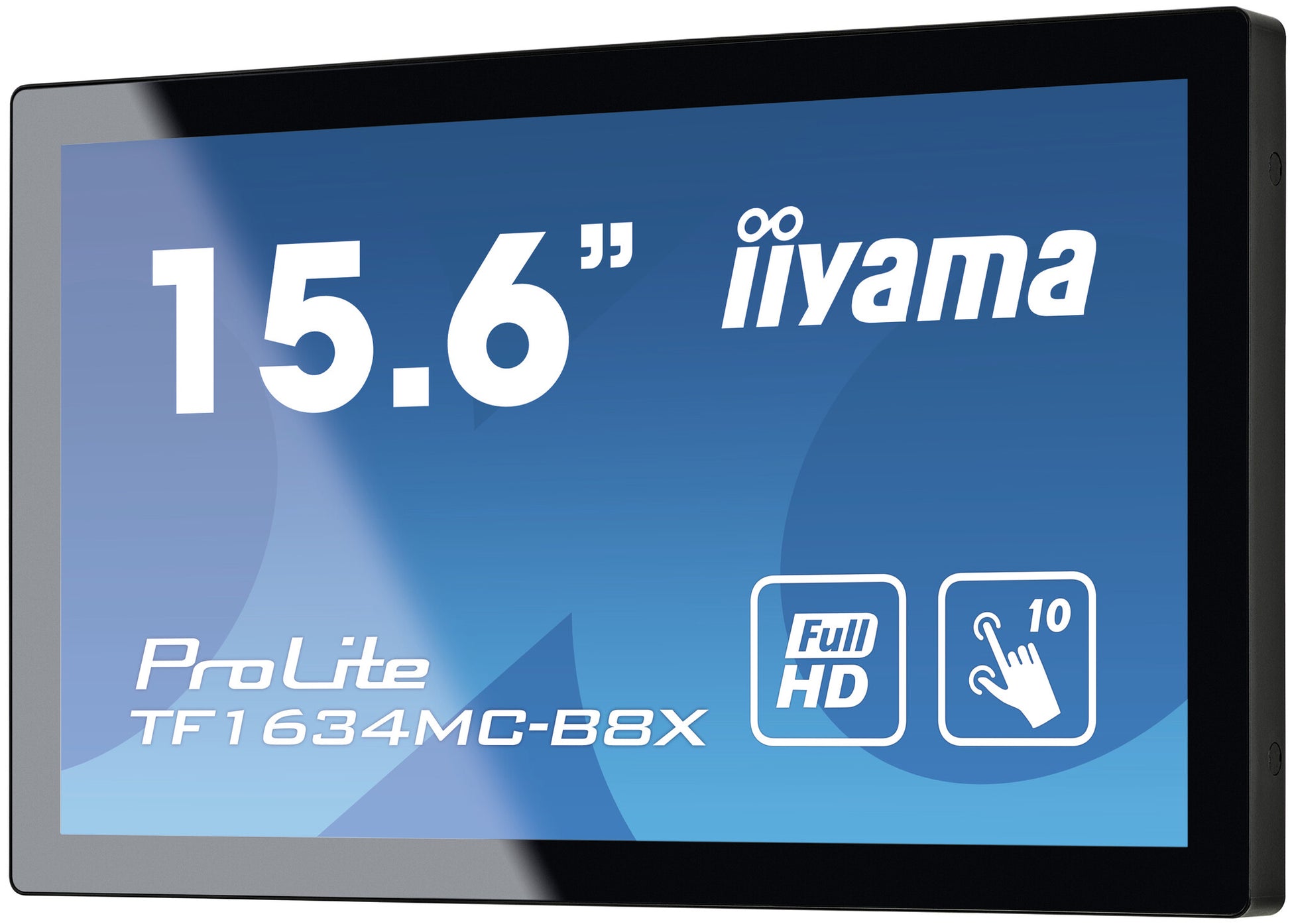

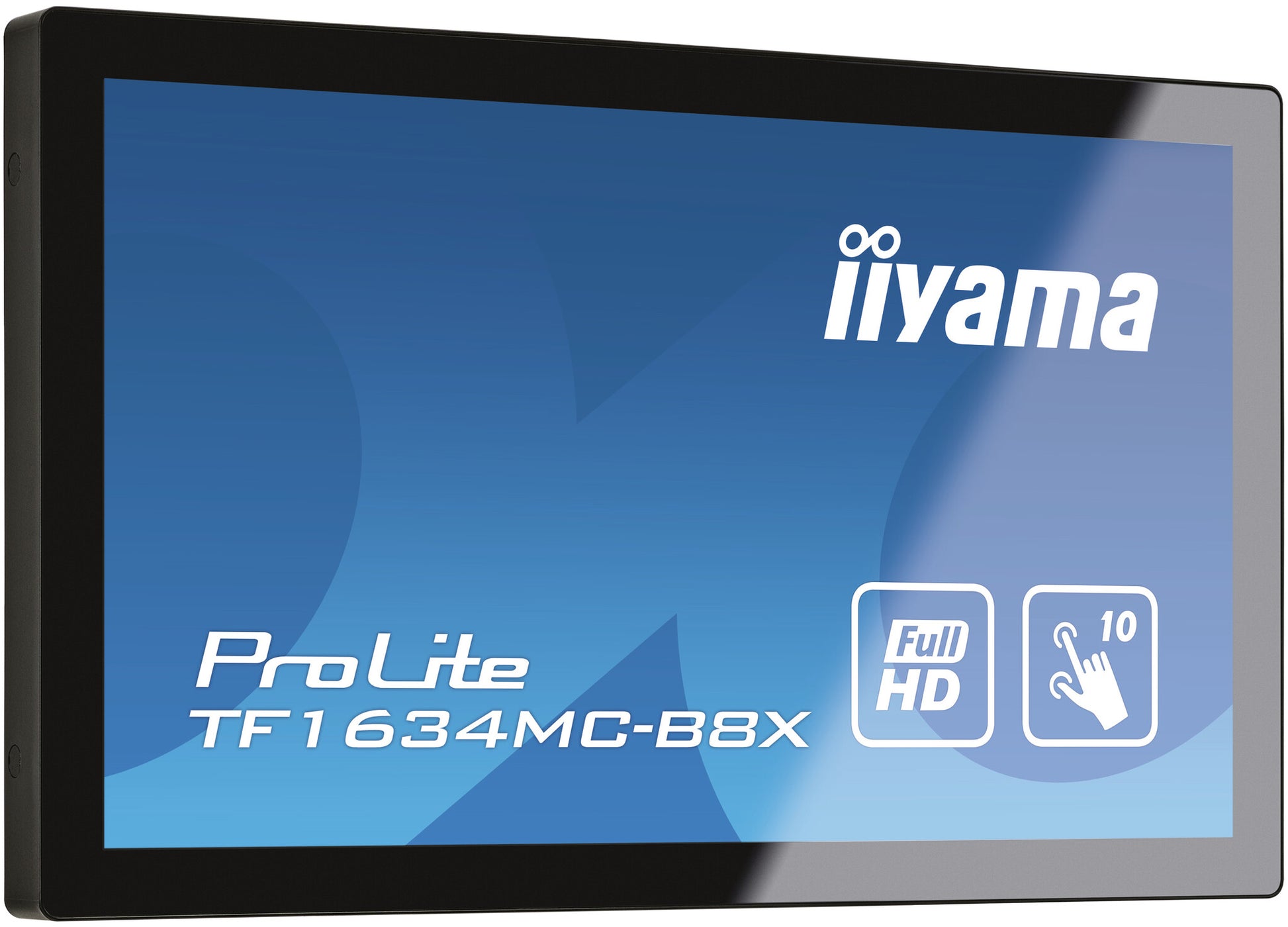

15.6" Full HD 10 point PCAP Open Frame touchscreen featuring IPS Panel Technology and touch through glass function

  • 39.6 cm (15.6") Black
  • HDMI DisplayPorts quantity: 1
  • Screen shape: Flat
  • Maximum refresh rate: 60 Hz Response time: 25 ms Response time measurement type: GTG (Gray to Gray)
  • 1920 x 1080 pixels Full HD Panel type: IPS
  • Energy efficiency class (SDR): F ErP CE, cULus, EAC, REACH, RoHS, WEEE
  • SKU:4948570118342
  • GTIN:4948570118342
  • MPN:TF1634MC-B8X

You need to login to view the price.

View full details

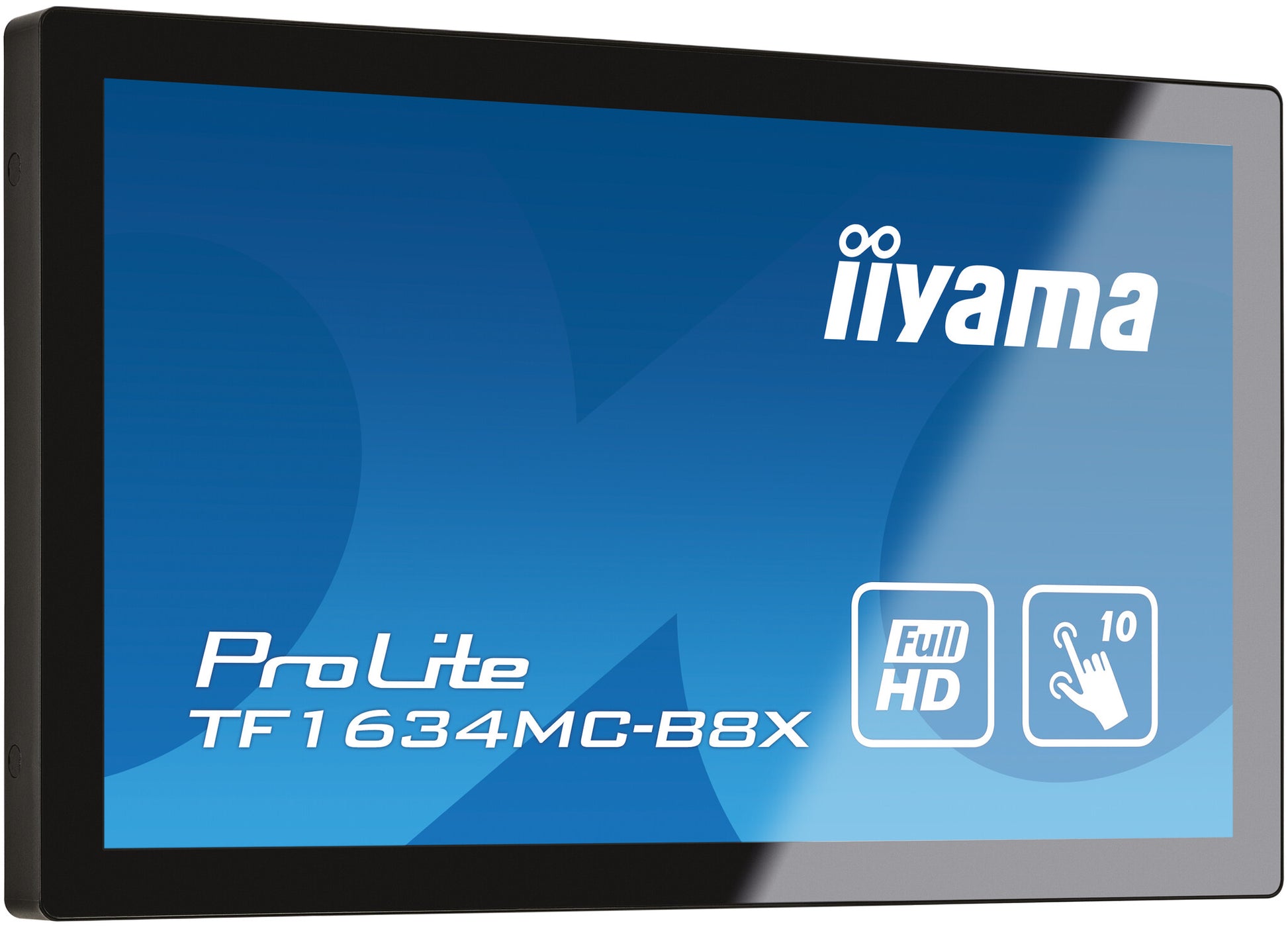

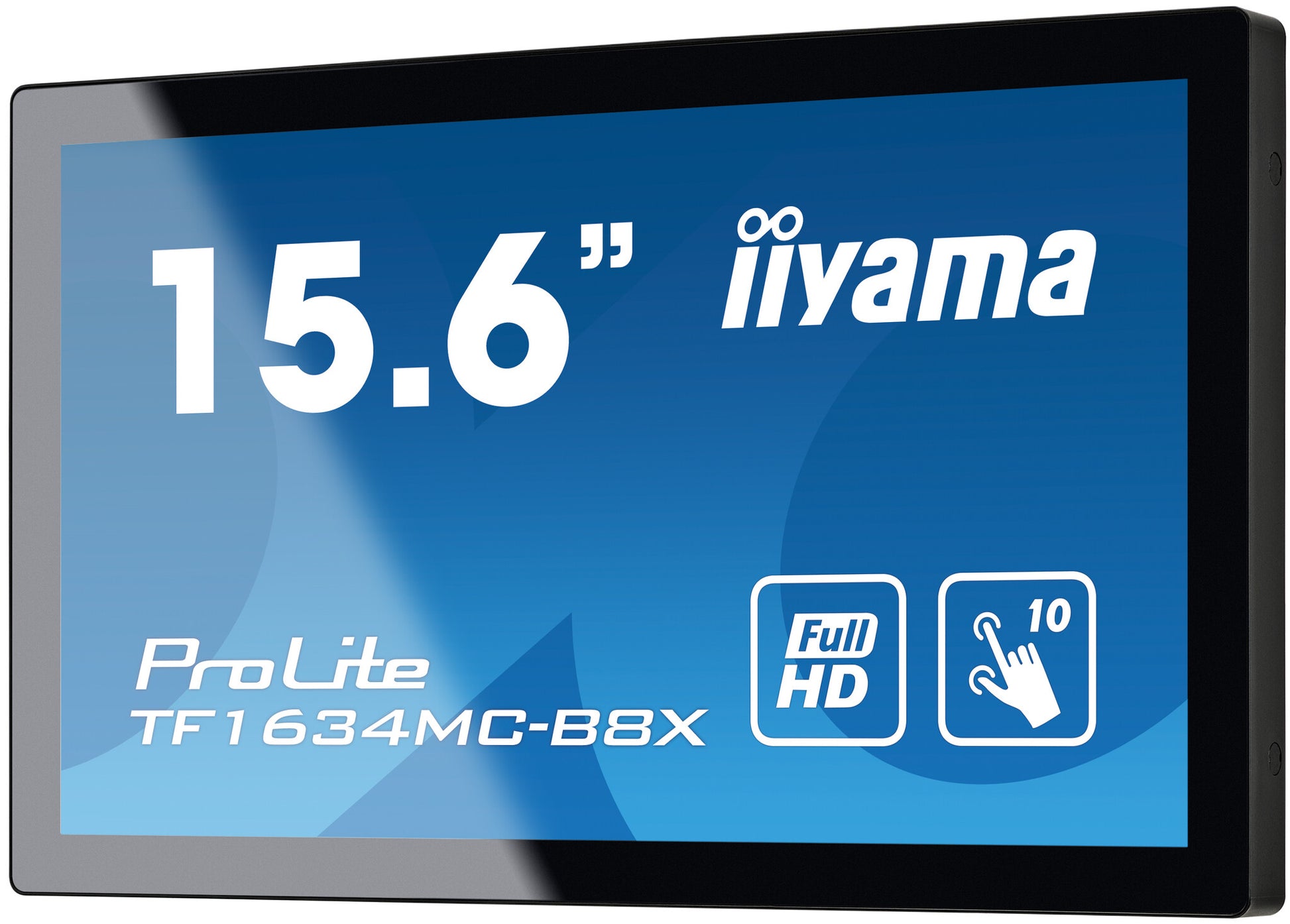

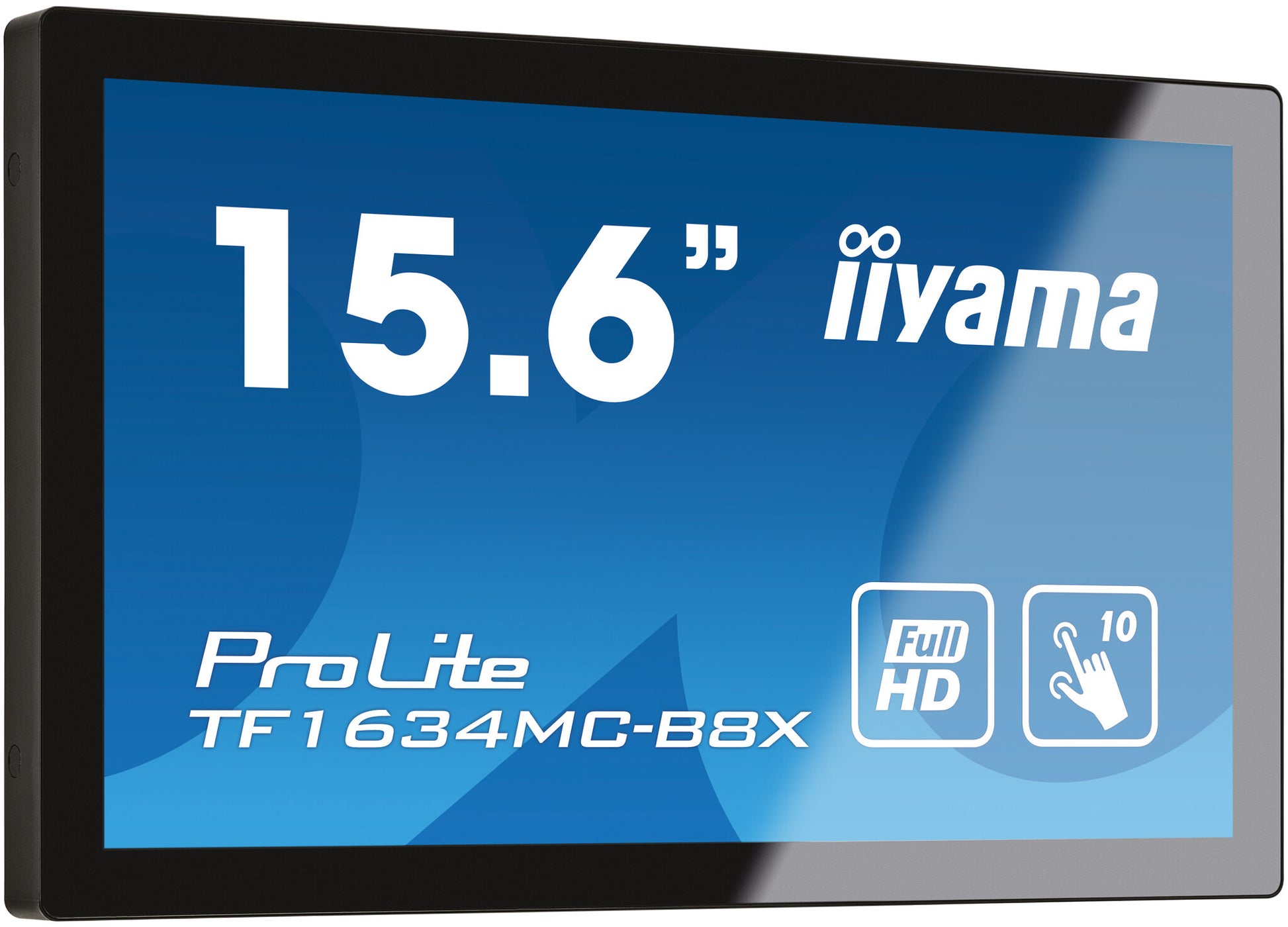

iiyama ProLite 15.6" Full HD 10 point PCAP Open Frame touchscreen featuring IPS Panel Technology and touch through glass function. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 25 ms, Native aspect ratio: 16:9. VESA mounting. Product colour: Black

The ProLite TF1634MC-B8X uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding kiosk installations. For ease of integration, the TF1634MC-B8X can be equipped with optional external mounting brackets ( OMK1-1 ) making it an ideal solution for kiosk integrators and Instore Retail.

Display
Display diagonal
39.6 cm (15.6")
Display resolution
1920 x 1080 pixels
Panel type
IPS
Touchscreen technology
Projected capacitive system
Display brightness (typical)
450 cd/m²
Response time
25 ms
Response time measurement type
GTG (Gray to Gray)
Display brightness
405 cd/m²
Screen shape
Flat
Contrast ratio (typical)
700:1
Maximum refresh rate
60 Hz
Display number of colours
16.2 million colours
Horizontal scan range
30 - 84 kHz
Viewable size, horizontal
34.4 cm
Viewable size, vertical
19.4 cm
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection
Yes
Design
Product colour
Black
Front bezel colour
Black
Glass thickness
2.4 mm
International Protection (IP) code
IP65
Ergonomics

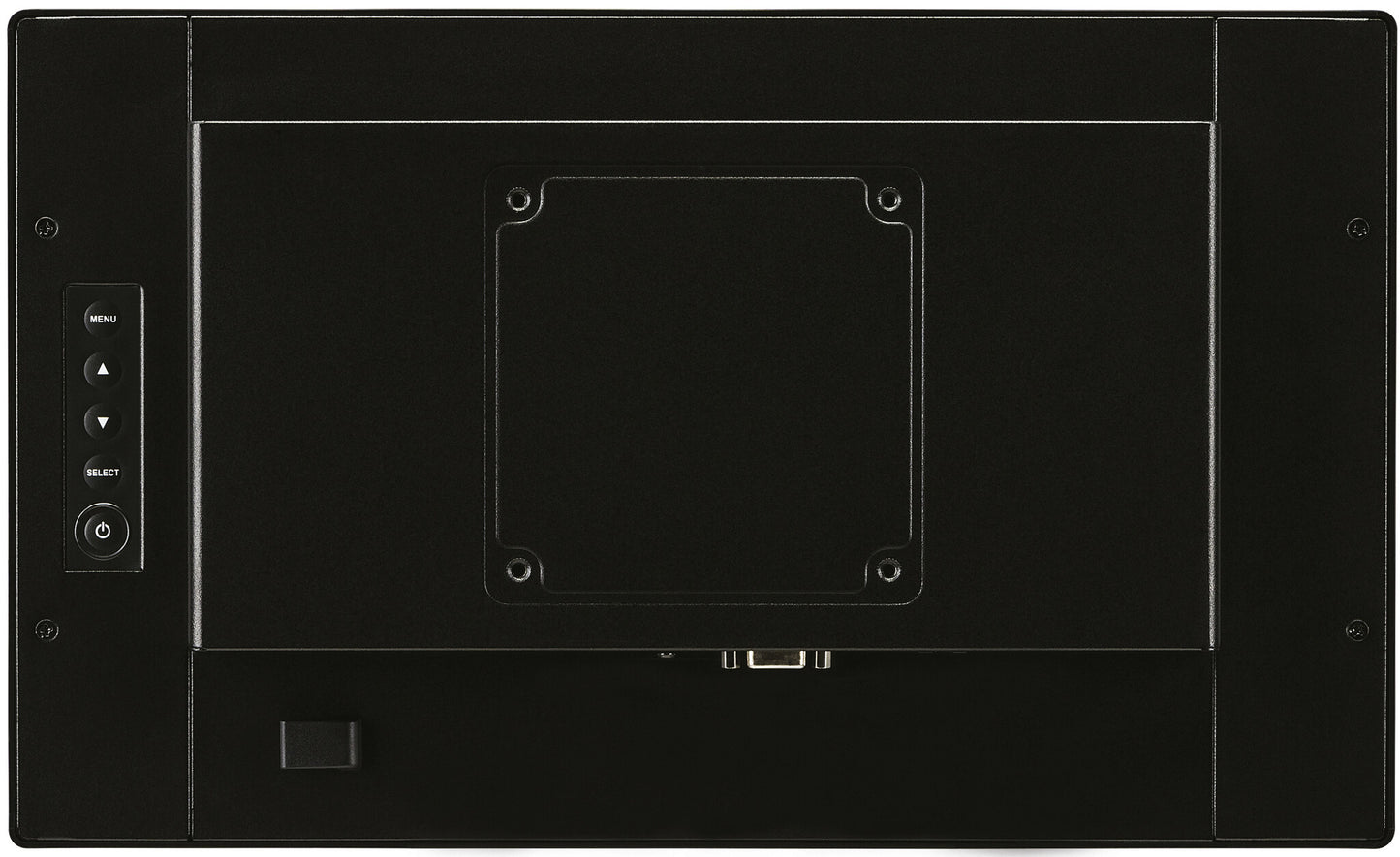

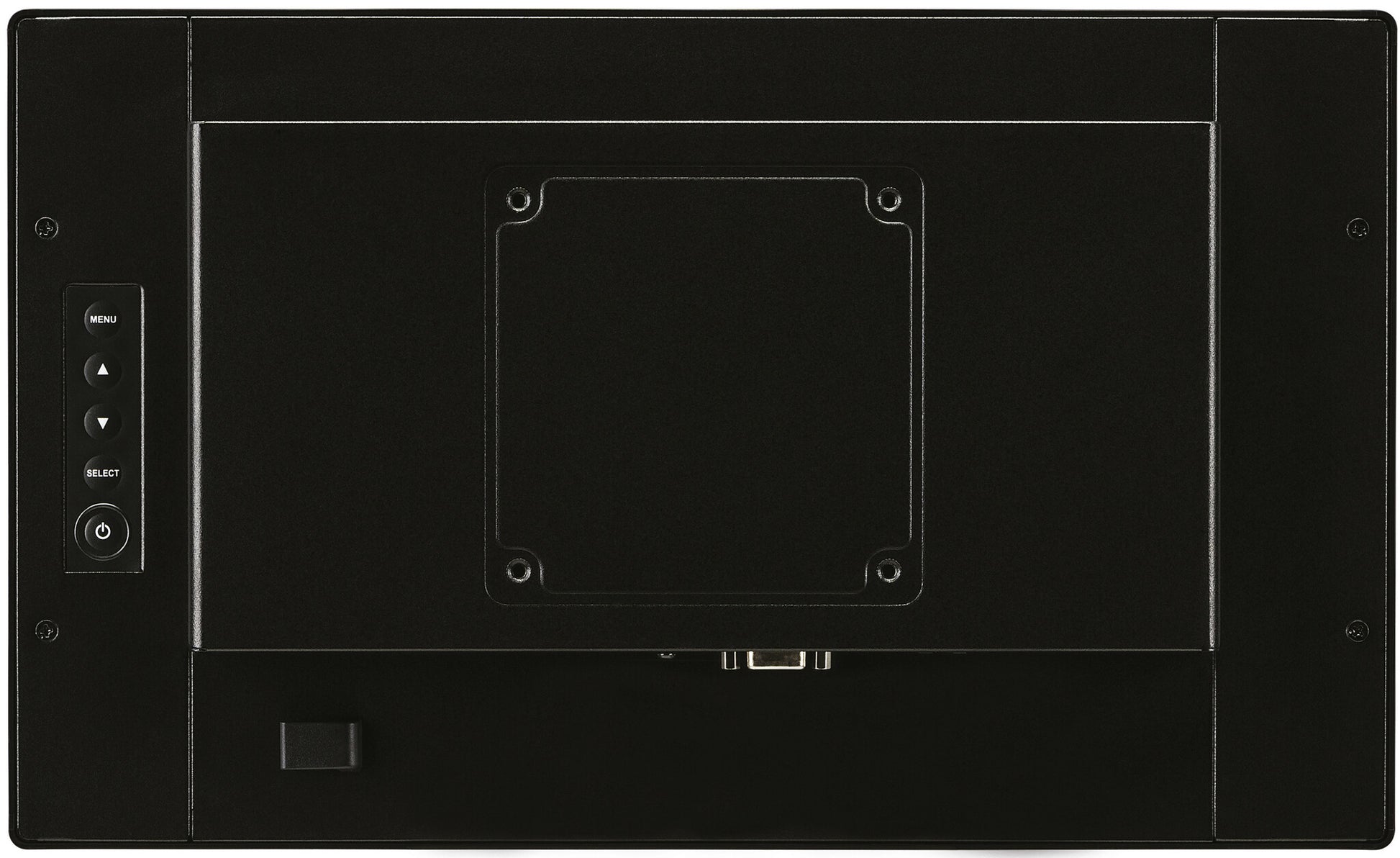

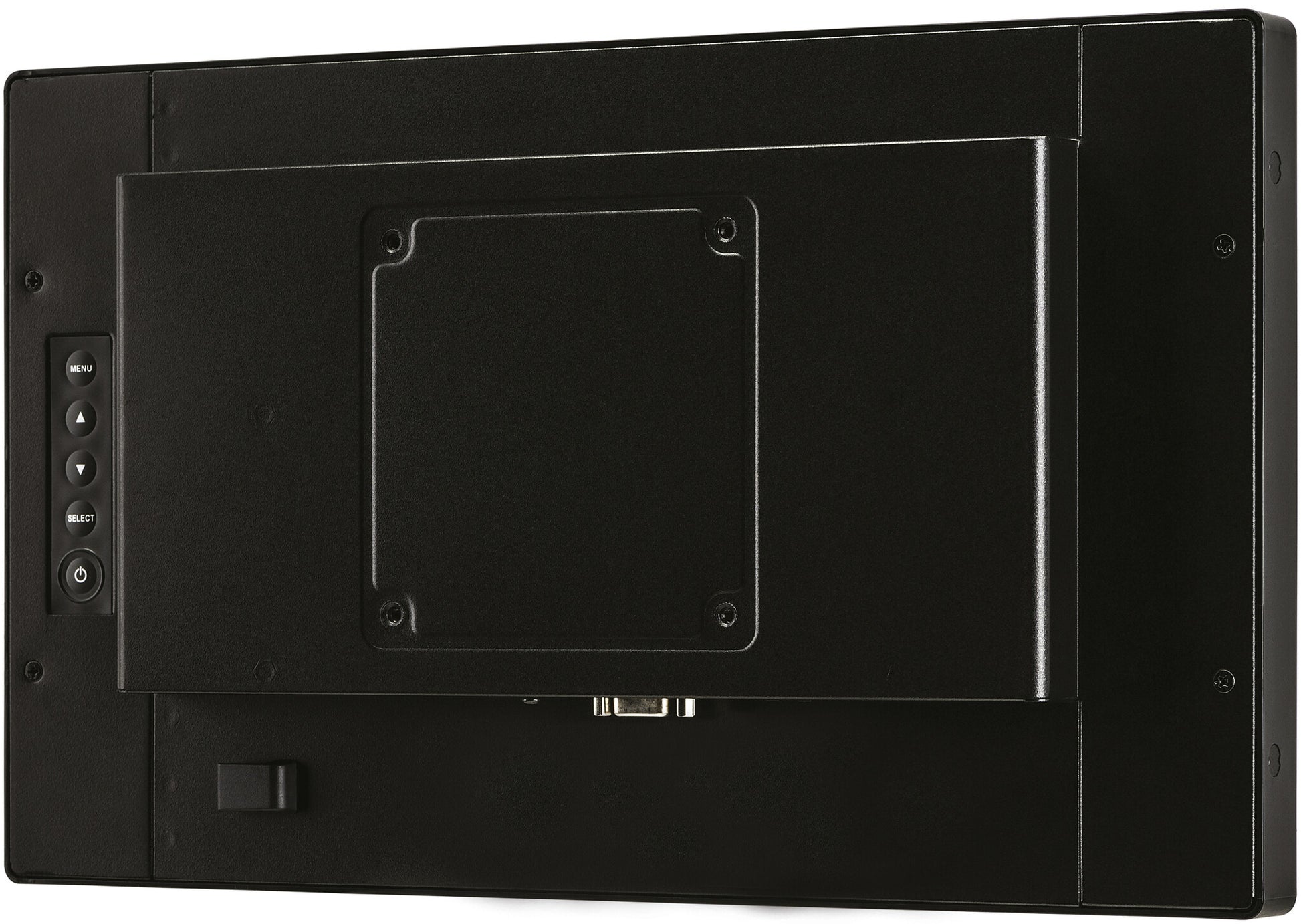

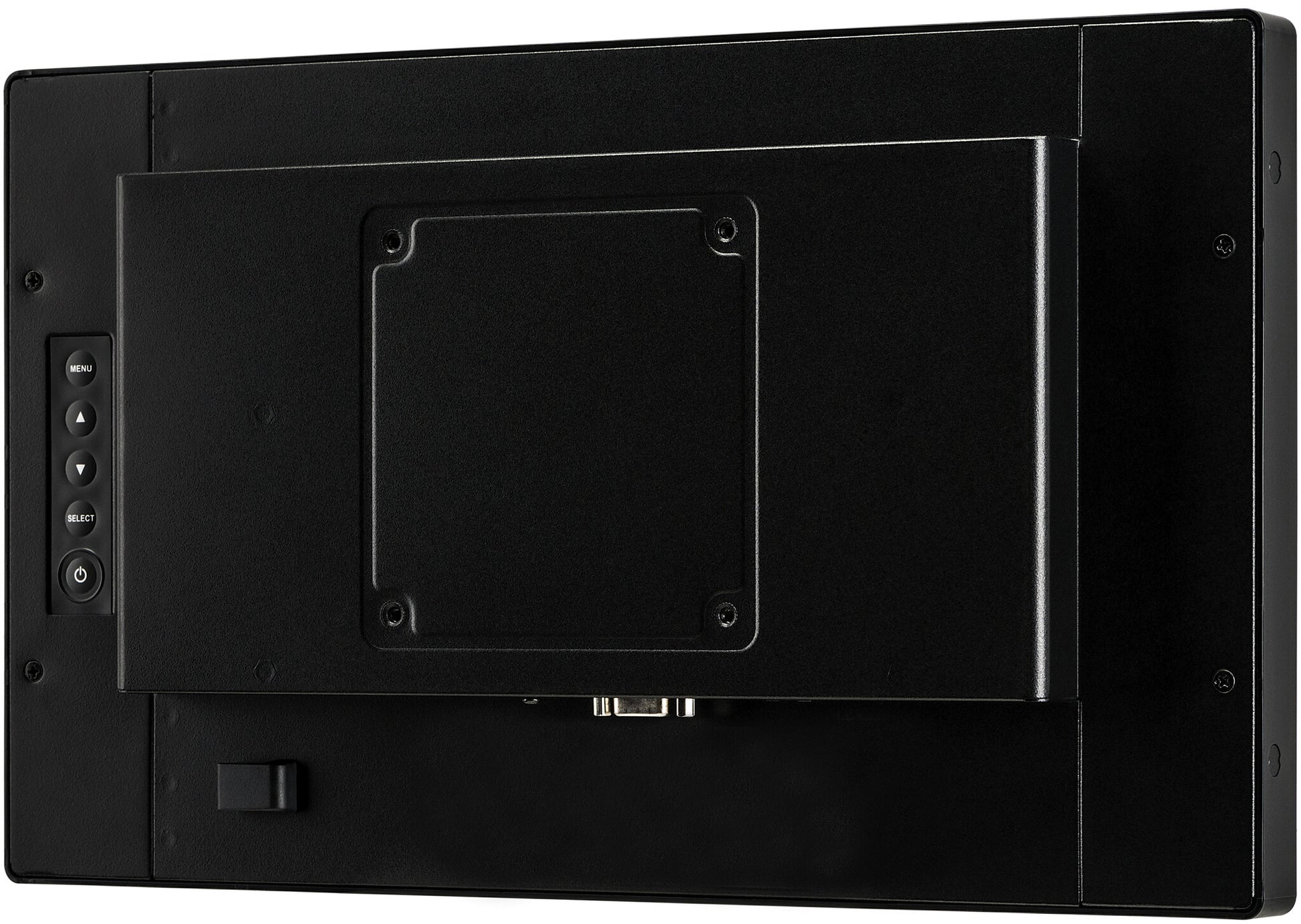

VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Wall mountable
Yes
On Screen Display (OSD)
Yes
Number of OSD languages
7
On Screen Display (OSD) languages
Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Power
Energy efficiency class (SDR)
F
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
12.4 kWh
Power consumption (typical)
18 W
Power consumption (standby)
0.6 W
Power consumption (off)
0.3 W
AC adapter output voltage
12 V
Power supply type
External
Sustainability
Sustainability certificates
ErP
Algemeen
Productfamilie
ProLite
Weight & dimensions
Width (with stand)
381 mm
Depth (with stand)
46 mm
Height (with stand)
230.5 mm
Weight (with stand)
2 kg
Width (without stand)
381 mm
Depth (without stand)
46 mm
Height (without stand)
230.5 mm
Weight (without stand)
2 kg
Packaging data

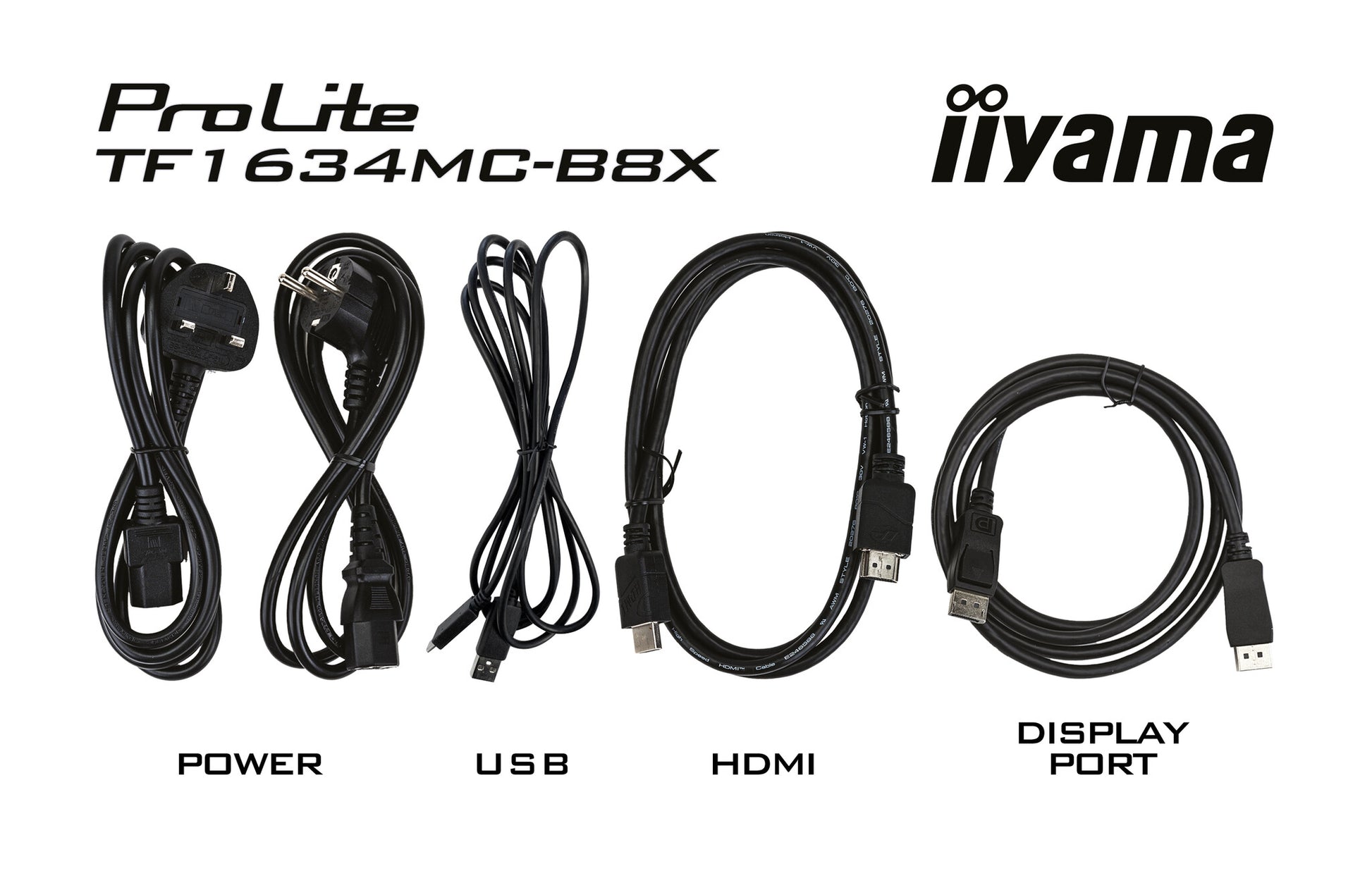

Cables included
AC, USB, HDMI, DisplayPort
Quick start guide
Yes
Package width
455 mm
Package depth
290 mm
Package height
365 mm
Package weight
3.9 kg
Logistics data
Harmonized System (HS) code
85285210
Products per pallet
78 pc(s)
Pallet net width
11.5 cm
Pallet net length
20.4 cm
Pallet net height
9.7 cm
Technical details
Native refresh rate
60 Hz
Compliance certificates
CE, cULus, EAC, REACH, RoHS, WEEE
Other features
AC adapter included
Yes
Packaging content
AC adapter
Brightness
405 cd/m²
Depth
46 mm
Width
381 mm
Height
230.5 mm
Weight
2 kg
Active display area (W x H)
344.2 x 193.6 mm

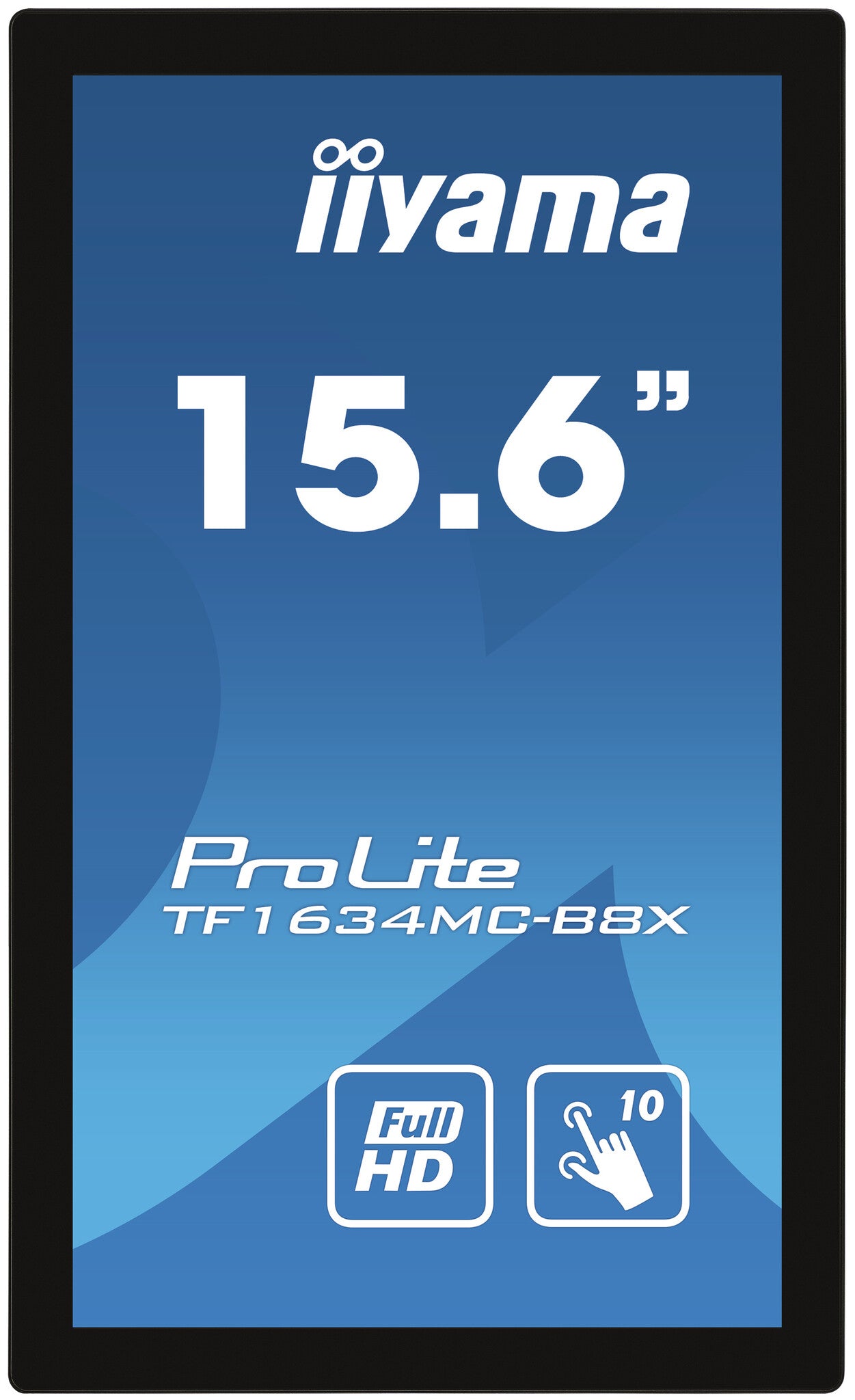

Placement supported
Horizontal/Vertical
Display viewable area (HxV)
344.2 x 193.5 mm

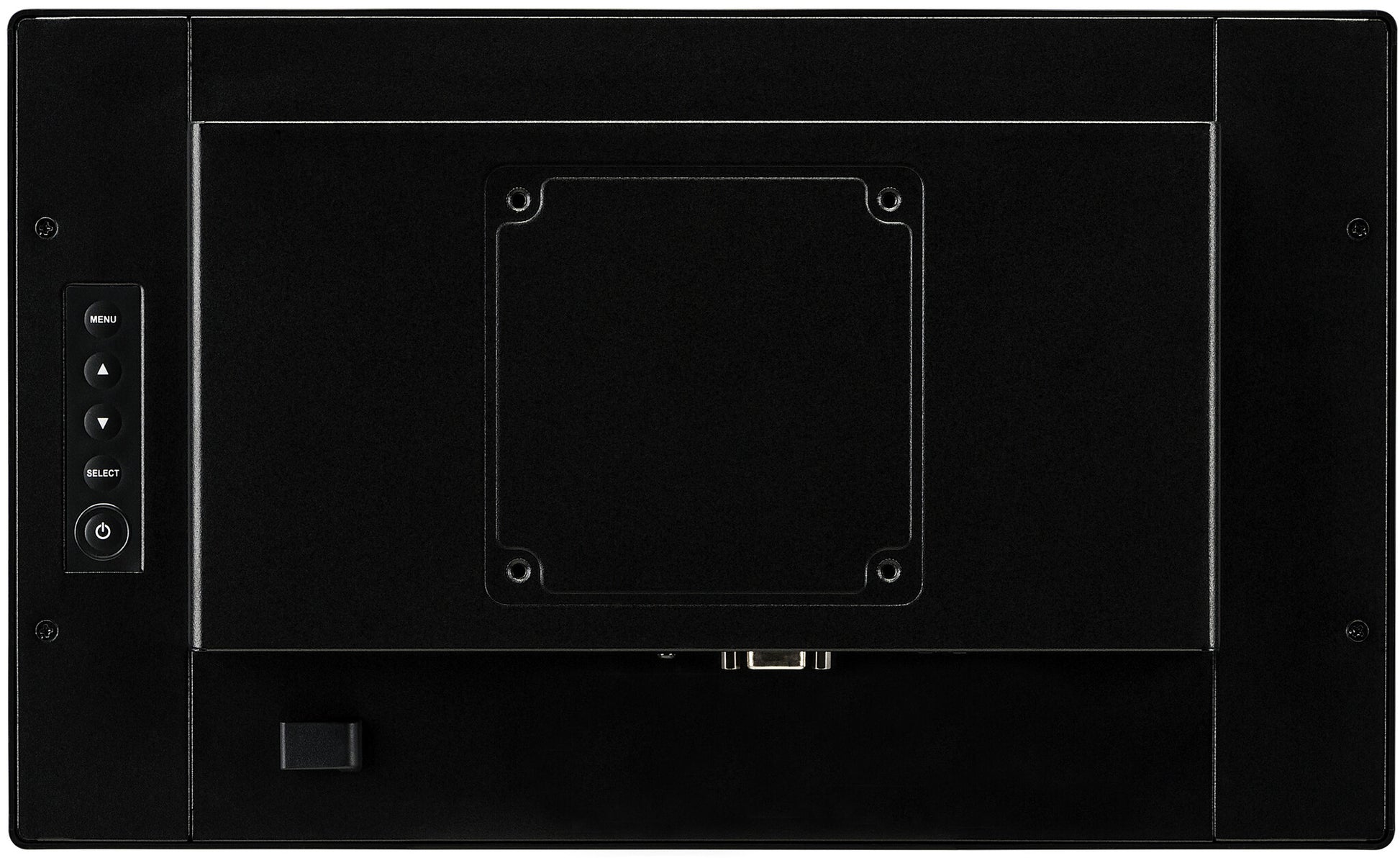

Control panel
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Touch method
stylus, finger, glove (latex)
User controls
picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
Touchscreen
Touchscreen
Yes
HD type
Full HD
Native aspect ratio
16:9
Display technology
LED
Built-in camera
No
Touch technology
Multi-touch
Touchscreen type
Multi-user
Number of simultaneous touchpoints
10

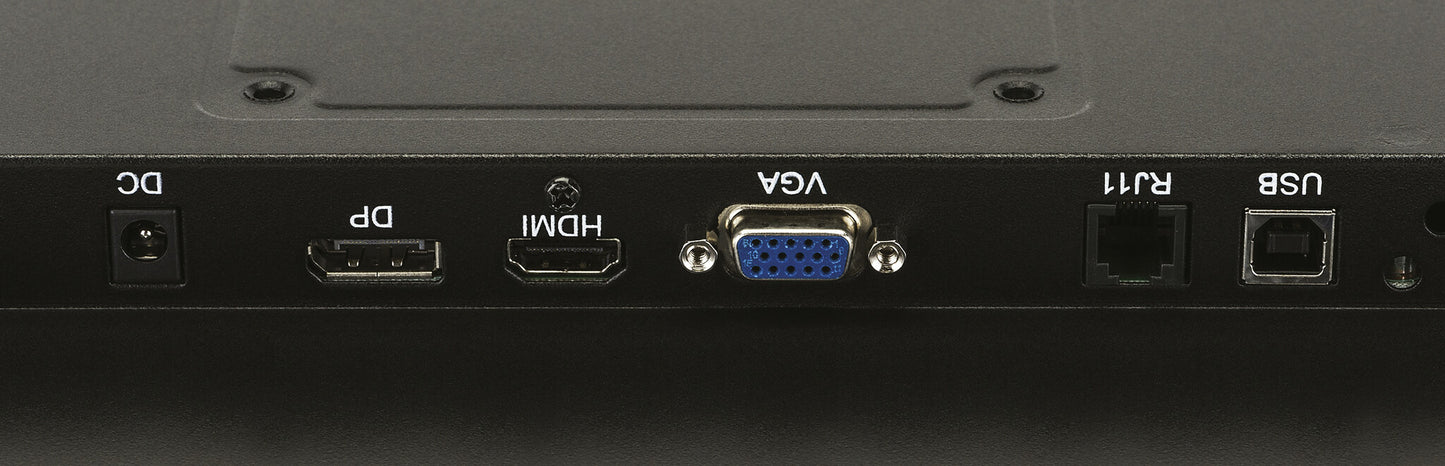

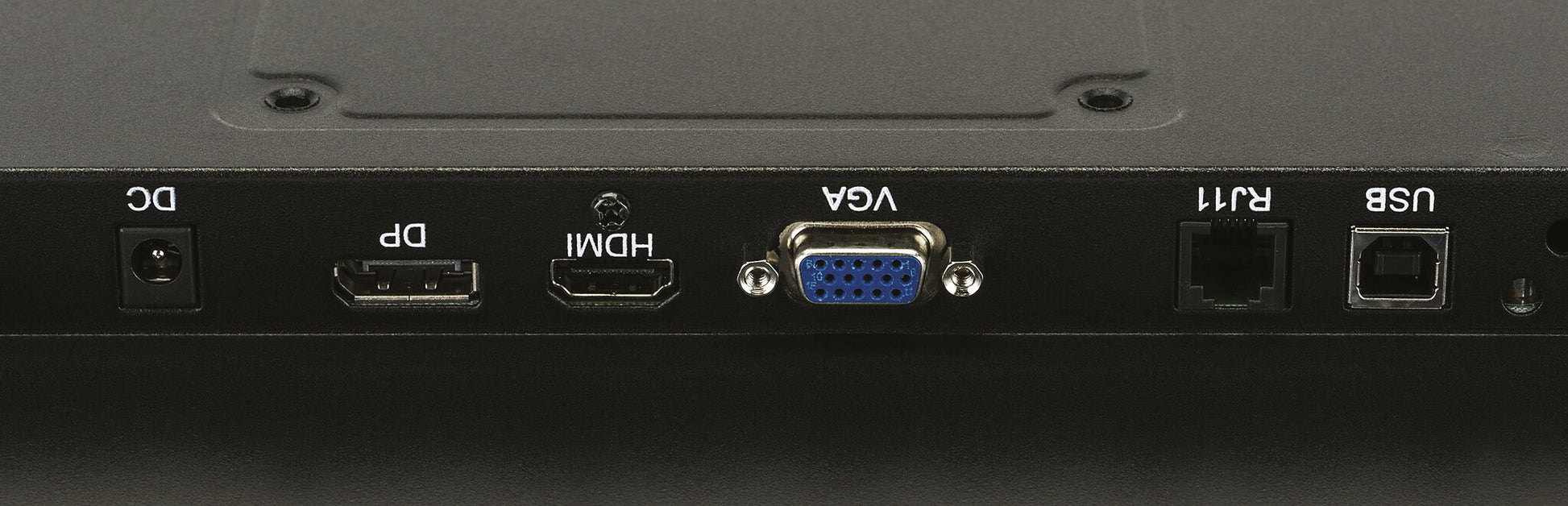

USB Touch port
Yes

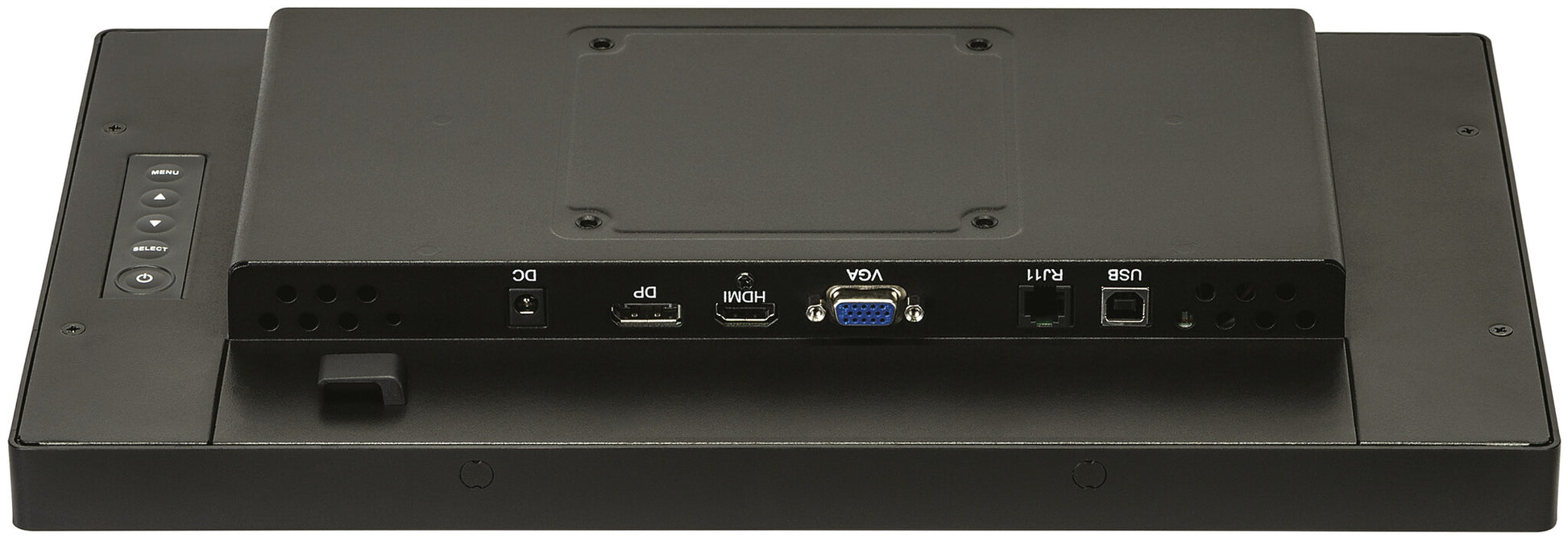

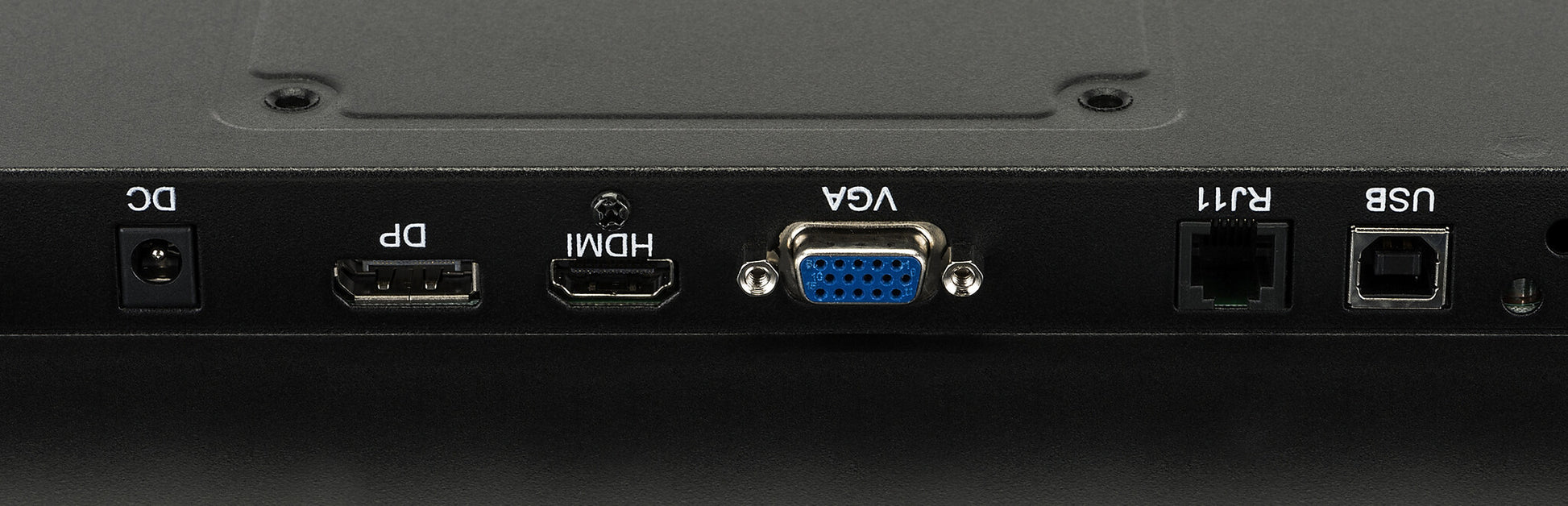

VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.179 x 0.179 mm
Built-in microphone
No
Display diagonal (metric)
39.5 cm
HDCP
Yes
Surface hardness
7H
