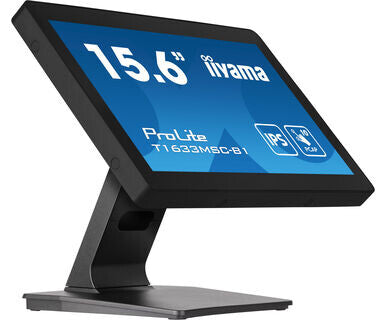

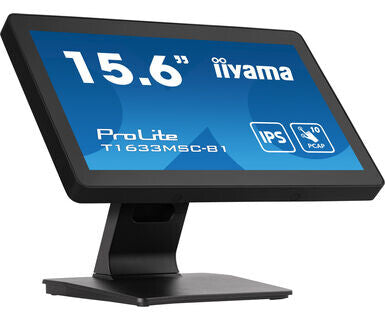

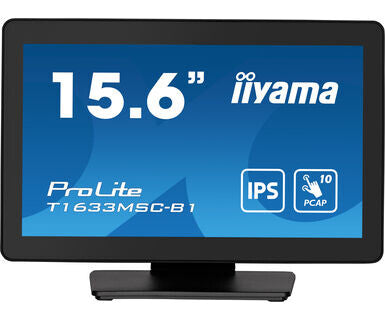

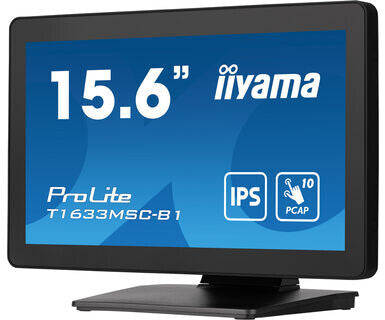

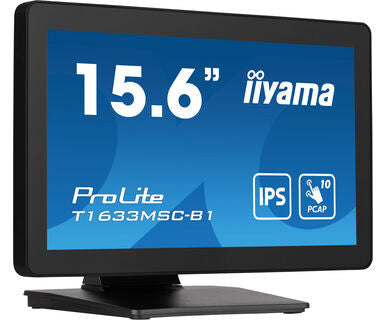

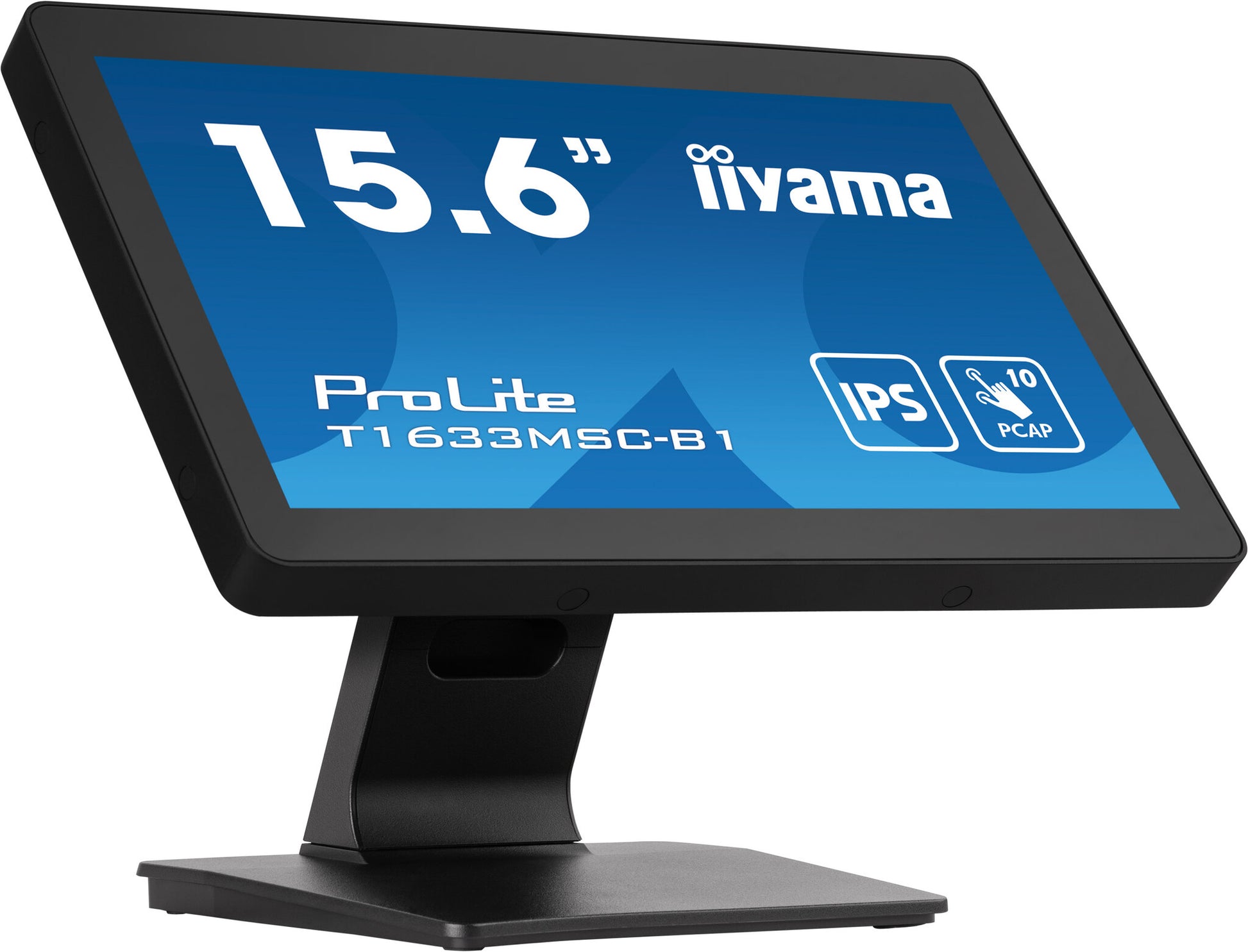

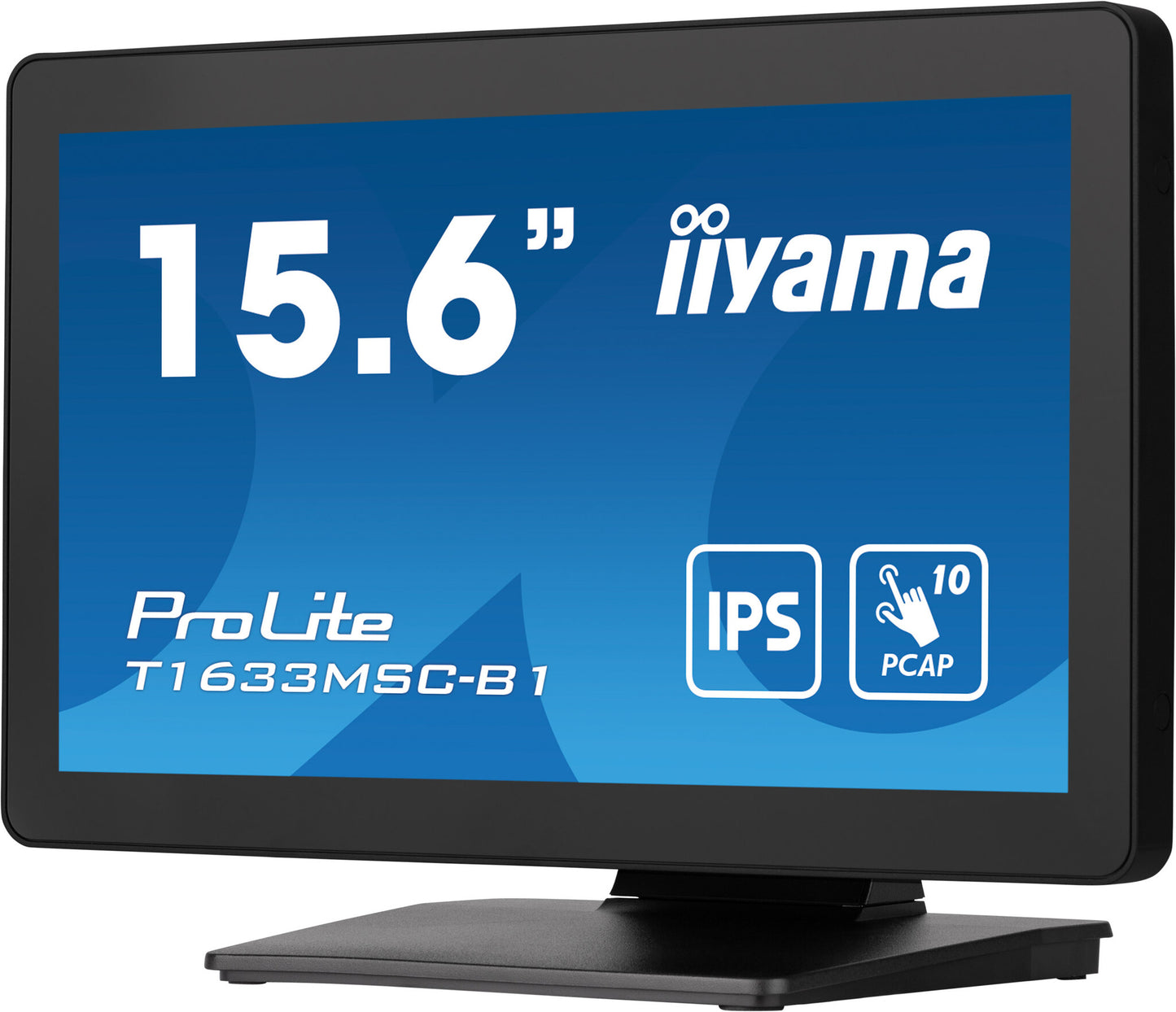

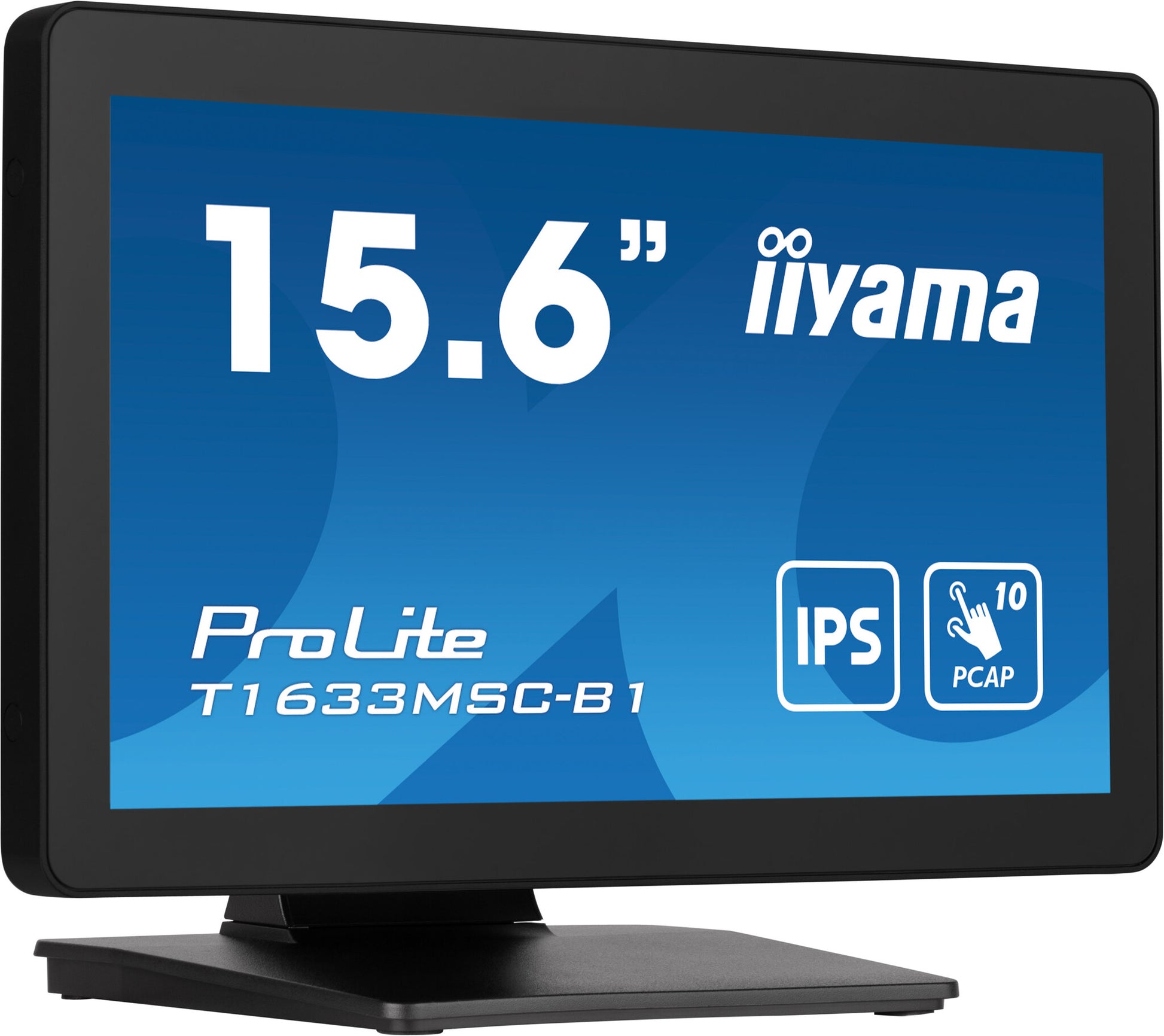

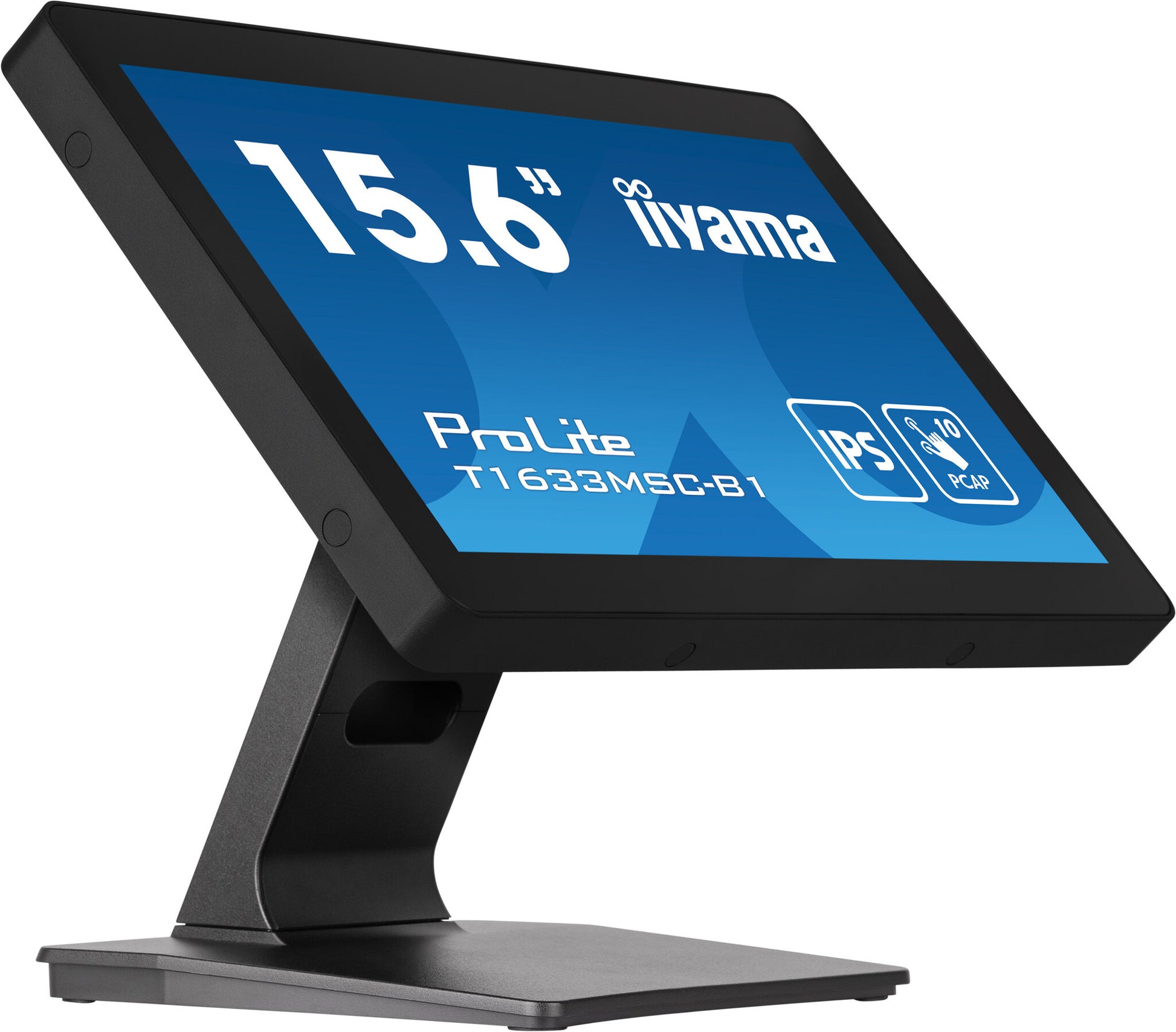

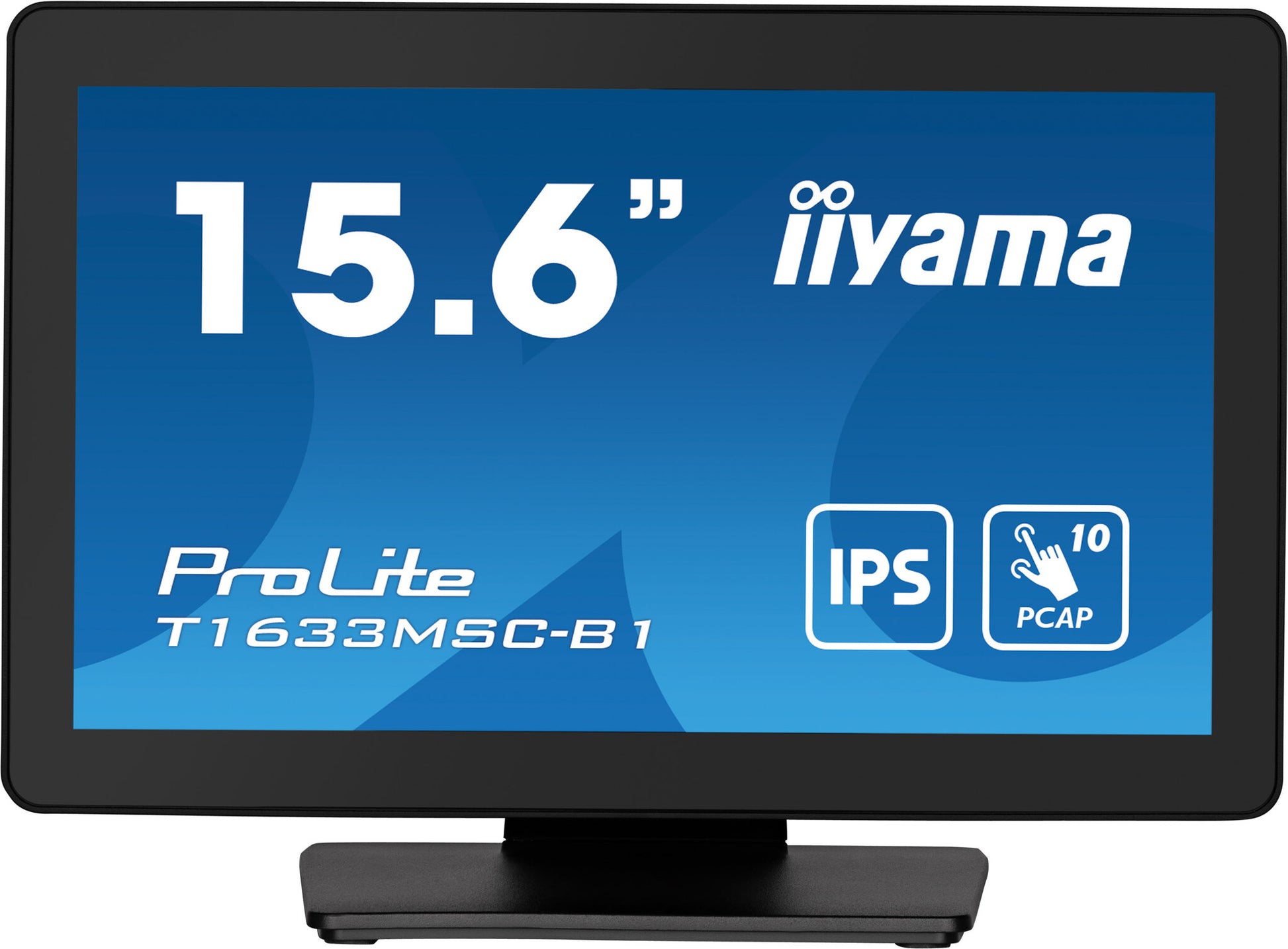

iiyama ProLite T1633MSC-B1 computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD LCD Touchscreen Black

iiyama ProLite T1633MSC-B1 computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD LCD Touchscreen Black

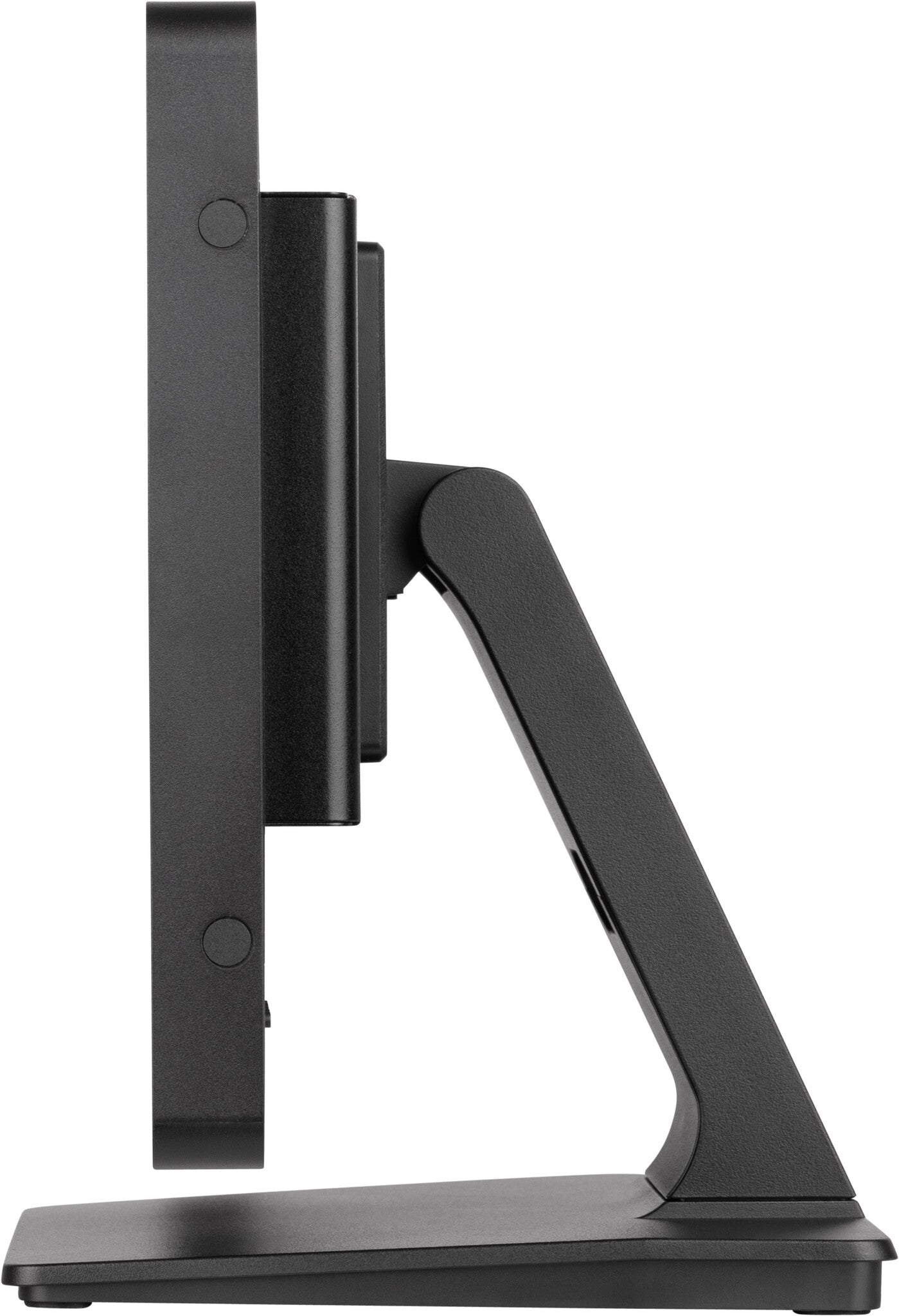

15.6" PCAP 10 points multi-touch monitor with edge-to-edge glass and IPS panel technology

  • projective capacitive
  • HDMI x1
  • DisplayPort x1
  • SKU:4948570122523
  • GTIN/EAN:4948570122523
  • MPN:T1633MSC-B1

You need to login to view the price.

View full details

iiyama ProLite T1633MSC-B1. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 2.0. VESA mounting. Product colour: Black

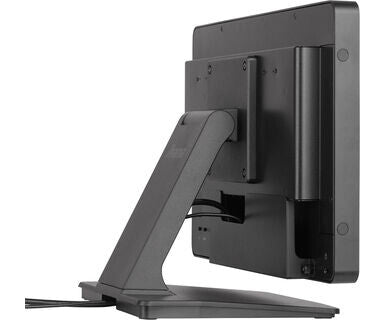

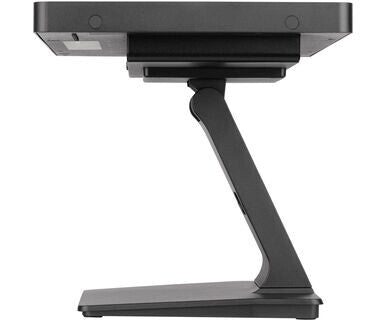

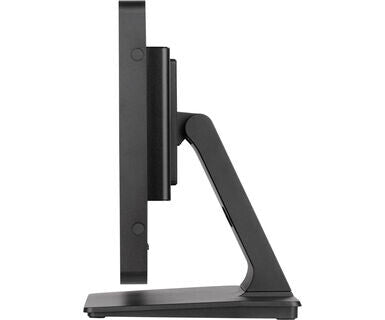

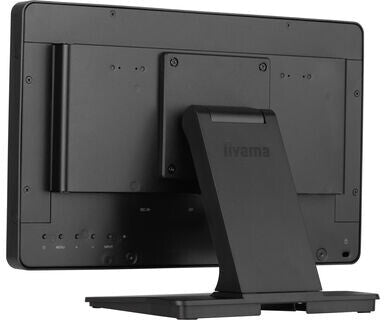

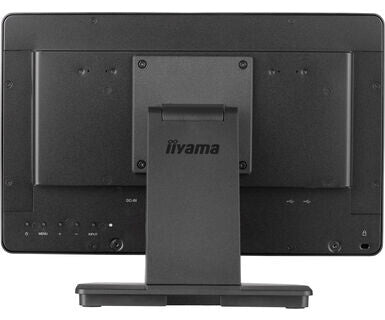

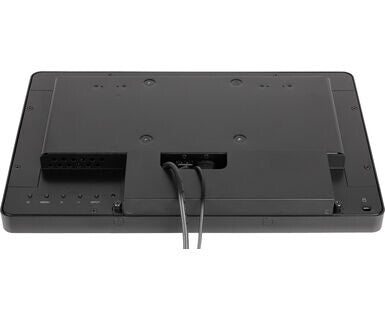

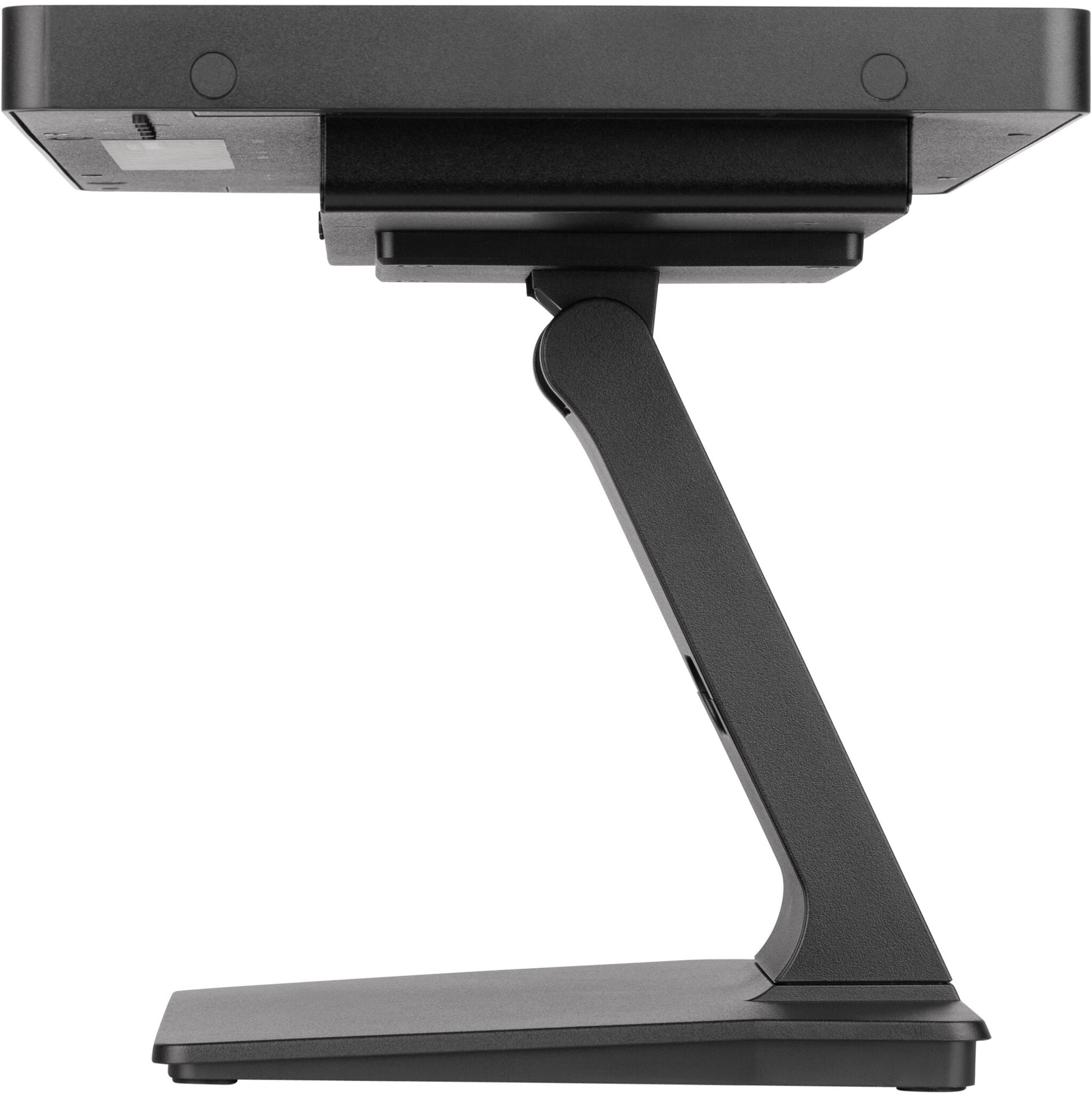

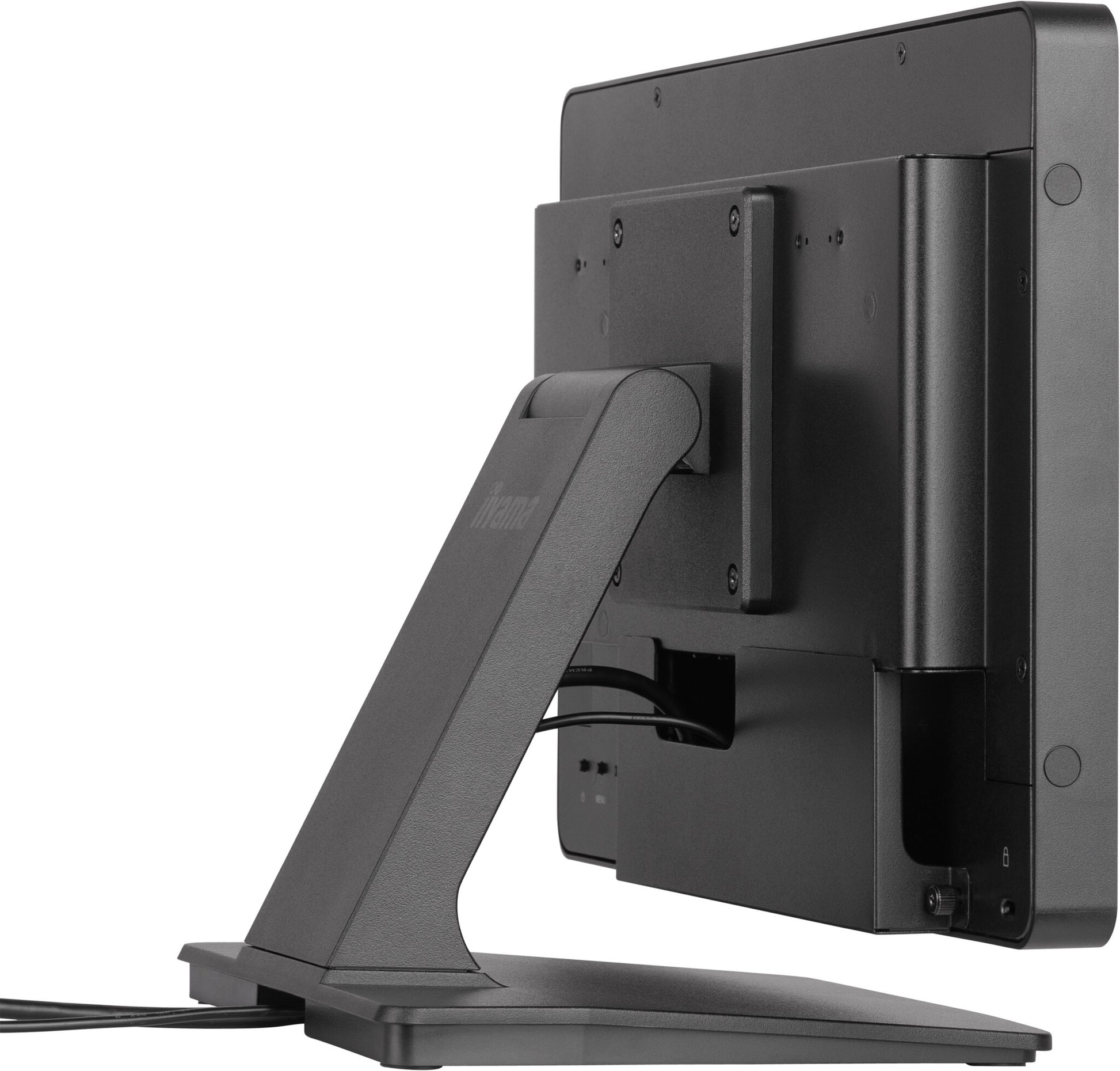

The ProLite T1633MSC-B1 uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. The screen guarantees high durability, scratch-resistance, clarity and a perfect picture performance. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition to the superb image quality, the screen comes with an IP54 rating, which means the screen and bezel is dust and water resistant from the front. A perfect solution for retail applications.

Display
Display diagonal
39.6 cm (15.6")
Display resolution
1920 x 1080 pixels
Panel type
IPS
Touchscreen technology
Projected capacitive system
Display brightness (typical)
450 cd/m²
Response time
5 ms
Response time measurement type
GTG (Gray to Gray)
Display brightness
385 cd/m²
Screen shape
Flat
Contrast ratio (typical)
1000:1
Maximum refresh rate
60 Hz
Display number of colours
16.7 million colours
Horizontal scan range
30 - 68 kHz
Viewable size, horizontal
34.4 cm
Viewable size, vertical
19.4 cm
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Low Blue Light technology
Yes
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection
Yes
Multimedia
Built-in speaker(s)
Yes
Number of speakers
2
RMS rated power
4 W
Design
Market positioning
Home
Product colour
Black
Front bezel colour
Black
International Protection (IP) code
IP54
Certification
CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
Ports & interfaces
Built-in USB hub
Yes
USB hub version
2.0
Number of downstream ports
2
Ergonomics

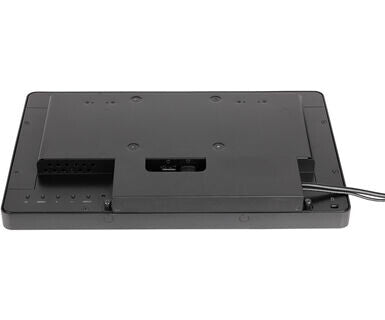

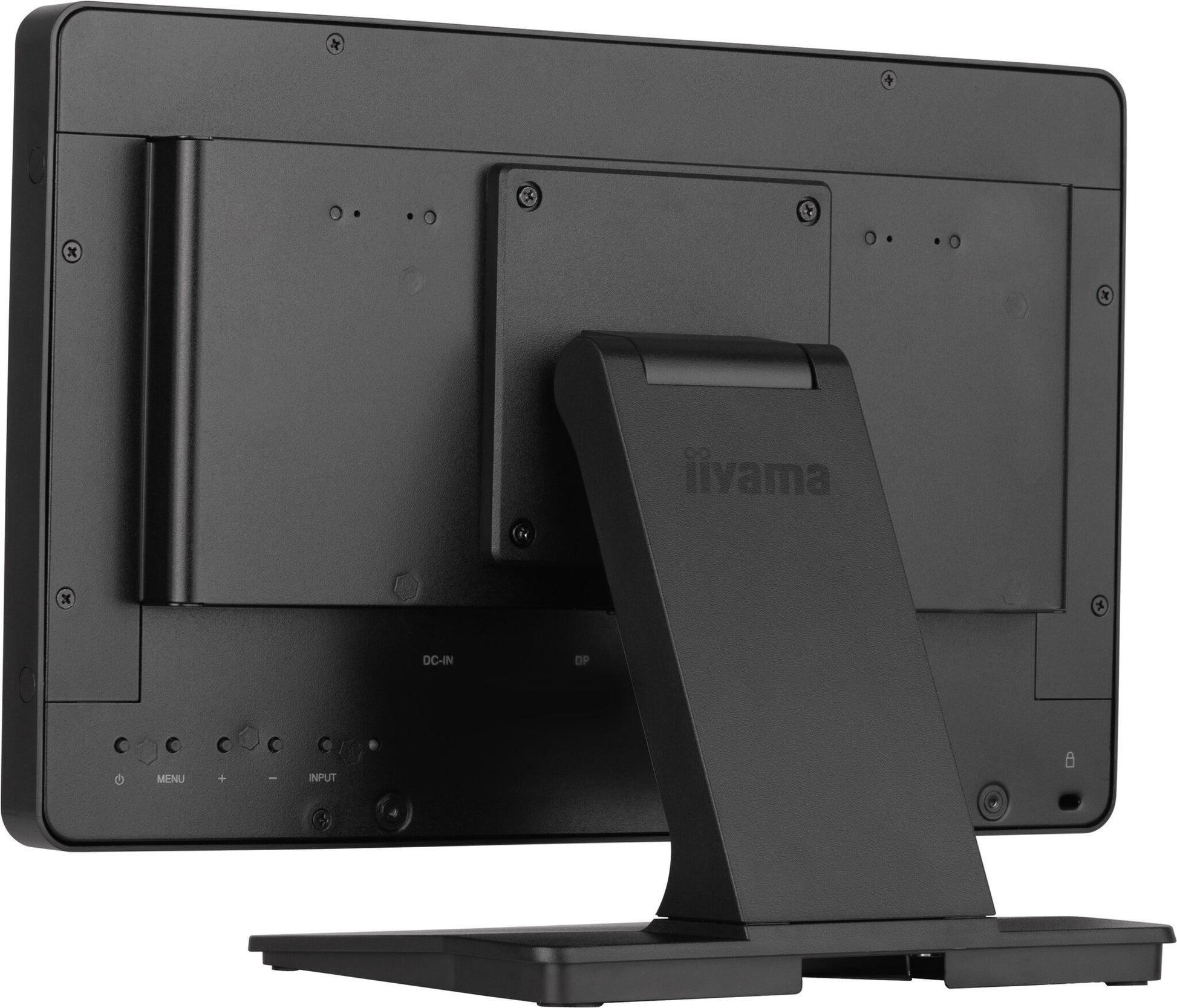

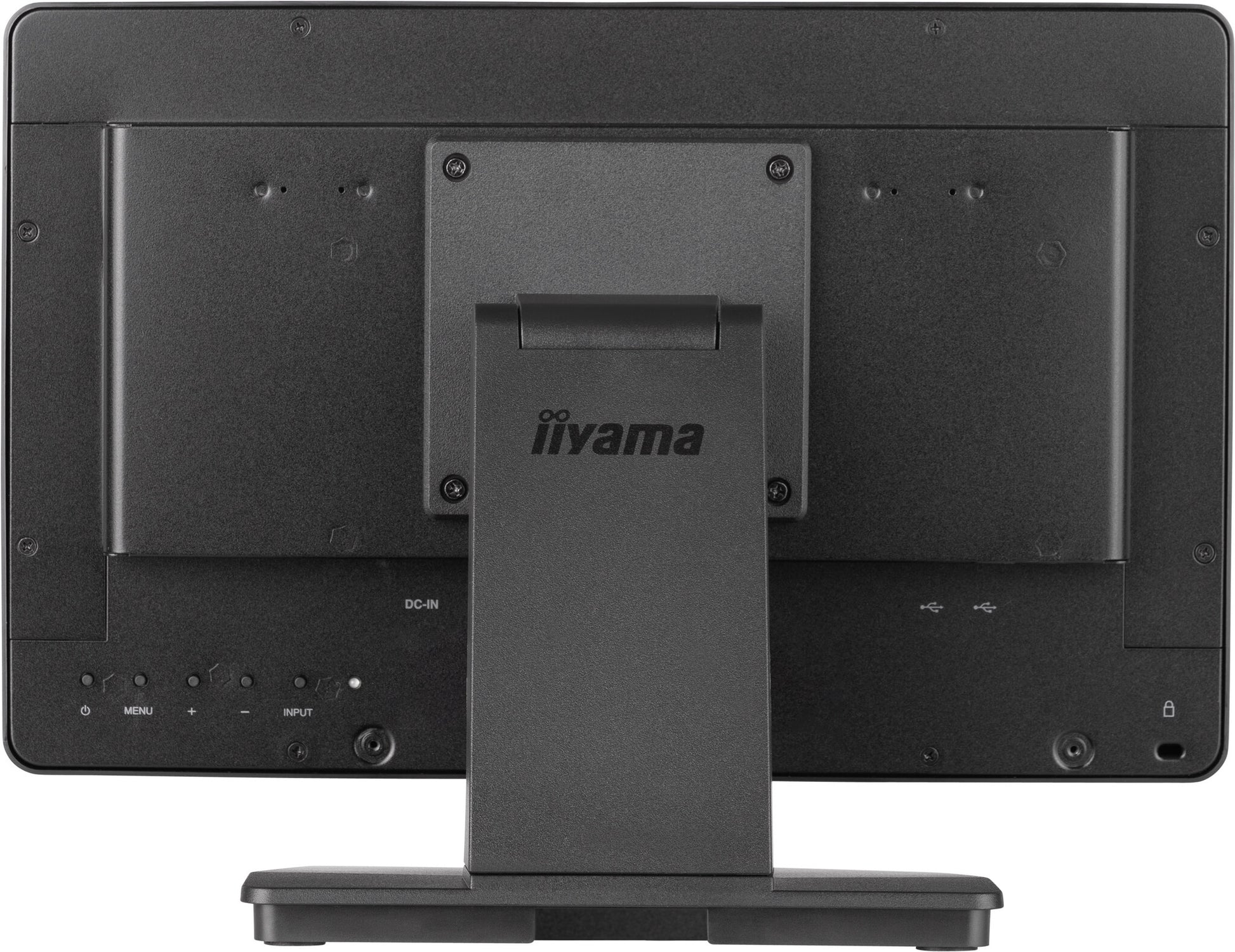

VESA mounting
Yes
Panel mounting interface
100 x 100 mm

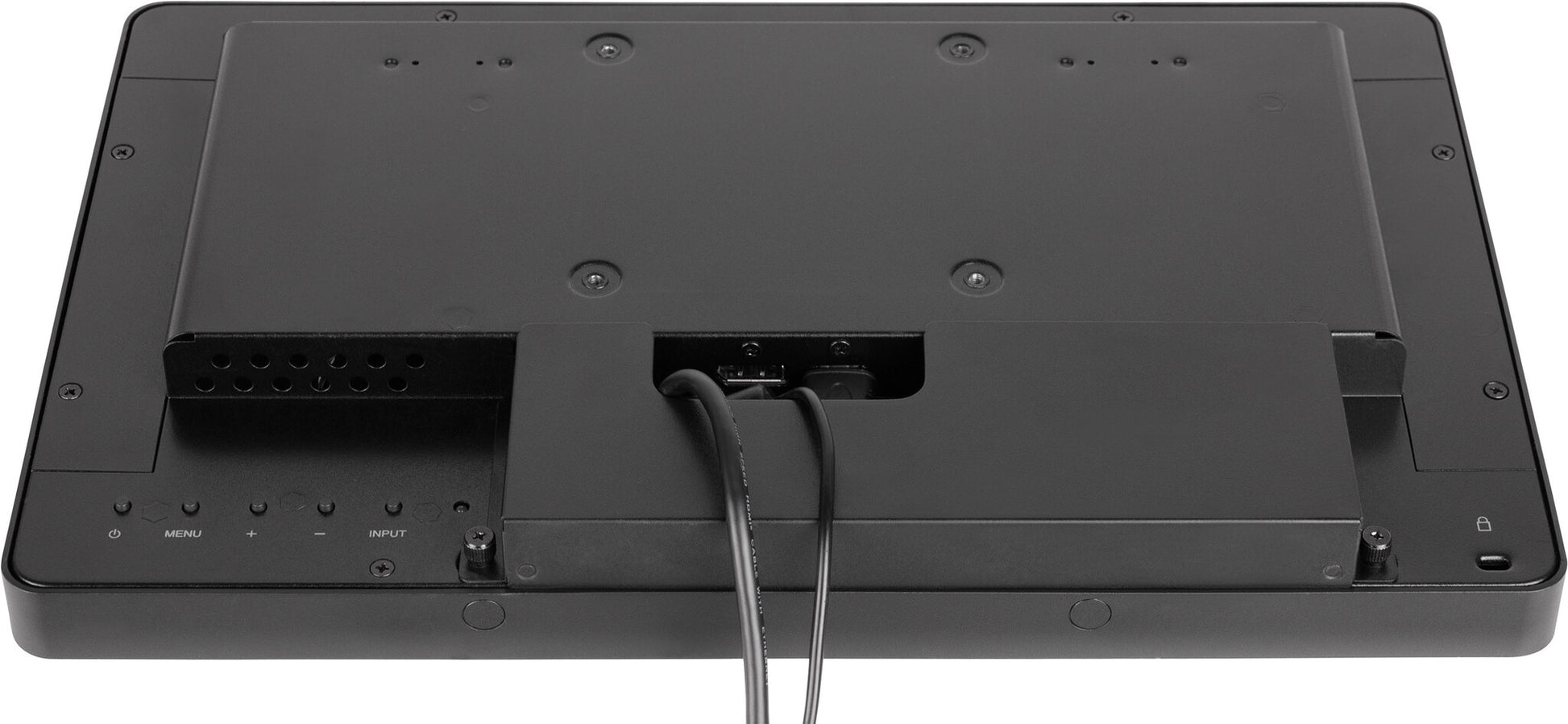

Cable management
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Height adjustment
No

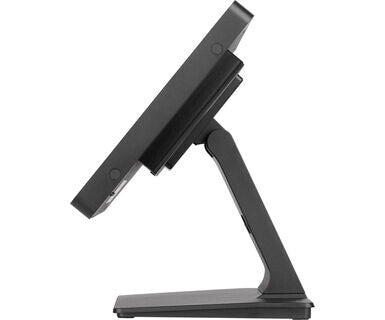

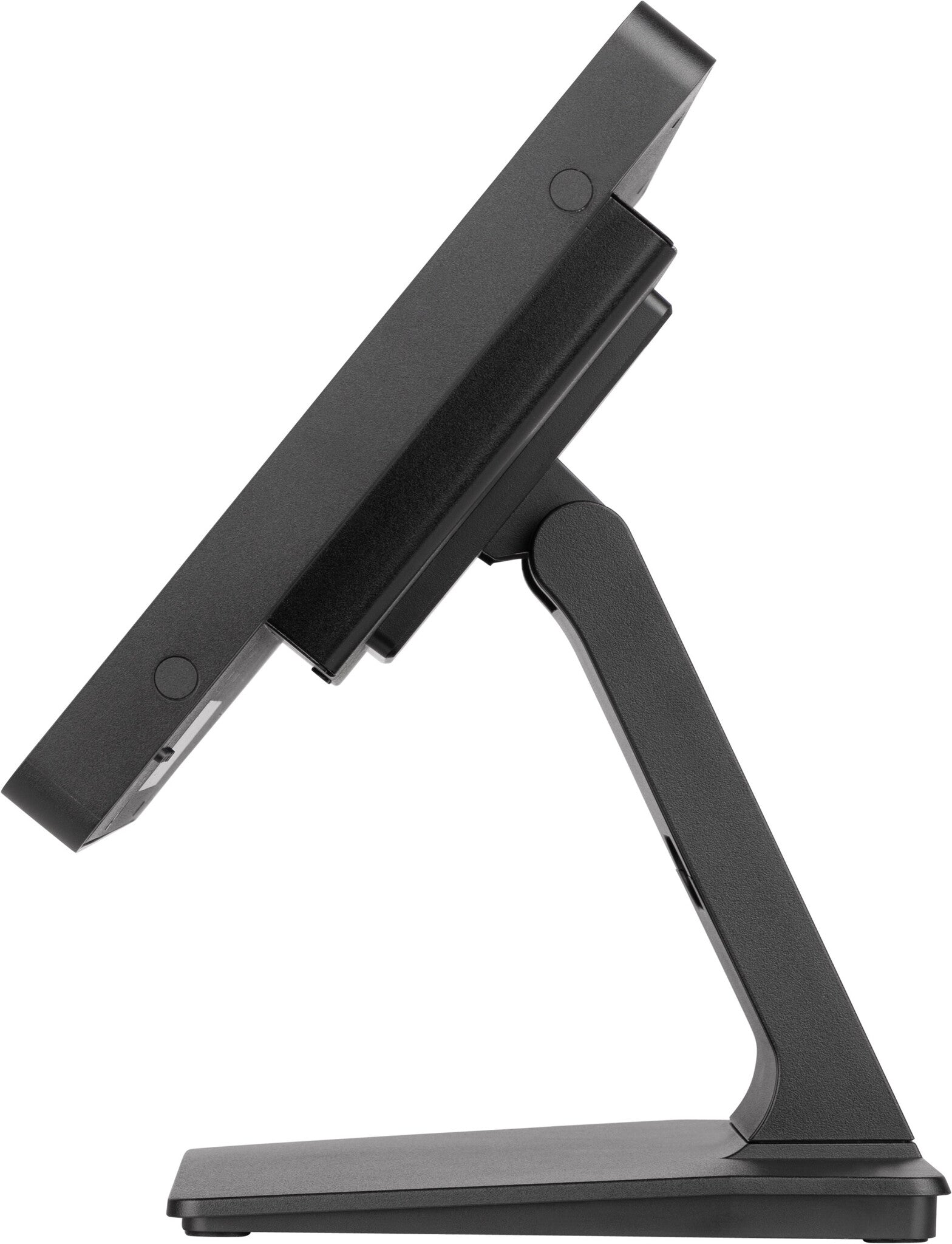

Tilt angle range
90 - 5°
On Screen Display (OSD)
Yes
Number of OSD languages
12
On Screen Display (OSD) languages
Traditional Chinese, Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian
Tilt adjustment
Yes
Packaging content
Power adapter included
Yes
Power
Energy efficiency class (SDR)
C
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
7.7 kWh
Power consumption (typical)
12 W
Power consumption (standby)
8 W
Power consumption (off)
0.5 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
AC adapter output voltage
12 V
Power supply type
External
Energy efficiency scale
A to G
Sustainability
Sustainability certificates
ErP
Algemeen
Productfamilie
ProLite
Weight & dimensions
Width (with stand)
389 mm
Depth (with stand)
200 mm
Height (with stand)
284 mm
Weight (with stand)
3.4 kg
Weight (without stand)
5.3 kg
Packaging data
Package type
Box
Cables included
AC, USB, HDMI
Quick start guide
Yes
Package width
475 mm
Package depth
169 mm
Package height
343 mm
Package weight
5.3 kg
Technical details
Native refresh rate
60 Hz
Compliance certificates
CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
AC adapter included
Yes
Packaging content
AC adapter
Brightness
385 cd/m²
Depth
200 mm
Width
389 mm
Height
284 mm
Weight
3.4 kg
Active display area (W x H)
344.2 x 193.6 mm
USB ports quantity
2

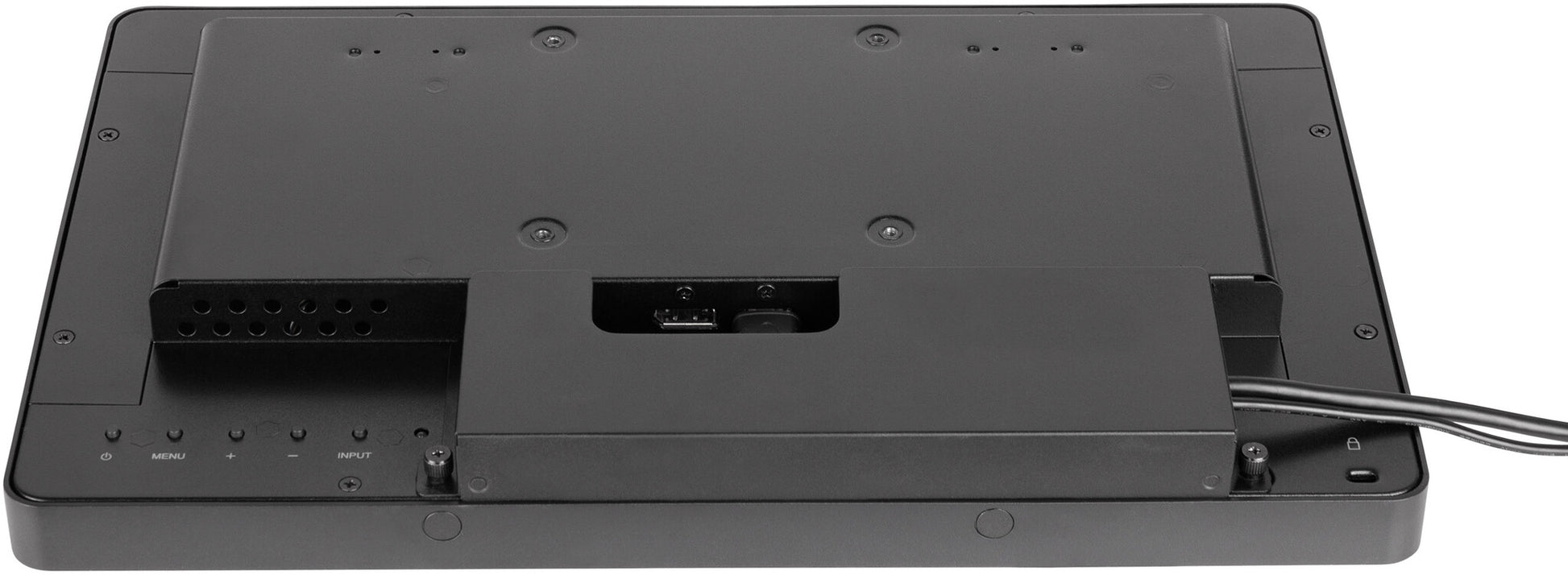

Control panel
Power, Menu, Volume +, Volume -, Input
Touch method
stylus, finger, glove (latex)
User controls
Luminance (contrast, brightness, i-Style color, adv. contrast, overdrive), image setup (aspect ratio), color temp., OSD setup (H. position, V. position, timeout, language, touch wake up), extra (input select, DDC/CI, reset, opening logo, LED, volume, information)
Touchscreen
Touchscreen
Yes
HD type
Full HD
Native aspect ratio
16:9
Display technology
LCD
Built-in camera
No
Number of simultaneous touchpoints
10
USB Touch port
Yes
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.179 x 0.179 mm
Display diagonal (metric)
39.5 cm
HDCP
Yes
